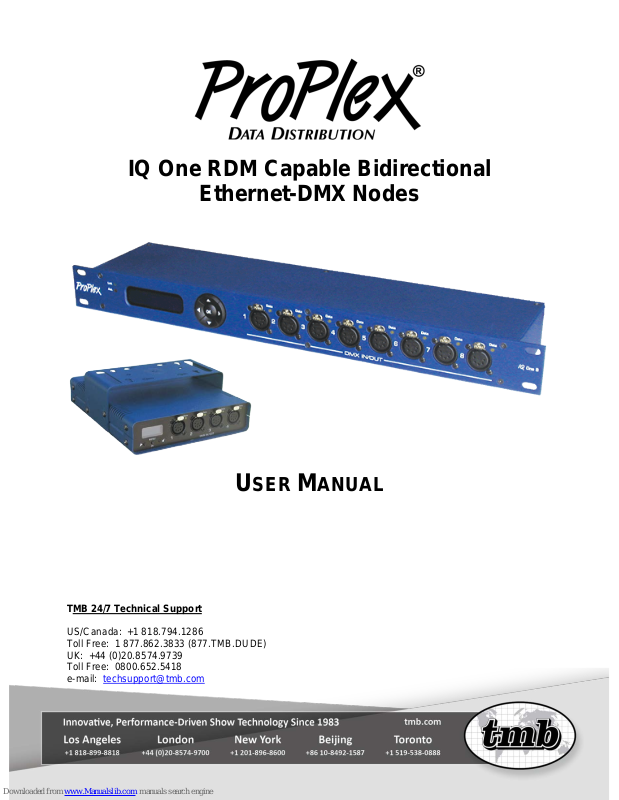

IQ One RDM Capable Bidirectional
Ethernet-DMX Nodes
USER MANUAL
TMB 24/7 Technical Support
US/Canada: +1 818.794.1286
Toll Free: 1 877.862.3833 (877.TMB.DUDE)
UK: +44 (0)20.8574.9739
Toll Free: 0800.652.5418
e-mail:
techsupport@tmb.com
![](/html/bf/bf37/bf37dc8e5eeff78d62debb7d4fd628fcc0e8aa3fab3fdc68da7223046e60e1eb/bg2.png)
ProPlex IQ One user manual version 1.6.8 122216
TABLE OF CONTENTS
1. BEFORE BEGINNING ........................................................................... ...... ....... .. ........ 3
Unpacking Instructions 3
Safety Instructions 3
Power Requirements 3
2. INTRODUCTION ......................................................................................................... 4
Description 4
IQ One RackMount Overview 4
IQ One Mini Overview 5
IQ One Optical RackMount Overview 5
3. SETUP ......................................................................................................................... 6
Fuse Replacement 6
Ethernet Connector 6
Fibre Optic Connector 6
Mounting/Rigging (Mini) 7
4. IQ CONFIGURATION ................................................................................................. 7
Configuration using bui lt-in web page 7
Configuration using control panel display 8
IQ Menu Tree 9
Network Setup 9
Protocol Setup 9
Routing Setup 10
Load Configuration 10
6. APPENDIX .................................................................................................................. 11
Remote Configuration/Monitoring 11
RDM Functionality 12
Basics of HTP Merging 12
Basics of Easy-Merge 12
Limited Warranty 12
Return Procedure 13
Technical Specifications 14
![](/html/bf/bf37/bf37dc8e5eeff78d62debb7d4fd628fcc0e8aa3fab3fdc68da7223046e60e1eb/bg3.png)
ProPlex IQ One user manual version 1.6.8 122216
1. BEFORE BEGINNING
U
NPACKING INSTRUCTIONS
Upon receipt of the unit, carefully unpack the carton and check the contents to ensure that all parts are
present and in good condition. Notify the shipper immediately and retain packing material for inspection if
any parts appear to be damaged from shipping or if the carton itself shows signs of mishandling. Save the
carton and all packing materials. In the event that a unit must be returned to the factory, it is important that it
be returned in the original factory box and packing.
POWER REQUIREMENTS
Before powering the unit, make sure the line voltage is within the range of accepted voltages. This unit
accommodates 100-240VAC, 50/60Hz. All units must be powered directly from a switched circuit and cannot
be operated with a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is
used solely for a 0-100% switch.
S
AFETY INSTRUCTIONS
• Keep this User Guide for future reference. If unit is sold to another user, make sure they also receive this
instruction booklet.
• Ensure the unit is connected to proper voltage, and that line voltage is not higher than that stated on the
device.
• Make sure there are no flammable materials close to the unit while operating.
• Always disconnect from the power source before servicing or fuse replacement. Always use the fuse
specified in this manual..
• Always use a safety cable when hanging unit overhead.
• Maximum ambient temperature (Ta) is 40°C (104°F). Do not operate unit at temperatures above this
rating.
• In the event of a serious operating problem, stop using the unit immediately. Repairs must be carried out
by trained, authorized personnel. Contact the nearest authorized technical assistance center. Only OEM
spare parts should be used.
• Do not connect the device to a dimmer pack.
• Make sure power cord is never crimped or damaged.
• Never disconnect power cord by pulling or tugging on the cord.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your distributor.
Please read these instructions carefully. This user guide
contains important information about the installation, us age
and maintenance of this product.
Disconnect the power cord before replacing a
fuse and always replace with the appropriate
![](/html/bf/bf37/bf37dc8e5eeff78d62debb7d4fd628fcc0e8aa3fab3fdc68da7223046e60e1eb/bg4.png)
ProPlex IQ One user manual version 1.6.8 122216
2. INTRODUCTION
DESCRIPTION
ProPlex IQ One bid irec tio n al Ether net-DMX are available in both Rack Mount and Mini tour-ready enclosures.
RackMount models include the IQ One 4, IQ One 8, and IQ One 8 Optical and convert between Ethernet and
4 or 8 universes of DMX as well as bidirectional Art-Net /sACN to DMX via Neutrik OpticalCon. The IQ One
Mini 4-way converts between Ethernet and 4 universes of DMX in a compact, versatile Mini enclosure. Just a
few of the features include:
• Bidirectional merging and Ethernet protocol conversion of DMX data (sACN/ArtNet)
• Intuitive, simple web interface or front panel control of all basic functions
• All Neutrik
™
connectors: Locking PowerCon, EtherCon, XLR
• Fibre optic version with OpticalCon c on nec tor av ai lab le!
• Four or eight DMX universes
• ProPlex “Blue Box” rugged, tour-ready enclosures
• RackMount and Mini format with truss-mount yoke
• Shock-mounted circuitry
PROPLEX IQ ONE RACKMOUNT OVERVIEW
![](/html/bf/bf37/bf37dc8e5eeff78d62debb7d4fd628fcc0e8aa3fab3fdc68da7223046e60e1eb/bg5.png)
ProPlex IQ One user manual version 1.6.8 122216
PROPLEX IQ ONE MINI OVERVIEW
PROPLEX IQ ONE OPTICAL RACKMOUNT OVERVIEW
