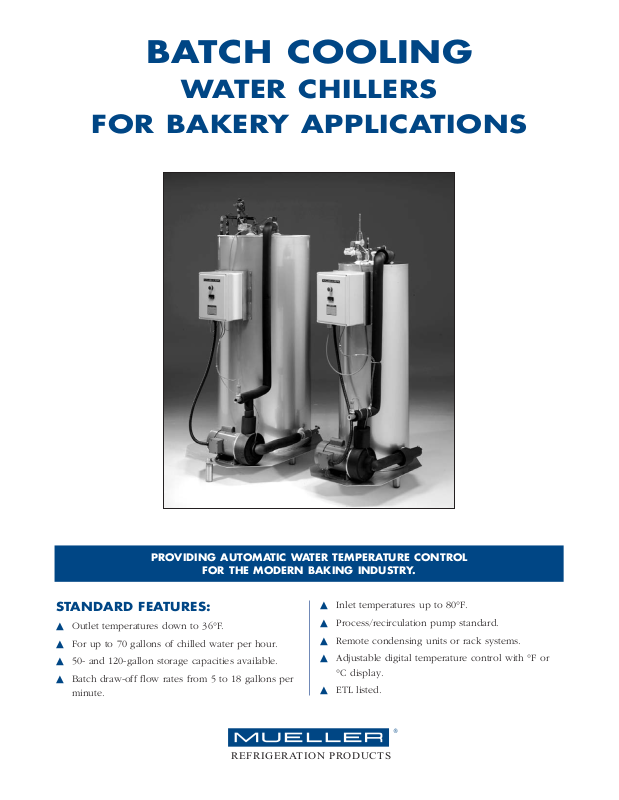

STANDARD FEATURES:
▲ Outlet temperatures down to 36°F.
▲ For up to 70 gallons of chilled water per hour.
▲ 50- and 120-gallon storage capacities available.
▲ Batch draw-off flow rates from 5 to 18 gallons per
minute.
▲ Inlet temperatures up to 80°F.
▲ Process/recirculation pump standard.
▲ Remote condensing units or rack systems.
▲ Adjustable digital temperature control with °F or
°C display.
▲ ETL listed.
PROVIDING AUTOMATIC WATER TEMPERATURE CONTROL
FOR THE MODERN BAKING INDUSTRY.
®
BATCH COOLING
WATER CHILLERS
FOR BAKERY APPLICATIONS
OUTLET TEMPERATURE CHART
Model No.
40/50 70/120
Inlet Temp. (gph*/storage) (gph*/storage)
Est. Est.
Lbs. Storage Draw-Off Condensing Condensing Shipping Dimensions
Per Capacity Flow Rate Unit Unit Electrical Weight L x W x H
Model No. GPH1Hour (gal) (gpm) Type HP Data (lbs) (in)
60°F 36°F 36°F
70°F 38°F 36°F
TYPICAL SYSTEM LAYOUT/PIPING DRAWING
®
P.O. Box 828 • Springfield, Missouri 65801-0828, U.S.A.
Phone: (417) 831-3000 • 1-800-MUELLER • Fax: 1-800-436-2466 • www.muel.com • E-mail: refrigeration@muel.com
International Inquiries - Fax: (417) 831-6906 • E-mail: international@muel.com
©1999-2004 Paul Mueller Company CR-1268-3
TECHNICAL SPECIFICATIONS
PERFORMANCE SPECIFICATIONS
*GPH capacities are based on a minimum water refill rate of at least 8 gpm,
and on drawing evenly sized and spaced batches each hour.
1
GPH capacities are based on a minimum water refill rate of at least 8 gpm, and on drawing evenly sized and spaced batches each hour.
2
The 2.0 hp remote condensing unit is suitable for outdoor operation with the addition of low-ambient controls and weather protection. Call the
factory for more information.
PMC 40/50-RC 40 334 50 gallon 14 Remote
2
2 208-230/60/1
Skid-310 32 x 24 x 72
CU-140 24 x 19 x 17
PMC 40/50-RS 40 334 50 gallon 14 None — 208-230/60/1 310 32 x 24 x 72
PMC 70/120-RC 70 584 120 gallon 18 Outdoor 3.5 208-230/60/1
Skid-710 42 x 34 x 84
CU-360 40 x 31 x 32
PMC 70/120-RS 70 584 120 gallon 18 None — 208-230/60/1 710 42 x 34 x 84
Suction Line
Bakery Mixer
Condensing Unit
Field Installed
Process Flow Switch
FS
1
Process
Valve
Liquid Line
Make-Up
Water In
Pump
S
PS
1
S
Bakery Chiller
TE
1
