Tmb M1200 Parts List

PALA-LOADER

“M 1200”

Pezzi di ricambio-Spare parts

MARDEN s.r.l.

Viale del Lavoro, 4
37050 Belfiore (Verona) ITALY.

www.marden-srl.com

Sheet 19

Sheet 21

Sheet 23

Sheet 24

Sheet 26
Sheet 20

Sheet
27

Sheet
16

Sheet
15

Sheet 20-22
Sheet 19

Sheet 19

Sheet 19

Sheet 24­25

Sheet 25

Sheet 14

N°

Description sheet 14

Code

Preis

1

Chain pinion

M.14.01

2 Spacer

M.14.02

3 Plate for fixing warmgear box

M.14.03

4 Short tickness

M.14.04

5 Long tickness

M.14.05

6 Wermgerabox

M.14.06

7 Motor

M.14.07

N°

Description sheet 15

Code

Preis

1

Gummed roller

M.15.01

2 Bearing

M.15.02

3 Pinion

M.15.03

4 Block

M.15.04

5 Pin for spring

M.15.05

6 Spring

M.15.06

7 Plate that bear rollers

M.15.07

8 Pin for compressor roller

M.15.08

9 External spacer for compressor roller

M.15.09

10

Compressor roller

M.15.10

11

Bearing

M.15.11

12

Inside spacer for compressor roller

M.15.12

N°

Description sheet 16

Code

Preis

1

Block for right regulation

M.16.01

2 Lateral pin for roller

M.16.02

3 Bearing

M.16.03

4 Inside spacer for roller

M.16.04

5 Back side roller

M.16.05

6 Central pin for roller

M.16.06

7 Traverse

M.16.07

8 Block for left regulation

M.16.08

N°

Description sheet 19

Same code

Code

Preis

1

Support

M.02.02-M.03.02

M. 19.01

2

Oscillating bracket

M. 19.02

3

Plate

M.03.17

M. 19.03

4

Wormgearbox

M. 19.04

5 Wormgearbox flange

M. 19.05

6

Motor+ Encoder

M.03.24

M. 19.06

7

Eccentric roller

M.03.16-M.02.05

M. 19.07

8

Bracket for connecting translation plates

M. 19.08

9

Wormgearbox plate

M. 19.09

10

Bearing

M.03.10

M. 19.10

11

shaft

M.03.20

M. 19.11

12

Gear

M.03.19

M. 19.12

13

Bushing for gear fixing

M.03.18

M. 19.13

14

Plate for plastic chain fixing

M. 19.14

15

Bracket for cable chain fixing

M. 19.15

16

Cable chain

M. 19.16

17

Support for Inductive sensor

M. 19.17

18

Inductive sensor

M.03.07-M.06.13
M.11.12-M.27.04
M.23.10

M. 19.18

19

Limit swicht

M.03.25- M.06.12
M.10.27-M.23.11
M.25.03

M. 19.19

20

Carter

M. 19.20

N°

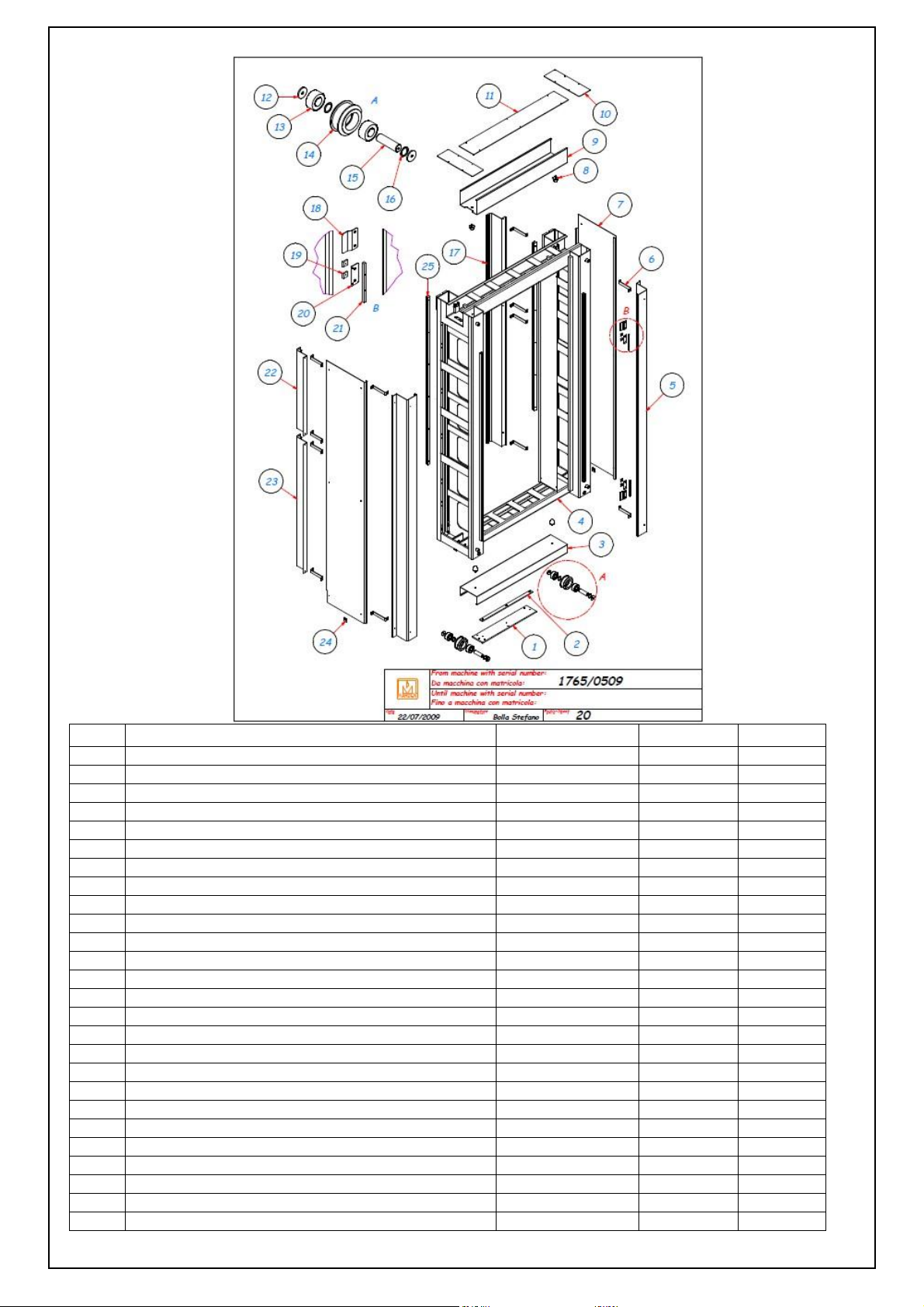

Description sheet 20

Same code

Code

Preis

1

Plate rail

M.20.01

2 rail

M.05.13

M.20.02

3 Inferior horizontal structure carter

M.05.11

M.20.03

4 Inferior horizontal structure

M.05.10

M.20.04

5 Front side column carter

M.20.05

6 Support column carter

M.20.06

7 Column carter

M.20.07

8 Tampon

M.05.12

M.20.08

9 Superior horizontal structure carter

M.05.03

M.20.09

10

Cover top column

M.20.10

11

Cover superior horizontal structure

M.20.11

12

Thickness

M.20.12

13

Bearing

M.05.17

M.20.13

14

Wheel

M.05.18

M.20.14

15

Inferior roller shaft

M.05.15

M.20.15

16

Inferior roller spacer

M.05.16

M.20.16

17

Posterior column carter

M.20.17

18

Bracket for limit swicth

M.20.18

19

filleted dish

M.20.19

20

Plate for cam

M.20.20

21

Cam for slowing down inductive sensor

M.20.21

22

Posterior column carter

M.20.22

23

Posterior column carter

M.20.23

24

Column carter

M.20.24

25

Rack

M.05.23

M.20.25

N°

Description sheet 21

Same code

Code

Preis

1

Lower support for electric panel

M.18.02

M.21.01

2 Fan

M.18.04

M.21.02

3 Cable chain

M.18.01

M.21.03

4

Cover for connection cable chain

M.21.04

5 Upper connection for cable chain

M.21.05

6 Spacer

M.21.06

7 Lower bracket for canal

M.18.07

M.21.07

8 Upper bracket for canal and electric panel

M.21.08

9 Aluminum canal

M.18.09

M.21.09

10

Canal cover

M.18.10

M.21.10

11

Upper cover for electric panel

M.18.11

M.21.11

12

Electric control panel

M.18.03

M.21.12

N°

Description sheet 22

Same code

Code

Preis

1

Counterweight

M.04.12

M.22.01

2 Shaft for roller

M.04.11

M.22.02

3 Bearing

M.04.09

M.22.03

4

Roller

M.04.08

M.22.04

5 Plate for fixing chain

M.22.05

6 Spacer

M.22.06

7 Pulley

M.22.07

8 chain

M.22.08

9 Pin for pulley

M.22.09

10

Bearing

M.22.10

N°

Description sheet 23

Same code

Code

Preis

1

Cariage roller

M.06.07

M.23.01

2

Bearing

M.06.03

M.23.02

3

Spacer

M.06.27

M.23.03

4

Eccentric pin for plate

M.06.06

M.23.04

5

Brackt for plates

M.23.05

6

Bolt of register

M.23.06

7

Bolt of register cover

M.23.07

8

Plate right

M.23.08

9 Plate for fixing Inductive sensor

M.23.09

10

Inductive sensor

M.06.13

M.23.10

11

Limit switch

M.06.12

M.23.11

12

Spacer

M.23.12

13

Motor+encoder

M.23.13

14

Wormgearbox

M.06.25

M.23.14

15

Support

M.06.16

M.23.15

16

Plate register

M.23.16

17

Up/down gear shoulder

M.06.01

M.23.17

18

Gear cover

M.23.18

19

Motor shaft up/down cariage

M.23.19

20

Top cover for support cable chain

M.23.20

21

Support for plastic cable chain

M.23.21

22

Plate for cable

M.23.22

23

Lateral side cover for support cable chain

M.23.23

24

Front cover for support cable chain

M.23.24

25

Plate left

M.23.25

26

Wormgearbox flange

M.23.26

27

N°

Description sheet 24

Same code

Code

Preis

1

Left support for bearing

M.24.01

2 Spacer

M.24.02

3 Bearing

M.08.10

M.24.03

4 Left point

M.08.01

M.24.04

5 Lefl stop

M.24.05

6 Left tierod double-jointed point

M.24.06

7 Right point for glasses opening

M.07.14

M.24.07

8 Double-jointed point

M.24.08

9 Left point for glasses opening

M.07.16

M.24.09

10

Right tierod double-jointed point

M.07.12

M.24.10

11

Control bar for double-jointed point

M.07.10

M.24.11

12

Block bar sliding

M.07.07

M.24.12

13

Block for bar

M.07.06

M.24.13

14

Adjustable left side for glasses opening

M.24.14

15

Load/unload loom

M.24.15

16

Adjustable right side for glasses opening

M.24.16

17

Alluminium plate

M.24.17

18

Cotton belt

M.07.01

M.24.18

19

Spring recall bar

M.07.09

M.24.19

20

Block stop spring

M.07.08

M.24.20

21

Roller save belt

M.08.02

M.24.21

22

Metal bush

M.08.03

M.24.22

23

Metal bush

M.08.08

M.24.23

24

Right point

M.08.05

M.24.24

25

Right stop

M.08.06

M.24.25

26

Right support for bearing

M.24.26

27

Long block bar sliding

M.07.11

M.24.27

N°

Description sheet 25

Same code

Code

Preis

1

Not 2

Plate for fixing the limit switch

M.25.02

3 Limit switch

M.10.27

M.25.03

4 Not 5

Tampon

M.25.05

6 Plate for fixing tampon

M.25.06

7 Support for fixing the front vertical cover

M.25.07

8 Front vertical cover

M.25.08

9 Derivation box

M.25.09

10

Small lateral front cover

M.25.10

11

Left side profile

M.25.11

12

Plate for fixing the derivation box

M.25.12

13

Traverse

M.25.13

14

Cover traverse

M.25.14

15

Shaft

M.25.15

16

Canal for cables

M.25.16

17

Cable chain

M.25.17

18

Canal for cable chain

M.25.18

19

Support for fixing the back vertical cover

M.25.19

20

Back vertical carter

M.10.13

M.25.20

21

Back carter

M.25.21

22

Back reinforcement

M.25.22

23

Cover for canal cables

M.25.23

24

Plate for fixing slowing down cam inductive sensor

M.25.24

25

Slowing down cam inductive sensor

M.25.25

26

Safety cam inductive sensor

M.25.26

27

Plate for fixing safety cam inductive sensor

M.25.27

28

Big lateral cover

M.25.28

29

Small lateral cover back

M.25.29

30

Plate for adjust the carriage

M.10.02

M.25.30

31

Block register

M.25.31

32

Bearing

M.09.08

M.25.32

33

Roller

M.25.33

34

Register spacer

M.25.34

35

Right side profile

M.25.35

N°

Description sheet 26

Same code

Code

Preis

1

Support

M.26.01

2 Rack shaft

M.26.02

3 Warmgearbox

M.13.06

M.26.03

4 Motor+encoder

M.26.04

5 Torque arm

M.13.08

M.26.05

6 Plastic chain

M.26.06

7 Clean chain

M.26.07

8 Bearing

M.26.08

9 Gear

M.26.09

10

Roller

M.26.10

11

Plate for fixing clean chain

M.26.11

12

Top plate for fixing plastic chain

M.26.12

13

Under plate for fixing plastic chain

M.26.13

14

Plate for register plastic chain

M.26.14

N°

Description sheet 27

Same code

Code

Preis

1

Traverse for fixing cable chain

M.27.01

2 Cover roller

M.27.02

3 Pipe for fixing plate

M.11.05

M.27.03

4 Sensor inductive

M.11.12

M.27.04

5 Plastic plate for cleaning rail

M.27.05

6 Roller

M.27.06

7 Bearing

M.27.07

8 Chain tensioner plate

M.27.08

9 Bearing

M.11.14

M.27.09

10

pinion

M.11.15

M.27.10

11

Chain

M.11.01

M.27.11

12

Left plate

M.27.12

13

Left side bank

M.27.13

14

Aluminum plate

M.27.14

15

Roll

M.11.07

M.27.15

16

Bearing

M.11.08

M.27.16

17

Spacer inside

M.11.09

M.27.17

18

Spacer outside

M.11.10

M.27.18

19

Shaft

M.11.11

M.27.19

20

Not present

21

Not present

22

Right side bank

M.27.22

23

Right plate

M.27.23

N°

Description sheet 28

Same code

Code

Preis

1

Profile

M.01.01

M.28.01

2 Linear guide

M.01.02

M.28.02

3 Support cam for lateral translation inductive sensor

M.01.03

M.28.03

4 Cam for slowing inductive sensor

M.01.04

M.28.04

5 Cam for positioning inductive sensor

M.01.05

M.28.05

6 Support short

M.28.06

7 Cam

M.01.07

M.28.07

8 Front stop

M.01.08

M.28.08

9 Rack

M.01.09

M.28.09

10

Plate for joint

M.01.10

M.28.10

11

Support long

M.28.11

12

Up canal for cable chain

M.28.12

13

Under canal with support for box

M.28.13
