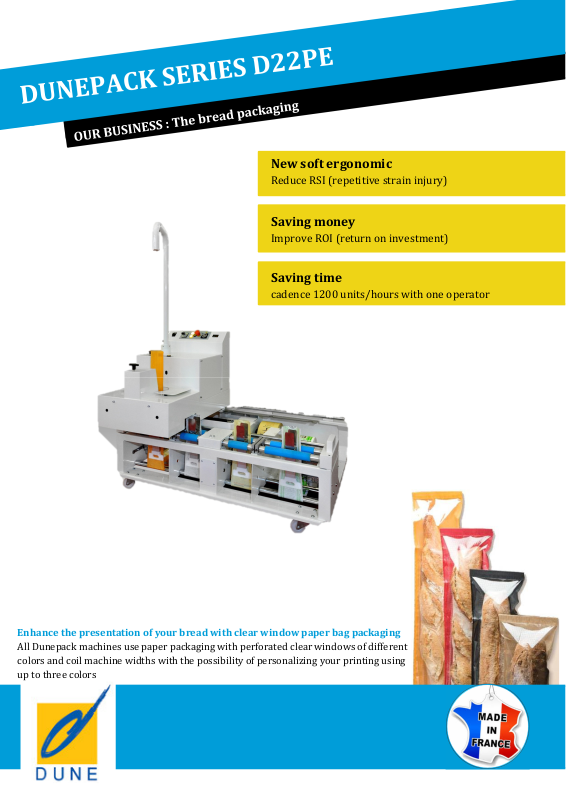

Tmb D22 User Manual

New soft ergonomic

Saving money

Saving time

cadence 1200 units/hours with one operator

Reduce RSI (repetitive strain injury)

Improve ROI (return on investment)

Enhance the presentation of your bread with clear window paper bag packaging

All Dunepack machines use paper packaging with perforated clear windows of different
colors and coil machine widths with the possibility of personalizing your printing using
up to three colors

Registered design

– protected by international patent

Control Panel

Machine D22

GENREAL CHARACTERISTICS

PACKAGE:

As muche long bread, French sticks, baguettes,
small loaves, wholemeal loaves, etc… as you
like.

FAST AND EASY TO USE:

This packaging system introduces the loaves
in a preopened package both easily and
without tearing the bag.
An air blower can be used in order to improve
productivity, use smaller packages and thus
further reduce packaging costs.
Average packaging rate: 1200 loaves per hour
with one operator (bread input, packaging and
dispatching into bread bins).
The machine complies with current safety
standards, and particularly EEC standards.

4 supports rolls

SPECIFICATIONS MODEL D22

SPEED 1200 units/ hours

WIDTH ROLLS From 130 to 320 mm

DIAMETER

ROLLS

VOLTAGE

ELECTRIC

POWER

NUMBER OF

ROLLS

WEIGHT 250 Kg

3 Phase 380V+Earth+Neutral /

250mm

50Hz

1000W

4

AUTOMATIC CONTROL:

The bag is automatically cut and sealed
according to the length of the loaf, which can
be adjusted manually. The mechanical cutting
and air tight welding system is controlled by a
photoelectric cell.

DUNE SAS

24 avenue Urbain le verrier – 69800 SAINT PRIEST – France

Phone : [phone] – Fax : [phone]

www.dune-sa.fr – [e-mail]

SIZE L: 1440 mm / W: 945 mm
