printing using up to three colo

rs

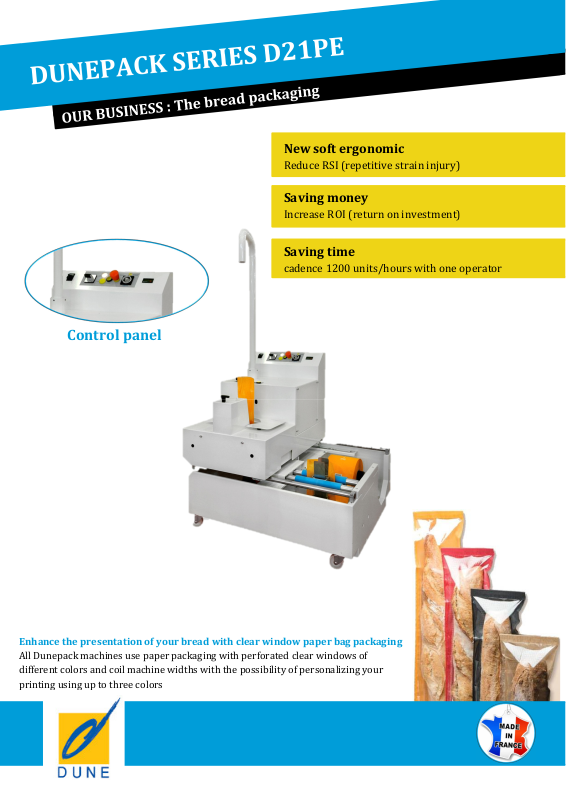

New soft ergonomic

Saving money

Saving time

Control panel

Reduce RSI (repetitive strain injury)

Increase ROI (return on investment)

cadence 1200 units/hours with one operator

Enhance the presentation of your bread with clear window paper bag packaging

All Dunepack machines use paper packaging with perforated clear windows of
different colors and coil machine widths with the possibility of personalizing your

Machine D21

GENREAL CHARACTERISTICS

PACKAGE:

As much long bread, French sticks, baguettes,

small loaves, whole meal loaves, etc… as you like.

FAST AND EASY TO USE:

This packaging system introduces the loaves in a

preopened package both easily and without

tearing the bag.

An air blower can be used in order to improve

productivity, use smaller packages and thus

further reduce packaging costs.

Average packaging rate: 1200 loaves per hour

with one operator (bread input, packaging and

dispatching into bread bins).

The machine complies with current safety

standards, and particularly EEC standards.

AUTOMATIC CONTROL:

The bag is automatically cut and sealed according

to the length of the loaf, which can be adjusted

manually. The mechanical cutting and air tight

welding system is controlled by a photoelectric

AUTONOMY:

The machine uses spools providing autonomy

of 1,000 bags or more (bags approximately 70

cm long).

The DUNEPACK D21 machine is equipped with

a double spool feeder and a double shaper: one

for baguette and one for 400g loaf widths.

SPECIFICATIONS MODEL D21

SPEED 1200 bread/hours

WIDTH ROLLS From 130 to 320 mm

DIAMETER ROLLS 250 mm

3 Phase

VOLTAGE

ELECTRIC POWER 800 W

NUMBER OF ROLLS 2

WEIGHT 160 Kg

380V+Earth+Neutral / 50

Hz

cell.

Registered design – protected by international patent

DUNE SAS

24 avenue Urbain le verrier – 69800 SAINT PRIEST – France

Phone : [phone] – Fax : [phone]

www.dune-sa.fr – [e-mail]

SIZE L: 1040 mm / W : 840 mm
