LifTIL

ruk

®

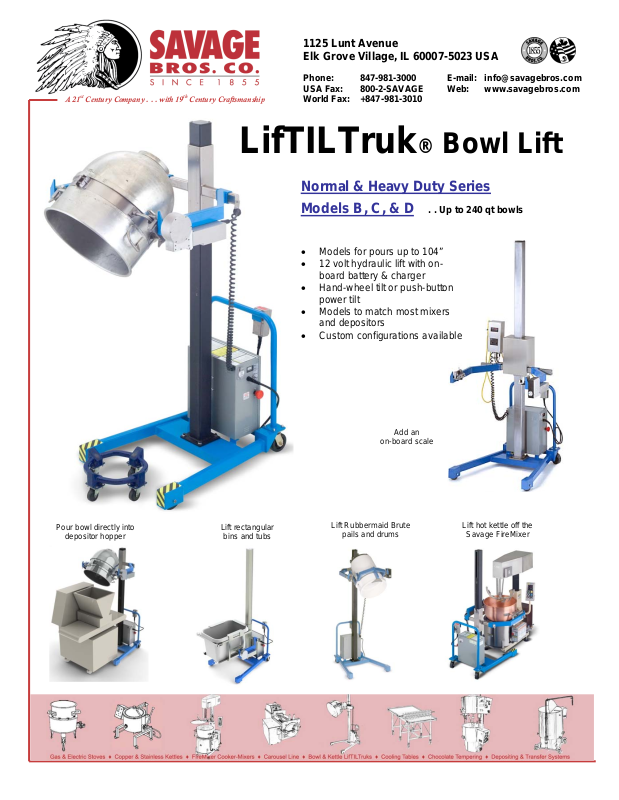

Bowl Lift

Normal & Heavy Duty Series
Models B, C, & D

. . Up to 240 qt bowls

Models for pours up to 104”

 12 volt hydraulic lift with on-

board battery & charger

 Hand-wheel tilt or push-button

power tilt

 Models to match most mixers

and depositors

 Custom configurations available

Add an

on-board scale

Pour bowl directly into

depositor hopper

Lift rectangular

bins and tubs

Lift Rubbermaid Brute

pails and drums

Lift hot kettle off the

e FireMixe

Sava

g

A

st

p

1125 Lunt Avenue

21

Century Company . . . with 19

th

Century Craftsmanshi

Elk Grove Village, IL 60007-5023 USA

Phone: [phone]
USA Fax: 800-2-SAVAGE
World Fax: + 847-981-3010
E-mail: [e-mail]
Web: www.savagebros.com

FEATURES OF SAVAGE LIF

TILT

RUK™

 One person operation
 Fail-Safe Lift & Tilt
 Push-Button controlled tilting
 Pour bowl at any point along vertical lift
 Self-contained power for safe, cordless use
 Easy-to-clean surfaces

Models for pouring heights from
3 feet / 900 mm to over
8 feet / 2700 mm

Arms adjust for different diameter
mixing bowls and kettles

Self-locking mechanism to hold
bowl safely –automatically
engages – no tilt unless properly
engaged

Low profile base on heavy-duty
casters

Heavy-duty column
machined 4 sides & Electroless
Nickel Plated for smooth lifting

Easy-slide tube

Stainless steel operator pendant
station on 6’ cord

Tilt safety circuit breaker with
Amp & Volt meters to monitor
power source

Emergency Stop button

Powered Tilt drive
(hand-wheel tilt available)

Fail-Safe hydraulic system with
on-board 12VDC power source and
standard volta

e AC re-charger

Handles bowls, kettles and other containers up to 450 Lb / 200 Kg capacity

Models for pours from 3 feet / 900 mm to over 8 feet / 2700 mm

1125 Lunt Avenue
Elk Grove Village, IL 60007-5023 USA

Phone: [phone]
USA Fax: 800-2-SAVAGE
World Fax: + 847-981-3010
E-mail: info@sa vagebros.co m
Web: www.savagebros.com

A 21st Century Company . . . with 19th Century Craftsmanship

THE LIF

TILT

RUK™ BOWL LIFT

KEY CHARACTERISTICS

1. Designed with safety in mind. Construction and safety features have been “informally”
reviewed by OSHA and meet the standard. Savage holds several U.S. patents on key safety
features of the unit.

2. Our unit's construction is of steel for strength; the base and arms are powder painted for
durability. The vertical column has a heavy-duty construction, machined on all four sides
with an Electroless Nickel Plated surface – smooth, trouble-free operation.

3. The bowl is lifted by mean of a hydraulic pump and piston. Our hydraulic system is rated to
1,000 Lb / 450 Kg and includes a chain assist that is rated 7X over the lifting capacity.

4. Our hydraulic system is "fused", which means that should hydraulic pressure be lost for any
reason, including rapid loss of fluid, the bowl will not fall. Rather, the fuse will maintain
pressure and slowly lower the bowl.

5. The 12 Volt DC battery that powers the hydraulic pump and tilt motor is a sealed unit of a
marine type rated for 185 reserve minutes. Power cord free for lifting and pouring.

6. The on-board 110 Volt AC battery charger is significantly "over rated" for application for
trouble free performance. 220 Volt 50 Hz units available for operation outside of North America.
Just plug into standard electrical outlet to recharge when unit not in use.

7. The casters are 5" diameter, 2 fixed in front and 2 swivel in rear. All casters are rated for 900
lbs each.

8. The unit will pick up Savage kettles directly and most manufacturers’ mixing bowls and
containers adapted with non-interfering straps. Containers adapted with proper handles
automatically lock into the LifTILTruk arms for fail-safe tilting.

9. For proper and safe tilting of a mixing bowl, Savage provides stainless steel straps with
handles for easy mounting on the bowl. Neither the Hobart installed bowl handles nor the

mixer mounting ring on the bowl were designed for use as a tilting pivot. These bowl
components may not withstand the torque stress associated with repeated tilting.

10. Manufactured in the U.S.A.

SAVAGE BROS has manufactured and placed in service over 2,100 LifTILTruks!

SAVAGE BROS. CO.

TILT

LIF

HYDRAULIC 12 VOLT DC LIFT AND TILT M OD EL
On -board 120VAC (or standard coun try voltage) Ch ar ger
SLIDE TUBE MAXIMU M POUR H EIGHT

Stan dar d 140 Qt B owl 53 1346 77 1956 105 2667

60 & 80 Qt Bowl

Scale 140 Qt B owl 48.5 1232 66.5 1689 96.5 2451

60 & 80 Qt Bowl

LIFTING CAPACITY
MACHINE HEIGHT

Column H eigh t 82 2083 100 2540 130 3302

Machine Height 88 2235 106 2692 136 3454

Min imum Picku p off Floor

BASE DIMENSIONS

Length 42 1067 48 1219 48 1219

Height 6 152 6 152 6 152

SHIPPIN G DATA

Crate #1 Width 42 1067 47 1194 52 1321

Length 48 1219 54 1372 50 1270

Height 94 2388 45 1143 45 1143

Crate #2 Width 34 864 34 864

Length 110 2794 140 3556

Height 13 330 13 330

Weight of shipment

Phon e: [phone]
USA Fax:
Wor l d F ax : [phone]
E-mail: [e-mail]

(800) 2-S AV AGE

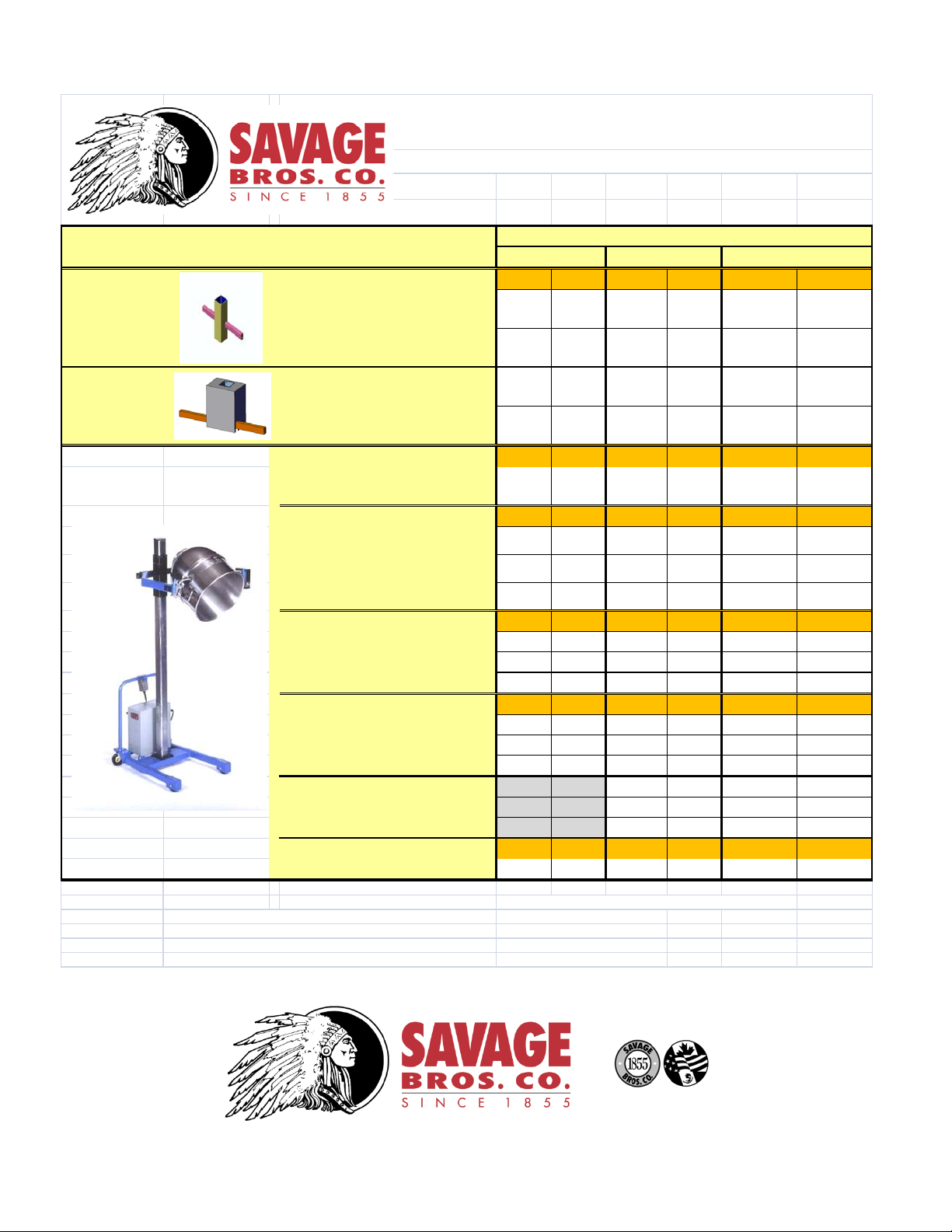

RUK® SPECIFICATIONS

B - #0710 C - #0712 D - #0717

inches mm inches mm inches mm

55 1397 79 2007 107 2718

51.5 1308 69.5 1765 99.5 2527

Lbs K g Lbs Kg Lbs Kg

450 200 450 200 450 200

inches mm inches mm inches mm

14 356 14 356 14 356

inches mm inches mm inches mm

Width 32 813 39 991 46 1168

inches mm inches mm inches mm

Lbs K g Lbs Kg Lbs Kg

600 273 650 296 720 328

For special requirements, please contact factory.

* Off-chart pouri ng h ei ghts
* Ceiling height restrictions
* Different bowls or co nt ai ne rs
* USDA washdown environments
