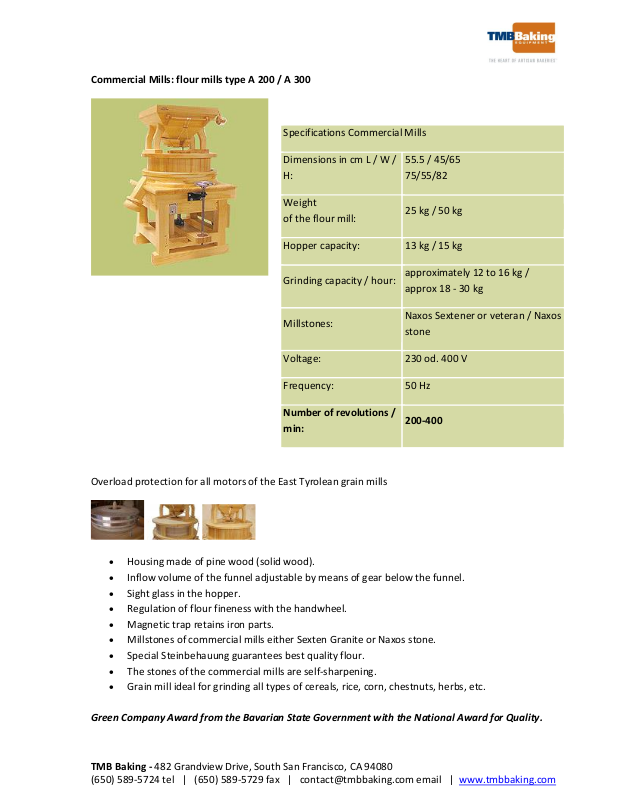

Commercial Mills: flour mills type A 200 / A 300

Specifications Commercial Mills

Dimensions in cm L / W /
H:

55.5 / 45/65
75/55/82

Weight
of the flour mill:

25 kg / 50 kg
Hopper capacity:

13 kg / 15 kg

Grinding capacity / hour:

approximately 12 to 16 kg /
approx 18 - 30 kg

Millstones:

Naxos Sextener or veteran / Naxos
stone

Voltage:

230 od. 400 V

Frequency:

50 Hz

Number of revolutions /
min:

200-400

Overload protection for all motors of the East Tyrolean grain mills

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

Green Company Award from the Bavarian State Government with the National Award for Quality.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Commercial Mills: flour mills Type A 400

Specifications Commercial Mills

Dimensions in cm L / W / H:

95/80/110

Weight
of the flour mill:

120 kg
Hopper capacity:

25 kg

Grinding capacity / hour:

about 28 - 40 kg

Millstones:

Naxos stone

Voltage:

230 od. 400 V

Frequency:

50 Hz

Number of revolutions / min:

200-400

Overload protection for all motors of the East Tyrolean grain mills

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Commercial Mills: flour mills Type A 500

Specifications Commercial Mills

Dimensions in cm L / W / H:

115/95/150

Weight
of the flour mill:

250 kg
Hopper capacity:

42 kg

Grinding capacity / hour:

50 - 95 kg

Millstones:

Naxos stone

Voltage:

230/400 V

Frequency:

50 Hz

Number of revolutions / min:

200-400

Overload protection for all motors of the East Tyrolean grain mills

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Commercial Mills: flour mills type A 700

Specifications Commercial Mills

Dimensions in cm L / W / H:

150/115/180

Weight
of the flour mill:

700 kg
Hopper capacity:

85 kg

Grinding capacity / hour:

70 - 125 kg

Millstones:

Naxos stone

Voltage:

400 V

Frequency:

50 Hz

Number of revolutions / min:

150-400

Overload protection for all motors of the East Tyrolean grain mills

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Flour mills plant type A 700

Technical Specifications

Stone grinder

Naxos stone

Gosse, frame

made of pine
wood

Frame inside

equipped in
stainless steel

Gear

below the hopper

Sight glass

in the hopper

Regulation of
flour fineness

handwheel,
magnetic trap

Overload protection for all motors.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

 Base in metal
 Complete with flour sieving machine Type 700

- Made of pine wood with 3 chambers inside the grinding chamber in stainless steel

- 5 screen frames with different strengths and pneumatic transport system

- cyclone with lock, Exhaust

- Pipe with arches in stainless steel, air box filter

Commercial Mills: flour mills Type A 1000

Specifications Commercial Mills

Dimensions in cm L / W / H:

175/145/195

Weight
of the flour mill:

1000 kg
Hopper capacity:

120 kg

Grinding capacity / hour:

140 - 200 kg

Millstones:

Naxos stone

Voltage:

400 V

Frequency:

50 Hz

Number of revolutions / min:

200-250

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Commercial Mills: Cereal Mills Type A 1200

Specifications Commercial Mills

Dimensions in cm L / W / H:

200/170/215

Weight
of the flour mill:

2000 kg
Hopper capacity:

130 kg

Grinding capacity / hour:

170 - 250 kg

Millstones:

Naxos stone

Voltage:

400 V

Frequency:

50 Hz

Number of revolutions / min:

140

Overload protection for all motors of the East Tyrolean grain mills

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.

TMB Baking - 482 Grandview Drive, South San Francisco, CA 94080
[phone] tel | [phone] fax | [e-mail] email | www.tmbbaking.com

Commercial Mills: Cereal Mills Type A 1600

Specifications Commercial Mills

Dimensions in cm L / W / H:

250/210/230

Weight
of the flour mill:

2500 kg
Hopper capacity:

180 kg

Grinding capacity / hour:

400 - 500 kg

Millstones:

Naxos stone

Voltage:

400 V

Number of revolutions / min:

130-260

Overload protection for all motors of the East Tyrolean grain mills.

 Housing made of pine wood (solid wood).
 Inflow volume of the funnel adjustable by means of gear below the funnel.
 Sight glass in the hopper.
 Regulation of flour fineness with the handwheel.
 Magnetic trap retains iron parts.
 Millstones of commercial mills either Sexten Granite or Naxos stone.
 Special Steinbehauung guarantees best quality flour.
 The stones of the commercial mills are self-sharpening.
 Grain mill ideal for grinding all types of cereals, rice, corn, chestnuts, herbs, etc.Grain Mill with

window
