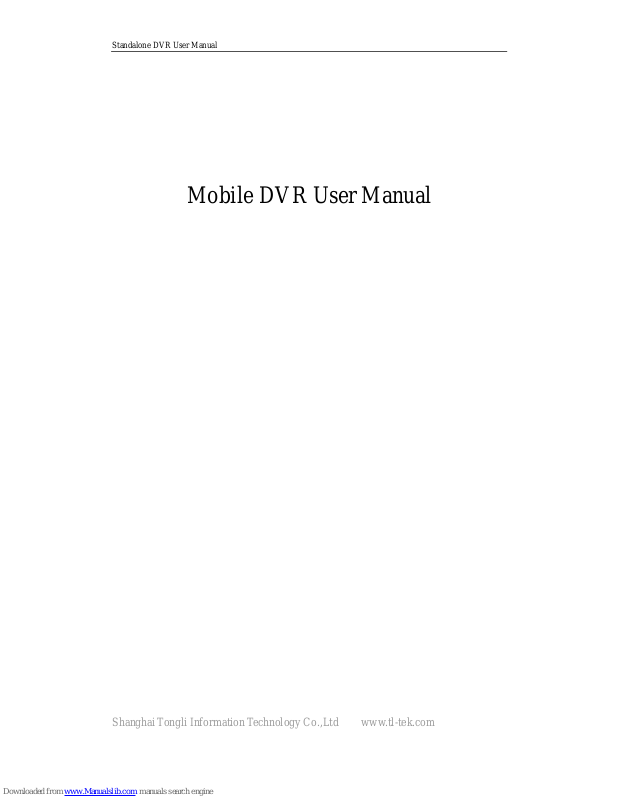

Page 1
Standalone DVR User Manual
Mobile DVR User Manual
Shanghai Tongli Information Technology Co.,Ltd www.tl-tek.com
Page 2
Standalone DVR User Manual
Contents
1 Product Introduction ..................................................................................................................... 3
1.1 Product Summary ..................................................................................................... 3
1.2 Main Functions of the Product .................................................................................. 3
1.3 Technical Parameter .................................................................................................. 4
2 Structure Introduction of the Product Appearance ........................................................................ 5
2.1 Product Connection Port Instruction ......................................................................... 5
2.2 Remote Control Instruction .................................................................................... 10
3 System Operating Instruction ...................................................................................................... 11
3.1 Start System ............................................................................................................. 11
3.2 Shutdown System .................................................................................................... 11
3.3 Basic Operation Instruction of Menu ....................................................................... 11
3.3.1 Enter Menu Mode ................................................................................................. 11
3.3.2 Menu Component Instruction ............................................................................... 11
3.3.3 Exit Menu Mode .................................................................................................. 12
3.4 Main Menu ............................................................................................................. 12
3.5 Channel Preview ..................................................................................................... 12

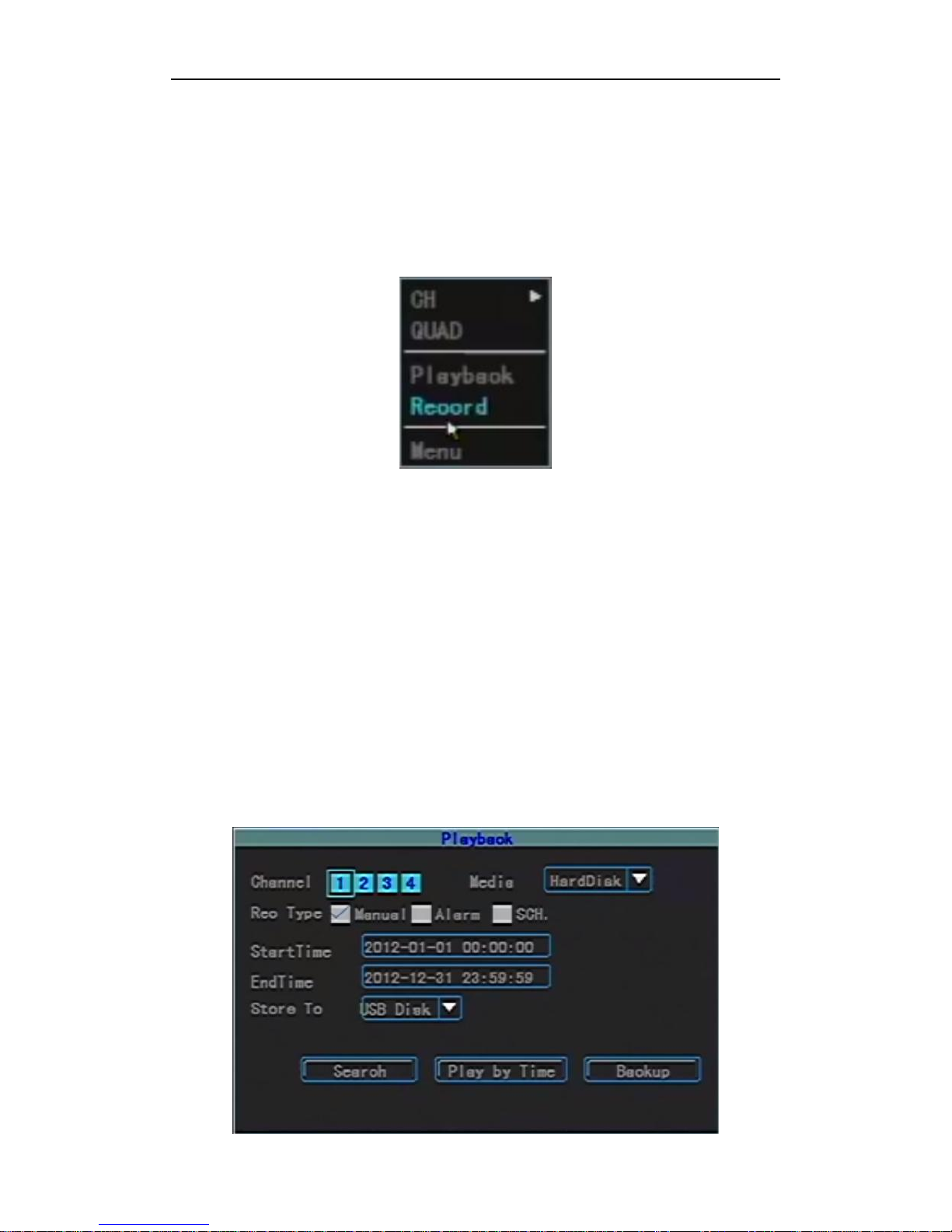

3.6 Playback .................................................................................................................. 12
3.7 Manual Recording .................................................................................................. 14
3.8 Menu ....................................................................................................................... 15
3.8.1 Tools .................................................................................................................... 15

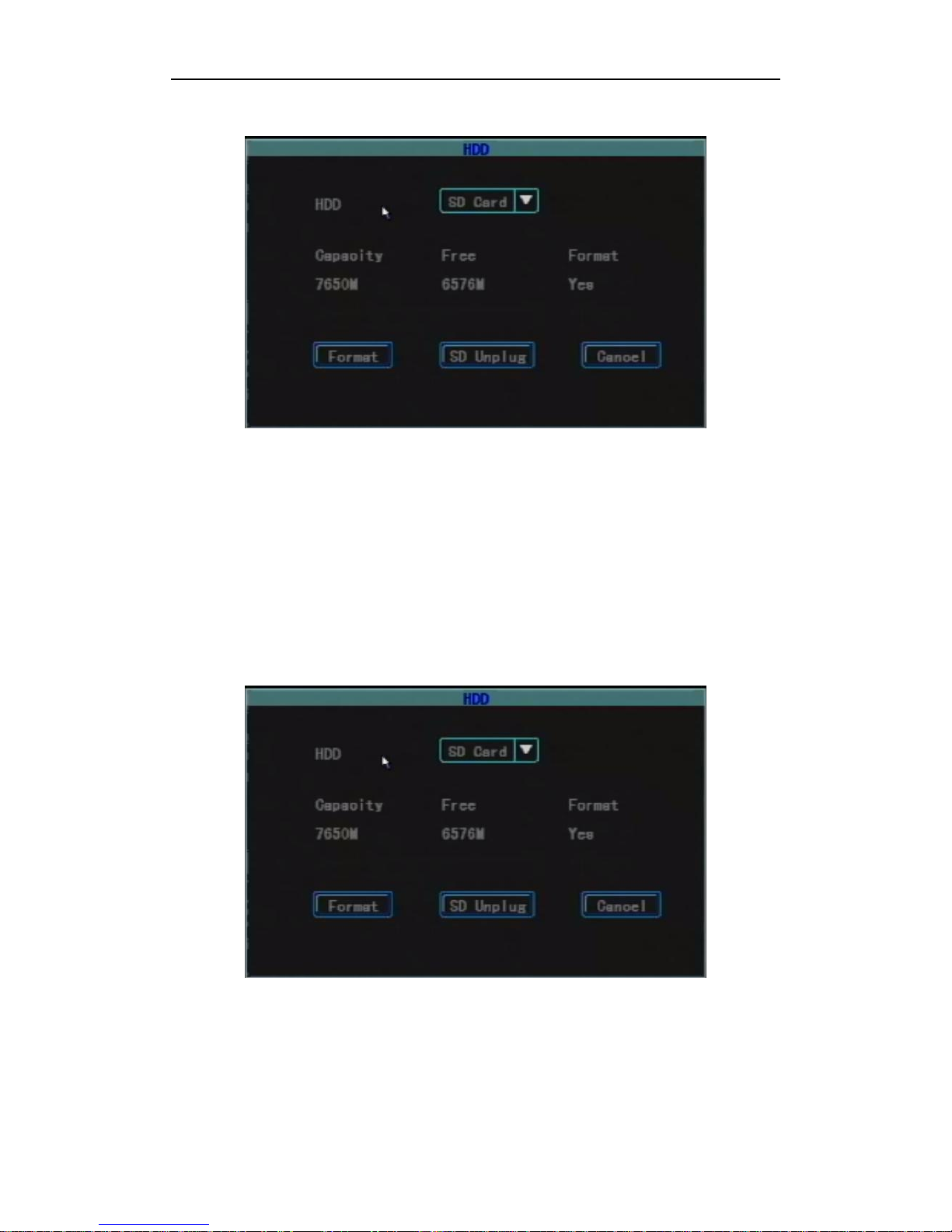

3.8.1.1 HDD Management ............................................................................................ 16
3.8.1.2 User Management ............................................................................................. 16
3.8.3 PTZ Control ................................................................................................ 26
3.8.4 Log Information .......................................................................................... 26
3.8.5 Shutdown System ........................................................................................ 27

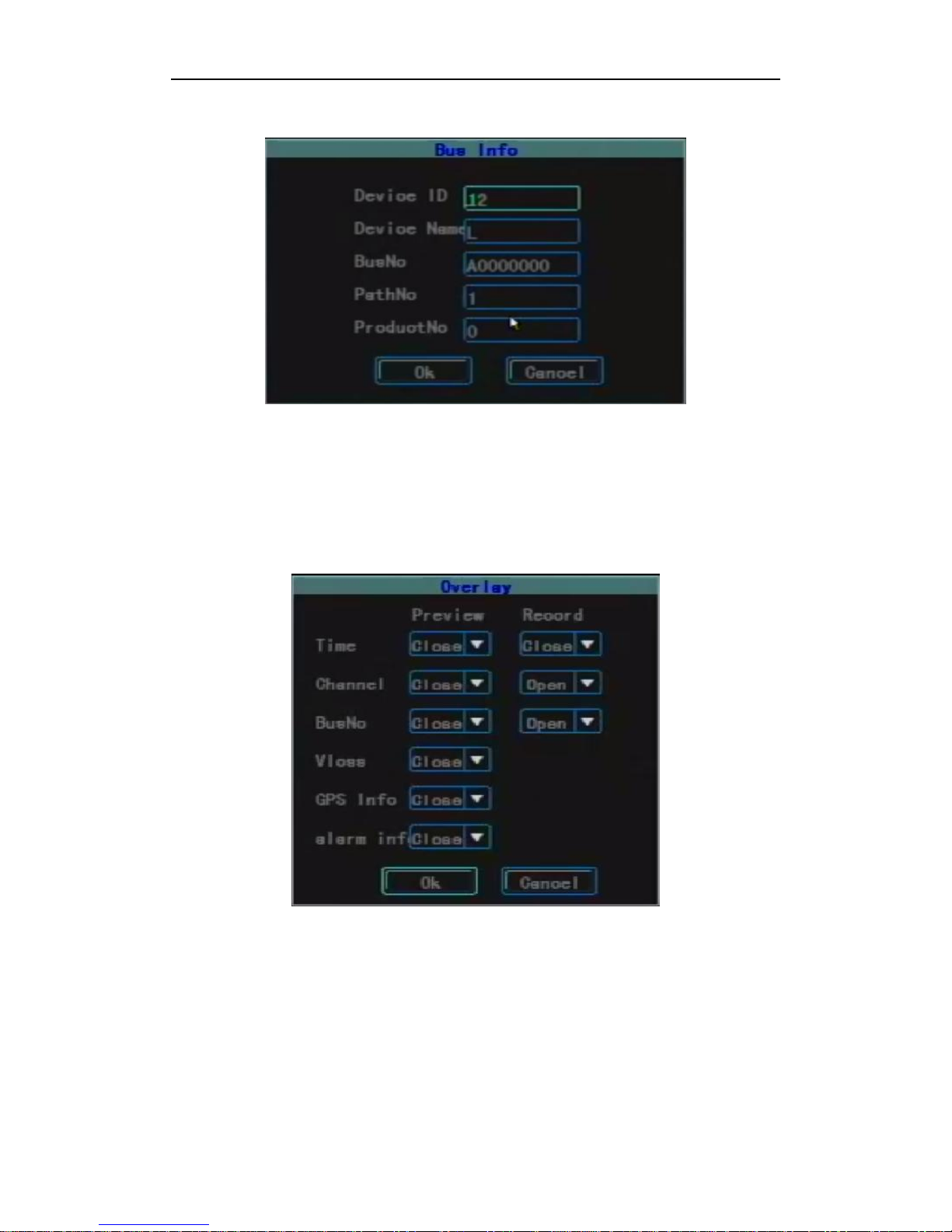

3.8.7 Bus Information .......................................................................................... 28
3.8.8 Overlay Setting ............................................................................................ 28

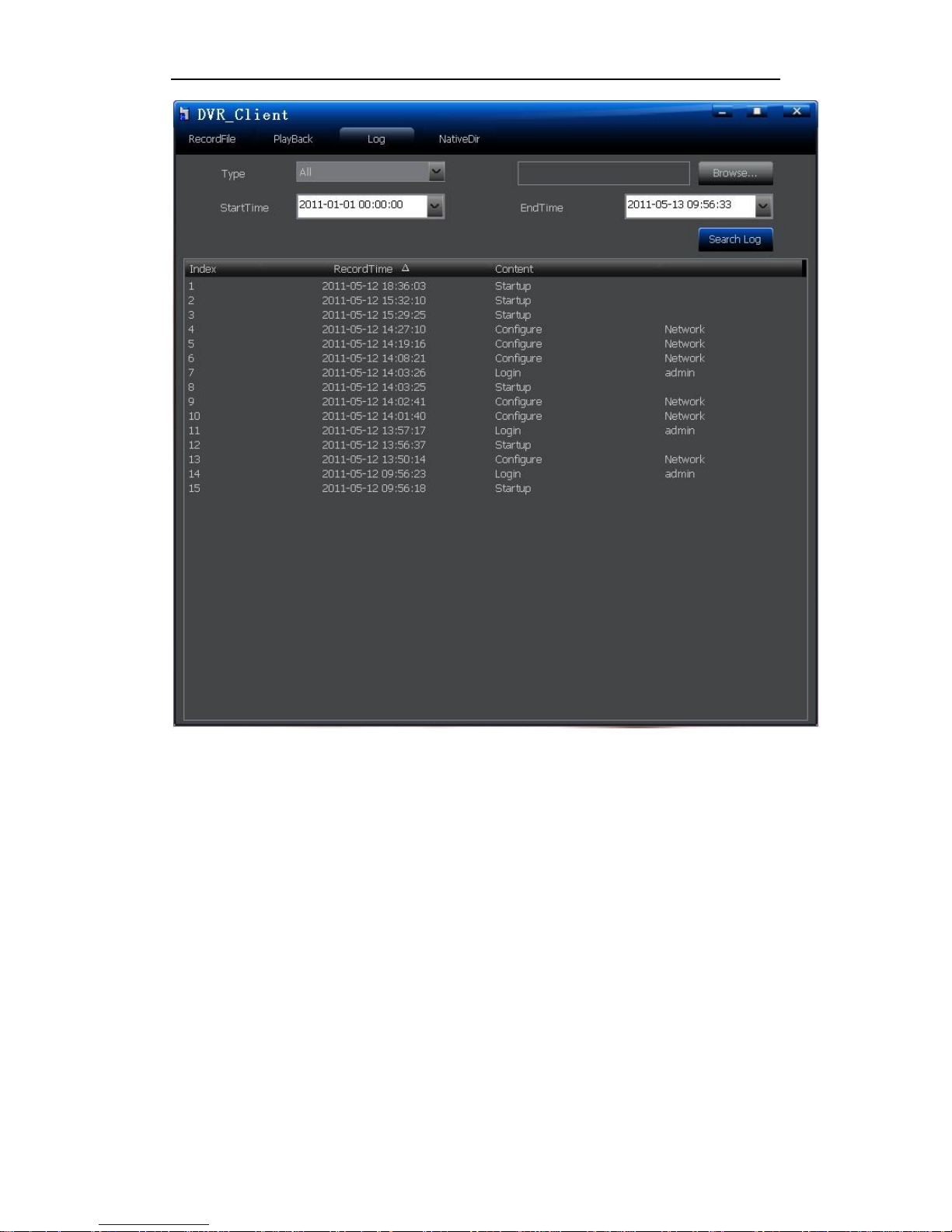

4 Client Software User Manual ..................................................................................................... 29
4.1 Instruction of Client Main Functions ...................................................................... 29
4.2 Client Operation Introduction ................................................................................. 29
5 Frequently Asked Question ......................................................................................................... 35
Page 3
Standalone DVR User Manual
3
1 Product Introduction
1.1 Product Summary
This device is specially designed for the mobile DVR. It adopts embedded processor and
embedded operating system, combines the latest technologies in the IT filed like audio and video
compression/decompression technology. Its structure adopts special anti-vibration technology.
1.2 Main Functions of the Product
Record
There are four recording modes: manual recording, timing recording, motion detection
recording and alarm recording;
Support SATA HDD and SD card storage. The recording file in the HDD and SD card
can choose overwrite or don’t overwrite.
Preview and playback
Support single channel, 4 channel audio and video output;
Support partial blind of the image;
Support searching file by recording type, start time and end time;
Support fast forward, slow forward, single frame and so on when playback;
Support displaying local recording status, alarm status and motion detection.
Backup
Support USB backup function
Alarm
Local signal value alarm input;
Motion detection alarm;
Abnormity processing alarm.
Security
Admin user can create 8 common users at most and set their authorities. You can also
delete the common users.
User password protection function. User must enter correct password when login.
Support log management, provide record and search of the local log, alarm log,
abnormal log and remote log.
Record of Vehicle Information
Support device number and car number recording function.
Page 4
Standalone DVR User Manual
4
1.3 Technical Parameter
Model Number MR9104
Main Processor Hi3512
Operating System Embedded Linux operating system
System Resource 4-channel real-time recording simultaneously
Video Standard PAL, NTSC
Image Compression H.264
Audio Compression ADPCM
Recording Mode Manual, timing, alarm, motion detection.
Video Search Time search, event search, channel search
Backup Mode USB backup
Video Input 4ch aerial port
Video Output 1ch aerial port, 1ch lotus port
Audio Input 4ch aerial port
Audio Output 1ch aerial port
Monitoring Quality PAL: 720x576(D1) NTSC: 720x480(D1)
Playback Quality PAL: 352x288(CIF) NTSC: 352x240(CIF)
Image Control 6-level adjustable
Motion Detection 396(22×18) detection areas and multi-level sensitivity can be set
Picture Display Single-picture view, four-picture view
Recording Rate PAL: 25fps/second (adjustable) NTSC: 30fps/second (adjustable)
Recording Storage HDD, SD card
Local Playback 1 channel, 4 channel playback
Alarm Input 4 switching value
Storage Port 1 USB port, 1 SD port
USB Port 1 USB1.1 port
Ignition Signal 1
Power Supply DC 6V~36V
Page 5
Standalone DVR User Manual
5
2 Structure Introduction of the Product Appearance

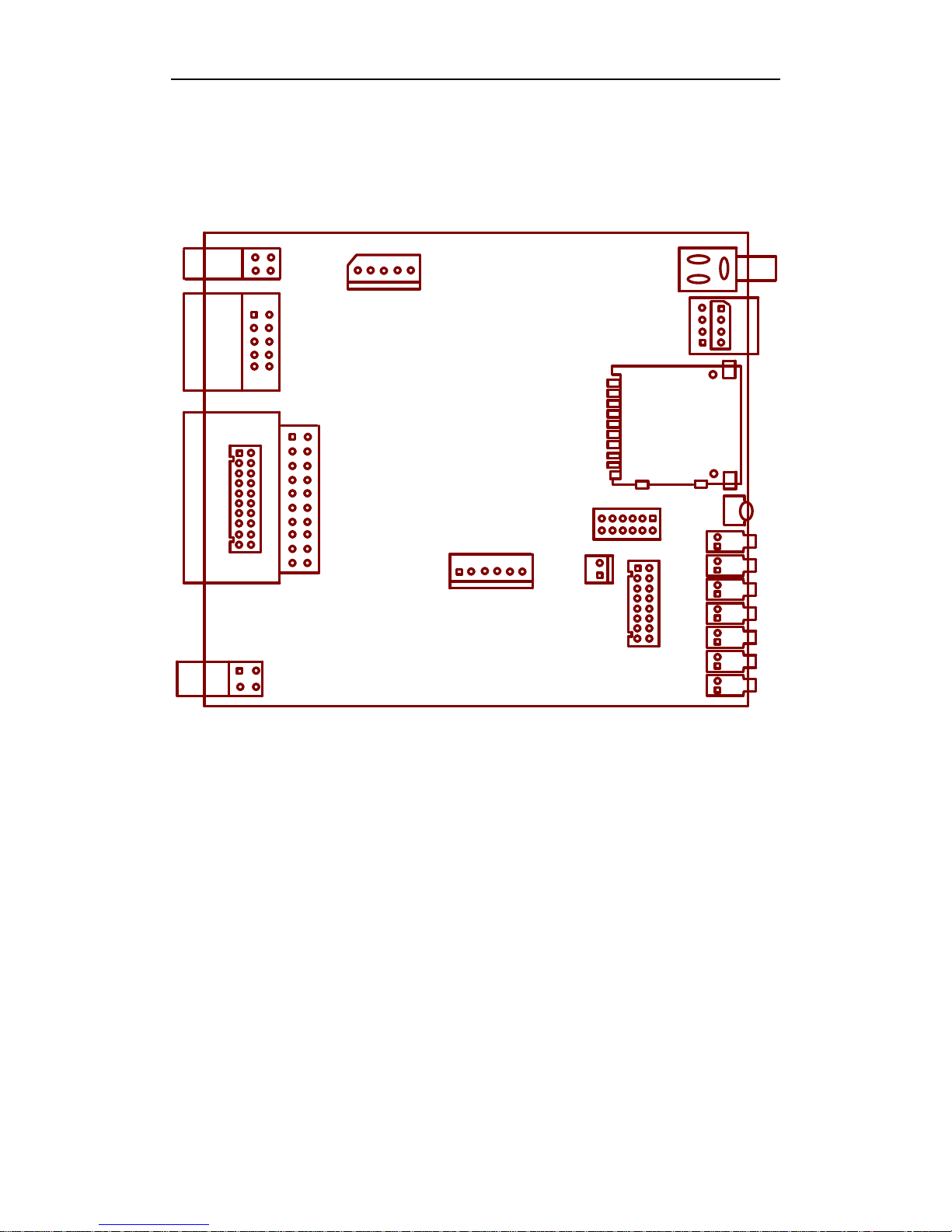

2.1 Product Connection Port Instruction
LED1
LED2
LED3
LED4
LED5
LED6
LED7
J16
J7
98 110
J6
1
3
2
4
J31
4
2
3
1
1
6
J27
10
5
5
1
J17
J13
J14
6
U20
J23
J28
115
16 2
11
12
J18
12
2
1
11
1
1
2
19
20
J30
J29
1
11
10
20
J19
1
1
Page 6
Standalone DVR User Manual
6
Code Number Function Discription
J6 Power input port 1: GND 2: GND 3: 5-32V input
4: Ignition singal
ACC
J7 USB1.1 port 1: +5V power supply 2: USB_D- 3: USB_D+ 4: GND
J13 HDD key port 1: GND 2: HDD lock signal
J14 USB2.0 port 1: GND 2: OTG_DP 3: OTG_DM 4: 5V power supply
5: +5V power supply 6: 3G reset signal
J16 Video output port
J17 RS232 extending port 1: +5V power supply
2: +3.3V power
supply
3: RS232_TXD2 4: RS232_RXD2
5: GND
J18
SD card extended
port
1: GND 2: +12V power supply 3: SD_WP 4: SD_DATA2
5：SD_DATA0 6: GND 7: SD_DATA1 8: SD_DATA3
9: SD_DATA1 10: SD_CARDIN
11: SD
card3.3V power
supply
12: GND
J19 USB1.1 port 1: GND 2: USB_D+ 3: USB_D-
4: +5V power
supply
J23 SD card port
J27 User IO port
1: +12V power
supply
2: +12V power supply 3: RS485_B 4: RS485_A
5: GND 6: Alarm input 1
7: Alarm input
2
8: Alarm input 3
9: Alarm input 4 10: GND
J28
Front panel extended
port
1: Power indicator 2: Run indicator
3: Alarm
indicator
4: Video loss
indicator
5: Recording
indicator
6: SD card indicator 7: NC 8: Infrared
9: GND 10: GND 11: GND 12: Video Output
13: +5V power
supply
14: +5V power supply
15: Singlechip machine
16: Single-chip
machine
J29
Video and audio
input output port
1: Audio output 2: GND
3: Audio A1
input
4: GND
5: Audio A2 input 6: GND
7: Audio A3
input
8: GND
9: Audio A4 input 10: GND
11: Video
output
12: +12V power
supply
13: Video V1 input
14: +12V power
supply
15: Video V2
input
16: +12V power
supply
17: Video V3 input
18: +12V power
supply
19: Video V4
input
20: +12V power
supply
J30
Video and audio
input output port
1: Audio output 2: Video output 3: GND
4: +12V power
supply
5: Audio A1 input 6: Video V1 input 7: GND
8: +12V power
supply
Connection Port Definition
Note: either J29 or J30 is soldered only
either J7 or J19 is soldered only
J29: AV audio video output port definition
Page 7
Standalone DVR User Manual
7

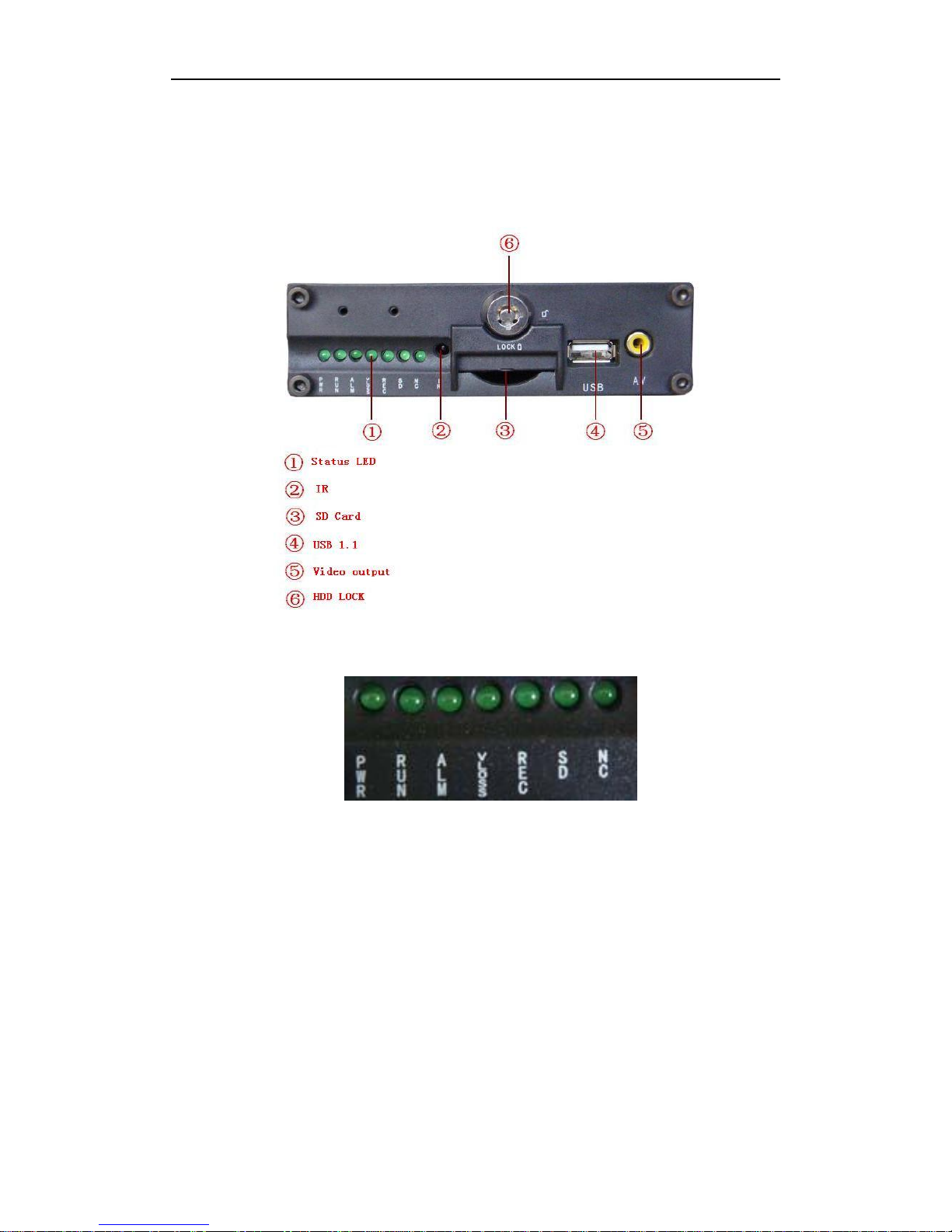

2.2 Front Panel Port Instruction
2.2.1： Status LED
Indicator definition instruction:
Power: the power led will turn red when the power is connected; after soft-shutdown the device,
the power led will become green.
RUN: this led will flash when the device is working properly; after soft-shutdown the device, it
will turn off.
Alarm: when there is any channel alarm input, this led will turn on.
Video loss: where there is any channel video loss, this led will turn on.
Record: when the HDD is recording, this led will turn on.
SD card: when the SD card is detected, the SD card led will turn on.
Page 8
Standalone DVR User Manual
8

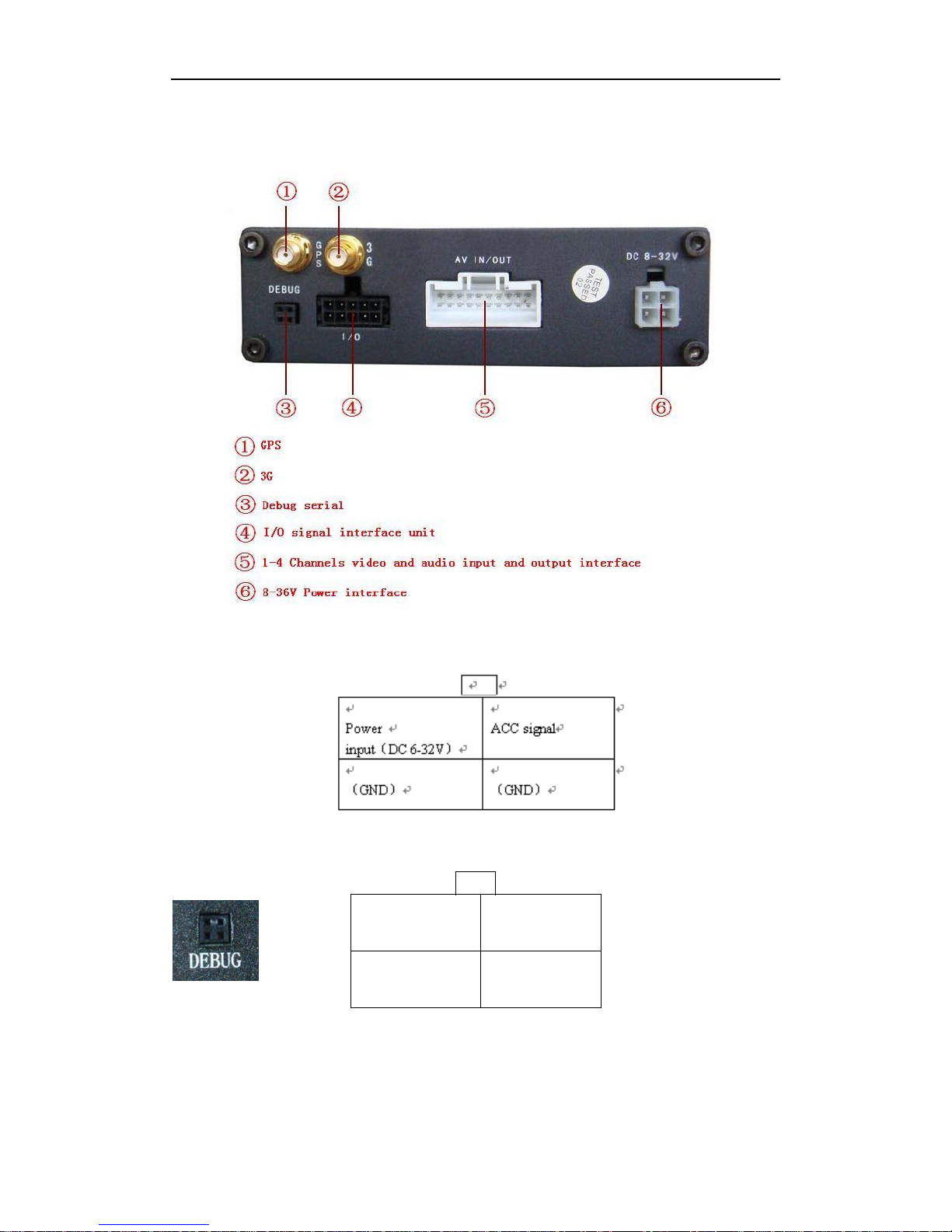

2.3 Back Panel Port Instruction
2.3.1 : Power Supply Interface
2.3.2:Debug Serial

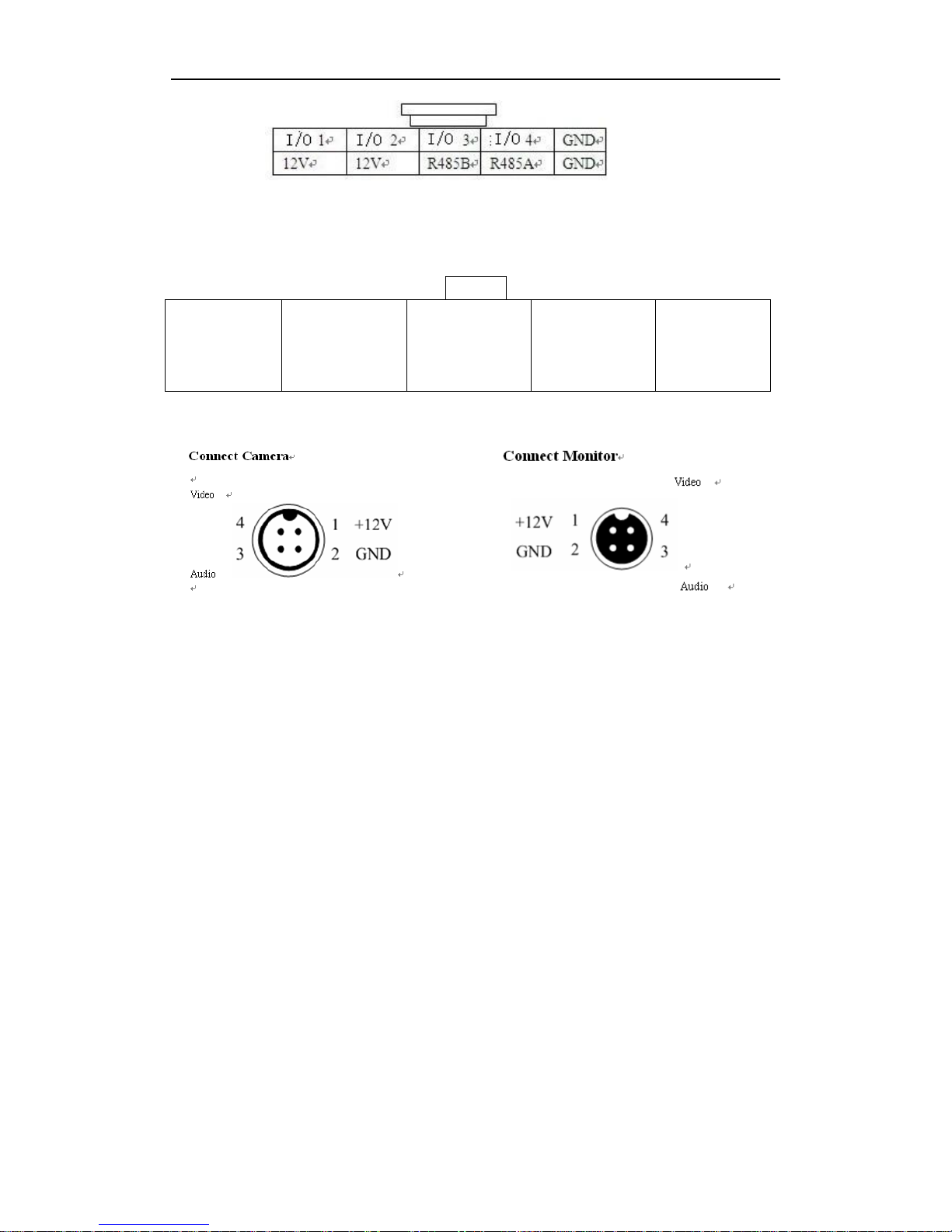

2.3.3: I/O Signal Interface Unit
GND
RS232_RXD
GND
RS232_TXD
Page 9
Standalone DVR User Manual
9
2.3.4:Video- Audio Input And Output Interface
Video-Audio
output
1CH
Video-Audio
input
2CH
Video-Audio
input
3CH
Video-Audio
input
4CH
Video-Audio
input
Page 10
Standalone DVR User Manual
10

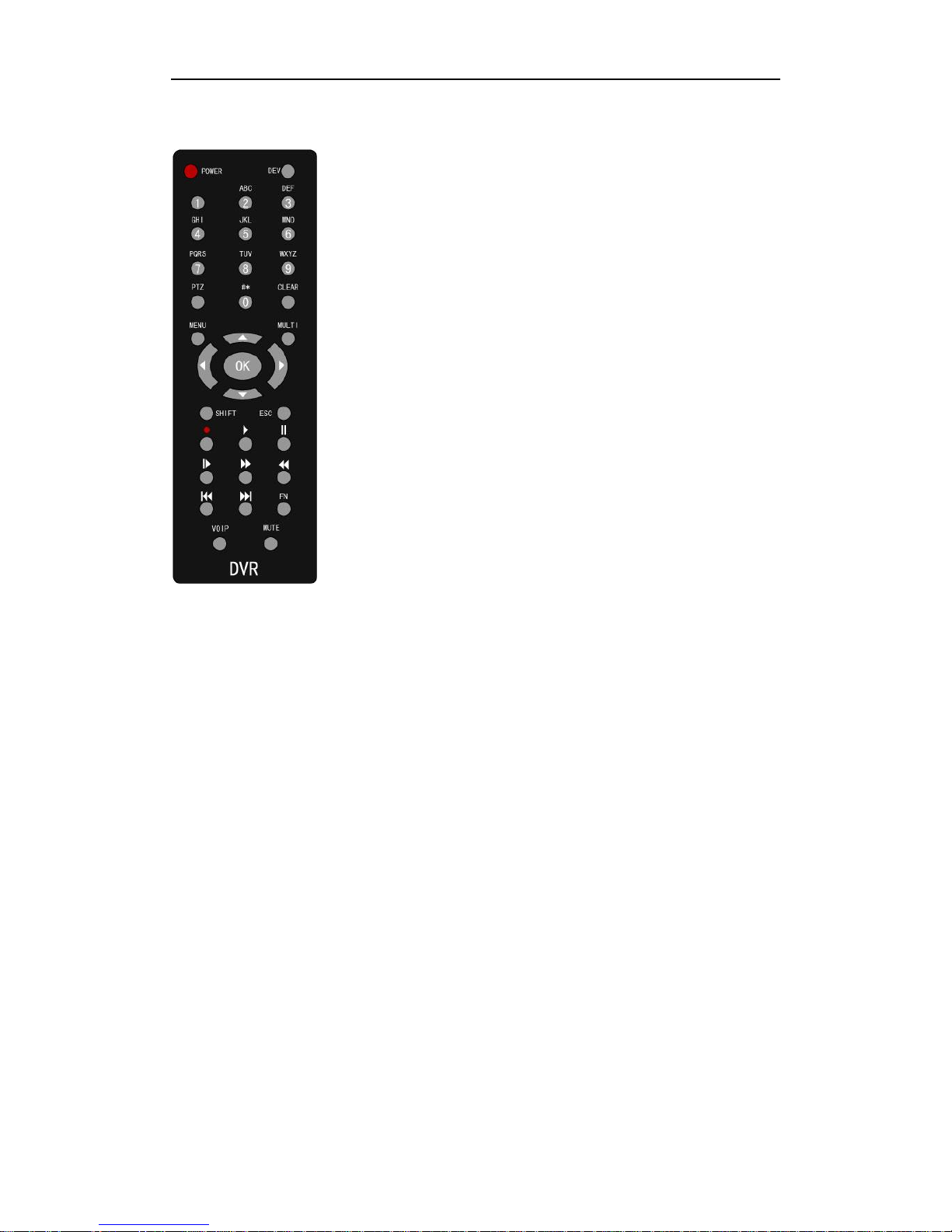

2.4 Remote Control Instruction
Instruction of some buttons:
1. Power: used to shutdown the system. It will go into effect after long-pressing 5 seconds.
2. FN:
a) used to select specified file in the recording file list, in order to backup file.
b) used to switch the input method of the soft keyboard.
c) change the selected status in the motion detection area setting and blind area setting.
3. MENU:
a) call out main menu
b) used to exit the soft keyboard
c) used to clear all the area setting
4. MULTI: used to set 4-picture view
5. SHIFT: used to display/hide control bar when playback.
6. ESC: exit menu.
7. ●: enter manual record setting interface in order to set manual record.
8. Play (in the middle of the fourth line counted from the end): used to enter the file and search
page in order to play recording file.
9. VOIP: the shortcut of the backspace key in the soft keyboard; select all when set motion
detection setting area.
10. MUTE: sound/mute setting when playback.
11. OK: when there is no menu, press OK key to display system information.
Page 11
Standalone DVR User Manual
11
3 System Operating Instruction
3.1 Start System
When connect 12V DC power supply to the device, the system starts. After the system start-up
completely, the 【POWER】 indicator will become green, and the RUN indicator will be flashing
continually. There are three ways of starting the system: 1. long-press the 【POWER】 button on
the remote control for 5 seconds; 2. the ignition signal of the vehicle; 3. system sets timing
starting system. Note: the system will auto shutdown when unplug the lock of the HDD.
3.2 Shutdown System
There are three ways of soft-shutdown system: 1. long-press the 【POWER】 button on the
remote control for 5 seconds; 2. the ignition signal of the vehicle; 3. system sets timing shutdown
system. Through necessary processing, after about 5 seconds, the system will shutdown and the
power led will turn off and the run led will turn on.
Shutdown system by power disconnection: unplug the 12V power input, the system will stop
working. As unplug power directly may affect the HDD and SD card, we suggest you
soft-shutdown the system before unplugging the power.
3.3 Basic Operation Instruction of Menu
3.3.1 Enter Menu Mode
Enter the system menu by pressing the 【MENU】 button on the remote control or clicking the
right mouse button.
3.3.2 Menu Component Instruction
Menu component units mainly include:
(1) Check box: “√” means valid, blank means shield. There are two operating modes: 1. use
the 【OK】 button or the 【↑】, 【↓】 button on the remote control; 2. click the left mouse button
to operate.
(2) Selection box: provide two or more than 2 options, but only one option can be selected.
Press the【↑】, 【↓】 button on the remote control or click the left mouse button to switch.
(3) List box: display the search result information in the list. You can select one item from list.
If you press the 【OK】 button or click the left mouse button, the recording file will play; if press
the number “0” or the 【FN】 key or the right mouse button, you can select/cancel the recording
file in order to backup the recording file.
(4) Edit box
a) You can switch the input character including number, uppercase and lowercase letters and
mark by the 【FN】 key on the remote control.
b) You can move the cursor position by the 【←】, 【→】key on the remote control.
c) You can delete the character before the cursor by the 【viop】 key on the remote control.
d) After completing the input, press the 【MENU】 key on the remote control, you can exit the
edit status.
(5) Button: used to conduct a specific function or enter the submenu. Press the 【OK】 key on
Page 12
Standalone DVR User Manual
12
the remote control or click the left mouse button to enter the submenu.
3.3.3 Exit Menu Mode
Press the 【ESC】 key on the remote control or click the right mouse button, you can exit the
menu mode and switch to preview mode.
3.4 Main Menu
The menu box will pop-up when press the 【MENU】 key or click the right mouse button.
This menu includes three parts.
Channel preview: single-picture switch, four-picture preview.
Shortcut operation bar: video playback, manual recording.
Menu bar: click and enter the submenu which includes Tools, Setup, PTZ, Log, ShutDown,
timing, BusInfo and Overlay.
3.5 Channel Preview
Single-channel Preview: single-click the left mouse button, you can single-picture preview;
press number 1-4 on the remote control, you can single preview the corresponding channel.
Four-channel preview: press the 【Multi】 key on the remote control or single-click the left
mouse button, it can return to four-picture preview status.
3.6 Playback
Page 13
Standalone DVR User Manual
13
1. Enter the playback operation interface
For four-channel preview interface, press the 【PLAY】 key on the remote control; for the
main menu interface, press the 【OK】 key on the remote control or click the left mouse button on
“Playback” can enter the playback operation interface directly.
2. File search interface instruction:
System supports searching recording file by channel number, recording type and start and end
time.
File search:
Search the recording files which meet the search conditions and they will display in
the structure list.
Note: if the recording files which meet the search conditions are more than 4000
items, the system will only display the first 4000 items. To search the update file,
please modify the search condition.
Play by time: to playback all the files within a specified time period, you can select
single channel or multi-channel. You can playback 4 channels using this button.
Backup by time: backup all the files within a specified time period to the specified
device.
3. File search results interface instruction:
Playback the specified file: left click the left mouse button on the specified file or click
the 【OK】 button on the remote control, you can playback the specified file.
Select All: used to fast select all the recording files on the current page (“√” will be
shown after selection) in order to backup files.
Prev: jump to the previous page
Next: jump to the next page
Goto: go to the specific page
Backup: you can use the 【FN】 key on the remote control or the number “0” or the
right mouse button to make a backup mark, backup the selected recording file in the
current list box to the corresponding device (USB disk).
Cancel: return to the previous page.
4. Playback operation instruction
The buttons on the information bar below the playback screen respectively represent:
exit, pause, frame forward, slow forward, fast forward, go to the last section, go to the next
section, sound; the other information represents: play speed, real play time, the total time of
the recording file.
Cancel/display the information tip bar: press the 【shift】 key on the remote control or
click the right mouse button will display/cancel the information tip bar.
Exit play: press the 【ESC】 key on the remote control or click exit by mouse can exit
the play screen at any time; it will auto exit the play screen when the file is finished.
Pause/continue play: press the 【Pause】 button on the remote control can
pause/continue play.
Frame forward: under the pause mode, each click the frame forward button, it will play
1 frame forward, namely single frame mode play.
Adjust the play speed: press the 【Slow Play】 button will reduce the play
Page 14
Standalone DVR User Manual
14
speed. There are 1/2, 1/4, 1/8 time speed for selection; 【Fast Play】 will
increase the play speed, there are 2, 4, 8 time speed for selection.
Last section: when play by time, press 【Last Section】, the system will play the
last file directly.
When playback by selecting file, press 【Last Section】, the file will backward
10% and play.
Next section: when playback by time, press 【Next Section】, the system will
play the next section directly.
When playback by selecting file, press 【Next Section】, the file will forward
10% and play.
Turn off/on sound: press 【MUTE】can switch between sound and mute and
there will be corresponding sound icon displaying.
Playback by time: the operation is similar to “Playback by file” except the playback
content is the recording file within the specified time period.
3.7 Manual Recording
Enter manual record interface
Press 【Record/●】 on the remote control or click “Manual Record” by mouse can enter the
manual record interface directly.
Manual record interface instruction
The manual record operation interface is consists of the following components: channel, status,
start/stop icon mark, Start All, Stop All and Exit.
Note: for the recording started manually, it can only be stopped manually, otherwise, it will
be recording continuously.
Remind: for manual record operation, the user is required to have “Record” operation
authority. Before carrying out this operation, please confirm with the
administrator that the DVR has been installed a HDD which has been formatted
correctly.
Page 15
Standalone DVR User Manual
15

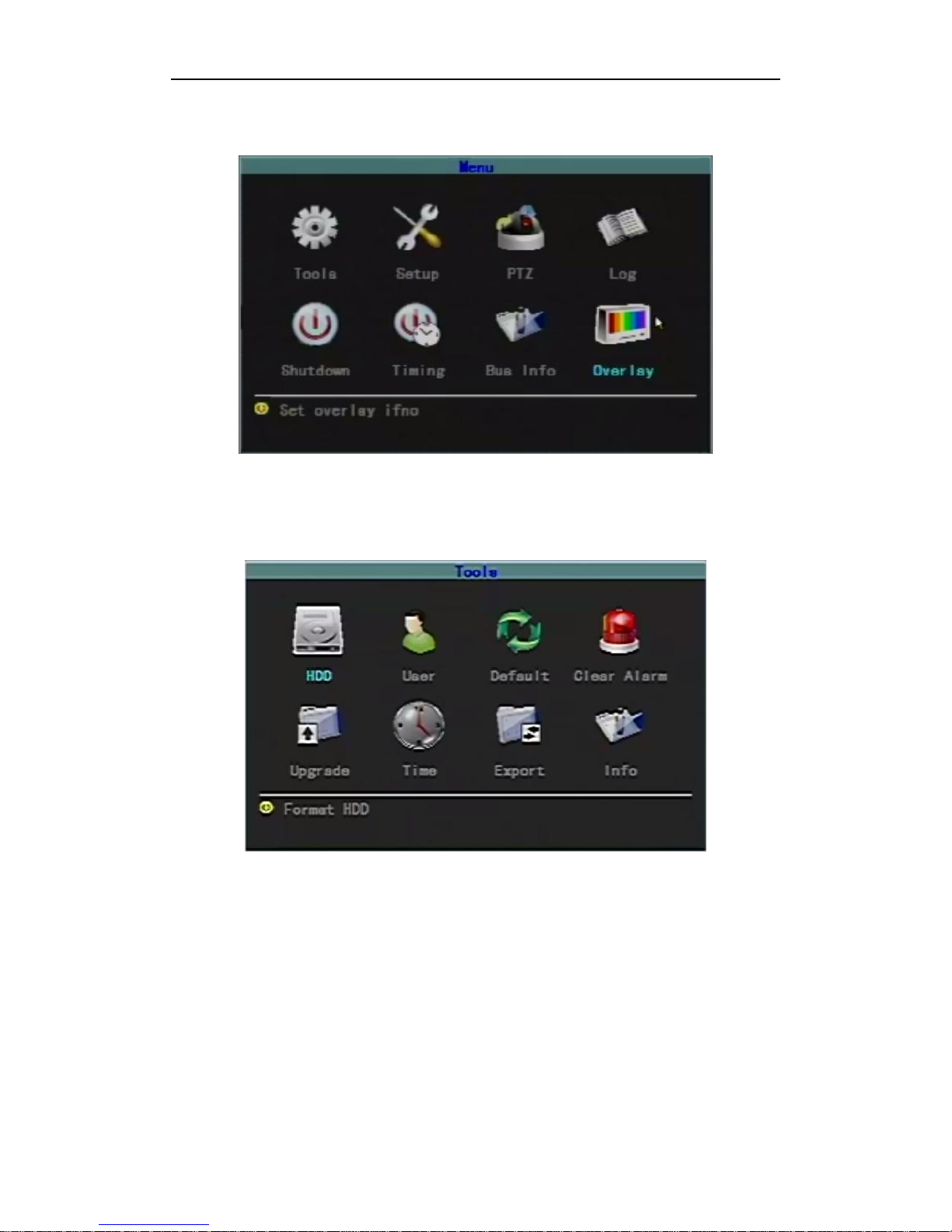

3.8 Menu
The menu includes Tools (management tools), Setup (system setup), PTZ (PTZ control), Log (log
search), ShutDown (shutdown system), Timing (timing switch), BusInfo (bus information) etc..
3.8.1 Tools
Including HDD (HDD management), User (user management), Default (restore to default),
Clear (clear alarm), Update (software update), Time (date and time), Export(import and export
configuration) and Info (system information).
Page 16
Standalone DVR User Manual
16
3.8.1.1 HDD Management
Check the current status, capacity and the remaining space of the specified HDD and if the
HDD was formatted.
Format: used to format the specified HDD or the SD card.
Unplug the SD card: before unplugging the SD card, uninstall the software in order to avoid
damage to the SD card or SD data; clicking for unplugging the SD card, it has to be unplugged
within 10S, otherwise, the SD card will be auto mounted after 10S. Note: the system will
restart when the SD card is unplugged illegally.
Note: 1. the new HDD or SD card installed can only be used after being formatted; 2. the
recording has to be stopped before the HDD formatted.
3.8.1.2 User Management
Add user, delete user and modify user. (Other users except the Admin user don’t have the
authority to set the authorities of the other users)
Add User
Enter “User” operation interface.
1. Input New User Name
Page 17
Standalone DVR User Manual
17
On the “User” interface, click “Add”, enter “Add/Modify User” interface, input a new user
name (like user), input type supports number, uppercase and lowercase letters and Chinese.
2. Setup Password for the New User
On the “Add/Modify User” interface, click “Password” button, enter the password setup
interface, input new password directly (password is 6 or less than 6 digits), then confirm password.
The password will become valid after confirmation.
3. Setup Rights for New User
On the “Add/Modify User” interface, mark “√” means that the user can use this right while
blank means that the user cannot use this right.
4. Save the Setup Information of the New User
After confirmation, the setup information of the new user will be saved; cancel means give up
modification.
Modify User
Enter the “User” operation interface, click left mouse button or press the 【↑】 【↓】 【OK】
button on the remote control to select the user which needs to be modified in the user
selection box, click the “Modify” button, enter the user modification interface, you can
modify user password and operation authority.
Note: admin administrator can modify the rights of the other users, while the non-admin
users can only modify their own login password but cannot add, modify or delete
user right.
Delete User
Enter the “User” operation interface, click left mouse button or press the 【↑】 【↓】 【OK】
button on the remote control to select the user which needs to be deleted in the user selection
box, click the “Delete” button to delete the specified user.

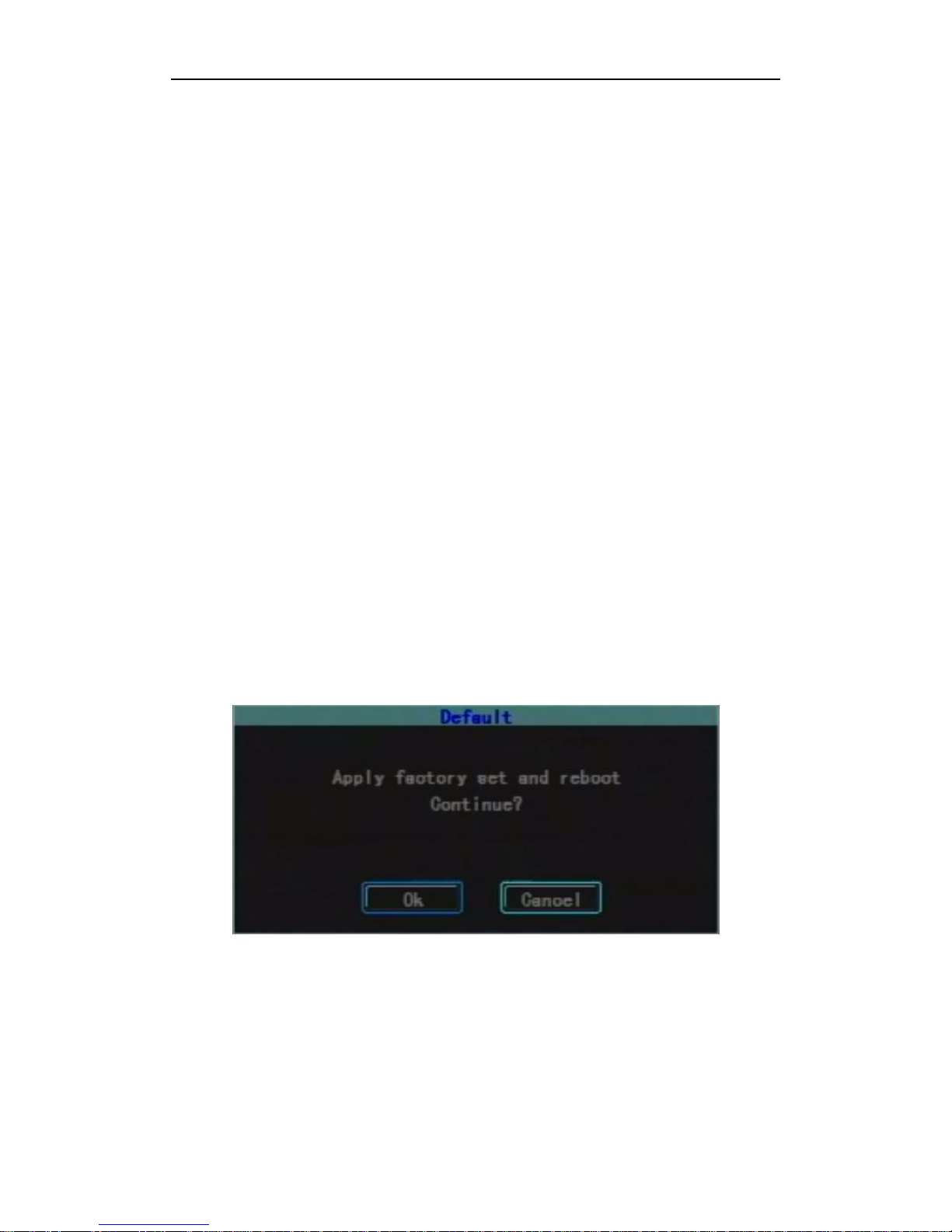

3.8.1.3 Restore to Default
Restore the system configuration parameter to factory configuration, the system will auto restart
when the restore is complete.
Note: the vehicle information will not be restored to factory configuration after restoring to
default, facilitating the user to save the vehicle information.
3.8.1.4 Clear Alarm
Manually clear all the alarm output. When the alarm is cleared successfully, the system will
prompt “Alarm has been cleared successfully”, confirm and return to the page of management
tools.
Page 18
Standalone DVR User Manual
18

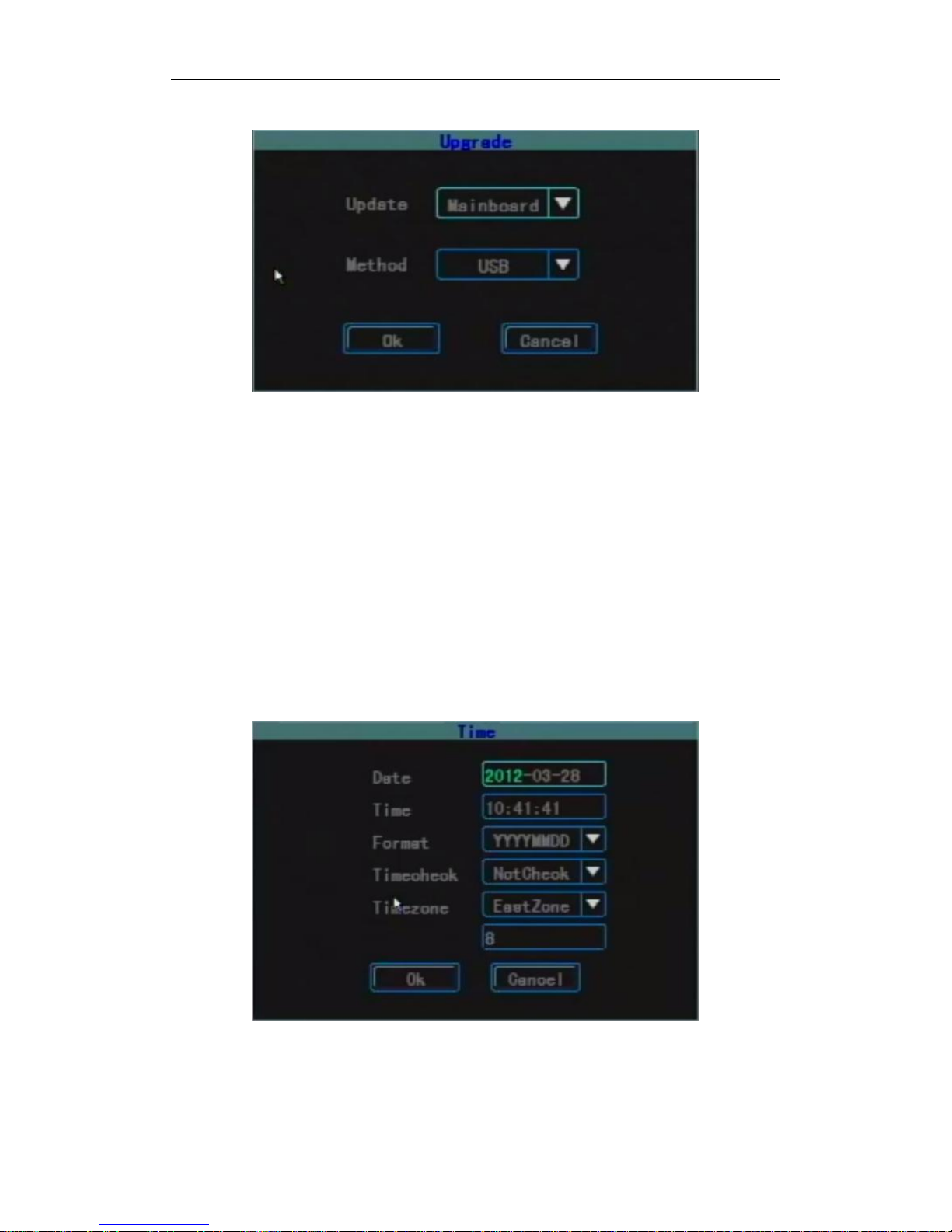

3.8.1.5 Software Update
Manual update: system supports USB update: copy the update file to the root directory of
the USB disk, insert the USB disk, then click “OK” to upgrade the system manually.
Auto update: insert the USB disk with upgrade file first, when the system restarts, it will
detect the update program. If the version number of the update program is different from
the one in the system, the system will auto update. After successful update, the buzzer will
prompt and system will auto restart; if the version number of the update program is the
same as the one in the system, it will not update.
MCU update: can only adopt auto upgrade.
Note: the name of the system upgrade file is “MDVRB_v version. Bin”; the name of the
single chip upgrade file is “mpanel version. Bin”. When upgrade is complete, the system
will auto restart.
3.8.1.6 Date and Time
Enter the time page of the system, you can modify the time of the system and the time format.
Note: the time can be modified when recording is stopped.
Page 19
Standalone DVR User Manual
19

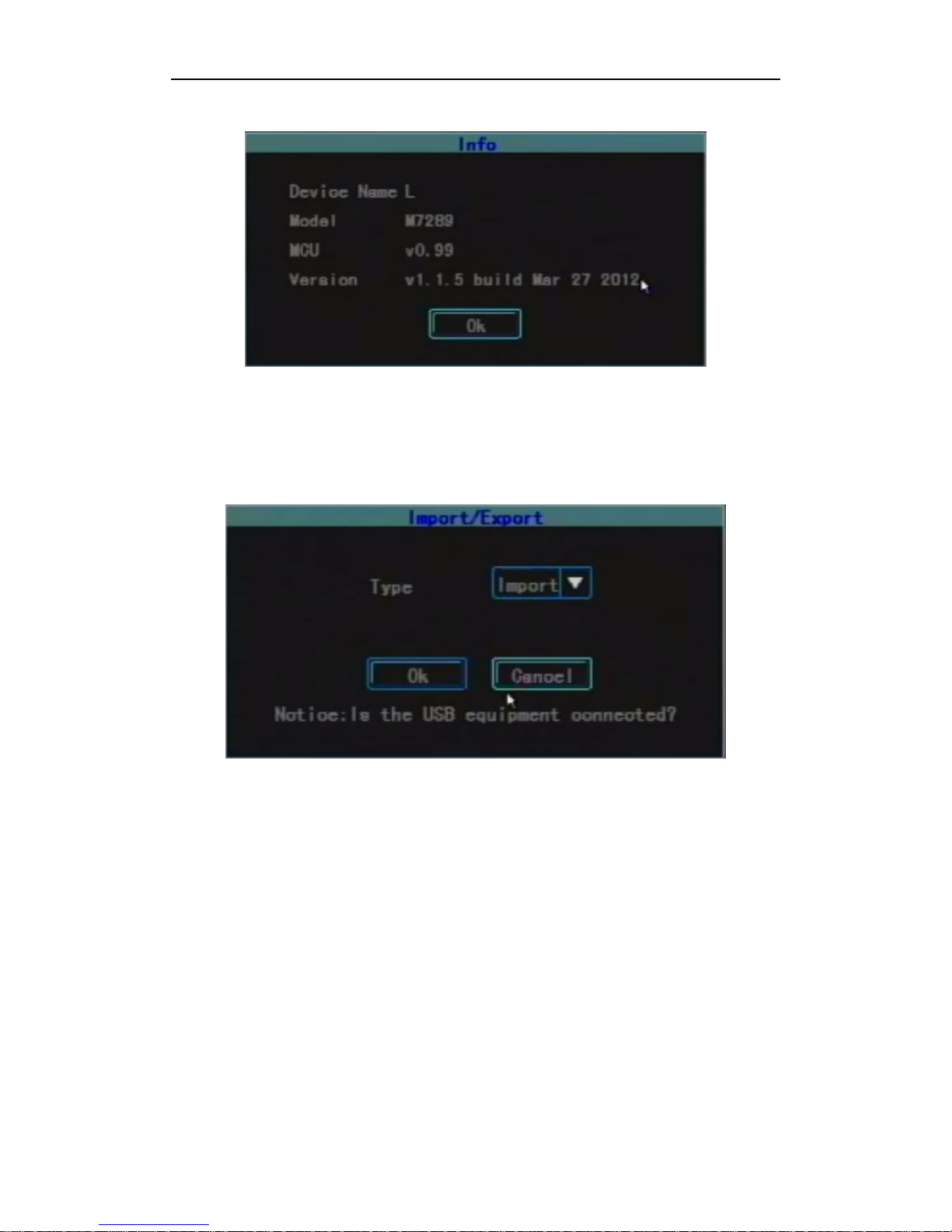

3.8.1.7 System Information
Display system related information, mainly include device name, model number, MCU model
number and software version.
Note: under preview mode, press 【OK】 button on the remote control can display this interface
directly.
3.8.1.8 Import and Export
Used to export the system configuration to the USB disk, or import the system configuration from
the USB disk, in order to facilitate configuring multiple devices in batch.
There are two ways of import: ① manual import: insert the USB disk with configuration file,
click OK, after successful import, the system will restart. There will be sound prompting after
successful import. ② Auto import configuration file: insert the USB disk with configuration file,
when the system starts, it will auto import the configuration file. There will be sound prompting
after successful import and the system will restart. You should unplug the USB disk immediately.
3.8.2 System Setup
Page 20
Standalone DVR User Manual
20

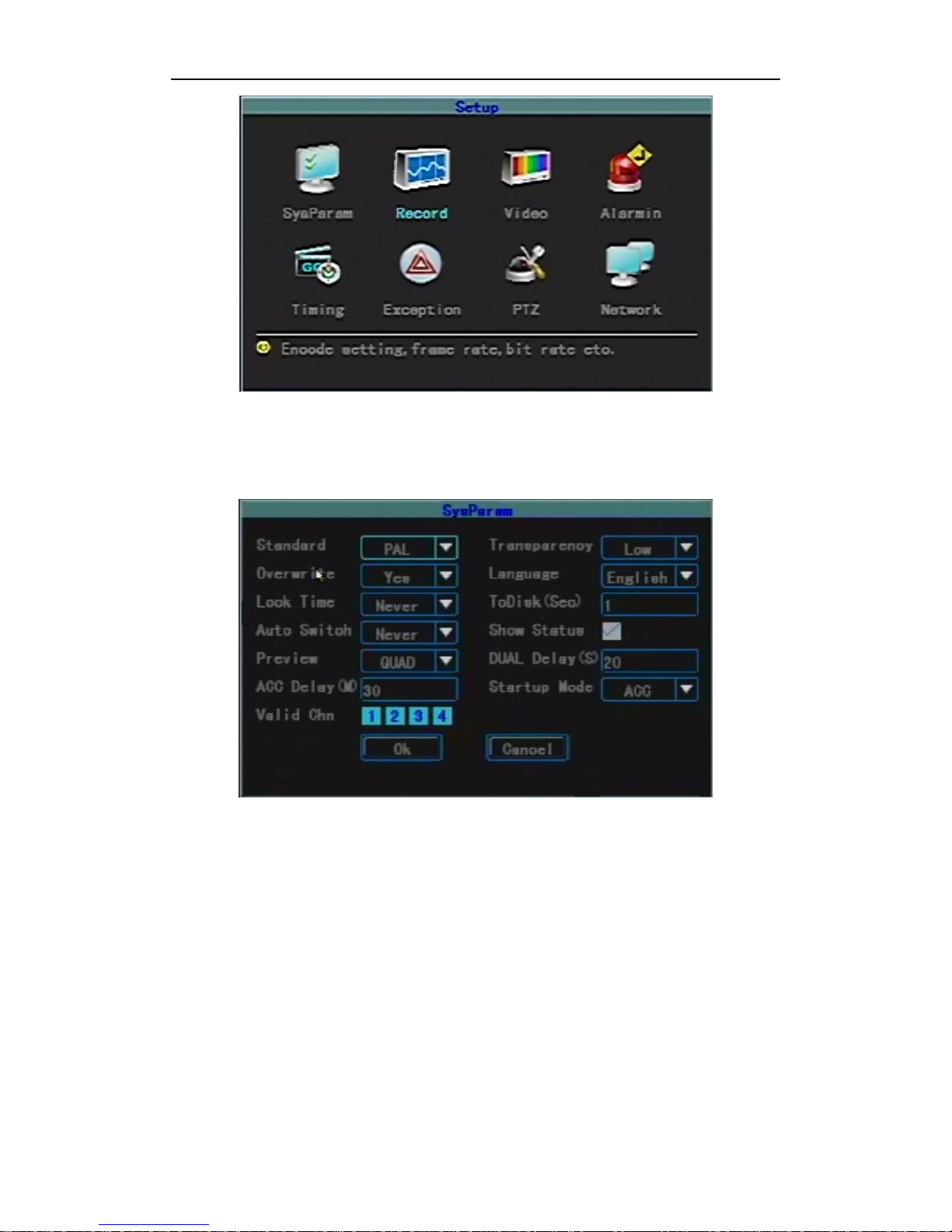

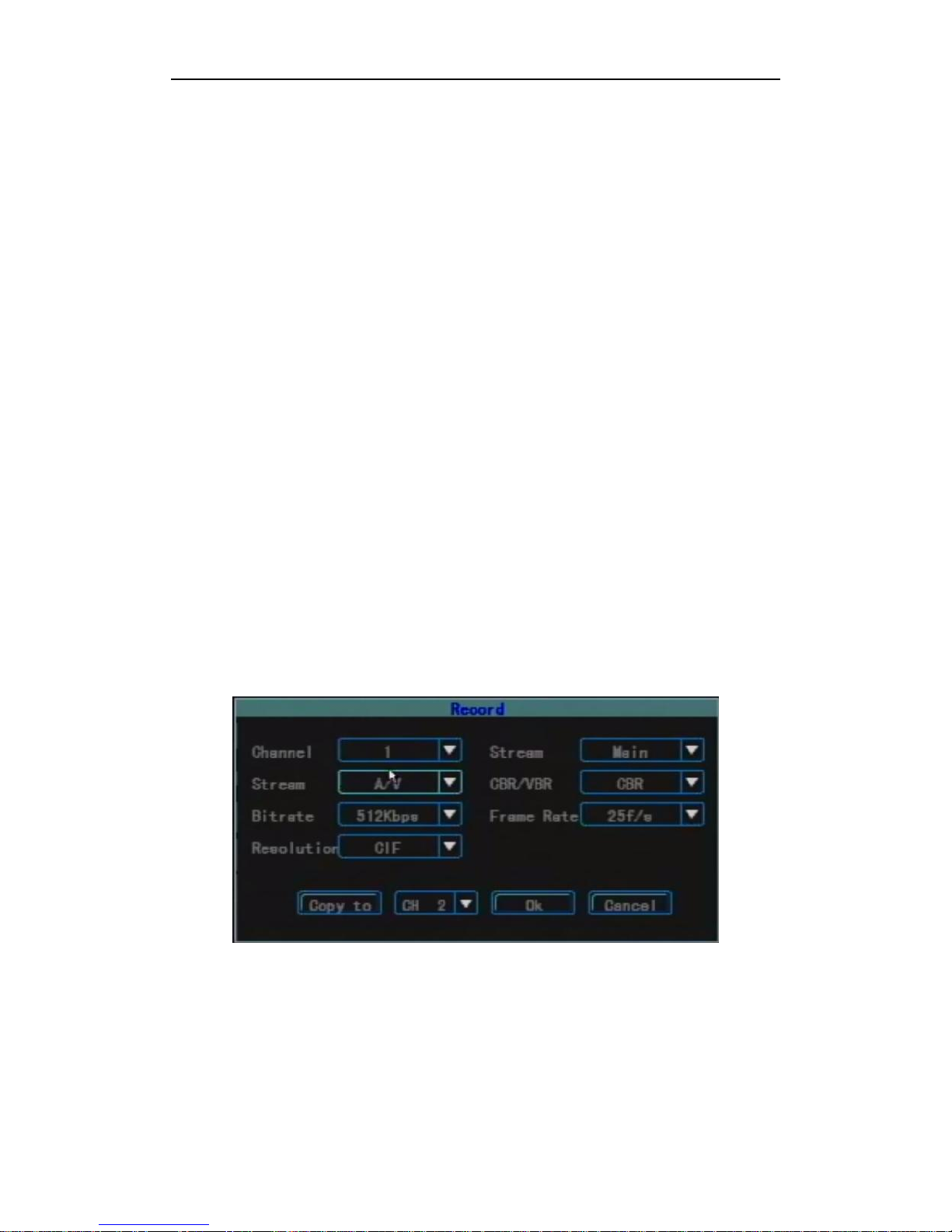

System setup includes Setup (system parameter), Record (recording setup), Image (image setup),

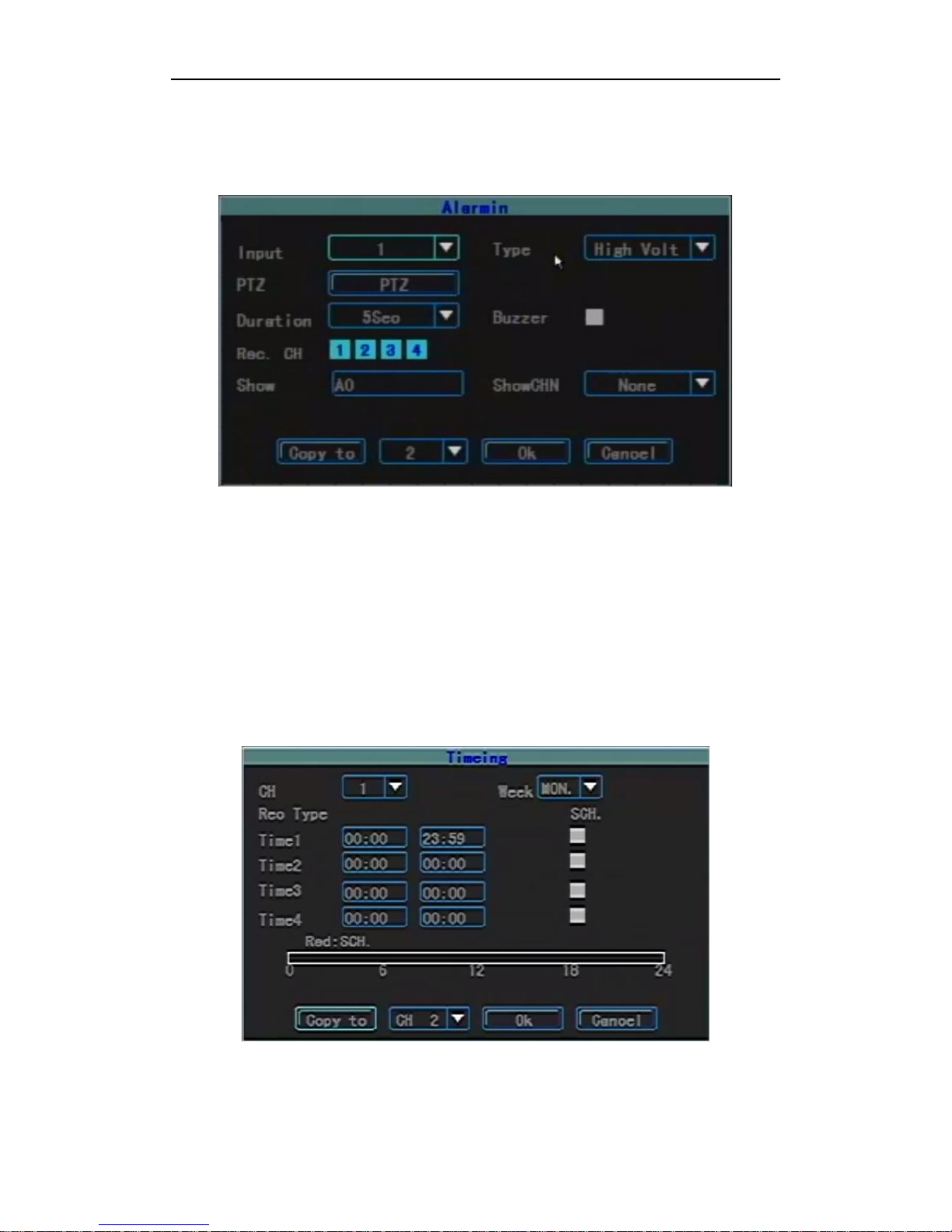

Alarmin (alarm input), Schedule (schedule setup), Expection (expection handling), MTD (motion
detection), PTZ (PTZ configuration) and Network.
3.8.2.1 System Parameter
Overwrite: Select “Yes”, when the HDD or SD card is full of recording, the system will
overwrite the earliest video information to achieve the purpose of cycle recording.
Select “No”, when the HDD or SD card is full of recording, the system will not
record any more; at this time, you can choose warning processing when the HDD
is full in the menu of “Expection”.
Lock Time: If there is no operation within the keypad lock time, the system will cancel the
current user automatically. To operate, you need to relogin the system. The lock
time can be: 1 minute, 2 minutes, 5 minutes, 10 minutes, 20 minutes, 30 minutes.
If auto locking keyboard is unnecessary, then you can choose “Never”.
Auto Switch: It shows the time interval of single channel cycle switch in preview. There are: 5
seconds, 10 seconds, 20 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes and
don’t switch options.
Standard: used to set the image format, PAL or NTSC, and it is default to PAL format.
Transparency: When the user enters the menu operation interface, he can adjust the
Page 21
Standalone DVR User Manual
21
transparency between preview image and the menu by adjusting the level of the
menu transparency. Low, middle, high and opacity can be set.
Language: Menu language type can be set according to the requirement of user. There are
English, simplified Chinese and Traditional Chinese options.
ToDisk(Sec): Used to set how long to write HDD once, which is mainly used for protecting
HDD.
Show Status: Setup if the preview screen show recording mode, status and enable motion
detection mark and “√” means show status while blank means status not shown.
Preview: setup the display screen after preview delay after starting the device. There are
single-picture preview or four-picture preview. (After starting, the device will display
four-picture screen, the device will display the screen set up after preview delay and
this function will not realize after user login.
QUAD Delay: Set how long the preview screen set up will display after starting. The value
between [0--600] can be set (unit is second), default to 20S, namely, when
starting but not login, the device will display four-picture, after 20S, it will
display the screen set up in “Preview”.
ACC Delay: Used to set when to shutdown the system after setting ACC staling. The value
between [0--255] can be set (unit is minute). When set 255, even the state is
ignition, the system will not shutdown.
Startup Mode: There are ACC and timing options. The startup mode is default to ACC. When
select ACC starting and shutdown, the system can be started once receiving the
ignition signal; when select timing starting and shutdown, you need to set the
time of starting and shutdown in “Timing”. The system will start only when the
time set up arrives, and there is nothing related to the ACC signal. You can also
use the 【POWER】 key on the remote control to start the device.
3.8.2.2 Recoding Setting
Used to configure recording parameters which are explained as follows:
Channel: Choose the number of the target channel to be set up.
Type: There are main stream and sub stream for selection. Main stream is mainly used for
recording setting while sub stream is mainly used for compressing bit stream during
network transmission in order to lighten the hardware burden.
Stream: There are two options: A/V (refer to the data stream generated by compressing the video
signal and audio signal) and V (the data stream generated by compressing the single
video signal)
Page 22
Standalone DVR User Manual
22
CBR/VBR: There are VBR and CBR options. When set VBR, you can configure the image
quality.
BitRate: There are 128Kbps, 256Kbps, 512Kbps, 1Mbps (unit is bps) options. The specific limit
size of the bit rate will be adjusted according to the scene and the camera condition and the
requirement on the image quality.
FrameRate: Full frame rate (PAL 25f/s, NTSC 30f/s), 20f/s, 15f/s, 10f/s, 5f/s, 2f/s, 1f/s.
Resolution: When set VBR, you can set the image quality.
CopyTo: Used to copy the parameters of this channel to other channel so as to configure quickly.

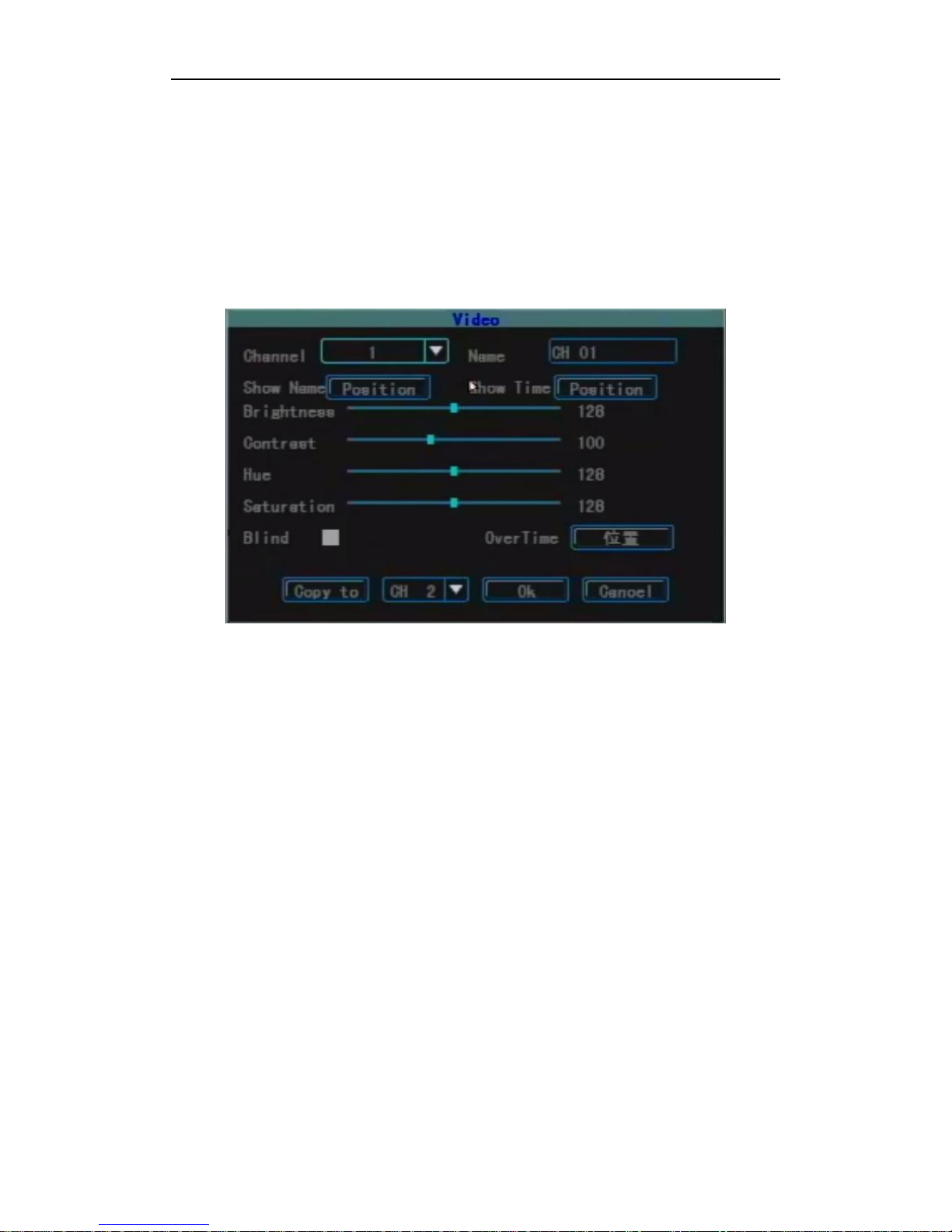

3.8.2.3 Image Setting
Channel: Select the number of the target channel number to be set up.
Name: Used to modify the name of the channel (cannot be copied). It supports numbers,
uppercase and lowercase letters, Chinese and common used marks, up to 12 characters at
the most.
Show Name: Used to set if show the channel name and the position of the channel name shown.
Show Time: Used to if show the time and the show position when preview.
Brightness: Set the brightness of the image.
Contrast: Set the contrast of the image.
Hue: Set the hue of the image.
Saturation: set the saturation of the image.
Blind: In the area which needs to be blinded, you can set “Blind”. When mark “√”, the blind
area setting button will be actived and enter the blind area setting interface.
Area: On the blind area setting interface, a small yellow box will appear in the middle of the area
namely blind setting box. Area Creation: move the yellow box to the start position of the
setting area; using the 【FN】 key on the remoye control (yellow box and red box can
switch) to change it into red box (red box is the motion detection area); then adjust the size
of the area by direction buttons: after completing the adjustment of the area, press the
【FN】 key, this motion detection area will be selected and saved and the small red box
will become small yellow box. There are 4 blind areas can be set up at the most. Click the
left mouse button and drag from the left upper corner to the right lower corner, the blind
area will be generated. After the setting is complete, press the 【OK】 button or click the
right mouse button to exit and save.
Page 23
Standalone DVR User Manual
23
Clear All: Press the【MENU】 key on the remote control to clear all the blind areas of the
channel.
CopyTo: Used to copy the parameters of this channel to other channel so as to configure quickly.
3.8.2.4 Alarm Input
Input: Select the number of the target channel number to be set up.
Type: According to actual conditions, set if the alarm input is valid when choose High Volt orlow
Volt.
PTZ: First select the channel number, set one of the linkage settings: preset, cruise, track.
Duration: When the alarm input is complete, set up the delay time needed for dealing with buzzer,
video, recording etc.. There are 5sec, 30sec and 1min options.
Buzzer: Whether to trigger the buzzer alarm.
Rec. CH: Setup which channels to be triggered to record when there is alarm input. To record,
you have to set the time periods in the schedule interface.
CopyTo: Used to copy the parameters of this channel to other channel so as to configure quickly.
3.8.2.5 Schedule Setting
Used to set the time periods of timing recording, motion detection and alarm input recording.
Channel: Select the channel which needs to be set.
Week: Select the target day, you can set respectively any day from Monday to Sunday or set
unifiedly.
Page 24
Standalone DVR User Manual
24
Recording Type and Time Period: There are four time periods and different recording types,
timing recording (red), motion detection recording (green), alarm recording (yellow) can be set up
within each time period. The status of each time period will display at the bottom as well as the
overall plan from 0 to 24 hours.
CopyTo: Used to copy the parameters of this channel to other channel so as to configure quickly.

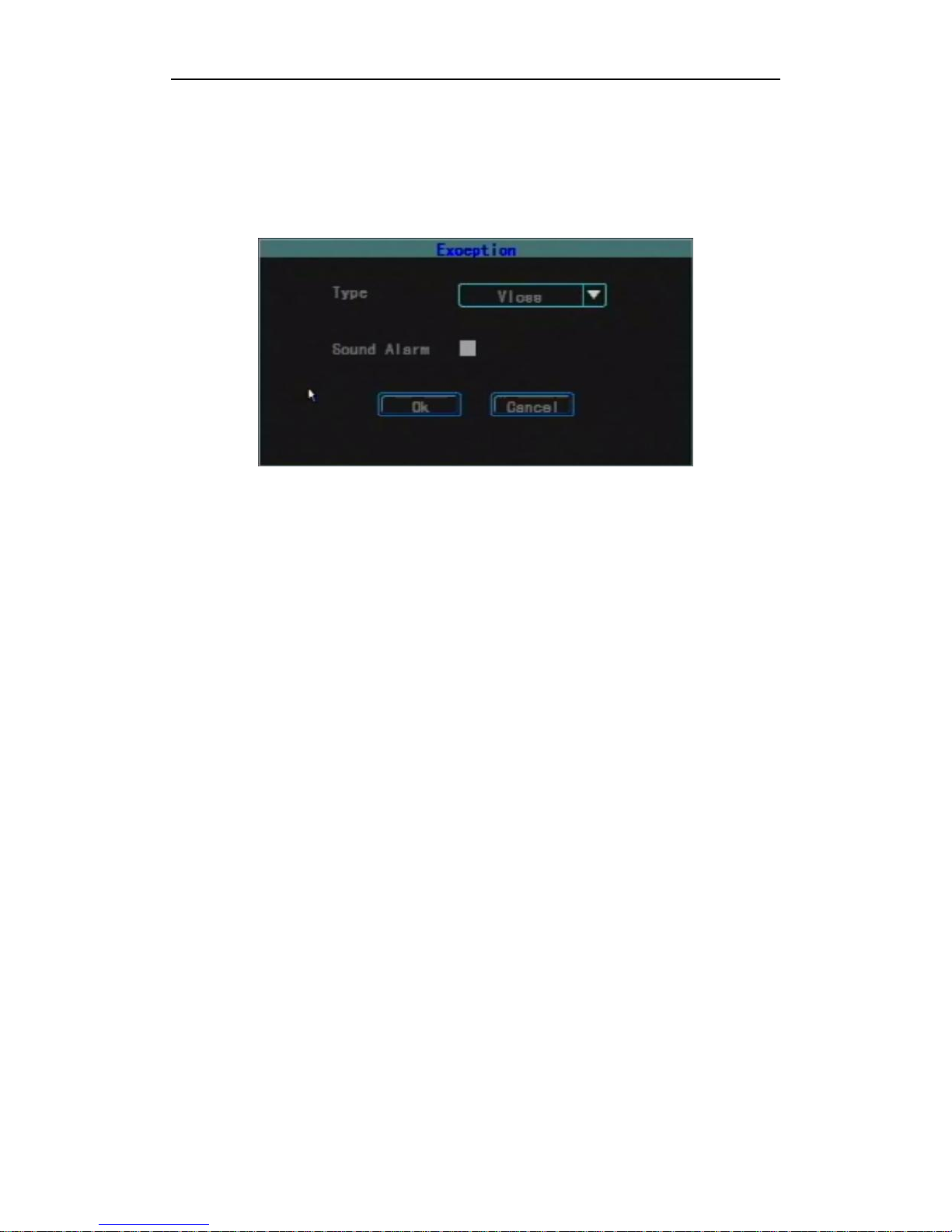

3.8.2.6 Expection Processing
The processing way of the system when there is any expection occurs.
Type: Includes video loss, disk full (don’t set overwrite), disk error and video blind.
Buzzer: Whether enable the buzzer when there is any specified expection.
3.8.2.7 Motion Detection
Channel: Select the channel to be set up.
Sensi.: Trigger the motion detection sensitivity. There are none, lowest, low, middle, high, and
highest options.
Area:
Blind: On the setting interface of motion detection area, a small yellow box appears in the
middle of the area namely area setting box. Area creation: first move the yellow box
to the start position of the setting area, use the 【FN】 button on the remote control
(the yellow box and the red box can switch) to change it into small red box (red box
is the motion detection area); then press the direction buttons to adjust the size of the
area; when the area setting is complete, press the 【FN】 button, the motion
detection area will be selected and saved, and the small red box change into small
yellow box. Maximum 4 blind areas can be set up. Use the left mouse button to drag
from the left upper corner to the right lower corner and the area will auto generate.
When the setting is complete, press the 【OK】 button or click the right mouse
button to exit and save.
Local Clear: Move the yellow box to the start position (left upper) of the area to be cleared.
Press 【FN】, it will change into a small black box (the area to be cleared),
local will be cleared. When the clear is complete, press the 【OK】 button to
save and return to the setting interface of motion detection menu. If press the
【ESC】 button, the clear operation will be invalid. Click the left mouse
button and drag from the left upper corner of the selected area to the right
lower corner. Click the right mouse button to exit and save.
All Clear: Press the 【MENU】 button on the remote control to clear all areas of the
channel.
Select All: Press the 【VOIP】 button on the remote control to select all areas of the
Page 25
Standalone DVR User Manual
25
channel.
Delay: When the motion detection is ended, how long will the related processing (such as
recording, buzzer, alarm output) delay.
Rec. CH: Setup which channels to be triggered to record. To record, you have to set the time
periods in the schedule interface.
Buzzer: Set whether to enable the buzzer.
CopyTo: Used to copy the parameters of this channel to other channel so as to configure quickly.
3.8.2.8 PTZ Configuration
Channel: Select the channel to be se t up.
Baudrate: There are eight kinds of rates: 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600 and
115200 in the serial port. The selected item should be in accordance with the matched
PTZ rate setting.
Data Bit: The protocol types include 6 digits, 7 digits and 8 digits. The selected item should be in
accordance with the matched PTZ data bit setting.
Stop Bit: The protocol types include 1 digit and 2 digits. The selected item should be in
accordance with the matched PTZ data bit setting.
Checksum: The protocol types include none, odd and even. The selected item should be in
accordance with the matched PTZ checksum setting.
Flow Ctrl: The protocol types include none, hardware, Xon/Xoff. The selected item should be in
accordance with the matched PTZ flow control setting.
Protocol: The protocol types currently supported are: Pelco-p, Pelco-D, Samsung, b01. With the
update of the software, more decoders will be supported. Please be subject to the
software..
Decoder: Refer to the address of the decoder.
Preset: Preset point is to preset and memorize the position, focus, aperture and zoom of the
camera and use a number to identify these settings at the same time.
Add Preset: Input a preset point in the preset point edit box, ranging from 1-128, then adjust the
camera to the target position by the direction button. When the adjustment is
complete, press “OK”, the preset point will be saved.
Delete Preset: Input a preset point to be deleted in the preset point edit box, click 【Delete】.
Cruise: Cruise path is a path where a camera runs at a certain speed. It passes various cruise
points with numbers. Each cruise point includes stay preset points and retention time.
Page 26
Standalone DVR User Manual
26
Thus, the settings of the cruise path include the parameter settings of the cruise point,
preset point, retention time and cruise time etc, then enter “set” to set the cruise path and
cruise path number. At present, one device supports the setting of 16 cruise path
numbers.
Track: Track is a line which is used to record the predefined irregular movement of the camera.
Enter “Set” to set the track.
CopyTo: Click the application to button at the bottom, apply the current configuration to the
corresponding channel (selected channel). (need to click 【OK】 button to save, click
【Cancel】 button to exit without saving.
3.8.3 PTZ Control
Enter the PTZ control Interface
Press the【PTZ】button on the remote control or click the left mouse button to enter;
The introduction of the PTZ Control function
The main operations of PTZ Control are: direction control; rotation; zoom control;
adjust the focus; adjust the iris. In addition to the rotation function, other four options
can choose the control speed.
Switch the page to invoke the preset point; start/stop auto cruise; wiper control; light
control; auxiliary equipment control.
Note: The invoked preset point must have been set up. For the setting method of the cruise
path, please refer to the cruise path number setting in 3.8.2.9 PTZ setting. When the cruise
path number set up is less than 2 digits, you need to add 0 to fill up 2 digits before the value
of the corresponding cruise path number set up.
3.8.4 Log Information
Search the log information record in the device according to the log type and the start and end
Page 27
Standalone DVR User Manual
27
time.
Type: Select the log type, including all, alarm, expection, local operation and remote operation.
Start/End: Set the start and end time of searching log.
Prev: Used to go to the preview page.
Next: Used to go to the next page.
Goto: Used to go to the specified page.

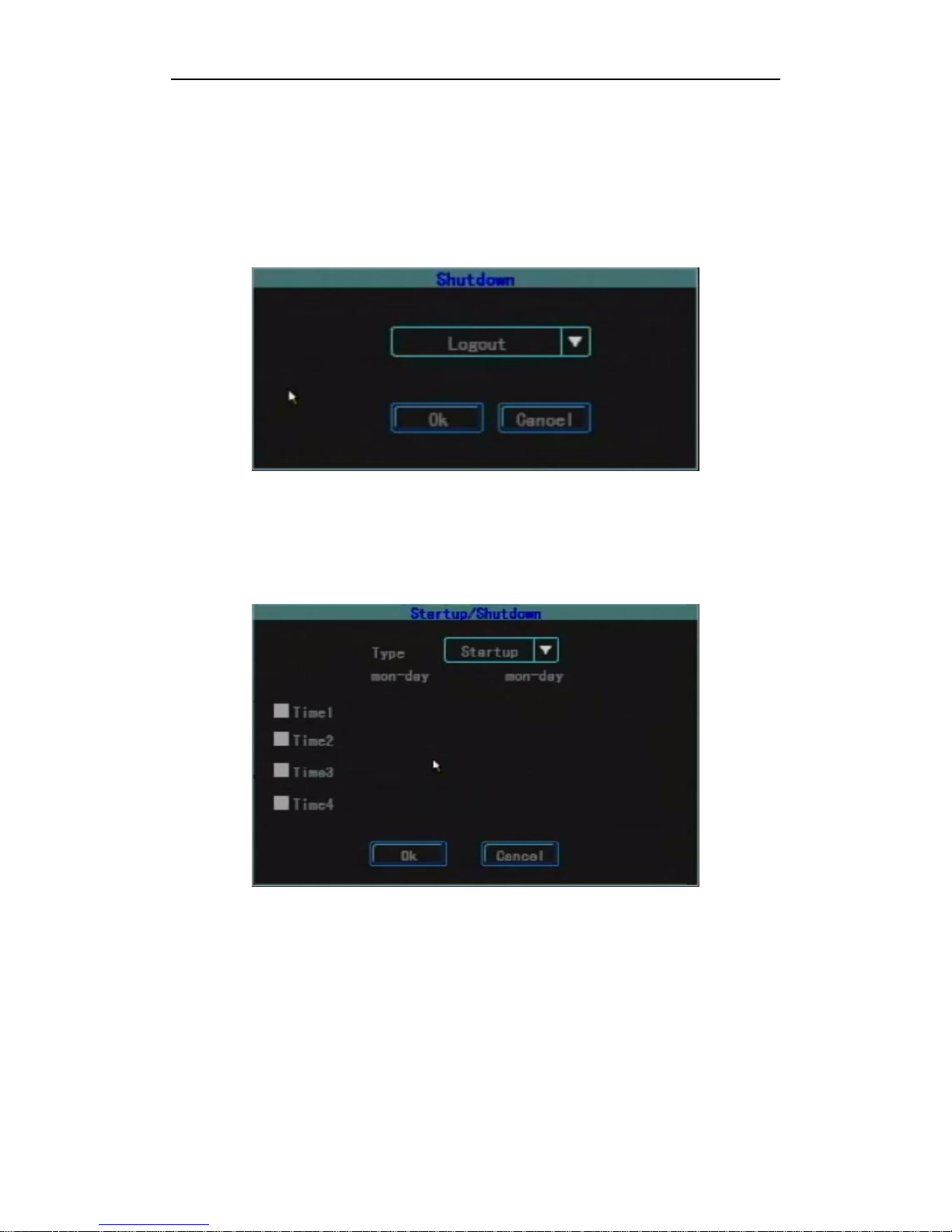

3.8.5 Shutdown System
Logout: Used to cancel the current user. After logout, if you want to continue to use the device,
you need to login the system again.
Restart: Used to restart the device.
Shutdown: Used to shutdown the device namely soft shutdown device.
3.8.6 Timing Start and Shutdown Device
Used to set timing start or shutdown device. There are four time periods can be set and within
each time period, you can set the time of start and shutdown every day.
Page 28
Standalone DVR User Manual
28
3.8.7 Bus Information
DeviceID: Used to set the ID number of every device.
DeviceName: Used to set the device name which is the same as the device name set up in “Info”.
BusNo: Used to set the bus number of the vehicle, facilitating management.
Note: All information in this item can’t be restored to the factory setting, but you can manually
modify the relevant information.
3.8.8 Overlay Setting
Preview: Used to set up whether to display time, channel number, bus number and if there is
flashing prompting when video loss under preview mode. “Open” means display this item when
preview while “Close” means not display this item on the interface when preview.
Recording: Used to set up whether to display time, channel number and bus number in the
recording file. “Open” means display this item in the recording file while “Close” means not
display this item in the recording file.
Page 29
Standalone DVR User Manual
29
4 Client Software User Manual
4.1 Instruction of Client Main Functions
(1) The “RecordFile” interface realizes the search and playback functions of the recording
file in the storage medium: search and playback the recording file in the storage
medium (HDD or SD card) by channel number, start and end time, recording type and
car number.
(2) Playback function: support single channel playback by file and time; support
multi-channel playback by time.
(3) Backup function: support single file backup and multiple files backup by time; the
backup file supports two kinds of formats: ifv and avi formats.
(4) File clip function: you can clip one section of the recording file according to the needed
start and end time. The clip file supports ifv and avi formats.
(5) Log search function: can search and display the storage medium or the log files stored in
local.
(6) The search and playback function of the local recording file: support search and playback
the local recording file by car number and by start and end time.
(7) Data empty function: used to empty the recording files in the storage medium (HDD or
SD card).
4.2 Client Operation Introduction
This client software supports single-channel and multi-channel video playback. This software
includes 4 interfaces totally.

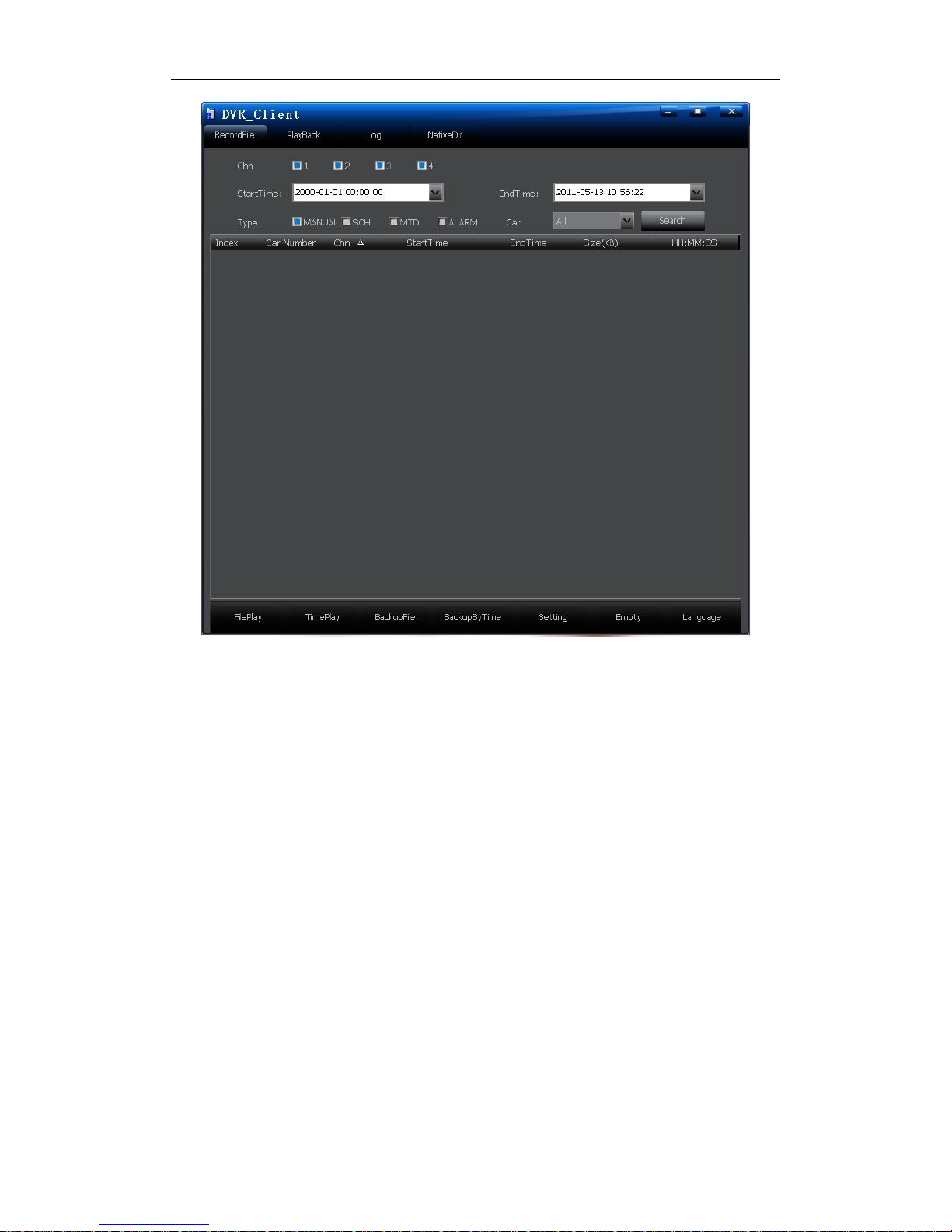

(1) Record file search interface: the system supports search recording file by channel
number, recording type, start and end time and car number.
Page 30
Standalone DVR User Manual
30
1.1 Playback by file
After set up the channel number, start and end time, recording type (event) and car number,
click “Search” button, all the recording files which meet the conditions will display in the list box.
Select the recording file you want to playback, double-click this file or click “FilePlay” button to
play this file. Double-click mouse when playback can switch the big picture to small picture. Only
single-channel playback can be realized.
Note 1: “StartTime” has record function, namely, after the start time is set up, when the system
is run next time, the start time will be the same as the one set up last time.
Note 2: When search the “Car Number” in the storage medium, all the car numbers will
display in the drop-down list box. The car numbers in the drop-down list box will be updated after
changing the storage medium.
1.2 Playback by time
Playback by time supports single-channel and multi-channel audio and video playback. After
set up channel number, start and end time and recording type, click “TimePlay”, the recording file
of any type of the selected channel within this time period will playback. When the mouse moves
to one of the channels, the audio will playback the audio of this channel; double-click to realize
viewing recording file in big picture. Four channel playback can be realized.
1.3 Backup File
Page 31
Standalone DVR User Manual
31
Select the recording file which you want to backup from the list box, then click “BackupFile”
button, select the storage path to backup. When the backup is complete, there will be a succeed
prompting. The backup file can be with ifv and avi format.
1.4 Backup by Time:
After set up the channel, recording type and the start time and end time of the file, click
“BackupByTime, realize multi-file backup at the same time. Setup the backup path and type in the
“Set” interface.
1.5 Setting:
This function is used to set the backup path and backup type of the file.
1.6 Empty Data:
This function is used to empty the recording file in the storage medium (HDD or SD card)
Note: The data will not be able to be restored after empty. Please use it cautiously.
1.7 Language:
This software supports Chinese and English.
(2) Playback Interface:
When the mouse points to the icon, the functions of this icon will display.
2.1 Stop: Click “Stop” button to stop the file play.
Page 32
Standalone DVR User Manual
32
2.2 Pause, Frame Forward: “Pause” button controls pause or play recording file; frame forward:
each click will play one frame forward.
2.3 Playback Speed: It can play in normal speed (1 time), fast forward (2 times, 4 times, 8 times,
16 times), slow forward (1/2, 1/4, 8, 1/16).
2.4 Normal Speed: When click fast forward or slow forward, to restore to the normal speed
directly, click this button.
2.5 Video Cut: To cut any section of the video, click “Cut” button, another progress bar will
appear under the play progress bar. Click the right mouse button on the needed position on the
progress bar can “Add Cut Point”, “Cancel Cut Point”. When two cut points are set up, you can
“Backup Cut Video” (When the video file cut is separated into two files according to the start time
and end time, there will be two files generated; and so on).
Note: when the interval between the start time and the end time is relatively big, but the time
interval of the video which needs to be cut is relatively small, two cut points will overlap together
which will not affect the cut function.
2.6 Snapshot: Capture the image of any time selected by the user.
2.7. Open File: This function is used for single-channel playback the recording file in the PC end.
(3) Log Interface: System supports search log by type and start time and end time.
Page 33
Standalone DVR User Manual
33
3.1 Browse: Used to setting the path of the log file (log.bin), click “Search Log” to view the log
file. Without setting the path, it will default to search the current log information in the storage
medium.
3.2 Type: Include all, alarm, exception, local operation and remote operation. Select the type of
the log you want to search.
3.3 StartTime and EndTime: Set the start time and end time of the log you want to search.

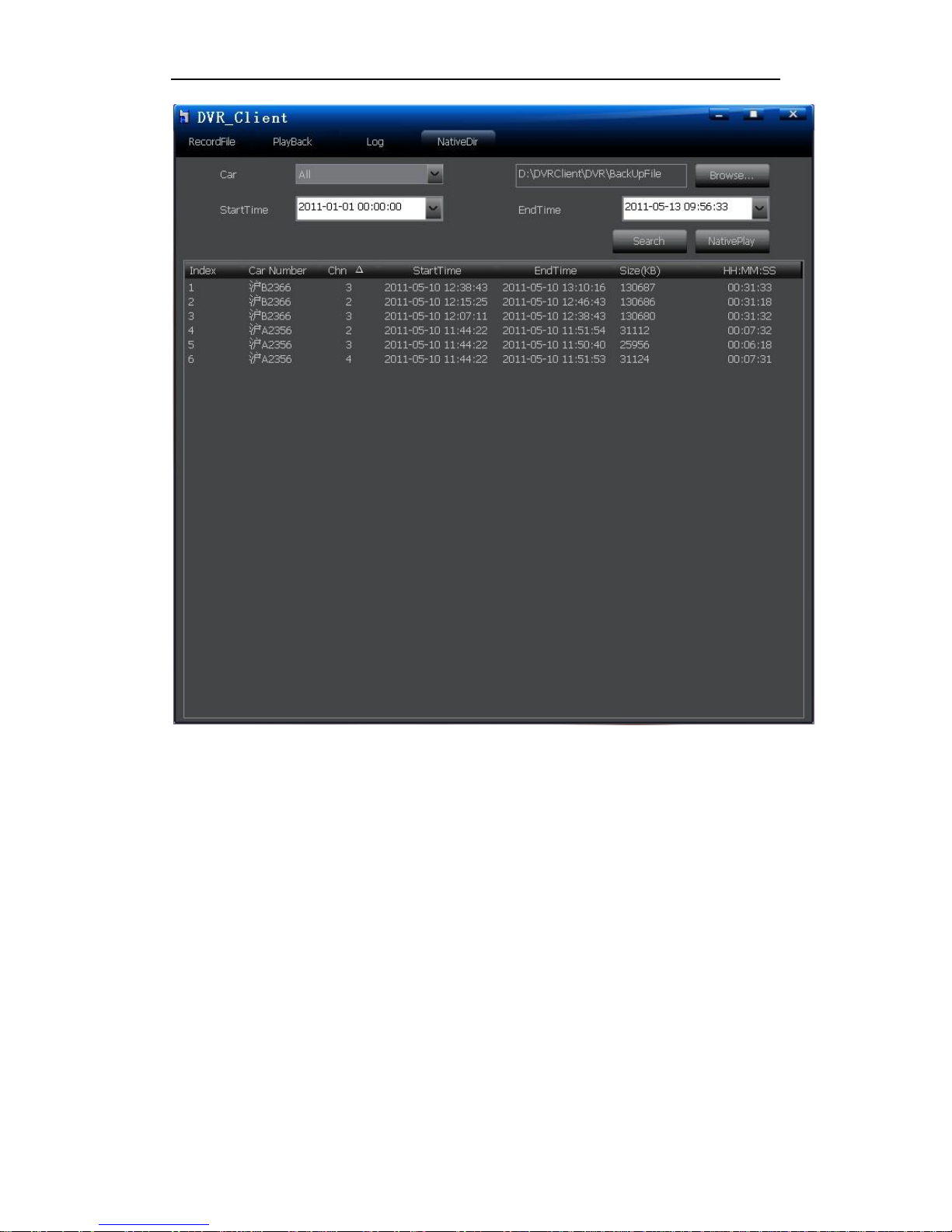

(4) Local Recording Search Interface: Used by the recording files of the car number and time
search saved in local.
.
Page 34
Standalone DVR User Manual
34
4.1 Browse: Used to set the file which save the recording files in local.
4.2 Search: Select the car number and the start time and end time which you want to search, click
“Search” button, all the recording files of a vehicle within a time period will display in the list
box.
Note: “StartTime” has record function, namely, after the start time is set up, when the system is
run next time, the start time will be the same as the one set up last time.
4.3 NativePlay: Setup the path, car number, start time and end time, click “NativePlay” button to
play the recording file within this time period by time.
Page 35
Standalone DVR User Manual
35
5 Frequently Asked Question
1. How to operate the motion detection recording?
A: There are mainly two steps for setting the motion detection recording:
Set the sensitivity, area and the recording channel to be triggered of the corresponding
channel in the “MTD” page.
Set the time of the corresponding channel triggering the motion detection recording in the
“Schedule” page.
Note: the alarm recording setting is similar to the motion detection recording setting. You need
to set the recording channel in the “Alarmin” page, and set the time in the “Schedule” page.
2. How to modify the information in the edit box when use remote control?
A: Use 【FN】 to switch the type of the input character; use the 【MENU】 key to exit the
edit mode after edit is complete.
3. After connect the HDD and start the recording, why doesn’t it record?
A: There are three possibilities:
When the HDD connected is new, it cannot record without format. Thus, you need to format
the new HDD first;
When set overwrite when the device is full in the “Setup” interface, the device will stop
recording when the HDD is full;
When the HDD connected is defective, it will not record while the system can preview.
4. Why can’t the SD card be formatted?
A: When the capacity of the SD card is less than 4G, it cannot be formatted.
5. Why can’t the connected mobile HDD or the U disk backup?
A: When the file system format of the mobile HDD or the U disk is NTFS, they cannot backup.
6. Why sudden shutdown occurs sometimes?
A: When ACC is under stalling status, up to the time set of “ACC Delay”, it will auto
shutdown.
7. Why does the device will auto start after shutdown?
A: When conduct soft shutdown, ACC is still under ignition status, thus the device will auto
start after shutdown.
8. Why doesn’t the device shutdown immediately after stalling?
A: There is “ACC Delay” setting in the “Setup”, which default to 5 minutes, namely, it will
shutdown after 5 minutes since receiving the ignition signal; to shutdown immediately after
stalling, you only need to set the time of “ACC Delay” to be 0.
9. Why is there only audio but no video when the client plays the recording file?

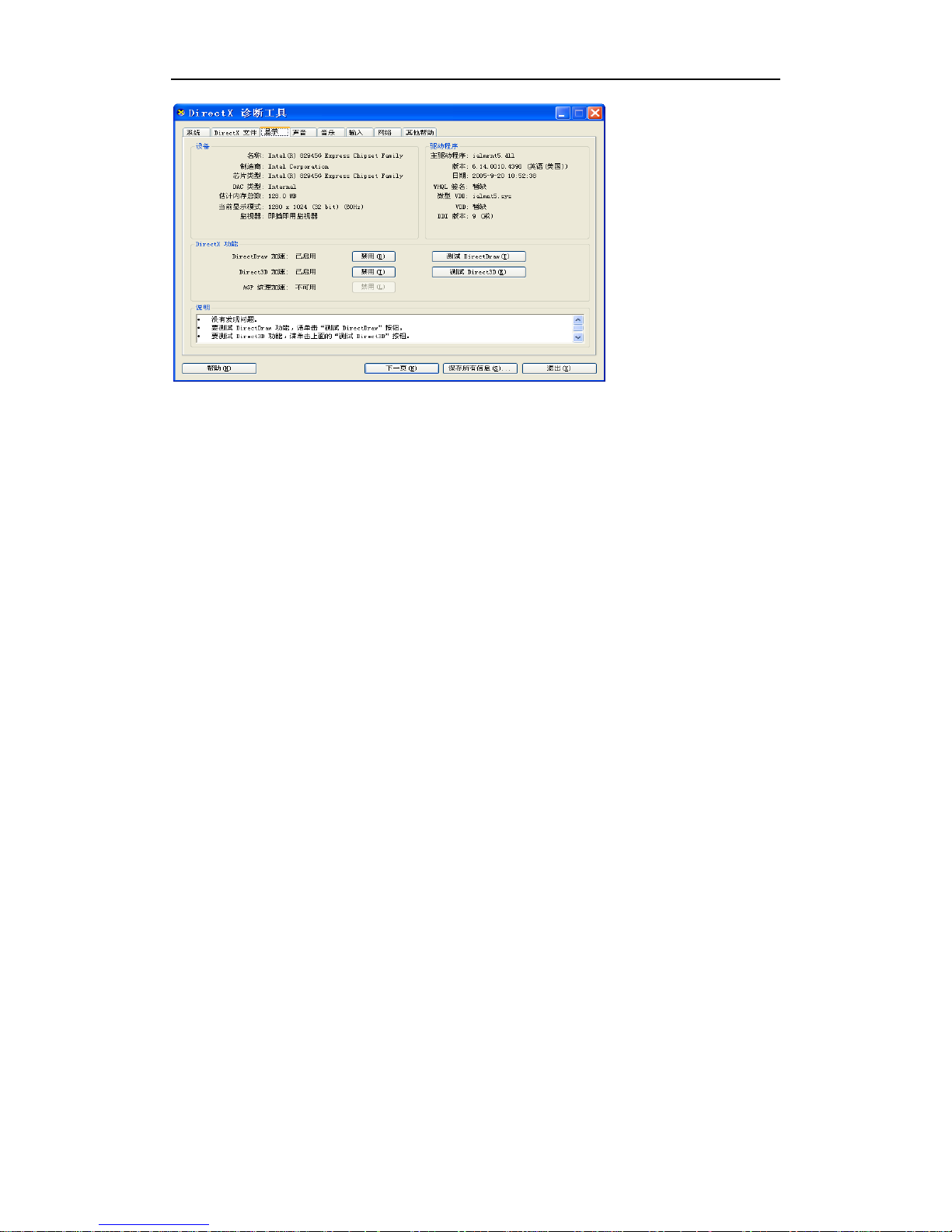

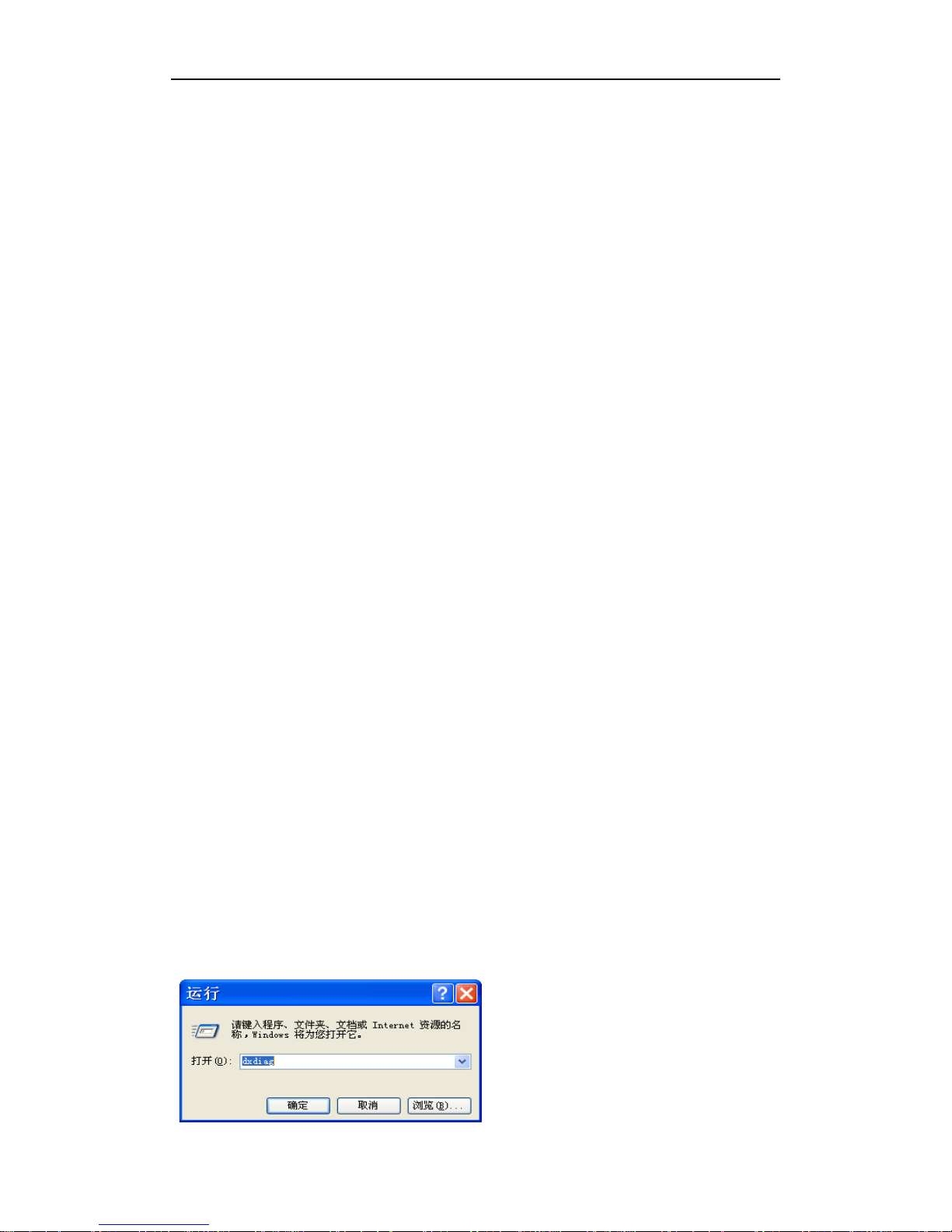

A: Because the DirectDraw acceleration is not enabled. The enable method is: input dxdiag in
the running interface, open DirectX diagnostic Tool, select “Show”, “Enable” the DirectDraw
acceleration in the DirectX function. It is shown as the below picture:
Page 36
Standalone DVR User Manual
36
Loading...
