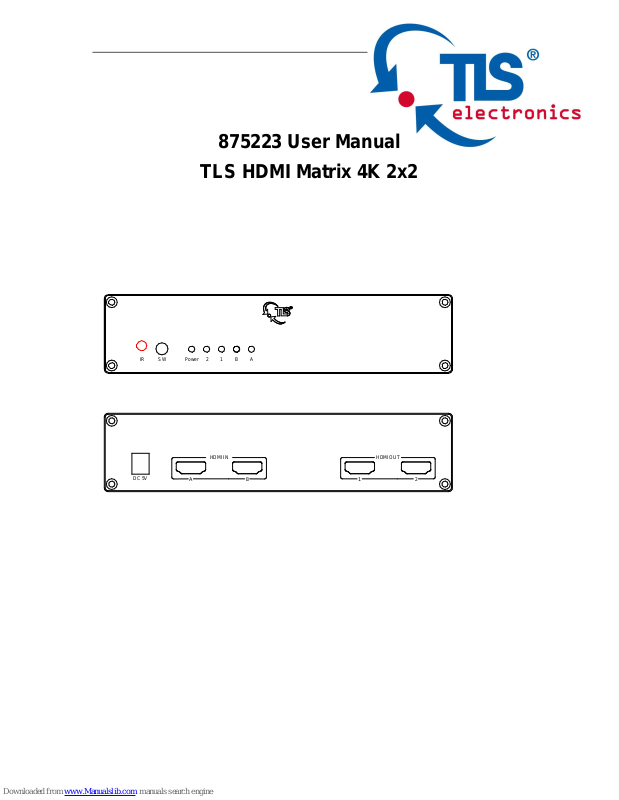

Page 1
875223 User Manual
TLS HDMI Matrix 4K 2x2
IR SW Power 2 1 B A
DC 5V
HDMI IN
B
A
HDMI OUT
2
1
Page 2
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 2
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the life
of your equipment.
Table of Contents
1. Introduction.........................................................................................3
2. Features...............................................................................................3
3. Panel Descriptions.................................................................................4
4. IR Remote Control…......................................................................6

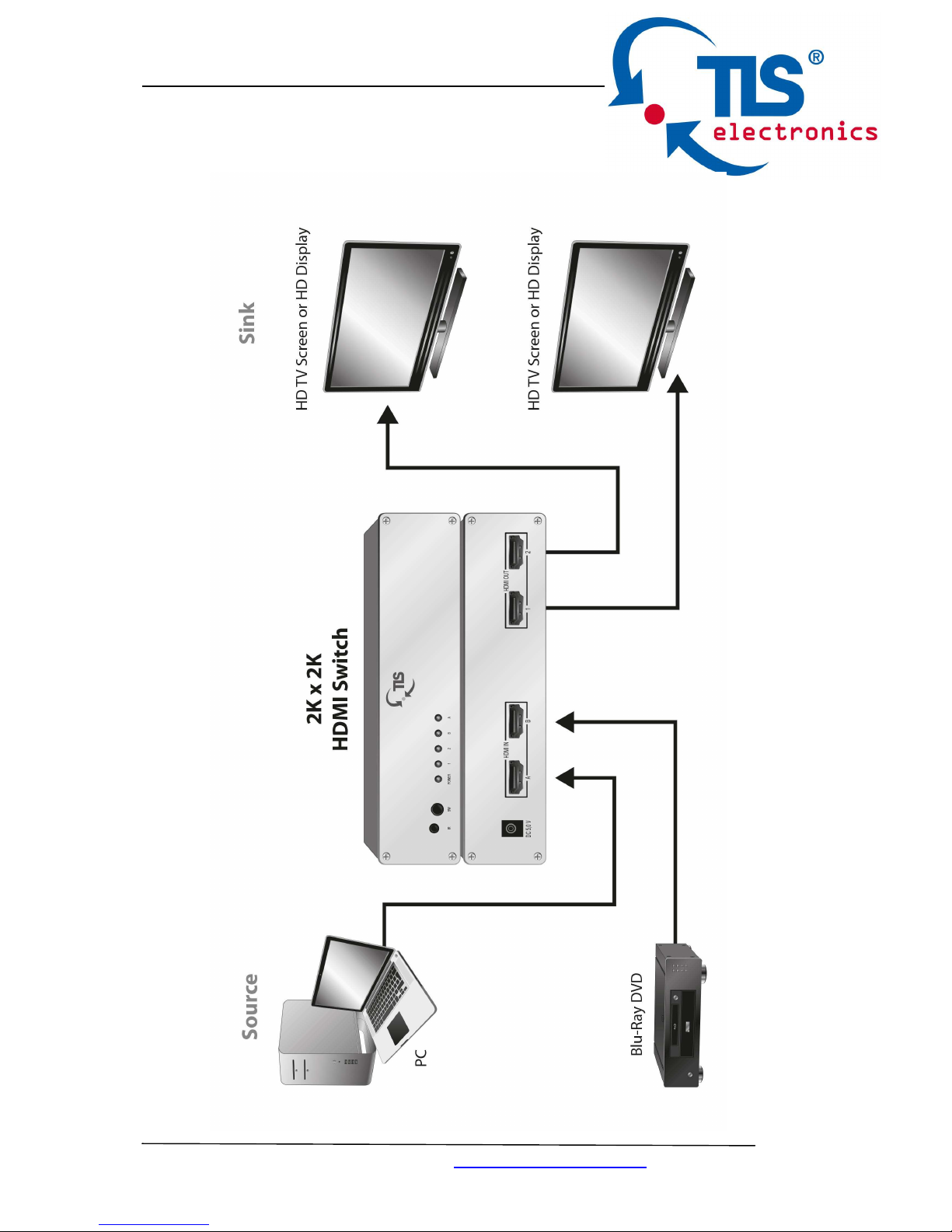

5. Application Diagram....................................................................7
6. Specifications.......................................................................................8
7. Package Contents................................................................................8
8. Maintenance.......................................................................................9
9. Warranty Policy.................................................................................9
10. Limitations of Warranty...........................................................................9
11. Exclusive Remedies..........................................................................10
12. RMA Policy….……………….......................................................................11
Page 3
875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 3
Introduction
TLS HDMI Matrix 4K 2x2 is a high-definition switch and supports 3D, 4K*2K, and
can be used to switch between two sources to two devices. It can be used in
teaching, training, conferencing etc.
With IR remote control you can switch the TLS HDMI Matrix 4K 2x2 from the
distance.
Features
In line with the version 1.4 specification, support resolution of 4K*2K, support
3D signal
With the build in memory function, boot can broadcast channel picture last time
Can automatically search for a signal channel broadcast
Support of remote control and manual switching
Support 340 MHz / 3.4 Gbps single channel bandwidth
Support 14/30/36/48 bit Deep Color RGB
Support Blu-Ray DVD 24/50/60fs/HD-DVD/ xvYCC
Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD /
HD/ HBR
With TLS digital cables you can reach up to 25m on the input, up to 25m on the
output
HDCP compatible
Page 4
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 4

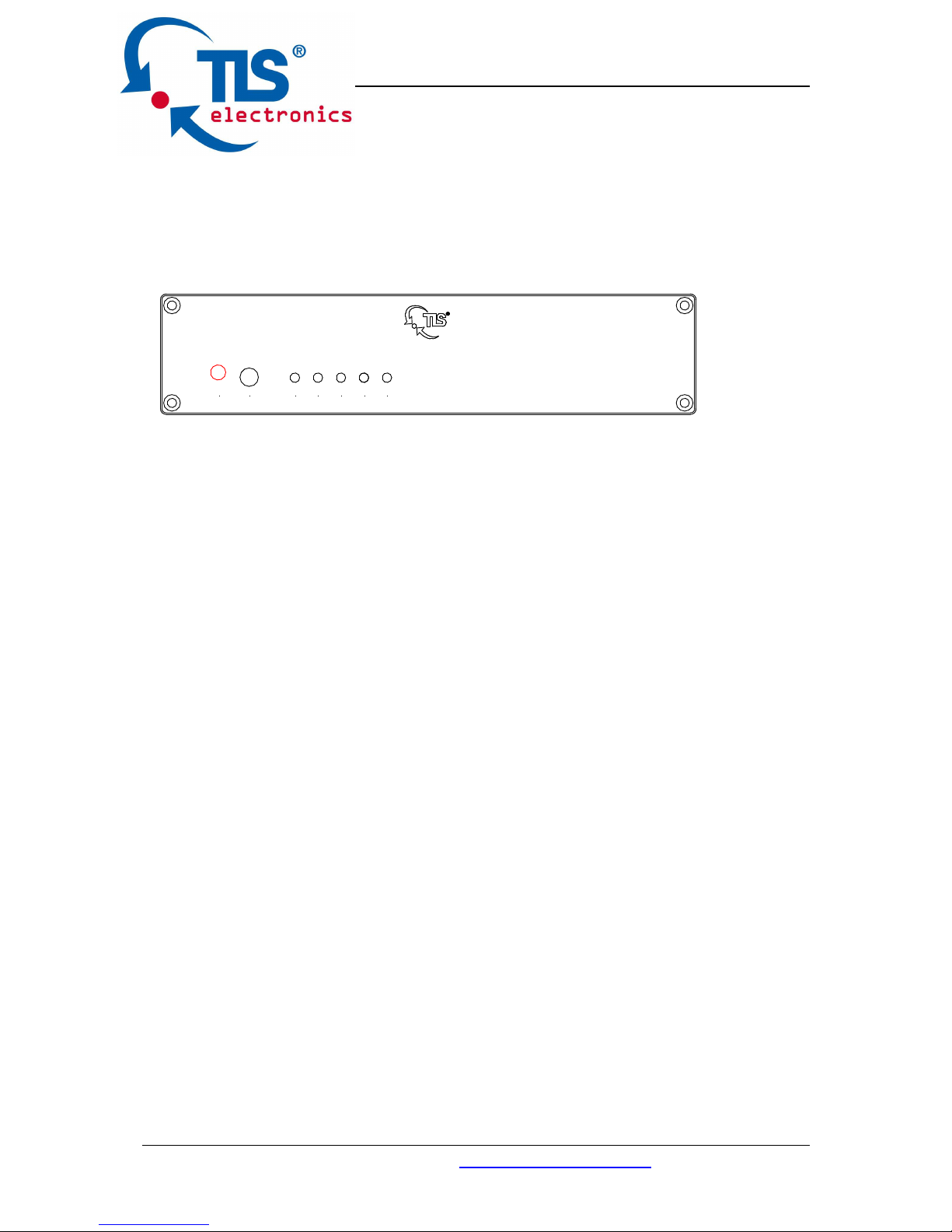

Panel Descriptions
Front Panel
IR SW Power 2 1 B A
• IR – IR receiver
• SW – switching button
• Power LED
• HDMI Output LED L2 – L1
• HDMI Input LED A - B
You can toggle with the switching button through positions of the matrix switcher
you
Page 5
875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 5

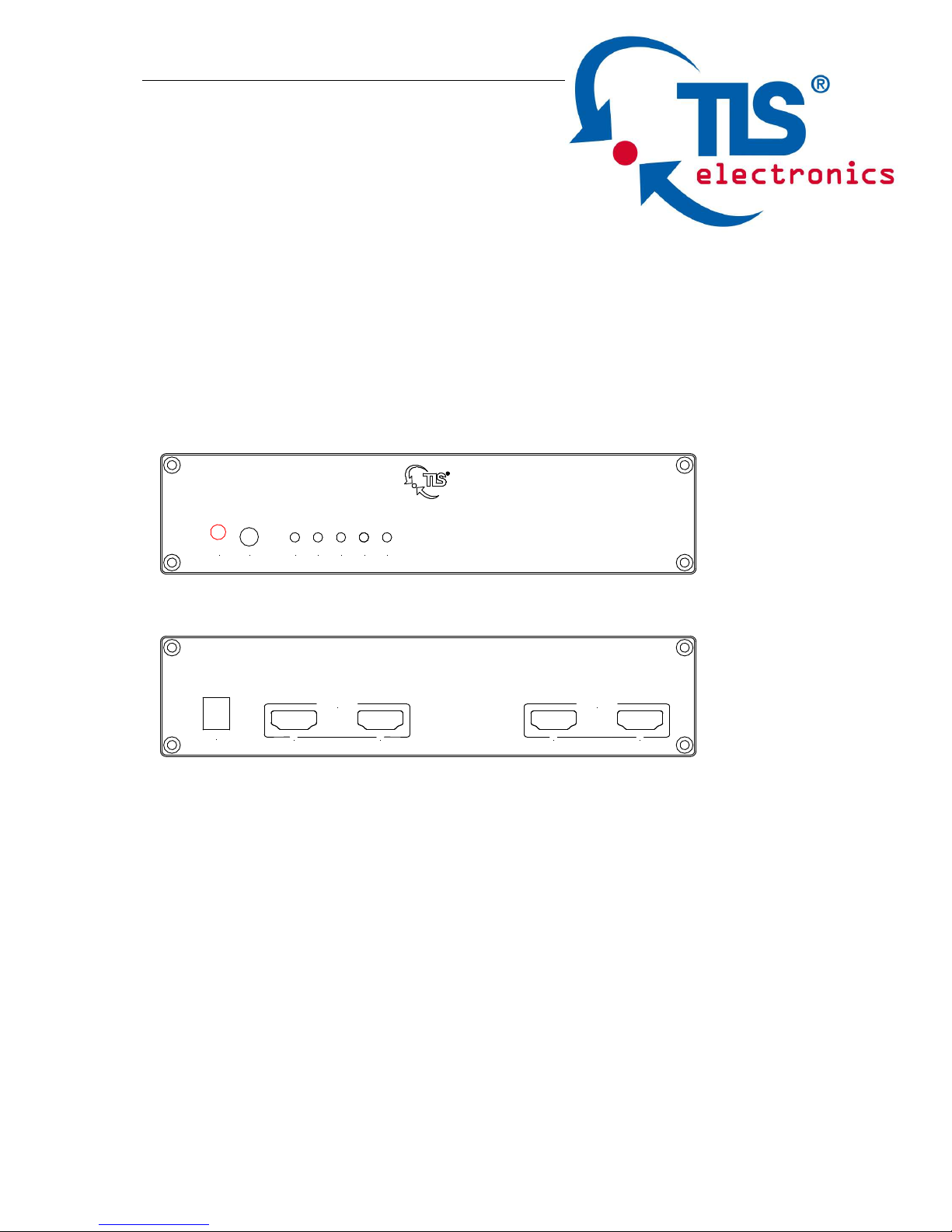

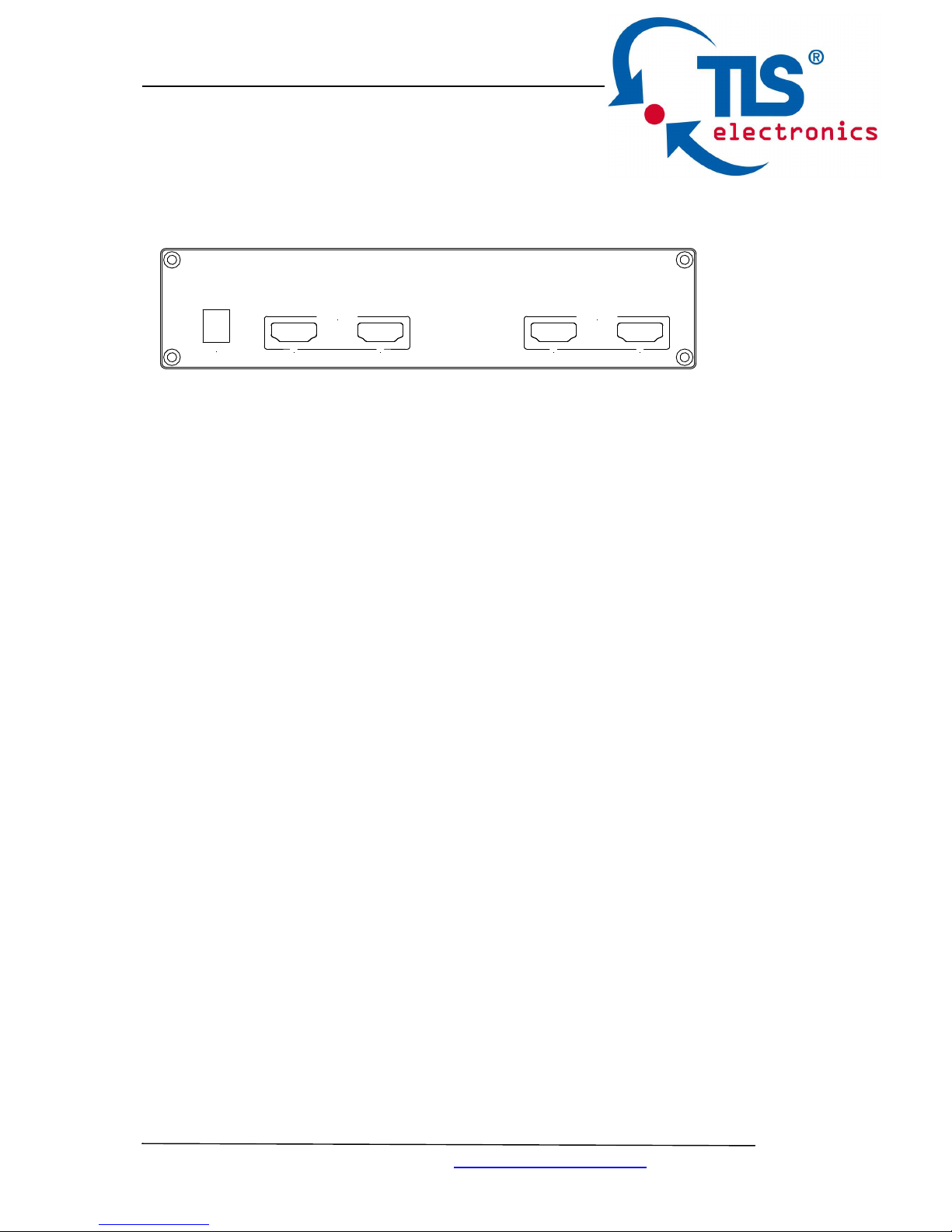

Rear panel
DC 5V
HDMI IN
B
A
HDMI OUT
2
1
• DC,5V – Input power supply
• HDMI IN A –B
• HDMI OUT 1 - 2
Page 6
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 6

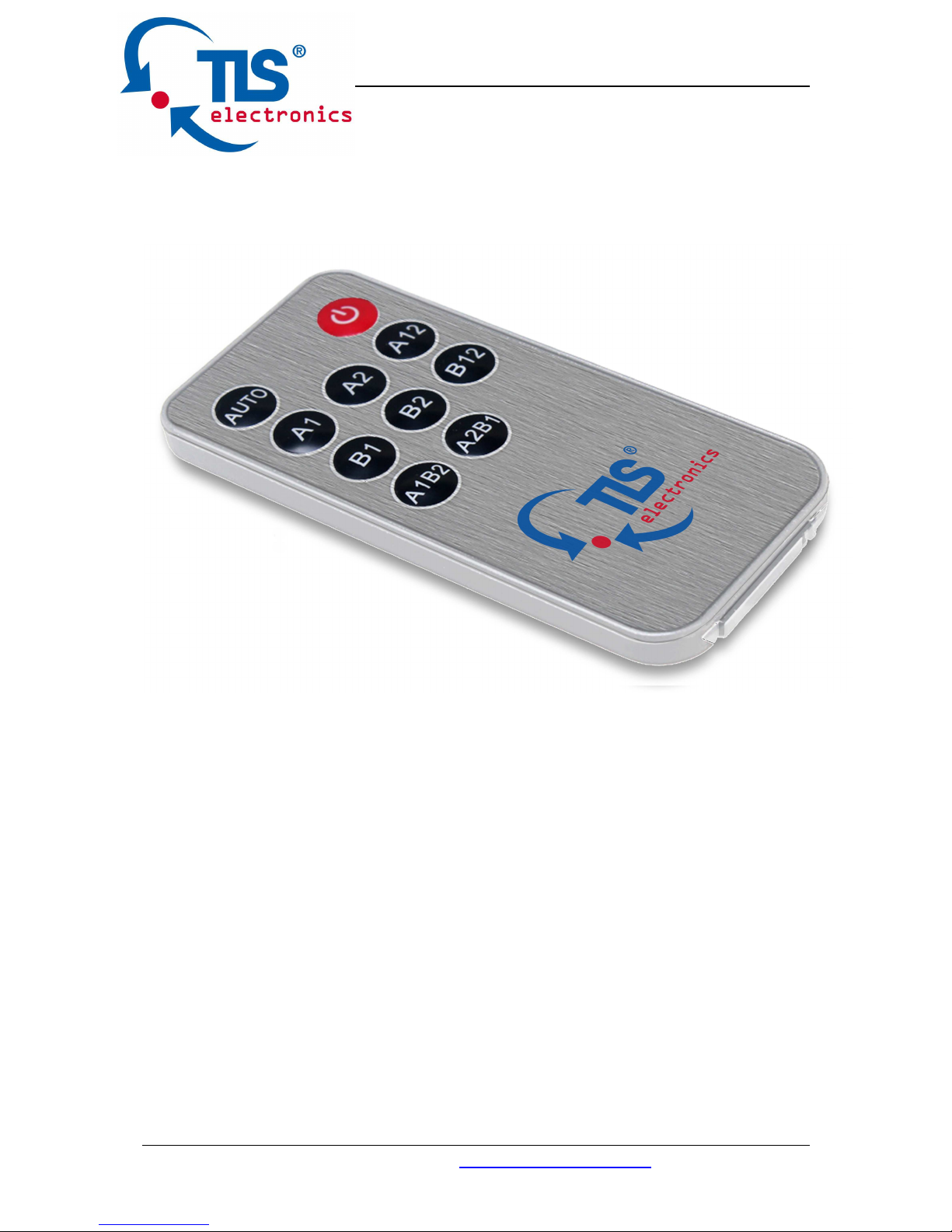

Remote Control
With the IR remote control it is made easy to switch to all possible positions of
the matrix switching:
A1
A2
A12
B1
B2
B12
A1B2
A2B1
Auto, when you press the button AUTO, the matrix turns to automatic switch
status, it switches from A12 B12 A1B2 A2B1 in every 10 seconds,
Page 7
Page 8
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 8
Specifications
Bandwidth 3.4 Gbps per color
Video Input
Connectors
2x HDMI Type A, 19-pin, female
Video Output
Connectors
2x HDMI Type A, 19-pin, female
Dimensions(W x D x
H)
180 mm x 65 mm x 42 mm, without
feet
Shipping Weight 0.3KG
Operating
Temperature
32°F to 104°F (0°C to 40°C)
Storage
Temperature
- 4°F to 140°F (- 20°C to 60°C)
Power Supply 5V/1A DC
Package Contents
1. 1x 875223 TLS HDMI 4K Matrix 2x2
2. 1x 5V/1A Power Supply
3. 1x IR remote control
Page 9
875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 9
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene
to clean this unit.
Warranty Policy
TLS electronics products are warranted against defects in material and
workmanship for three years from the date of shipment. During the warranty
period, TLS electronics will, at its option, repair or replace products that prove to
be defective. Repairs are warranted for the remainder of the original warranty or
a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to TLS
electronics and all related customs, taxes, tariffs, insurance, etc. TLS
electronics is responsible for the freight charges only for return of the equipment
from the factory to the owner. TLS electronics will return the equipment by the
same method as the equipment was sent to TLS electronics.
All equipment returned for warranty repair must have a valid RMA number
issued prior to return and be marked clearly on the return packaging. TLS
electronics strongly recommends all equipment be returned in its original
packaging.
TLS electronics obligations under this warranty are limited to repair or
replacement of failed parts, and the return shipment to the buyer of the repaired
or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed,
altered, repaired, or misused in any way that, in the opinion of TLS electronics,
would affect the reliability or detracts from the performance of any part of the
product, or is damaged as the result of use in a way or with equipment that had
not been previously approved by TLS electronics.
Page 10
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 10
The warranty does not apply to any product or parts thereof where the serial
number or the serial number of any of its parts has been altered, defaced, or
removed.
The warranty does not cover damage or loss incurred in transportation of the
product.
The warranty does not cover replacement or repair necessitated by loss or
damage from any cause beyond the control of TLS electronics, such as lightning
or other natural and weather related events or wartime environments.
The warranty does not cover any labor involved in the removal and / or
reinstallation of warranted equipment or parts on site, or any labor required to
diagnose the necessity for repair or replacement.
The warranty excludes any responsibility by TLS electronics for incidental or
consequential damages arising from the use of the equipment or products, or for
any inability to use them either separate from or in combination with any other
equipment or products.
A fixed charge established for each product will be imposed for all equipment
returned for warranty repair where TLS electronics cannot identify the cause of
the reported failure.
Exclusive Remedies
TLS electronics’s warranty, as stated is in lieu of all other warranties, expressed,
implied, or statutory, including those of merchantability and fitness for a
particular purpose. The buyer shall pass on to any purchaser, lessee, or other
user of TLS electronics products, the aforementioned warranty, and shall
indemnify and hold harmless TLS electronics from any claims or liability of such
purchaser, lessee, or user based upon allegations that the buyer, its agents, or
employees have made additional warranties or representations as to product
preference or use.
Page 11
875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 11
The remedies provided herein are the buyer’s sole and exclusive remedies. TLS
electronics shall not be liable for any direct, indirect, special, incidental, or
consequential damages, whether based on contract, tort, or any other legal
theory.
RMA Policy
When returning product to TLS electronics for any reason, the customer should
fill out the official RMA form to obtain a RMA number. Without the permission or
approval, TLS electronics will be no responsible for any return. This can be
initiated by emailing or calling your related sales. All requests are processed
within 48 hours.
Standard Replacement
For customers that agree to return defective product to TLS electronics first, a
Standard Replacement option is available.
An RMA number must first be issued by sales. This RMA number will need to be
referenced on the outside of the return shipment.
Upon receipt of the defective product, TLS electronics will, at its discretion,
either repair or replace the product and ship it out in the most expeditious
manner possible. Subject to availability, the replacement product will be shipped
on the business day following receipt of the defective product.
In the event the product returned to TLS electronics has been discontinued (i.e.
the product is no longer being manufactured by TLS electronics but is still under
warranty), TLS electronics will, at its discretion, either repair or replace with
recertified product.
Page 12
8 875223 HDMI Matrix 4K 2x2
TLS electronics GmbH Contact: [email protected] 12
Once you have obtained an RMA number
After obtaining an RMA number from TLS electronics, you must send the
product - freight prepaid - to TLS electronics. The TLS electronics RMA number
must be prominently displayed on the outside of your package. If you send your
product to TLS electronics without the RMA number prominently displayed on
the outside of the package, it will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. TLS
electronics does not accept responsibility for any lost shipments unless proof of
delivery to TLS electronics is provided.
Please note:
Product shipped to TLS electronics must be properly packaged to prevent loss
or damage in transit.
Shipping your RMA to TLS electronics using regular mailing envelopes is not
acceptable, as they do not protect the product from damage during shipping.
TLS electronics will not repair or replace a module that is shipped in such a way
that the product is not properly protected.
TLS electronics will not accept any product that has been damaged as a result
of accident, abuse, misuse, natural or personal disaster, or any unauthorized
disassemble, repair or modification.
