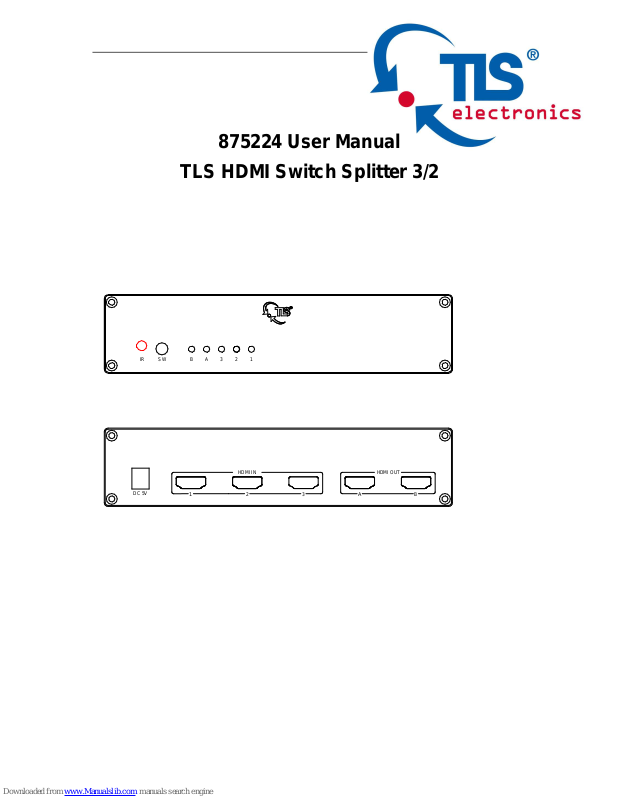

TLS 875224 User Manual

875224 User Manual

TLS HDMI Switch Splitter 3/2

IR SW B A 3 2 1

DC 5V

HDMI IN

2

1

HDMI OUT

B

A

3

8 875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 2

Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the life
of your equipment.

Table of Contents

1. Introduction.........................................................................................3

2. Features...............................................................................................3

3. Panel Descriptions.................................................................................4

4. Application Diagram....................................................................6

5. Specifications.......................................................................................7

6. Package Contents................................................................................7

7. Maintenance.......................................................................................8

8. Warranty Policy.................................................................................8

9. Limitations of Warranty...........................................................................8

10. Exclusive Remedies..........................................................................9

11. RMA Policy….……………….......................................................................10

875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 3

Introduction

TLS HDMI Switcher Splitter 3/2 is a high-definition switcher with integrated splitter
and supports 3D, 4K*2K. It can be used for multiple players, even smartphones
and tablets, to switch to a splitted output with two devices. Output HDMI B is the
master output for EDID information.
It can be used in teaching, training, conferencing etc. With IR remote control you
can switch the TLS HDMI Switcher Splitter 3/2 from the distance.

Features

 In line with the version 1.4 specification, support resolution of 4K*2K, support

3D signal

 With the build in memory function, boot can broadcast channel picture last time
 Input detection, switches from input automatically to both outputs
 Lost of signal, switches back to last active input
 Support of remote control and manual switching
 Support 340 MHz / 3.4 Gbps single channel bandwidth
 Support 14/30/36/48 bit Deep Color RGB
 Support Blu-Ray DVD 24/50/60fs/HD-DVD/ xvYCC
 Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD /

HD/ HBR

 With TLS digital cables you can reach up to 25m on the output, up to 25m on

the input side

 HDCP compatible
 EDID passthrough from HDMI Output B to all inputs

8 875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 4

Panel Descriptions

Front Panel

IR SW B A 3 2 1

• IR – IR receiver

• SW – switching button

• A – OUT HDMI 1, Green for active

• B – OUT HDMI 2, Green for active

• L1 – IN HDMI 1, Red for active

• L2 – IN HDMI 2, Red for active

• L3 – IN HDMI 3, Red for active

875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 5

Rear panel

DC 5V

HDMI IN

2

1

HDMI OUT

B

A

3

• DC,5V – Input power supply

• HDMI OUT A – HDMI Output

• HDMI OUT B - HDMI Output, EDID Master OUTPUT, EDID

passthrough

• HDMI IN 1/2/3 – 3 inputs for HDMI sources

Remote Control

With the IR remote control it is made easy to switch to all possible positions of
the matrix switching:
Input 1 to ALL
Input 2 to ALL
Input 3 to ALL

8 875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 6

Application Diagram

875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 7

Specifications

Bandwidth 3.4 Gbps per color
Video Input
Connectors

3x HDMI Type A, 19-pin, female

Video Output
Connectors

2x HDMI Type A, 19-pin, female

Dimensions(W x D x
H)

180 mm x 65 mm x 42 mm, without

feet
Shipping Weight 0.3KG
Operating
Temperature

32°F to 104°F (0°C to 40°C)
Storage

Temperature

- 4°F to 140°F (- 20°C to 60°C)

Power Supply 5V/1A DC

Package Contents

1. 1x 875224 HDMI Switch Splitter 3/2

2. 1x 5V/1A Power Supply

3. 1x IR remote control

8 875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 8

Maintenance

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene
to clean this unit.

Warranty Policy

TLS electronics products are warranted against defects in material and
workmanship for three years from the date of shipment. During the warranty
period, TLS electronics will, at its option, repair or replace products that prove to
be defective. Repairs are warranted for the remainder of the original warranty or
a 90 day extended warranty, whichever is longer.

For equipment under warranty, the owner is responsible for freight to TLS
electronics and all related customs, taxes, tariffs, insurance, etc. TLS
electronics is responsible for the freight charges only for return of the equipment
from the factory to the owner. TLS electronics will return the equipment by the
same method as the equipment was sent to TLS electronics.

All equipment returned for warranty repair must have a valid RMA number
issued prior to return and be marked clearly on the return packaging. TLS
electronics strongly recommends all equipment be returned in its original
packaging.

TLS electronics obligations under this warranty are limited to repair or
replacement of failed parts, and the return shipment to the buyer of the repaired
or replaced parts.

Limitations of Warranty

The warranty does not apply to any part of a product that has been installed,
altered, repaired, or misused in any way that, in the opinion of TLS electronics,
would affect the reliability or detracts from the performance of any part of the
product, or is damaged as the result of use in a way or with equipment that had
not been previously approved by TLS electronics.

875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 9

The warranty does not apply to any product or parts thereof where the serial
number or the serial number of any of its parts has been altered, defaced, or
removed.

The warranty does not cover damage or loss incurred in transportation of the
product.

The warranty does not cover replacement or repair necessitated by loss or
damage from any cause beyond the control of TLS electronics, such as lightning
or other natural and weather related events or wartime environments.

The warranty does not cover any labor involved in the removal and / or
reinstallation of warranted equipment or parts on site, or any labor required to
diagnose the necessity for repair or replacement.
The warranty excludes any responsibility by TLS electronics for incidental or
consequential damages arising from the use of the equipment or products, or for
any inability to use them either separate from or in combination with any other
equipment or products.

A fixed charge established for each product will be imposed for all equipment
returned for warranty repair where TLS electronics cannot identify the cause of
the reported failure.

Exclusive Remedies

TLS electronics’s warranty, as stated is in lieu of all other warranties, expressed,
implied, or statutory, including those of merchantability and fitness for a
particular purpose. The buyer shall pass on to any purchaser, lessee, or other
user of TLS electronics products, the aforementioned warranty, and shall
indemnify and hold harmless TLS electronics from any claims or liability of such
purchaser, lessee, or user based upon allegations that the buyer, its agents, or
employees have made additional warranties or representations as to product
preference or use.

The remedies provided herein are the buyer’s sole and exclusive remedies. TLS
electronics shall not be liable for any direct, indirect, special, incidental, or
consequential damages, whether based on contract, tort, or any other legal
theory.

8 875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 10

RMA Policy

When returning product to TLS electronics for any reason, the customer should
fill out the official RMA form to obtain a RMA number. Without the permission or

approval, TLS electronics will be no responsible for any return. This can be
initiated by emailing or calling your related sales. All requests are processed

within 48 hours.

Standard Replacement

For customers that agree to return defective product to TLS electronics first, a
Standard Replacement option is available.

An RMA number must first be issued by sales. This RMA number will need to be
referenced on the outside of the return shipment.

Upon receipt of the defective product, TLS electronics will, at its discretion,
either repair or replace the product and ship it out in the most expeditious
manner possible. Subject to availability, the replacement product will be shipped

on the business day following receipt of the defective product.

In the event the product returned to TLS electronics has been discontinued (i.e.
the product is no longer being manufactured by TLS electronics but is still under
warranty), TLS electronics will, at its discretion, either repair or replace with
recertified product.

875224 HDMI Switch Splitter 3/2

TLS electronics GmbH Contact: [e-mail] 11

Once you have obtained an RMA number

After obtaining an RMA number from TLS electronics, you must send the
product - freight prepaid - to TLS electronics. The TLS electronics RMA number
must be prominently displayed on the outside of your package. If you send your
product to TLS electronics without the RMA number prominently displayed on
the outside of the package, it will be returned to you unopened.

Please use a shipping company that can demonstrate proof of delivery. TLS
electronics does not accept responsibility for any lost shipments unless proof of
delivery to TLS electronics is provided.

Please note:

Product shipped to TLS electronics must be properly packaged to prevent loss
or damage in transit.

Shipping your RMA to TLS electronics using regular mailing envelopes is not
acceptable, as they do not protect the product from damage during shipping.

TLS electronics will not repair or replace a module that is shipped in such a way
that the product is not properly protected.

TLS electronics will not accept any product that has been damaged as a result
of accident, abuse, misuse, natural or personal disaster, or any unauthorized
disassemble, repair or modification.
