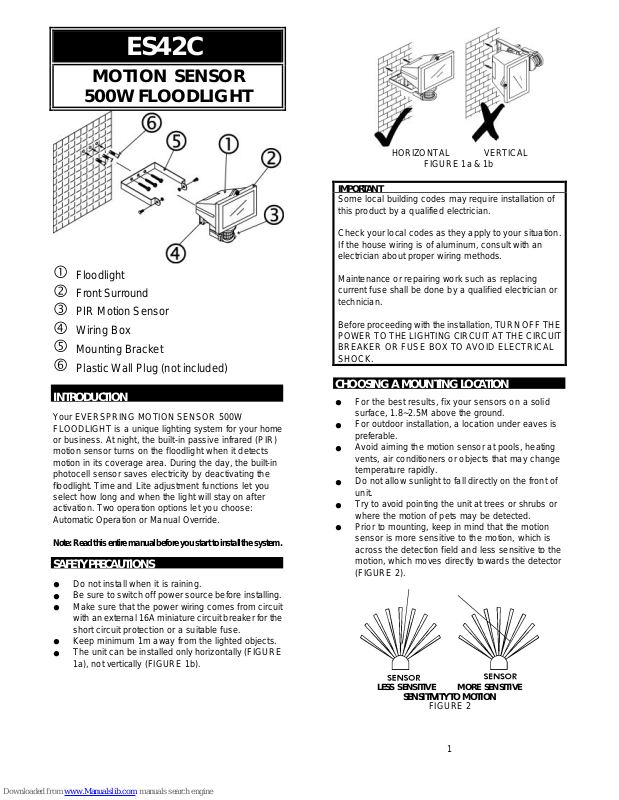

ES42C
MOTION SENSOR
500W FLOODLIGHT
•
Floodlight
‚ Front Surround
ƒ PIR Motion Sensor
„ Wiring Box
…
Mounting Bracket
†
Plastic Wall Plug (not included)
INTRODUCTION
Your EVERSPRING MOTION SENSOR 500W
FLOODLIGHT is a unique lighting system for your home
or business. At night, the built-in passive infrared (PIR)
motion sensor turns on the floodlight when it detects
motion in its coverage area. During the day, the built-in
photocell sensor saves electricity by deactivating the
floodlight. Time and Lite adjustment functions let you
select how long and when the light will stay on after
activation. Two operation options let you choose:
Automatic Operation or Manual Override.
Note: Read this entire manual before you start to install the system.
SAFETY PRECAUTIONS
l
Do not install when it is raining.
l
Be sure to switch off power source before installing.
l
Make sure that the power wiring comes from circuit
with an external 16A miniature circuit breaker for the
short circuit protection or a suitable fuse.
l
Keep minimum 1m away from the lighted objects.
l
The unit can be installed only horizontally (FIGURE
1a), not vertically (FIGURE 1b).
HORIZONTAL VERTICAL
FIGURE 1a & 1b
IMPORTANT
Some local building codes may require installation of
this product by a qualified electrician.
Check your local codes as they apply to your situation.
If the house wiring is of aluminum, consult with an
electrician about proper wiring methods.
Maintenance or repairing work such as replacing
current fuse shall be done by a qualified electrician or
technician.
Before proceeding with the installation, TURN OFF THE
POWER TO THE LIGHTING CIRCUIT AT THE CIRCUIT
BREAKER OR FUSE BOX TO AVOID ELECTRICAL
SHOCK.
CHOOSING A MOUNTING LOCATION
l
For the best results, fix your sensors on a solid
surface, 1.8~2.5M above the ground.
l
For outdoor installation, a location under eaves is
preferable.
l
Avoid aiming the motion sensor at pools, heating
vents, air conditioners or objects that may change
temperature rapidly.
l
Do not allow sunlight to fall directly on the front of
unit.
l
Try to avoid pointing the unit at trees or shrubs or
where the motion of pets may be detected.
l
Prior to mounting, keep in mind that the motion
sensor is more sensitive to the motion, which is
across the detection field and less sensitive to the
motion, which moves directly towards the detector
(FIGURE 2).
LESS SENSITIVE MORE SENSITIVE
SENSITIVITY TO MOTION
FIGURE 2
1
BULB INSTALLATION
CAUTION: Always handle halogen bulbs with a soft cloth.
Do not touch the bulb with your bare hand as
it will shorten the life of the bulb.
(1) Do not touch the floodlight while it is in use or still
hot. Allow it to cool (about 5 minutes) before
touching it.
(2) Do not use halogen bulb rated higher than 500
watts.
(3) Disconnect the power cord or wall switch. Unscrew
retaining screw on the front of the floodlight. This will
release front surround (FIGURE 3).
FIGURE 3
(4) Raise front surround. Lift off retaining lugs (FIGURE
4).
FIGURE 4
(5) Unwrap halogen bulb, taking care that the fingers do
not touch the bulb. Push one end into either of the
spring loaded sockets. Locate the other end into the
other socket (FIGURE 5).
FIGURE 5
(6) Carefully replace front surround making sure that
the seal is correctly positioned. Screw up tightly
(FIGURE 6).
2
FIGURE 6
INSTALLATION
To facilitate installation, it is essential to get a drill and a
screwdriver ready. Select a location for the unit based on
the coverage angles shown in FIGURE 7.
UNIT(M)
COVERAGE ANGLES
FIGURE 7
Install a wall switch adjacent to the power source
(FIGURE 8). This will help you operate this motion
sensor floodlight with ease. See OPERATION for further
information.
FIGURE 8

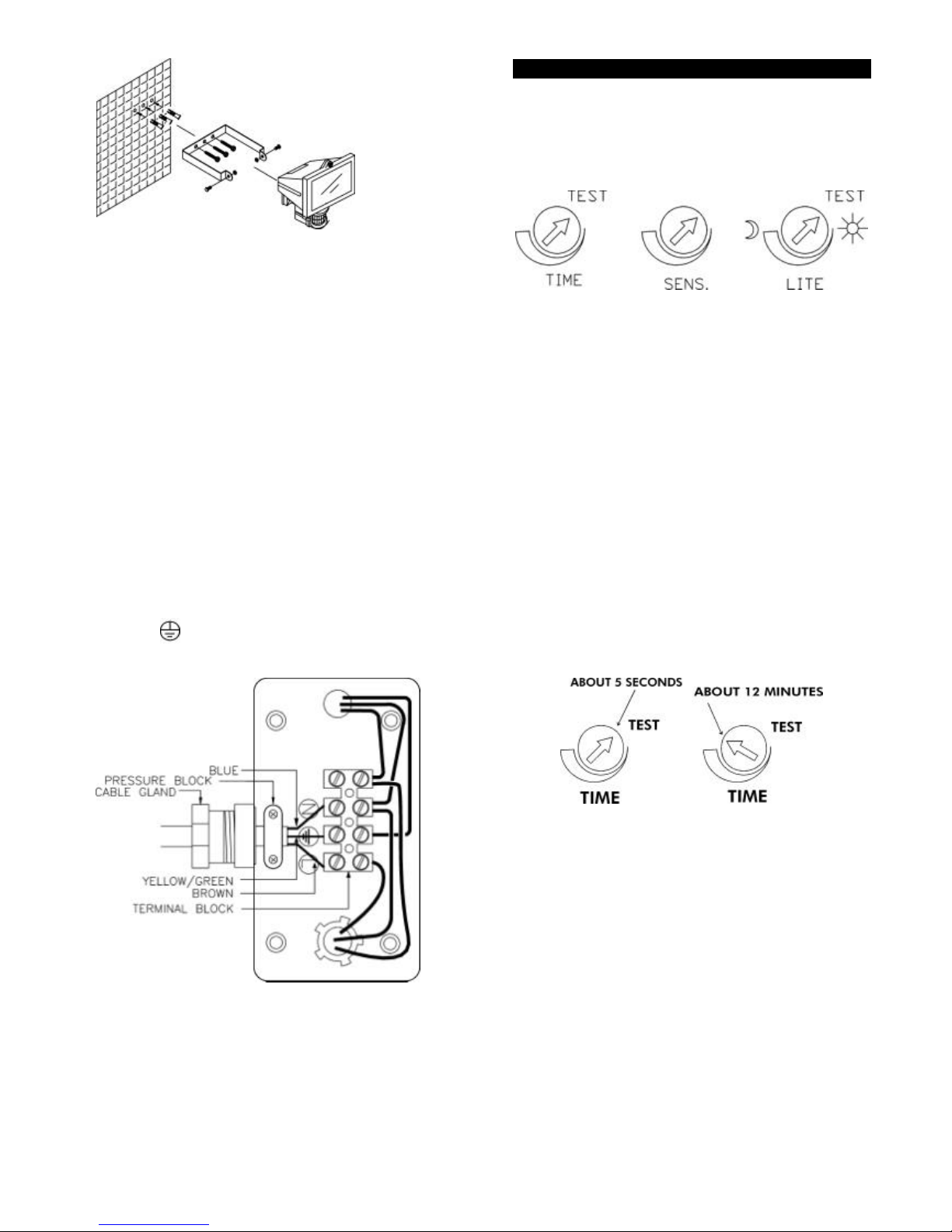

WIRING INSTRUCTION
(1) Switch off the power source or wall switch.
(2) Remove the mounting bracket from the floodlight.
Drill the wall and screw the bracket onto the wall
using suitable plastic wall plugs and screws (not
included). Check that the bracket is securely fitted
on the wall (FIGURE 9).
3
FIGURE 9
Note: Do not at this stage re-attach the floodlight to the
bracket.
(3) Remove the cover screws from the wiring box on the
rear of the floodlight. Loosen two screws on the
pressure block and unscrew the waterproof cable
gland.
(4) Route the power cord through the cable gland and
pressure block.
Note: The power cord must meet H05RN-F, 3G, 1.0mm
²
requirement.
(5) Strip approximately 6-8mm insulating part of the
wires from the power cord. Before connection,
ensure that the wiring box gasket is firmly seated in
its original place.
(6) Connect the BROWN wire (Live wire) to the terminal
block “L” mark. Connect the BLUE wire (Neutral wire)
to the terminal block “N” mark. Connect the
YELLOW/GREEN (Ground wire) to the terminal
block “ “ mark (If used, when the power cord has
it)(FIGURE 10)
.
FIGURE 10
(7) Use the pressure block to fix the power cord by
fastening its two screws. Tighten the cable gland
and refit the wiring box cover.
(8)
Re-attach the floodlight to the bracket and secure the cable to
the wall using suitable clips. Ensure that the cable is not
touching the body of the floodlight, and that there is sufficient
slack in the cable to allow the floodlight to be tilted and
adjusted as required, which should be done by grasping the
metal body of the floodlight, not its rear wiring box.
4

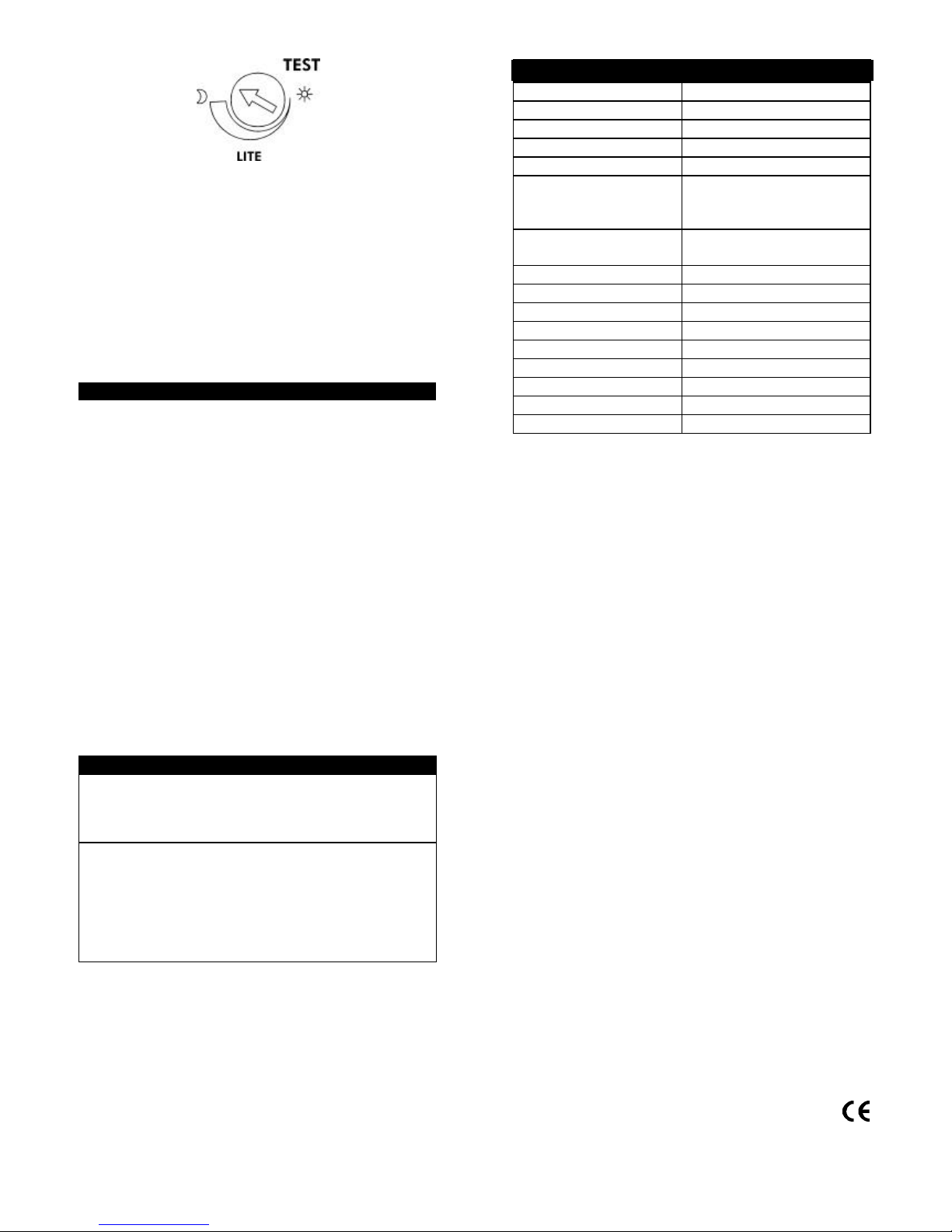

SETTING THE LIGHTING SYSTEM
(1) TEST MODE
l
Turn the Lite control and the Time control anti-
clockwise to the edge – the TEST position. Set the
Sens. Control to its mid-point. (FIGURE 11)
FIGURE 11
l
Turn on the wall switch. The floodlight will turn on for
about 1 minute to warm up. Then it turns off. Walk
through the detection area. The floodlight turns on
when you move and turns off when you stop. Wait
for the floodlight to turn off before moving again to
test the sensor.
l
Adjust the motion sensor to cover the desired
detection area. For a smaller coverage area, point
the sensor down; for a larger coverage area, point
the sensor up.
(2) TIME ADJUSTMENT
The TIME adjustment controls how long the floodlight will
stay on after the motion has been detected.
Turn the TIME control knob clockwise to increase (up to
about 12 minutes) how long the floodlights stay on or
anti-clockwise to decrease (down to about 5 seconds)
the time delay (FIGURE 12).
FIGURE 12
(3) LITE ADJUSTMENT
The LITE adjustment determines at what light level the
lighting system will start operating when you set the
sensor to Automatic Operation.
Provisionally turn the LITE control knob to the edge
clockwise at the moon (dusk) position (FIGURE 13). In
this provisional setting mode, the motion sensor remains
inactive during daylight. At dusk when you find it is the
LUX level desired for operation, simply set the LITE
control knob to the position that the motion sensor will
become active as daylight declines.
5
FIGURE 13
(4) SENS. ADJUSTMENT
The sensitivity adjustment may be adjusted to
compensate for seasonal variations in temperature and
to reduce unwanted triggering. The optimum sensitivity
can be achieved by setting the SENS. control knob
initially to its mid-point and then adjusting the control
knob clockwise to increase (up to 12 meters) the
detecting distance or anti-clockwise to decrease (down
to 3 meters) the detecting distance.
OPERATION
By using the wall switch connected to your motion
sensor floodlight, you can easily select one of two modes
of operation: Automatic Operation and Manual Override.
(1) AUTOMATIC OPERATION
Turn on the wall switch. When the motion sensor detects
motion, the floodlight automatically turns on. The built-in
photocell sensor turns the motion sensor off and on
according to the light level set by the LITE Adjustment.
(1) MANUAL OVERRIDE
To keep the light on regardless of the motion, you can
override the Automatic Operation. By turning the wall
switch off and on within 2 seconds, the light will remain
on. Users can also set the motion sensor back to
Automatic Operation by turning off the wall switch for at
least 10 seconds and then turn it back on.
TROUBLE SHOOTING
Light does not turn on:
l
Confirm that you have made a correct “wiring
connection”.
l
Make sure that the bulb has not burned out.
Light remains on:
l
Make sure the wiring connection is correct.
l
If you set the motion sensor to Manual Override,
remember that you must turn the wall switch off
for at least 10 seconds before switch the motion
sensor on back to Automatic Operation
.
l
Check if the TIME setting is correct.
6
SPECIFICATIONS
Power Requirement AC 220 ~ 240V / 50Hz
Power Cord Requirement H05RN-F, 3G, 1.0mm²
Lighting Load Max. 500W Halogen Bulb
Detection Angle Up to 110° at 20°C
Detection Distance Up to 12M at 20°C
Swiveling Angle
Lamp Part: Vertical 90°;
Sensor Part: Horizontal 50°,
Vertical 40
°
Mounting Height
Recommended 1.8 ~ 2.5M
(5.9 ~ 8.2 Ft) Wall Mount
Wall Switch Control On / Off / Manual Override
Sensor Operation Auto
Time Adjustment 5 ± 3 sec ~ 12 ± 3 min
Lux Adjustment Approx. 0 ~ 1,000 Lux.
Operating Temperature -20°C ~ +40°C
Warm Up Time About 1 min
Protection Class Class I
Protection Degree IP44
Safety CE, GS
INE42CEVSPEC
