Page 1
Model 846BBR-B
10 Pairs Barbell Rack
Page 2
IMPORTANT SAFETY INSTRUCTIONS
TKO Fitness products are designed and manufactured to the highest standards in order to
provide you with years of great workouts. We proudly stand behind all our products with
the best customer service in the fitness industry. If you have any question or need
assistance please contact us at:
Customer Service: [email protected]
Toll free: 866-856-3488 or 713-895-9270
Monday-Friday 8:30am to 4:30pm CT
• Inspect your machine prior to exercise to ensure that all nuts and bolts are fully
tightened.
• Replace the worn parts immediately.
• Most exercise equipment is not recommended for small children. Children should not
use the machine unless they are under adult supervision.
• Exercise equipment has moving parts. In the interest of safety, keep others,
especially children, at a safe distance while exercising.
• Warm up 5 to 10 minutes before each workout and cool down 5 to 10 minutes
afterward. Never hold your breath while exercising.
• Rest adequately between workouts. Muscles tone and develop during these rest
periods. Beginners should work out twice a week and increase gradually to 4 to 5
times per week.
• Remove all jewelry, including rings, chains and pins before commencing exercise.
• Always wear suitable clothing and footwear during exercise. Do NOT wear loose
fitting clothing that could become entangled with the moving parts of your exercise
machine.
MEDICAL WARNING
• Before beginning any exercise program, consult your personal physician. Evaluate
your present fitness level and determine the exercise program that is most appropriate
for your particular age and condition.
• If you experience any pain or tightness in your chest, irregular heartbeats, shortness of
breath, faintness or other unusual discomfort while exercising, stop and consult your
physician before continuing.
Page 3

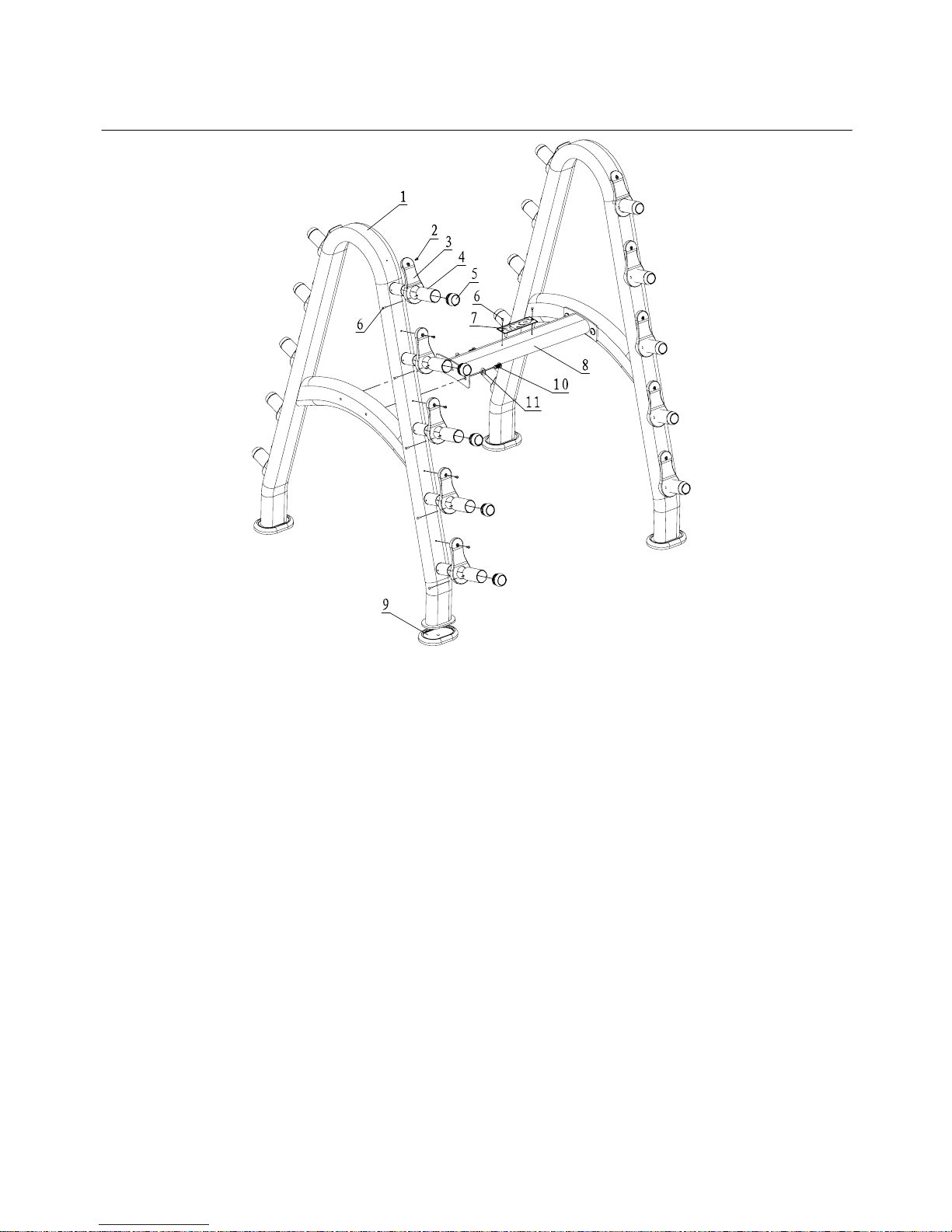

EXPLODED DRAWING & PARTS LIST
Part number Description Q’ty
1
Upright Frame 2
Screw ST3.8 mm x 15 mm L. 20
2
Plastic Cushion 20
3
Stainless Barbell Holder 20
4
End Cap 20
5
22
6
Rivet ∅3.2x10 mm
Name Plate 1
7
Cross Support Frame 1
8
Rubber Shoe 1
9
Allen Bolt M12X20mm 4
10
Washer for M12 bolt 4
11
Page 4

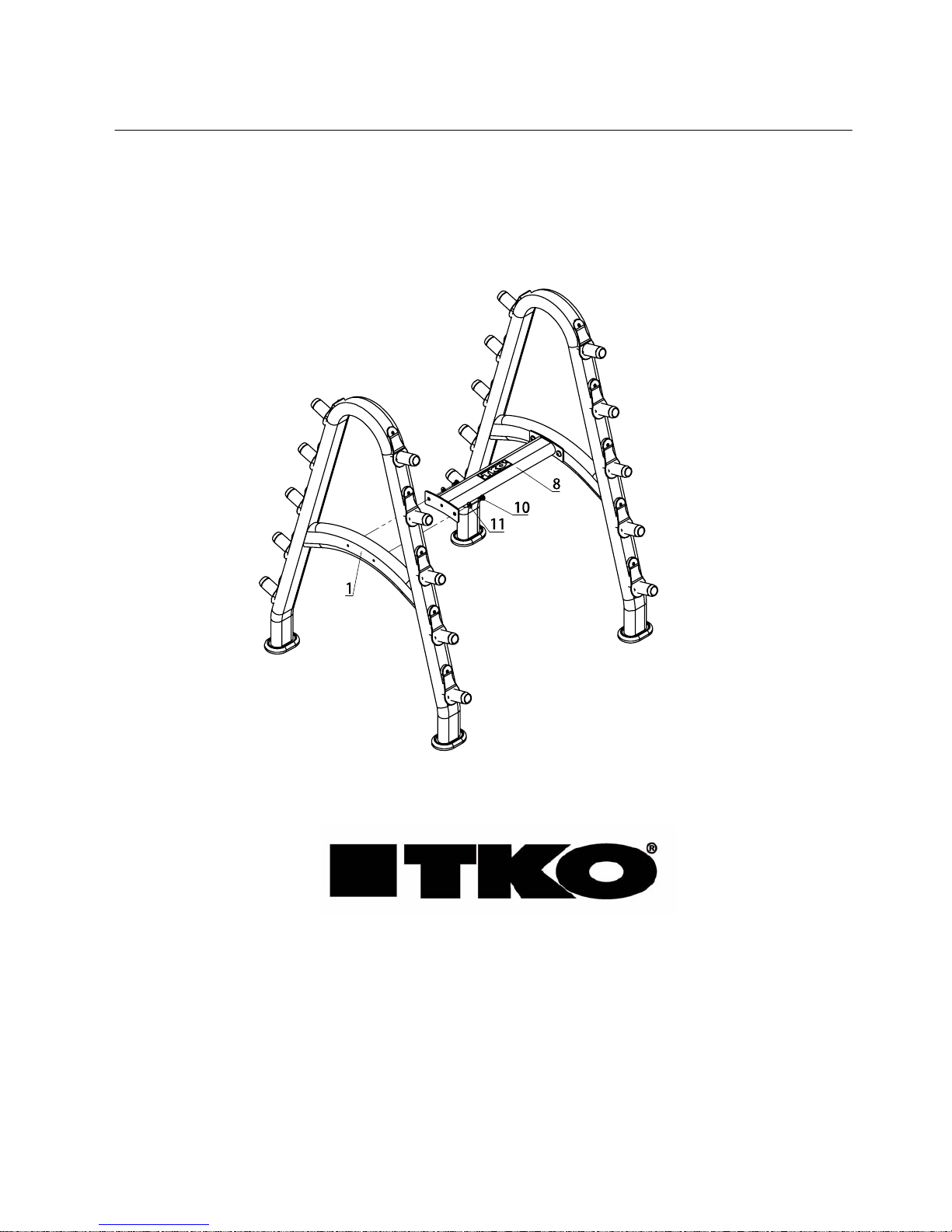

ASSEMBLY STEP
Connect 2 Upright Frames (1) to the Cross Support Frame (8) using 4 Allen Bolts (10) and
4 Washers (11).
Please tighten all the bolts.
TKO SPORTS GROUP USA LTD
7354 Denny Road
Suite 100
Houston, TX 77040
866-856-3488
www.tko.com
