TKK systems EG-6CP0S-4, EG-6CP0S-8, EG-6CP0S-16, EG-6CP1S-16, EG-6CP2S-32 User Manual

1

DNVR（Digital Network Video Recorder）

USER MANUAL

EG-6CP0S-4

EG-6CP0S-8
EG-6CP0S-16
EG-6CP1S-16
EG-6CP2S-32

Before using this system, please read the user manual

2

carefully.

Attention:

*Don’t use the system at place with high humility or dust or dirty.
*Avoid direct sunshine or being heated.
*Leave the system away from magnetism objects.
*Avoid high or low temperature(recommended temperature range: 5°C-35°C).
*Close the system before installing the hardware and software.
*Don’t place the system at some place where will likely have a shake.
*Please use it at the aeration place.
*Radio, television or wireless communicate device could cause damage to the
system.
*Don’t dismantle the system by yourself freely.

*Don’t put heavy object on the system.

Table of Content

Attention

2

Chapter 1. Product overview

3

1.1 Products features 3

1.2 Hardware requirement 4

1.3 Software requirement 4

Chapter 2. Install the system

5

2.1 Install driver 5

2.2 Install software 6

2.3 Apply for DDNS and p2p account 6

2.4 Channel number and draw mode selection 7

Chapter 3. Operate Main system

9

3.1 Log on system 9

3.2 Main screen of server 9

3.3 Setup 11

3.3.1 Local user management 11

3.3.2 Setup record with audio 12

3.3.3 Preview 13

3.3.4 Record 13

3.3.5 Alarm 14

3.3.6 Schedule 17

3.3.7 PTZ 18

3.3.8 Authorization(network user) 18

3.3.9 Others 20

3

3.3.10 Color Scheme 21

3.3.11 TV out 22

Chapter 4. Playback

22

Chapter 5. Remote view

25

5.1 Remote view by client software 25

5.2 Remote view via IE 27

5.3 Mobile view 28

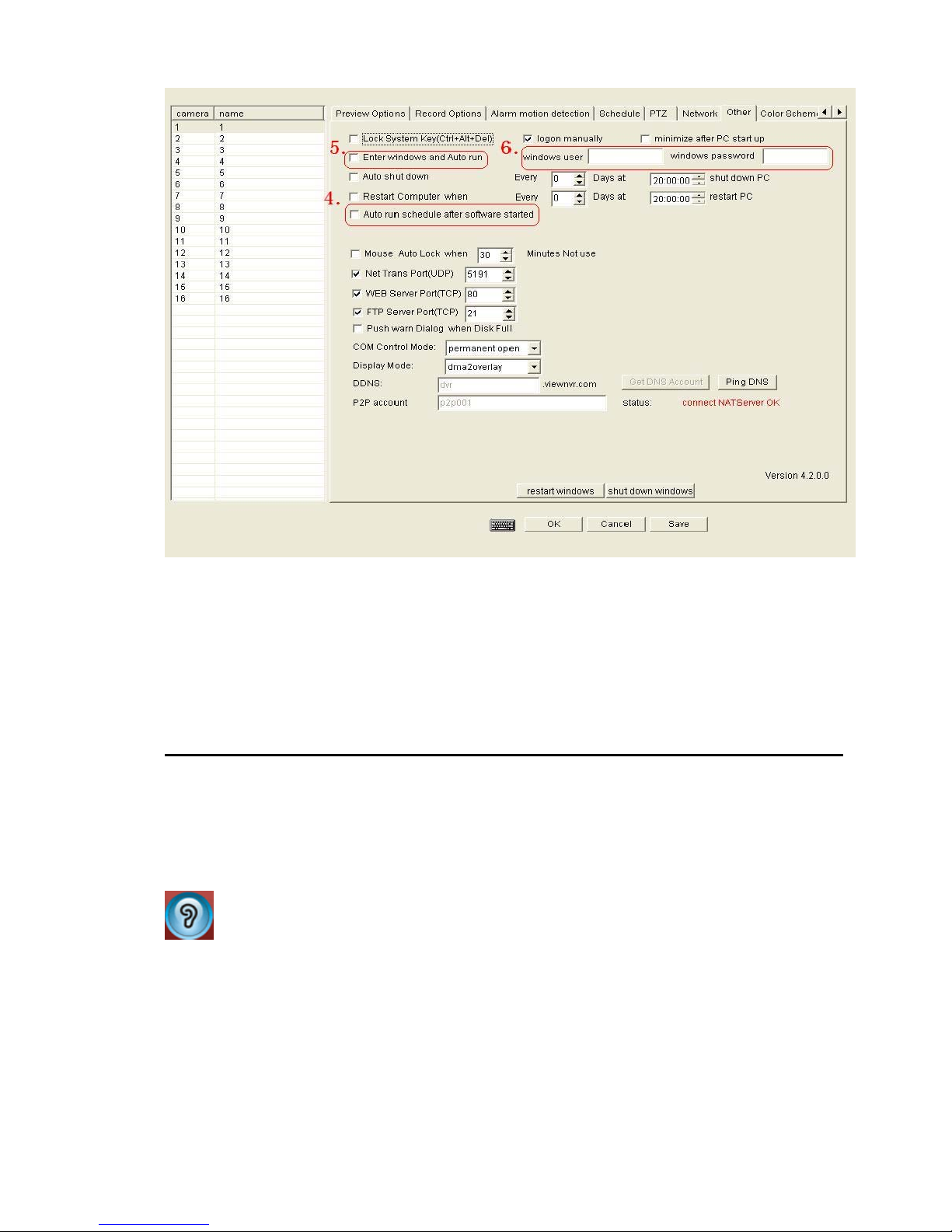

Appendix 1. Auto login and auto run schedule setting

30

Appendix 2. Monitor audio and record audio synchronous

31

Appendix 3. Internet Explorer browser setting

33

Appendix 4. Pre-set setting

34

Chapter 1. Product overview

1.1 Products features

z Run under Windows XP 32bit OS, Windows Vista 32bit OS;
z 6805 chipset 10-bit ADCs image quality;
z Lightning-Proof design;
z 6805 chipset could display in real time or not real time, if you choose one

channel each chipset, then the display will be real time. And if you
choose two, three or four channels each chipset, then the display will be
not real time;

z Adjust the setting for any channel, and can be applied to other

channels;

z Snapshot the dynamic picture or static picture while playback;
z Display, record, playback, control, backup can be done simultaneously;
z Snapshot picture for single frame or snapshot picture for all frames while

live displaying;

z Motion detection, alarm function;
z Support different types of high speed dome, PTZ controller and alarm

decoder;

z High quality network transmitting function;
z Remote view, playback, PTZ control, through Wan or LAN;
z Search by the date, time, location, alarm period, snapshot pictures;
z Complete automatically operation: user can set record schedule for each

camera within all the periods of each week; and the system will record
according to the schedule;

4

z User can set alarm activation schedule for each alarm sensor within all

the periods of each week, the alarm sensor will activate according to the
schedule;

z User can set motion detection for each camera within all the periods of

each week, and the motion detection will activate according to the
schedule;

z Circularly switch function; Can set single channel or multi channels to

switch circularly;

z User-friendly interface, it is easy for user to operate it;
z The system will show hard disk is full if the hard disk will up to the

capability.

1.2 Hardware requirement

z RAM：512MB or above
z Display card: ATI128MB or above,Geforce2 MX400 128MB or

above

z CPU: Celeron D2.8 G or above or Intel P4 2.4 G or above
z Resolution of monitor: 1024*768(32bits color)
z HDD: IDE, SATA,SCSI, 80GB or above
z Motherboard: Intel Chipset 865 or above

1.3 Software requirement

z Windows 2000/Windows XP/Windows Vista 32bit OS
z DirectX 9.0
z The latest driver for display card

Attention: before installing the driver of display card, please install the driver of
motherboard; otherwise it will affect the function of display card and video
surveillance system

Chapter 2. Install the system

2.1 Install driver

2.1.1. Insert the CD into CD/DVD-ROM, it will pop up a installation guide

window, shown as below:

Select Installation Driver option, it will pop up the driver installation window:

2.1.2. Click on Install button to install the driver, and it will show: Installing
driver, please wait…

5

2.1.3. Wait for about 30 seconds, it will show installation finished:

2.2 Install Software

2.2.1 Select Installation Server option, it will pop up the DVR server installation
window:

Click on Install button to begin install the software.

Remark: If you tick “Install Video Board Driver” option, it will install the card driver at the same
time while installing the software.
If tick

“

Install Record File Protect Driver” option, it will install a file protect driver, and you can
not delete the recording file manually. The recording file can only be deleted by the delete tool, or
be overwritten automatically by software while the HDD capacity is nearly full.

Note: For this software, users also can choose to run the software directly
without installation.
(Copy all the files from CD to PC, and run the DVRInit.exe to initialize, run
DVR.exe to run DVR surveillance system.)

2.3. Apply for DDNS and p2p account

2.3.1 First, initialize the software by double click on the DVRInit.exe icon.

Click on initialize button to begin initial. Please wait a moment, it will indicate

6

initialize successfully.
If you want to delete DDNS account, please tick “Delete DDNS account” option,
then it will delete DDNS account at the same time.
If you want to delete p2p account, please tick “Delete p2p service account”
option, then it will delete p2p account at the same time.

2.2.2 After initialization completely double click on DVR.exe icon, and go to the
DDNS and p2p account application interface. You can apply for a DDNS and a
p2p account in this window.

Input a account name and password then click on apply button to apply. After
completely application, it will show application succeeded information on the
top of the window.

Note: If you do not want to use the DDNS or the p2p, you can pass it without
application by click on Next button directly.
If you want to apply for another DDNS account or p2p account, please initialize
the software first, then apply for another one.

Standard: Select the right Video Standard (PAL or NTSC).

7

Remark: This series cards adopt 6805 chip set, a nd one chipse t can sup port 4 ch annels a t max. So,
there are 4 options of Channels/Device. The default is 2 channels/Device.
Take a

EG-6CP0S-4

for example,
the default is 2, so it will show 2 channels in software by default.
If you choose 1 here, it will show only 1 channel in software.
If choose 3, it will show 3 channels in software.
And if 4, it will show 4 channels in software

Video Quality: you could ajust it and get different video quality. The default is
the highest.
Draw Mode: For a better compatible with different motherboards and graphic
cards, we provide 5 draw modes to choose. The default mode is mode 1. After
selected mode 1, it will show a live video image in the right window. And it will
pop up a prompt window, show as below:

If the video quality is good, then click on “Yes” button, and go to next step.
If the video quality is not good or you want to try another mode, please click on
“No”, and it will alter to next mode automatically.
After selected the right Video Standard, channels/device, draw mode, and
watched the live video image, click yes to confirm, and click on finish to finish
these setting and enter into the DVR surveillance interface.

Note: If you want to change the channels/device number or draw mode after
finished these setting, please initialize the software first, then set again.

Chapter 3. Operate Main system

3.1 log on system

Click “DVR.exe” under sever folder, user will get following login window:

User ID: admin

8

Password: 1234

Press “OK” and login into the DVR surveillance system.

3.2 Main screen of server

1

9

System setup

Playback

Capture picture

Monitor

Circular

Run schedule

Other

4

: Screen split 4 : Lock/Unlock 4 : Exit

Note: When the button is selected, it will become red from grey.

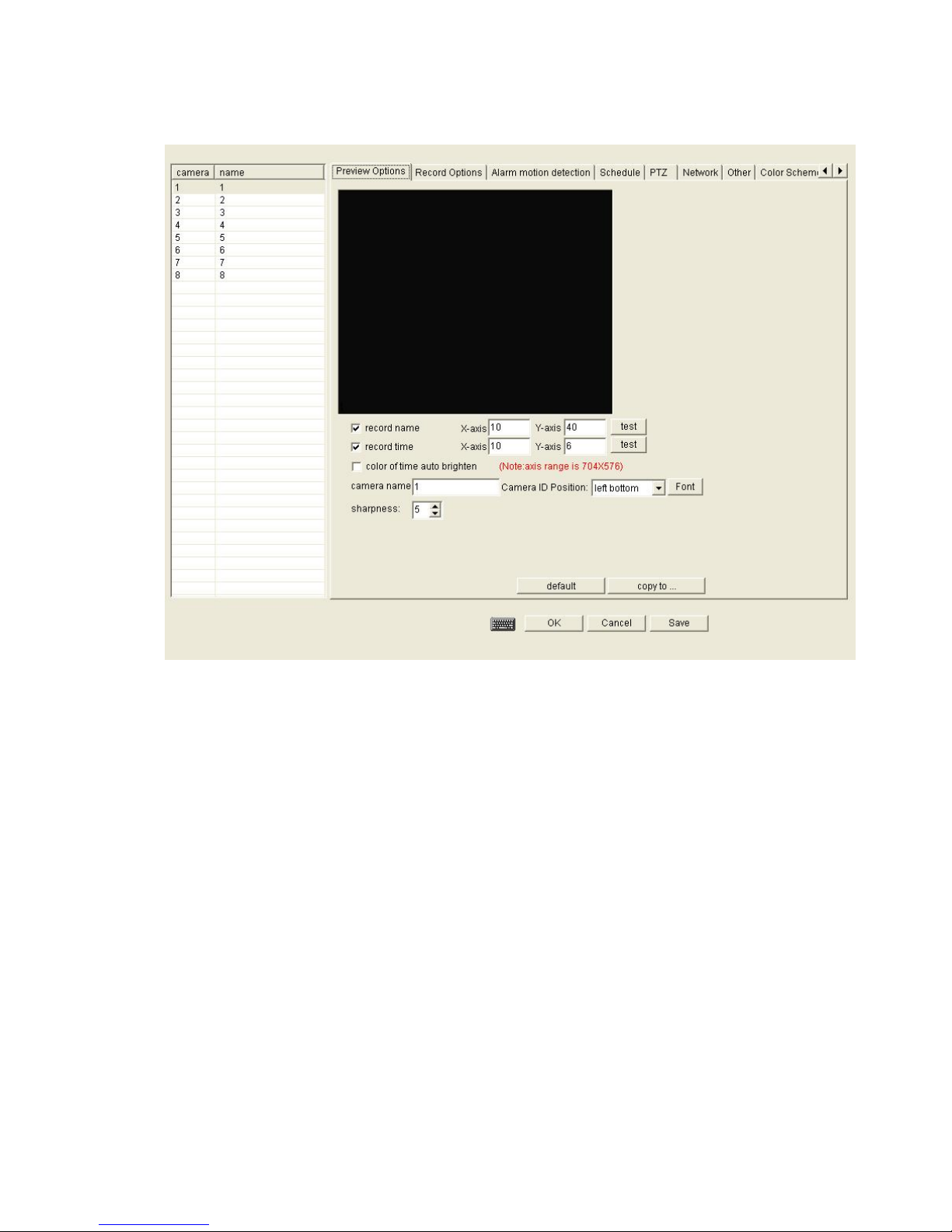

2. System setup: click it, user can get following icon to set the preview, record,
alarm, schedule, PTZ, authorization, others as below picture

3. Run schedule: click it, the system will run according to the schedule

4. Playback: playback the recorded files

5. Monitor: Monitor the audio

6. Capture picture: it allows the function of snapshot

7. Circular preview: Auto scan for different channels, the default interval time

is five seconds.

8. Other: contains minimize, user management, remote connect information,
disk status.

9. Preview: choose the channel that you want to preview, click the number, it
will change to preview status when the number color change from grey to
green.

10. Record, alarm: choose the channel that you want to record or start alarm
function, click the channel number, it will start to record or start alarm function
when the number color change from grey to green

11. Color: adjust black/white, brightness, saturation according the actual
situation

12. PTZ: click the PTZ, user could adjust the PTZ setting.

3.3 Setup

3.3.1 Local user management

Click “other” button , and get tool list, click “local user
management”, ”user management” window will pop-up. ”user

management” is only for setting authority of server user, it is different from the
“Network user authorization “ (If user want to remote view through IE ,

user need to set “Network user authorization “)

10

Set the authorization first, then click “add”, type the new user name and

password, then press “ok” to save the setting.

3.3.2 Setup record with audio

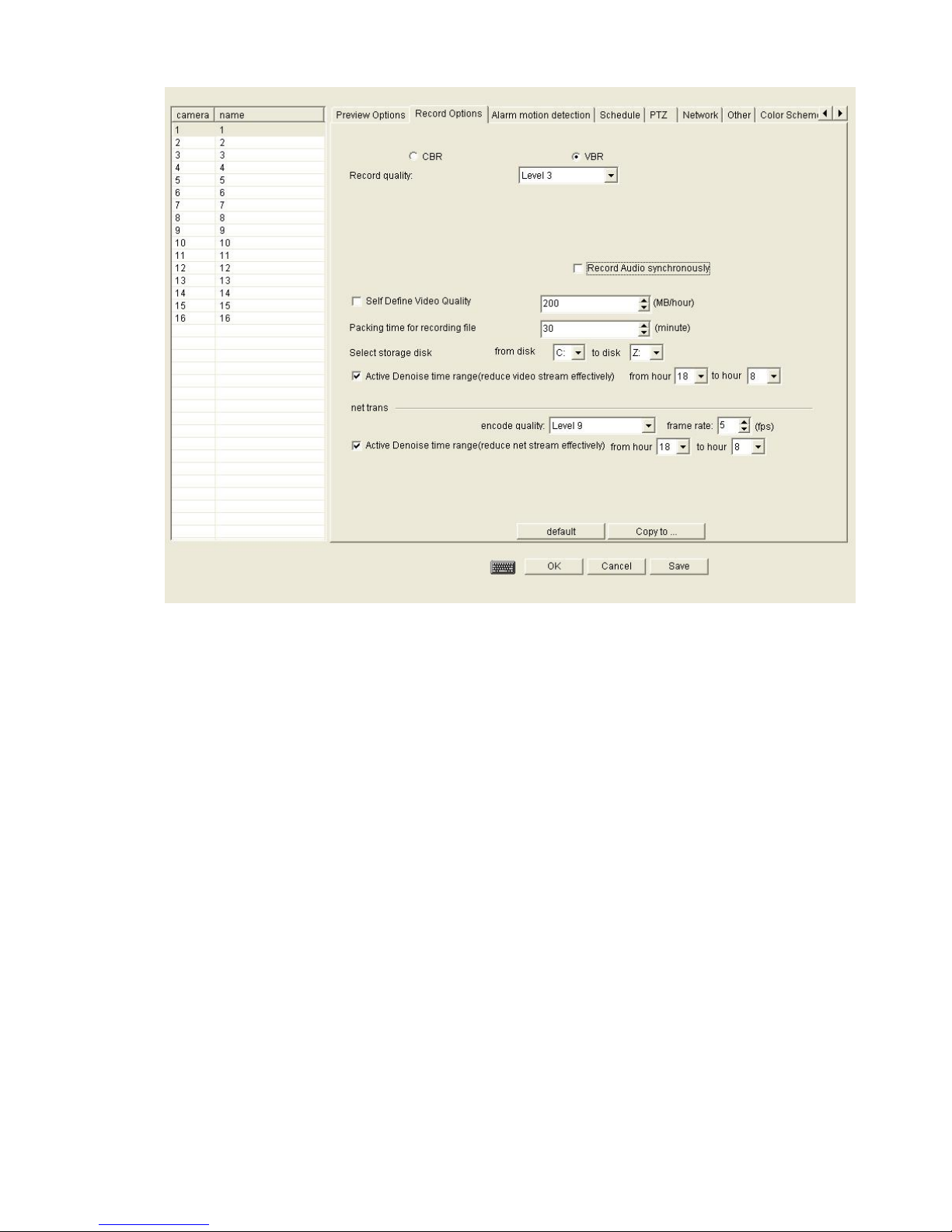

Click “record options” under “system setup”, get following interface. Tick
“Record Audio Synchronously” option, and copy to other channels that you want
to record audio synchronously, then save the setting.

11
