User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
1
About this Manual
This Manual is applicable to CD1002F2-EI(S) Network Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information here in
after are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the latest version in
the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
Page 3
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
2
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
Page 4
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
3
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Page 5
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
4
Warnings
● In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
Warnings
Follow these
safeguards to prevent
serious injury or death.
Cautions
Follow these
precautions to prevent
potential injury or material
damage.
Page 6
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
5
● Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
● Make sure the power supply voltage is correct before using the
camera.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
● The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required for
operating environment.
● Keep the camera away from liquid while in use.
Page 7
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
6
● While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
● Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
Page 8
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Overview of Type I Mini Dome Camera ........................... 8
1.2 Overview of Type II Mini Dome Camera .......................... 8
1.3 Overview of Type III Mini Dome Camera ....................... 11
2 Installation .................................................................................... 13
2.1 Type II Mini Dome Camera Installation .......................... 14
2.1.1 Ceiling Mounting ................................................ 14

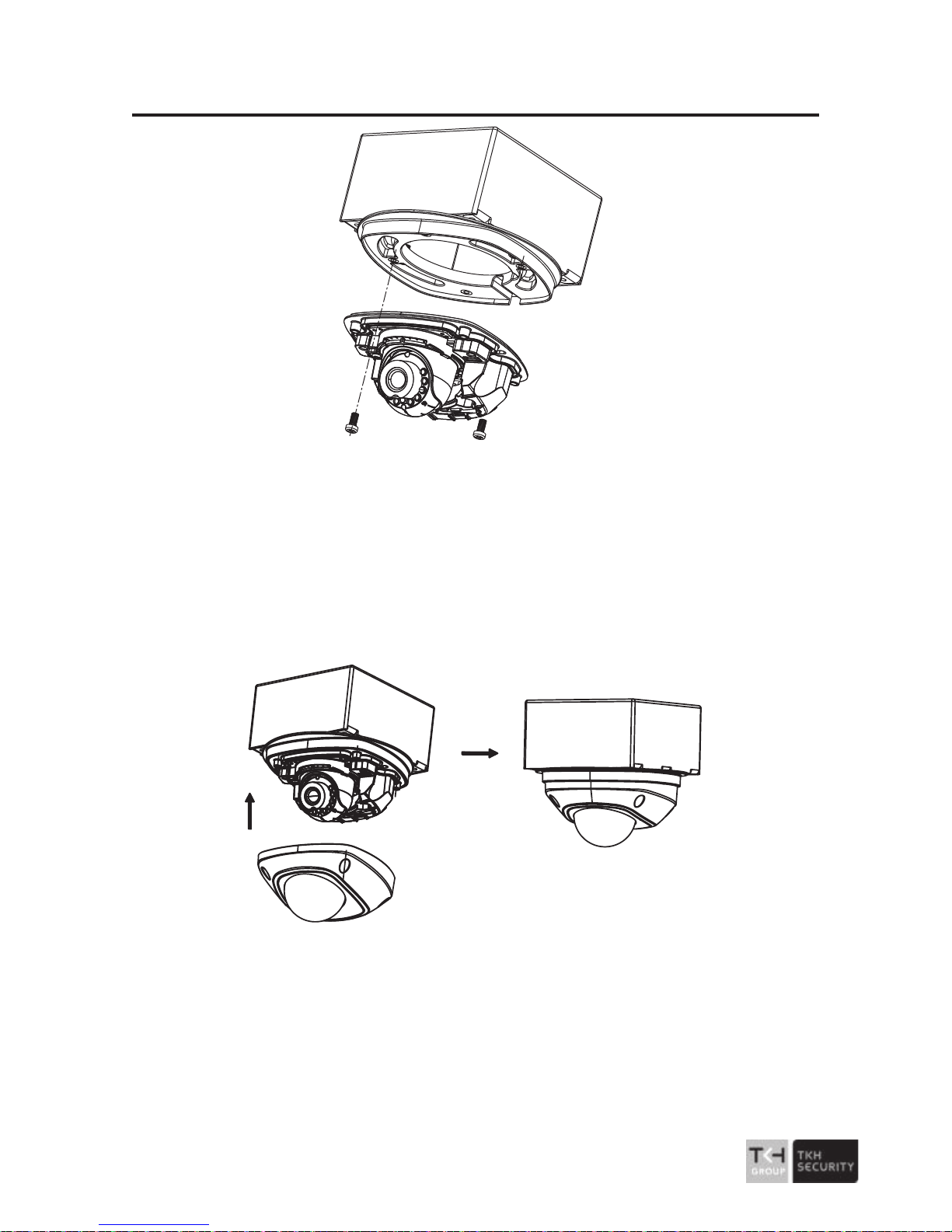

2.1.2 Ceiling Mounting with a Gang Box ...................... 18
2.1.3 Pendent Mounting ............................................. 20
2.1.4 Wall Mounting .................................................... 22
2.1.5 Install the Micro SD Card .................................... 24
2.2 Type III Mini Dome Camera Installation ......................... 26

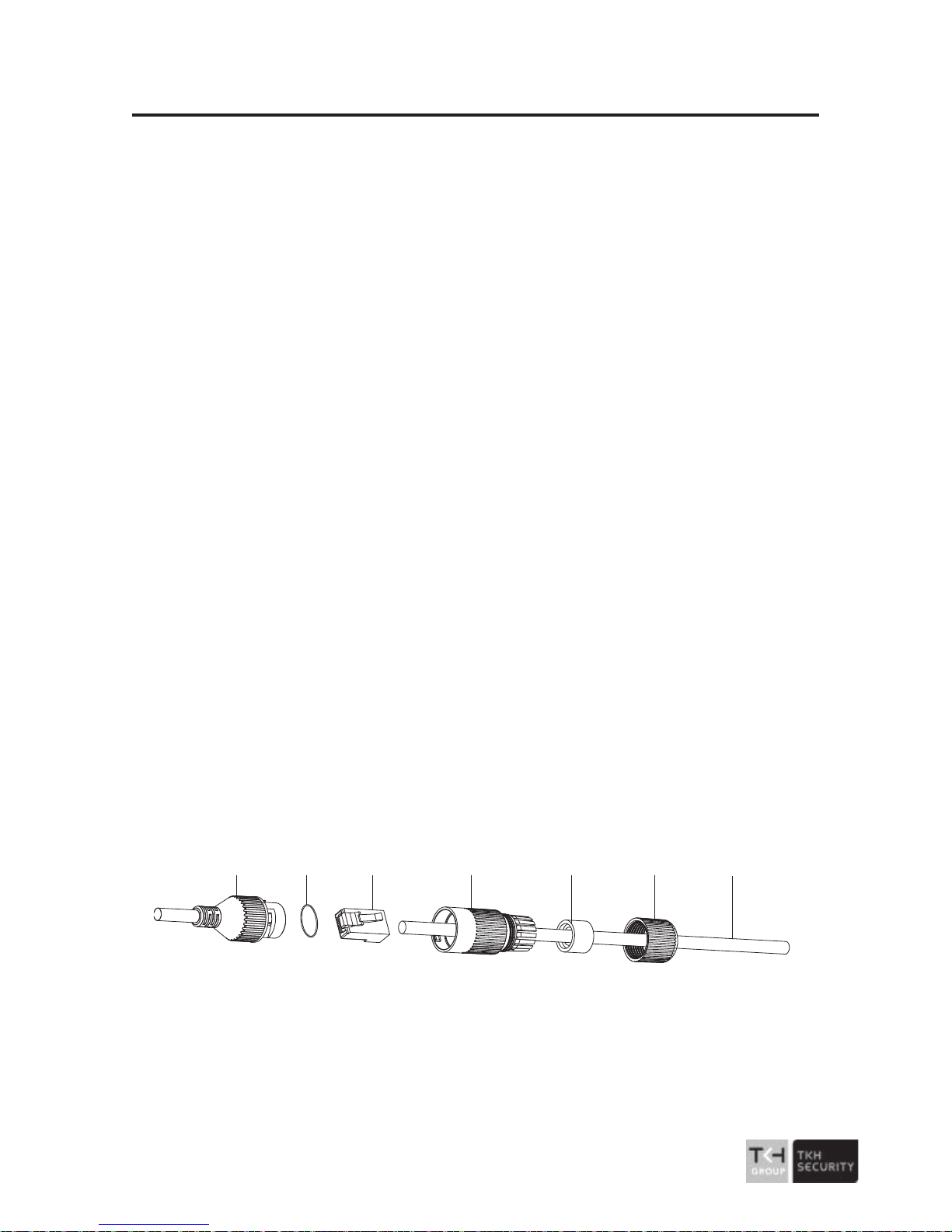

2.3 Install the Water-proof Jacket ....................................... 30
3 Setting the Network Camera over the LAN .................................. 31

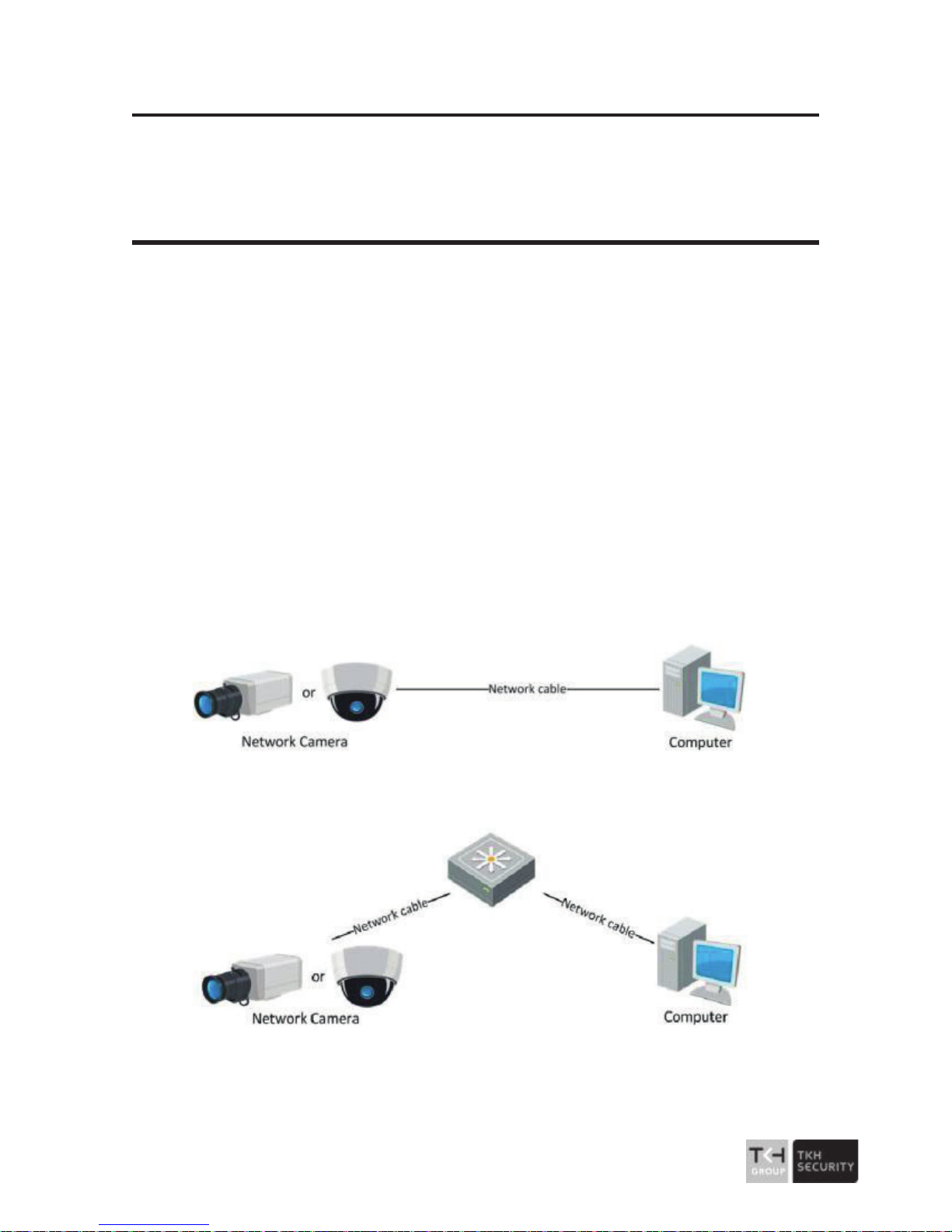

3.1 Wiring ........................................................................... 31
3.2 Activating the Camera ................................................... 32

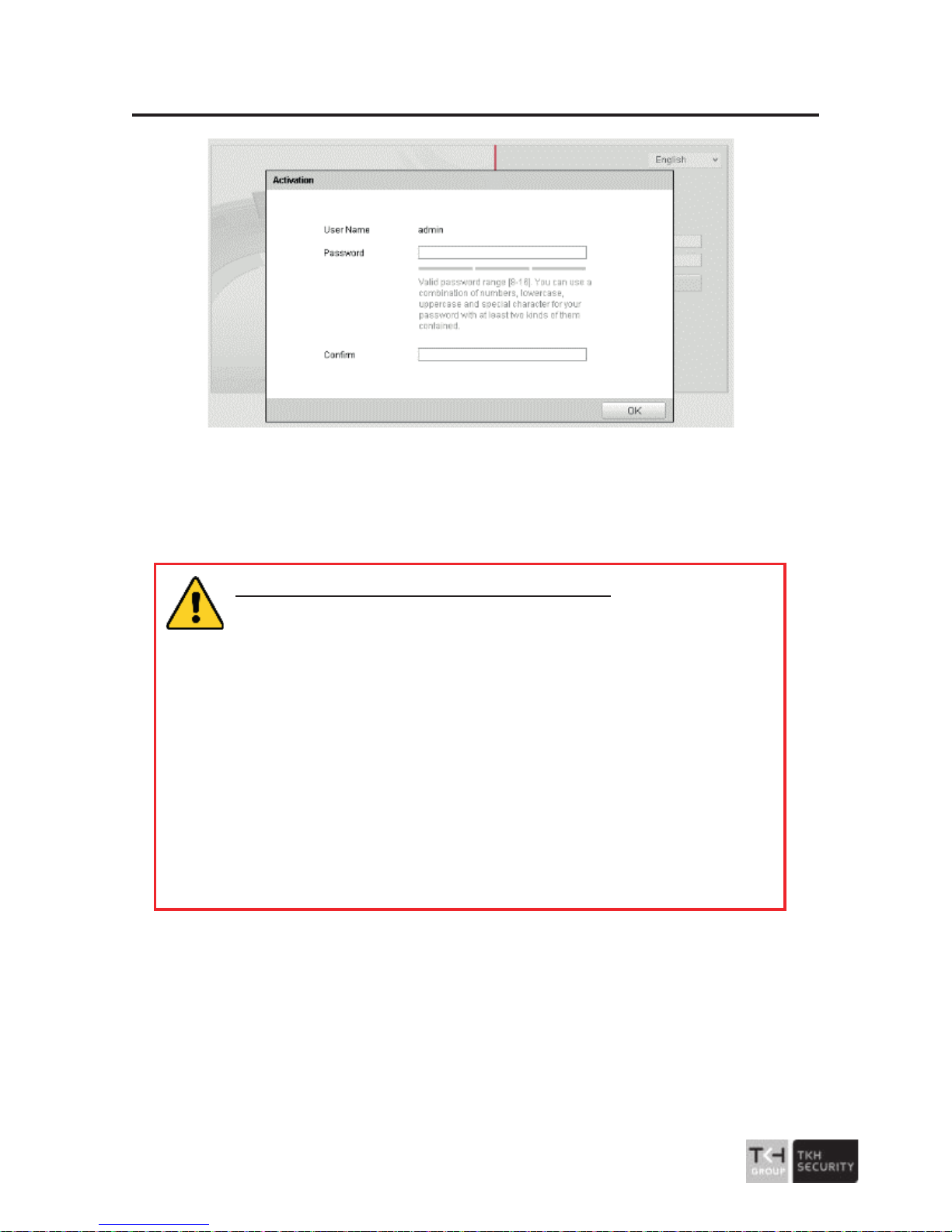

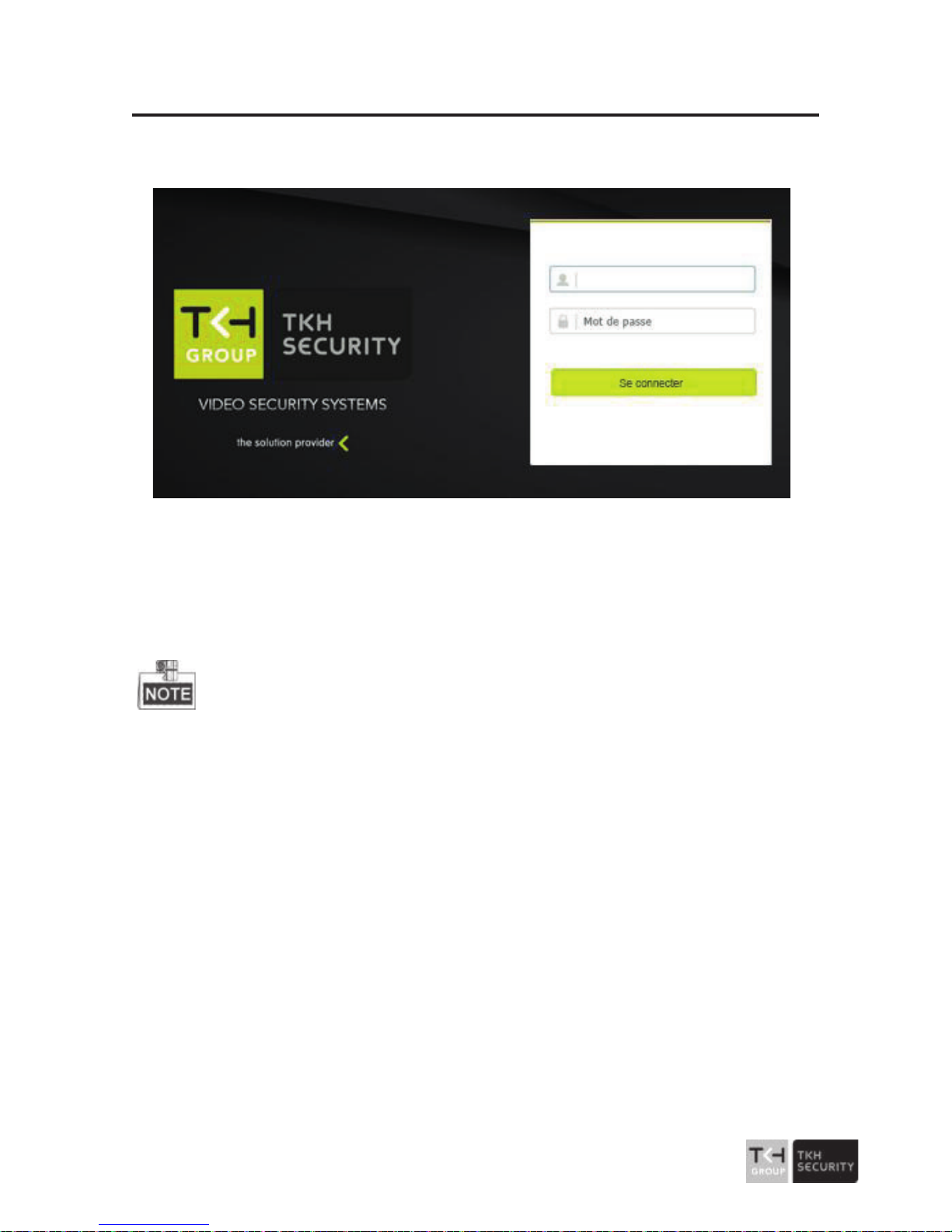

3.2.1 Activation via Web Browser ................................ 32

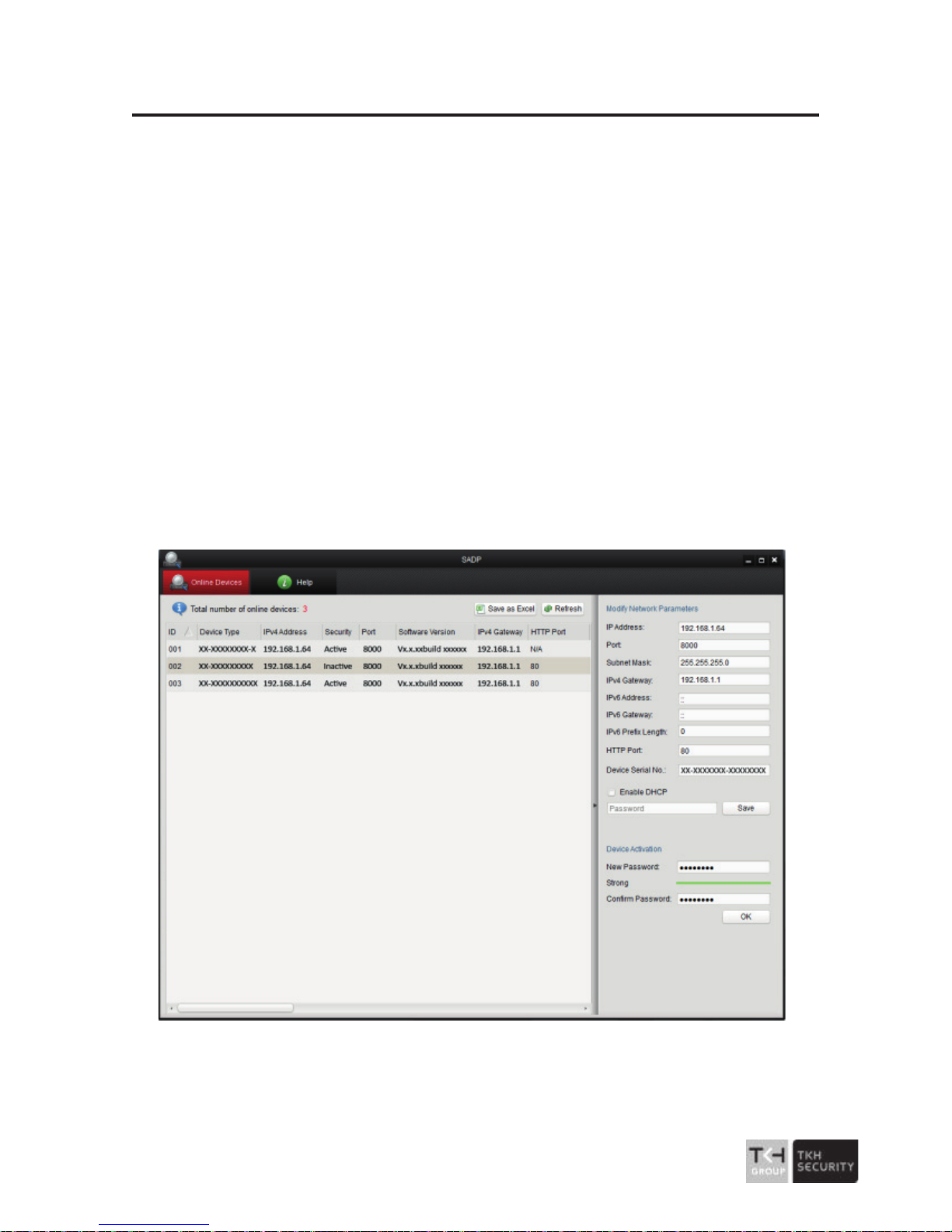

3.2.2 Activation via the Software ................................ 34
3.3 Modifying the IP Address .............................................. 35
4 Accessing via Web Browser .......................................................... 37
Page 9
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
8
1 Appearance Description
1.1 Overview of Type I Mini Dome Camera
Figure 1-1 Overview of Type I Mini Dome Camera
1.2 Overview of Type II Mini Dome Camera
Figure 1-2 Overview of Type II Mini Dome Camera (1)
4
2
6
8
5
3
7
Page 10
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
9
Figure 1-3 Overview of Type II Mini Dome Camera (2)
Table 1-1 Description of Type I/ II Mini Dome Camera
No.
Description
1 Front Cover
2 Dome Drive
3 Micro SD Card Slot
4 Lens
5 IR LED
6 Network Cable
7 Auxiliary Video Output (Supported by Type I camera)
8 Power Cable
Page 11
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
10
No.
Description
9 Audio/Alarm Cables (Supported by Type II camera)
10
Wi-Fi Antenna
11
Hex Screw
12
MIC
13
RESET/WPS Button(Supported by Type II camera)
Press RESET about 10s when the camera is powering on or
rebooting to restore the default settings, including the user
name, password, IP address, port No., etc.
No.9 is the audio/alarm cable interface, of which the “I” mark
connects to the alarm input, the “o” mark connects to the
alarm output, the “GND” mark connects the grounding, and the
“A” mark connects the audio output.
WPS (Wi-Fi Protected Setup, also known as AOSS or QSS) is a
computing standard that attempts to allow easy establishment
of a secure wireless network. Refer to user manual for details.
A wireless router with the WPS function is required to enable
the WPS function of the camera. Refer the steps below.
Steps:
1. Press the WPS button on the router.
Page 12
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
11
2. Press the WPS button (about 2s) on the camera within 120s
you enable the WPS of the router to join in the wireless
network.
The WPS button works as a reset button only when you
press it when the camera is powering on.
Press the WPS button on the camera, and then press the
WPS button on the router will establish a connection as
well, and the expire time of WPS connection on the
camera is 120s.
The link indicator blinks if the wireless connection is
succeeded.
1.3 Overview of Type III Mini Dome Camera
Figure 1-4 Overview of Type III Mini Dome Camera
Page 13
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
12
Table 1-3 Description of Type III Mini Dome Camera
No.
Description
1 Cover
2 Lens
3
Power LED indicator, It turns
solid red when power is
connected.
4 Base Plate
5 Set Screw Hole
6 Set Screw of Lens
7 S & L: Network Status Indicator.
When the network is connected, the “S” LED is solid
yellow, while the “L” LED flashes orange.
8 RESET Button
9 Micro SD Card Slot
Page 14
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
13
2 Installation
Before you start:
● Make sure the device in the package is in good condition and all
the assembly parts are included.
● The standard power supply is 12V DC or 24V AC, please make
sure your power supply matches with your camera.
● Make sure all the related equipment is power-off during the
installation.
● Check the specification of the products for the installation
environment.
● Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
● Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
● Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
● The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
Page 15
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
14
Type I camera shares the similar appearance with the type II camera,
we will take type I camera as the example to explain the installation
steps, please
2.1 Type II Mini Dome Camera Installation
2.1.1 Ceiling Mounting
Steps:
1. Drill the screw holes and the cable hole in the ceiling according
to the supplied drill template.

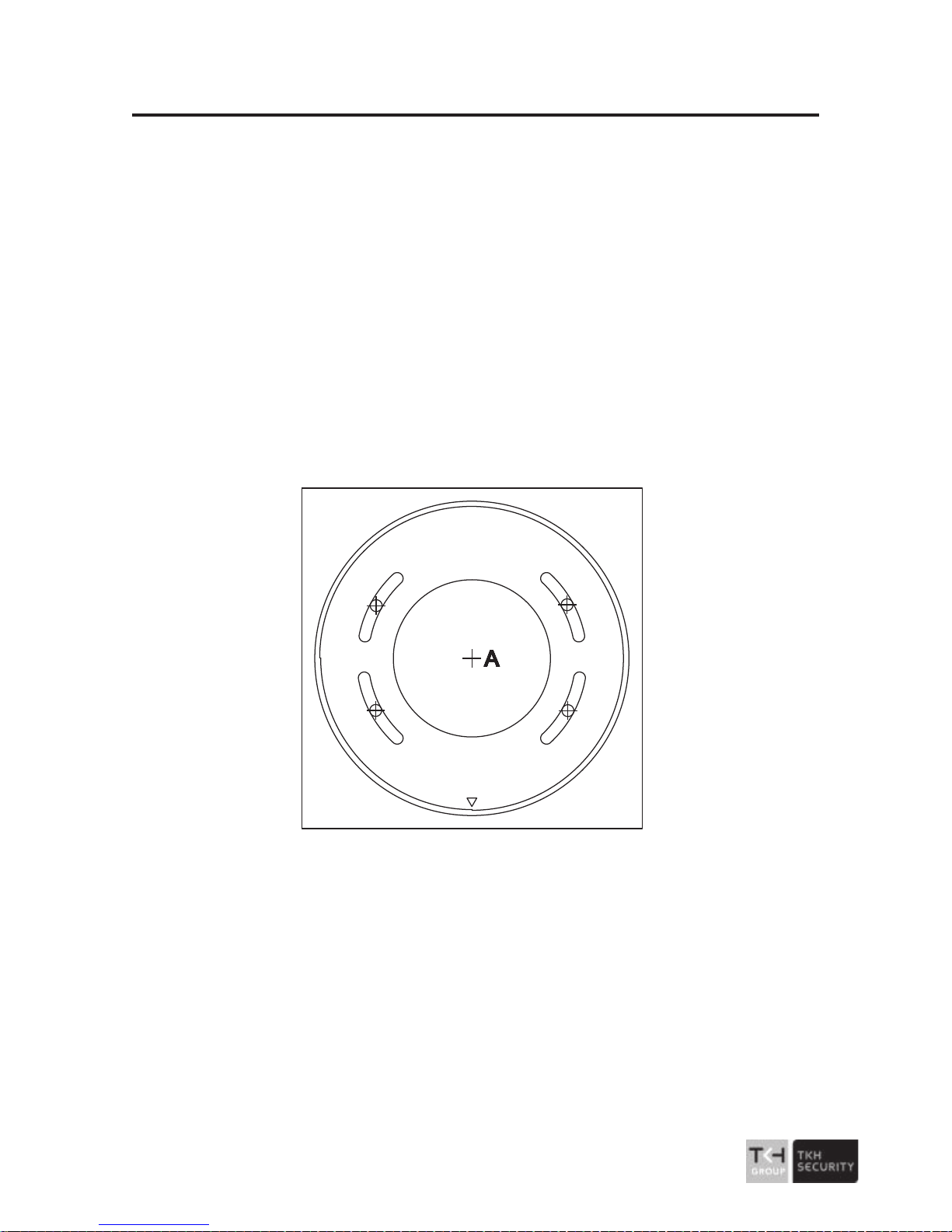

Figure 2-1 Drill Template
2. Loosen the set screw on the front cover to disassemble the
camera with the supplied Allen key.
Drill Template
1
1
1
1
Hole A:for cables routed through the ceiling
Screw hole 1:for Mounting Base
FRONT
Page 16
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
15

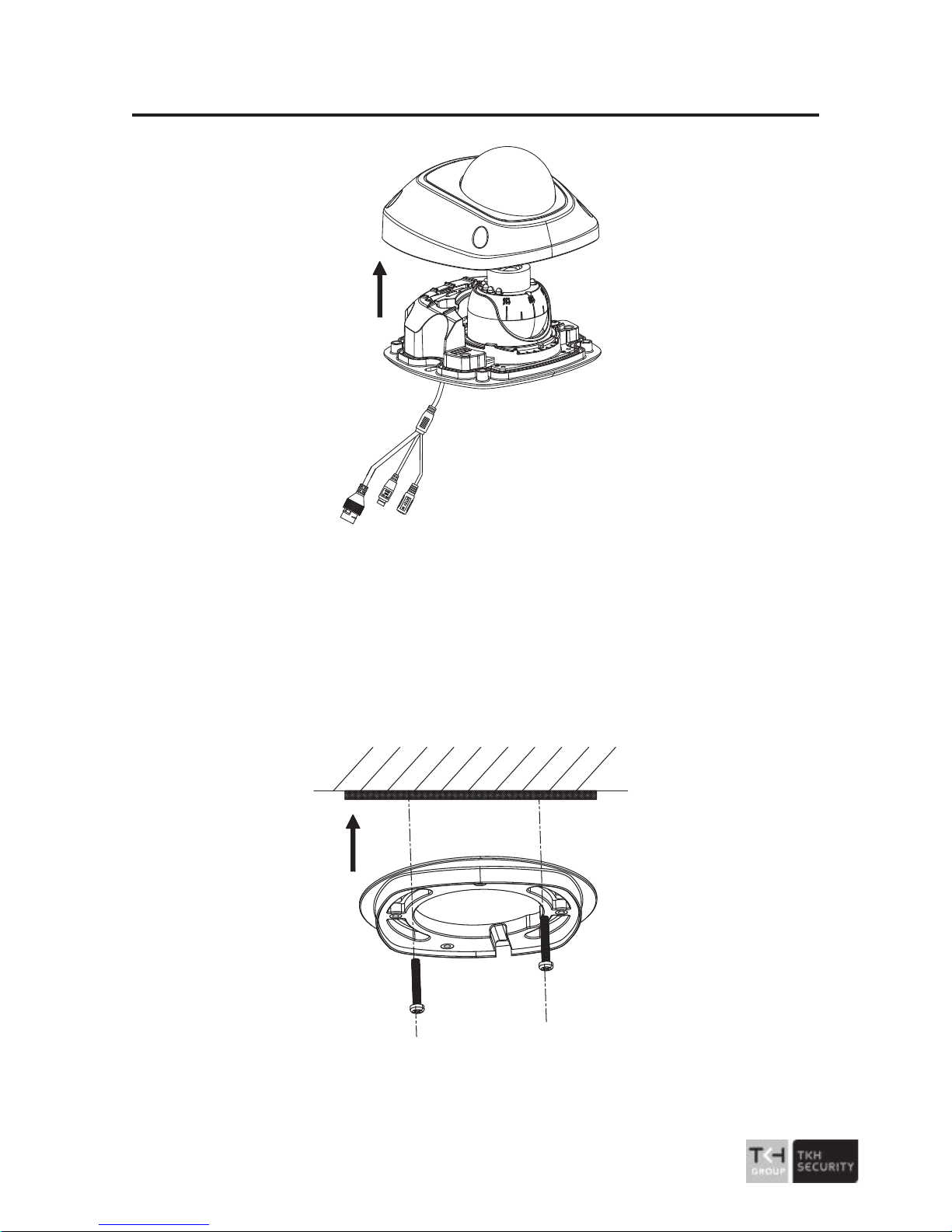

Figure 2-2 Disassemble the Camera
3. Hammer the plugs of the expansion screws to the screw holes.
4. Align the adapter plate to the drill template, and fix the adapter
plate.
Figure 2-3 Fix the Adapter Plate
Page 17
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
16
5. Connect the power cable, network cable, and the audio/alarm
cables.

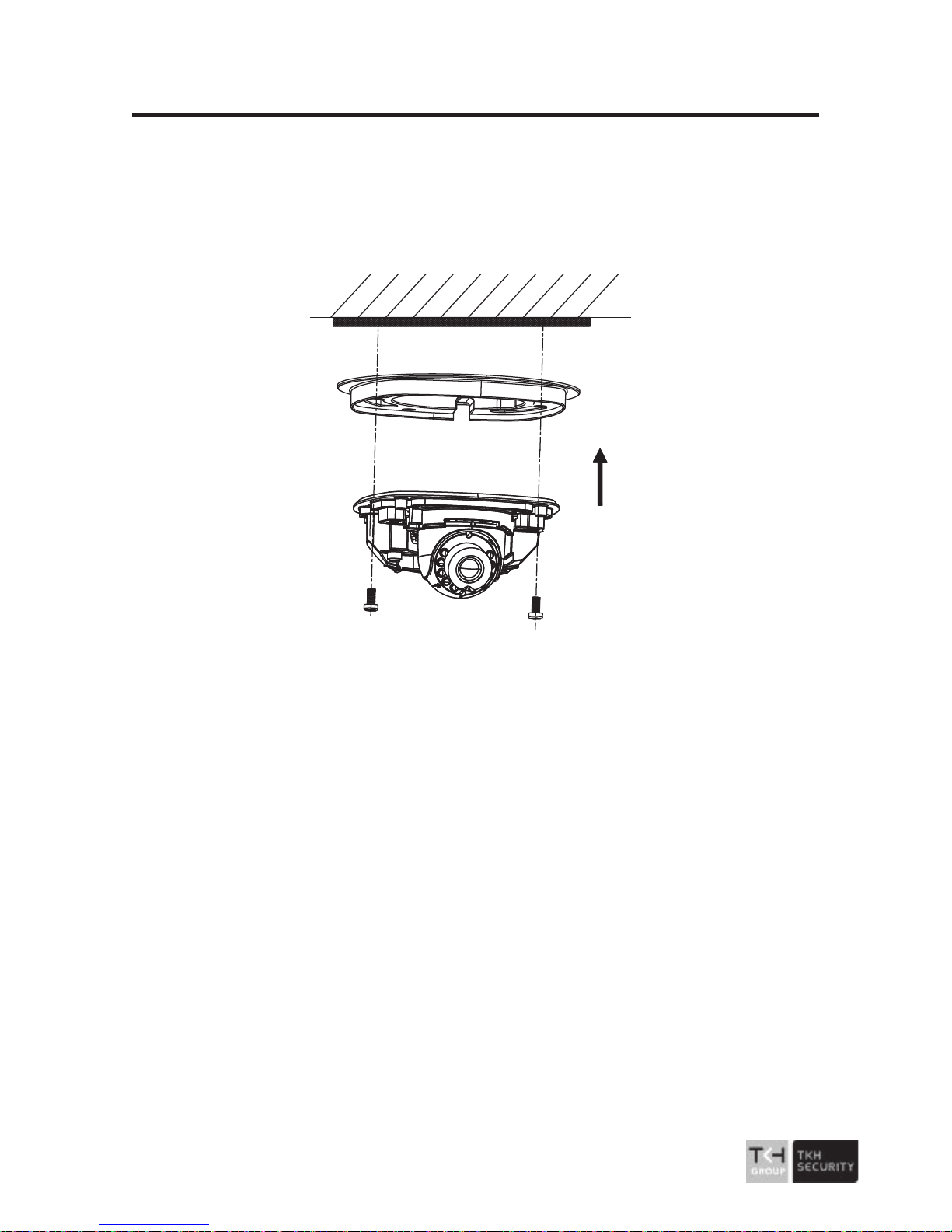

6. Fix the camera body to the ceiling with the supplied expansion
screws.
Figure 2-4 Fix the Camera Body
7. View the image via the web browser.
8. Slightly loosen the hex screw beside the WPS/RESET button to
adjust the surveillance angle.
9. Use the supplied adjusting tool to adjust the pan [s30r], tilt
[0~80r], and rotation direction [0~360r].
Page 18
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
17

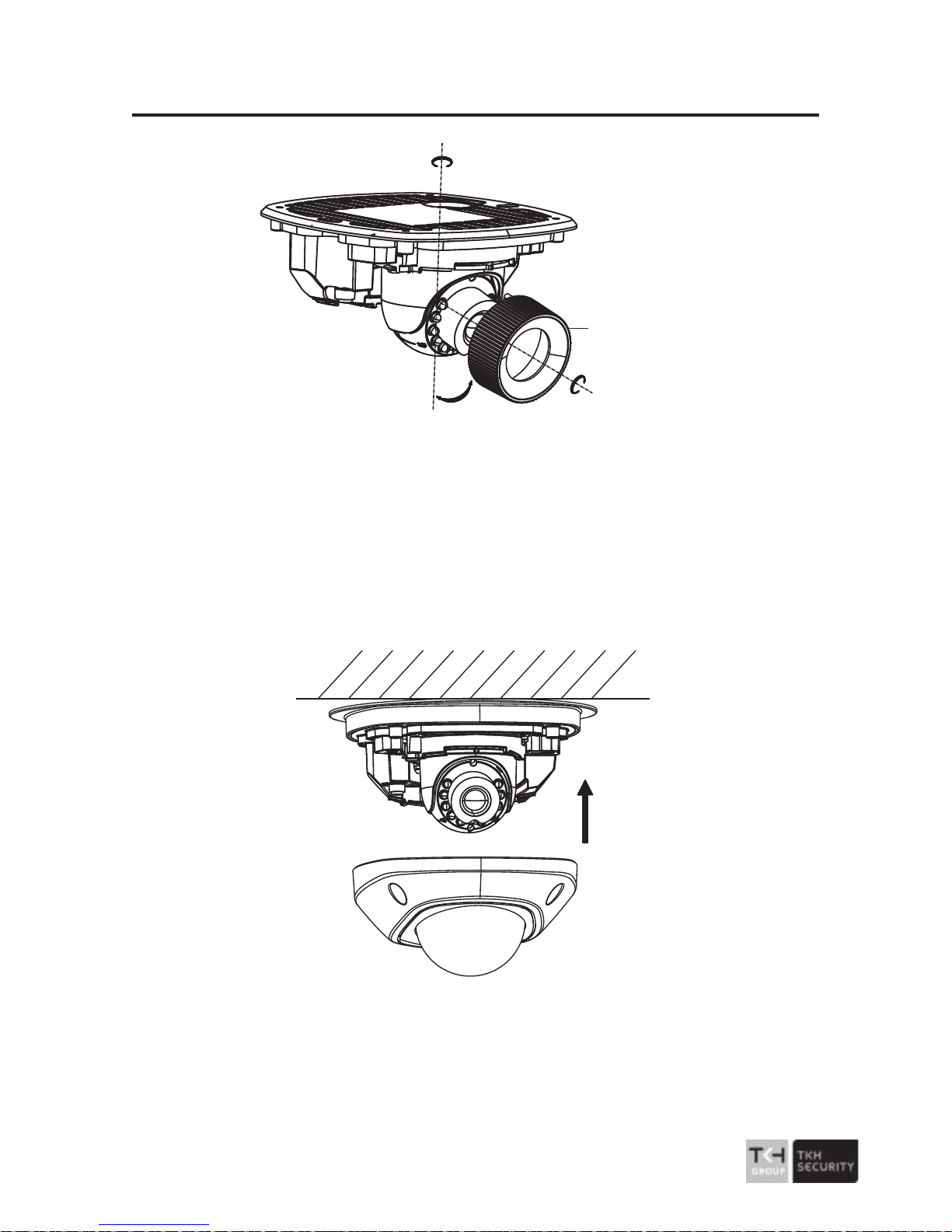

Figure 2-5 3-Axis Adjustment
10. Tighten the hex screw to fix the well-adjusted surveillance angle.
11. Align the front cover to the dome drive and tighten the set
screws on the front cover.
Figure 2-6 Install the Front Cover
12. Tear off the protection film softly to complete the installation.
Adjusting Tool
Rotation
Tilt
Pan
Page 19
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
18
z Do not tear off the protection film until the installation is
completed.
z Do not touch the inside face of the bubble with your hands.
2.1.2 Ceiling Mounting with a Gang Box
Steps:
1. Fix the adapter plate to the gang box with the supplied PM4X8
screws.

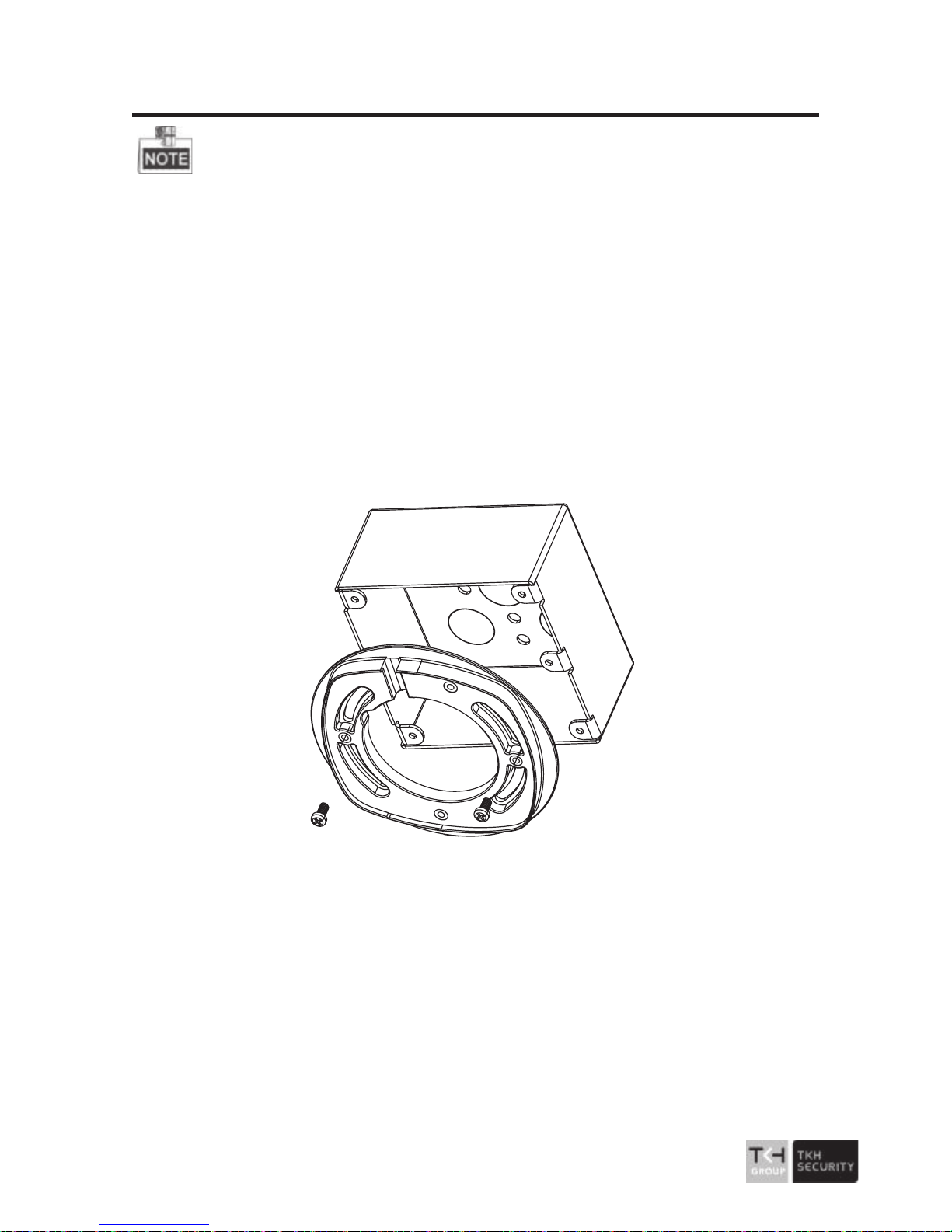

Figure 2-7 Fix the Adapter Plate
2. Fix the dome drive to the adapter plate with the supplied PM4X8
screws.
Page 20
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
19
Figure 2-8 Fix the Dome Drive
3. Connect the power cable, network cable, and the alarm/audio
cables.
4. Align the front cover to the dome drive and tighten the set
screws on the front cover.
Figure 2-9 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
Page 21
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
20
z Do not tear off the protection film until the installation is
completed.
z Do not touch the inside face of the bubble with your hands.
2.1.3 Pendent Mounting
Steps:
1. Install the bracket to the ceiling with the supplied screws in the
bracket package.
You need to purchases a pendant bracket separately if pendent
mounting is adopted.
2. Fix the camera body to the pendent bracket with the supplied
PM4X8 screws.

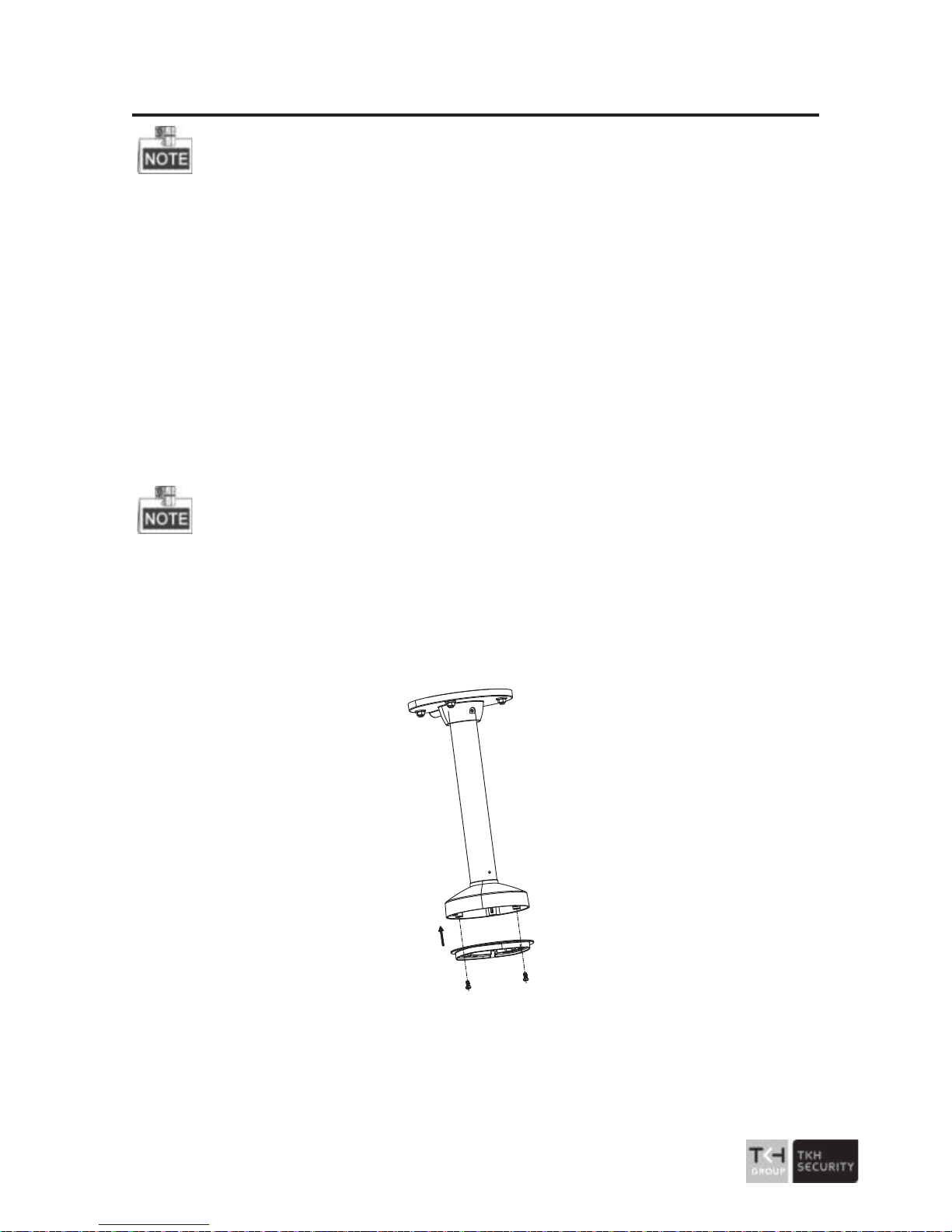

Figure 2-10 Fix the Adapter Plate
3. Install the dome drive to the adapter plate.
Page 22
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
21
Figure 2-11 Fix the Dome Drive

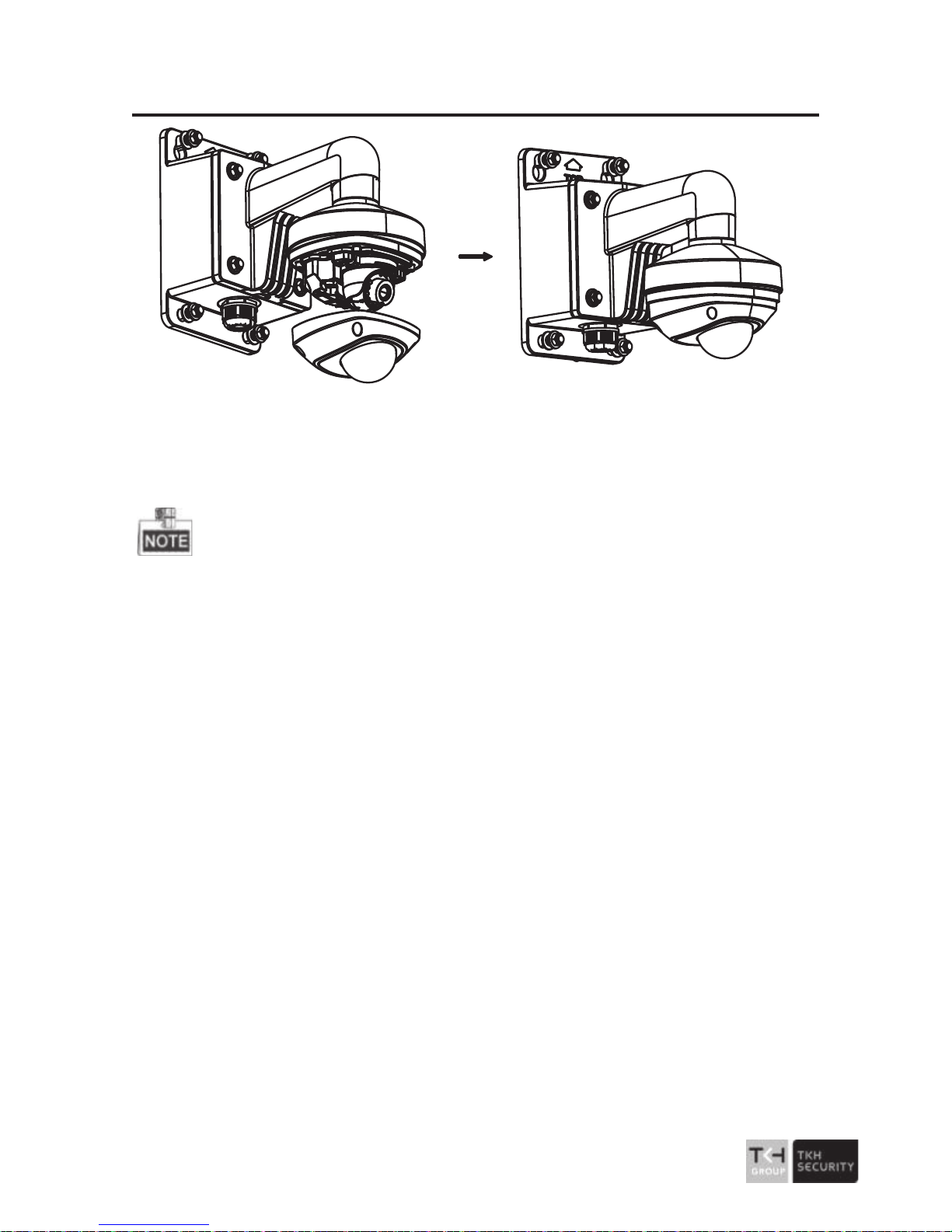

4. Align the front cover to the dome drive and tighten the set
screws on the front cover to complete the installation.
Figure 2-12 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
Page 23
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
22
z Do not tear off the protection film until the installation is
completed.
z Do not touch the inside face of the bubble with your hands.
2.1.4 Wall Mounting
Steps:

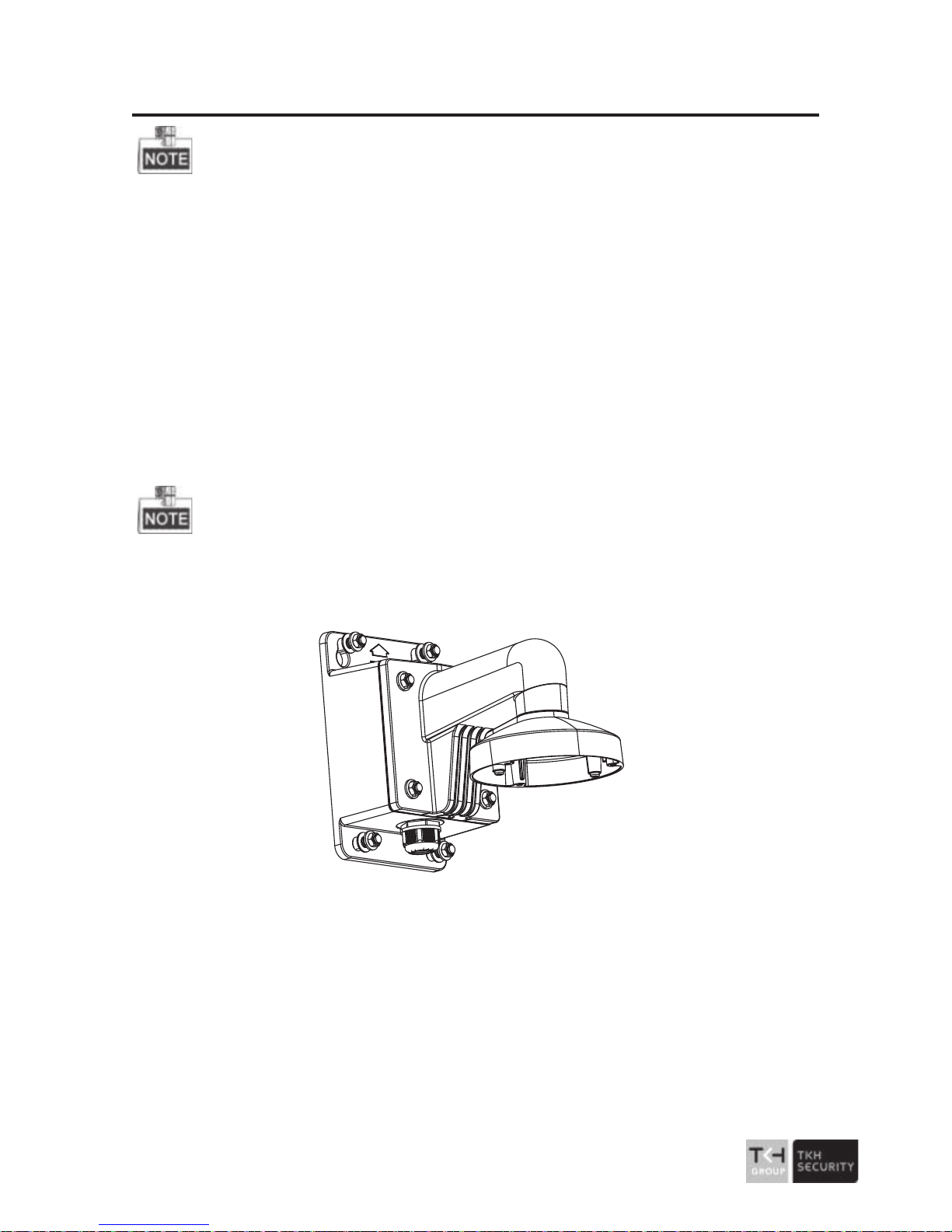

1. Install the wall bracket to the wall with the supplied screws in
the wall bracket package.
You need to purchases a wall bracket separately if wall mounting is
adopted.
Figure 2-13 Install Wall Bracket
2. Fix the adapter plate to the wall bracket.
Page 24
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
23

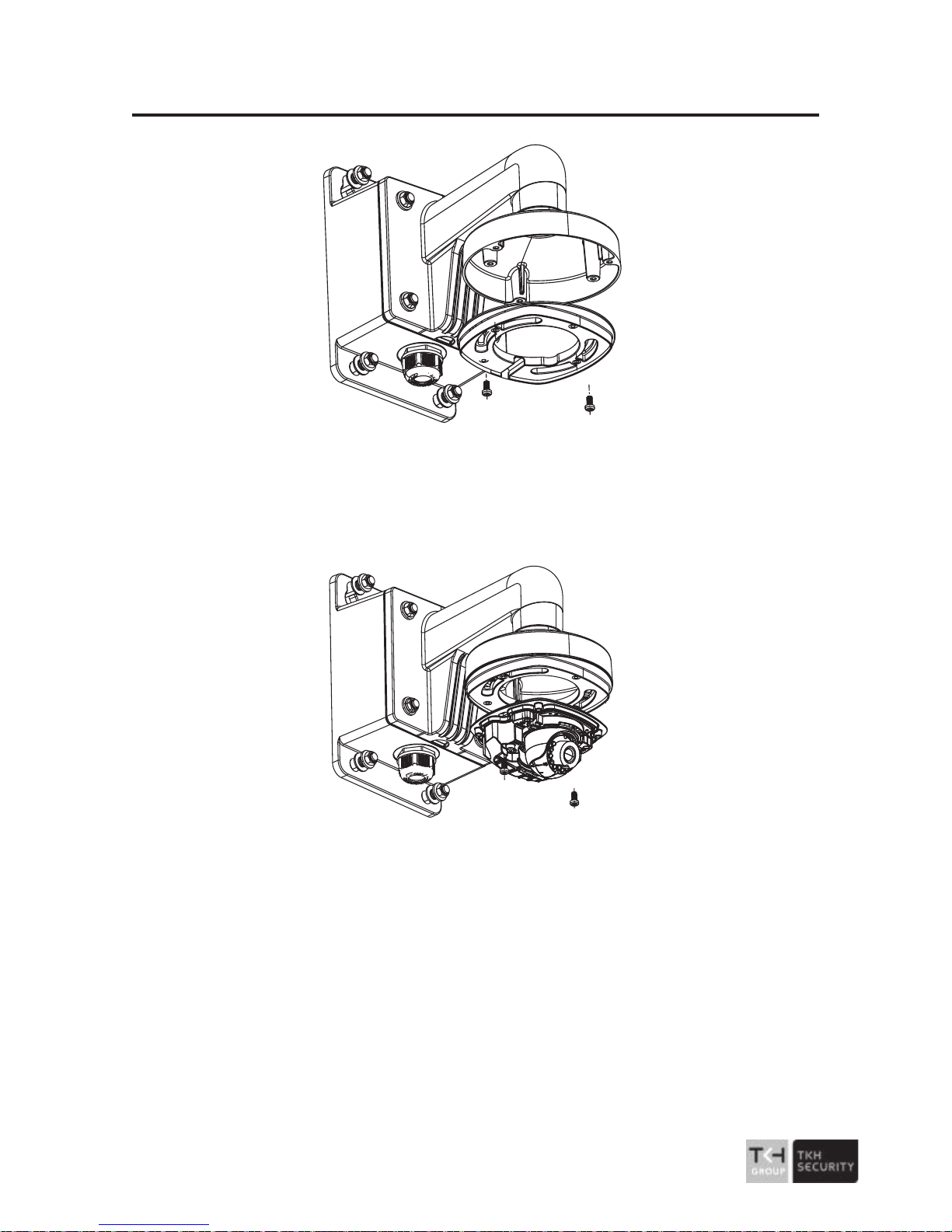

Figure 2-14 Fix the Adapter Plate
3. Fix the dome drive to the wall bracket with the supplied screws.
Figure 2-15 Install the Camera
4. Align the front cover to the dome drive and tighten the set
screws on the front cover to complete the installation.
Page 25
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
24
Figure 2-16 Install the Front Cover
5. Tear off the protection film softly to complete the installation.
z Do not tear off the protection film until the installation is
completed.
z Do not touch the inside face of the bubble with your hands.
2.1.5 Install the Micro SD Card
This series of camera supports local storage, please refer to the
following steps to install the micro SD card.
Steps:
1. Remove the front cover by loosening the set screws on it.
Page 26
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
25
Figure 2-17 Remove the Front Cover
2. Insert the micro SD card to the card slot until you hear a click.
3. (Optional)Slightly push the inserted micro SD card to uninstall it
from the camera.
Figure 2-18 Install and Uninstall Micro SD Card
Mirco SD Card
Page 27
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
26
2.2 Type III Mini Dome Camera Installation
Steps:
1. (Optional) Use a plier to remove the clip (marked in dotted line
in Figure 2-19) on the side of the back box and then route the
cables through the opening instead of the cable hole.

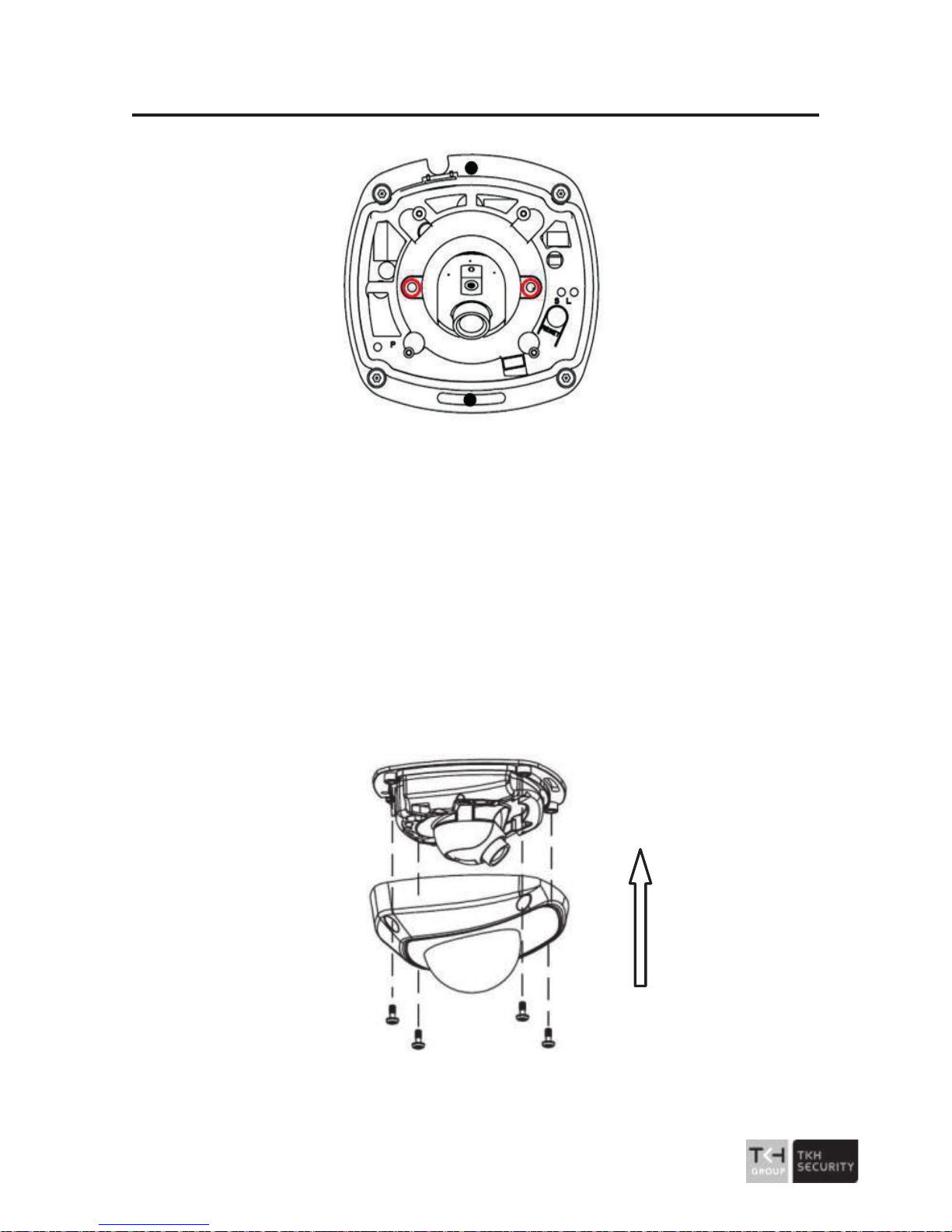

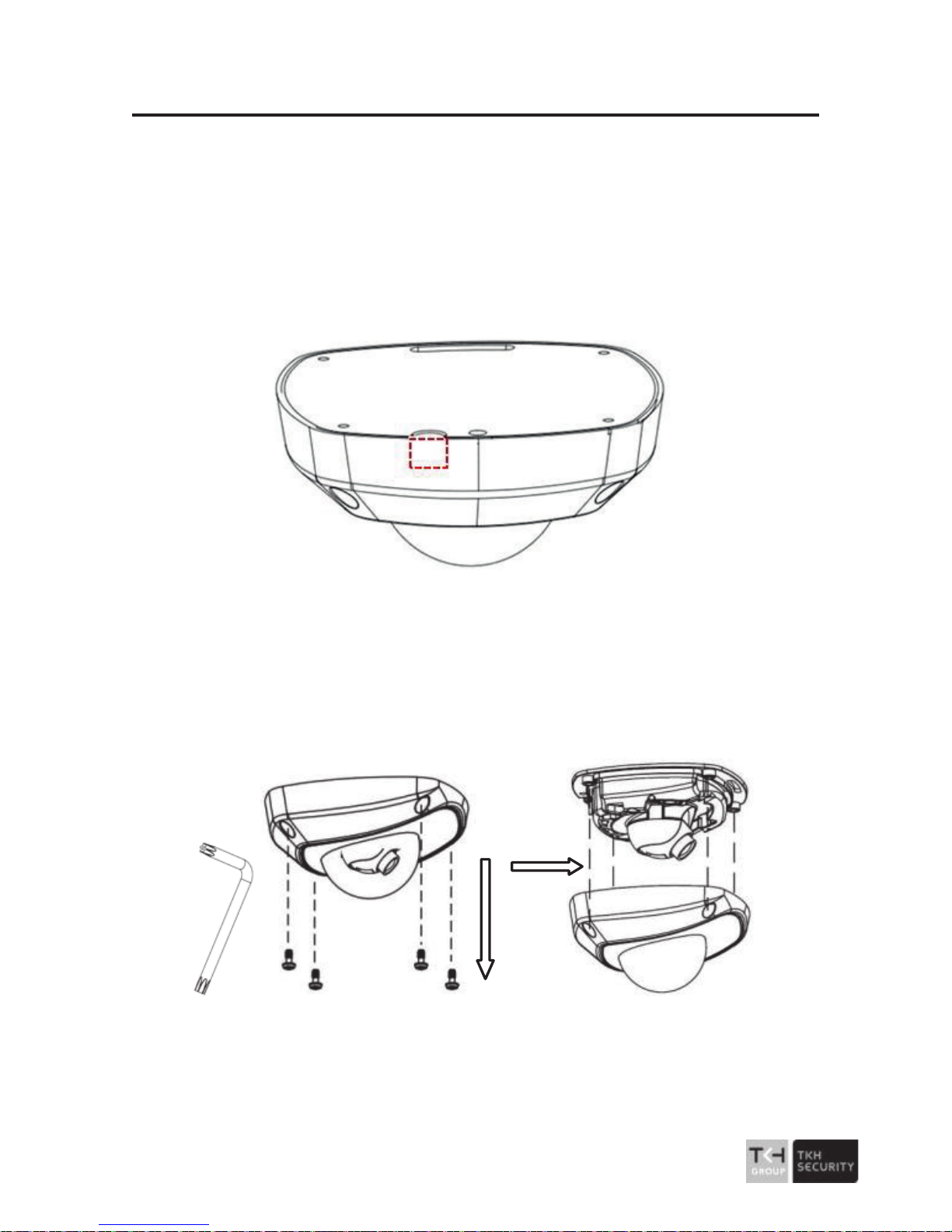

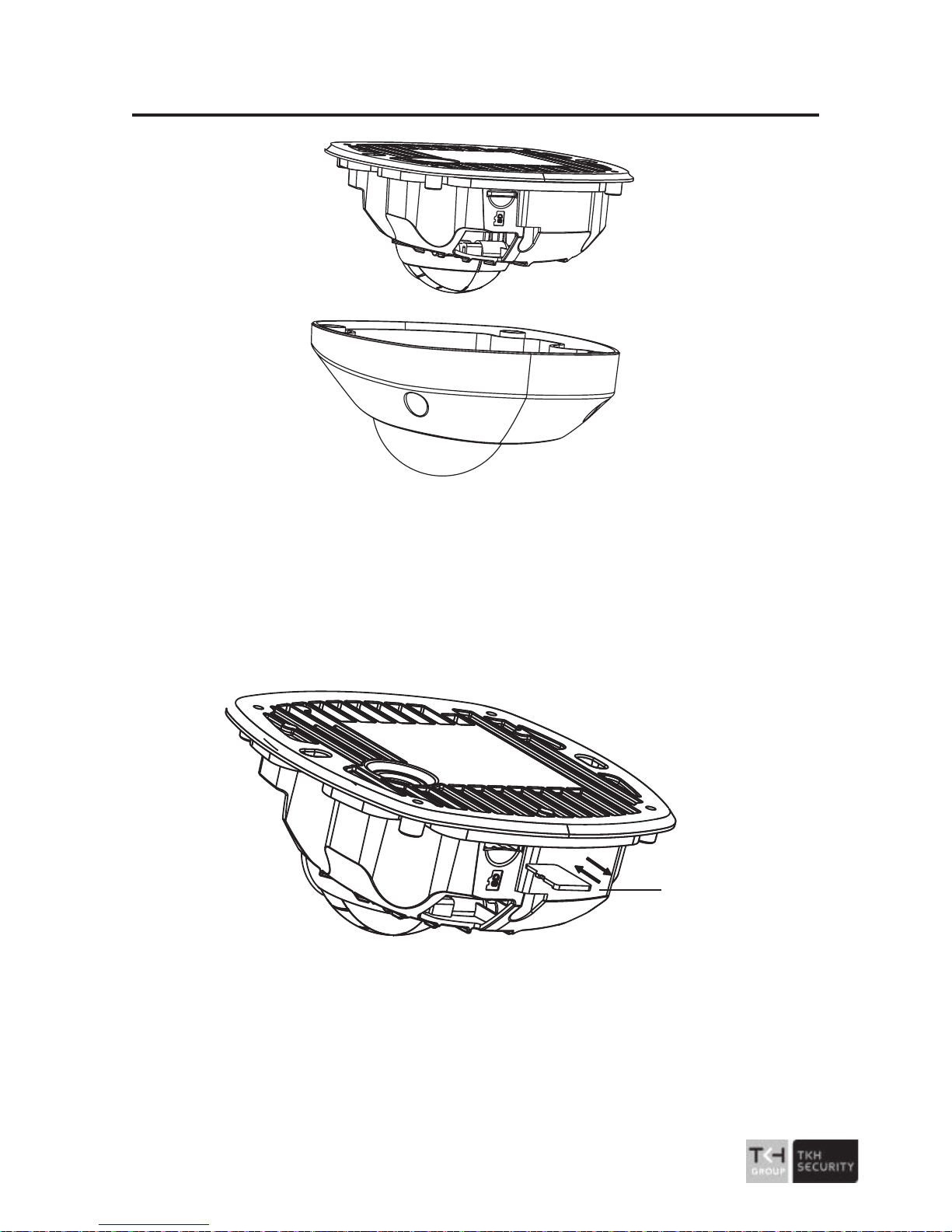

Figure 2-19 Side Clip
2. Loosen the set screws with a hex key (supplied) to remove the
cover.
Figure 2-20 Remove the Cover
Page 28
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
27

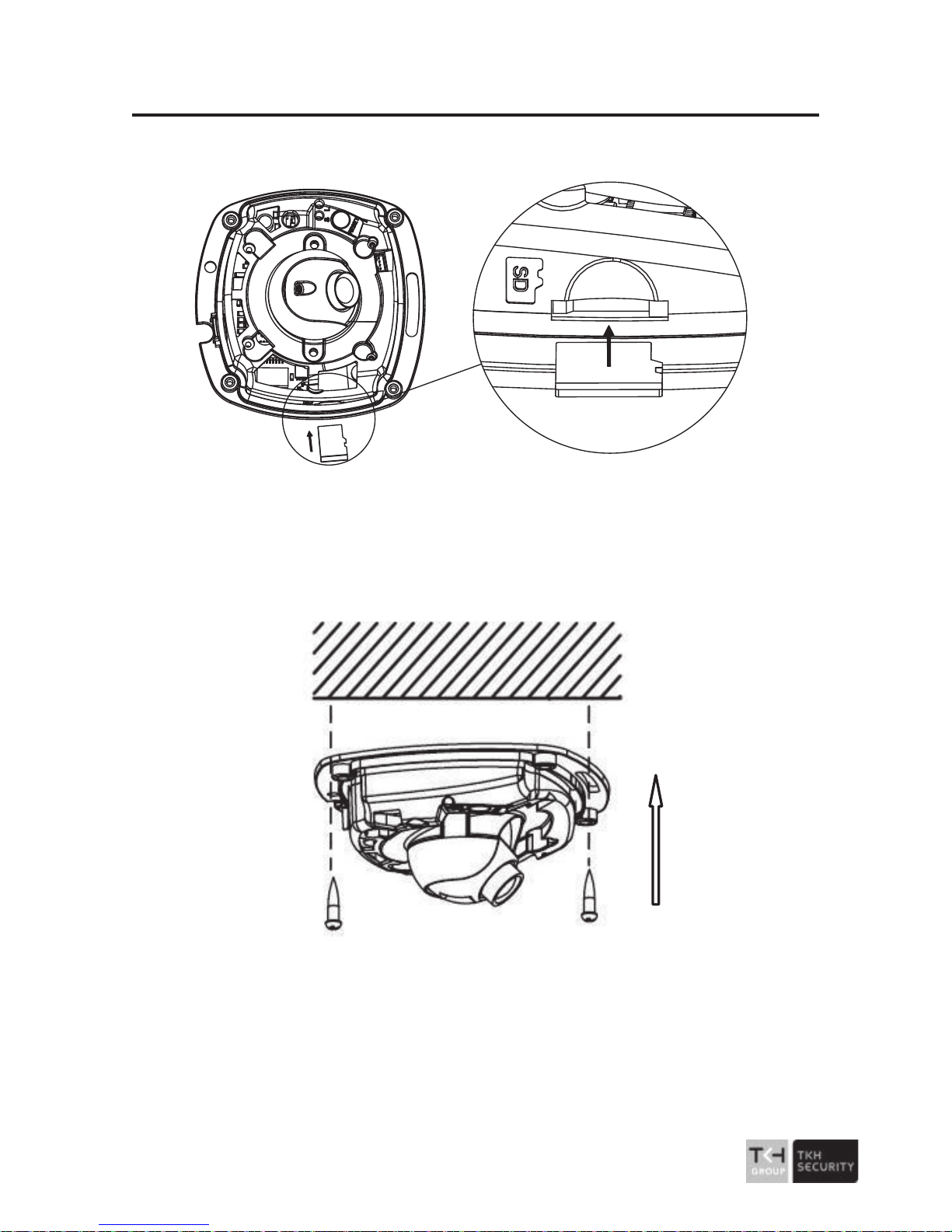

3. Install the micro SD card to the card slot.
Figure 2-21 Install Micro SD Card
4. Fix the camera to the ceiling with the supplied screws.
Figure 2-22 Fix the Camera
5. View the video image of the camera over the network.
Page 29
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
28

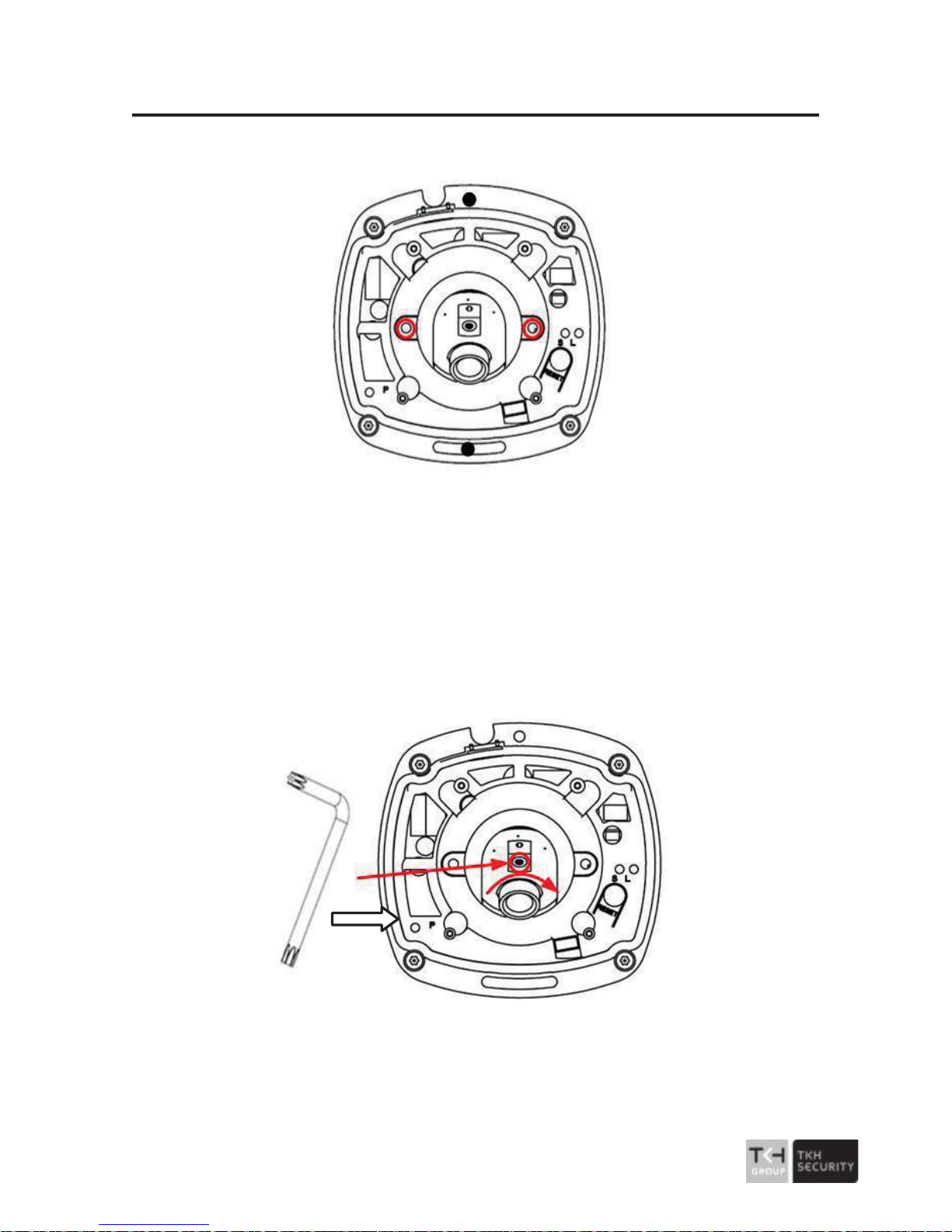

6. Loosen the lens set screws.
Figure 2-23 Loosen the Lens Set Screws
7. Insert the hex key into the hole marked in the picture and rotate
the hex key to adjust the panning position and tilting position
until getting the desired surveillance angle. Tighten the set
screws.
Figure 2-24 Adjust Panning Position
Page 30
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
29
Figure 2-25 Adjust Tilting Position
As the lens of camera has already been factory adjusted to the best
imaging effect, you just need to adjust the panning position and
tilting position to get the desired surveillance angle.
8. Reinstall the cover before viewing the image so that you can get
the same surveillance effect as the installation is done.
9. Install the cover, and tighten the set screws.
Figure 2-26 Install the Back Box
Page 31
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
30
2.3 Install the Water-proof Jacket
It is recommended to adopt the water-proof jacket (supplied) for
the network interface when the camera is installed outdoor.
Steps:
1. If the network cable has been settled down, cut off the plug of
the network cable first.
2. Route the network cable through the following components in
sequence: fix nut, water-proof ring, and the main body of the
water-proof jacket, as shown in the figure.
3. Insert the water-proof ring into the main body of the
water-proof jacket, to increase the sealing ability of the
components.
4. Wire the plug and network cables up.
5. Fix the O-ring to the network interface of the camera, and then
connect the network cables.
6. Wrap the network interface with the main body of the
water-proof jacket, and then rotate the fix nut clockwise to
assemble it to the main body of the water-proof jacket.
Network Interface
O-ring Plug
Water-proof Jacket Water-proof Ring Fix Nut Network Cable
Figure 2-27 Water-proof Jacket
Page 32
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
31
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection. If the product does not work properly, please
contact with your dealer or the nearest service center.
3.1 Wiring
Please connect to the camera to the network according to the
following figures
Figure 3-1 Connecting Directly
Figure 3-2 Connecting via a Switch or a Router
Page 33
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
32
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via software, and Activation
via Client Software are all supported. We take activation via the
software and Activation via Web Browser as examples to introduce
the camera activation.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
Notes:
z The default IP address of the camera is 192.168.1.64.
z For the camera enables the DHCP by default, the IP address is
allocated automatically, and you need to activate the camera
via the software and search the IP address. Please refer to
Chapter 3.2.2 for activation via the software.
Page 34
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
33
Figure 3-3 Activation Interface(Web)
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED
– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including at
least three of the following categories: upper case
letters, lower case letters, numbers, and special
characters) in order to increase the security of your
product. And we recommend you reset your password
regularly, especially in the high security system,
resetting the password monthly or weekly can better
protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Page 35
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
34
3.2.2 Activation via the Software
The software is used for detecting the online device, activating the
camera, and resetting the password.
Get the software from the supplied disk or the official website, and
install the software according to the prompts. Follow the steps to
activate the camera.
Steps:
1. Run the software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
Figure 3-4 Interface
Page 36
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
35
Note:
The software supports activating the camera in batch. Please refer to
the User Manual of the software for details.
3. Create a password and input the password in the password field,
and confirm the password.
STRONG PASSWORD RECOMMENDED
– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including at
least three of the following categories: upper case
letters, lower case letters, numbers, and special
characters) in order to increase the security of your
product. And we recommend you reset your password
regularly, especially in the high security system,
resetting the password monthly or weekly can better
protect your product.
4. Click OK to save the password.
You can check whether the activation is completed on the popup
window. If activation failed, please make sure that the password
meets the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the software or client software to search and
change the IP of network camera. We will take modifying the IP
Page 37
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
36
Address via the software as an example to introduce the IP address
modification.
Steps:
1. Run the software.
2. Select an activate device.
Note:
Please refer to Chapter 3.2 to activate the camera if the camera is
inactive.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Figure 3-5 Modify the IP Address
4. Input the password to activate your IP address modification.
The batch IP address modification is supported by the software.
Page 38
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
37
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
z The default IP address is 192.168.1.64.
z If the camera is not activated, please activate the camera first
according to Chapter 3.2.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permissions.
Note:
The IP address gets locked if the admin user performs 7 failed
password attempts (5 attempts for the user/operator).
Page 39
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
38
4. Click Login.
Figure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing
the camera. Please follow the installation prompts to install the
plug-in.
You may have to close the web browser to finish the installation of
the plug-in.
Page 40
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
39

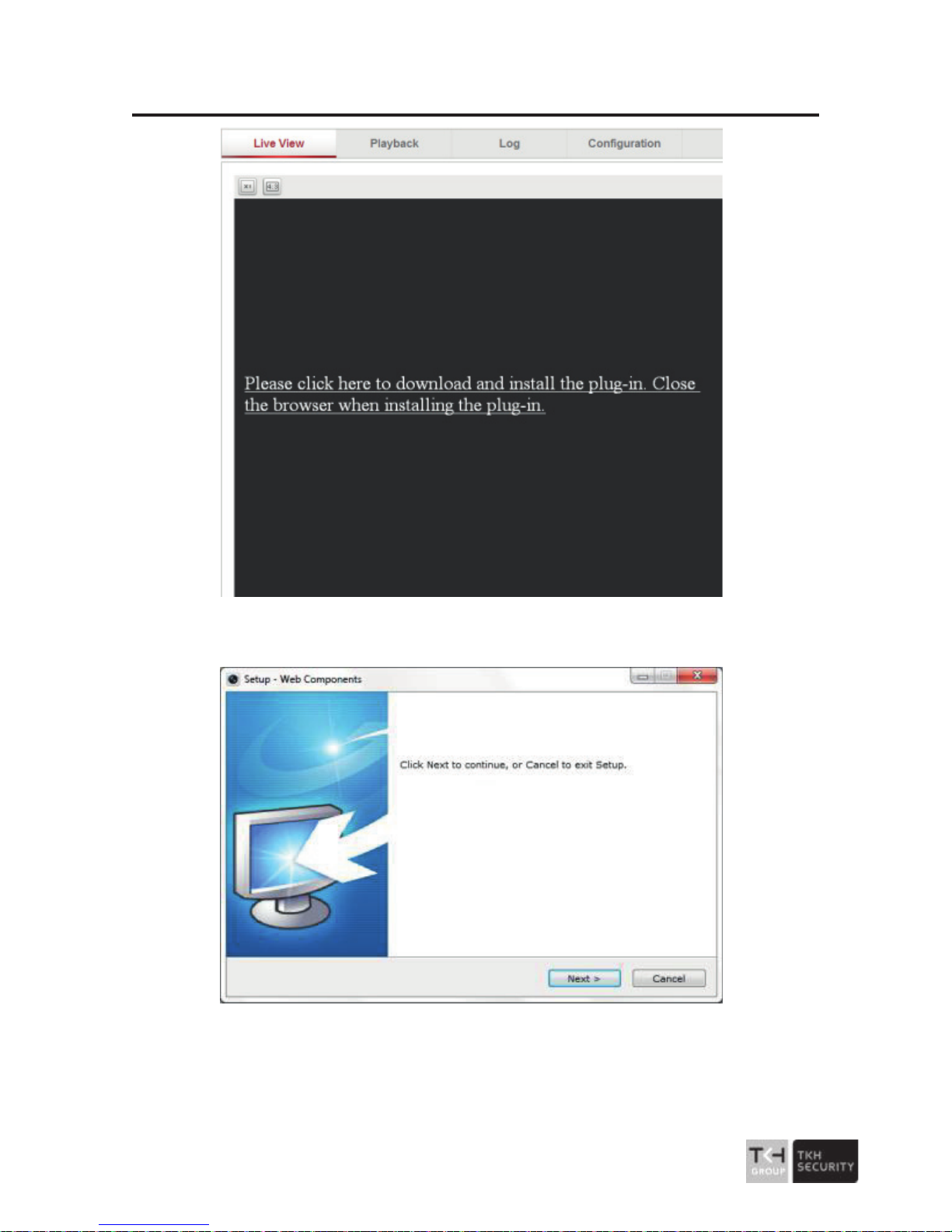

Figure 4-2 Download Plug-in
Figure 4-3 Install Plug-in (1)
Page 41
User Manual - Network Mini Dome Camera - CD1002F2-EI(S)
40

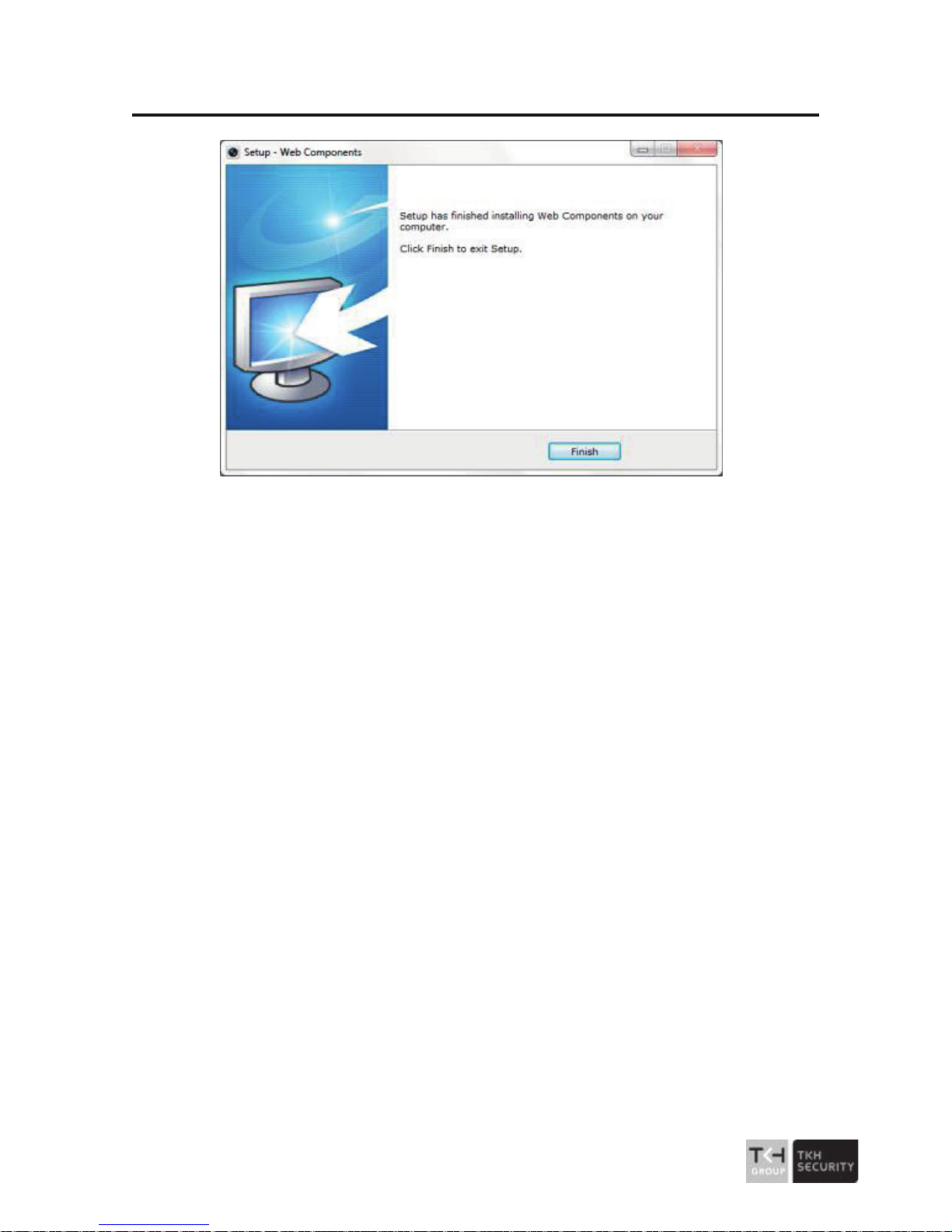

Figure 4-4 Install Plug-in (2)
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2~4 to login.
Page 42
Loading...
