TKH security BL1002F4-EI/T User Manual

USER MANUAL
V2017.1.001
Network Bullet Camera
BL1002F4-EI/T
1
About this Manual
This Manual is applicable to BL1002F4-EI/T Network Camera.
The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information here in after are for description and explanation only. The information contained in the Manual is subject
to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
2
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2.
This device must accept any interference received, including
interfe
rence that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European
standards listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
3
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions:
Injury or equipment damage may occur if any of the
cautions are neglected.
4
Warnings
● In the use of the product, you must be in strict compliance with th
e electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
● Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
● Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
● Please make sure that the plug is firmly connected to the pow
er socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
● If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact the service center.
Warnings
Follow these
safeguards to prevent serious injury or death.
Cautions
Follow these
precautions to prevent potential injury or material damage.
5
● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.
Cautions
● Make sure the power supply voltage is correct before using the camer
a.
● Do not drop the camera or subject it to physical shock.
● Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.
● Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same time.
● The sensor may be burned out by a laser beam, so when an
y
l
aser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
● Do not place the camera in extremely hot, cold (the operating temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
● To avoid heat accumulation, good ventilation is required fo
r
operating environment.
● Keep the camera away from liquid while in use.
6
● While in delivery, the camera shall be packed in its original packing, or packing of the same texture.
● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly
ac
cording to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
● Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
● If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or maintenance.)
7
Table of Contents
1 Appearance Description ................................................................. 8
1.1 Overview of Type I Bullet Camera ................................... 8

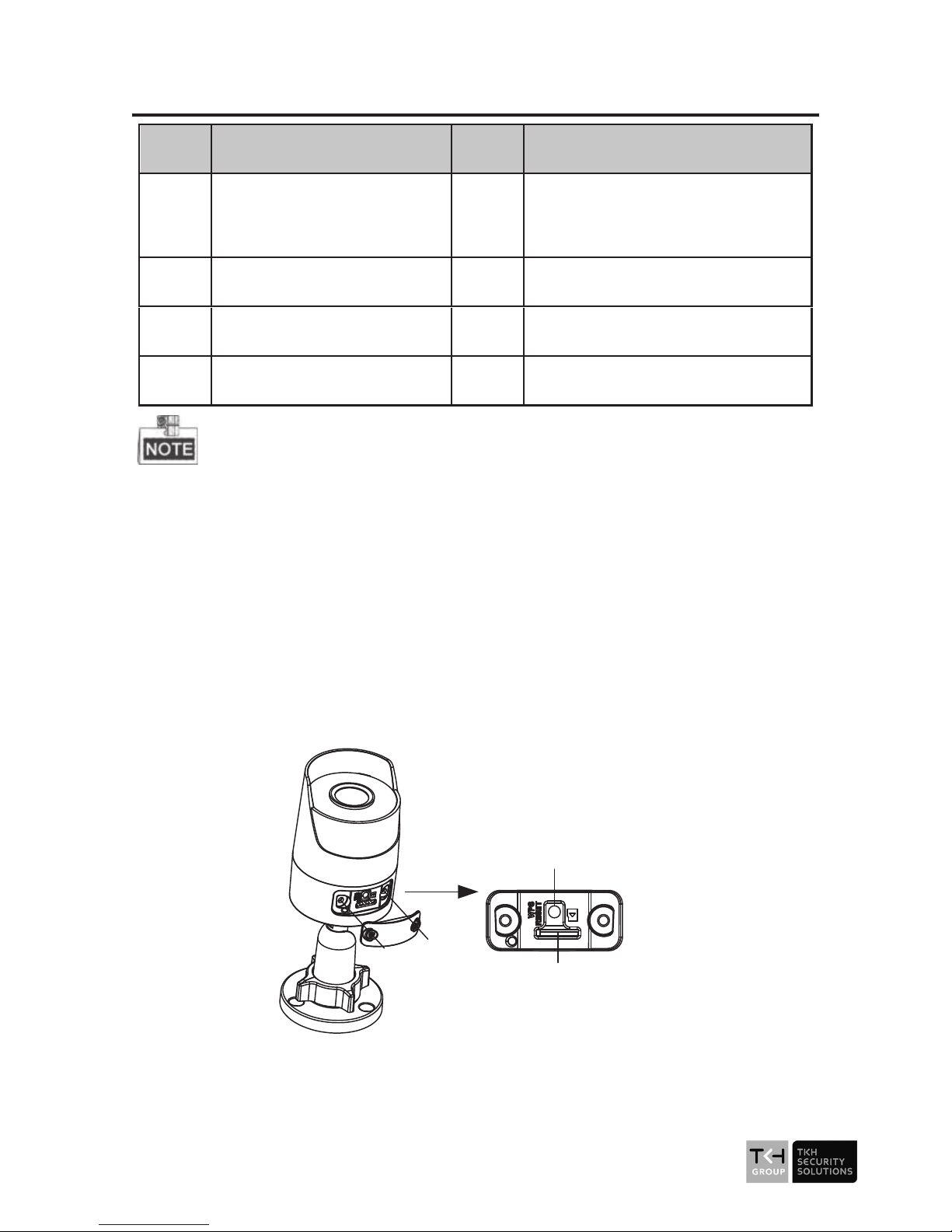

1.2 Overview of Type II Bullet Camera ................................ 10

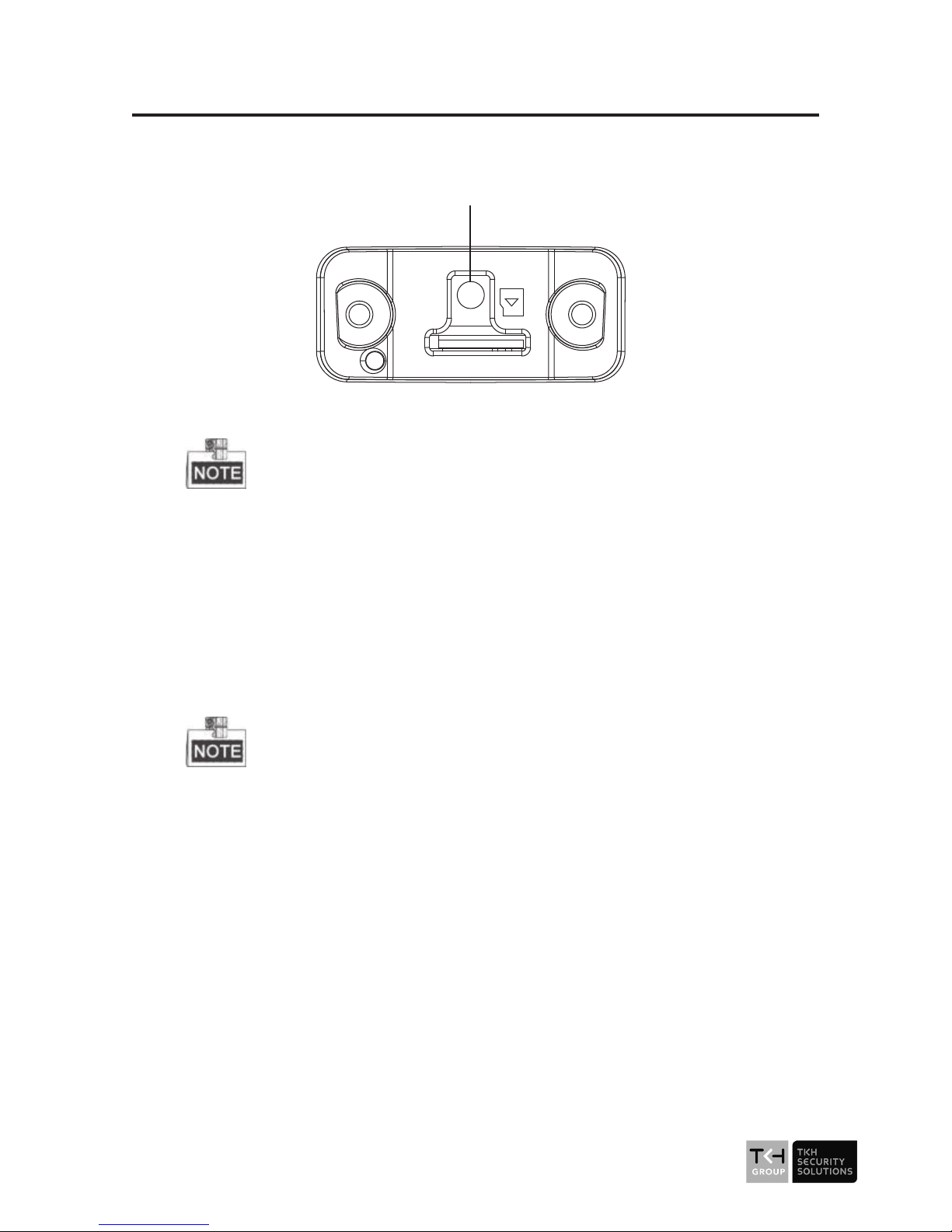

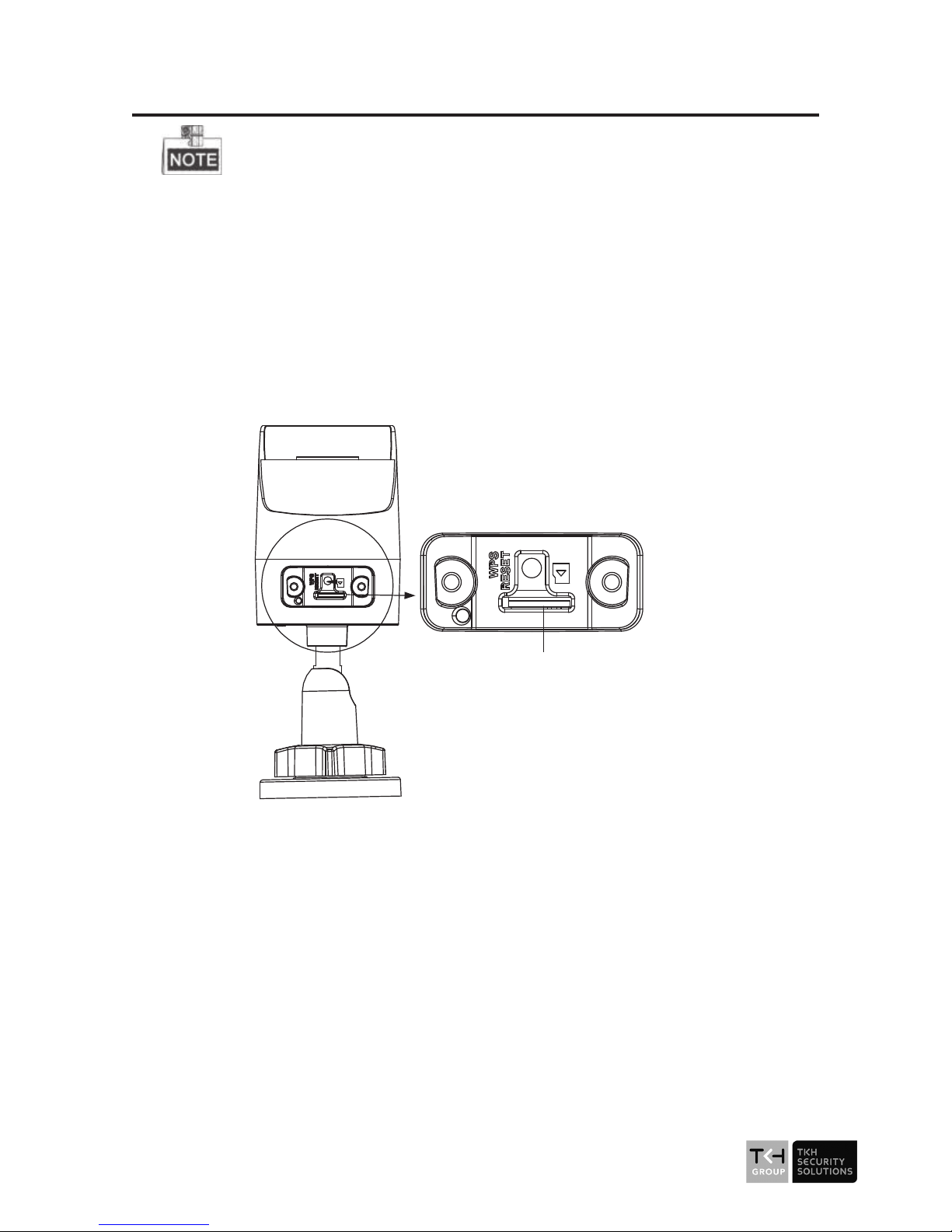

1.2.1 Installing the microSD Card ................................ 12

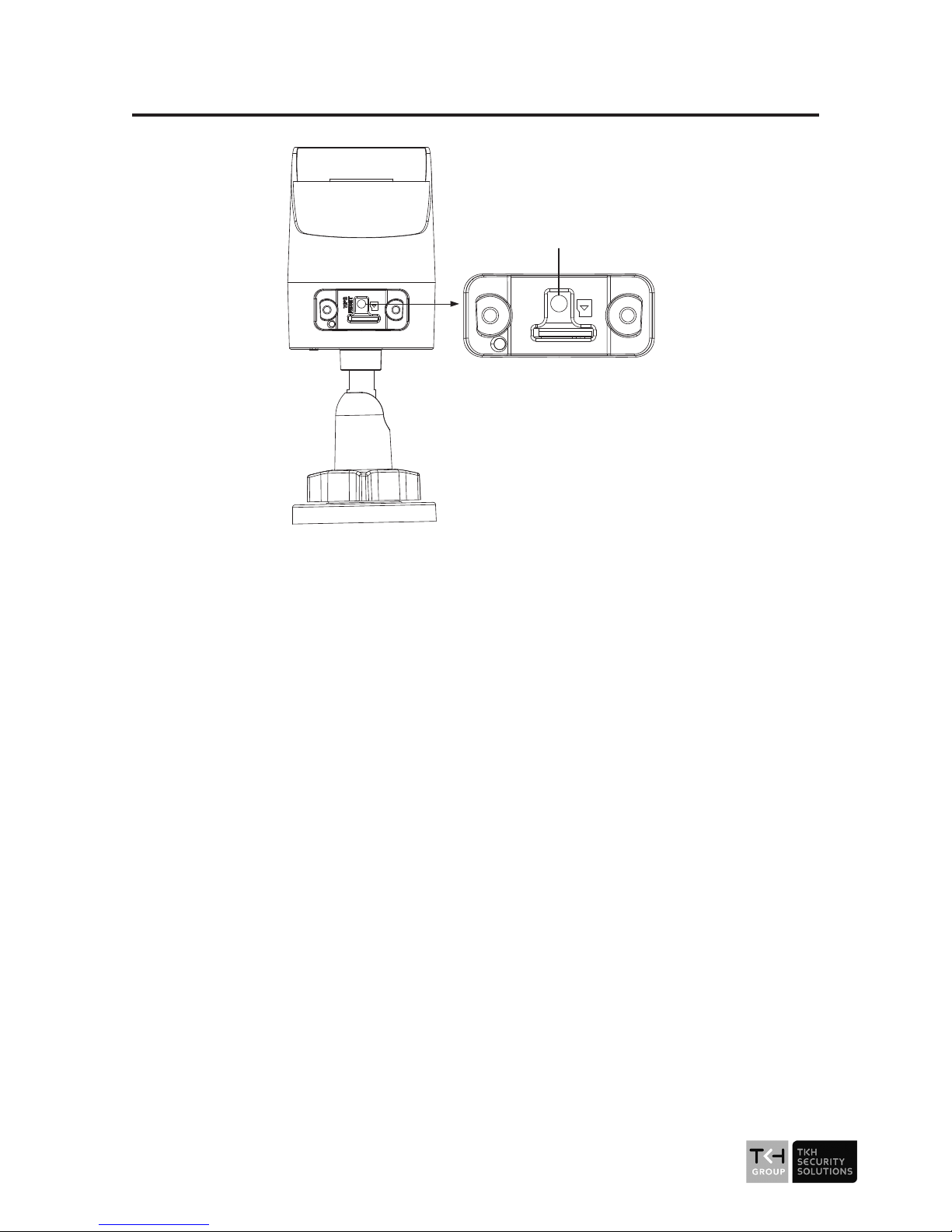

1.2.2 Resetting the Camera ......................................... 12
1.2.3 Setting the WPS Protocol.................................... 13
2 Installation .................................................................................... 15

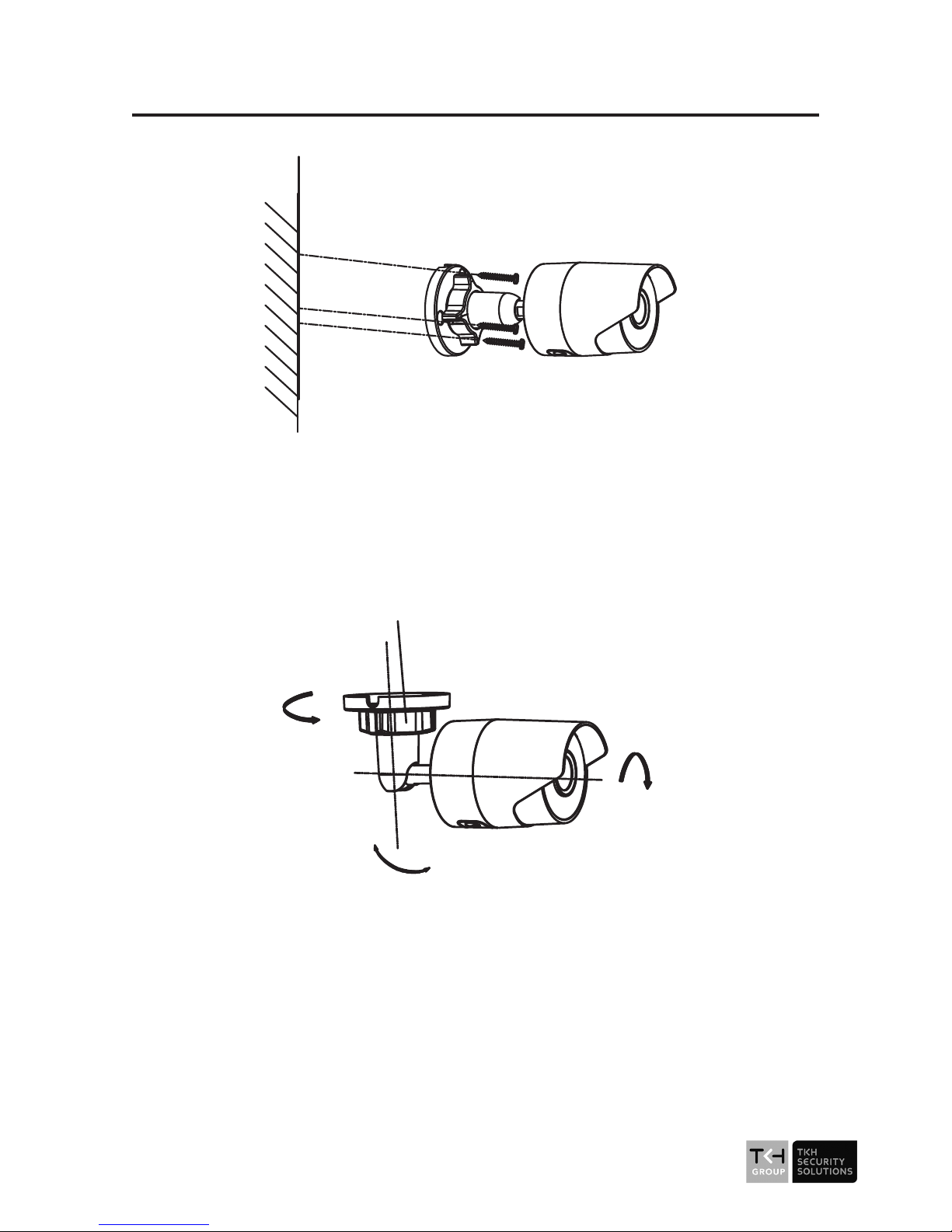

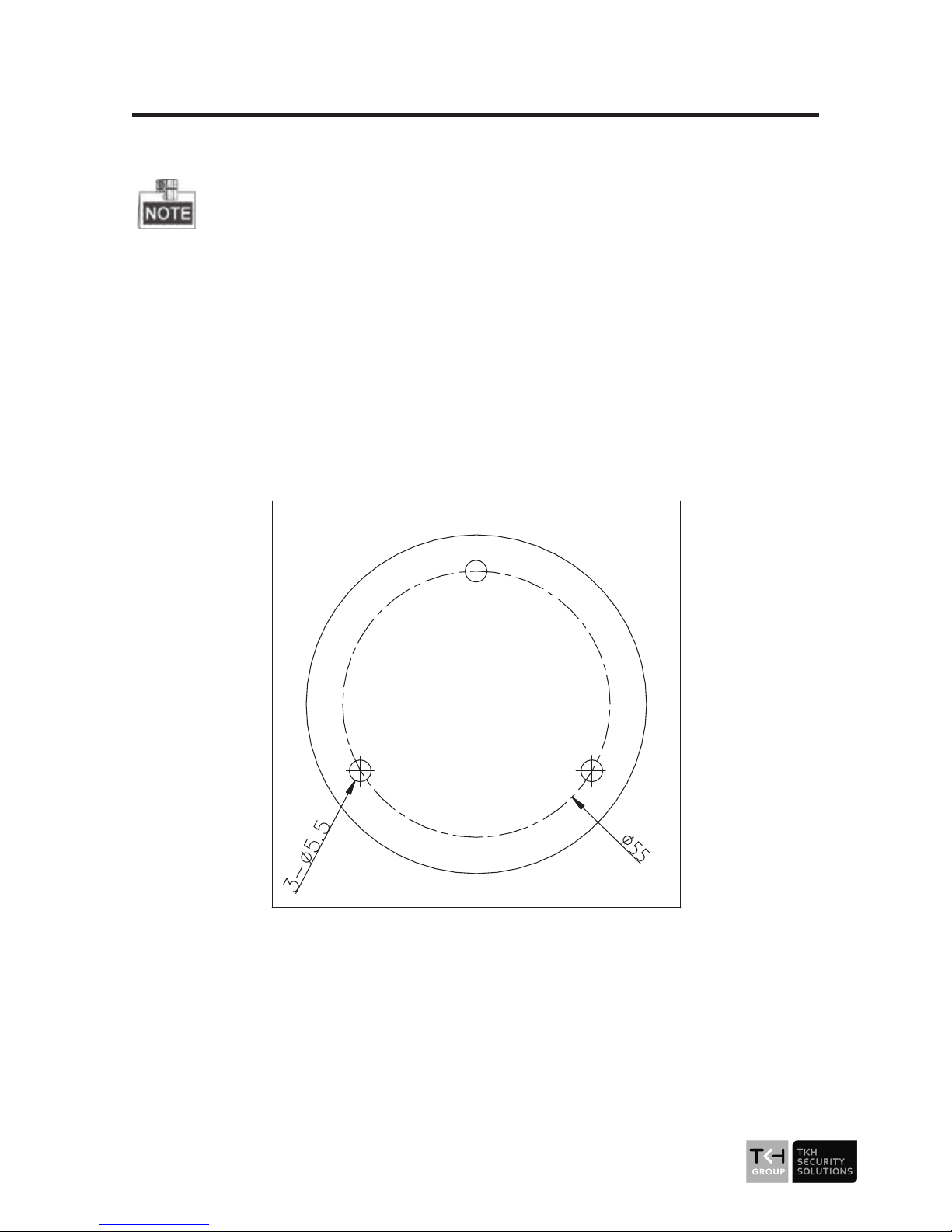

2.1 Installation of the Bullet Camera ................................... 16

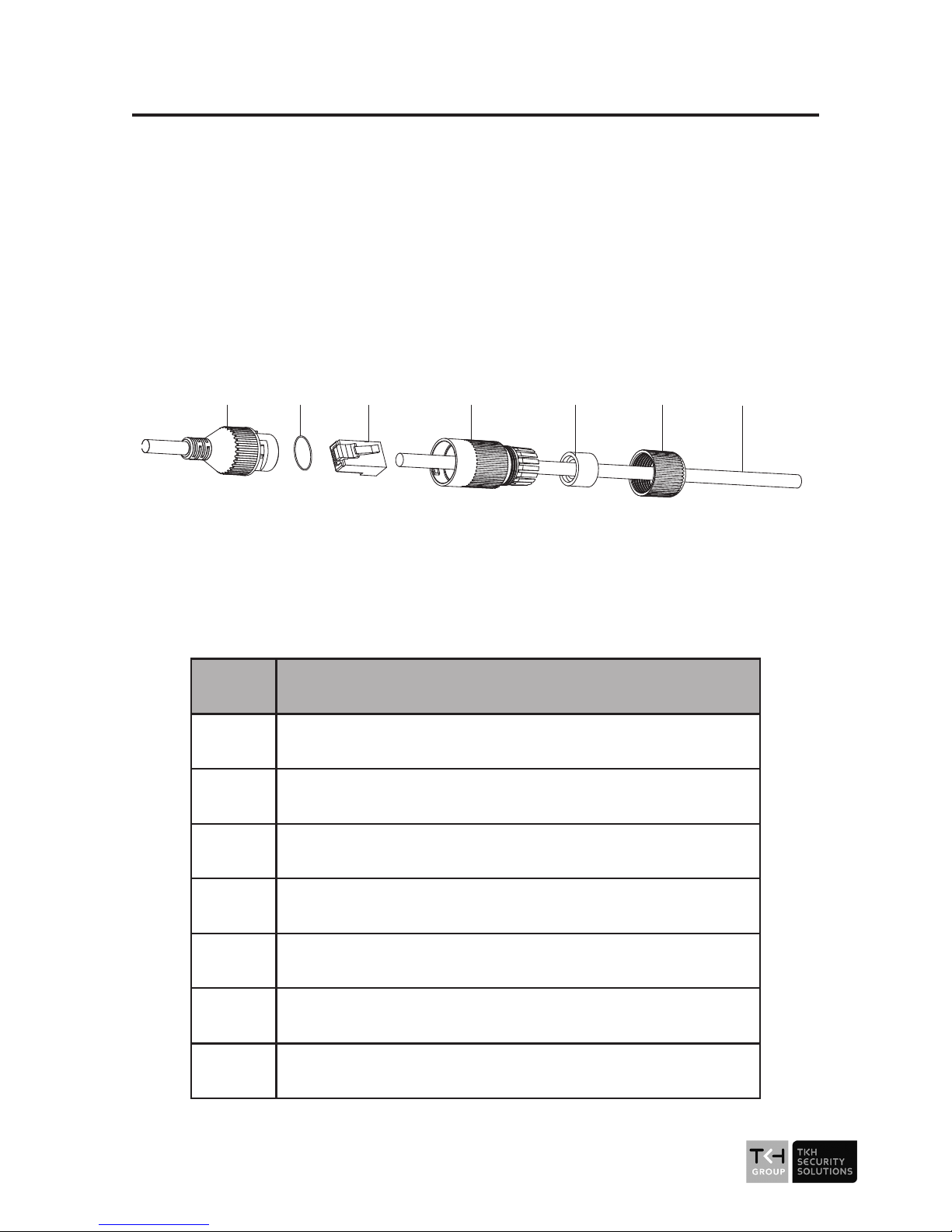

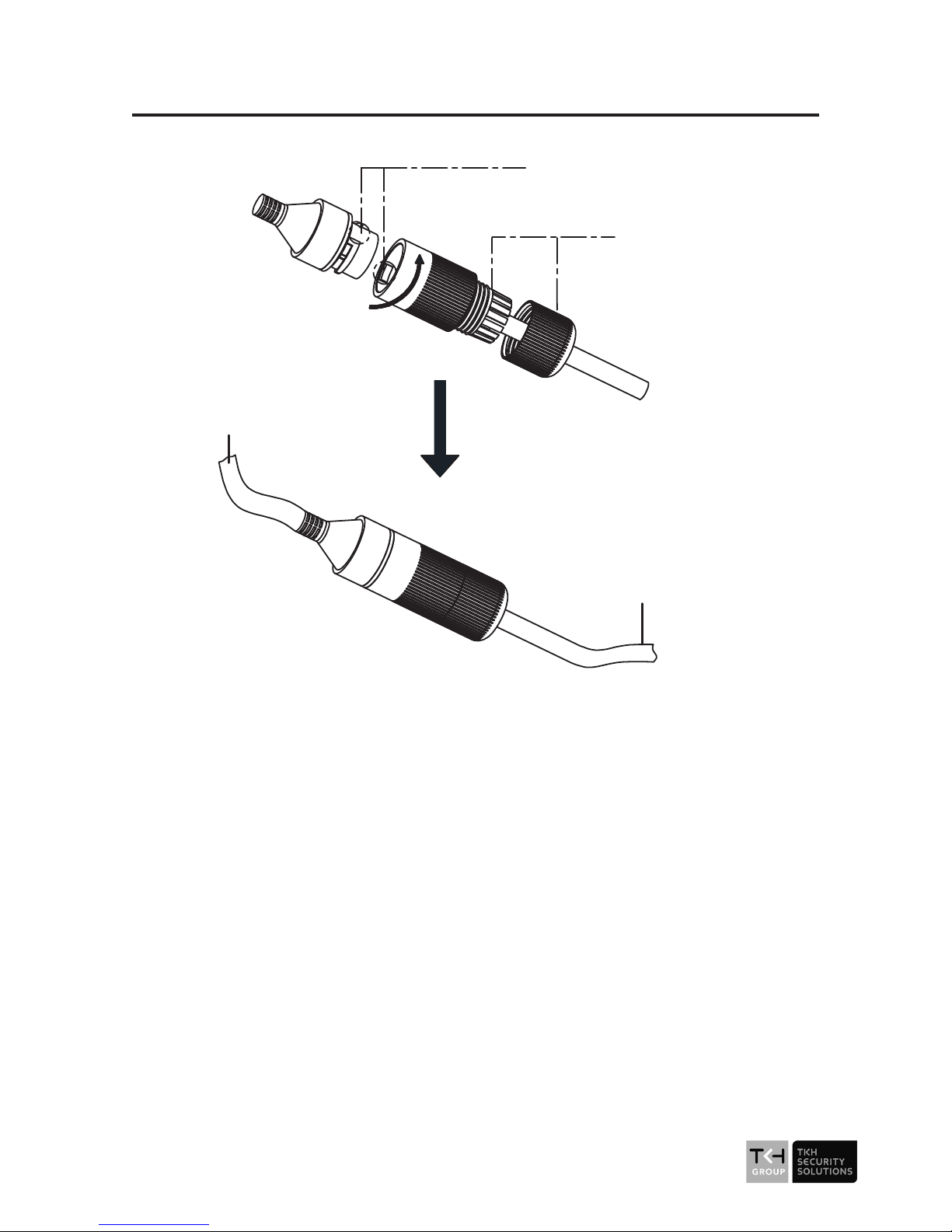

2.2 Installation of Network Cable Water-proof Jacket ......... 19
3 Setting the Network Camera
ov
er the LAN .................................. 22

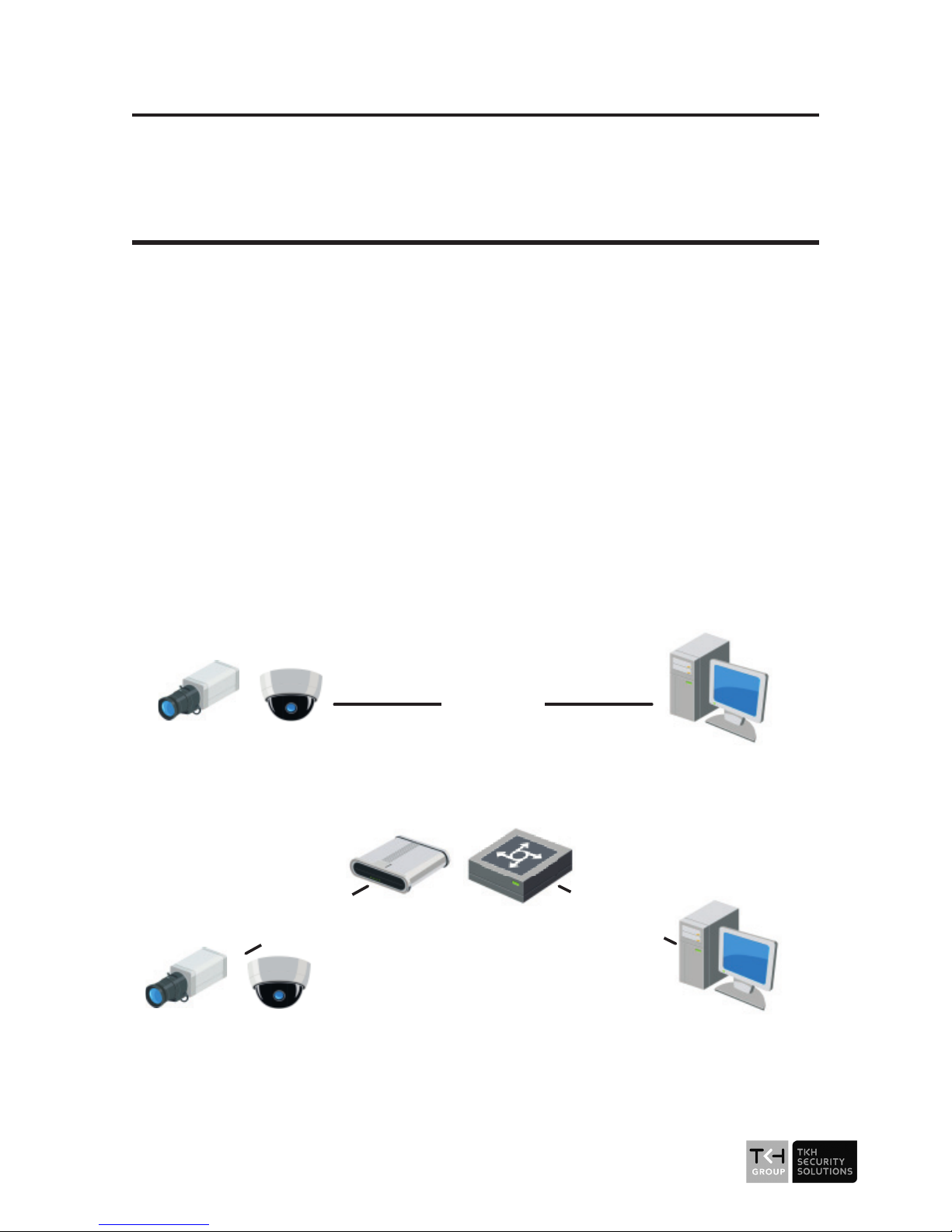

3.1 Wiring ........................................................................... 22
3.2 Activating the Camera ................................................... 23

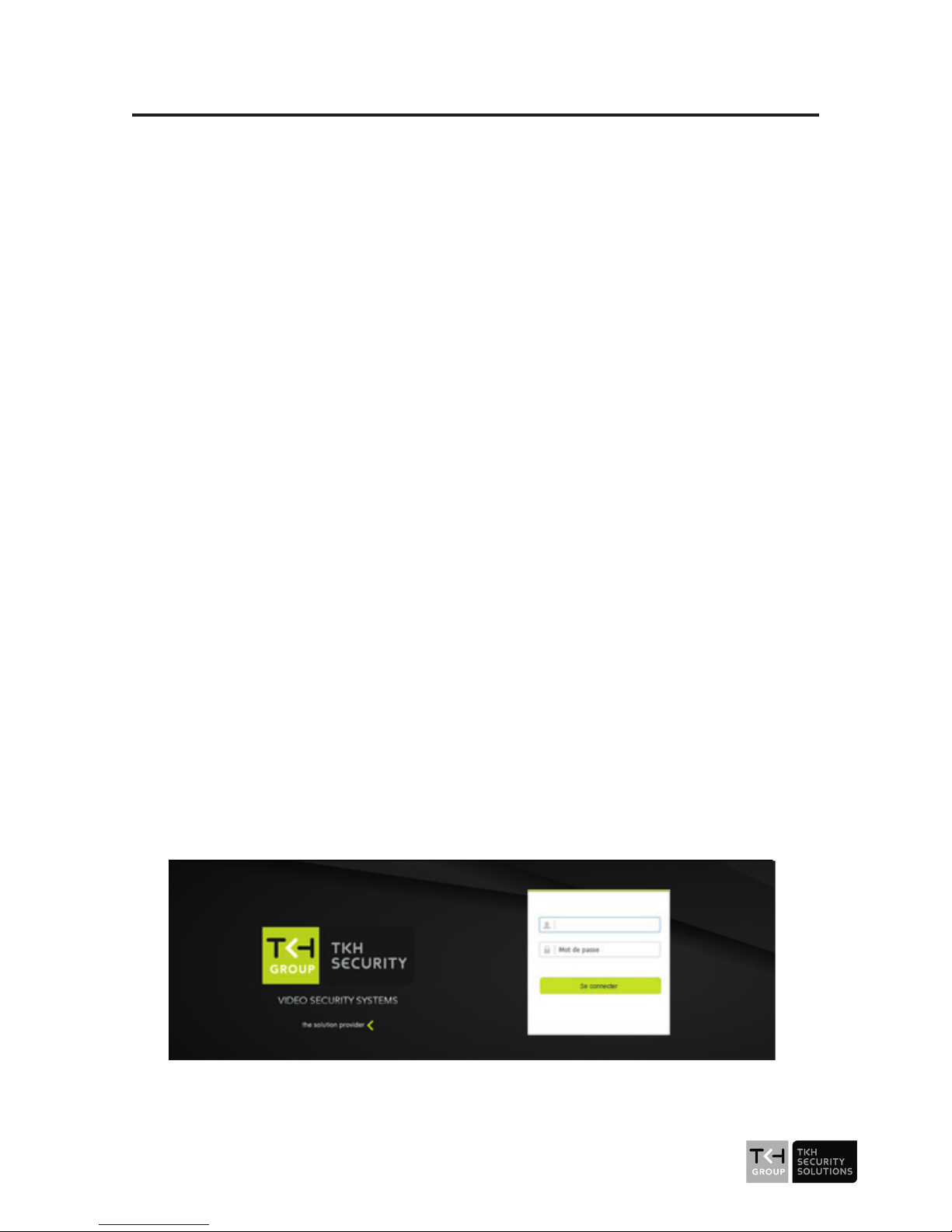

3.2.1 Activation via Web Browser ................................ 23

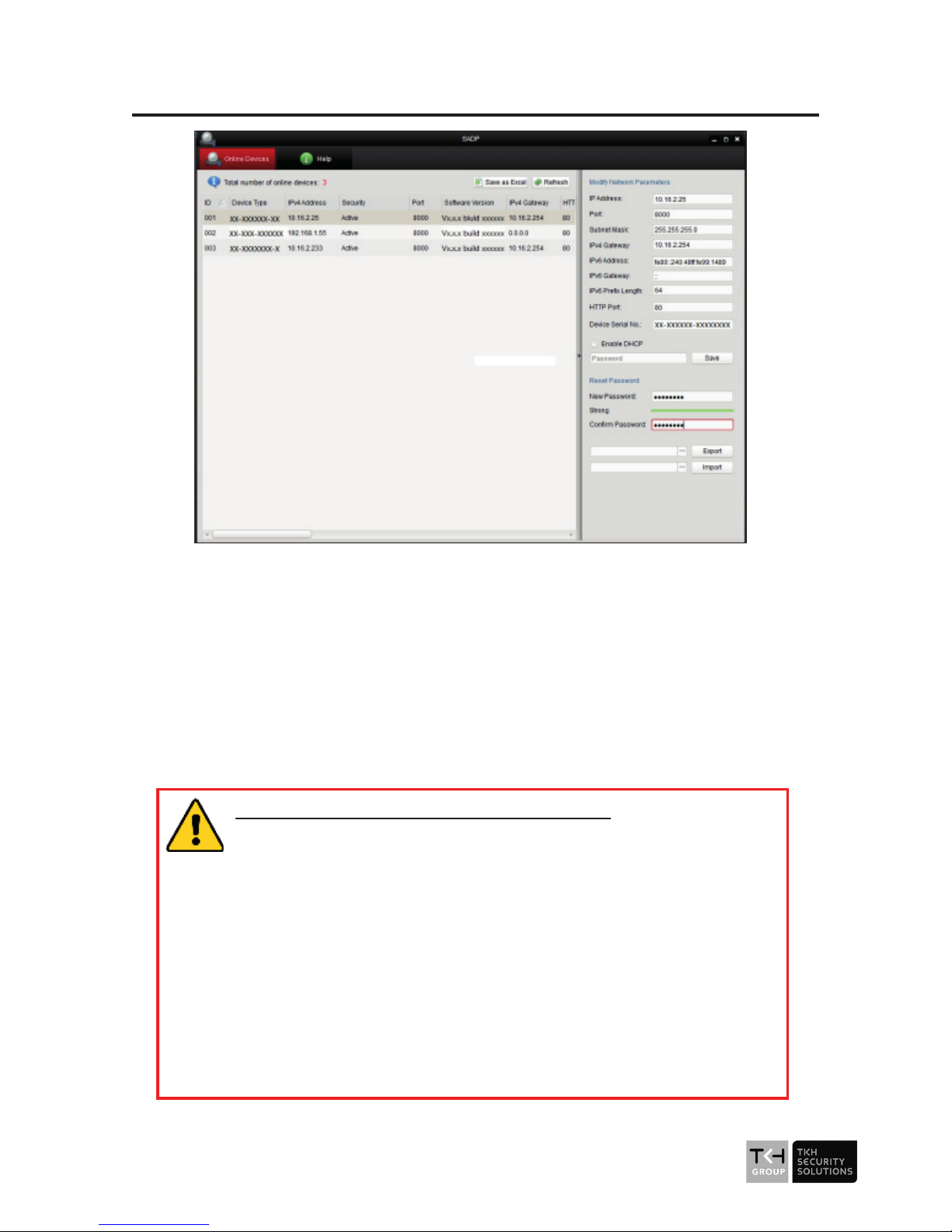

3.2.2 Activation via the Software ................................ 24

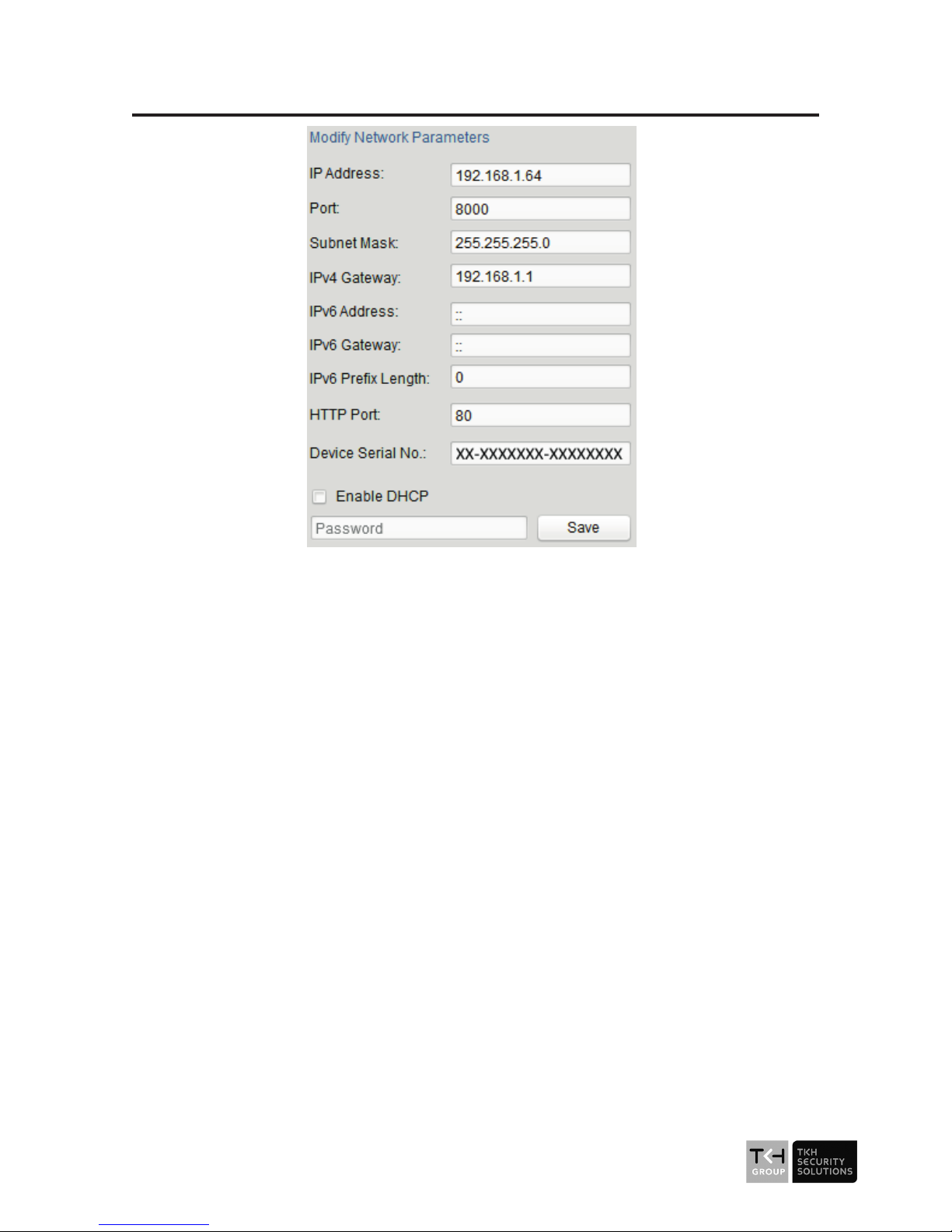

3.3 Modifying the IP Address .............................................. 26

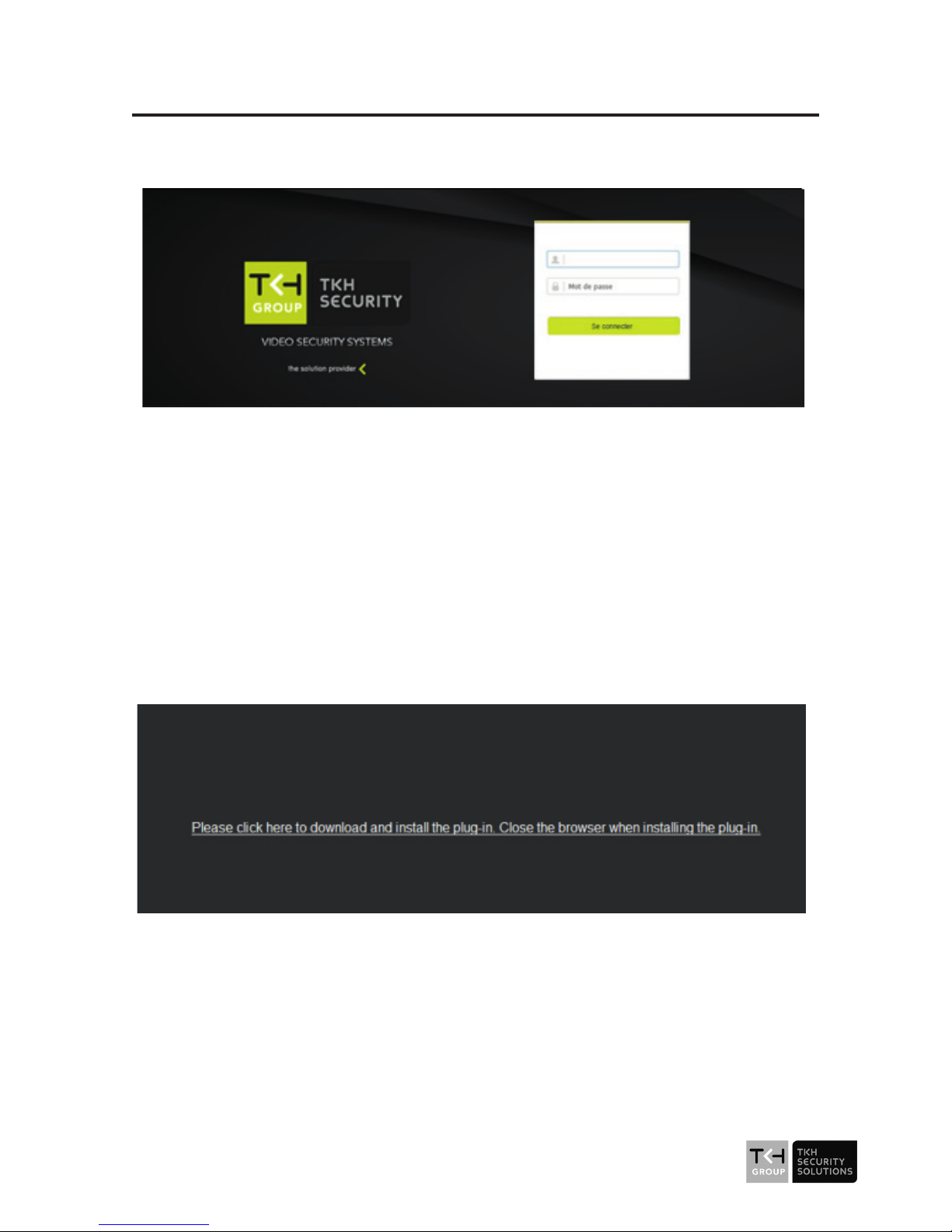

4 Accessing via Web Br
owser .......................................................... 28
050
3001050901
8
1 Appearance Description
1.1 Overview of Type I Bullet Camera
1
2
3
4
5
6
9
7
8

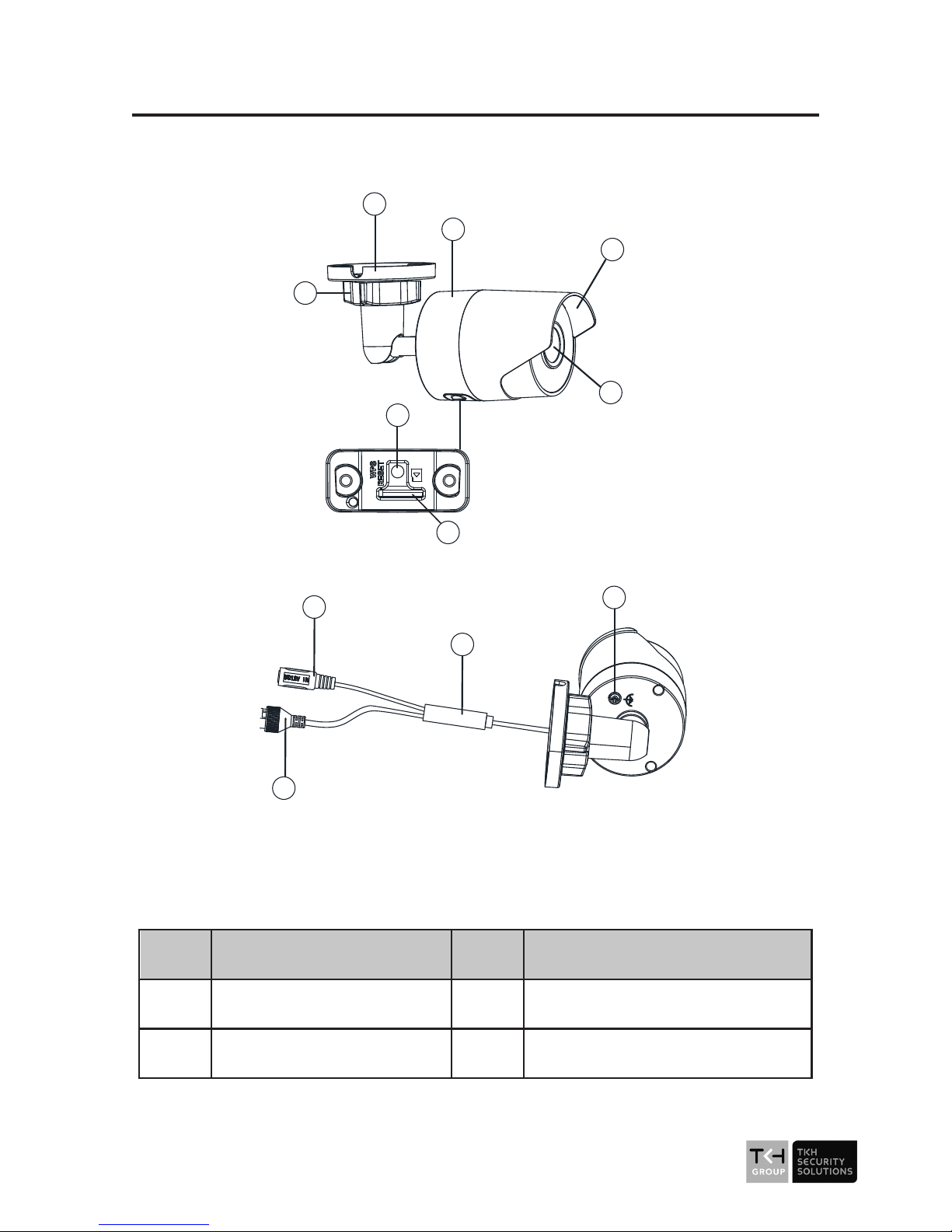

Figure
1-1
Type I Bullet Camera
9
Table 1-1 Description
No.
Description
No.
Description
1
Mounting Base 4
Lens
2
Back Box 5
Sun Shield
3
Front Box 6
Power Cable
7
Reset Button 8
GND Screw
9
10/100M Self-adaptive
Ethernet Interface
z Type I camera does not support the function of Wi-Fi or SD card.
z Press Reset button about 10s when the camera is power on or
rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
