Network Dome Camera
FD1001V1-EI/T
Page 2
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
2
About this Manual
This Manual is applicable to &ϭϬϬϭsϭͲ/d Network Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
Please use this user manual under the guidance of professionals.
Legal Disclaimer
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. OUR COMPANY
SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE
EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
Page 3
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
3
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
ಧReorient or relocate the receiving antenna.
ಧIncrease the separation between the equipment and receiver.
ಧConnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
ಧConsult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2.
This device must accept any interference received, including
interference that may cause undesired operation.
Page 4
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
4
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards
requirements.
Safety Instruction
Page 5
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
5
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions:
Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
Ɣ In the use of the product, you must be in strict compliance with
the e
lectrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
Ɣ Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 24 VAC or 12 VDC
according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
Ɣ Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
Warnings
Follow these
safeguards to prevent
serious injury or death.
Cautions
Follow these
precaution
s to prevent potential
injury or material damage.
Page 6
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
6
Ɣ Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
Ɣ If smoke, odor or noise rise from the device, turn off the power
at o
nce and unplug the power cable, and then please contac
t
t
he service center.
Ɣ Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
Cautions
Ɣ M
ake sure the power supply voltage is correct before using the
came
ra.
Ɣ Do not drop the camera or subject it to physical shock.
Ɣ Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe
it
gen
tly. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
Ɣ Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
Ɣ The sensor may be burned out by a laser beam, so when an
y
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
Ɣ Do not place the camera in extremely hot, cold (the operating
temperature shall be-30°C ~+60°C, or -40°C ~ +60°C if the
Page 7
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
7
camera model has an “H” in its suffix), dusty or damp locations,
and do not expose it to high electromagnetic radiation.
Ɣ To avoid heat accumulation, good ventilation is required for
operating environment.
Ɣ Keep the camera away from liquid while in use.
Ɣ While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
Ɣ Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularl
y
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for al
l
t
he users. Please contact with your dealer for more details.
Ɣ Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
Ɣ If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
Page 8
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
8
Table of Contents
1 Appearance Description ................................................................. 9
1.1 Type I Camera ................................................................. 9
1.2 Type II Camera .............................................................. 12
2 Installation .................................................................................... 14
Preparation ................................................................... 15
2.1
2.1.1 Disassembling..................................................... 15
2.1.2 Memory Card Installation ................................... 16
Mounting ...................................................................... 162.2
2.2
.1 Ceiling Mounting ................................................ 16
2.2.2 In-ceiling Mounting ............................................ 20
2.2.3 Mounting with Wall Mounting Bracket ............... 24
2.2.4 Mounting with Pendant Mounting Bracket......... 27
2.2.5 Mounting with Gang Box .................................... 30
Image and Focus Adjusting ............................................ 322.3
2
.3
.1 3-Axis Adjustment .............................................. 33
2.3.2 Zoom and Focus Adjustment. ............................. 34
3 Setting the Network Camera ov
er the LAN .................................. 36
3.1 Wiring ........................................................................... 36
3.2 Activating the Camera ................................................... 37
3.2.1 Activation via Web Browser ................................ 37
3.2.2 Activation via TKHSDM Software ........................ 38
3.3 Modifying the IP Address .............................................. 40
4 Accessing via Web
Br
owser .......................................................... 42
0504001060218
Page 9
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
9
1 Appearance Description
Cameras of this series belong to two appearance types.
Type I has the lens that zoom and focus levels must be manually
adjusted via zoom/focus lever.

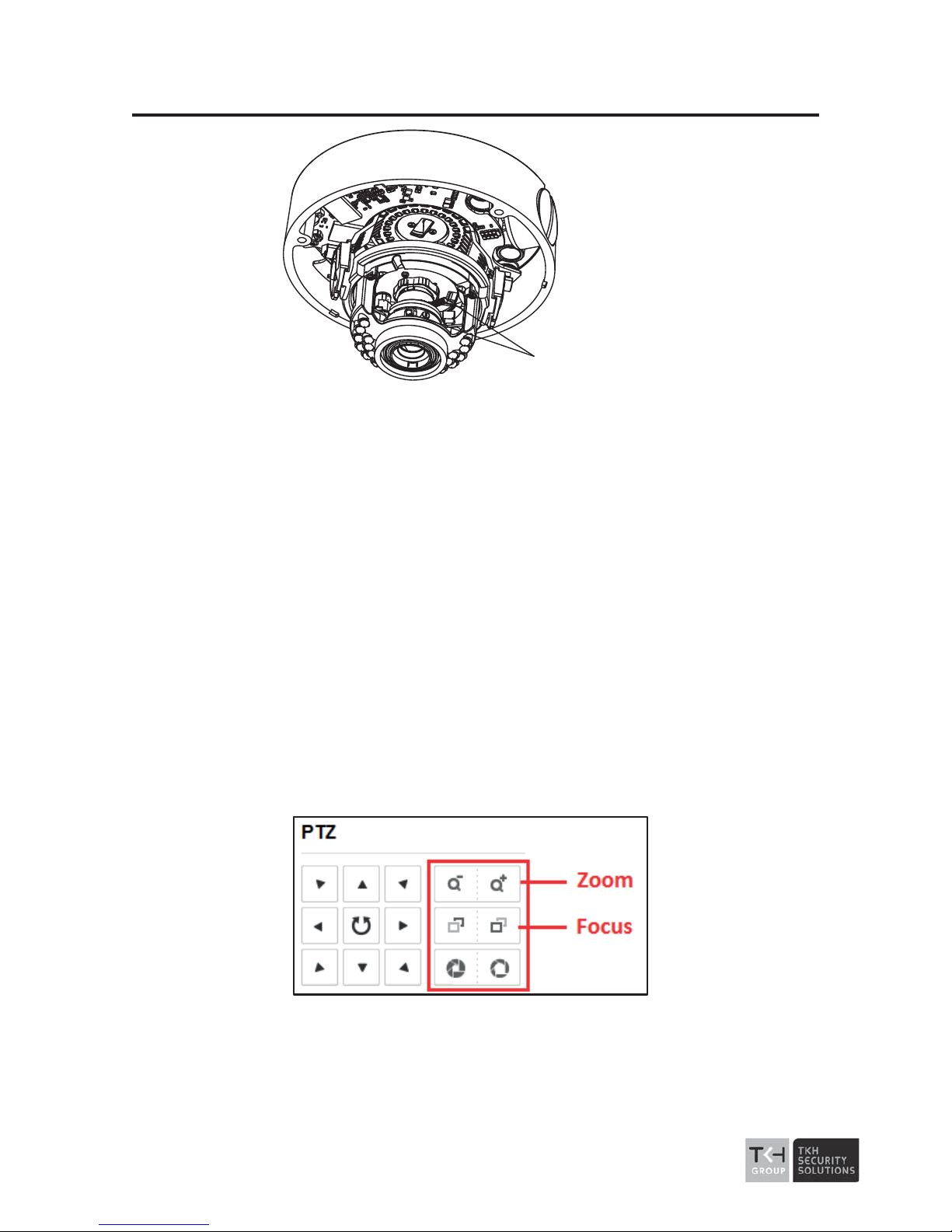

Type II has a motor-driven lens that zoom and focus adjustment can
be completed via web browser or client software.

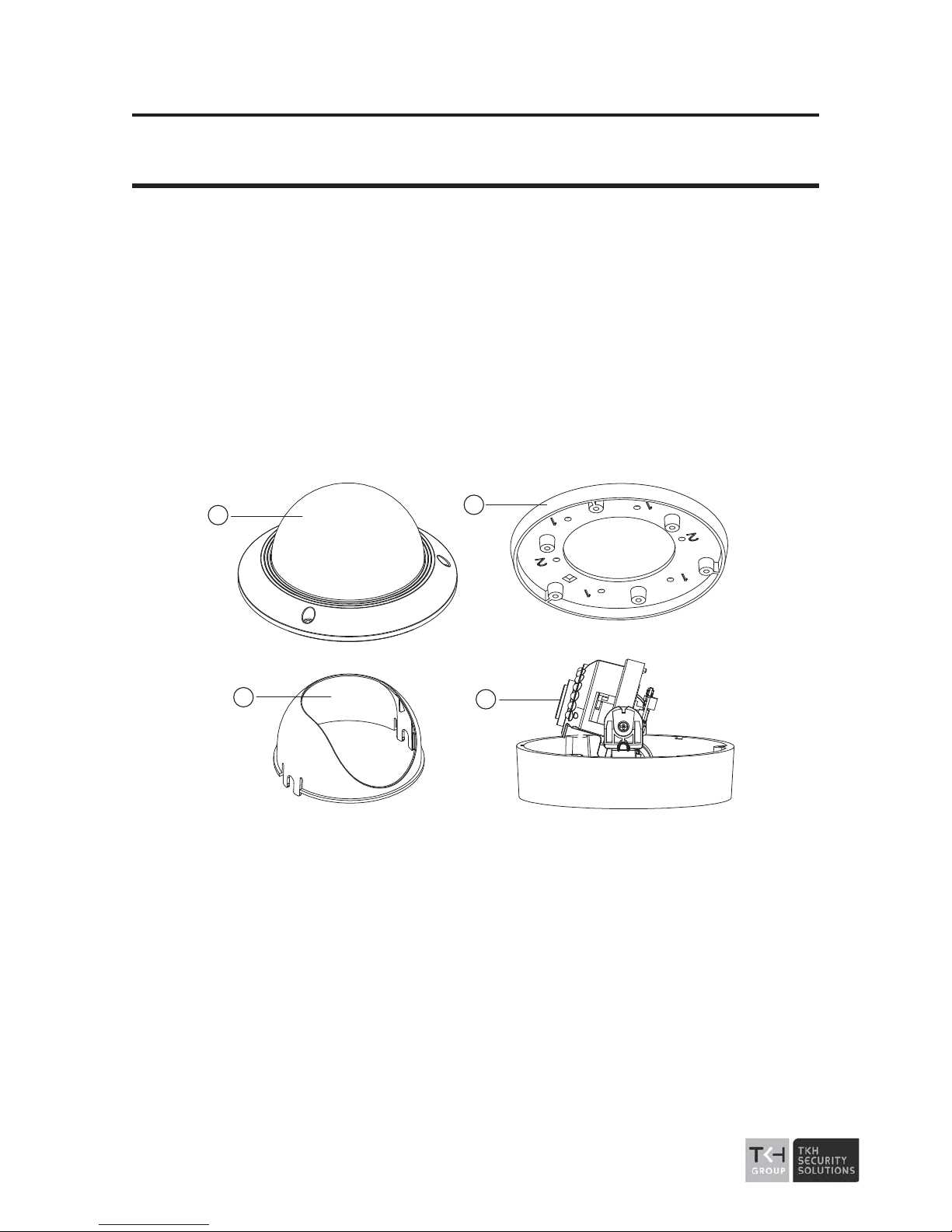

1.1 Type I Camera
1
2
3
4
Page 10
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
10

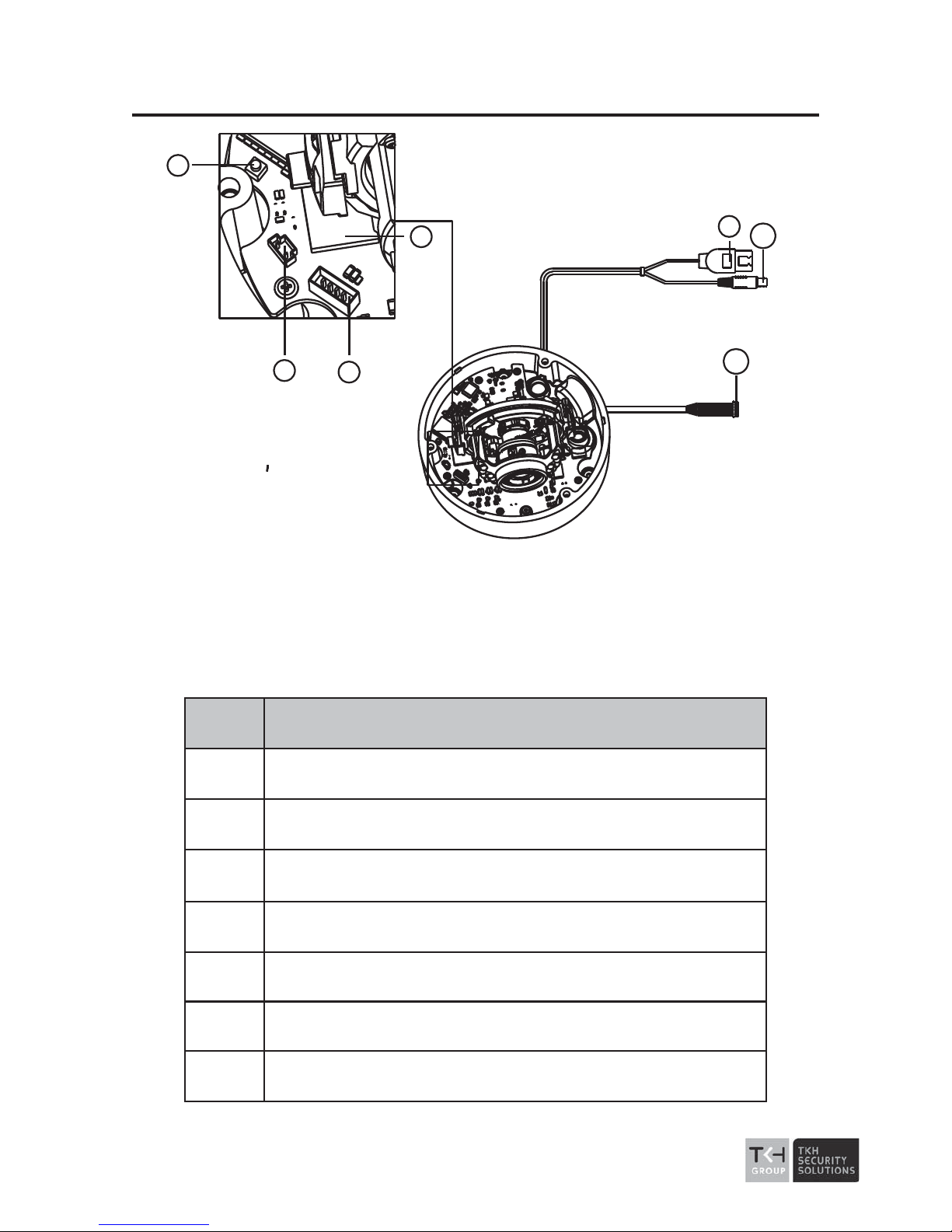

Figu
re 1-1 Overview of Type I Camera
Table 1-1 Description of Type I Camera
No.
Description
1
Bubble
2
Black Liner
3
Lens
4
Mounting Base
5
Reset
6 Auxiliary Video Output
7
Serial Port
9
10
5
6
7
11
8
Page 11
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
11
No.
Description
8
Memory Card Slot
9
Network Interface
10
Power Supply Interface
11
Audio/Alarm Interface

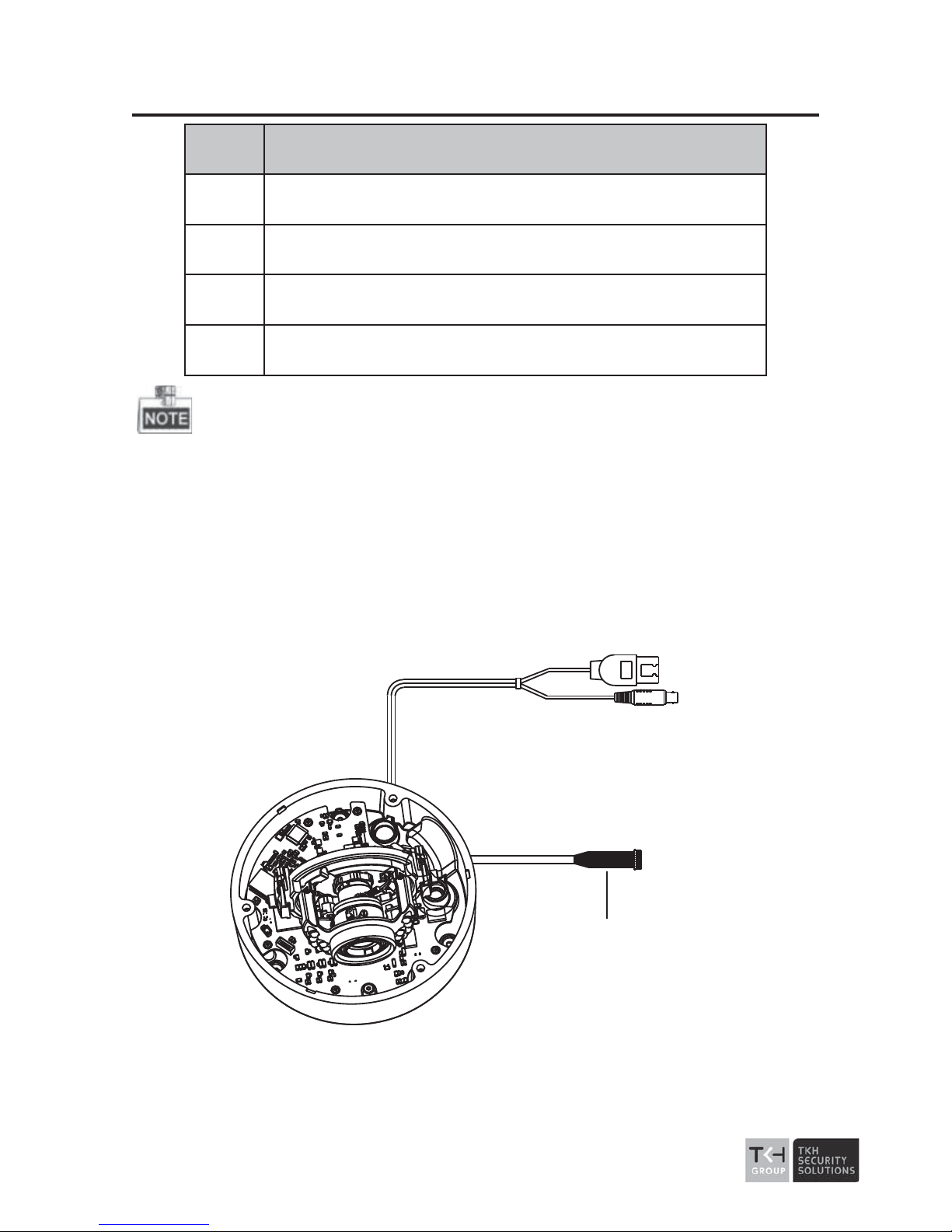

z Press R
ESET about 10s when the camera is powering on or
rebooting to restore the default settings, including the user name,
password, IP address, and port No., etc.

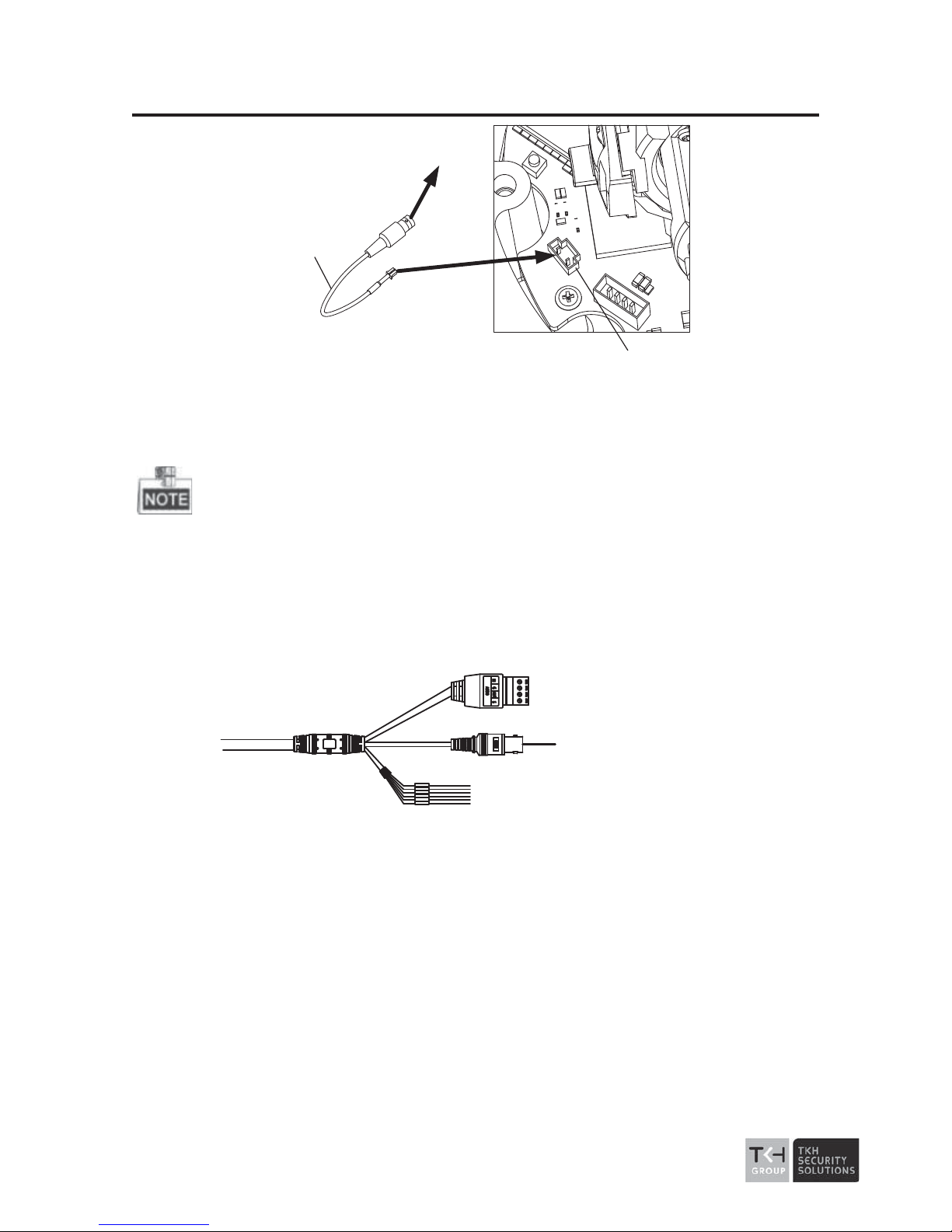

z Some of the models support audio and alarm functions. The
interfaces are shown as follows.
Figure 1-2 Audio and Alarm Interfaces
Alarm/Audio Cable Interface
Page 12
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
12
1.2 Type II Camera
The overview of the Type II network dome camera is shown below.
1
2
3
4
5
6
7
8
9
10
11
12
13

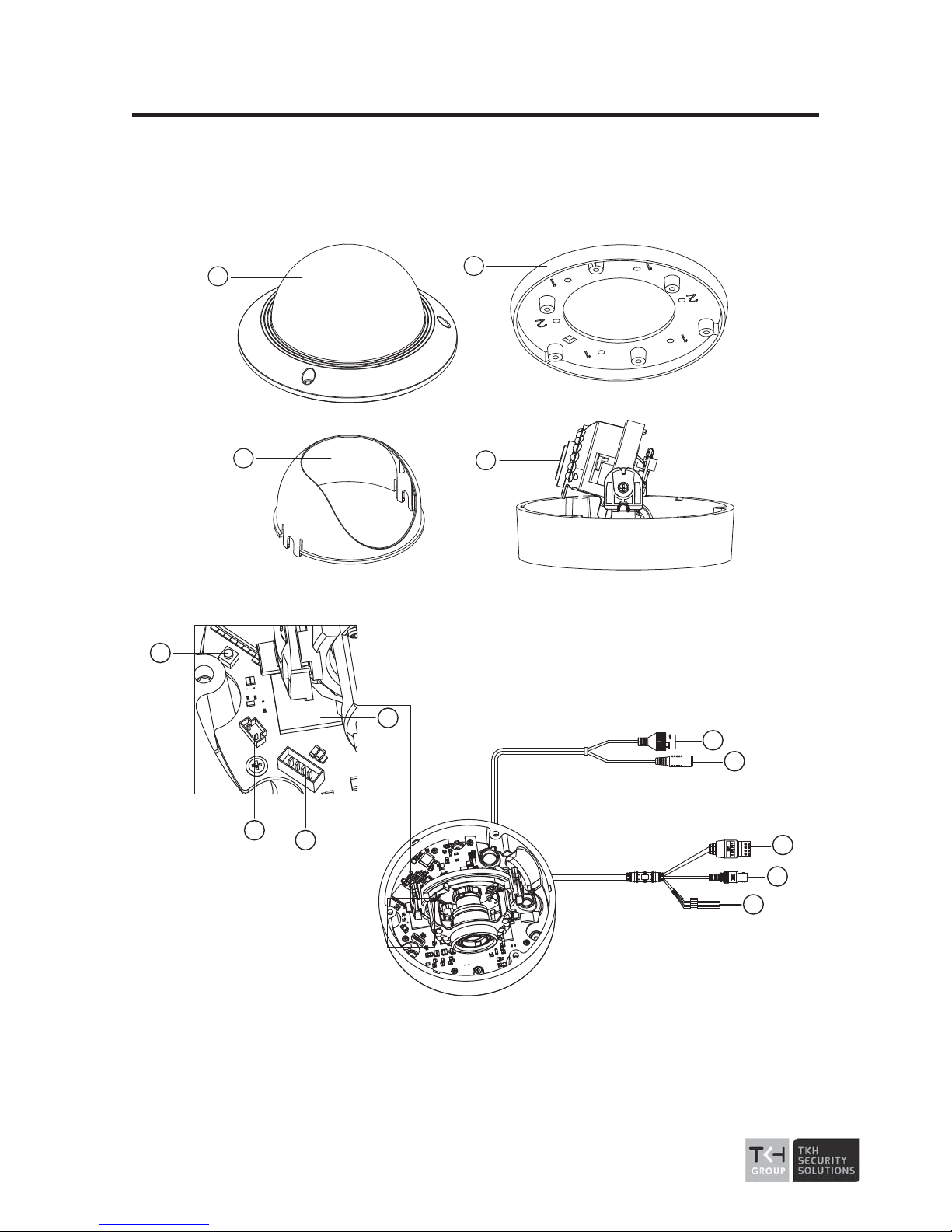

Over
view of Type II Camera Figure 1-3
Page 13
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
13
Description of Type II Camera Table 1-2
No.
Description
1
Bubble
2
Black Liner
3
Motor-Driven Lens
4
Mounting Base
5
Reset
6 Auxiliary Video Output
7
Serial Port
8
Memory Card Slot
9
Network Interface
10
Power Interface
11
Audio Input and Output Interface
12
Video Output Interface
13
Alarm Input and Output Interface
Pre
ss RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password, IP
address, and port No., etc.
Page 14
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
14
2 Installation
Before you start:
Ɣ Make sure the device in the package is in good condition and all
the assembly parts are included.
Ɣ The standard power supply is 12V DC or PoE (802.3af), please
make sure your power supply matches with your camera.
Ɣ Make sure all the related equipment is power-off during the
installation.
Ɣ Check the specification of the products for the installation
environment.
Ɣ Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
Ɣ Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the installation
is finished. If there is dust or grease on the dome cover, clean
the dome cover with clean soft cloth and isopropyl alcohol.
Ɣ Make sure that there is no reflective surface too close to th
e
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
Ɣ The foam ring around the lens must be seated flush against the
inner surface of the bubble to isolate the lens from the IR LEDS.
Fasten the dome cover to camera body so that the foam ring
and the dome cover are attached seamlessly.
Page 15
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
15
Preparation 2.1
Purpose:
Before mounting, you have to disassemble the camera and install the
memory card first.

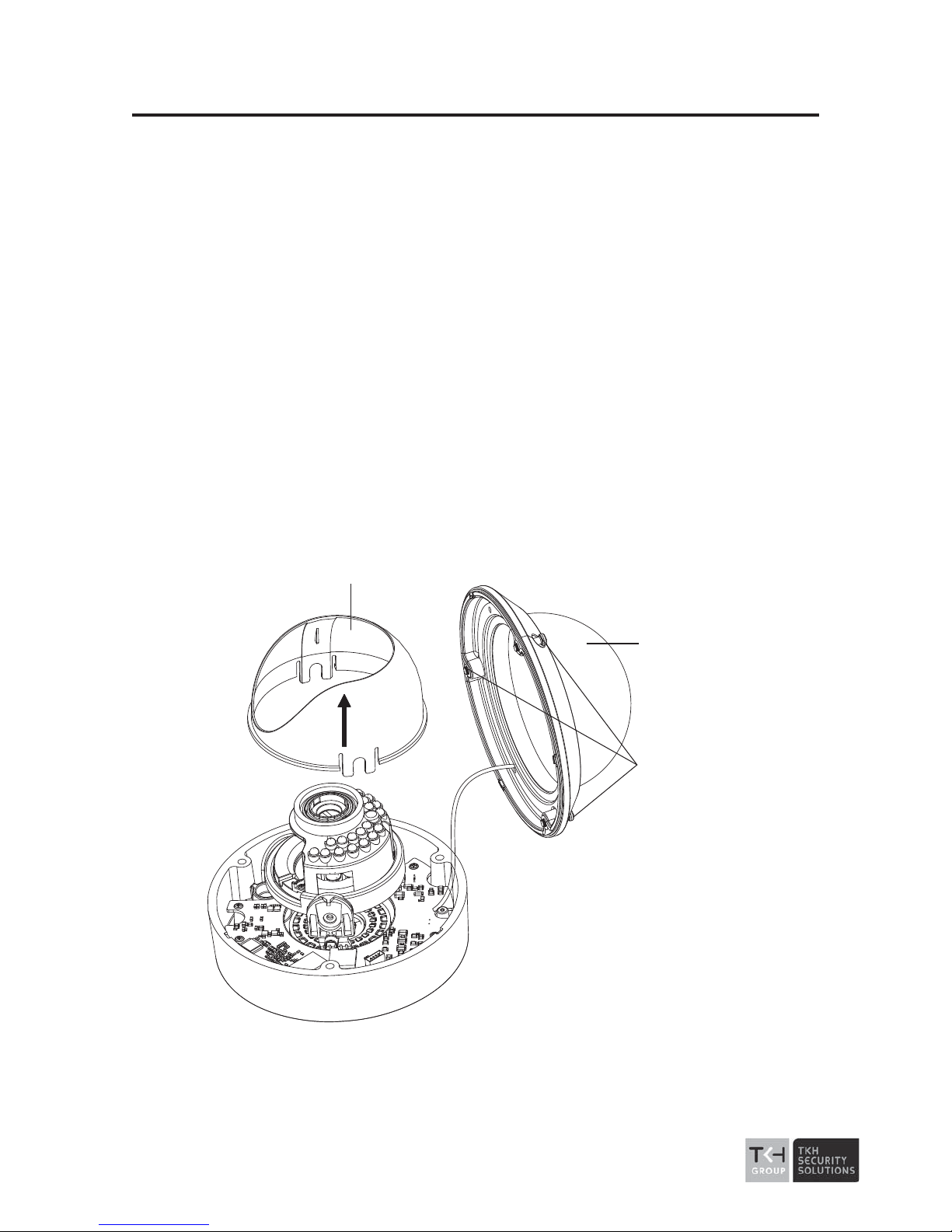

2.1.1 Disassembling
Steps:
1. Loosen the three screws on the edge of the bubble with the screw
driver.
2. Lift and put aside the bubble.
3. Remove the inner black liner.
Black Liner
Bubble
Screws
Remov
e the Bubble and Black Liner Figure 2-1
Page 16
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
16

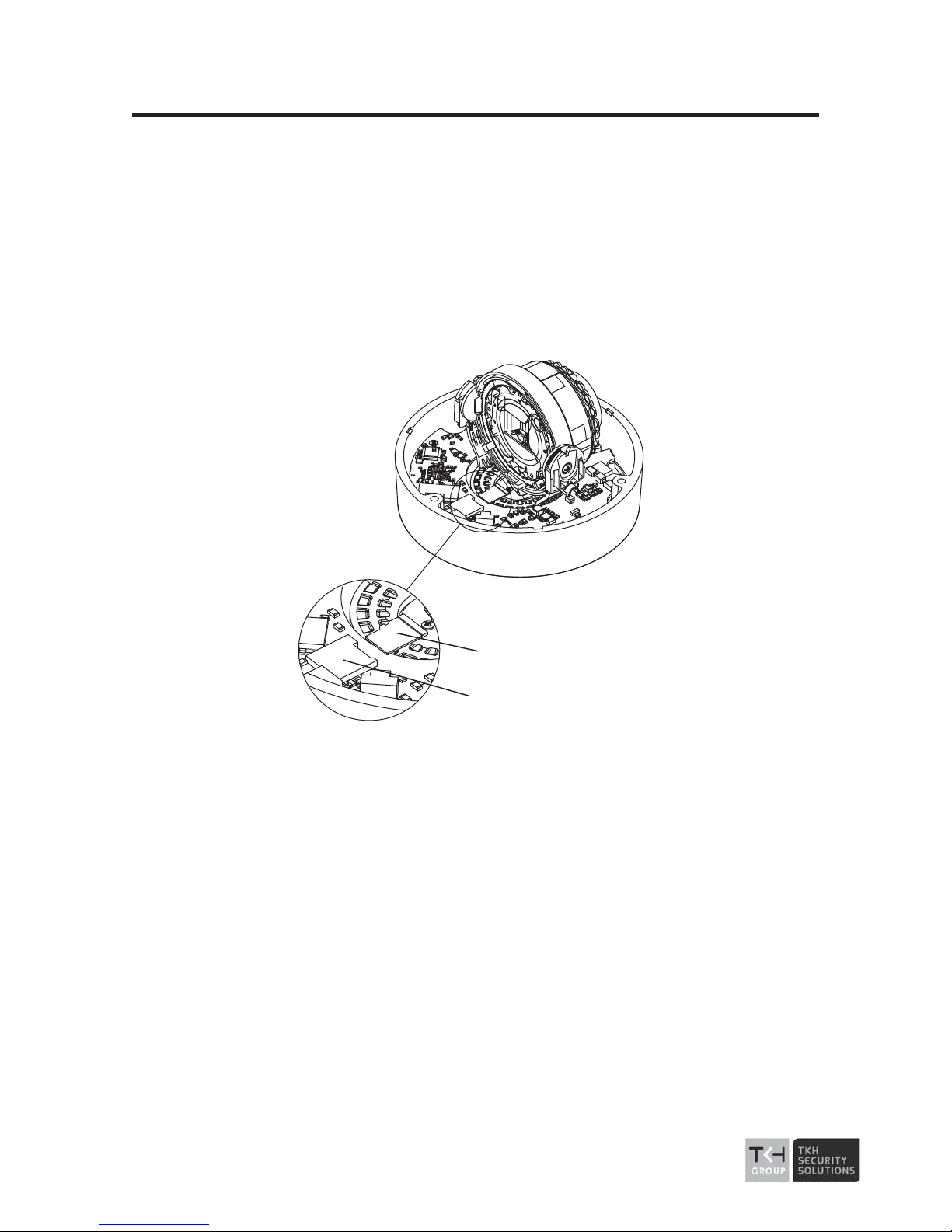

2.1.2 Memory Card Installation
Steps:
1. Rotate the camera body to completely expose the memory card
slot.
2. Insert the memory card into the memory card slot, and push to
get it mounted.
Memory Card
Memory Card Slot
Ins
tall the Memory Card Figure 2-2
3. (Optional) To unmount the memory card, push to eject it.
Mounting 2.2
2.2.1 Ceiling Mounting
Steps:
1. Attach the drill template (supplied) to the place where you wa
nt
to
fix the camera.
Page 17
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
17

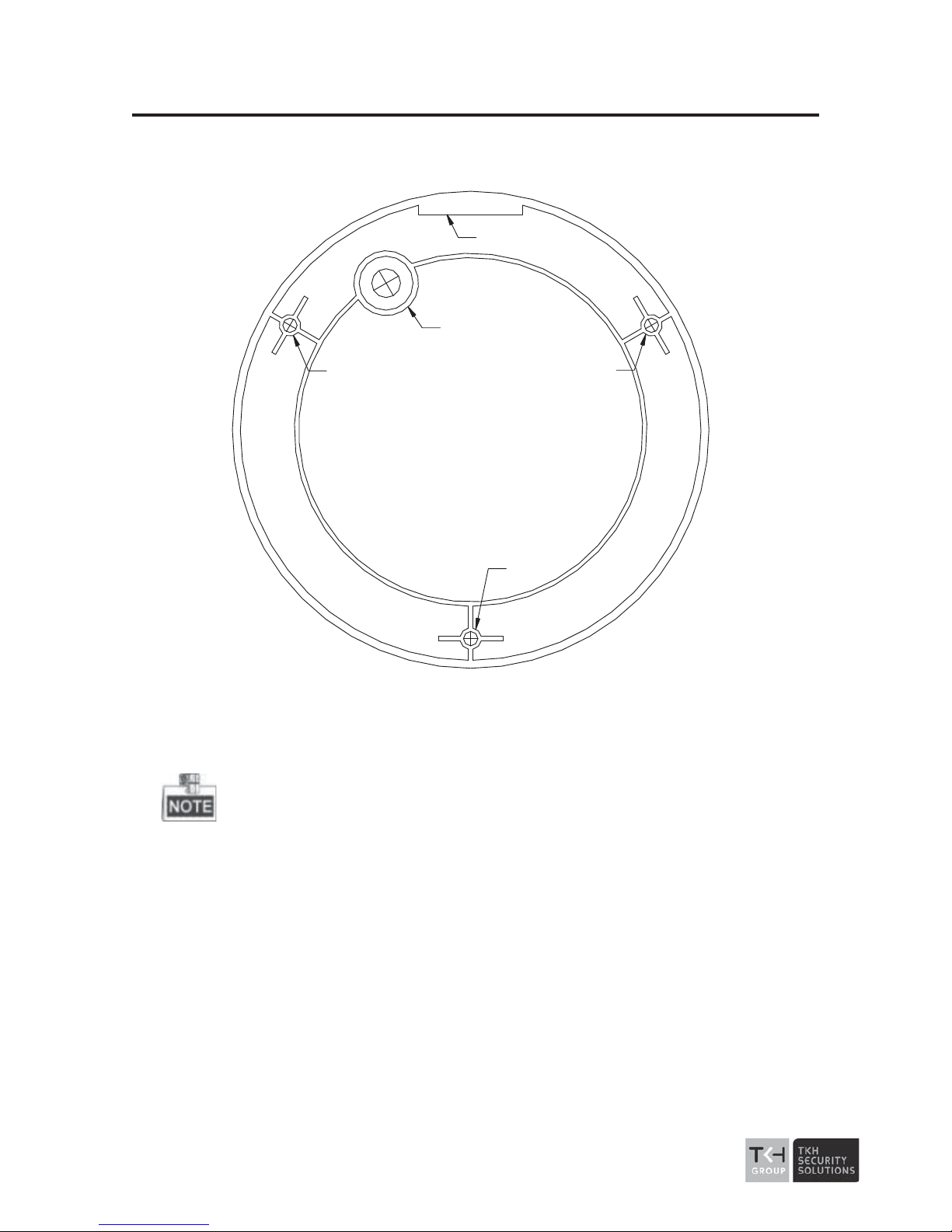

2. Drill three screw holes in the ceiling.
Cable Outlet
Screw Hole
Screw Hole
Screw Hole
Drilling Template for Outdoor
Day/Night Vandal-proof Dome Camera
Side Cable Outlet
Figu
re 2-3 The Drill Template
If you want to route the cables inside the ceiling, drill a cable hole
in the ceiling according to the drill template. Route and connect
the cables before next step.
3. Align the holes of the back box with the drilled screw holes on the
ceiling. And secure the camera with the supplied screws.
Page 18
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
18

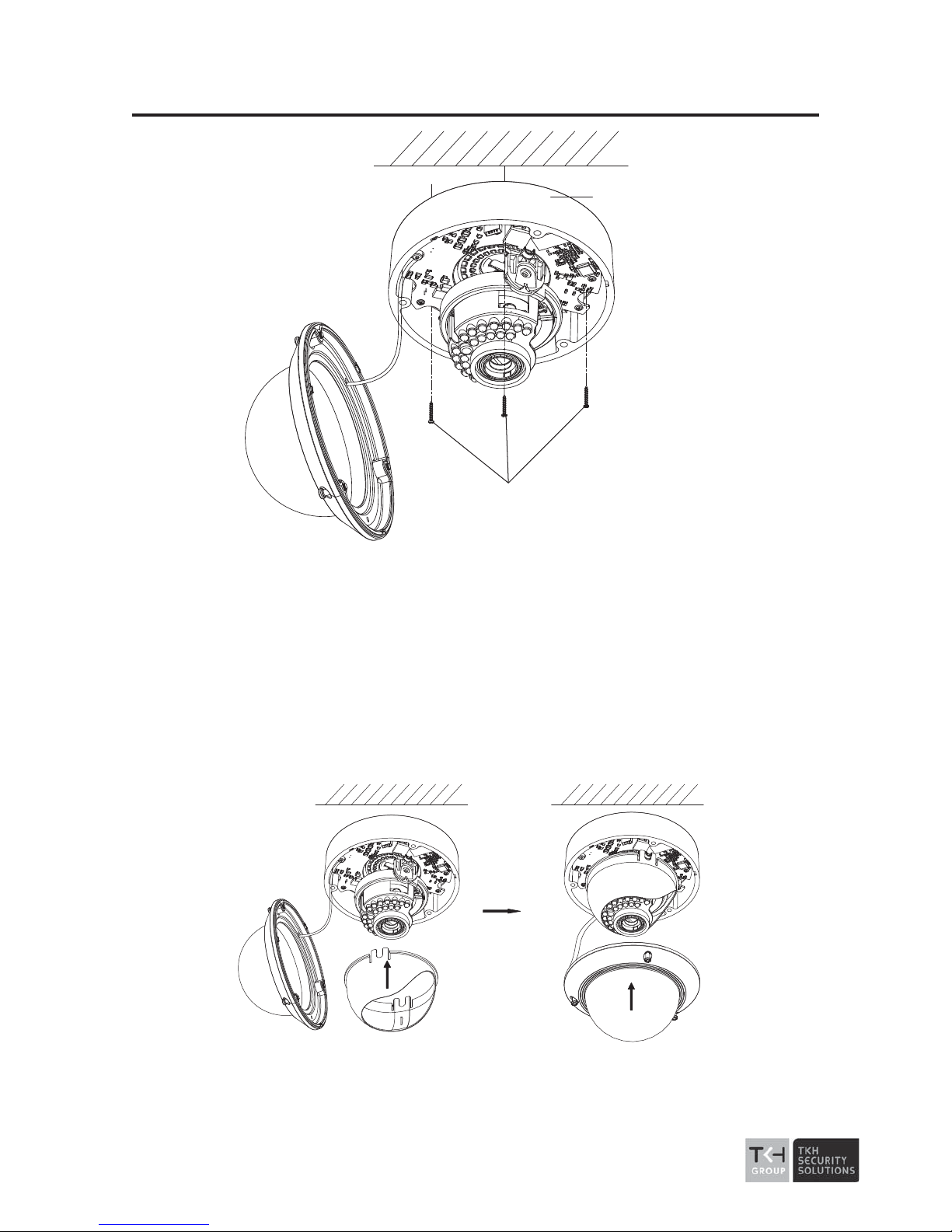

Screws
Back Box
Figu
re 2-4 Secure the Camera
4. Adjust the surveillance angle, zoom and focus level. Refer to the
Section 2.3 for detailed information.
5. Install the inner black liner back to the camera.
6. Install the bubble back to the camera and secure it with screws.
Figu
re 2-5 Secure Black Liner and Bubble
Page 19
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
19

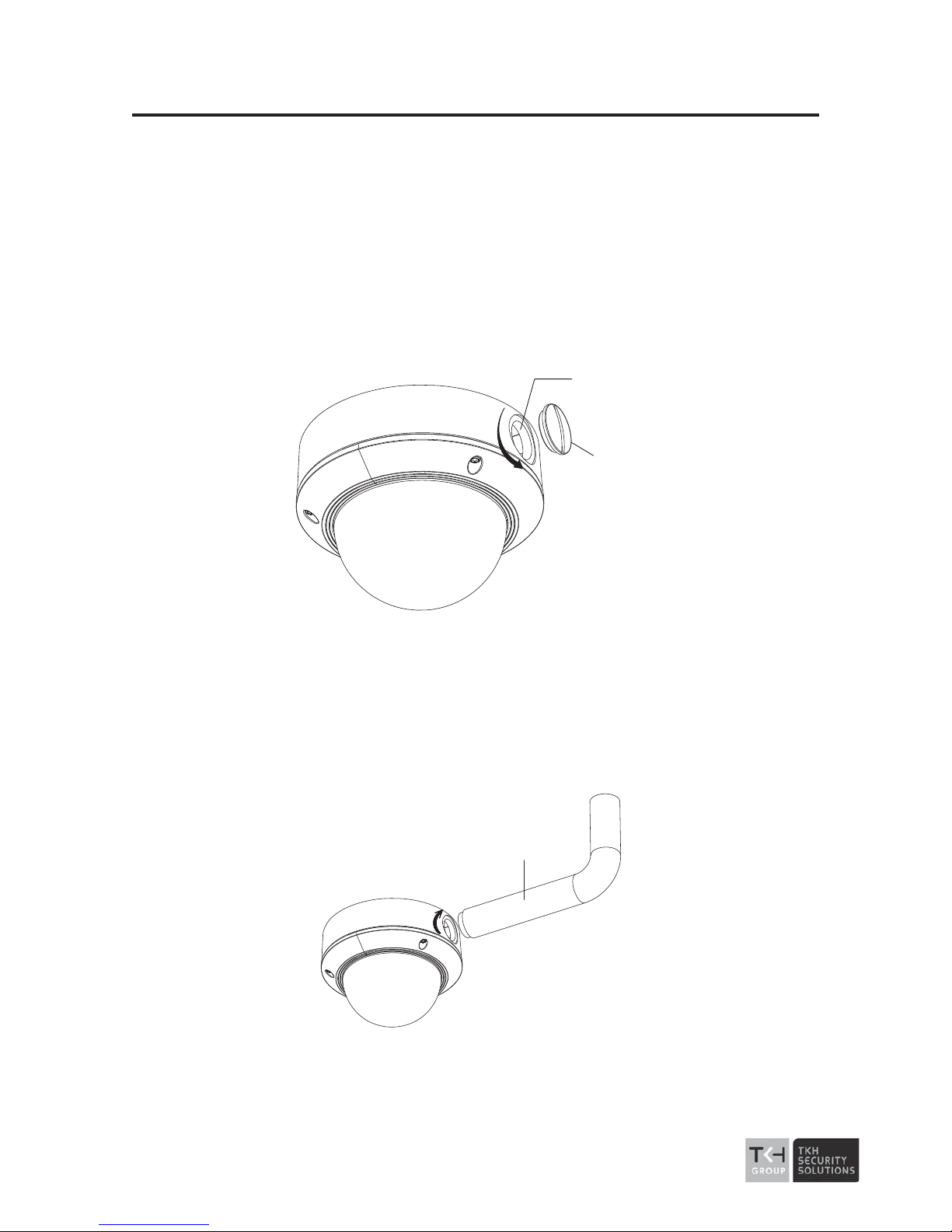

Conduit Installation on the Side
If you want to route the cables from side of the camera, you need to
install a conduit for cable routing.
Steps:
1. Rotate the water-proof plug counterclockwise to remove it from
the camera.
Water-proof
Plug
Side Cable
Outlet
Figu
re 2-6 Remove the water-proof plug
2. Route the cables through the side outlet to the conduit.
3. Align and rotate clockwise the conduit to the side outlet tightly.
Conduit
Figu
re 2-7 Install the Conduit to the Camera
Page 20
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
20

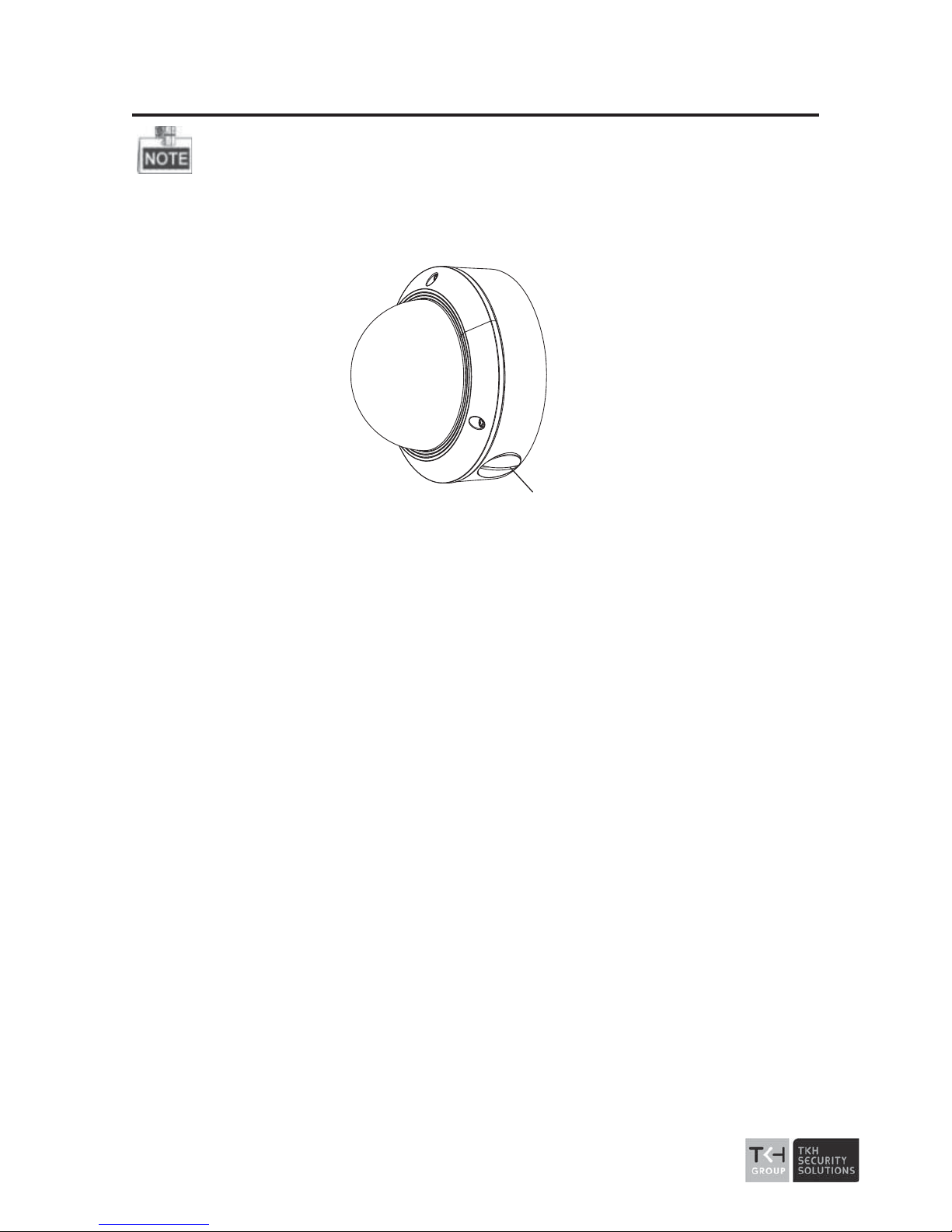

For wa
ll mounting, position the side outlet directly downward for
water-proof.
Downward
Figure 2-8 Side Outlet Direction
2.2.2 In-ceiling Mounting
Before you start:
In-ceiling mounting bracket is not included in package. If you choose
this mounting type, you have to prepare a bracket first. The in-ceiling
mounting bracket shown in below is only for demonstration.
Steps:

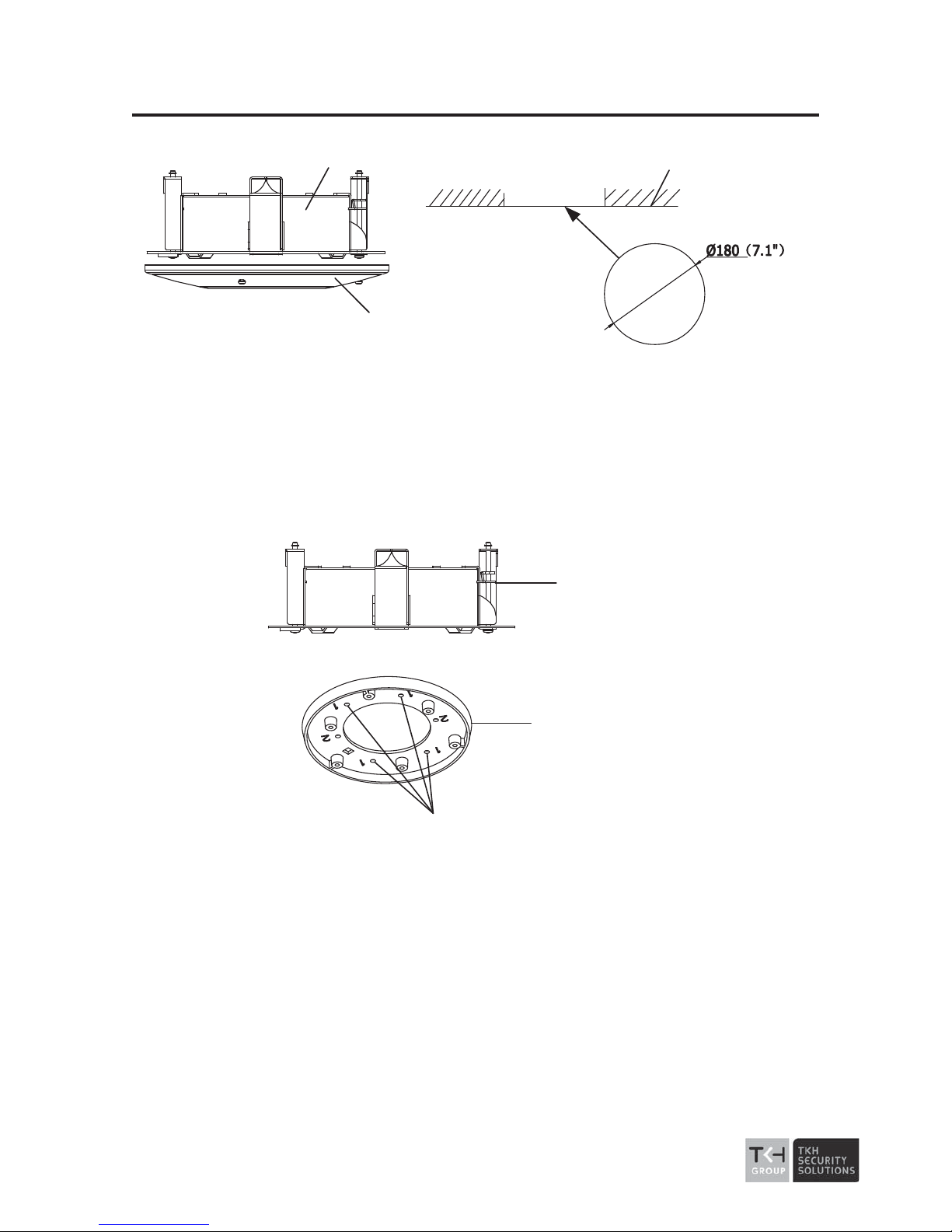

1. Cut a hole in the ceiling according to the size of the in-ceiling
mounting bracket. The diameter of the hole for the shown bracket
is 180 mm.
Page 21
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
21
Ceiling
Hole Size
In-ceiling
Mounting Bracket
Rim
Main Body
Cut a Hole for In-ceiling Mounting Figure 2-9
2. Align No.1 screw holes with the corresponding screw holes on the
bracket, and secure the mounting base to the bracket with screws.
In-ceiling
Mounting Bracket
Mounting
Base
No.1 Screw Holes
Inst
all Mounting Base Figure 2-10
Page 22
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
22
3. Align the screw holes for camera fixing, and secure the camera to
the mounting base.
In-ceiling Mounting
Bracket
Camera
Mounting Base
Screw Holes for
Camera Fixing

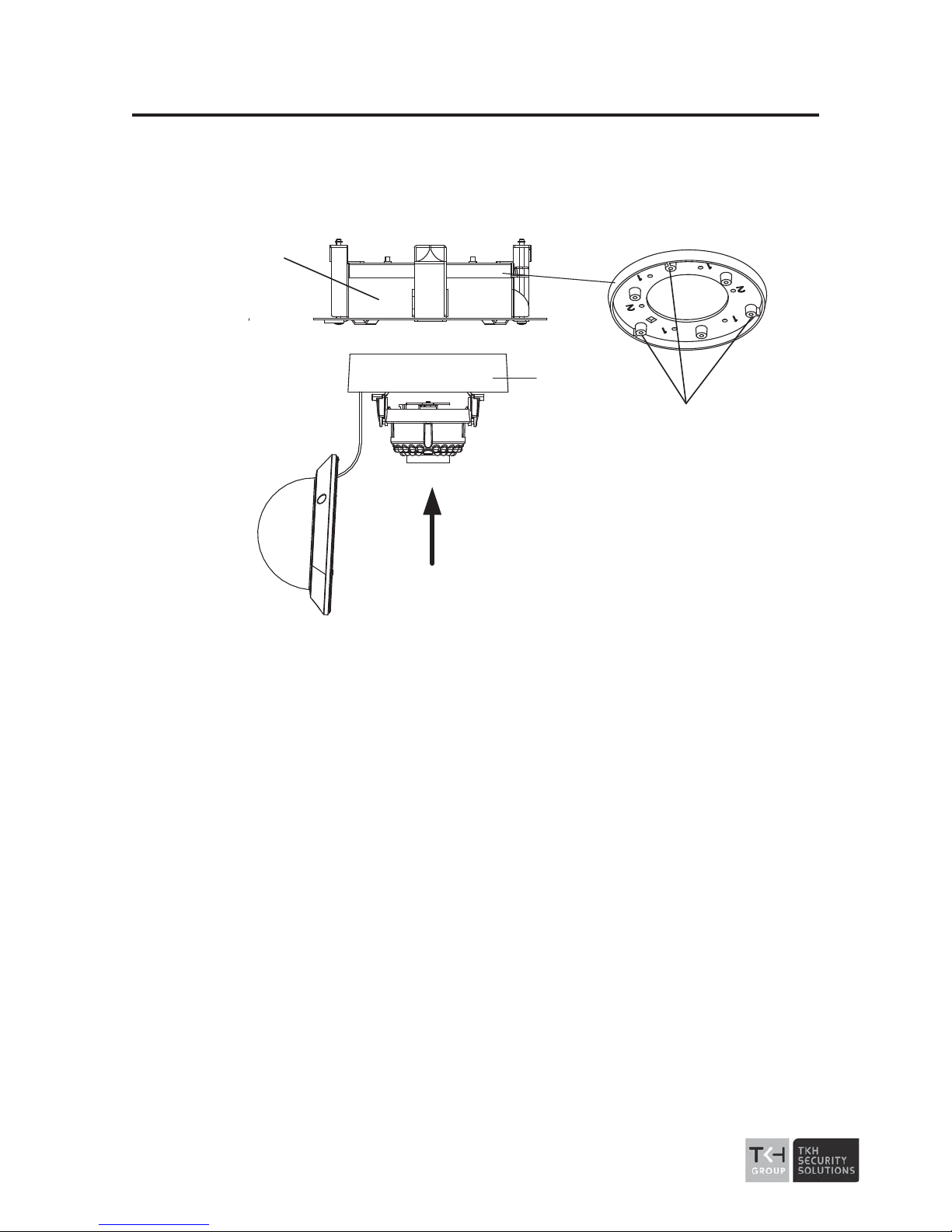

Install the Camera to the Mounting Base Figure 2-11

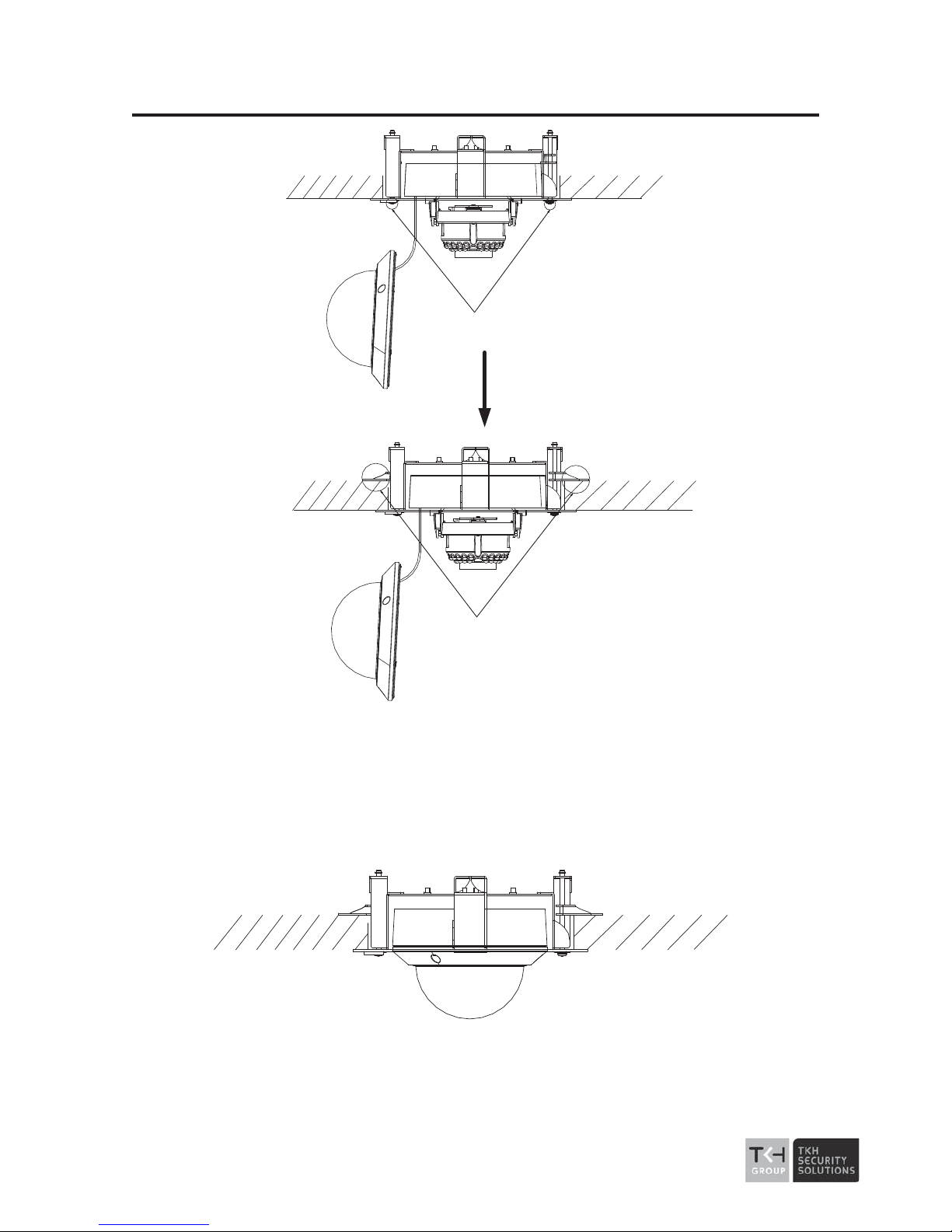

4. Place the bracket and camera to the hole in ceiling, and screw the
t
oggle bolt clockwise to fix the bracket in ceiling.
Page 23
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
23
Toggle Bolts: screw them clockwise
Toggle Bolts: fix the bracket
Fix t
he Bracket in Ceiling Figure 2-12
5. Adjust the surveillance angle, refer to Section 2.3
.
6. Install the black liner and the bubble back to the camera.
Ins
tall the Black Liner and the Bubble Figure 2-13
Page 24
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
24

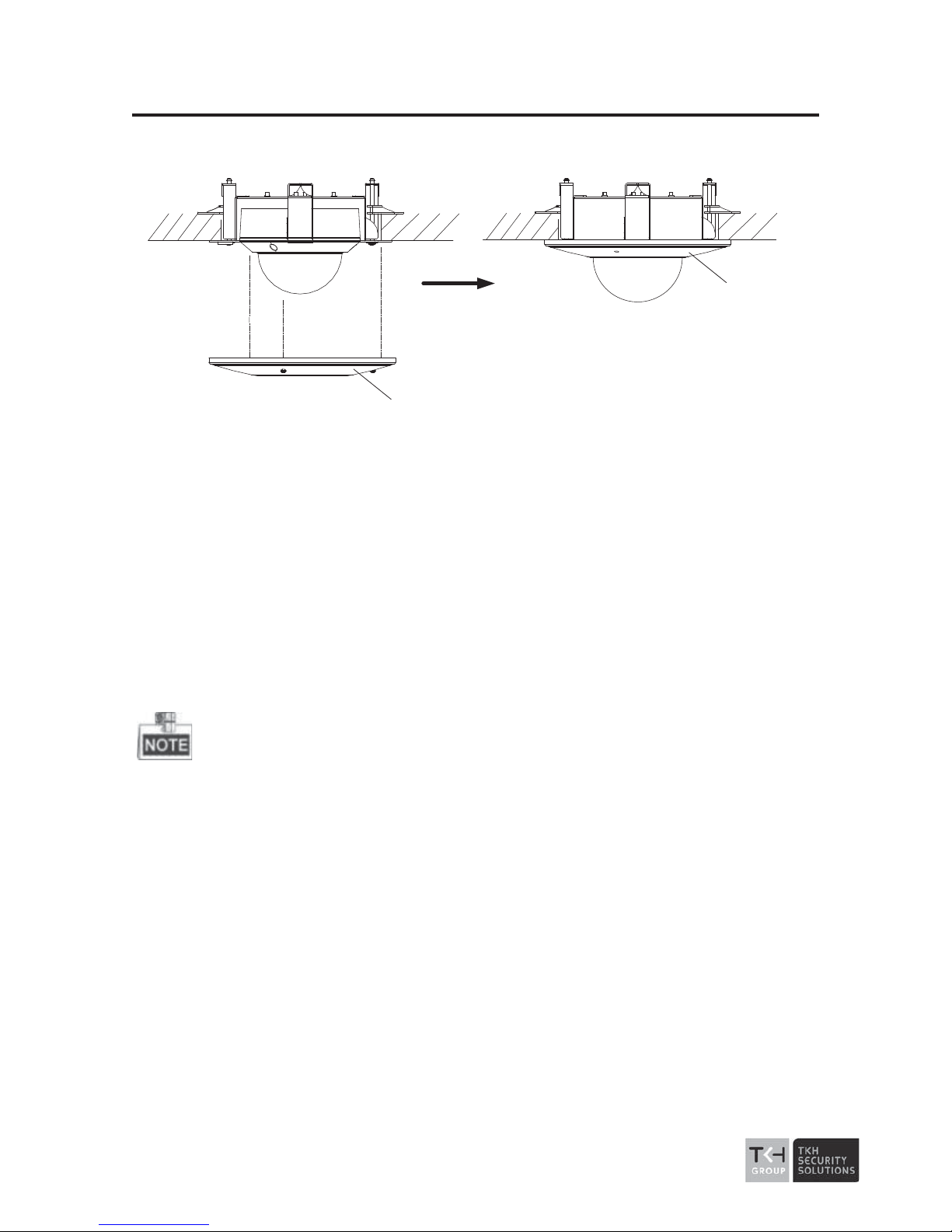

7. Install the rim to the bracket.
Rim
Rim
In
s
t
all the Rim Figure 2-14
2.2.3 Mounting with Wall Mounting Bracket
Before you start:
Wall mounting bracket is not included in package. If you choose this
mounting type, you have to prepare a bracket first. The wall
mounting bracket shown in below is only for demonstration.
When choosing a wall mounting bracket, you must pay attention to
the size of the cap which should match the mounting base of the
camera.
Page 25
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
25

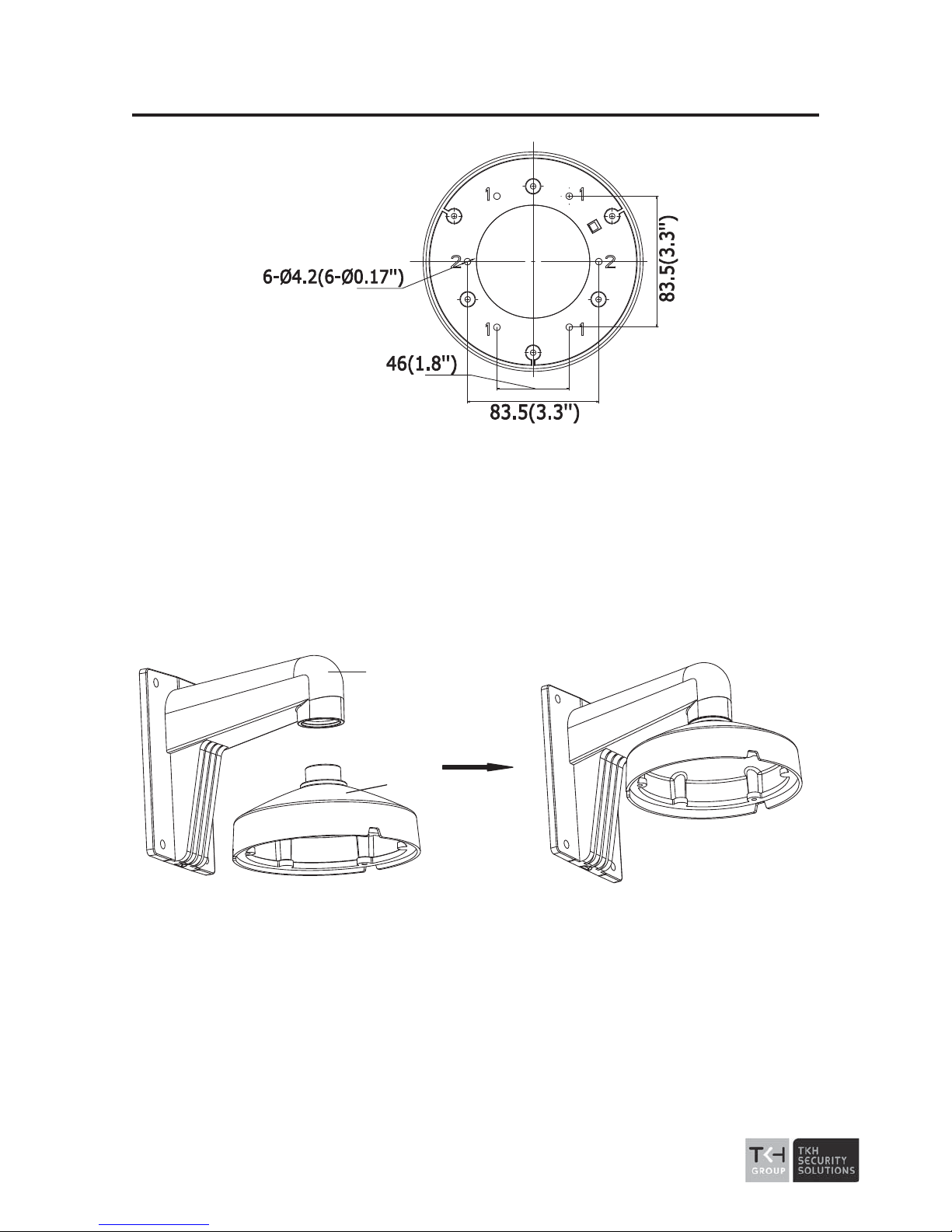

Size
of the Mounting Base Figure 2-15
Steps:

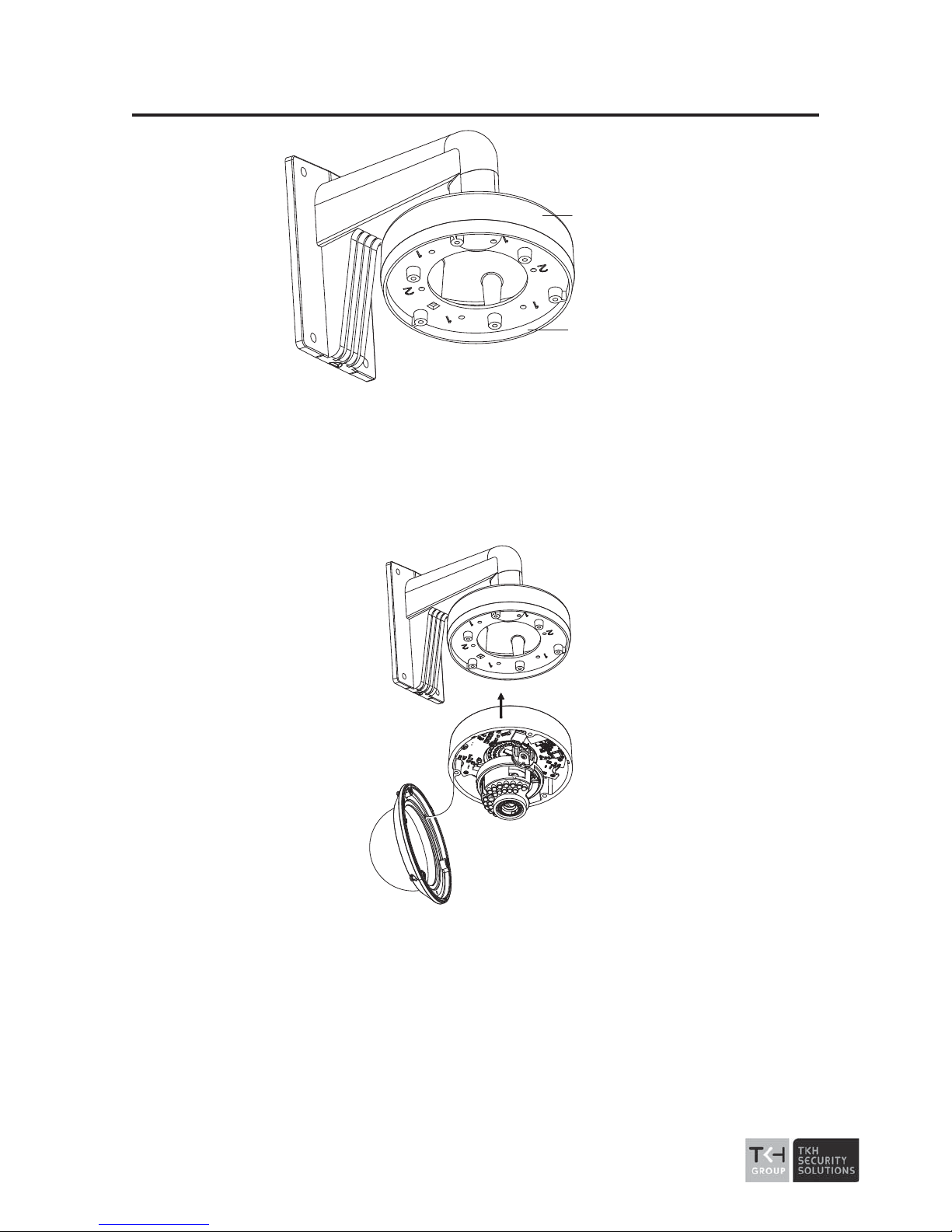

1. Route the cables, install the wall mounting bracket, and secure the
cap on the bracket.
Wall Mounting
Bracket
Cap
Ins
tall Wall Mounting Bracket Figure 2-16
2. Align the screw holes of the mounting base with the
corresponding screw holes of the cap.
3. Secure the mounting base to the cap with screws.
Page 26
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
26
Cap
Mounting
Base
Ins
tall the Mounting Base Figure 2-17
4. Align the camera with the mounting base, and secure the camera
with screws.
Secur
e the Camera Figure 2-18
5. Connect the video output connector to the monitor. Connect the
power connector to the power supply.
Page 27
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
27

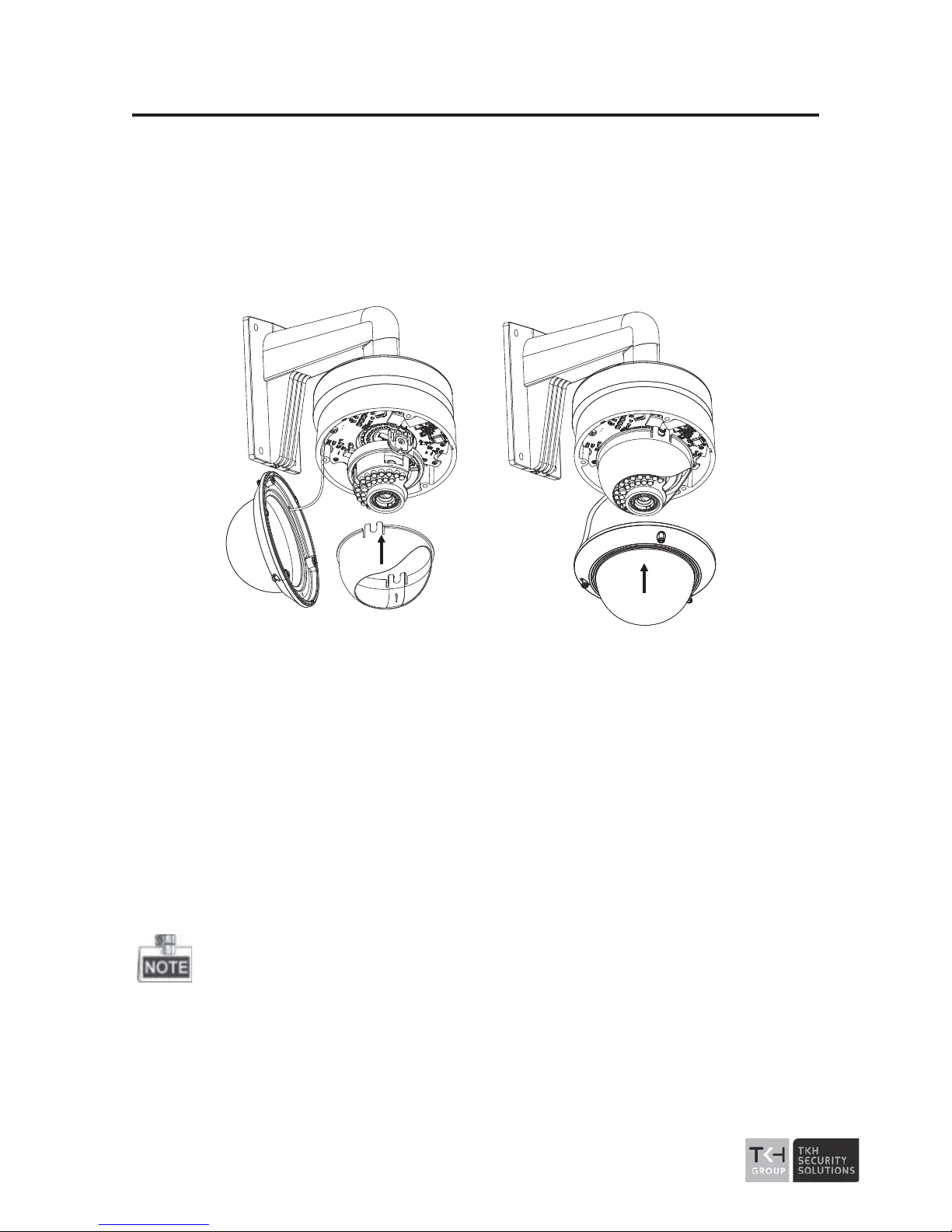

6. Adjust the image and focus. Please refer to the section 2.3 for
more detailed information.
7. Install the inner black liner back to the camera.
8. Secure the bubble to the camera with screws.
Secure Black Liner and Bubble Figure 2-19
2.2.4 Mounting with Pendant Mounting Bracket
Before you start:
Pendant mounting bracket is not included in package. If you choose
this mounting type, you have to prepare a bracket first. The pendant
mounting bracket shown in below is only for demonstration.
When choosing a pendant mounting bracket, you must pay attention
to the size of the cap which should match the mounting base of the
camera.
Page 28
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
28

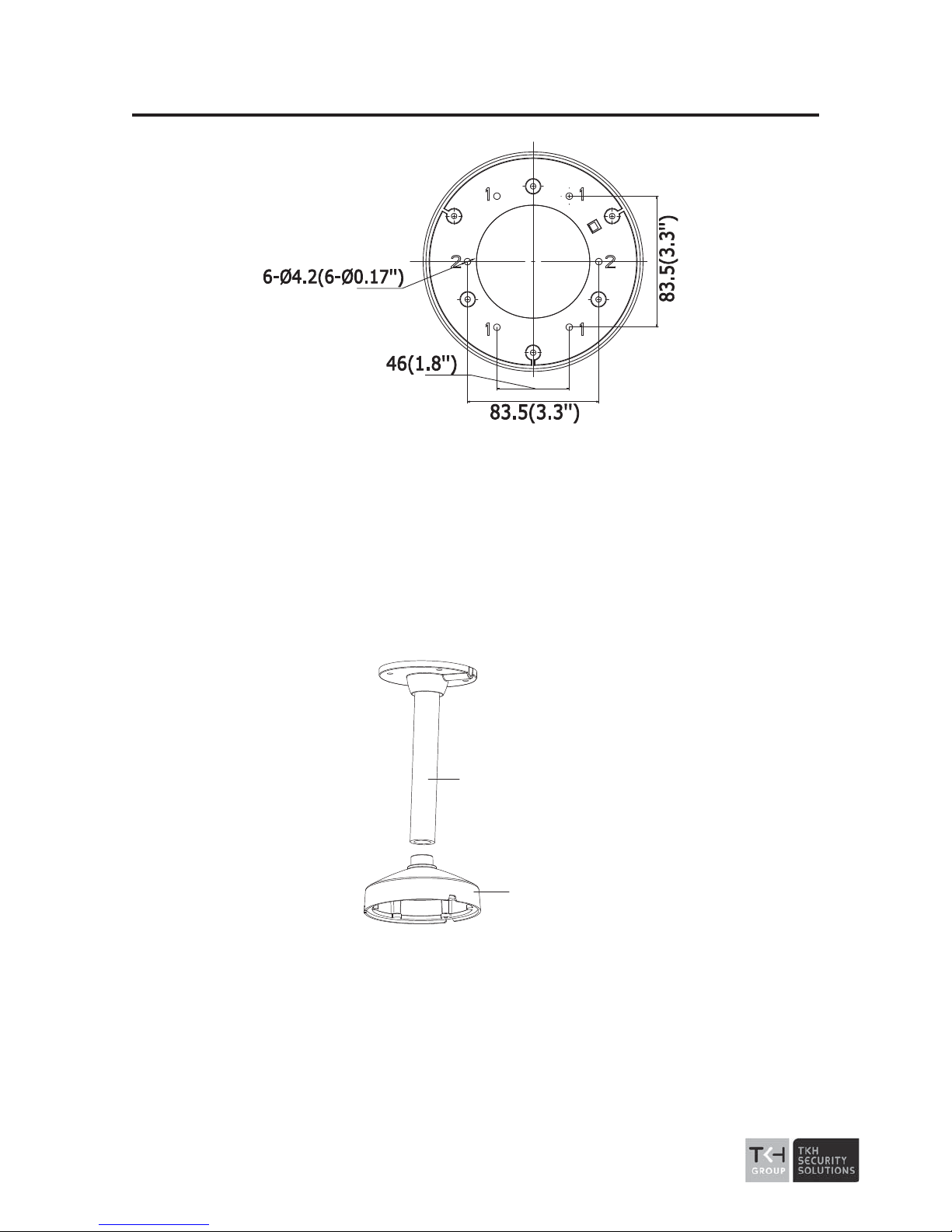

Size
of the Mounting Base Figure 2-20
Steps:

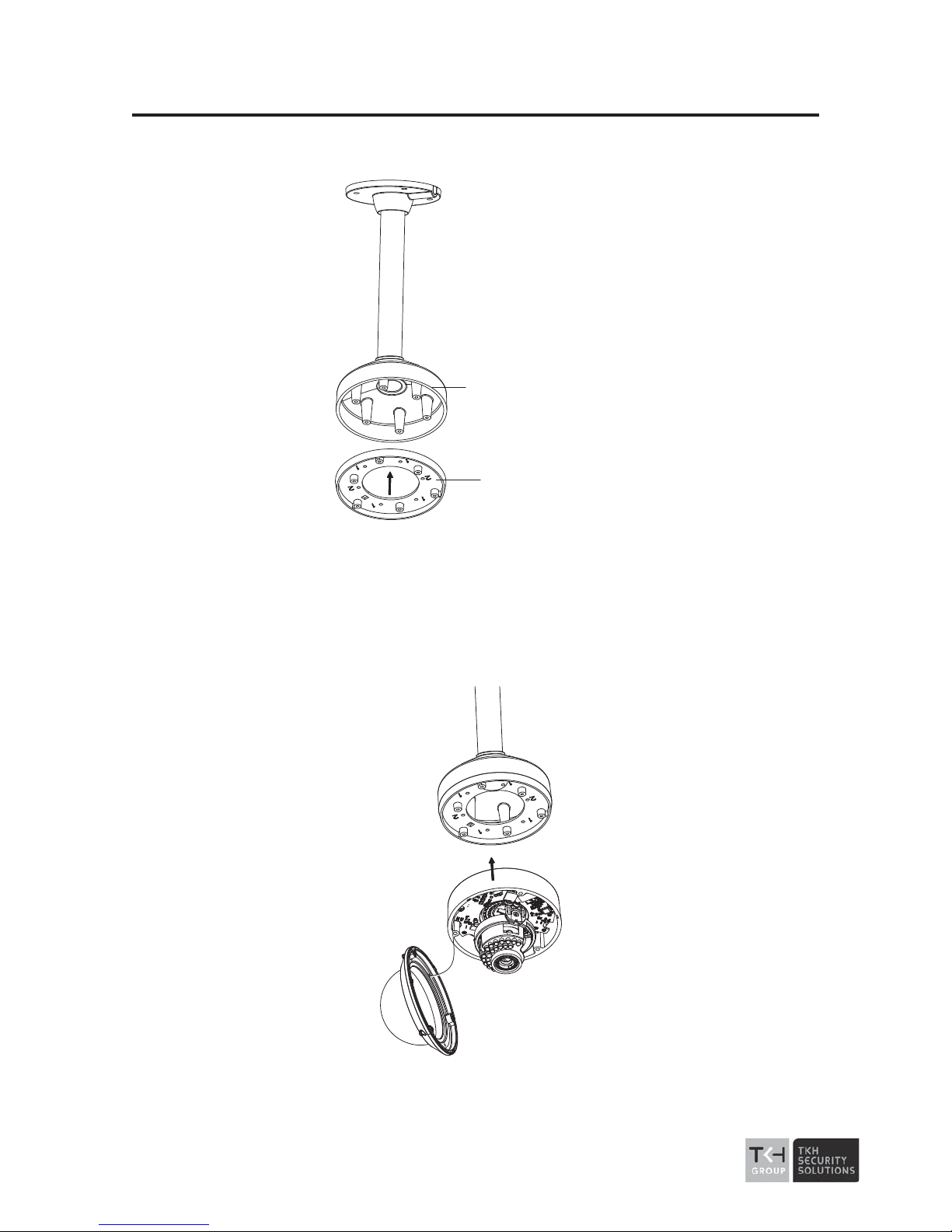

1. Route the cables and Install the pendant mounting bracket. Secure
the cap on the bracket.
Pendant
Mounting Bracket
Cap
Install the Pendant Mounting Bracket Figure 2-21
2. Align the screw holes of the mounting base with the
corresponding screw holes of the cap.
Page 29
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
29
3. Secure the mounting base to the cap with screws.
Cap
Mounting
Base
Ins
tall the Mounting Base
Figure 2-22
4. Align the camera with the mounting base, and secure the camera
with screws.
Page 30
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
30
Secure the Camera Figure 2-23

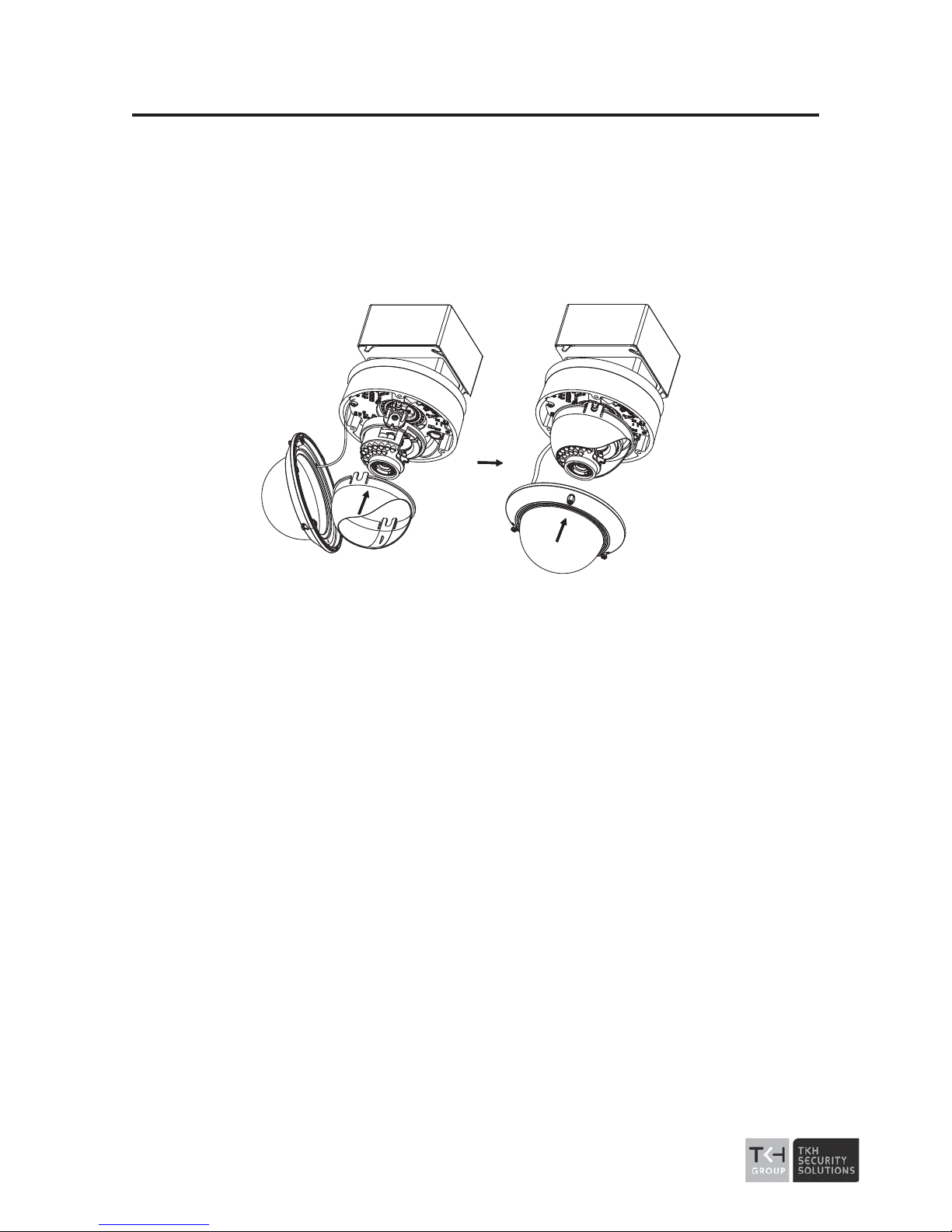

5. Adjust the image and focus. Please refer to the section 2.3 for
more detailed information.

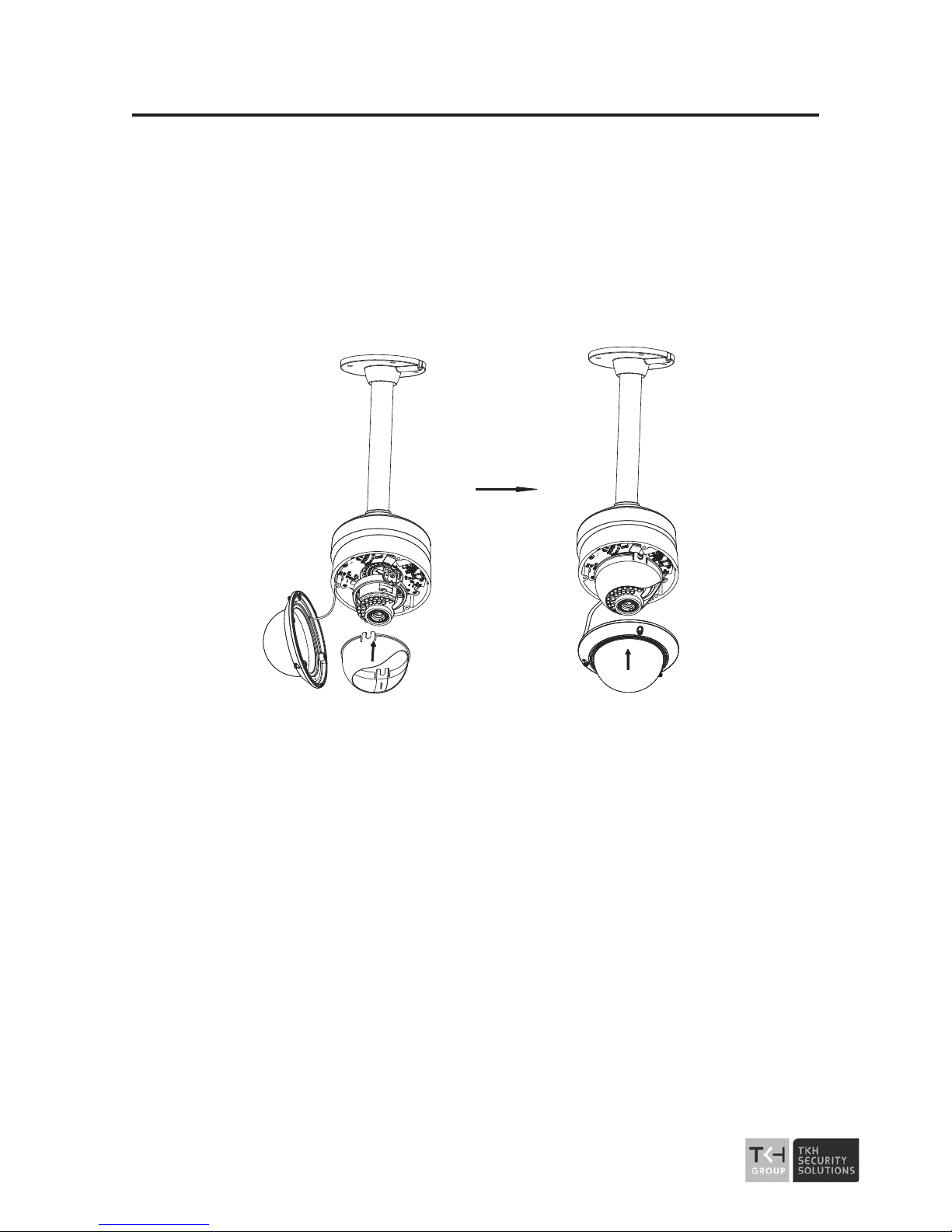

6. Install the inner black liner back to the camera.
7. Secure the bubble to the camera with screws
.
Sec
ure Black Liner and Bubble Figure 2-24

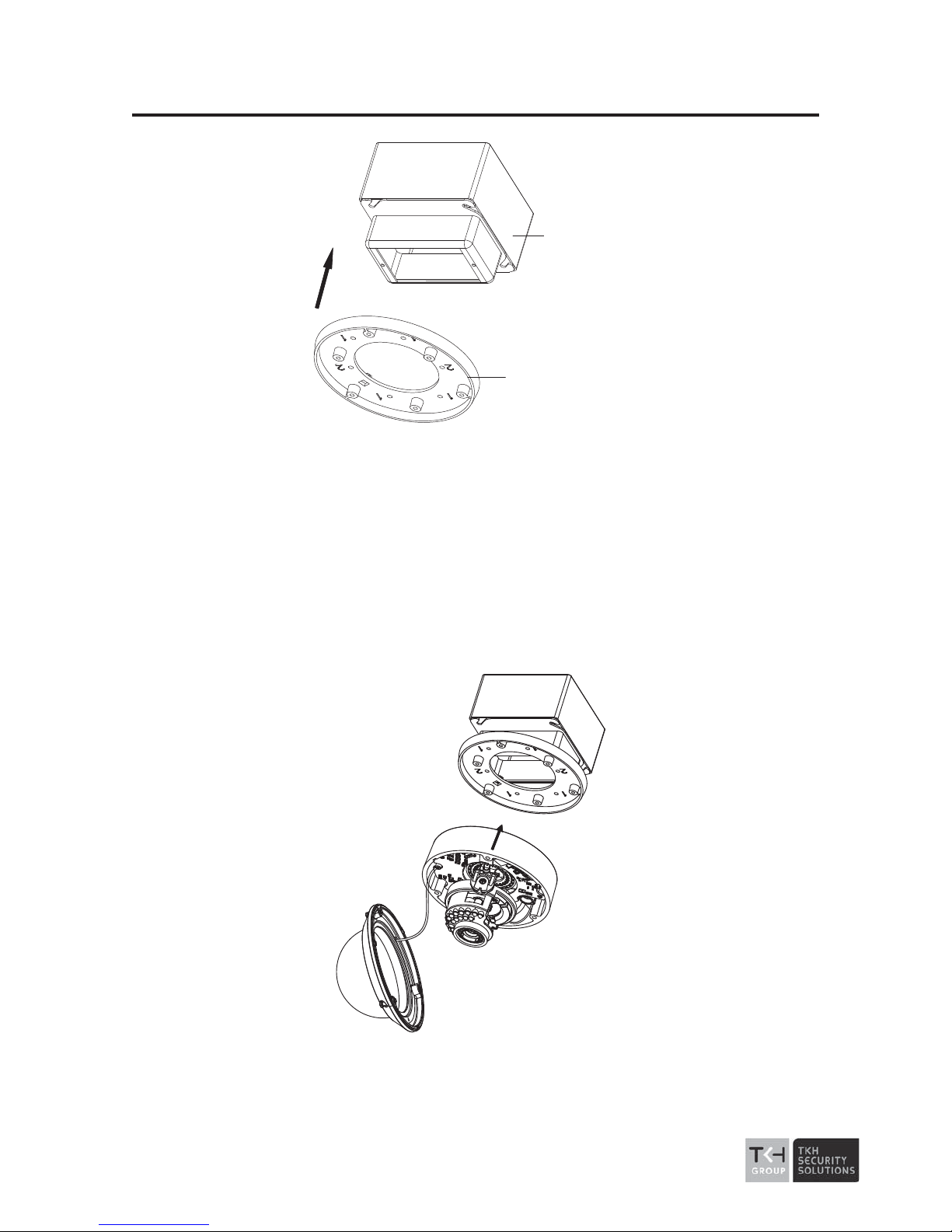

2.2.5 Mounting with Gang Box
Steps:
1. Install the gang box in the ceiling or the wall.
2. Attach the mounting base to the gang box with two screws.
Page 31
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
31
Gang Box
Mounting
Base
Figure 2-25 Install the Mounting Base
3. Route the cables through the hole in the center of the mounting
base.
4. Align the camera with the mounting base. And secure the camera
with screws.
Figu
re 2-26 Secure Camera
Page 32
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
32
5. Adjust the image and focus. Please refer to the section 2.3 for
more detailed information.
6. Install the inner black liner back to the camera.
7. Secure the bubble to the camera with screws.
Figu
re 2-27 Secure the Black Liner and Bubble
Image and Focus Adjusting 2.3
Before you start:
Connect the camera to a monitor with supplied auxiliary video
output cable, and power on the camera.
Page 33
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
33
Auxiliary Video
Cable
Auxiliary Video
Output
To a monitor
Conne
ct Camera to a Monitor Figure 2-28
For certain camera models, the auxiliary video cable is not included
in the package. Instead, you can connect the video out interface of
the camera to a monitor for image and focus adjustment.
Video Out
Interface
Video
Out Interface of the Camera Figure 2-29

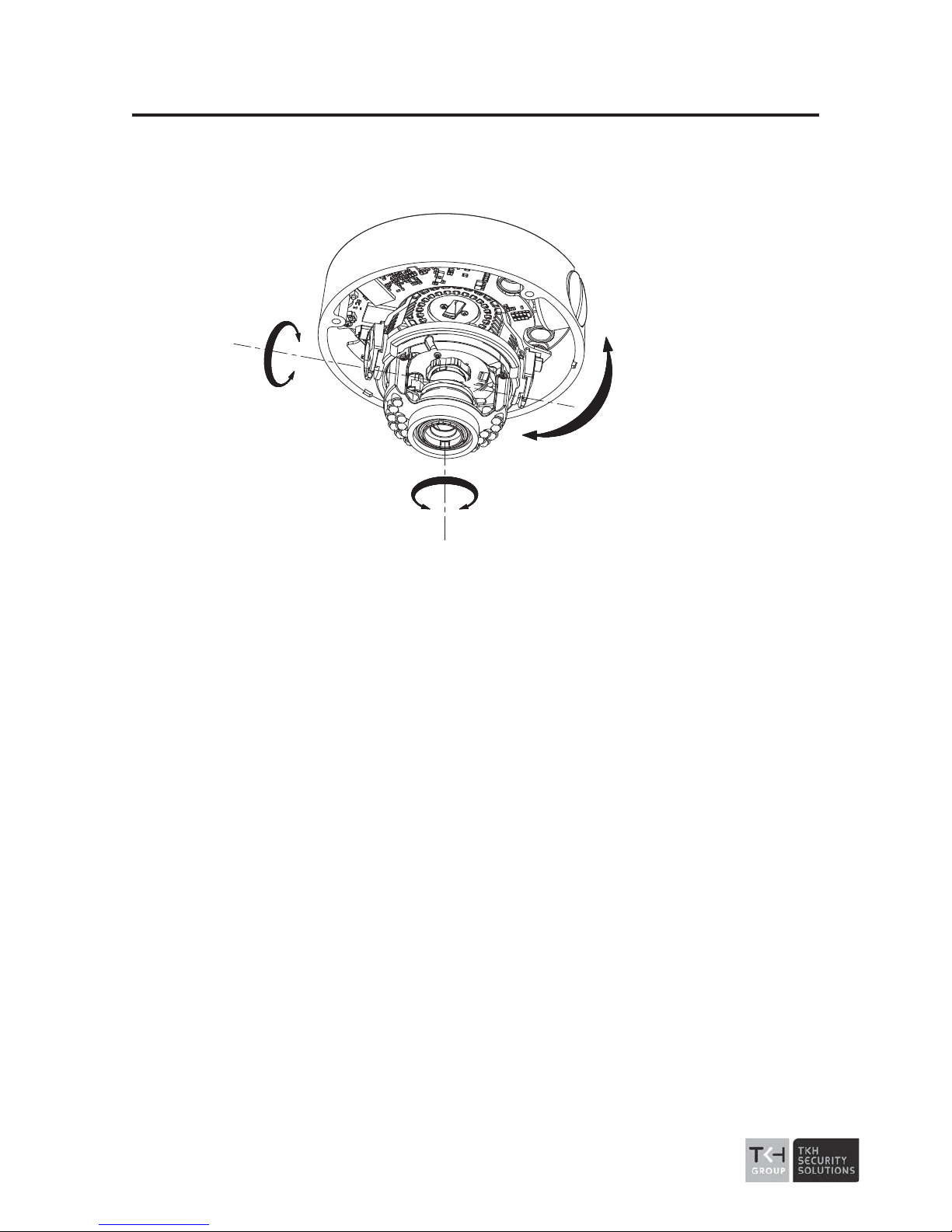

2.3.1 3-Axis Adjustment
Steps:
1. View the camera image using the monitor.
2. Rotate the panning table to adjust the panning position of the
camera
.
Page 34
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
34
3. Rotate the tilting axes to adjust the tilting position of the camera.
4. Rotate the lens table to adjust the azimuth angle of the image.
Pan: 0° to 355°
Rotate: 0° to 355°
Tilt: 0° to 90°
3-ax
is Adjustment Figure 2-30
2.3.2 Zoom and Focus Adjustment.
Type I:
For Type I camera, you can use zoom lever and focus lever to adjust
the lens.
Steps:
1. View the camera image using the monitor.
2. Loosen the zoom lever and move the lever between T (Tele) and
W (Wide) to obtain the appropriate angle of view.
Page 35
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
35
Zoom/
Focus Lever Figure 2-31
3. Tighten the zoom lever.
4. Loosen the focus lever and move the lever between F (Far) and N
(Near) to obtain the optimum focus.
5. Tighten the focus lever.
Type II:
Type II camera is equipped with a motor-driven lens. You can adjust
the zoom and focus level on PTZ control panel by visiting the camera
via web browser or client software.
Zoom and Focus Adjustment via Web Browser Figure 2-32
Zoom/Focus
Lever
Page 36
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
36
3 Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your
own protection. If the product does not work properly, please
contact with your dealer or the nearest service center.

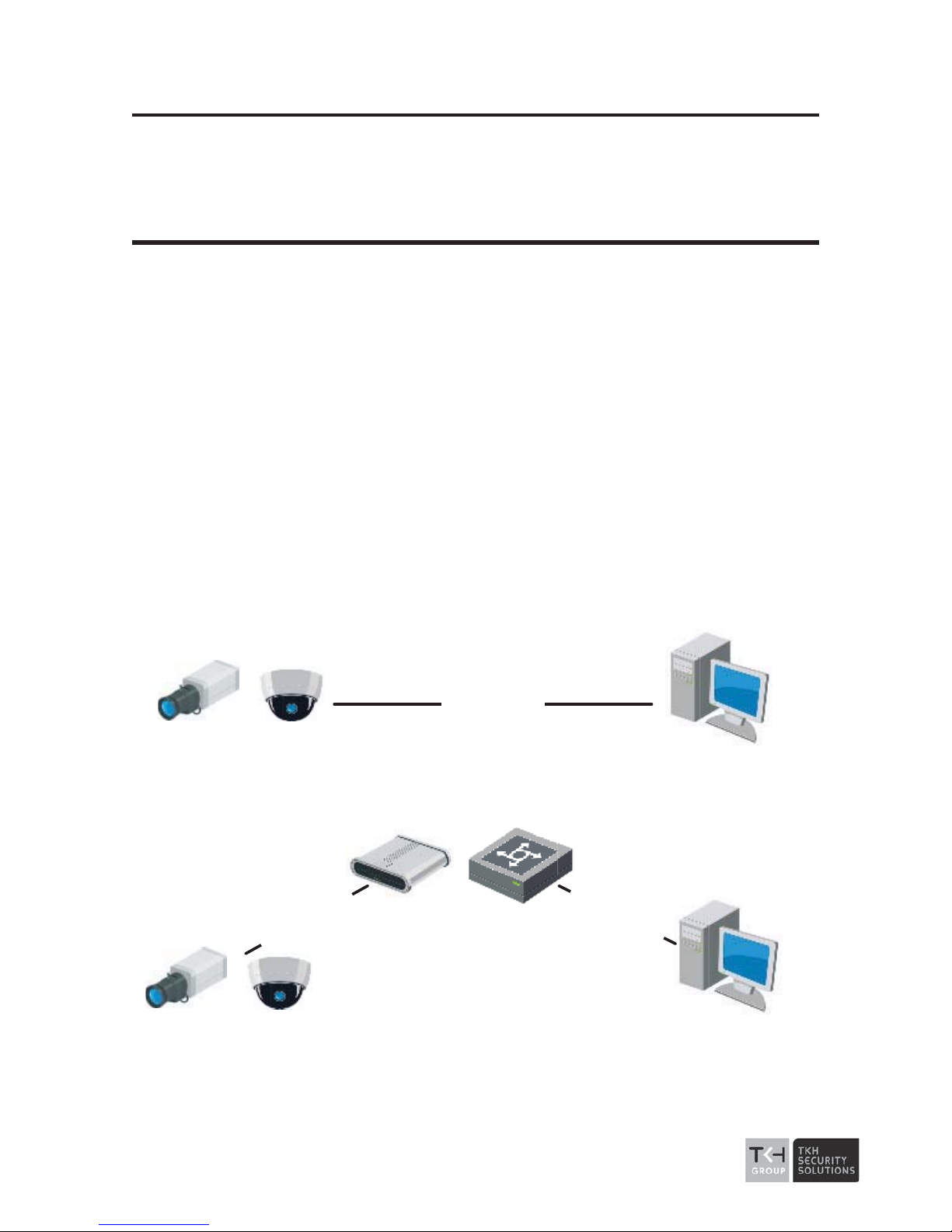

3.1 Wiring
Please connect to the camera to the network according to the
following figures
Network Cable
or
Network Camera
Computer
Figu
re 3-1 Connecting Directly
Network Cable
Network Cable
or
or
Network Camera Computer
Figu
re 3-2 Connecting via a Switch or a Router
Page 37
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
37
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via TKHSDM and Activation
via Client Software are all supported. We take activation via TKHSDM
software and Activation via Web Browser as examples to introduce
the camera activation. Please refer to the User Manual of Network
Camera for Activation via Client Software.
3.2.1 Activation via Web Browser
Steps:
1. Power on the camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and
click Enter to enter the activation interface.
Notes:
z The default IP address of the camera is 192.168.1.64.
z For the camera enables the DHCP by default, you need to
activate the camera via TKHSDM software and search the IP
address.

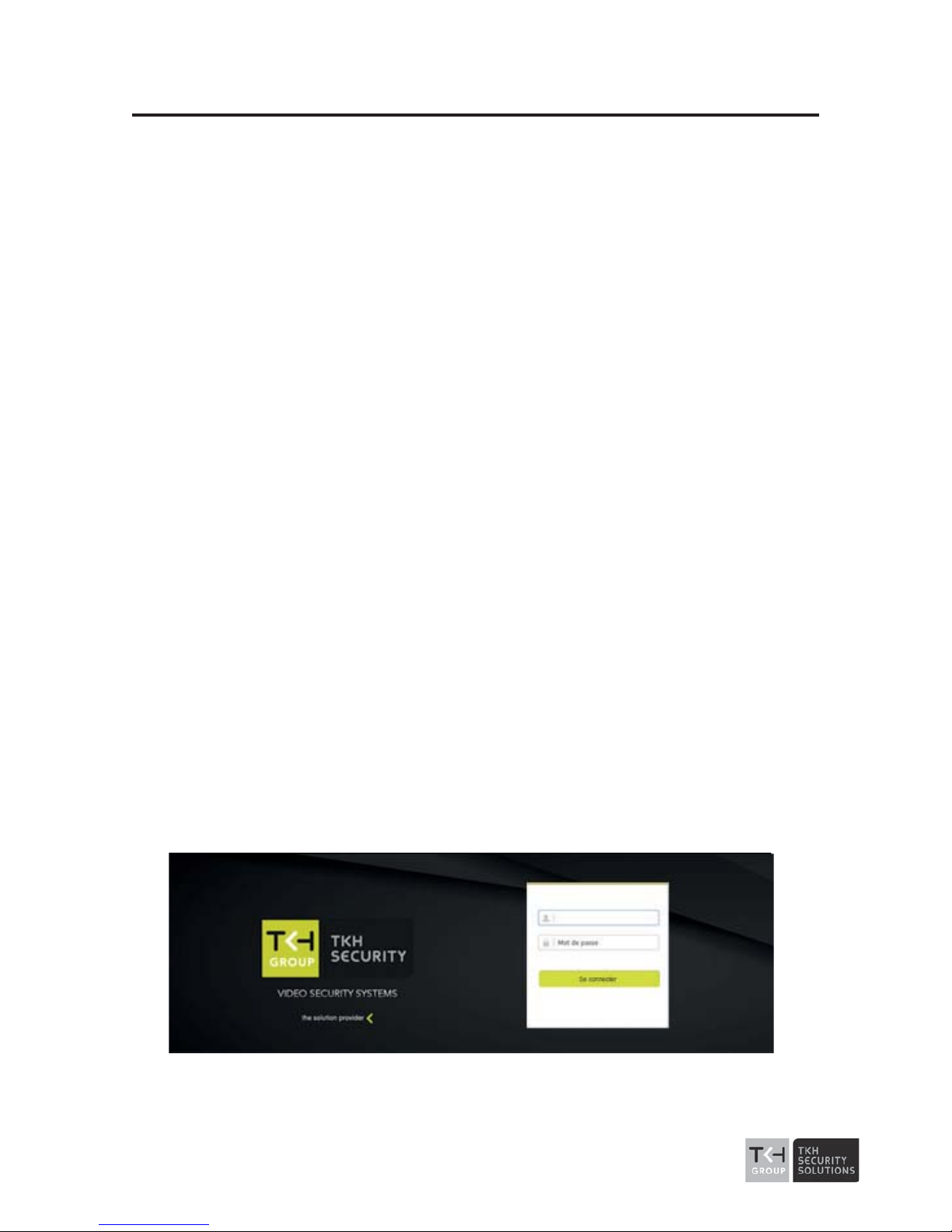

Figure 3-3 Activation Interface(Web)
Page 38
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
38
3. Create a password and input the password into the password
field.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
3.2.2 Activation via TKHSDM Software
TKHSDM software is used for detecting the online device, activating
the camera, and resetting the password.
Get the TKHSDM software from the supplied disk or the official
website, and install the TKHSDM according to the prompts. Follow
the steps to activate the camera, please refer to the User Manual of
Network Camera for other two activation methods.
Steps:
1. Run the TKHSDM software to search the online devices.
2. Check the device status from the device list, and select the
inactive device.
Page 39
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
39

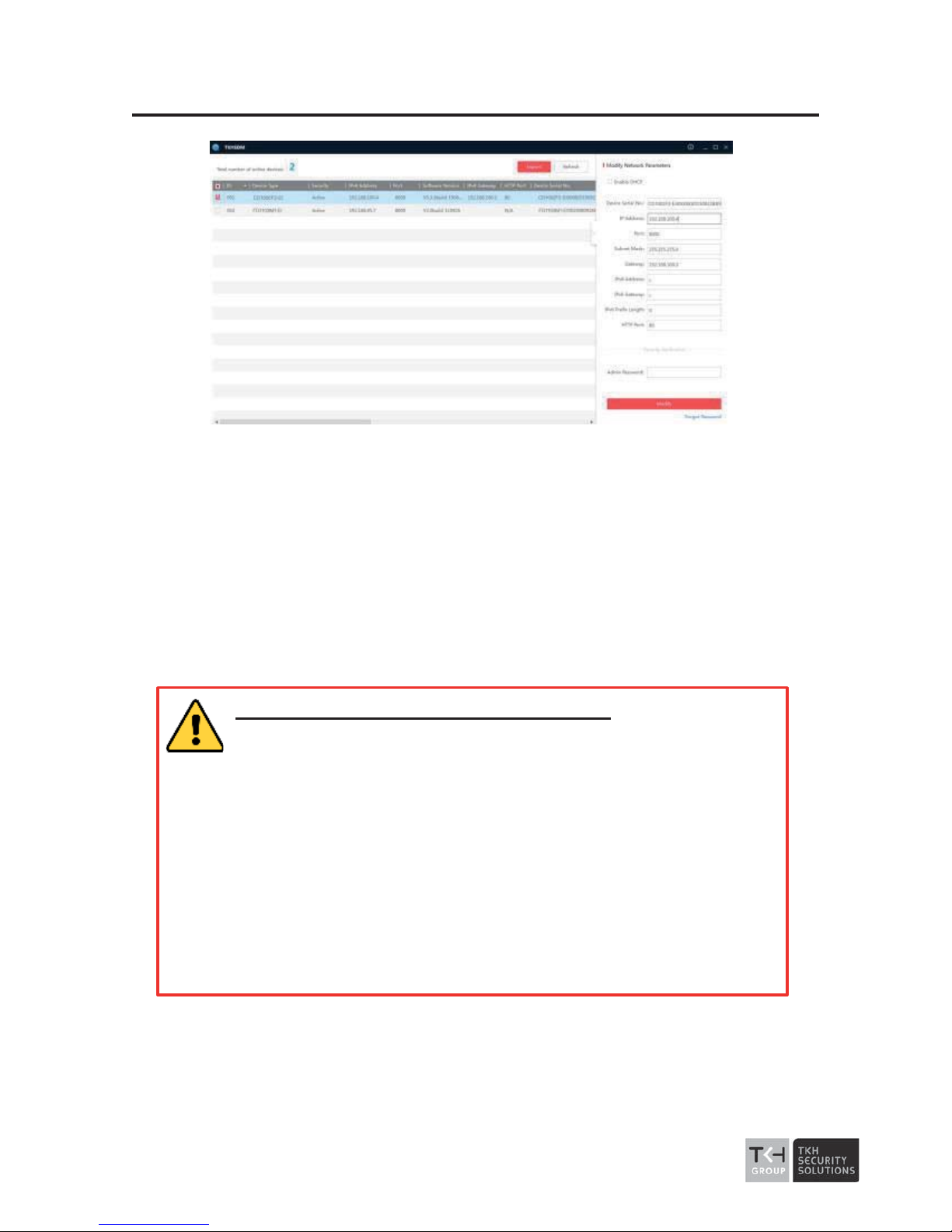

Figu
re 3-4 TKHSDM Interface
Note:
The TKHSDM software supports activating the camera in batch.
3. Create a password and input the password in the password field,
and confirm the password.
STRONG PASSWORD RECOMMENDED– We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Click OK to save the password.
Page 40
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
40
You can check whether the activation is completed on the popup
window. If activation failed, please make sure that the password
meets the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC. Then, install the TKHSDM software or client software to search
and change the IP of network camera. We will take modifying the IP
Address via TKHSDM software as an example to introduce the IP
address modification.
Steps:
1. Run the TKHSDM software.
2. Select an activate device.
Note:
Please refer to Section 3.2 to activate the camera if the camera is
inactive.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Page 41
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
41

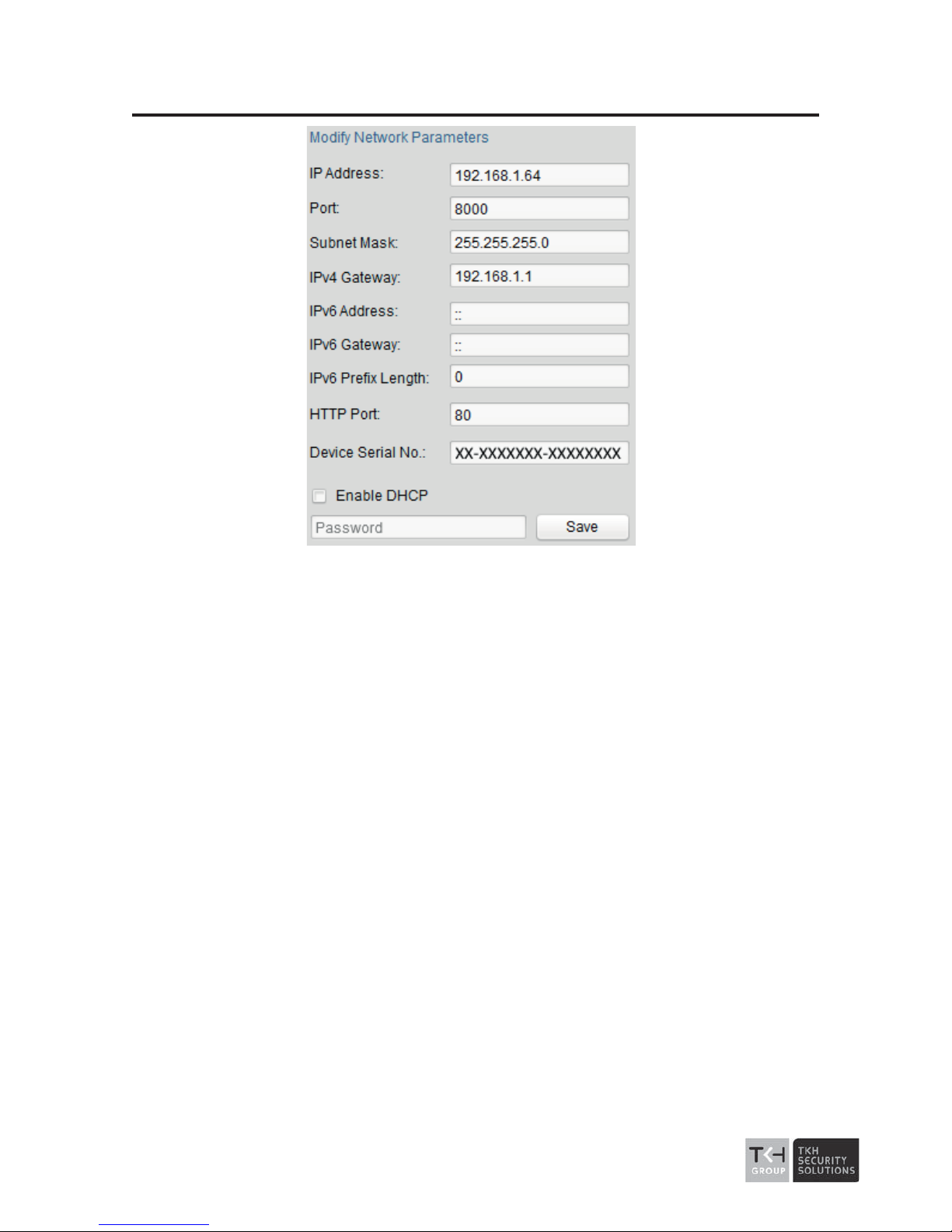

Figure 3-5 Modify the IP Address
4. Input the password to activate your IP address modification.
The batch IP address modification is supported by the TKHSDM.
Page 42
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
42
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version
CPU: 2.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 8.0 and above version, Apple Safari
5.0.2 and above version, Mozilla Firefox 5.0 and above version and
Google Chrome 18 and above version
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the network
camera, and press the Enter key to enter the login interface.
Note:
z The default IP address is 192.168.1.64.
z If the camera is not activated, please activate the camera first
according to Section 3.2.
3. Input the user name and password.
The admin user should configure the device accounts and
user/operator permissions properly. Delete the unnecessary
accounts and user/operator permission.
Note:
The device IP address gets locked if the admin user performs 7
failed password attempts (5 attempts for the user/operator).
Page 43
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
43
4. Click Login.

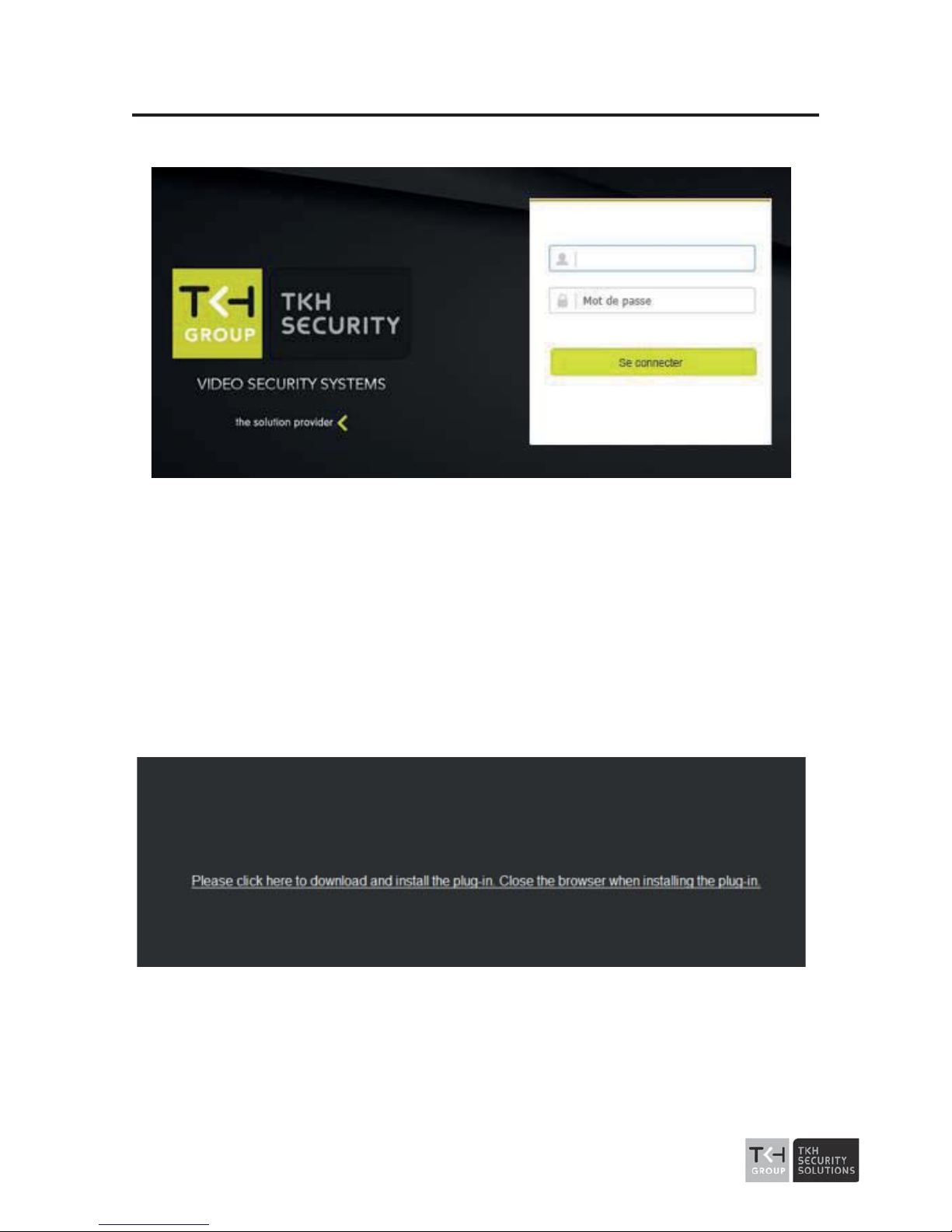

Fi
gure 4-1 Login Interface
5. Install the plug-in before viewing the live video and managing the
camera. Please follow the installation prompts to install the
plug-in.
Note:
You may have to close the web browser to finish the installation
of the plug-in.
Figure 4-2 Download Plug-in
6. Reopen the web browser after the installation of the plug-in and
repeat steps 2 to 4 to login.
Page 44
User Manual - Network Dome Camera – &ϭϬϬϭsϭͲ/d
44
Note:
For detailed instructions of further configuration, please refer to
the user manual of network camera.
