Tivax MiTV-Mobile7 User Manual

-Mobile7

Mobile TV & Media Player

User Manual

1

WARNING! IMPORTANT SAFETY INSTRUCTIONS

CAUT ION : To reduce the risk of electric shock, do not remove cover or back.

No user serviceable parts inside. Refer all servicing to qualified personnel.

This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.

This symbol alerts you that important
literature concerning operation and
maintenance has been included with
this product.

Note to CATV System Installer

This notice is for the CATV system installer to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the ground cable shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.

Secure Ventilation

The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To
ensure reliable operation of this apparatus, and to pr otect it from overheating, these slots and op enings must
never be blocked or covered. There should be at leas t 2 inches of space from these openings. Never block
the openings by placing the MiTV-Mobile

7

on a bed, sofa, rug or similar surfaces. The MiTV-Mobile7 should

not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Important Safety Instructions

1) Read, follow and keep these instructions.

2) Do not expose this apparatus to rain, moisture or place it near water.

3) Clean only with dry cloth.

4) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

5) Do not place near any heat sources such as radiators, stoves, or other apparatus (including amplifiers)
that produce heat.

6) Do not defeat the safety purpose of the polarized or grou nding-type plug. A polarized plug has two
blades with one wider than the other. A groun ding type plug has two blades and a third grounding

2

prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.

7) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

8) Only use attachments / accessories specified by the manufacturer.

9) Unplug this apparatus during lightning storms or when unused for long periods.

10) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has be en
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has b een exposed to rain or moisture, does not operate
normally, or has been dropped.

11) Operate only from the type of power source indicated on th e marking label. If you are not sure of the
type of power supplied to your home, consult your television dealer or local power company.

12) F ollow all warnings and instructions marked on the MiTV-Mobile

7

.

13) Never push objects of any kind into this MiTV-Mobile

7

through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid
of any kind on the MiTV-Mobile

7

.

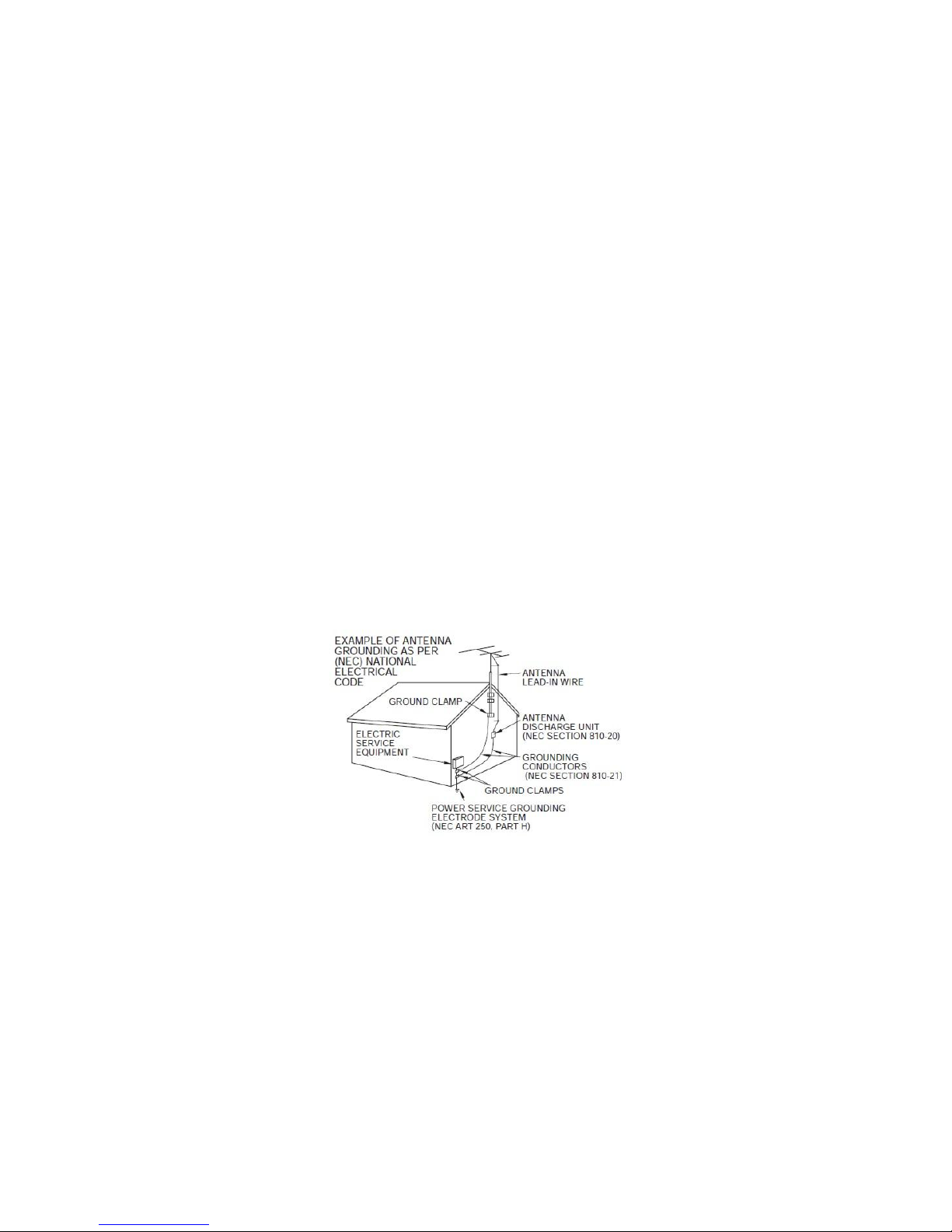

14) If an outside antenna is connected to the television equipment, be sure the antenna system is
grounded so as to provide some protection against voltage surges and built up static charges. The U.S.
Section 810-21 of the National Electrical Code provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

15) An outside ant enna s ystem should not be lo cated in the vicinit y of overhead po wer lines, other electric
light, power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.

3

4

16) Unplug this MiTV-Mobile7 from the wall outlet and refer servicing to qualified service personnel
under the following conditions:

a) When the power cord or plug is dama ged or fray ed.
b) If liquid has been spilled into the MiTV-Mobile

7

.

c) If the MiTV-Mobile

7

has been exposed to rain or wate r.

d) If the MiTV-Mobile

7

does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the MiTV-Mobile7 to normal operation.

e) If the MiTV-Mobile

7

has been dropped and damaged.

f) When the MiTV-Mobile

7

exhibits a distinct chang e in performance - which indicates a need for

service.

17) When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric shock, or other hazards and void the
warranty.

18) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING. DO NOT PLACE LIQUID
CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET (INCLUDING
ON SHELVES ABOVE, ETC.).

19) WARNING: SMALL PARTS CAN PRESENT A CHOKING HAZARD IF ACCIDENTALLY
SWALLOWED. KEEP SMALL PARTS AWAY FROM YOUNG CHILDREN. DISCARD UNNEEDED
SMALL PARTS AND OTHER OBJECTS, INCLUDING PACKAGING MATERIALS AND PLASTIC
BAGS/SHEETS TO PREVENT THEM FROM BEING PLAYED WITH BY YOUNG CHILDREN,
CREATING THE POTENTIAL RISK OF SUFFOCATION.

20) CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH A RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

21) CAUTION: DANGER OF EXPLOSION IF BATTERY IN THE TV SET IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

22) FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause or receive interference, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the TV antenna.

• Increase the separation between TV and other equipment.

• Connect TV into separate outlet from other equipment.

• Consult dealer or an experienced radio / TV technician for help.

5

GETTING STARTED (PREPARATION) .................................................................................... 7

INTRODUCTION OF YOUR MITV-MOBILE7 ............................................................................ 8

INTRODUCTION ........................................................................................................................ 8

FEATURES ............................................................................................................................... 8

ACCESSORIES ......................................................................................................................... 9

RECHARGEABLE LI-ION BATTERY .............................................................................................. 9

RF INPUT CONNECTION .......................................................................................................... 10

TV INPUT AND OUTPUT PORTS ............................................................................................... 10

TV CONTROL FUNCTIONS ...................................................................................................... 12

KEYPAD BUTTON CONTROL FUNCTIONS .................................................................................. 12

REMOTE CONTROL UNIT CONTROL FUNCTIONS ....................................................................... 12

MENU OPERATION ................................................................................................................ 14

1. ON SCREEN DISPLAY (OSD) AND MENU ............................................................................. 14

1.1 Basic Operations ....................................................................................................... 14

1.2 DIGITAL TV ...................................................................................................................... 14

1.2.1 Setup wizard .......................................................................................................... 15

1.2.2 Picture .................................................................................................................... 16

1.2.3 Audio ...................................................................................................................... 16

1.2.4 Time ....................................................................................................................... 17

1.2.5 Setup ...................................................................................................................... 17

1.2.6 Channel .................................................................................................................. 17

1.2.7 Return .................................................................................................................... 18

1.3 SLIDESHOW ..................................................................................................................... 18

1.4 MUSIC ............................................................................................................................. 19

1.5 VIDEO ............................................................................................................................. 20

1.6 BROWSING ...................................................................................................................... 21

1.7. SETTINGS ....................................................................................................................... 21

1.7.1 Language Settings ................................................................................................. 21

1.7.2 Set Color ................................................................................................................ 22

1.7.3 Set Menu ................................................................................................................ 22

1.7.4 Set Slideshow ........................................................................................................ 22

1.7.5 Info ......................................................................................................................... 23

1.7.6 Reset ...................................................................................................................... 23

1.7.7 Update Software .................................................................................................... 23

1.8 MOBILE DIGITAL TV .......................................................................................................... 24

1.8.1 Mobile DTV OSD Menu ......................................................................................... 24

1.8.2 Fast Mobile Channel Search ................................................................................. 25

6

1.8.3 No Mobile Channel Found ..................................................................................... 25

1.8.4 Mobile DTV EPG .................................................................................................... 26

2. MEDIA FORMATS SUPPORTED ....................................................................................... 27

2.1 SUPPORTED VIDEO FORMATS ........................................................................................... 27

2.2 SUPPORTED AUDIO FORMATS ........................................................................................... 28

2.3 SUPPORTED IMAGE FORMATS ........................................................................................... 30

2.4 CURRENT PLANNED AND AVAILABLE MOBILE TV CHANNELS ............................................... 30

3. TROUBLESHOOTING ........................................................................................................ 31

MICHLEY/TIVAX LIMITED WARRANTY TO ORIGINAL PURCHASER ............................... 32

7

Getting Started (Preparation)

PLACEMENT RECOMMENDATIONS:

Place your

MiTV-Mobile

7

on a flat and stable surface, or hold it securely. Avoid

dropping it to the ground, as it can cause serious damage to the unit.

CLEANING THE SCREEN:

Pay attention to the following for proper care and cleaning of the

MiTV-Mobile

7

screen:

• Do not use glue or adhesive tape on the screen.

• Do not write on the screen.

• Do not allow the screen to come in contact with any sharp objects.

• Do not allow condensation to form on the screen.

• Do not use alcohol, thinner, benzene or other harsh solvents on the screen.

• Do not forcefully rub the screen.

CAUTION:

• Operate only from the power source specified for this apparatus.

• Avoid damaging the AC plug and cord.

• When you are not using this unit fo r a long period of time, it is recommended

that you disconnect the power cord from the main outlet.

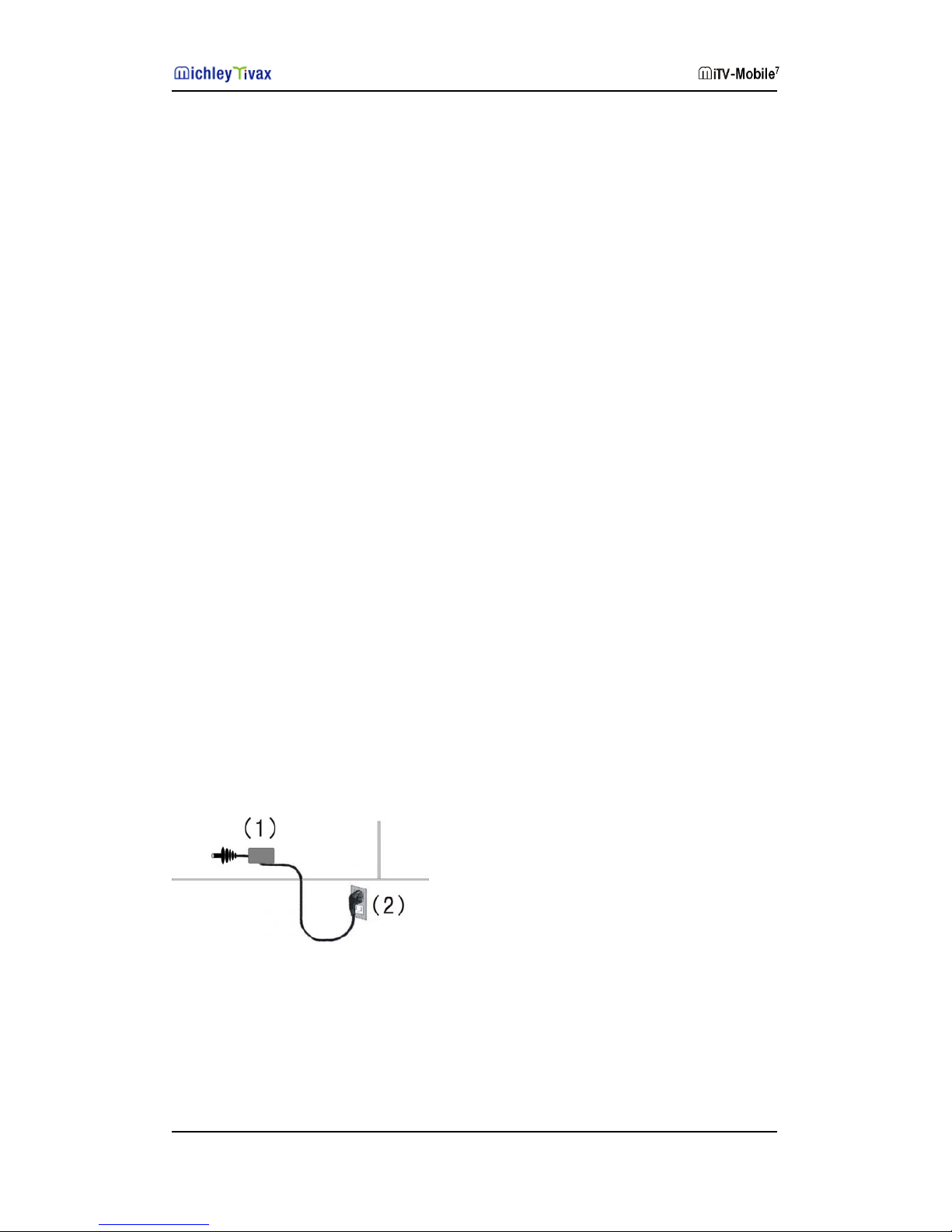

POWER CORD CONNECTION:
Connect one end of the 5V/2 A power cord to the unit, and the plug to the wall.

1. Connect the power cord to the MiTV-Mobile7.

2. Connect the power cord to the power outlet.

8

Introduction of Your MiTV-Mobile7

Introduction

Your MiTV-Mobile7 has a 7-inch LCD screen, with MP3, MP4 and digital television
function, as well as Slideshow, picture browsing and many other additional entertainment
functions. It supports ATSC digital television signals standards. It is very easy to carry and

with strong ability to receive digital TV signals*.

Features

9 Enjoy both Mobile M/H TV and ATSC digital TV programs*;
9 Watch live TV shows in any moving vehicle;

9 No subscription required, no monthly fees (100% free), and no limit !
9 Watch your favorite movies from a SD card;
9 AVI video format；
9 MP3 audio format with synchronized lyrics display；
9 Slideshow with background music；
9 JPG format picture viewing；
9 USB 2.0 high speed interface;
9 7-inch LCD screen (480x234)；

* Contents depend on the available mobile TV signal in your area.

General Data:

9 AC Input: 100-240 V
9 Input voltage: 9V/2A
9 Power Consumption: max 1.4A (6.5 W, with maximum volume)
9 Size: (LxWxD): 8.66” x 5.16” x 1.14” (220mm x 131mm x 29mm)
9 Net Weight: 1Lb1 oz.
9 Screen resolution: 480 x 234

9

Notes:

z Conserving Battery Life. Use a switch on the side of the unit to turn the device

on/off in order to conserve battery life.

z Stationary Position

. For best digital reception, the TV must be stationary. The
picture may temporarily freeze if you walk with the TV, or move it too much. This
is a characteristic of digital broadcast reception that holds true for any digital TV.

Accessories

The following accessories are available or supplied with your MiTV-Mobile7:

The AC/DC power adapter included in the package has AC input：100~240V， DC
Output：9V / 2A , UL certified.

Rechargeable Li-Ion battery

The TV set comes with a built-in Li-Ion battery.

Notes:

1. The Li-Ion battery is charged approximately 60% before shipped.

2. Initial Charge. The battery should be charged for at least 8 hours before first
use.

3. After initial charge, it will take about 3 hours for the battery to be fully charged
after they are depleted.

4. The lifetime of the Li-Ion battery is about 500 re-charges. Re-charging when
fully depleted will extend the life of the battery.

10

RF input connection

1. Your MiTV-Mobile7 can receive free over-the-air digital TV signals, which

contains both US standard ATSC and ATSC-M/H signals for mobile, through
the antenna.

2. Your MiTV-Mobile

7

has an external antenna connection port. When plug in with
a rod antenna, that becomes good for outdoor use. When plug in with a
magnetic antenna, that becomes good for using in the automobile. The
same antenna connection port can be used to connect to your cable box at
home for receiving the signal from your cable box.

Figure below shows the external antenna port located on the left side of your
TV system.

TV Input and Output Ports

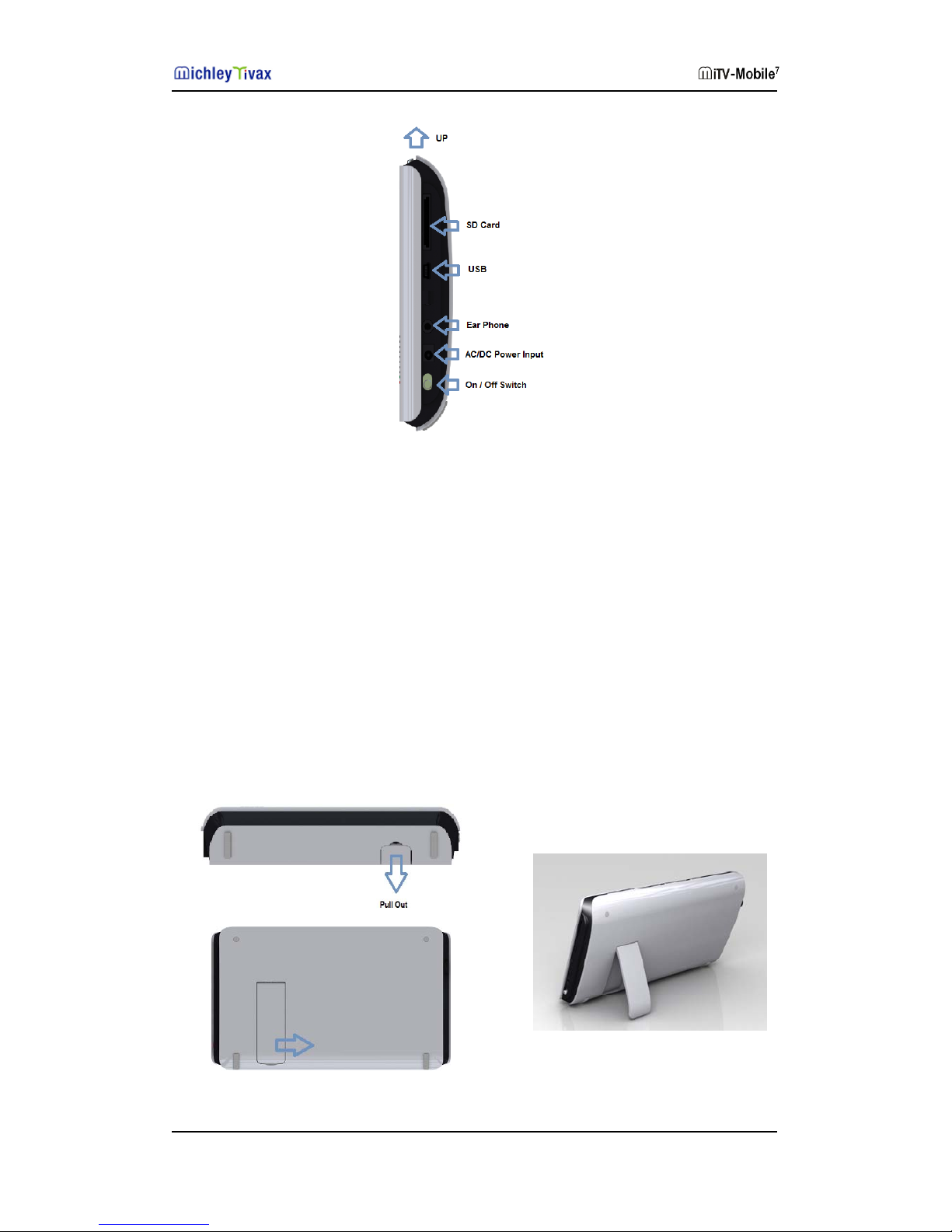

On the RIGHT side of your MiTV-Mobile7, you will see the following I/O ports from top
to bottom, as shown in the figure below:

11

z SD card holder – insert SD card for preloaded media file play back. Please refer to

section below for details.

z Mini USB port – connect to your USB storage device for preloaded media file play

back. Please refer to section below for details.

z Earphone input – insert earphone into this port
z 9V AC/DC power adapter input – insert the AC/DC power adapter (included in

your package) to provide power to your MiTV-Mobile

7

.

z Power On / Off switch – turn on / off your TV set.

1. Integrated stand– The stand is located on the back of the TV, pull it out to
make TV stand on the table, as shown in figures below.

12

TV Control Functions

Keypad Button Control Functions

You can control TV functions by using the keypad on your TV system. Keys are
shown in the figure below.

Menu (Return)

Press to enter the Menu mode. Also use this key as the return
key while in the sub-menu.

Channel - /

Press – to change channel down.
When in the menu mode, this button acts as “

” navigation key

Channel + /

Press + to change channel up.
When in the menu mode, this button acts as “

” navigation key .

VOL - /

Press – to change volume down.

on acts as “When in the menu mode, this butt

” navigation

key.

VOL + /

Press + to change volume up.

utton acts as “When in the menu mode, this b

” navigation

key.

OK

Press to accept current selection

SOURCE

ress SOURCE key to switch among regular digital TV, P

picture/video viewer and mobile digital TV modes.

You can control TV functions by using the remote control unit comes with your TV.

Remote Control Unit Control Functions

Keys on your remote control unit are shown in the figure below.

13

1 MUTE Press this key to turn off the sound.

Press the "MUTE" button again or press
"VOL +.-" to enable sound.

2

CH. SCAN

Press this key to start auto channel scan
while in either DTV or Mobile DTV
mode.

3

SLEEP Press this key to adjust power saving

mode timer

4 ASPECT Press this key to adjust aspect mode

(16:9/4:3)

5 AUDIO

Adjust ATSC audio mode

6 SOURCE

Source selection（ATSC / Mobile DTV /

SD, USB）
7 0~9 Numeric keys to select desired channel
8 SETUP Calls the ADVANCED SETTING Menu
9 RECALL Recall last channel.

10

CH-, / CH+,

Press these keys to change the

channels/ Navigation keys in menu.

11

VOL-, / VOL+,

Press these keys to adjust volume/

Navigation keys in menu.

12 OK Press this key to confirm selection.
13 MENU Press this key to display the OSD

menu. In the OSD menu, press this key

to exit the menu.

14 EXIT To exit menu or quit from current

operation.

15 TV DISPLAY

Display information about the current

A TSC Channel

16 CC

CC switch

17 CH.LIST Pop up program channel list
18 FAV Pop up favorite channel list (Favorite

table can be edited in channel program
submenu)

19

EPG EPG function button for ATSC

14

MENU OPERATION

1. On Screen Display (OSD) and Menu

1.1 Basic Operations

OSD and Menu can be controlled by using the following keys:

1. The “OK” key (on keypad or RCU) – confirms the OSD menu selection.

2. The “MENU” key (on keypad or RCU) - calls the Main Menu and

display on the screen;
The keypad “MENU” button also acts as “RETURN” , which allows you
to return from current sub-menu to upper level menu.
The “EXIT” key on the remote control unit allows you to quit from current
sub-menu.

3. “ ” button – increases / decreases channel number or selects items
upward / downward.

4. “ ” button - – increases / decreases volume or enter sub-menu
when cursor is on the current item.

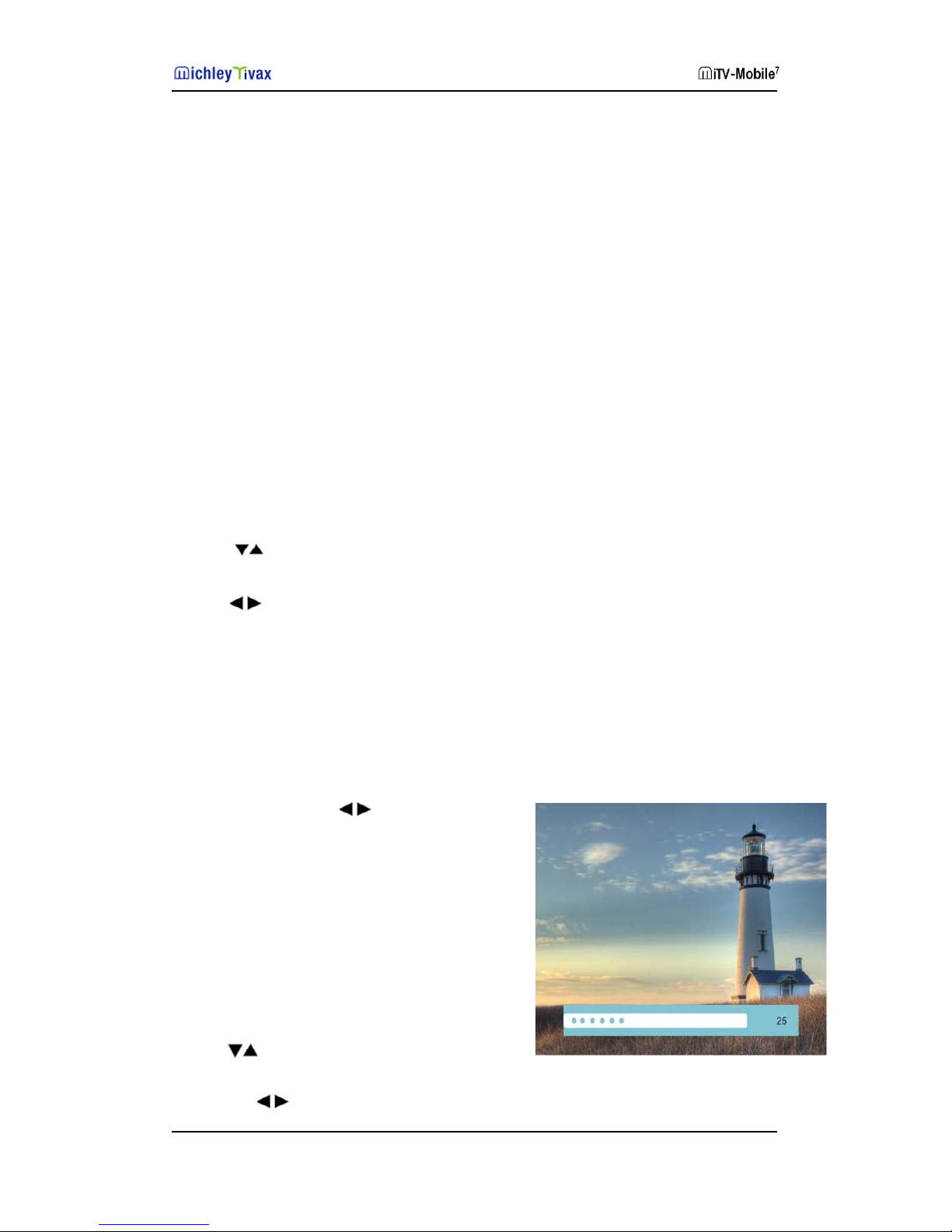

1.2 Digital TV

In main menu, press key to select DTV
feature, press “OK” key to enter DTV menu.

If you have setup the TV and searched the
channels (see 1.2.1 Setup Wizard) and there
is program signals, the TV will play the
interface directly.

Press

key to change other channel,

and press to adjust the volume.

15

1.2.1 Setup wizard

If this is the first time to enter DTV mode,
please enter the Setup Wizard interface
to complete related settings and program
searching. To enter Setup Wizard, press

key to select “Setup”, then use

key to select “Restore Default” to enter

Setup Wizard.

First Step:

Press key to complete language
setting, and then go to the next step.

Second Step:
Press key to select the Time Zone,
DST and Time Format, and press
key to move the cursor to complete the
setting, and then go to the next step.

Third Step:
Press key to select the searching
Style by Antenna or Cable(if you have cable TV service), and then start the
program searching.

16

The number of found channels will be
shown in the Setup Wizard interface,
and the TV will start playing the first found
channel immediately when the channel
searching is finished.

1.2.2 Picture

In the main menu of DTV mode, press
key to enter PICTURE window.

Adjust settings of Picture Mode, Contrast,

Brightness, Sharpness, Tint, Color,
Color Mode, Zoom Mode.

Press to move the cursor. Press “ ”
key to choose, press “OK” key to confirm
the selection and press “MENU” key to return.

1.2.3 Audio

In the main menu of DTV, Press key
to select Audio,

Adjust Audio language and Balance.

Press key to move the cursor, press

key to choose, press “O”
key to confirm, and press “MENU” key to
return.

17

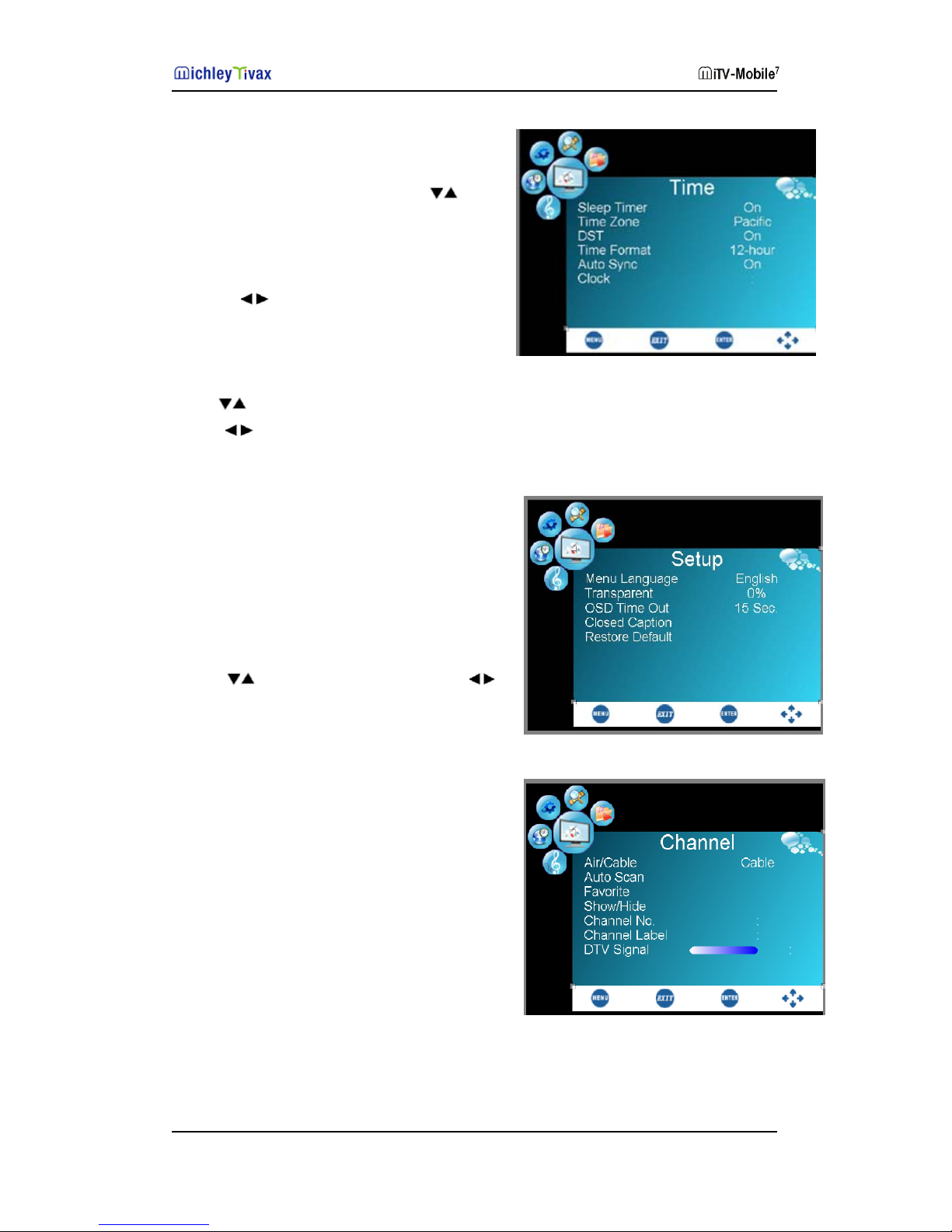

1.2.4 Time

In the main menu of DTV, press Key
to select Time function, and press “MENU”
key to return.

Use the key to complete the settings
of Sleep Timer,Time zone, DST, Time
Format, Auto Sync, Clock and so on.

Press

to move the cursor, choose,
press “ ” key to confirm selection and
press “MENU” key to return.

1.2.5 Setup

The Setup of DTV mode includes the
Settings of MENU Language,

Transparent, OSD Time Out, Closed
Caption, and Restore Default.

Press to move the cursor, press
key to select, and press “MENU” key to
return.

1.2.6 Channel

In the Channel interface of DTV, check
the present interface information and the
signal quality.
Choose Auto Scan to search for programs
again by air or cable.

18

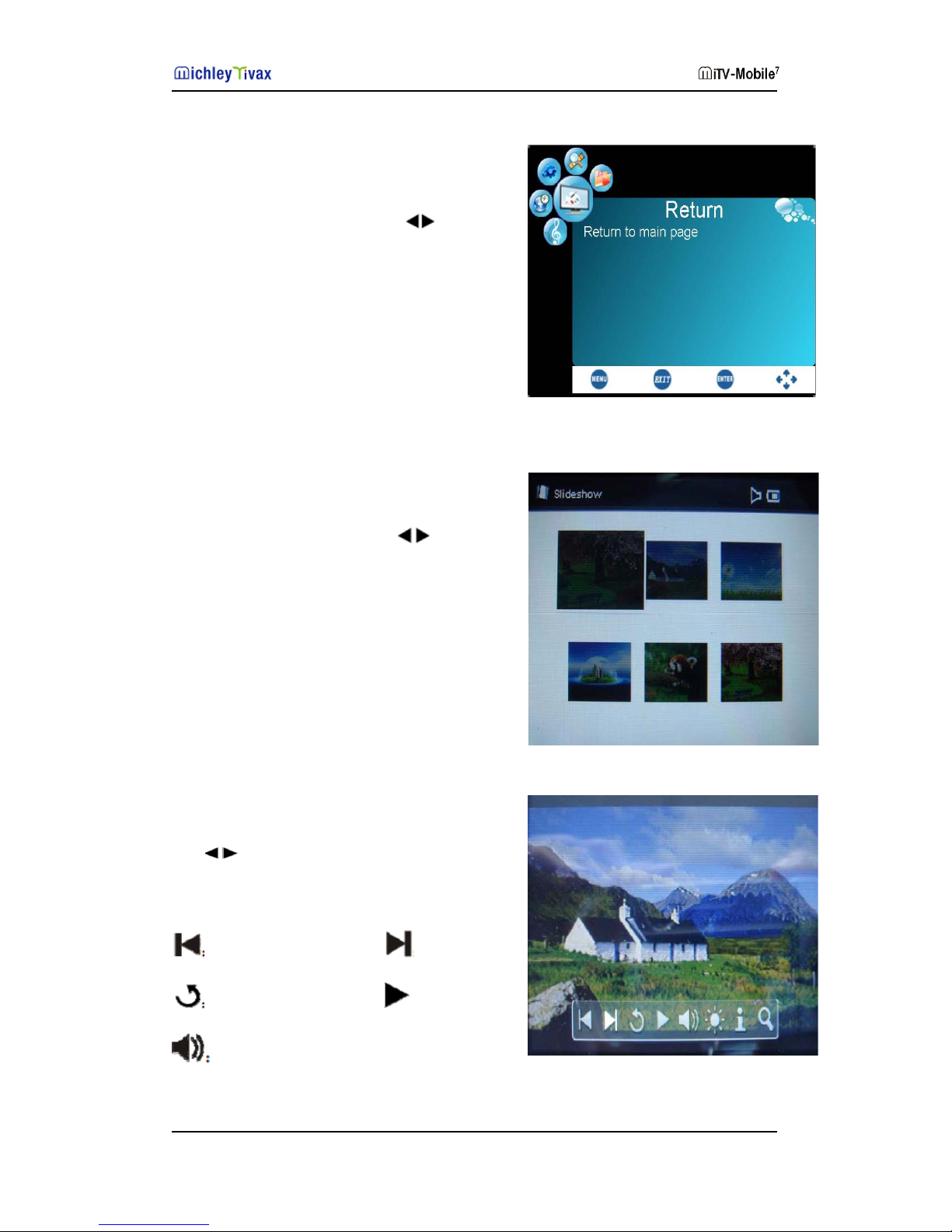

1.2.7 Return

In the menu of Return, press “ ” key to
return to the main menu, and press “MENU”
key to return.

1.3 Slideshow

In the main menu, press the key to
select Slideshow, press “OK” key
to enter Slideshow mode, or press
“MENU” key to return.

In Slideshow mode, available slideshows
will be shown.

In the picture browsing interface, press “O”
key to display toolbar below, and press
the key to select related functions.
Press “OK” key to confirm. Press “MENU”
key to exit toolbar.

Previous : Next

Image 90° flip : Play

VOL + / -

19

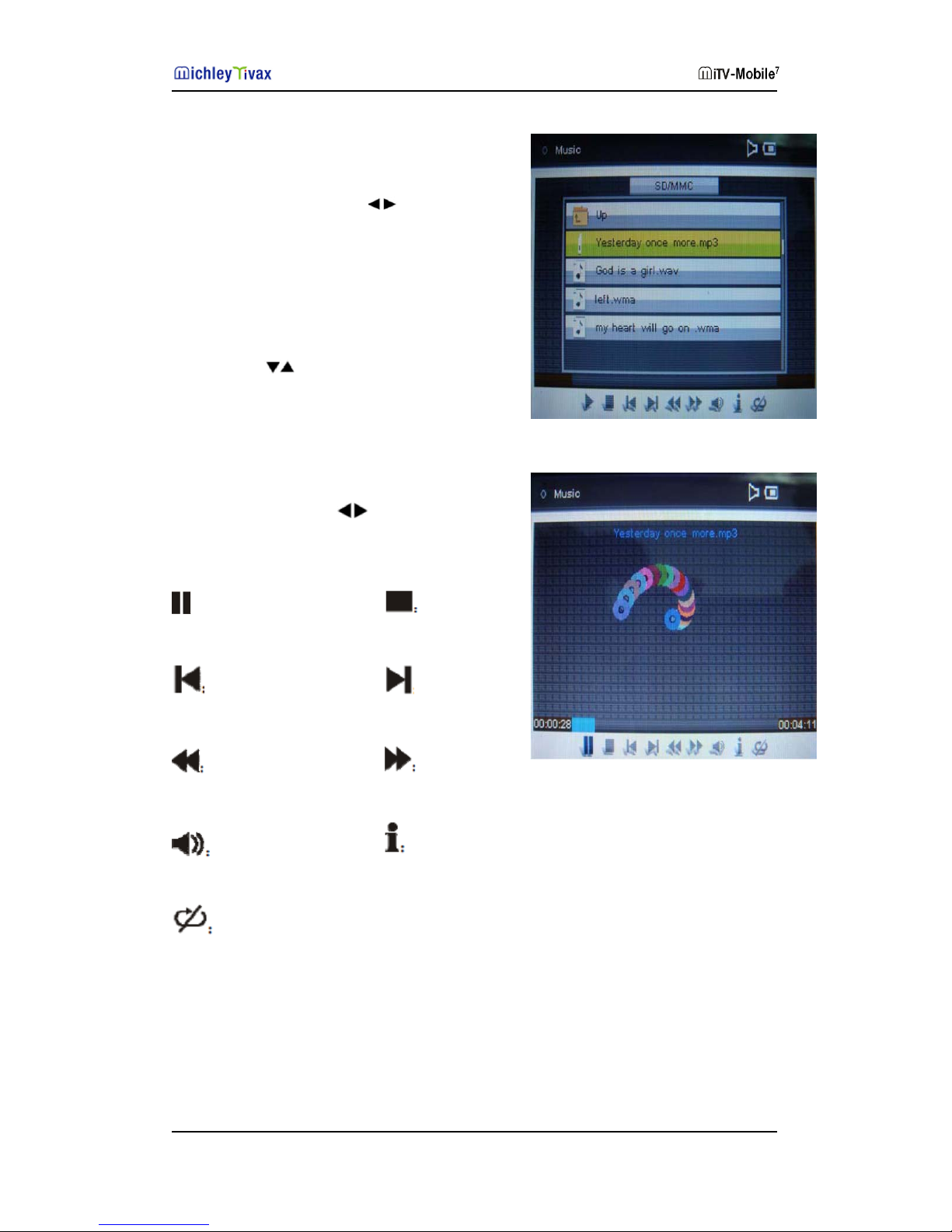

1.4 Music

In the main menu, press key to
select MUSIC feature, press “OK” key to
confirm, or press “MENU” key to return.

The music window displays present music
files, press to select music, press “O”
key to start playing music, and press “MENU”
key to return.

The Music playing interface displays the
toolbar below, press key to select
related functions.

：Pause Stop

：Previous : Next

：Fast Backward Fast Forward

：VOL+\- File Information

Loop

20

1.5 Video

In the main menu, press the key to
select Video feature, press “OK” key
to confirm or press “MENU” key to return.

The window of Video displays all the
present movie file list. Press key to
select a movie, press “OK” key to play the
movie, and press “M” to return.

The Movie Playing interface displays
the Toolbar below, press key to Select
related functions.

: Play Pause

Previous : Next

Fast Backward Fast Forward

VOL + / - Brightness

Settings Music

Full Screen

21

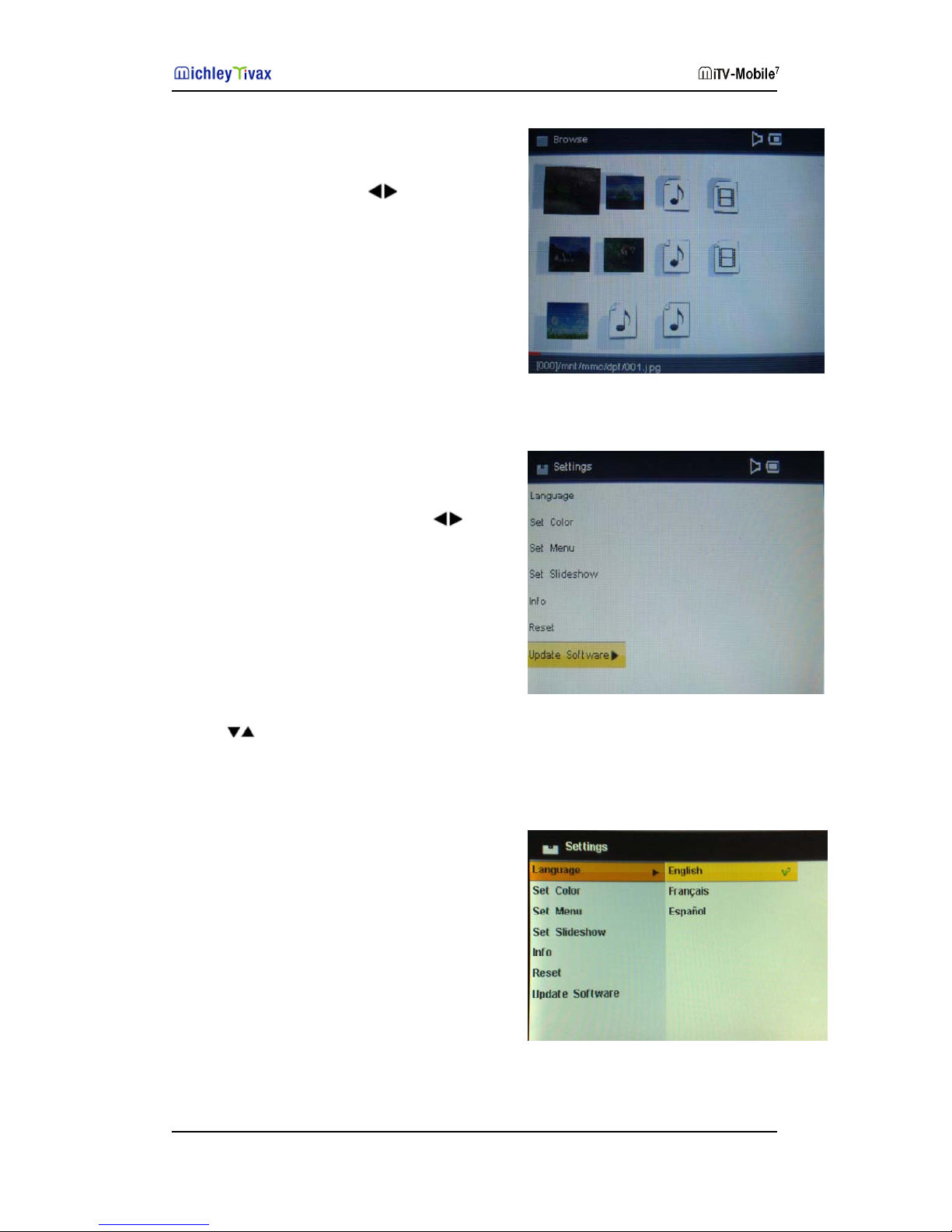

1.6 Browsing

In the main menu, press key to select
Browse function. Press “OK” key to enter
Browse mode, and press “MENU” key to
return.

In Browse mode, all present pictures, music,
video files and folders are displayed. Press
“OK” key to browse the file, and press
“MENU” key to return.

1.7. Settings

In the main menu settings, press key
to select Settings , press “OK” key to
complete the settings, and press the “MENU”
key to return.

Settings mode allows you to change

Language, Set Color, Set Menu, Set
Slideshow, Info, Reset and Update Software.

Press

key to select, and press

“MENU” key to return.

1.7.1 Language Settings

In Language Settings, set the language to
English, Spanish or French.

22

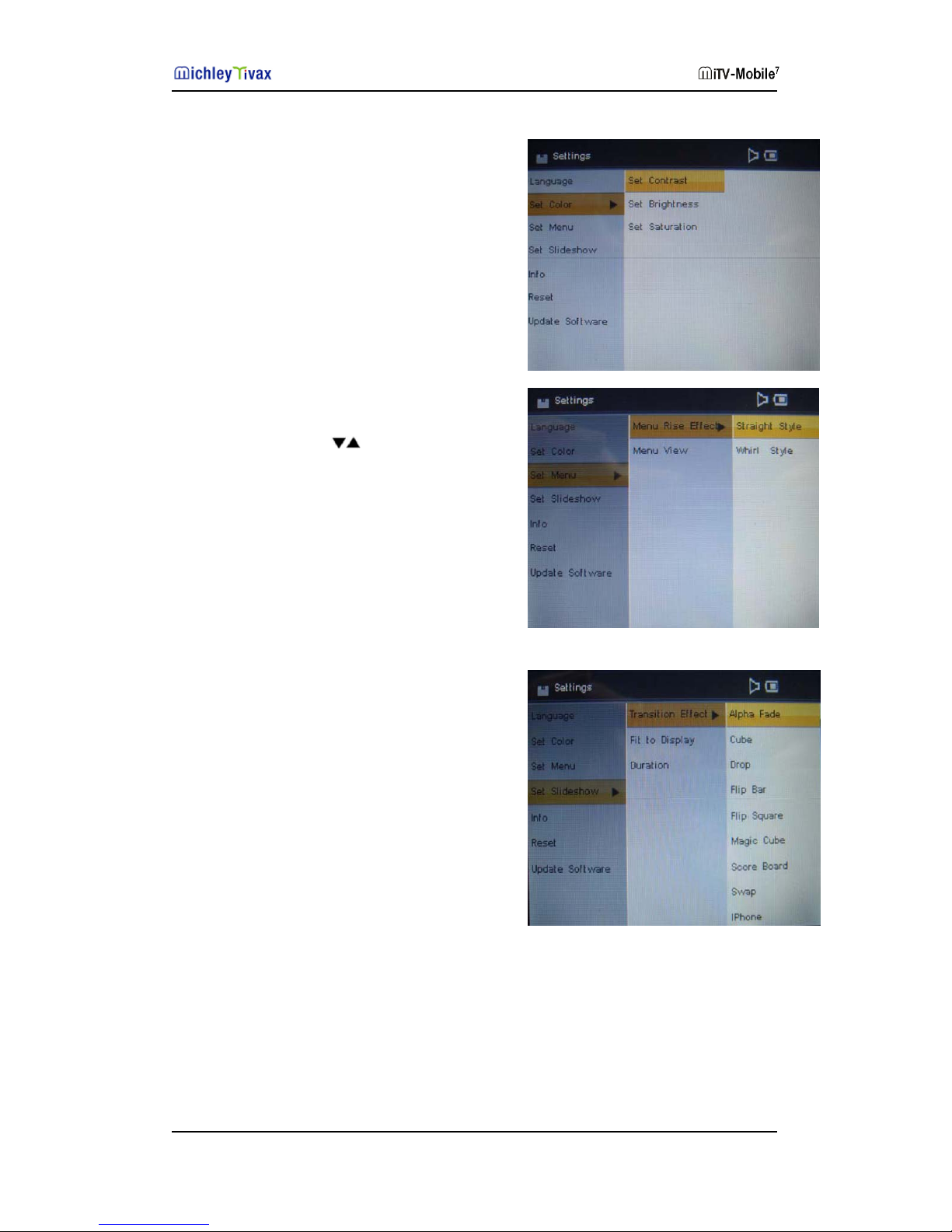

1.7.2 Set Color

In the Color Settings, adjust Contrast,
Brightness, and Saturation.

1.7.3 Set Menu

In Set Menu, press key to set
Menu Rise Effect and Menu view.
Menu Rise Effect can be set as Straight

Style or Whirl Style. Menu View can be set
as level view, Overlooking View, or Look up
View.

1.7.4 Set Slideshow

In Set Slideshow, adjust the Slideshow
Transition Effect, Fit to Display and
Duration.

Transition Effect includes styles, such as

Alpha Fade, Cube, Drop, Flip Bar,
Flip Square, Magic Cube, Score Board,
Swap and Wipes; Slideshow Duration
includes Fast(1 Sec), Normal (10 Sec), Slow(100 Sec) or OFF.

23

1.7.5 Info

Select Info to display firmware information.

1.7.6 Reset

Select “Reset”, and press “Yes” to reset all
Settings, or select “No” to exit.

1.7.7 Update Software

This function allows software update with
USB or SD/MMC card. For more detailed
Update information, please visit
www.tivax.com.

24

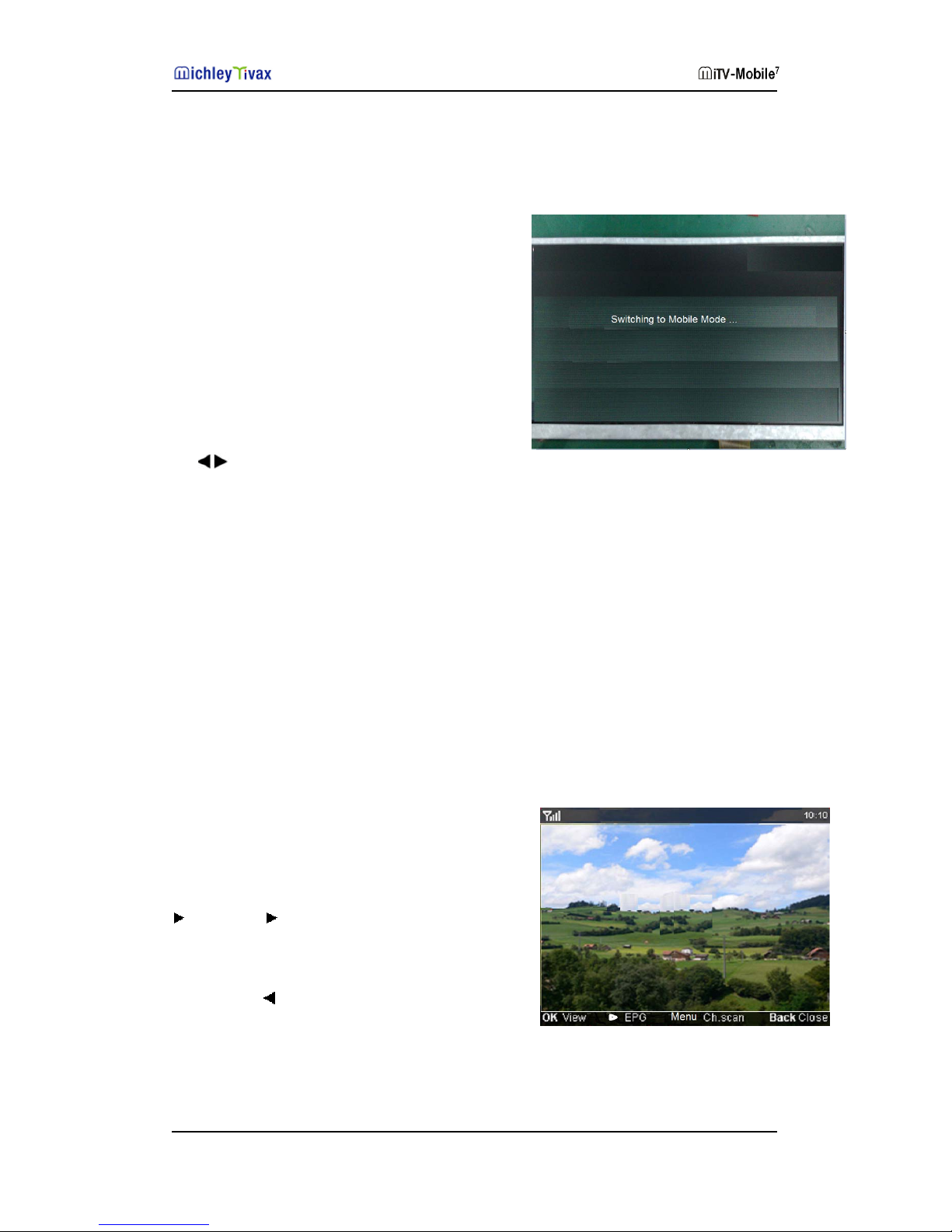

1.8 Mobile digital TV

There are several ways to get in to Mobile
DTV mode.

1. From Remote Control Unit, press the
“Source” key to enter the Mobile DTV;

2. From TV keypad, press the “Source” key
to enter Mobile DTV mode; And

3. From the OSD, while in main menu, press

key to select Mobile DTV feature,

press “OK” key to enter Mobile DTV menu.

Your TV system will take few moments before
entering Mobile DTV mode.

Once switched to Mobile DTV mode and there
is program, it will play interface directly.

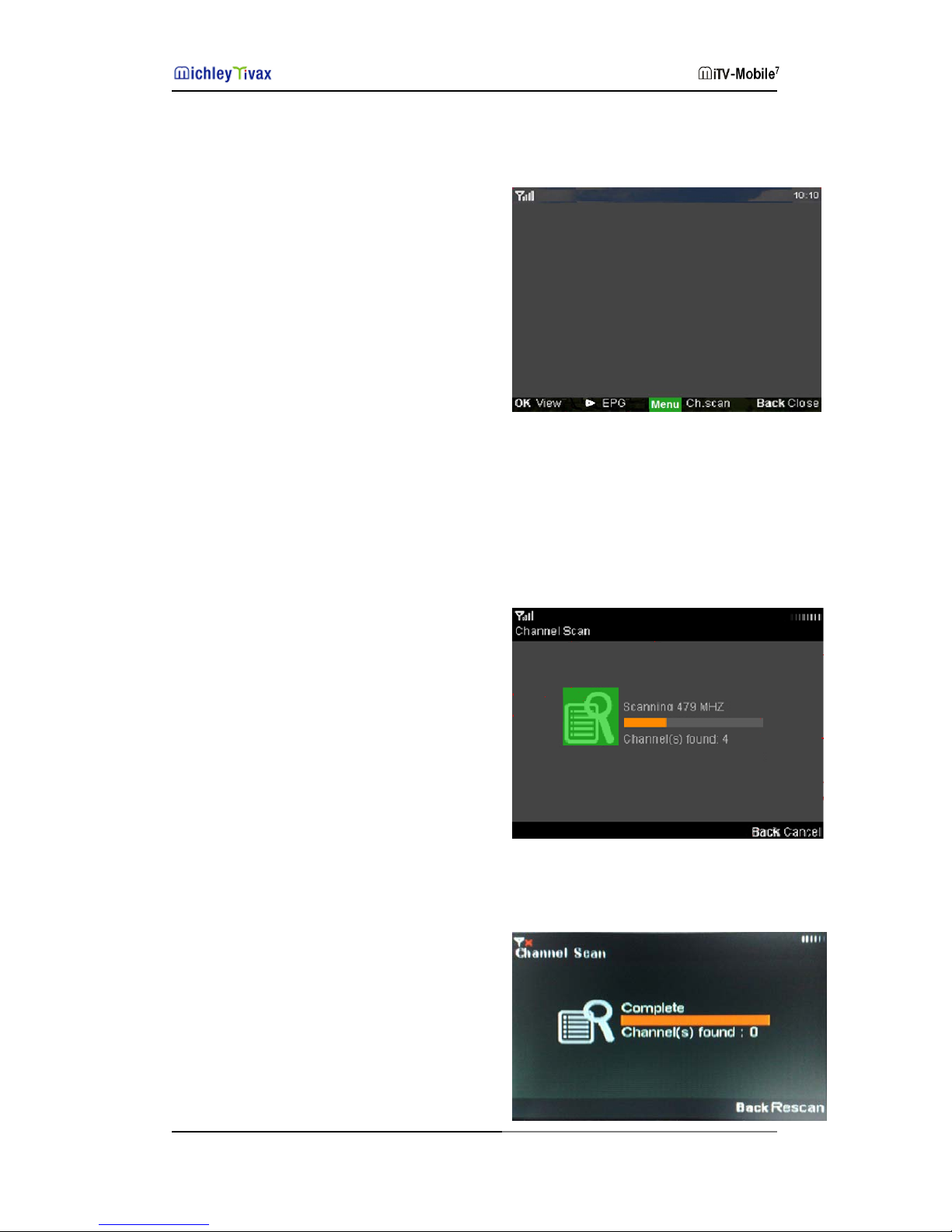

1.8.1 Mobile DTV OSD Menu

Press “MENU” key to bring up the Mobile DTV
OSD menu while in the Mobile DTV mode.

OK: Use “OK” key to start viewing program.

: Use “ ” key to show channel list.

Menu: Use “MENU” key to scan Mobile DTV
channels.
Back: Use “ ” key to exit Mobile DTV Menu.

25

1.8.2 Fast Mobile Channel Search

Fast Mobile DTV channel auto tuning can
be achieved in two ways:

• Press “MENU” key from the keypad.

The keypad MENU key will bring
up Mobile DTV OSD Menu, and
press “MENU” again will start mobile
channel scan.
OR,

• Press “CH.SCAN” key from your

remote control unit. After Mobile DTV
Main Menu is shown up, press
“CH.SCAN” key or “MENU” key from
your remote control unit again to start
mobile channel scan.

Mobile DTV channel search will
start automatically.

Mobile DTV channel search by key is the
most preferable way for searching channel
while you are in a vehicle.

1.8.3 No Mobile Channel Found

Mobile DTV in your current location may
not be found to any mobile TV channels.
You may have to rescan.

26

Signal of your currently watched channel
may become weak due to location change.
Weak Signal message will show when you
bring up EPG from the main menu.

Press “MENU” key from keypad or press
“CH.SCAN” key from remote control unit
to rescan for available channels when
necessary.

1.8.4 Mobile DTV EPG

While Mobile DTV OSD Menu is up,
press “ ” key to show mobile channels
information. Use key to select and
OK key to view that program.

27

2. Media Formats Supported

MiTV-Mobile7 can play back various formats of media files. The tables below
list all supported Video and Audio file formats.

2.1 Supported Video Formats

File

Container

Video

Decoder

Max.

Resolution

Max.

frame/sec

Max.

Mbit/sec

Extention

*.avi AVI

Divx 3.11 720P 30 20Mbps

Divx 4.x 720P 30 20Mbps
Divx 5.1 720P 30 20Mbps

Xvid 720P 30 20Mbps

H.264 BP CIF/QCIF 15/30 500kbps

H.264 MP not support

H2.64 HP not support

MPEG-4 SP 720P 30 20Mbps

MPEG-4 ASP 720P 30 20Mbps

Motion JPEG 720P/VGA 15/30 15Mbps

*.mp4 MP4

H.264 BP CIF/QCIF 15/30 500kbps

H.264 MP not support

H2.64 HP not support

MPEG-4 SP 720P 30 20Mbps

MPEG-4 ASP 720P 30 20Mbps

Motion JPEG 720P/VGA 15/30 15Mbps

*.mpg

*.mpeg

*.vob

PS

MPEG1

(Program

Stream)

720P 30 20Mbps

MPEG2

(Program

Stream)

720P 30 20Mbps

*.ts

*.trp

.m2ts

TS

MPEG2

(Transport

Stream)

not support

28

H264

(Transport

Stream)

not support

*.mov MOV

H.263 720P 30 20Mbps

H.264 BP CIF/QCIF 15/30 500kbps

H.264 MP not support

H2.64 HP not support

MPEG-4 SP 720P 30 20Mbps

MPEG-4 ASP 720P 30 20Mbps

*.mkv MKV

H.264 BP not support

H.264 MP not support

H2.64 HP not support

MPEG-4 SP not support

MPEG-4 ASP not support

*.flv FLV Sorenson not support

*.rm

*.rmvb

RMFF

RV8 not support
RV9 not support

Where:
sub-QCIF: 128×96 64 48
QCIF: 176×144 88 72
CIF: 352×288 176 144
DCIF: 528×384
4CIF: 704×576 352 288（so called D1 type）
16CIF: 1408×1152 704 576

2.2 Supported Audio Formats

File Bit Rate Sampling Rate

LPCM(.wav) 16k ~ 384kbps

8k/11.025k/12k/16k/

22.05k/

24k/32k/44.1k/48k

MS/IMA

ADPCM (.wav)

6k ~ 48kbps

8k/11.025k/12k/16k/

22.05k/

24k/32k/44.1k/48k

29

MP3

MPEG-1 Layer III: 32 40 48 56 64

80 96 112 128 160 192 224 256

320

MPEG-2 layer III: 8 16 24 32 40 48

56 64 80 96 112 128 144 160

MPEG2.5 layer III: 8 16 24 32 40

48 56 64 80 96 112 128 144 160

8k/11.025k/12k/16k/

22.05k/

24k/32k/44.1k/48k

MPEG1

Layer1,2

Layer1:

32,64,96,128,160,192,224,256,288

,320,352,384,416,448

Layer2:

32,48,56, 64, 80,

96,112,128,160,192,224,256,320,

384

8k/11.025k/12k/16k/

22.05k/

24k/32k/44.1k/48k

AC3 not support

AAC ~288kbps per channel

8k/11.025k/12k/16k/

22.05k

/24k/32k/44.1k/48k

HE-AAC ~288kbps per channel

8k/11.025k/12k/16k/

22.05k/

24k/32k/44.1k/48k
WMA7 5k ~ 384k bps 8k ~ 48k
WMA8 5k ~ 384k bps 8k ~ 48k

WMA9 STD 5k ~ 384k bps 8k ~ 48k

CDDA (*.wav) not support

RealAudio8

LBR

6k ~ 96kbps

8k/11.025k/22.05k/

44.1k

DD51 not support

DDPlus not support

LPCM7.1 not support

AMR

4.75, 5.15, 5.9, 6.7, 7.4,

7.95,

10.2 , 12.2 kbps

8K

30

2.3 Supported Image Formats

This LCD TV supports following image formats:

9 JPEG
9 BMP
9 PNG
9 GIF

It also supports animation GIF files, but it can be displayed alone, not for slide
show.

2.4 Current Planned and Available Mobile TV Channels

You can go to the following web site to get the detailed mobile digital channel
information in the United
States: http://www.rabbitears.info/market.php?request=atscmph

31

3. Troubleshooting

1．What should I do if I can not receive any channels?

Please check whether there is any ATSC TV signal in the local area, and make
sure the antenna is securely connected or the telescoping antenna is fully
extracted.

2. What should do I if my TV can not power on?

Press the on/off key again and connect your AC power supply in case the
battery is depleted.

32

Michley/Tivax Limited Warranty to Original Purchaser

Michley/Tivax warrants this product purchased in the USA against defects in
material and workmanship under normal use and service for a period of one
year from the date of retail purchase by the original end-user purchaser.
Products will not be warranted if the serial number is removed or defaced.

This warranty shall be void upon transfer of ownership of this product and is
effective only when used in the United States.

Michley/Tivax agrees to repair or replace this unit at no charge, within the
warranty period, providing that the product is delivered to Michley/Tivax in its
original package or equivalent, fully insured, with all shipping charges prepaid
and a return authorization number listed on the outside of the packaging. A
handling charge of $25 will be applied to any returned product found not to be
defective. To honor this warranty and to ensure the best service to our
customer, Michley/Tivax requires the following information to be included with
the returned unit:

• A copy of the original sales invoice from your vendor.

• Model number & serial number of the unit.

• A detailed description of the problem associated electrical connection

and hardware.

A Return Authorization number can be requested by sending a fax to
650-963-3585 or an email to [e-mail] prior to returning the unit.

This warranty contemplates the owner will reasonably maintain this product
without alteration, negligent use, misuse, or abuse. Furthermore, any
unauthorized alteration of this device without written approval by Michley/Tivax
will void any warranty and the owner's right to operate this device.

This warranty presented above is exclusive and in lieu of all other expressed or
implied warranties. Any warranty applicable to this product is limited to the
period described above. In no event will Michley/Tivax be liable for any special,
incidental, or consequential damage, loss of revenue, or cost of replacement
goods resulting from the use of malfunction of this product to the equipment
system on which it is used. This warranty gives specific legal rights and you
may have other rights that vary from state to state.

33

Michley Electronics Inc. / Tivax

530 Showers Dr., Suite #7-204

Mountain View, CA 94040

Tel. 1-888-33-Tivax (1-888-338-4829)

Fax. [phone]

Web. www.tivax.com

General Information: [e-mail] 1-888-33-Tivax (1-888-338-4829)
Customer Support: [e-mail]

www.tivax.com
