Titgemeyer TIOS ER15 Operating Instructions Manual

L

TITGEMEYER Tb1524GB(1212)1

■

TIOS

®

ER15

Battery-Operated Blind Rivet Tool
Operating Instructions

3Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

Contents

Notes on operating instructions ..................................................................................................4

Warnings, guidelines and actions while operating tool...............................................................5

Identification of rivet tool parts....................................................................................................6

Safety notes.................................................................................................................................7

Basic requirements for handling the rivet tool.............................................................................9

Technical specifications ............................................................................................................10

List of parts ...............................................................................................................................11

Description of rivet tool.............................................................................................................12

Storing / maintaining, cleaning and disposing of rivet tool.......................................................13

Preparing and fitting the rivet tool.............................................................................................14

Operating the rivet tool..............................................................................................................16

Selecting the nose piece............................................................................................................16

Installing the blind rivet.............................................................................................................17

LED display (operating modes) .................................................................................................18

Maintaining the rivet tool ..........................................................................................................19

Cleaning the pulling unit...........................................................................................................19

Maintenance intervals................................................................................................................19

Replacing the pulling unit .........................................................................................................20

Troubleshooting ........................................................................................................................21

Warranty ...................................................................................................................................22

Spare parts list TIOS ER15 / Optional accessories....................................................................23

Declaration of conformity ..........................................................................................................24

Service ......................................................................................................................................26

4 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Notes on operating instructions

Note

Perfected technology

Reading the operating instructions

Actions

Malfunctions

Illustrations and numbering of parts

Table for starting torques

Legislation dictates that the operator must be trained in using electric rivet tools. Upon
request, training courses are available through TITGEMEYER in Osnabrück (Germany).

This rivet tool represents the very latest in technology. To ensure the safe operation of this
professional tool please follow all the safety recommendations.

Please ensure that you read through the operating instructions carefully before operating the
rivet tool for the first time.

Do not carry out any actions or application procedures other than those described in this
operating instruction manual.

If a malfunction occurs, the operator should only try to rectify those sgnalled by the "0"
(operator). All other numeric signals must only be investigated by a certified repairs expert.

All descriptions and parts numbers found in the illustrations refer to the parts list on page 23.

For all thread sizes, a table of starting torques has been provided in the section entitled
“Maintaining the rivet tool”.

5Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Warnings, guidelines and action
to be taken by the operator

Always follow the guidelines and safety instructions. Icons have been used in certain sections
of these operating instructions for added emphasis. Please make a point of memorising the
icons and what they stand for:

Caution! Risk of injury! This icon warns of dangers.

Caution! Damage to materials! This icon warns of actions which could result in the rivet tool

or the blind rivets being damaged.

Note! This icon refers to useful information.

• This bullet (•) highlights each paragraph where you will be required to take action.

Caution! Environmental hazard! This icon warns of possible damage to the environment.

Environ-

mentally

hazardous

This pictograph indicates that you must first have read the operating instructions before
beginning to operate the rivet tool.

6 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

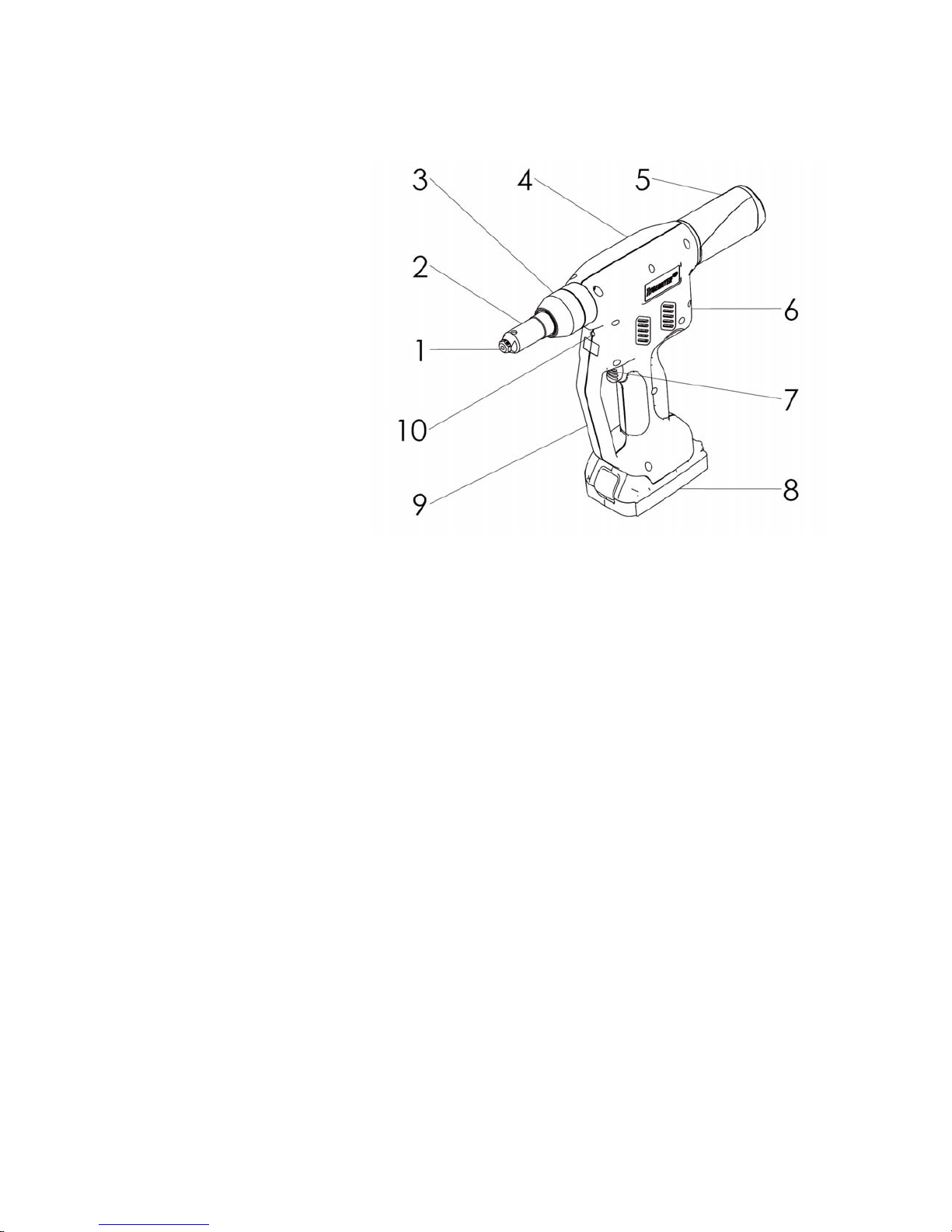

Identification of rivet tool parts

A Name plate
B Serial no.

(located underneath the housing ­remove battery!)

C CE mark
D Name of supplier
E LED mode status

Recyclable

CE mark

Dispose of correctly

Keep away from fire

Dry environment

Indoor use only

Protection class II
Extra or double insulation
between electric circuit
and output voltage (with­out equipment earthing
conductor)

Safety isolating
transformer
Short-circuit proof

Labels on the battery and/or
battery-operated tool

7Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Safety notes

Intended use

Foreseeable misuse

Safety notes

The TIOS®ER15 battery-operated blind rivet tool may only be used to install blind rivets, as
described in these operating instructions.
The TIOS®ER15 rivet tool is designed to install standard and cap (sealed end) blind rivets, as
well as high-strength blind rivets with a rivet shank ø of 3.0 – 6.5 mm made from any material
up to a max. installation force of 15 kN.
This rivet tool may only be used as a manually operated tool!
The customer is solely responsible for any modifications made to the rivet tool.
The safety notes contained in these operating instructions must be strictly observed at all times.

Never throw or drop the rivet tool!

This tool has been made to the very latest engineering standards and in keeping with the
approved safety guidelines. It can be operated safely provided that the safety notes and intend­ed use are observed and that the appropriate personal protective equipment is worn.

• Danger, electrical tool:

Only allow trained electricians to carry out work on the rivet tool. Check the electrical equip­ment at regular intervals. Repair any loose connections and damaged leads immediately.

• Observe the corresponding accident prevention regulations that apply in your

country.

• Never point the tool at anyone while it is in use.

• Keep your work area clean, tidy and well-lit. Bad housekeeping and poorly-lit work
areas increase the likelihood of accidents.

• Never use electrical tools in explosion-prone areas where combustible liquids,
gases or dust particles are found. Electrical tools generate sparks which can ignite dust or
vapours.

• Take environmental conditions into account. Never expose electrical tools to rain.
Never use electrical tools in humid or moist environments.

• Only use the rivet tool within its specified range of performance. Overloading it may result in
the tool being damaged or risks to your safety.

• Always wear protective glasses. It is recommended that you wear suitable personal
protective equipment, such as protective clothing, non-slip safety shoes, a hard hat and ear
protection, depending on what electrical equipment is being used.

• Remove the battery before changing the accessories or storing away the tool.
This precautionary measure will ensure that the electrical tool does not start running unin­tentionally.

• Repairs must only be performed by trained personnel using original spare
parts which can be obtained from Gebr. Titgemeyer GmbH & Co. KG. This will
ensure that the tool remains to use and will extend the lifetime of the tool.

• Only use the designated batteries in the electrical tools.
The use of other batteries may result in injury or fire.

• Only charge the batteries in the chargers recommended by the manufacturer.
The battery may be destroyed if inserted into an unsuitable charger.

• Whenever possible, always charge the lithium-ion battery immediately after
using and never store it when empty. The battery will keep its capacity constant for a
longer time (max. loss per year: 5%) if stored separately from the tool and charger.

8 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Safety notes

(continued from Page 7)

• For safety reasons, the lithium-ion battery should not be left in an active
charger for longer than 36 hours. Whenever possible, remove the battery from the
charger as soon as it is fully charged.

• Whenever possible, always remove the battery from the device before trans-
porting. This will prevent you from unintentionally switching the device on and also pre­vent the battery from running down very low.

• Never expose the lithium-ion battery to high temperatures (+ 50 °C) or direct
sunlight. If the battery becomes hotter than 50 °C while in operation (charging or dis­charging), immediately remove it from the charger or rivet tool.

• Keep unused batteries away from paper clips, coins, keys, nails, screws and

any other small metal objects that might bridge/short-circuit the contacts.
Never open or short-circuit the battery. Short-circuiting the battery contacts may

result in burns, fire or explosions.

• Batteries may leak when subjected to extreme use or temperatures. Keep your
skin and eyes away from a leaking battery at all times. The liquid contained in a battery is
corrosive and may cause chemical burns in human tissue. Should the liquid come into
contact with the skin, immediately wash it off with soap and water and then with lemon juice
or vinegar. If the liquid comes into contact with the eyes, rinse with water for 10 minutes and
then seek the advice of a doctor immediately.

• Never charge the battery in temperatures BELOW 10 °C or ABOVE 40 °C.

• The charger must never be connected to a step-up transformer, generator or DC socket.

• Ensure that the ventilation slots on the charger are never covered or clogged.

• Never store the electrical tool or battery in areas where temperatures exceed 50 °C.

• Never store the battery in a box or enclosed container. The battery must be stored in a
well-ventilated area.

• No changes, modifications or alterations may be made to the tool without the manufacturer's
permission. No conversions may be performed without first being approved in writing by
Gebr. Titgemeyer GmbH & Co. KG. Any parts not in fully-working order must be replaced
without delay.

9Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

WARNING!
Risk of physical injury

CAUTION !
Risk of personal injury
or damage to the tool

Maintenance and care

Service instructions

Note

EU Declaration of Conformity

Warranty

• Attach the spent mandrel container before using the tool. Failure to do so will cause the
mandrels to shoot out on breaking which may result in injury.

• Check that no parts of the tool are damaged. All damaged parts must be repaired before
being used. Working with damaged tool parts increases the likelihood of injury.

• If working at elevated heights, always wear a safety harness. Avoid dropping rivets and
avoid dropping the tool at all costs. Failure to do so may result in injuries and significant
damage.

• First remove the battery before cleaning the tool or performing any general maintenance
work.

• Keep your face away from the ventilation slots at all times.

• Avoid substances such as lubricating oil and lubricating grease coming into contact with
the skin. These substances can cause inflammation of the skin. If they do come into contact
with the skin, carefully rinse the affected area to remove them.

• Avoid working in unsecured positions, as you could fall or injure yourself.

• Maintain the rivet tool with great care. Follow the operating instructions when performing
maintenance and cleaning work. Keep the handle free from dirt and grease.

• Use the tool with care and be sure to operate it correctly. Ensure that the surrounding
conditions are right when working with this tool. Always maintain full concentration during
your work.

• Only the blind rivets specified in these operating instructions may be used.

The operator may only perform the maintenance and repair work described in these operating
instructions.

Any maintenance and repair work not described in these operating instructions must be
performed by trained personnel who have undergone a corresponding training course with
TITGEMEYER. See the address on the last page for further information on training courses.

The manufacturer accepts no liability for damage resulting from improper repairs or the use
of non-original spare parts.

The TIOS

®

ER15 rivet tool has been manufactured and tested in accordance with the European

directives. The Declaration of Conformity can be found on the next to last page.

Any improper use of this rivet tool, which results in the rivet tool being damaged, will render
the warranty void.

Basic requirements for handling the rivet tool

10 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Technical specifications

TIOS®ER15 rivet tool

Rapid charger
TIOS

®

LIO2830 Single Charger

TIOS

®

LIO1816 battery

TIOS

®

LIO1833 battery

(not supplied)

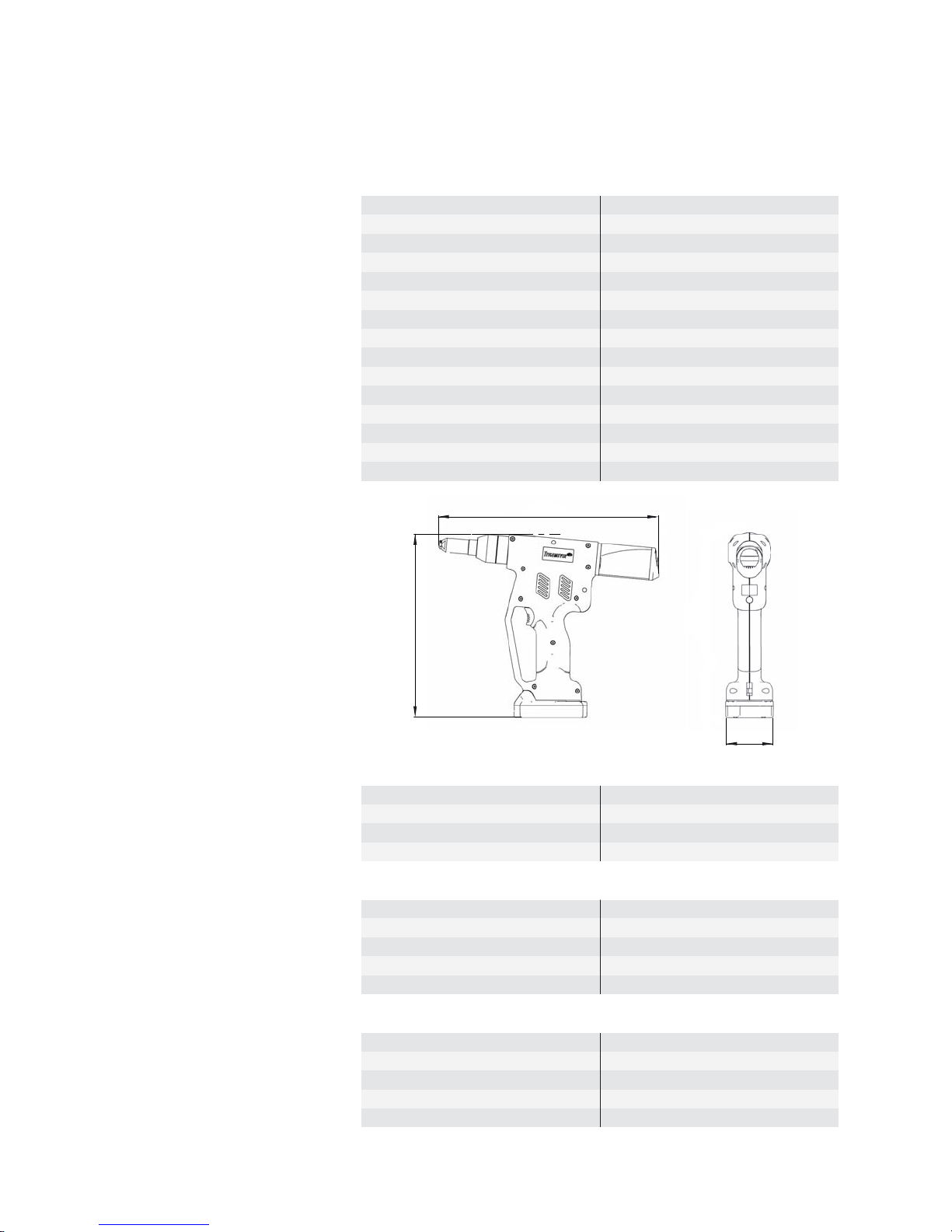

Range of application
Installation force
Installation stroke
Installation speed
Weight
Height
Width
Nose cap ø
Nose cap length
Battery
Motor
Workspace light
Application-pressure control
Vibration DIN EN 60745-1
Noise emissions LPA

Blind rivet ø 3.0 mm to ø 6.5 mm, high-strength

15 kN

max. 25 mm

max. 22 mm/sec.

2.2 kg (1.9 kg without battery)
290 mm
348 mm

22.5 mm
58 mm

18 V lithium-ion

Brushless

LED
Yes

an < 2.5 m/s2

< 75 dB(A), short-term > 80 dB(A)

Input voltage
Output voltage
Charging time
Weight

230V / 50Hz

18V

approx. 60 min.

0.55 kg

Power supply
Capacity
Cell type
Number of cells
Weight

18 V Li-Ion

1.65 Ah

lithium-ion manganese

5

0.33 kg

Power supply
Capacity
Cell type
Number of cells
Weight

18 V Li-Ion

3.3 Ah

lithium-ion manganese

5

0.57 kg

348

290

74

11Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Scope of delivery 1. 1 battery powered tool for blind rivets TIOS

®

ER15

2. 1 battery TIOS

®

LIO1816

3. 1 TIOS®LIO2830 battery charger

4. 1 spent mandrel collector

5. Instruction manual

6. Nose piece ø 4,0 / ø 5,0 / ø 6,0 / ø 6,4 mm (nose piece ø 3,0 available as an optional extra)

12 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Required tools

1. Nose piece

2. Nose cap

3. Lock nut

4. Housing

5. Spent mandrel collector

6. Status LED

7. Trigger

8. TIOS

®

LIO1816 battery

9. Hand guard

10. LED light

You will need the following tools to perform all the adjustments, care and maintenance work.

Tools:
– Open-end spanners: SW12 and SW14

Description of rivet tool

13Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Storing the rivet tool

Until used for the first time

Longer storage after use

Disposing of the
rivet tool

Maintaining and cleaning
the rivet tool

Caution

Important

If you do not need to use the rivet tool immediately, please store it in its original packaging in
a dry, dust-free place.

Clean the rivet tool (see “Maintaining and cleaning the rivet tool”).
Remove the battery whenever the rivet tool is not in use.
If you do not intend to use the battery for a lengthy period of time, fully charge the battery
and then store in a dry, dust-free place.
Store the rivet tool in a dry, splash-proof place.
Store the rivet tool in a well-ventilated room that is well-protected from heavy dust.
Ensure that no aggressive chemicals or vapours are present in the storage area.
Never store the electrical tool or battery in areas where temperatures exceed 50 °C.

Dispose of the rivet tool components in the proper manner. Neither the rivet tool nor its
individual parts should be mixed with household waste. They should be disposed of at a
special collection centre for electronic waste.
Do not dispose of the battery as solid waste. It should be taken to a battery recycling plant
or returned to the manufacturer for disposal.

Risk of injury due to improper care! All maintenance, care and service work on rivet tools
must be conducted by suitably trained personnel. If the tool is used as intended, the operator
should be at no risk. The operator may only carry out the work described in these operating
instructions.
Risk of injury due to falling rivet tool!

Danger of material damage due to corrosion!
Do not use any aggressive cleaning agents or flammable liquids to clean the tool!
Do not spray any cleaning agents, solvents or readily flammable substances into the vents
or openings in the housing.

The following tasks are recommended:
Clean the rivet tool and check for any mechanical faults.
If the rivet tool is to be stored for a longer period, first clean the tool and then lightly grease
all the exposed metal components (see “Maintenance intervals”).

Environ-

mentally

hazardous

14 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Initial setup

Application-pressure
control

Mandrel container

Charging battery

Description of LED status
on the charger

1. Read the operating instructions and keep in a safe place.

2. Perform a visual inspection of the devices to check for defective or loose parts
(damage in transit).

3. Plug the charger to the mains.

4. Insert the battery into the charger (check the display!).

5. Charge the battery (approx. 60 min).

6. Attach the spent mandrel container. To do this, rotate the container about a quarter turn.
Empty the container and then reattach as and when required.

7. Insert the battery into the rivet tool until you hear an audible “click”. (To remove the battery,
press the catch downwards and pull the battery forwards).

8. Press the start trigger.

9. The rivet tool is now ready for use.

• Note:

The tool is operated by means of application-pressure control. Apply a little pressure to the
pulling unit until it moves slightly. Now press the start trigger.

• Note:

A magnetic contact switch is installed on the mandrel container. If the container has not
been fitted or if the contact is not closed, the tool will not operate.

Left LED

Preparing and fitting the rivet tool

Right LED

Battery charged

Defective battery

Battery too hot
or too cold

Charging battery

Mains

Defective
charger

15Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Inserting the battery

Emptying the
mandrel container

• Note:

An audible “click” will be heard if the battery is properly inserted.

• Note:

A magnetic contact switch is installed on the mandrel container.

16 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Operating the rivet tool

Caution

Caution

Selecting the nose piece

Note

Important

Risk of injury due to flying rivet heads! For this reason, no blind rivets should be loaded when
checking the rivet tool. Always wear protective glasses.

Risk of injury due to discharging mandrel! Only use this tool with an undamaged spent
mandrel container. And always ensure that the container is correctly in position.

To install different sizes of blind rivet (rivet shaft ø 4.0 – 6.5 mm) you can change the nose
piece on the rivet tool.
Use the SW12 and SW14 open-end spanners.

If the nose piece is firmly attached, try clamping the rivet tool in a vice and then loosening
the nose piece. Before clamping the rivet tool in a vice, remember to place a soft material
(aluminium/wood) around it first.

Only use the nose piece that matches the blind rivet you are going to use. Failure to do so may
damage the rivet tool. The nose piece should screw in by hand. Do not apply force as this may
damage the tool. Do not cross thread or use a nose piece with a damaged thread. You will
need to overcome the spring action on the jaws.
The max. mandrel length (after breakage) must not exceed 62 mm.

Required tools: SW12 and SW14 open-end spanners.

Description
TIOS® ER15 3.0
TIOS® ER15 4.0
TIOS® ER15 5.0
TIOS® ER15 6.0
TIOS® ER15 6.4

Rivet shaft ø mm

3.0 / 3.2

4.0

4.8 / 5.0

6.0 / 6.4

6.4 high-strength

Part No.

352 200 103 (optional)

352 200 104
352 200 105
352 200 106
352 200 107

17Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Installing the blind rivet

What to remember!

Important

Important

Note

Damage to materials! Always hold the rivet tool at right angles (90°) to the area where you
want to install the blind rivet nuts. If held at another angle, the rivet will not install correctly.

Damage to materials! Only use the nose piece that matches the blind rivet you are going to
use! Using an incorrect nose piece can damage both the jaws and the nose piece.

For details on hole diameters and clamping areas, please refer to the specifications in the rivet
manufacturer's catalogue.

1. Insert the wire rivet mandrel into the nose piece.

2. Insert the blind rivet into the pre-drilled hole.

3. Press the rivet tool firmly against the component (pressure-sensitive control).

4. Press the trigger to initiate and maintain the installation stroke.

5. Release the trigger.

6. Tilt the rivet tool so the spent mandrel falls in to the container.

18 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

LED display (operating modes)

The display is located at the back of the housing, below the spent mandrel container.
The following statuses can be displayed on the LED display when the tool is in operation:

Description of decal:
LED status for rivet tool

Replace or charge battery

Malfunction: Defective charger

LED display

Lighting LED comes on briefly;
LED display briefly turns red then green

LED display turns green

LED display flashes green

LED display flashes orange

LED display remains orange

LED display flashes red

LED display remains red

Description of status
Function test after inserting the battery
and pressing the trigger.

Mandrel container not or not correctly
fitted, or pressure-sensitive switch not
pressed.
Pressure-sensitive switch must be
pressed before each installation.

Battery almost flat but still operable.

Battery flat, no longer operable.

Malfunction: Current overload due to
excessive break-load on the mandrel or
overheated tool (55 °C)

Mandrel container not or not correctly
fitted.
Malfunction: The rivet tool is out of
order and no longer works.

Action

Fit mandrel container correctly and
press the pressure-sensitive switch.

Release the pressure-sensitive switch.
Next rivet installation can begin.

Replace or charge battery.

Replace or charge battery.

Wrong blind rivet used, or pulling unit
is dirty or damaged. Service the pulling
unit or allow the tool to cool down.

Fit mandrel container correctly.

Contact your supplier.

19Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Maintaining the rivet tool

Caution Risk of injury due to improper care! All maintenance, care and service work on rivet tools

must be conducted by suitably trained personnel. If the tool is used as intended, the operator
should be at no risk. The operator may only carry out the work described in these operating
instructions.

1

2

3

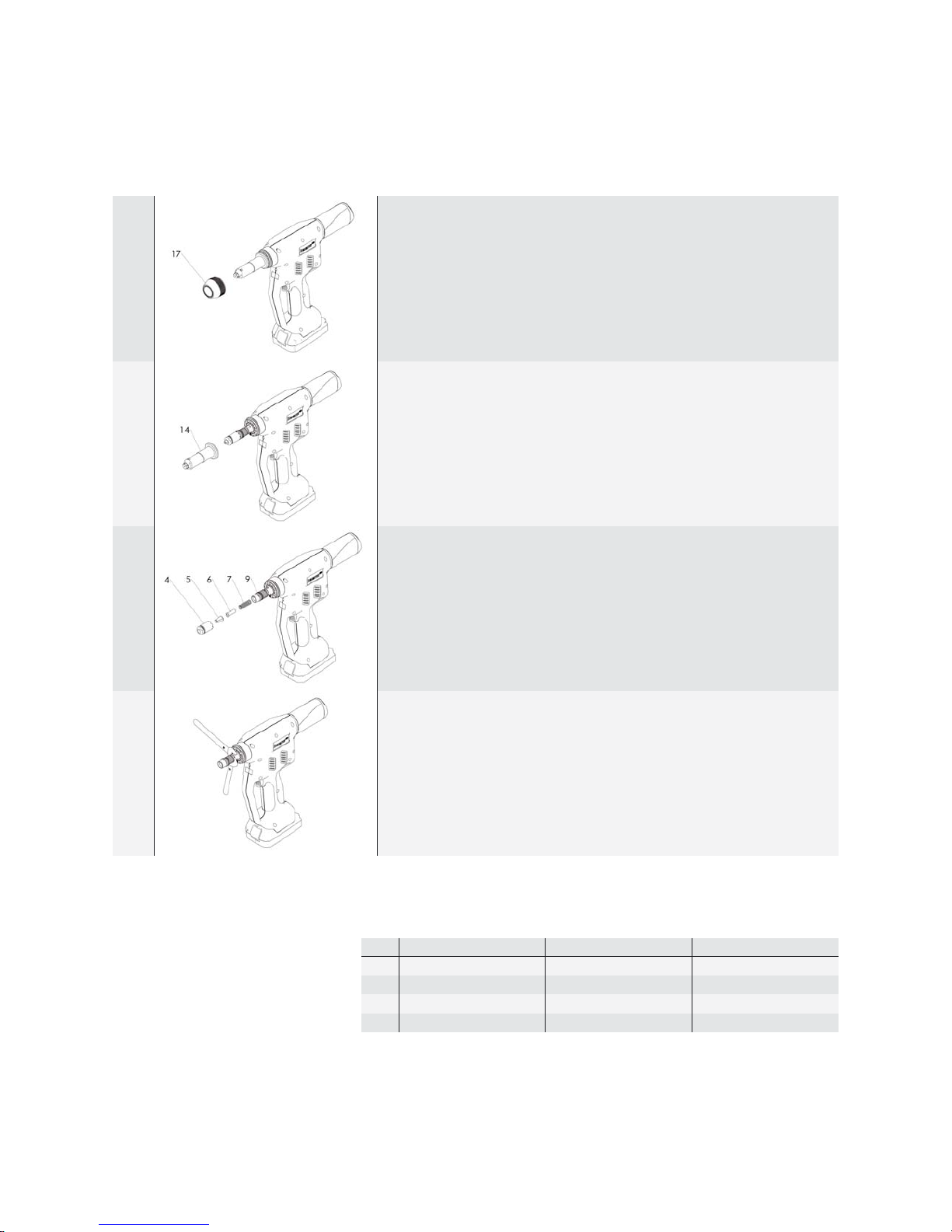

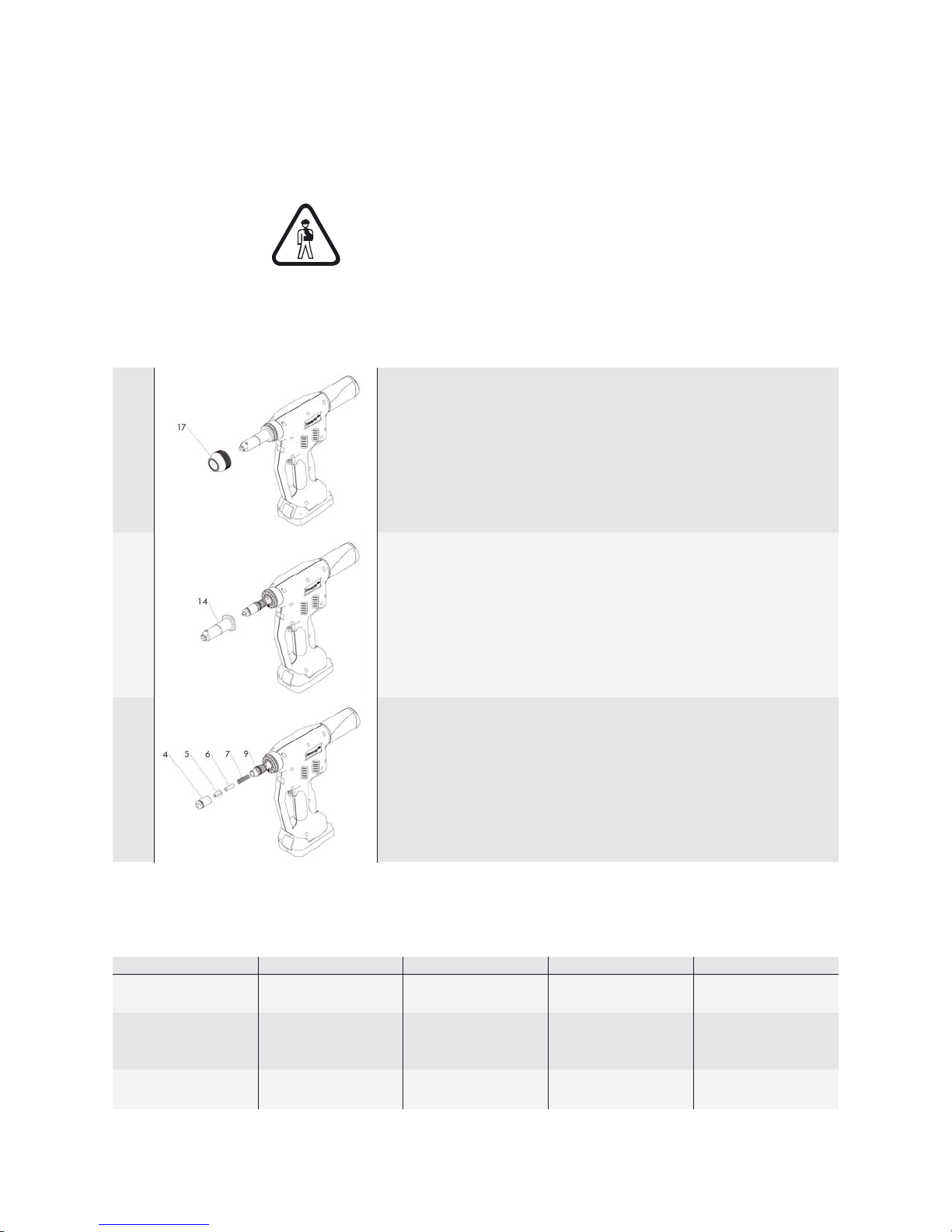

Pull the nose cap (14) forwards and remove.

Remove the battery before beginning any work on the rivet tool.

Loosen the lock nut (17) and remove by pulling it forwards.

Pull the catch (9) backwards.

Remove the jaw case, jaws, ram and spring.

Clean all the parts thoroughly using a cleaning rag or compressed air.

Reassemble following the above steps in reverse order.

Before reassembly, lightly grease the jaws with an acid-free oil.

Maintenance intervals

Interval
Daily before each use

Daily before each use

Daily before each use

Activity
Check for cracks

Check nose piece for rivet dia­meter as well as wear and tear

Check the jaws and jaw case

How?
Visual inspection

Visual inspection

Function check

Who?
Operator

Operator

Operator

Remarks

Replace nose piece if necessary

Clean or replace jaws if
necessary

Cleaning the pulling unit

20 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Replacing the pulling unit

1

2

3

4

Pull the nose cap (14) forwards and remove.

Remove the battery before beginning any work on the rivet tool.

Loosen the lock nut (17) and remove by pulling it forwards.

Pull the catch (9) backwards.

Remove the jaw case, jaws, ram and spring.

Loosen the jaw case body using two SW14 open-end spanners.

Insert the new jaw case body and tighten using two SW14 open-end spanners.

Reassemble following the above steps in reverse order.

Before reassembly, lightly grease the jaws with an acid-free oil.

Description
Nose piece
Lock nut
Spacer
Spacer sleeve

Item

3

17

8

12

Thread

M10
M40
M11
M11

Torque MA in Nm

25 Nm

Hand-tight

30 Nm
30 Nm

Table for starting torques The table below shows the torque values that must be adhered to for the specified threads.

21Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Troubleshooting

Caution

Important

Note

Work that may be performed by the operator is highlighted by the letter "O".
Work that may be performed by the trained personnel is highlighted by the letter "T".

Risk of accident!
Remove the battery at all times until the fault has been detected.

Damage to materials! Work that is highlighted by the letter "T" may only be performed by
trained personnel. Submit the rivet tool to Maintenance.
Only trained personnel may replace original parts.

A full function test must be performed each time a fault is repaired.

Malfunctions
Rivet does not install

Mandrel is not rejected

Battery does not charge in charger

Cause
Flat battery (LED flashes orange)
Mandrel container not correctly attached
(LED flashes green)
Pressure-sensitive switch not pressed (LED flashes green)
Loose jaw case or jaws are defective
Jaws / jaw case dirty
Slide pipe dirty
Mandrel too large for nose piece
Mandrel wedged inside jaws

Defective battery (right LED flashes red)
Defective charger (left LED flashes red)
Charger not connected to mains (left LED dead)

Remedies

O Replace battery
O Attach container

O Press nose piece up to component
O Replace jaws + jaw case if necessary
O Clean
O Clean
O Replace nose piece
O Loosen nose piece, remove Lock nut and cap.

Loosen jaw case, replace jaws if necessary

T Replace battery and dispose of used one properly
T Replace charger and dispose of used one properly
T Check the power supply on the charger

22 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Warranty In addition to the statutory warranty period, TITGEMEYER provides a further 6 months'

warranty starting from the date of purchase (invoice required for proof of purchase).

The following consumables are excluded from the warranty:
– Jaws
– Nose piece
– Jaw case
– Spent mandrel container
– Pressure spring
– Jaw slider

23Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

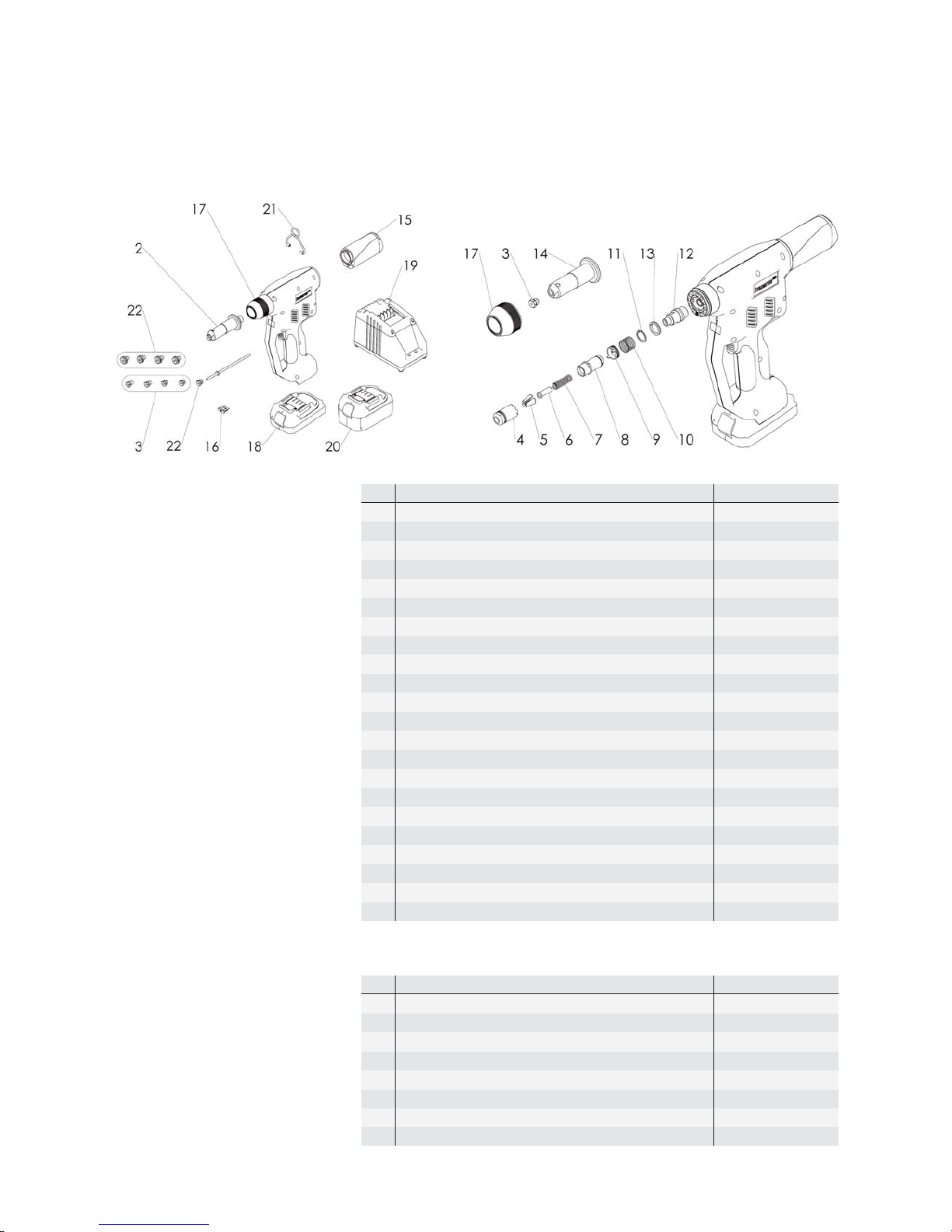

Spare parts list for TIOS®ER15

Item

2
4
5

3.1

3.2

3.3

3.4
6
7
8
9

10
11
12
13
14
15
16
17
18
19

Description
TIOS® ER15 battery-operated blind rivet tool, complete
1 complete pulling unit = 60 mm
Jaw case
Jaws
Nose piece ø 4.0 mm
Nose piece ø 5.0 mm
Nose piece ø 6.0 mm
Nose piece ø 6.5 mm
Jaw slider
Pressure spring
Spacer
Catch
Pressure spring catch
Snap ring
Jaw case body
Deflector
Nose cap
Spent mandrel container
Fuse, 30A
Lock nut
Insertable battery, TIOS LIO1816 1.65Ah
Single charger, TIOS LIO2830

Part No.

352 200 000

352 200 100
352 200 110
326 583 000
352 200 104
352 200 105
352 200 106
352 200 107
352 200 111
352 200 112
352 200 113
352 200 114
352 200 115
352 200 116
352 200 117
352 200 118
352 200 119
352 200 300
352 200 301
352 200 302
352 200 900
352 200 910

Optional accessories

(on request)

Item

20
21
22

22.1

22.2

22.3

22.4

22.5

Description
Insertable battery, TIOS LIO1833 3.3 Ah
Complete fixing kit
Nose piece ø 3.0 mm with adapter sleeve
Rivet-holding nose piece ø 3.0 mm
Rivet-holding nose piece ø 4.0 mm
Rivet-holding nose piece ø 5.0 mm
Rivet-holding nose piece ø 6.0 mm
Rivet-holding nose piece ø 6.5 mm

Part No.

352 200 901
352 200 921
352 200 103
352 200 950
352 200 951
352 200 952
352 200 953
352 200 954

24 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

EU Declaration of Conformity

Authorised by:

Description of device:

Name of model:

Applied norms and directives:

We hereby declare that battery charging device stated below meets the requirements of the
specified norms and directives. Any modification to this device that is not agreed in advance
and approved in writing will result in this Declaration of Conformity becoming invalid. (This
Declaration refers to the condition of the device at the time it was marketed).

Company: Gebr. Titgemeyer GmbH&Co.KG
Location: Hannoversche Str. 97

49084 Osnabrück (Germany)
Tel.: [phone]
Fax: [phone]

Rapid charger for charging lithium-ion batteries
18V 1.65Ah / 18V 3.3Ah

TIOS®LIO2830 Charger

2006/95/EC Low Voltage Directive

2004/108/EC Electromagnetic Compatibility (of electronic or electrical products)

EN 60335 / EN 55014 / EN 55014-2:98 / EN 61000-3-2 + A12:97, A1 + A2:99

G. Chr. Titgemeyer
Managing Director Date: 11.01.2012

25Phone: [phone] Fax: [phone] E-mail: [e-mail]1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

EU Declaration of Conformity

Authorised by:

Description of device:

Name of model:

Applied norms and directives:

Party authorised to compile the
relevant technical documentation:

We hereby declare that the blind rivet tool stated below meets the requirements of the specified
norms and directives. Any modification to this device not agreed in advance and approved in
writing will result in this Declaration of Conformity becoming invalid. (This Declaration refers
to the condition of the device at the time it was marketed).

Company: Gebr. Titgemeyer GmbH&Co.KG
Location: Hannoversche Str. 97

49084 Osnabrück (Germany)
Tel.: [phone]
Fax: [phone]

Battery-operated blind rivet tool

TIOS®ER15

2006/42/EC Machinery Directive

2004/108/EC Electromagnetic Compatibility (of electronic or electrical products)

EN 55014 Electromagnetic compatibility – Requirements for household appliances, electric
tools and similar appliances.

DIN EN 60745 Hand-held electrical power tools

Gebr. Titgemeyer GmbH&Co.KG
Head of Engineering Team
MSc(GB), Dipl.-Ing (FH) B.Thünemann

Hannoversche Str. 97
49084 Osnabrück (Germany)

G. Chr. Titgemeyer
Managing Director Date: 11.01.2012

26 Phone: [phone] Fax: [phone] E-mail: [e-mail] Tb1524GB(1212)1

TIOS®ER15 Battery-Operated Blind Rivet Tool

Operating Instructions

Service

TIOS®/ TIOS Control

®

Should you encounter any difficulties ordering spare parts or if you would like to learn more
about available training courses:

GEBR. TITGEMEYER GmbH & Co. KG
Hannoversche Strasse 97 • 49084 Osnabrück (Germany)
P.O. Box 43 20 • 49033 Osnabrück (Germany)
Tel. [phone] • Fax [phone]
E-mail: [e-mail]
Web: www.titgemeyer.com

Registered trademarks of TITGEMEYER Gesellschaft für Befestigungstechnik.

The technical specifications contained in this brochure are approximate and no guarantee is given as to their accuracy! Designs are subject to change. Our design proposals are non-binding!

Gebr. TITGEMEYER GmbH & Co. KG

Hannoversche Strasse 97
(Navigation: Hettlicher Masch 2)
49084 Osnabrück, Germany
P.O. Box 43 20
49033 Osnabrück, Germany
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
www.titgemeyer.com
