Titan Pro 15 HP Operators Manual And Parts Lists
1
THE TITAN PRO 15 HP PETROL CHIPPER/SHREDDER/MULCHER
OPERATORS MANUAL AND PARTS LIST
Spares & Support: 0845 6800 962
Important: Please fully read and understand this manual before using
this machine paying particular attention to the safety instructions.
2
CONTENTS
SAFETY INSTRUCTIONS & WARNING
LABELS
3-4
ASSEMBLY 5-9
FUEL & OIL 10
OPERATION
1011
MAINTENANCE & STORAGE
1113
EASY START UP GUIDE
1416
SPECIFICATIONS
17
PARTS DIAGRAM & LIST
1819
EC DECLARATION OF CONFORMITY
20
3
SAFETY INSTRUCTIONS
Read and understand this owner’s manual and labels that are affixed to the chipper
/shredder. Learn the chippers applications and limitations as well as the specific
potential hazards. Please retain these instructions for future reference.
Use sturdy footwear also eye and ear protection, wear heavy duty
gloves.
Do not operate the machine if you are tired, ill or under the
influence of alcohol or drugs.
Do not smoke when using the chipper/shredder and use caution
when you are handling fuel. We recommend that you re fuel the
machine at least 3 Metres away from where you wish to work in
case any split fuel ignites when starting the engine. Always ensure
the fuel cap in tight and correctly fitted before starting.
Ensure bystanders, children or pets are at least 15 meters away
when starting the machine or chipping.
Keep the operator area clear of other objects.
Examine the machine to ensure its in good condition, check all the screws, nuts
and other fasteners are properly secured and the screen is in place.
If the fuel tank needs to be drained, it should be done outdoors.
Be aware of the hot exhaust, when the machine is in operation touching the
exhaust can cause burns.
Keep a proper balance and footing at all times. Do not over reach. Never stand
at a higher level than the base of the machine when feeding material into it.
Keep your face and body away from the feed intake opening.
Do not allow hands or any other parts of the body or clothing inside the feed
hopper, side chute, discharge chute, or other rotating parts.
4
Make sure your work area is clear and the machine is on level ground before
starting the machine; do not operate in an enclosed area.
Ensure that the plastic protection cover on the top hopper is intact and closed
when the chipper shredder is running to avoid any debris coming out.
NEVER put your hands into the hopper or side chute to push
material through. If necessary use a wooden stick.DO NOT use a
metal implement.
Important additional safety instructions for machine with bagging attachment
Before attaching or removing the bag, the engine should be turned off.
Cover the discharge opening with a fabric bag and tighten the cord in the mouth
of the bag. When the machine is working, all the chips are collected in the bag.
Empty bag when full
Wood Shredder operation
Never attempt to move or clear any blockage in the machine whilst
the engine is still running.
Please recycle the cardboard packaging that the chipper was
packed in.
WARNING LABELS
5
ASSEMBLEY
Unpack and check contents.
Remove all the items from the box.
Some items are stored in the hopper for ease of Transport. Be sure to remove all
loose parts from Hopper, by removing M8 Flange bolts and lifting hopper lid.
Photo1&2
1
Make sure Hopper is empty before securing lid on hopper
2
Assembly should be carried out on a clean, level surface with a helper.
1. Take out the body from the box and place it on a level
surface
2. Attaching front foot to the basic machine, see figure 2
6
Figure 2
Remove the nuts from bolts 1, 2,
Remove the bolts and pipe spacer.
Pull Down chute from the TRANSPORT position to the correct
operational position.
Attach front foot 5, to the side plate of the cutting chamber
and align the mounting holes with holes 1, 2.
Put the pipe spacer that was removed in step 1 back in
place. Insert the bolts and secure them tightly.
Please ensure Lower discharge chute is facing towards the ground and is
BELOW the pipe spacer as shown in the photographs in this section

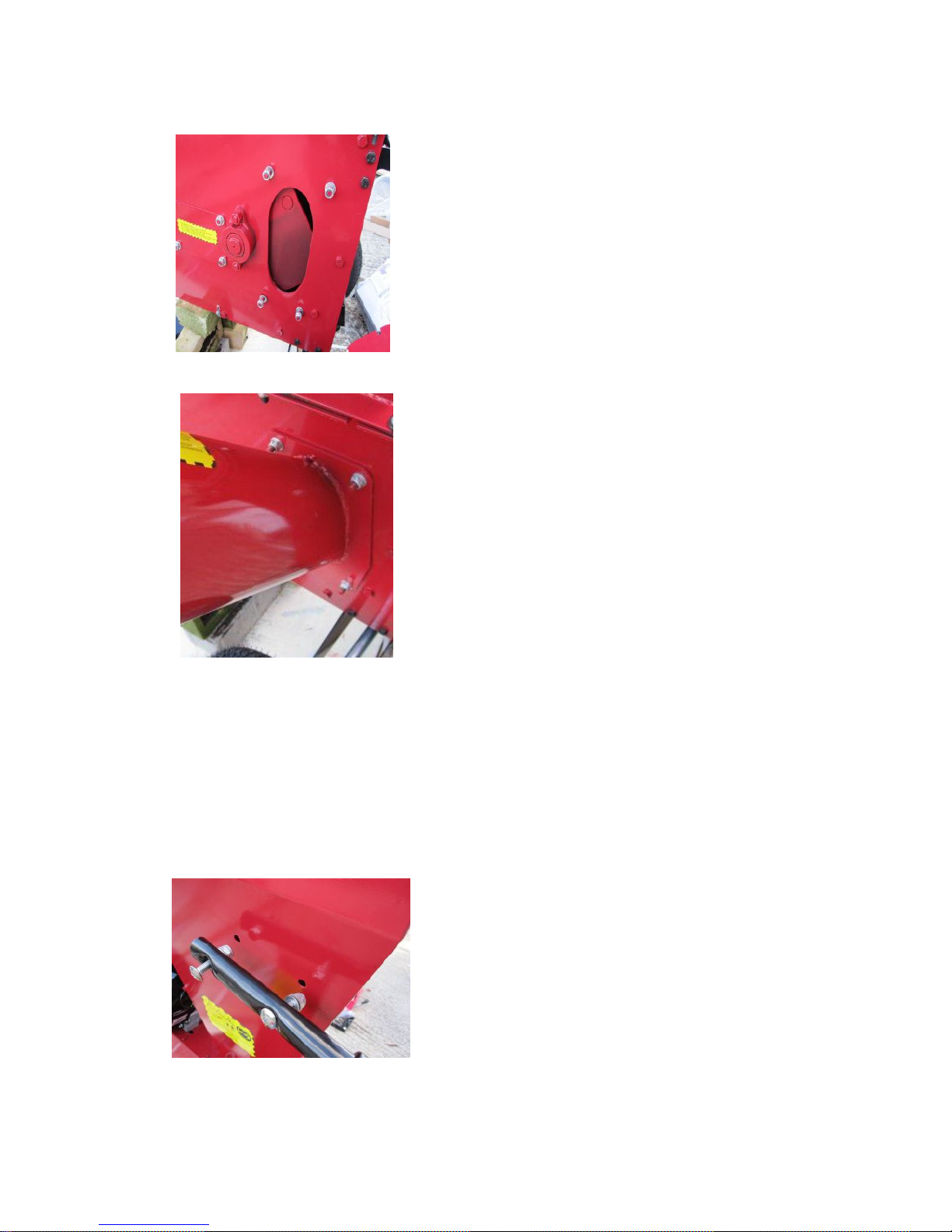

Correct Fitting position of Bottom Discharge Chute
