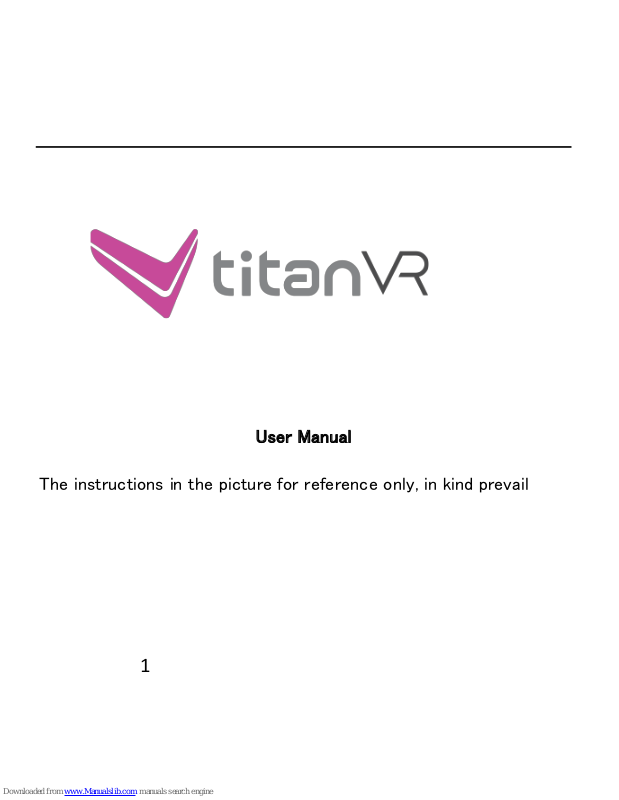

Titan Platform TiTAN VR User Manual

1

User Manual

The instructions in the picture for reference only, in kind prevail

Please read the instructions first

Please read the instructions first

· Please refer to this manual before using VR to ensure safe and
proper use.

• Some languages or content may not be available for certain areas

or networks.

· Read and follow all of the VR settings and operating instructions.

Before starting the virtual reality experience,

Should be adjusted according to the individual circumstances of
each user, and use the configuration software (if available) to
calibrate the non-compliance of this directive may increase the
risk of discomfort.

Please read the instructions first

➢ Do not drop the charger or device, or cause a

collision

➢ Do not disassemble, refit or repair the device, any

changes or modifications to the device, the
manufacturer will not warranty.

➢ Do not allow the conductor connector contact device, such as

liquid, dust, metal filings and pencil.

➢ Do not bite or suck devices, children or animals will choke due to

swallowing small parts.

➢ Please use the manufacturer approved batteries, chargers,

accessories and supplies, will not be responsible for the safety of
the user's use of non - original parts or accessories.

➢ A contact conductor may cause short circuit or corrosion at the

connector and cause an explosion, fire, or damage to the device.

➢ If the device is broken or damaged, do not continue to use, broken

glass may hurt your hands and face.

When cleaning device, please note the following items

·Please use a clean soft cloth or cotton wipe brush device and its lens.

·Do not use chemicals or cleaning agents. Otherwise, it may cause the

casing to fade or corrode.

Please read the instructions first

Special population

If you are pregnant, elderly or suffer from binocular vision
abnormalities, mental illness, poor heart condition or other serious
diseases, we recommend that you consult a doctor before using VR .
Children under 13 should not use VR. Children (at least 13 years old)
using VR should be supervised by adults. Pay attention to the following
symptoms, limit the time of children using VR and make sure that
children take rests during using. Pleas avoid prolonged use.

Getting Started

Packing/package

Check the following items in the packing box：

Getting Started

• VR、USB adapter、micro USB cable, headphone, headband, main

strap and User’s Manual.

• The provided items and available accessories may vary depending

on your region or service provider.

• The provided items are designed for this device only, and may be

incompatible with other devices.

• The appearance and specifications are subject to change without

notice.

• Use only factory approved accessories; use of unapproved

accessories may cause performance problems and failures, which
are not covered by the warranty.

• Whether the accessories are available depend on the manufacturer.

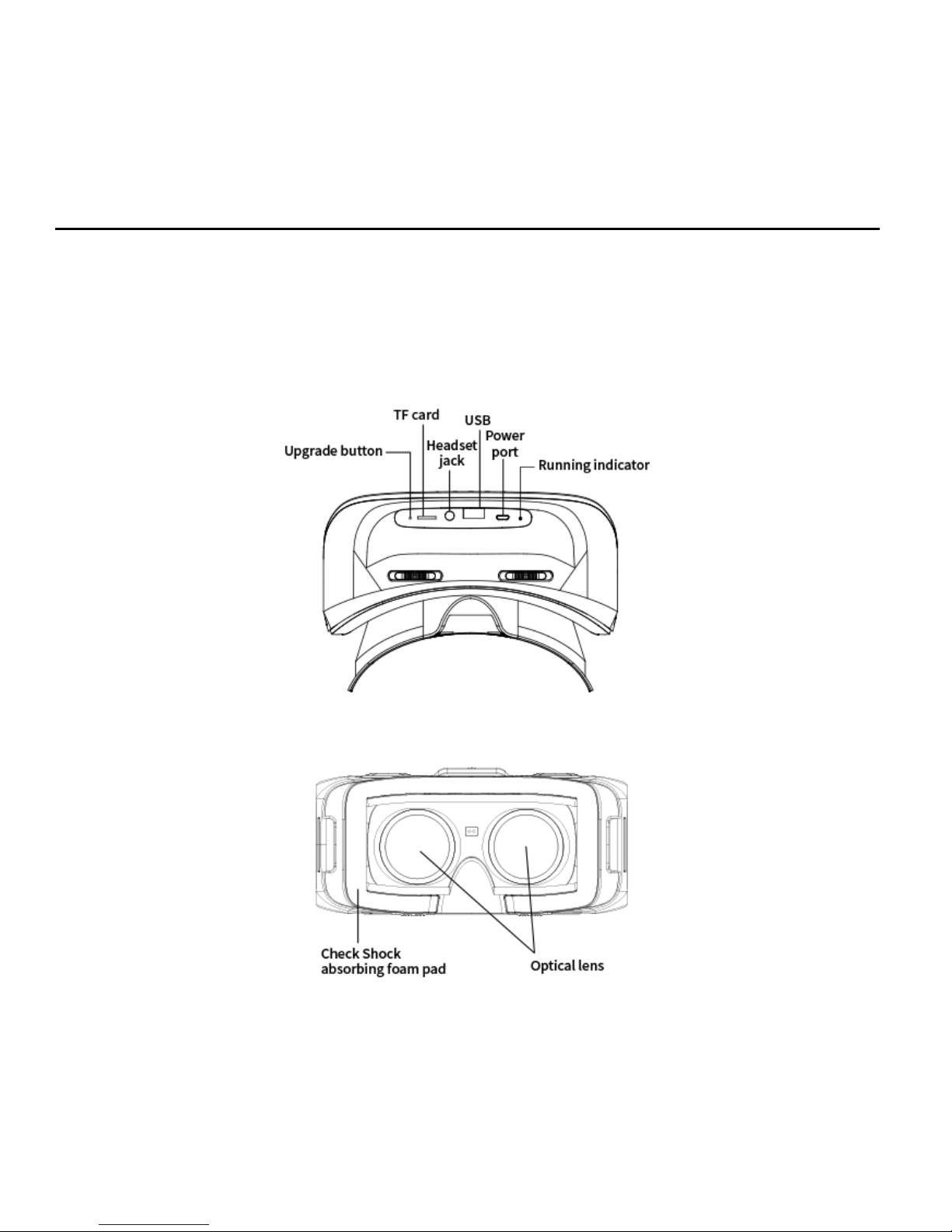

Getting Started

Getting Started

Getting Started

Wearing VR

• When you are wearing glasses, do not wear VR. Doing so may lead to

facial injuries. If you need vision correction lenses, it is
recommended that you wear contact lenses when using VR.

• Keep the lens clean and prevent scratches. If the lens is dirty or

fogged, clean with lens cleaning cloth.

• If your face sweats when you are wearing VR, foam pad may become

dirty or degrade. When wearing VR, please make sure that your face
is clean and dry.

Getting Started

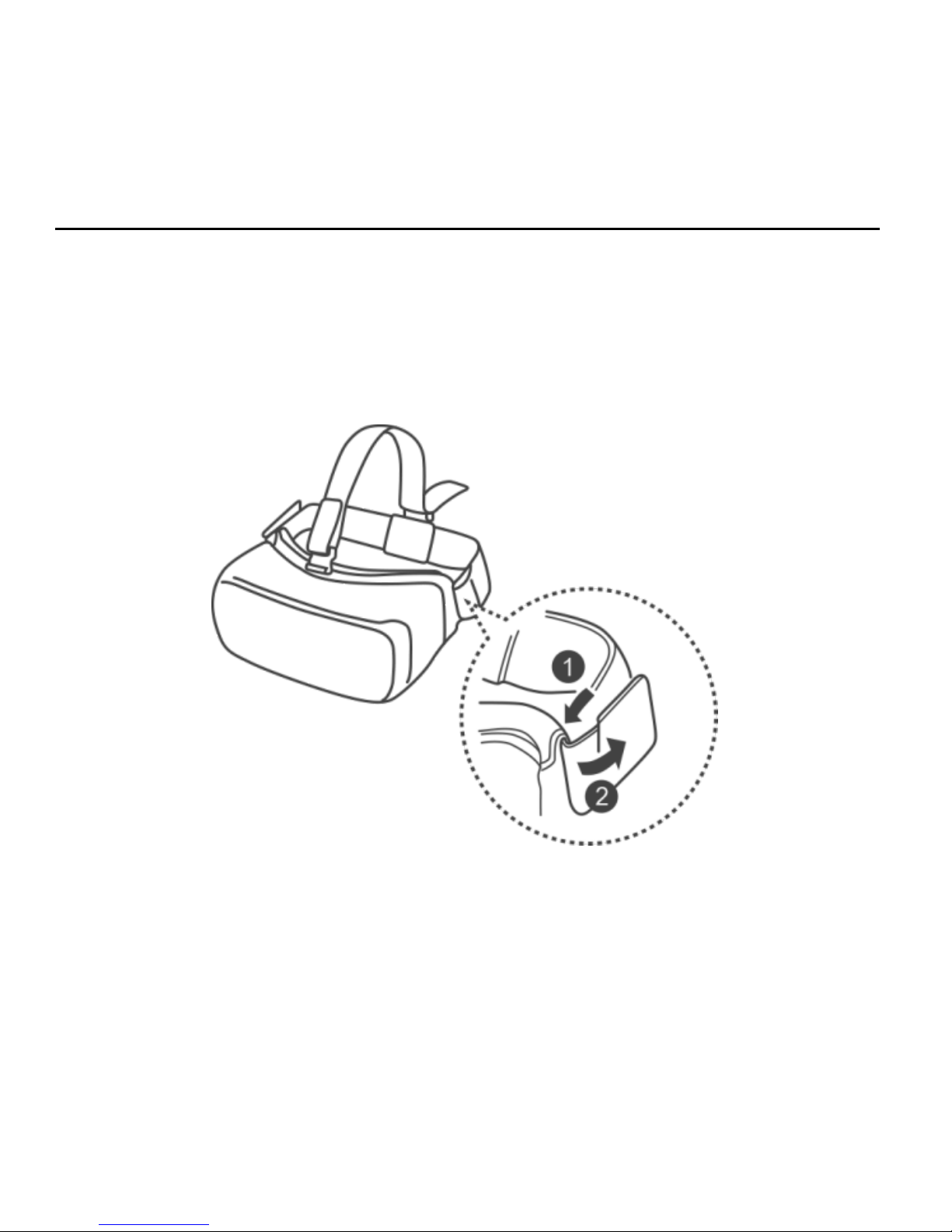

1. Place the main strap properly with the ring at the top. Then, pass

both end of the main strap through the ring in VR and fix with Velcro
firmly.

Getting Started

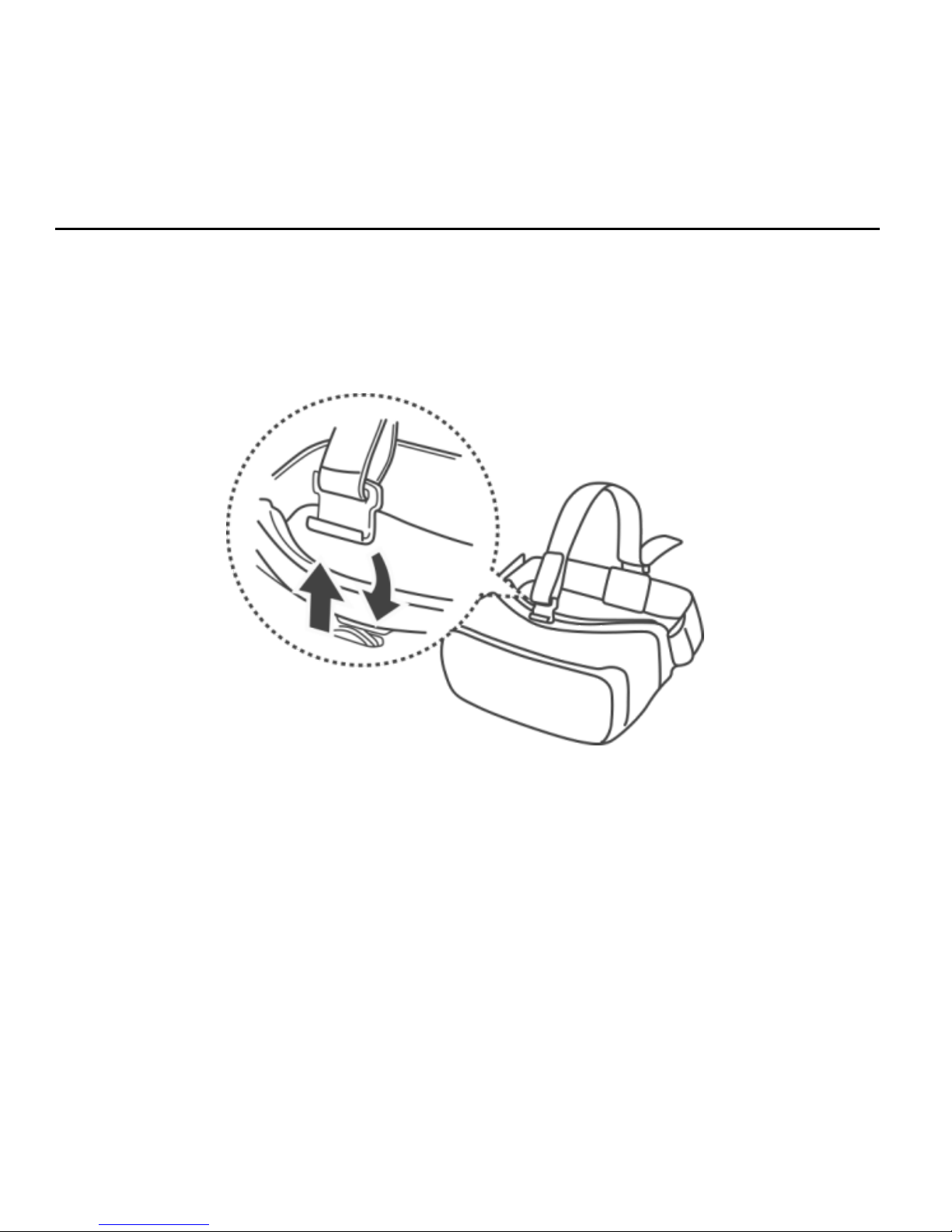

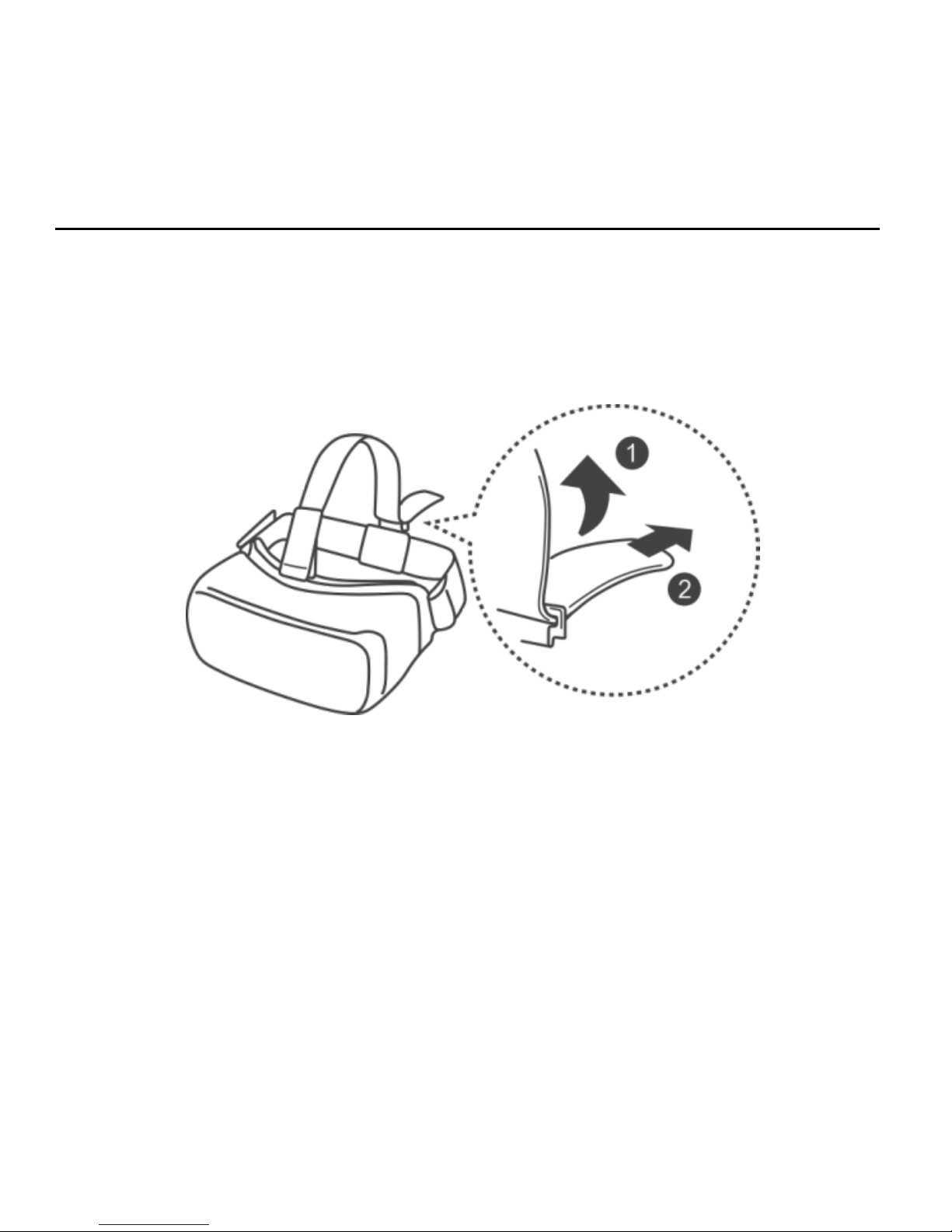

2. Buckle the hook to the top of front frame of VR, and pull up

until it is firmly locked.

Getting Started

3. Slide the end of the headband through the ring in the main

strap, and fix with Velcro firmly.

Getting Started

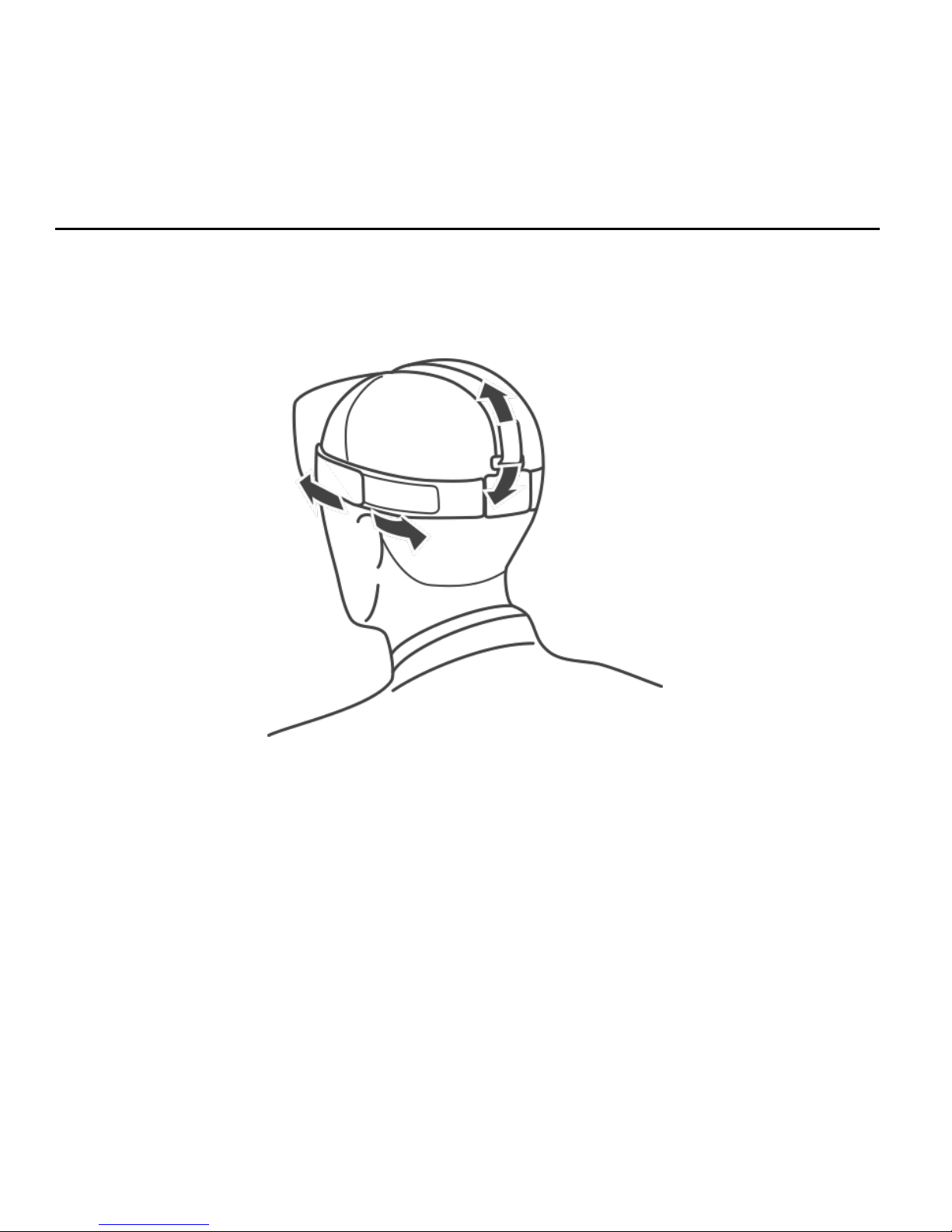

4. Fix VR to your head with strap, and wear it on the face comfortably.

5. Adjust the length of the top headband and the main strap.

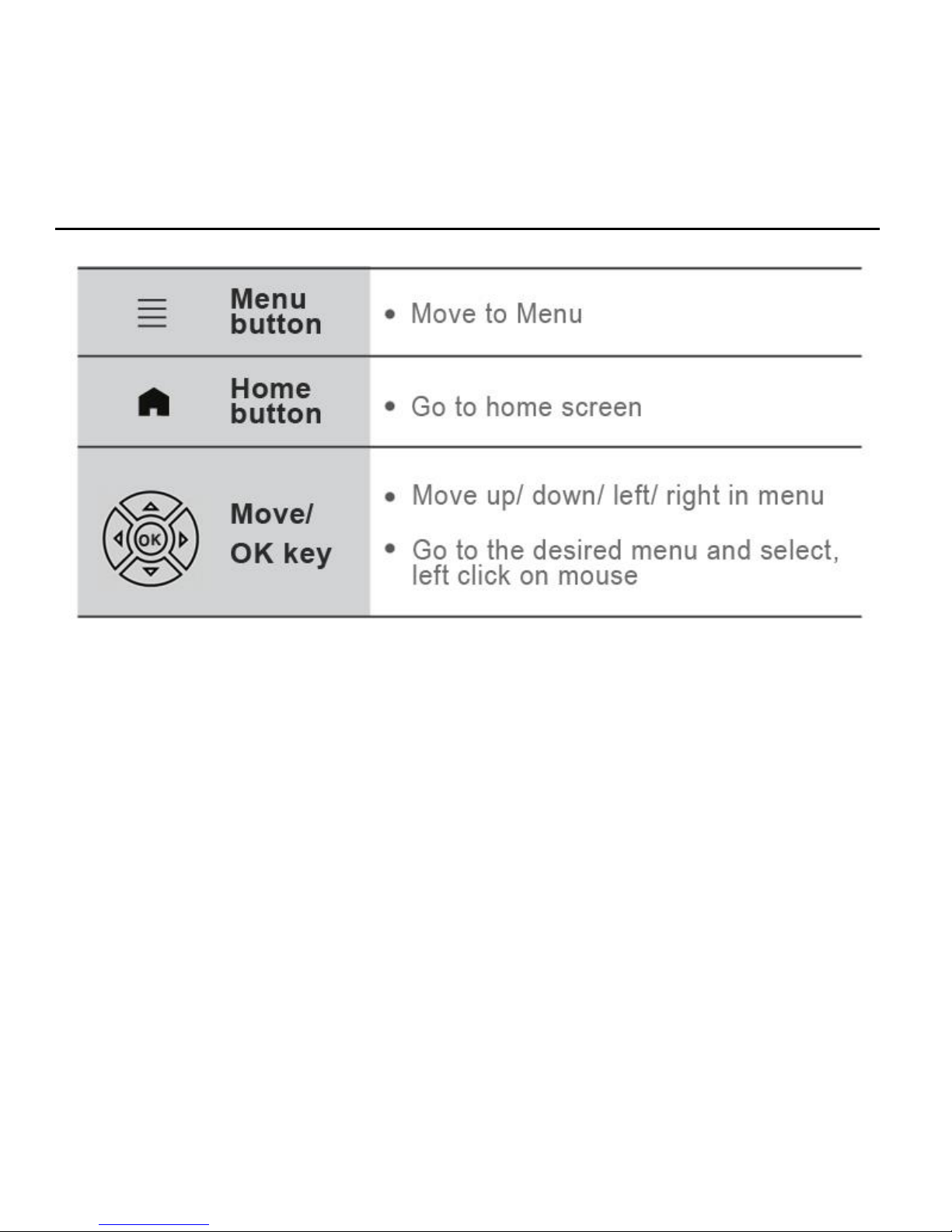

Operation instructions

Operating instruction

To operate the device, use the function button at the top

of the device.

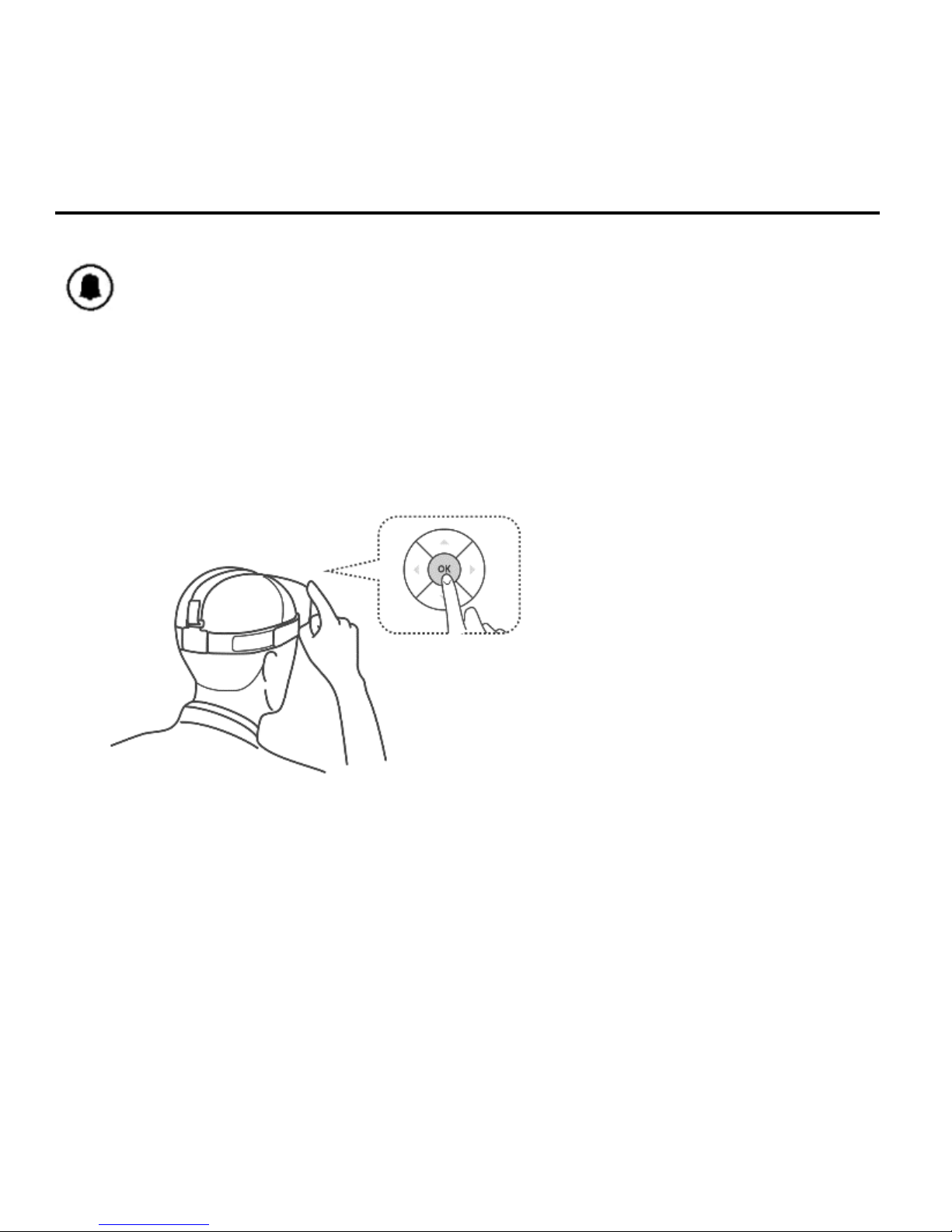

OK Button:

Aim the menu on the display and click the OK button on
the picture

Direction Key:

Operation instructions

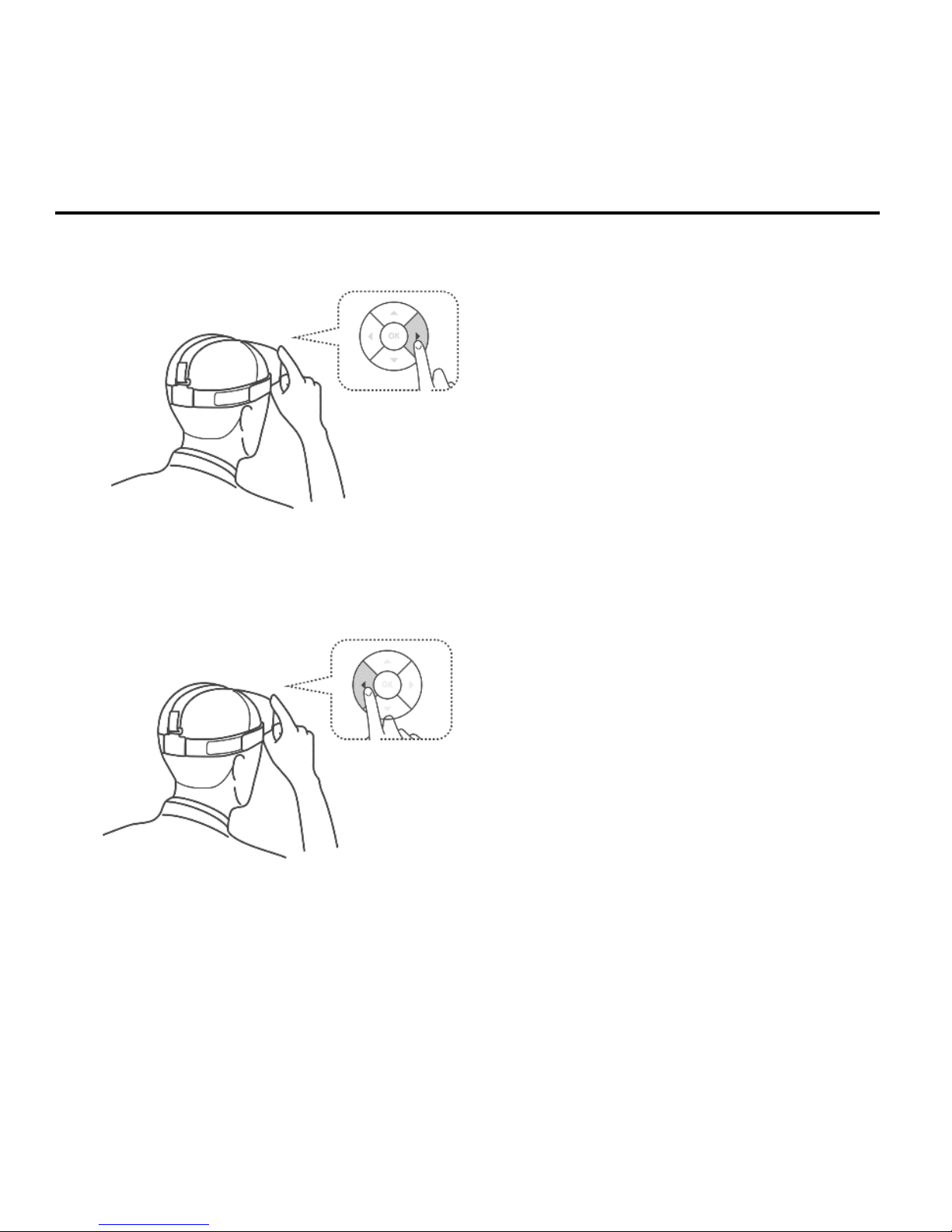

To move to next item, click ▶at the top of the device as shown below

To move to the previous item, click ◀ at the top of the deivce as

shown below

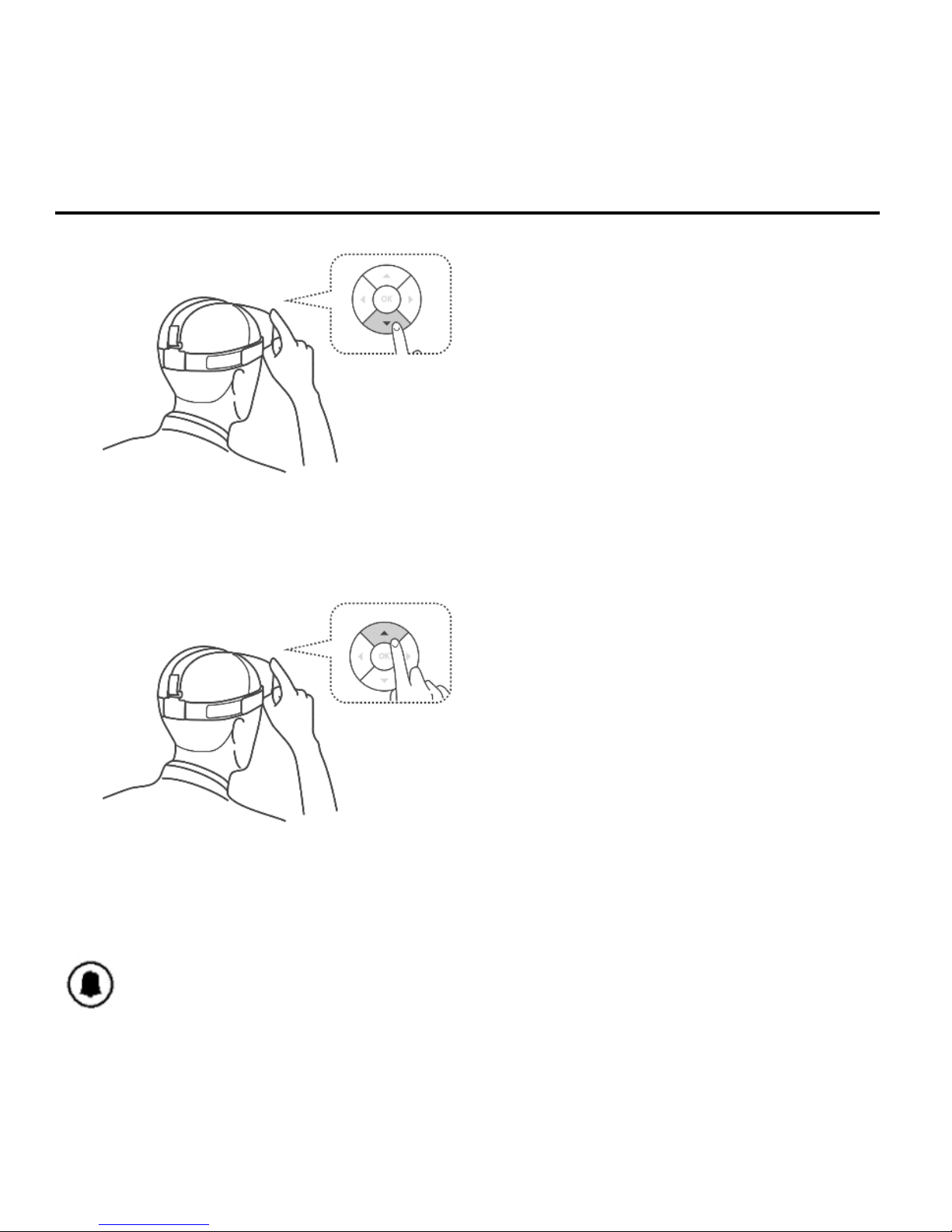

To move to the previous item, click ▼ at the top of the deivce as
shown below

Operation instructions

To move to next item, click ▲at the top of the device as shown

below

Some applications may not support upward or downward swiping.

Operation instructions

Direction Key and Back button can be used for various functions

1.Press the Back button on Home page to exit the application; in the

secondary page, press the Back button to return to previous page.

2.Some applications and pages may not support page adjustment

operation with touch-pad of the Mobile All-in-one.

Operation instructions

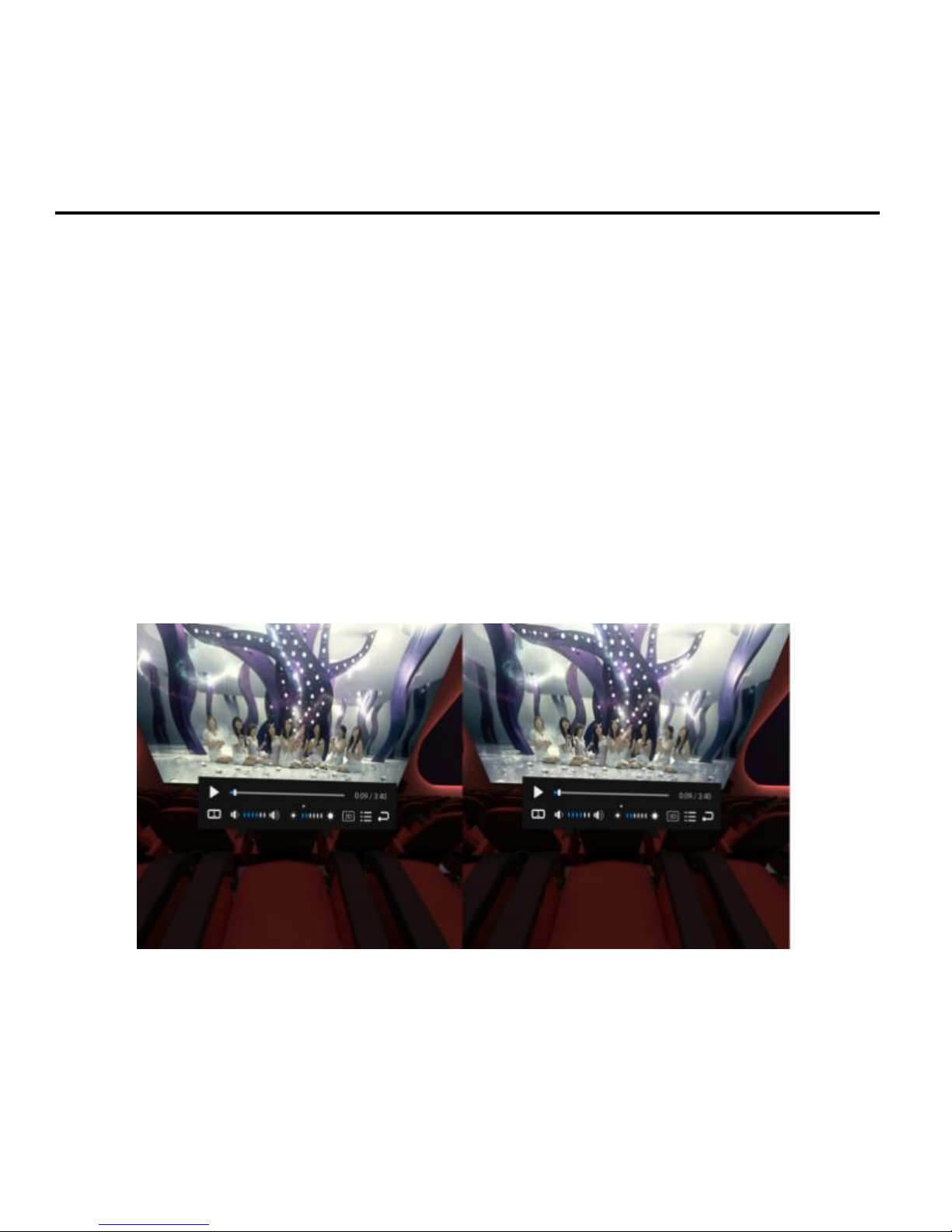

Playback page and menu page operation mode

1. In Playback page, turn head perspective downwards to show the

playback progress bar；

2. The playback page has seven features.

Stop and Play mode,
Switch loop mode, Brightness & Volume adjustment,
2D / 3D / 360 ° / Panorama selection,
Menu page move, previous function button.

3.In Playback page, press the Back button of Mobile All-in-one to

return to previous page.

Set the language:
If you want to change language, please touch setting->common­>language, then select the language you want to set.

Simple troubleshooting

1. The image on the screen are moving randomly

Make the machine restart, put the all-in-one lens placed in a flat on
the table until entering the system calibration, then it can be picked
up.

2. Unable to boot

Please check whether it has run out of power or not.

Product Warranty

Warranty period is 1year

Product Name

TiTAN VR

Model

CWV-100

Purchase date

20 Year Month date

Customer Name

For product repair, you must present warranty card with the date of
purchase to get full service.

· If there is no warranty, the warranty period will be
based on dispute resolution standards based on the

month or date of production.

· Please note that the warranty will not be reissued so
keep it safe.

1. This product is manufactured through strict quality control and

inspection process .

2. If any defects or natural defects occur during the warranty

period, we will repair the product free of charge.

3. Warranty period is 1 year.

4. Be sure to present this product warranty when
applying for repair.

5. You will be asked to pay expense for following
cases.

① If the warranty has expired
② Even during the warranty period if the

malfunction occurs due to user's carelessness

③ If you do not provide a warranty or can not verify your

product due to missing key details

④ If the product malfunctions due to natural

disaster

⑤ If the warranty period is specified for each

part

⑥ If the product malfunctions as a result of

modifying the product

⑦ If consumable parts run out

6. This warranty is only valid in US.

If you have any questions or concerns,
please feel free to contact us through
the number below.

Tel : [phone]

Hours Weekdays 10am~ 6pm
Lunch 12am ~1pm
Closed on weekends/holidays
Thank you for using TiTAN VR HMD.

FCC Statement
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and
receiver.

- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for
help

This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions

(1)this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.

HQ Address 225 Santa Monica Blvd 6F, Santa Monica, CA 90401,

United States of America

Website www.titanplatform .com
