Titan LED Silver Series Installation Manual

850 East Covey Lane, Suite #140, Phoenix AZ 85024

Phone: [phone] FAX: [phone] WWW.TITANLEDUS.NET

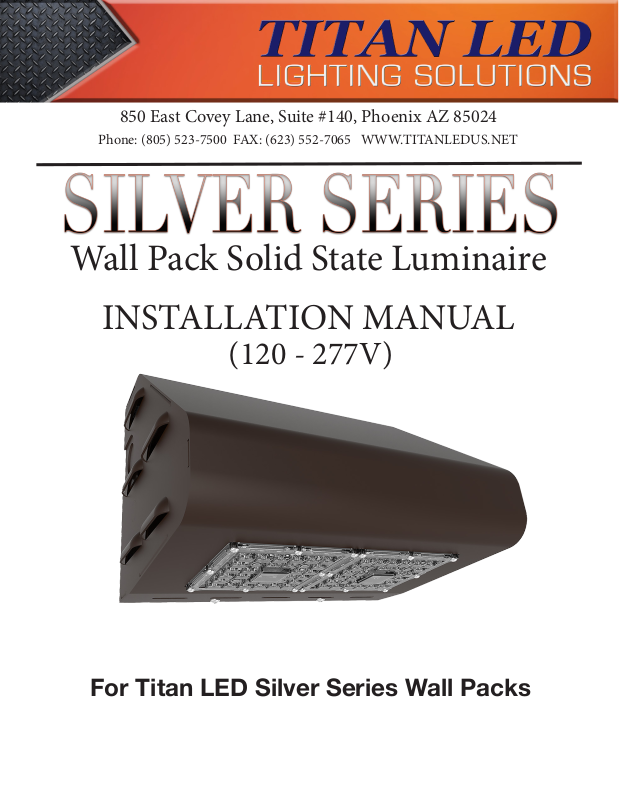

Wall Pack Solid State Luminaire

INSTALLATION MANUAL

(120 - 277V)

For Titan LED Silver Series Wall Packs

Thank You for your purchase of Titan LED’s LED lighting Product. Please take a moment to

read this guide and familiarize yourself with this State of the Art, Solid State LED product.

Please Observe All Safety Precautions Before Installation.

CAUTION: DISCONNECT ALL A/C POWER BEFORE LIGHT

FIXTURE INSTALLATION

SAFETY WARNINGS:

CAUTION!

BEFORE INSTALLATION PLEASE READ ALL PRODUCT LABELS AND INSTALLATION INSTRUCTIONS

THIS PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN FAMILIAR WITH THE CON­STRUCTION AND OPERATION OF THIS TITAN LED PRODUCT AND OF ANY HAZARDS INVOLVED

INSTALLATION MUST BE IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND ALSO ALL
RELEVANT LOCAL CODES

WARNING: IMPROPER INSTALLATION WILL VOID THIS PRODUCTS WARRANTY
WARNING: TO AVOID RISK OF ELECTRICAL SHOCK DISCONNECT A/C POWER AT CIRCUIT

BREAKER POWERING JUNCTION BOX BEFORE PERFORMING ANY A/C ELECTRICAL
TASKS

TITAN LED FIXTURE WIRING DESCRIPTION:

BLACK WIRE: AC LOAD / LINE / HOT
WHITE WIRE: AC NEUTRAL
GREEN: AC GROUND

CAUTION: EXISTING WIRING SHOULD BE CHECKED BEFORE INSTALLATION TO INSURE

CORRECT WIRING POLARITY AND CORRECTLY FUNCTIONING GROUND. EXISTING
LUMINAIRE REPLACEMENT NECCESSITATES CAREFULLY REMOVING BULBS AND
THEN THE LUMINAIRE

CAUTION: HID LAMPS AND BALLAST ARE FOUND TO CONTAIN SUBSTANCES HAZARDOUS TO

HUMANS AND WILDLIFE. SOME BALLAST CONTAIN POLYCHLORINATED BIPHENYLS
ALSO KNOWN AS PCB’S. PROPER HAZARDOUS MATERIAL DISPOSAL IS REQUIRED

CAUTION: TO AVOID THE RISK OF ELECTRICAL SHOCK, ALLOW 5 MINUTES AFTER DISCONNECT

FROM A/C POWER TO DRAIN CAPACITOR FIELD CONTAINED IN FIXTURES LED
DRIVER

UNPACKING YOUR NEW TITAN LED LIGHTING FIXTURE:

CAREFULLY REMOVE LIGHTING FIXTURE FROM PACKAGING CHECKING FOR ANY
SIGNS OF DAMAGE

ATTENTION: PLEASE NOTE THE FOLLOWING: WHEN READY TO REASSEMBLE THE FIXTURE,

PLEASE BE CAREFUL TO AVOID CABLE DAMAGE AND CAREFULLY ROUTE INTERNAL
EXCESS A/C AND LOW VOLTAGE CABLING AWAY FROM FIXTURES EDGES WHILE
CLOSING.

All information and images are the exclusive property of Titan LED Inc. and may not be used without permission.

ATTENTION: LUMINAIRE MUST BE MOUNTED IN ACCORDANCE WITH LOCAL

AND NATIONAL BUILDING CODES

MOUNTING:

INSTALLATION INSTRUCTIONS:

1) IT IS REQUIRED TO USE THE PROPER OPTIONAL WEIGHT RATED HARDWARE TO SECURLY
AND SAFELY INSTALL THIS LIGHTING FIXTURE.

2) REMOVE THE TWO SCREWS FROM BOTTOM OF WALL PACK. OPEN WALL PACK FIXTURE AT
HINGES AND FLUSH MOUNT REAR SLOTED PANEL TO A SECURE VERTICLE LOCATION USING HIGH
GUAGE SCREWS THAT ARE PROPERLY RATED FOR WEIGHT CAPABILITIES. THE UNIVERSAL SLOTS ON
BACK OF THIS FIXTURE ALLOW FOR DIRECT JUNCTION BOX MOUNTING.

3) IT IS RECOMMENDED TO FORM A WEATHER RESISTANT SEAL BETWEEN THE TITAN LED WALL PACK AND THE MOUNTING

WALL. PLEASE APPLY A BEAD OF SILICONE SEALANT TO THE WALL AND TO THE WALL PACK BEFORE MOUNTING.

PLEASE ADHERE CLOSELY TO ALL HARWARE INSTALLATION GUIDELINES TO INSURE

PROPER SAFETY AND OPERATIONAL FUNCTIONS.

CAUTION: PROPERTY DAMAGE, SERIOUS INJURY, AND OR DEATH MAY OCCUR FROM IMPROPER

INSTALLATION OF THIS LIGHTING FIXTURE.

CAUTION: THIS PRODUCT MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN FAMILIAR WITH

THE CONSTRUCTION AND OPERATION OF THIS TITAN LED PRODUCT AND OF ANY
HAZARDS INVOLVED.

4) ONCE THE FIXTURE IS SECURELY MOUNTED PROP THE FIXTURE OPEN TO ALLOW EASIER CONNECTION
TO A/C POWER SUPPLY. THIS FIXTURE OPENS AT HINGES WHILE MAKING ELECTRICAL CONNECTIONS.

5) CONNECT THE A/C POWER SUPPLY WIRES TO THE LUMINAIRES DRIVER CONNECTION WIRES FOUND
INSIDE THE WALL PACK HOUSING WITH THE BLACK WIRE BEING THE A/C LOAD (HOT), THE
WHITE WIRE BEING A/C NEUTRAL AND THE GREEN WIRE BEING A/C GROUND.( See Pic Below )

6) AFTER INSPECTION OF PROPER AND SECURE A/C CONNECTIONS CLOSE FIXTURE AND REPLACE THE
FIXTURES 2 ACCESS SCREWS.

7) YOU CAN NOW RESET THE MAIN POWER CIRCUIT AT THE BREAKER.
YOU CAN NOW POWER ON THE NEW LIGHTS.

8) OPTIONAL LOW VOLTAGE 0-10V DIMMING IS AN OPTION BUILT INTO TITAN LEDS DRIVERS
AKA-(POWER SUPPLIES). THESE LOW VOLTAGE DIMMING WIRES ARE COLORED PURPLE (dim +) AND
GREY (DIM -) AND WILL OPERATE WITH 0-10V LOW VOLTAGE DIMMER SYSTEMS ONLY.

9) THIS FIXTURES KNOCKOUT FEATURE MAY ALSO FUNCTION AS THE MOUNTING LOCATION
FOR AN OPTIONAL PHOTO CELL SENSOR.

10) IF DIMMING CIRCUIT IS NOT TO BE USED, LEAVE THE PURPLE AND GREY WIRE LEADS
SEPERATELY CAPPED AND UNCONNECTED.

Titan LED’s Hinged Wall Pack Shown Below

0-10v Low Voltage Dimming
Wires are Purple + and Grey -

Titan LED Silver Series Wall Packs Feature a
Proprietary internal junction box to neatly
contain internal connections. Opening this
internal J-Box is Not Recommended.
A/C Connection should be made to Bare Wire
Lead Coming from this Titan LED J-Box.

Titan LED Wall Pack Fixtures have built in knockout holes On both Sides to accept a Standard 1/2”
Pipe Connection. This knockout additionally serves as the mounting location for an Optional Photo
Cell (Shown in Image). Properly utilizing this hole with the right adaptors for a thread tight installa-

tion helps insure safety and increases the xtures moisture barrier in typical applications.
