Titanium 19000 User Manual

Download
Page 1
1

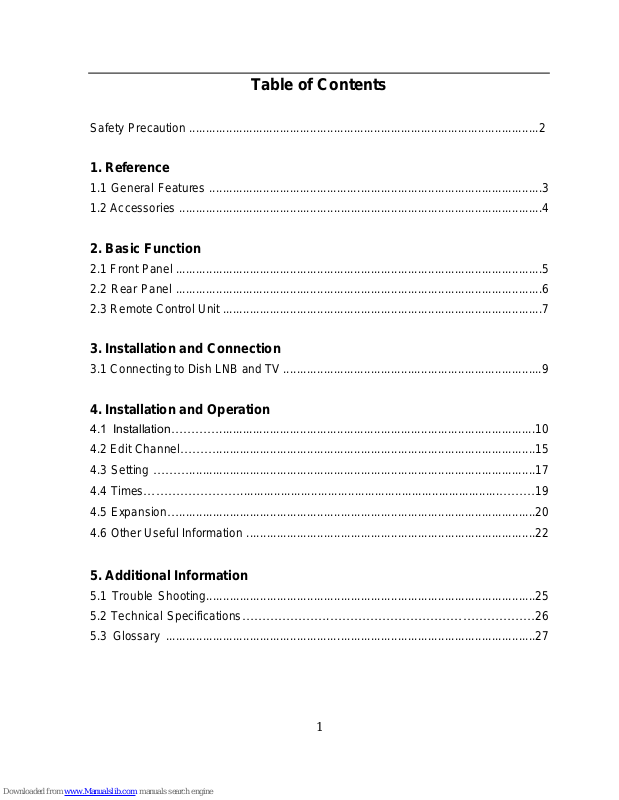

Table of Contents
Safety Precaution ........................................................................................................2
1. Reference
2. Basic Function
3. Installation and Connection
4. Installation and Operation
5. Additional Information
5.3 Glossary ..............................................................................................................27
Page 2
2
Safety Precaution
This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver.
Main Supply: Before operating, please check the units operating voltage is 100~240V AC 50/60Hz.
Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.
Liquid: The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.
Ventilation:
Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not put the receiver on soft furnishings or carpets. Do not expose the receiver to direct light or do not place it near a heater or in humid conditions. Do not stack other electronic equipments on top of the receiver.
Cleaning:
Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth or mild solution of washing-up liquid (no solvents).
Connection: Disconnect the receiver from the mains when you connect it to satellite LNB or disconnect it from LNB. Failure would possibly cause damage to the LNB.
Location:
Put the receiver indoor in order to avoid lightening, raining or sunlight.
Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the receiver, or contact your dealer.
Page 3
3
1. Reference
1.1 General Features
DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264).
DiSEqC 1.0, 1.1, 1.2 & 1.3 (USALS) Compatible.
SCPC & MCPC Receivable from C/Ku Band Satellites LNB Supported.
Universal, Single, Single S & C Band Wide band LNB.
Sensitive Tuner with Loop-Through.
PAL / NTSC Conversion.
Variable Aspect Ratio (4:3, 16:9) with Pan Vector or Letter Box.
Output Resolution: 576p & 576i, 720p & 1080i.
HDMI with Upscale to Improve Picture Quality.
4 Favorite Groups and Parental Lock Function.
5 Kinds of Sort Function for Channels.
On-screen Display with True Full Color Resolution.
Teletext and Subtitle Supported (OSD).
7 days EPG (Electronic Program Guide) for On-Screen Channel Information.
Multi Language Menu.
Capacity for Sorting Multi Channel.
Page 4
4
1.2 Accessories
Unpack the unit and check to make sure that all of the following accessories are included in the packaging.
1 x User manual 1 x Remote Control Unit (RCU)
2 x AAA Batteries 1 X AV CABLE
Page 5
5
2. Basic Function
2.1 Front Panel
1. Display(4-digi 7-segment) 4-digi displays channel information.
2. Power Button The POWER button is used to turn the power on or to make it on Standby Mode.
3. CH Buttons
Change channels or items from top to bottom on the menus.
4. Smart Card Slot
Socket for a TV operator Smart Card.
Page 6
6
2.2 Rear Panel
1. LNB IN 13/18V 500mA Max
Connect the Satellite Dish LNB.
2. LNB OUT Output the Dish LNB IN signal.
3. VIDEO/AUDIO
RCA output for CVBS format.
4. DV-OUT
HDMI signal output
5. USB
USB 2.0 Host Port.
6. COAXIAL
Digital Audio output
7. RS-232 Connect to serial port of PC for software upgrade.
8. Power Switch To Turn ON or OFF the main power of this STB.
Page 7
7
2.3 Remote Control Unit (RCU)
You can control this receiver by this remote controller with full function.
1.TV/R: Switch between TV and RADIO.
2. POWER: Switch the receiver on or off.
3. MUTE: Turn the sound On/Off.
4. HDMI: Switch the HDMI resolution type
5. ASPECT: Switch the aspect of TV screen
6. TIMER: Setup event timer.
7. SLEEP: Setting the time for turning the receiver off
8. NUMERIC KEY (0~9): Change program or input
number. 9: SUB: Showing Subtitle information if the channels contains.
10. EPG (Electronic Program Guide): Show the TV/Radio electronic program guide, some channels may not available due to no such service from TV provider.
12. FAV: Press to display favorite channel list you set before.
13. TXT: Press to Display the current channel’s
TELETEXT information, TXT may not available to all TV channels, if no such data inside live stream.
14. RECALL: Press to show the previous viewed channel.
15. SAT: Show the scanned satellite list.
Page 8
8
16. MENU: Press to enter main menu or exit to live channel.
17. EXIT: Exit current menu step by step.
18. CH / : Change TV Channels.
19. VOL / : Change volume in viewing mode.
20. OK: Confirm the highlighted menu item, Open the program list.
21. AUDIO : Select or change the Audio.
22. PAUSE: Pause and Freeze the picture.
23. ZOOM: Zoom in current TV channel
24. INFO: Show the information of the current channel.
25. VOL +/-: Change volume in viewing mode.
26. FIND: Quickly find channels
27. F2: Function Key
28. PAGE+/-: Page up/down on menu.
29. F1: Function key.
30. USB : Enter into USB menu, USB Device must be connected
30.: Fast forward.
31.: Fast backward.
32. : Start playing / Release pause.
33. ■ : Stop recording.
34. I : Play previous item.
35. I : Play next item.
36. I I : Pause/time shift.
37. ● : Start recording.
Page 9
9
3. Installation and Connection
The following diagram shows you how to connect the HD receiver, TV, LNB and other equipment, please read this first if you are not sure about the connection, and it will guide you to the correct connection.
3.1 Connecting to Dish LNB and TV
You can connect one fixed dish LNB directly to the LNB IN, or connect at least two dish LNB by DiSEqC Switch, you can also connect to HH mount dish LNB.
Page 10
10

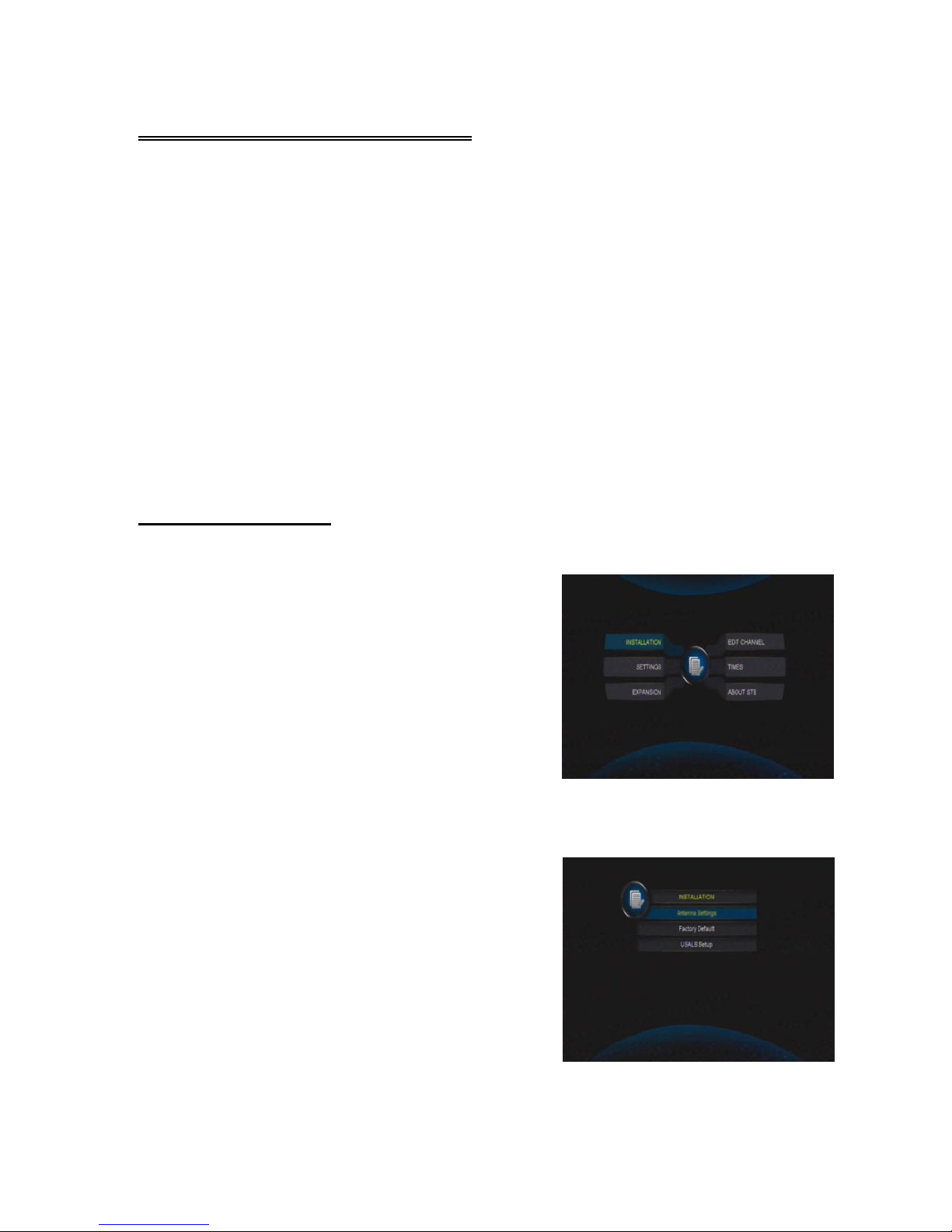

4. Installation and Operation
After connecting the receiver to other required equipment, turn on the receiver, there should be no channel information available at first. You need to follow the procedure to setup your receiver to search the channel.
Main Menu
Press MENU button to activate main menu, main menu consists of Installation, Service organization, Output, System, Timer, USB.
Use UP/DOWN button to select your subject and press OK to confirm your selection and enter that sub menu, press EXIT button you can return to the previous menu
4.1 INSTALLATION
Select Installation, the picture will be displayed like this, here you can do Dish setup, Restore Factory Default, Software Update, Save or Load STB data
Antenna Settings
Press OK to Enter Dish setup, here you can make Satellite Scan, Satellite Edit, TP Search, TP Edit and other related Functions.
A: Satellite List
This window shows the pre-stored satellite list, in this menu, you can Add, Edit, Delete, Satellites.
Add
Page 11
11

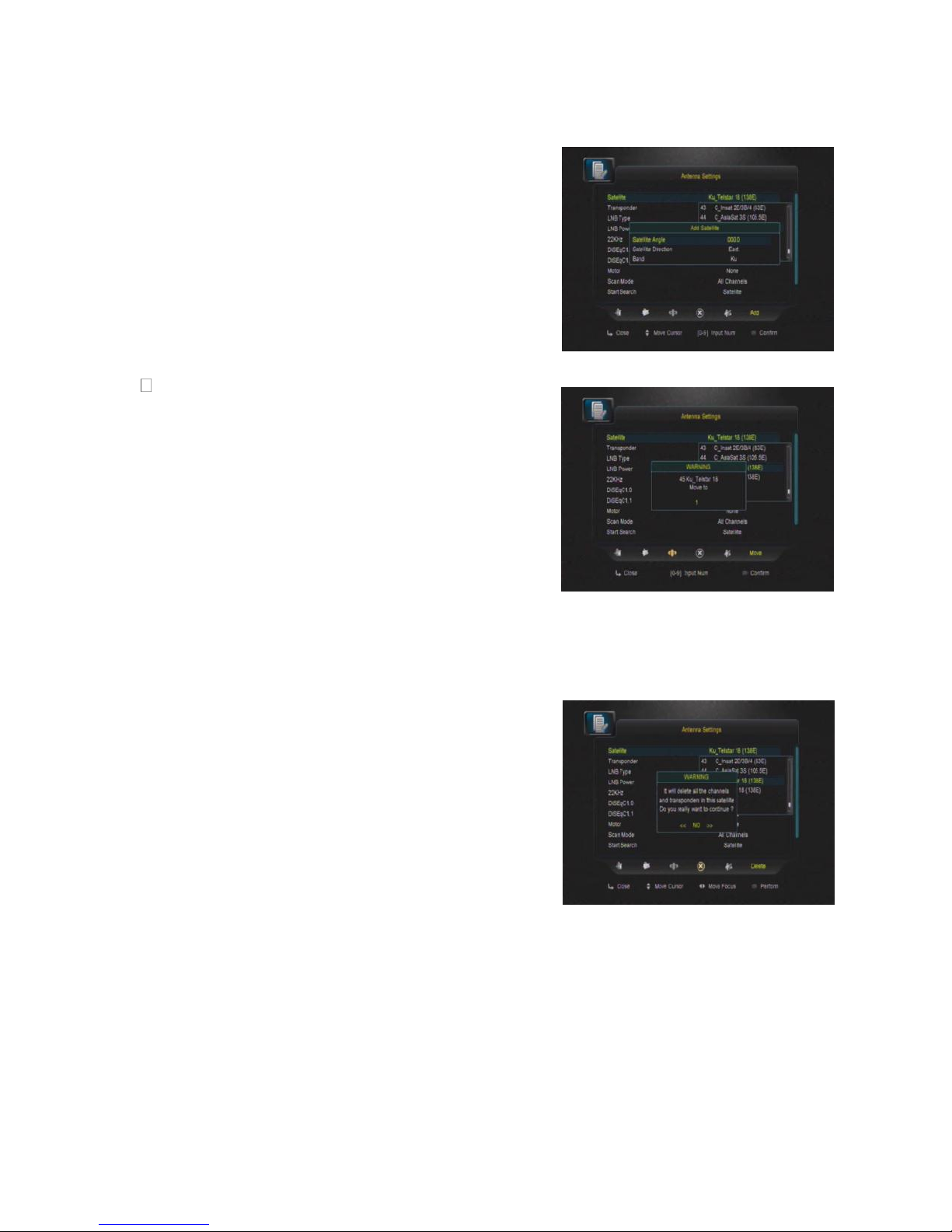

Add satellite by using the Red key. Here you can input new Satellite angle, Satellite Direction (east, west), Band (ku,c). OK to confirm the setting and this new satellite will be added to the end of the Satellite list.
Edit
Select the satellite then press green button. You
can change the satellite’s name, angle, direction
and band. Input the characters which you want to edit using the browser.
Delete
You can delete the user’s satellite. Select the
satellite that you want to delete from the satellite list. You will be asked to confirm whether delete the satellite or not. If you press ok key, all the channels in the selected satellite and transponder will be deleted, and the selected satellite will disappear.
Page 12
12

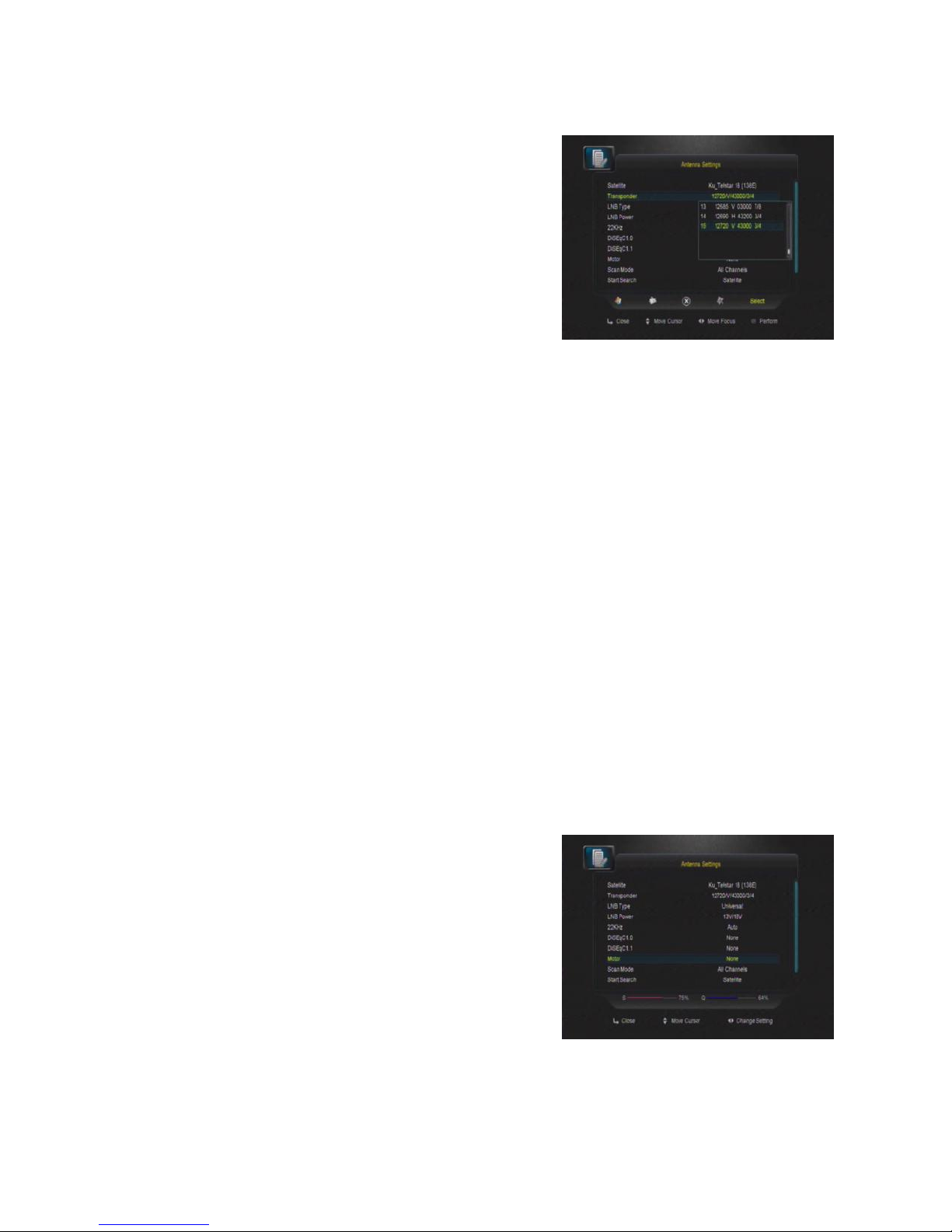

Transponder List
If you change the satellite, the transponder will be changed automatically. You will find the transponder list of selected satellite here. Press the sat button can switch the TP and SAT list. In this menu you can Add, Edit, Delete, Transponder. The Operation similar to the above, you can input the transponder frequency, symbol rate, and choose polarization (Ver, Hor)

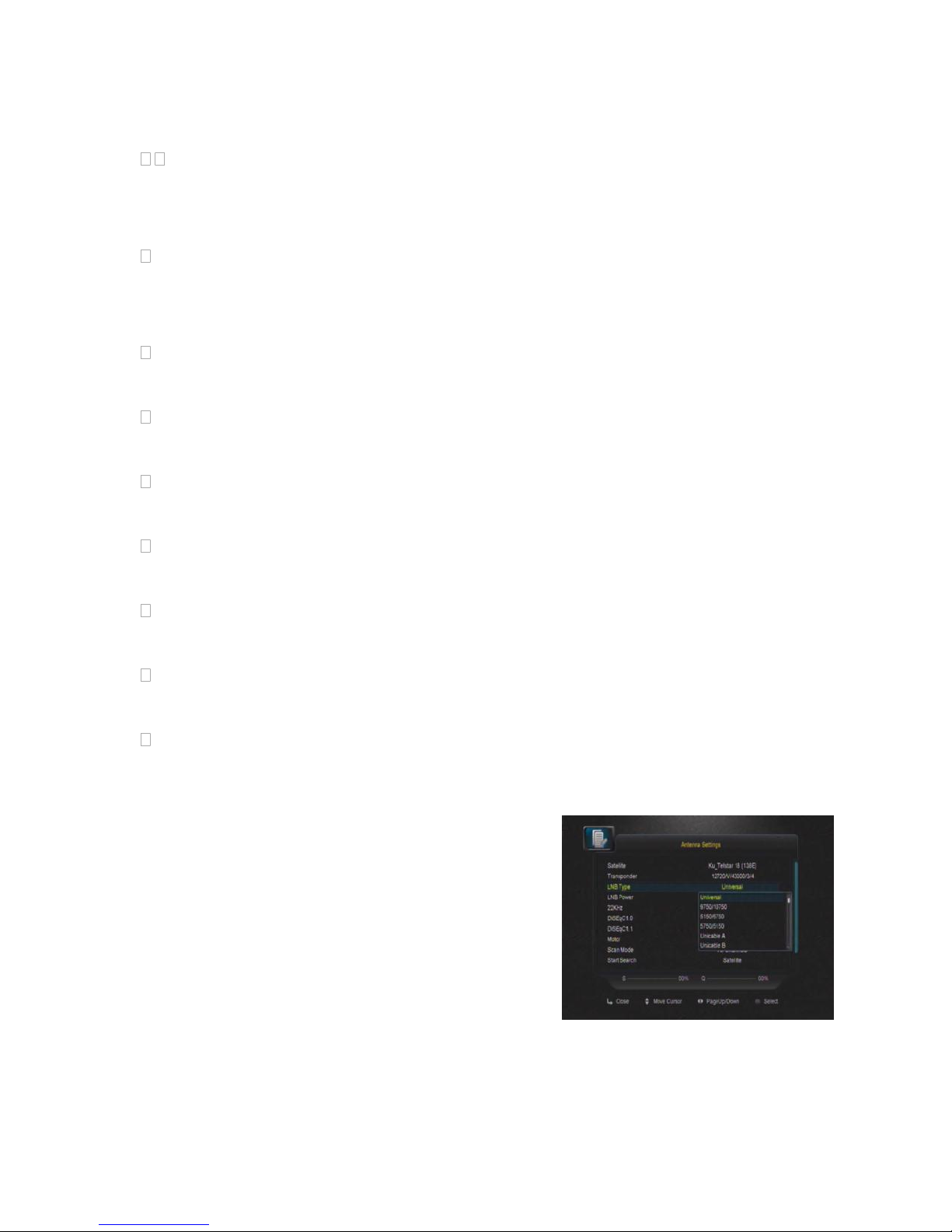

B: LNB Type and LNB Power
Here you need to check the LNB frequency according to your antenna, set the correct frequency or define yourself, and keep LNB power to be 13/18V.
C: 22KHz
In case you are using two antennas connected to a 22KHz tone switch box. You can supply either 22KHz by setting “OFF” to select antenna.
D: DiSEqC1.0 DiSEqC1.1
If you connect antenna to DiSEqC Switch, you need to specify the DiSEqC input to which your selected satellite have been configured.
E: Motor
When you enable this option, and press OK, you will get this window to show you how to adjust position of the dish.
Page 13
13
Move Auto [W/E] Press RIGHT/LEFT button, the dish will be motorized to East/West continuously, it will stop until it find the best signal.
Move Continue Press RIGHT/LEFT button, the dish will be motorized to East/West continuously until you press LEFT/RIGHT again.
Move Step Press RIGHT/LEFT button, the dish will be motorized to East/West by step.
Store Position Save the current position you searched for the selected satellite.
Go to Position Press OK button to move the dish to the stored position.
Go to Reference Press OK button to move the dish to 0 position.
Set West Limit Enable West limit.
Set East Limit Enable East limit.
Disable Limit Disable West limit and East limit.
F: Channel search
In this menu, you can select scan mode like TP/blind/network scan, you also can select all Channels & FTA Channels by setting the search option
Page 14
14

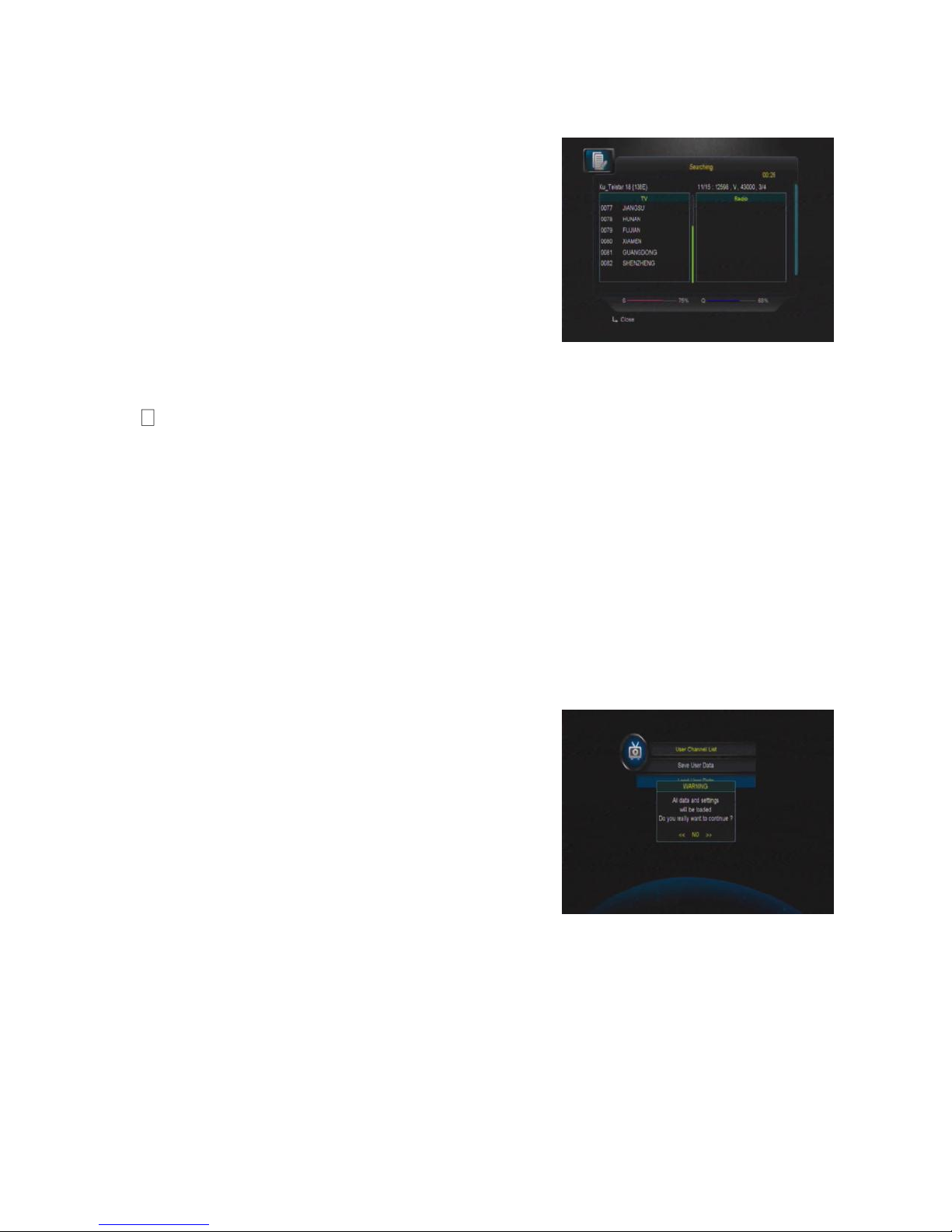

G: Start Search Channels
After set above step, press ok you will be asked whether delete all exist channels if there are existing channels on selected satellites or TPs, you can choose yes or no, will start searching. During searching the TV Channel and Radio Channel will be listed separately.
Factory Default
You can erase all the channels and settings. If select All, press OK you will be asked
to select “start” or “quit”. If select “start” all data and setting will be lost. (as well as
channel list, radio list and scramble channel list). In the end, you also can save or load default channel list.
Save User Data
Enter this menu, you can save the STB data to your STB when you press OK on RCU, STB data will be saved automatically
Load User Data
In case you make a factory default, or you delete the channel list by mistake, enter this menu, you can load the STB data for which you already saved from flash to your STB
Page 15
15

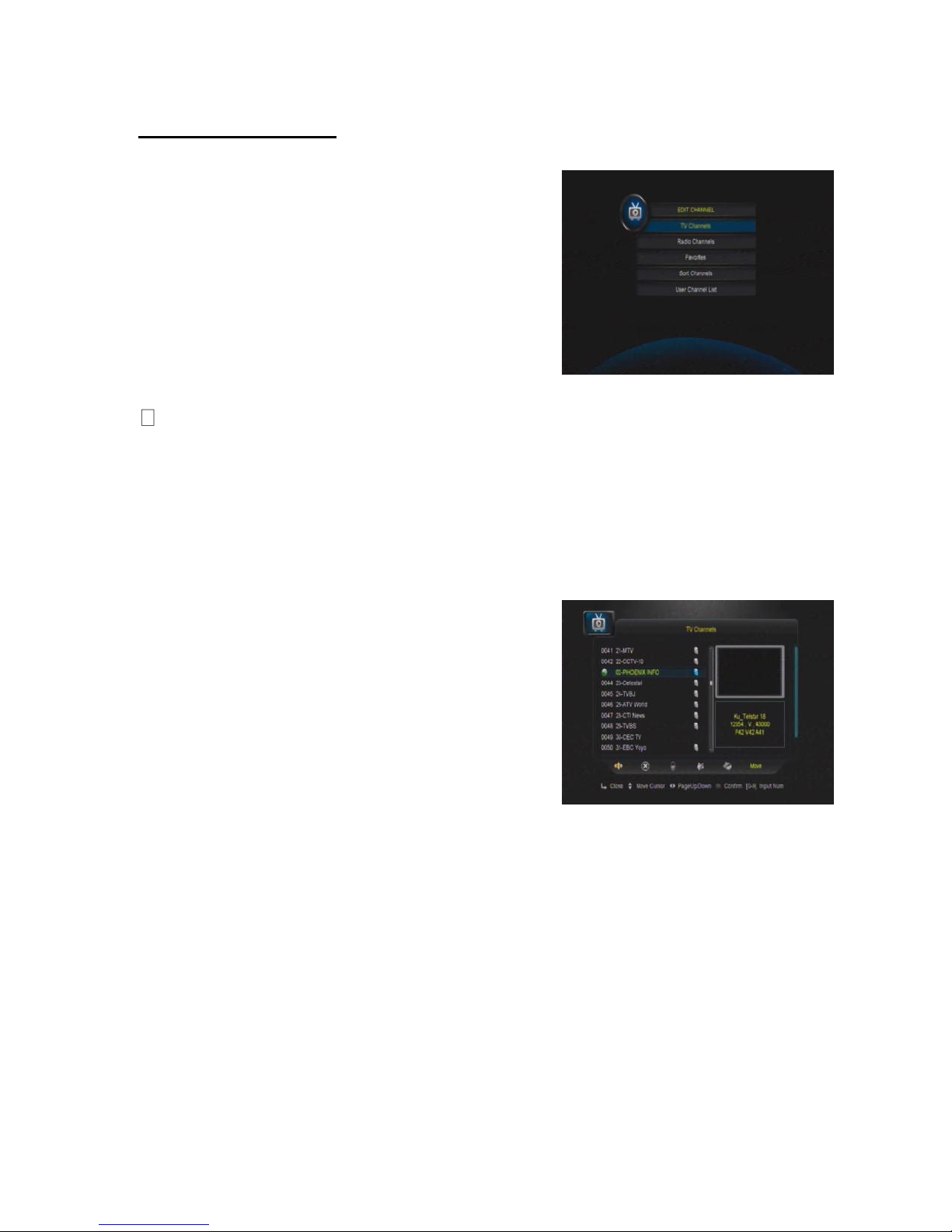

4.2 EDIT CHANNEL
In this menu you can set program edit like delete, lock, rename, move and swap the selected channel, set FAV and so on.
TV Channels
Here you can Select Channel, Delete Channel, Skip Channel, Move Channel, Lock Channel. Select TV Channels, you will get this window.
Move
Press OK to select the channel you want to move, and move to the position you like, or just input the numeric key, the channel you selected will move to that position
Delete
Here you can delete the channel you choose, and press OK to select and press again OK to confirm delete
Lock
Here you can lock one channel, press OK to input password, and you can have a channel with locking.
Page 16
16
Rename
Select channel that you want rename from channel list, press F1 button, then using the UP/ DOWN /LEFT /RIGHT keys to select characters which you want to edit. Press OK to confirm your selection. In this menu, you can set the word with the extend. Caps on or off.
Swap
You can select the channel that you want to swap from the channel list, press F2 button, you will be asked to swap the channel to put where, input the destination number and press OK. Then you can swap one channels from one position to another.
NOTE: Radio Channels operation similar to the above

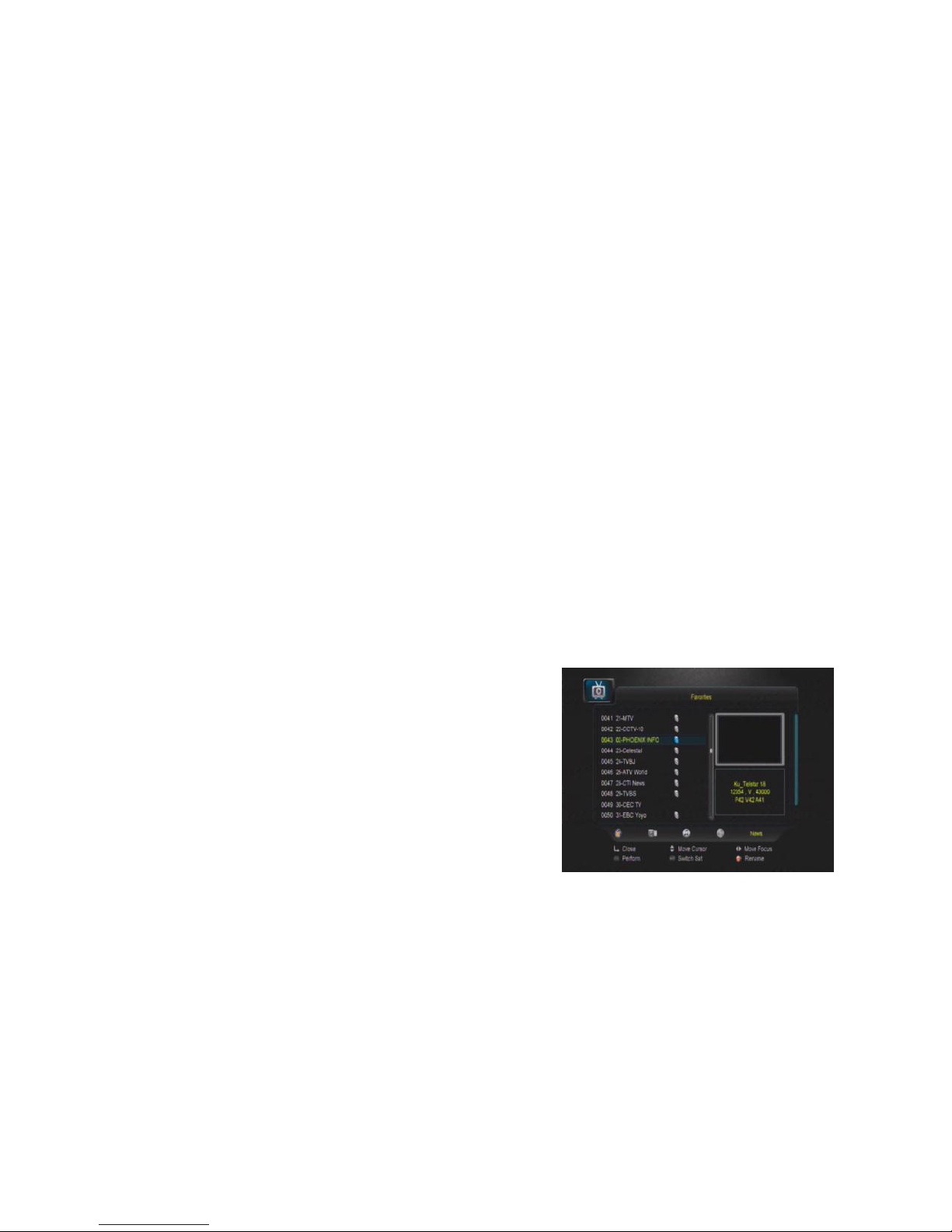

Favorites
Press MENU button, here you can sort the channels in different type, such as news, movies, music, sports, Using the UP/DOWN keys select any sort press OK, then you can set the channels FAV type by pressing FAV key.
NOTE: Radio favors operation similar to the above.
Page 17
17
4.3 SETTINGS
Here you can setup TV output and Video output according to the standard of your country.

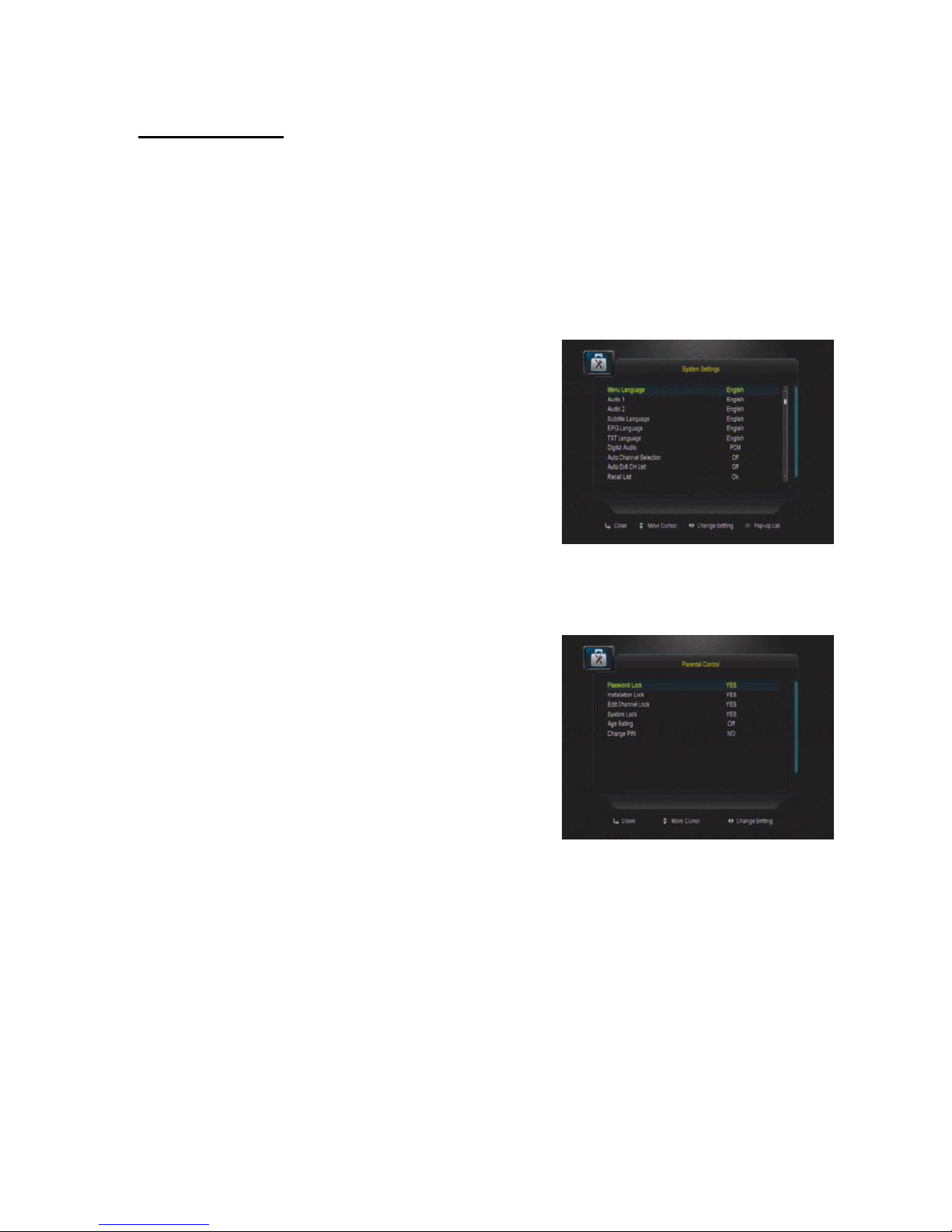

System Settings
In this menu, you can choose MENU LANG, set AUDIO LANG, setting Digital Audio, menu transparency, TXT transparence, Display MODE, TV Type, SCREEN MODE, SCART OUTPUT etc… all in this menu

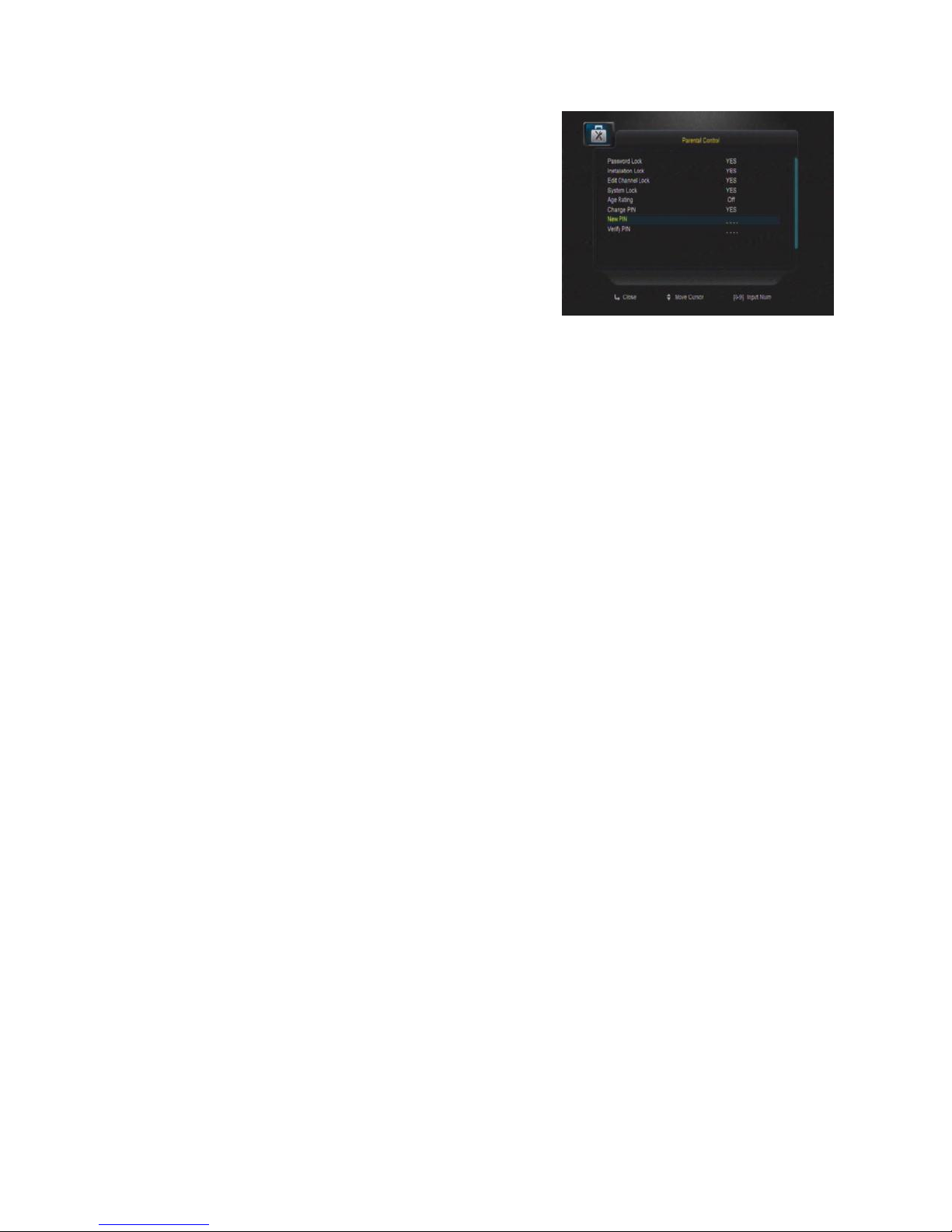

Parental Control
In this menu, you can set the password to Installation, Edit Channel, System, and also you can change the password, this is for the purpose of children misplaying with your STB.
Page 18
18
USALS Setup
In this menu, you can set up USALS setting, and then you can use your DISH motor.
CA MENU
In this menu, insert the smart card, and you will get smart card info, and you can watch the scrambled channels.
Page 19
19

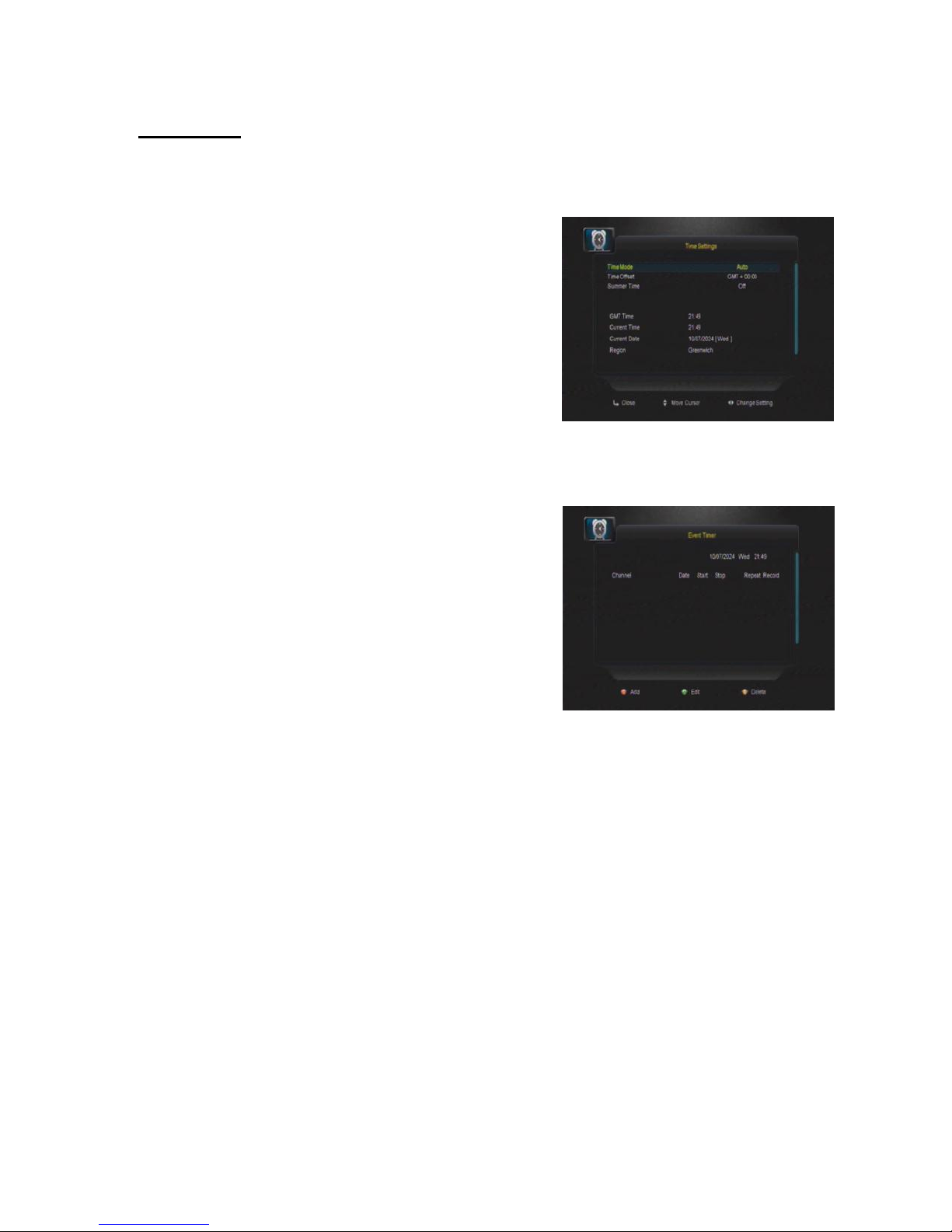

4.4 TIMES
Time Settings
In this MENU, you can change the TIME MODE and setting time manually, or adjust GMT time.
The default time setup is auto, but you can select manual and input manually, select the time zone of your country and you will get the correct current time which is based on TDT (Time and Data Table) in the stream of the current channel service.
Event Timer
In this menu, you can set up the timer for event you have selected, so the STB will change the channel you already set up when the event time is on due.
Sleep Timer
In this menu, you can set the sleep timer 15min, 30, 45, etc.. 120min, so that the STB will power off automatically on time.
Standby Hour
In this menu, you can set the standby hours of your STB, so that your STB will power off automatically on time.
Page 20
20

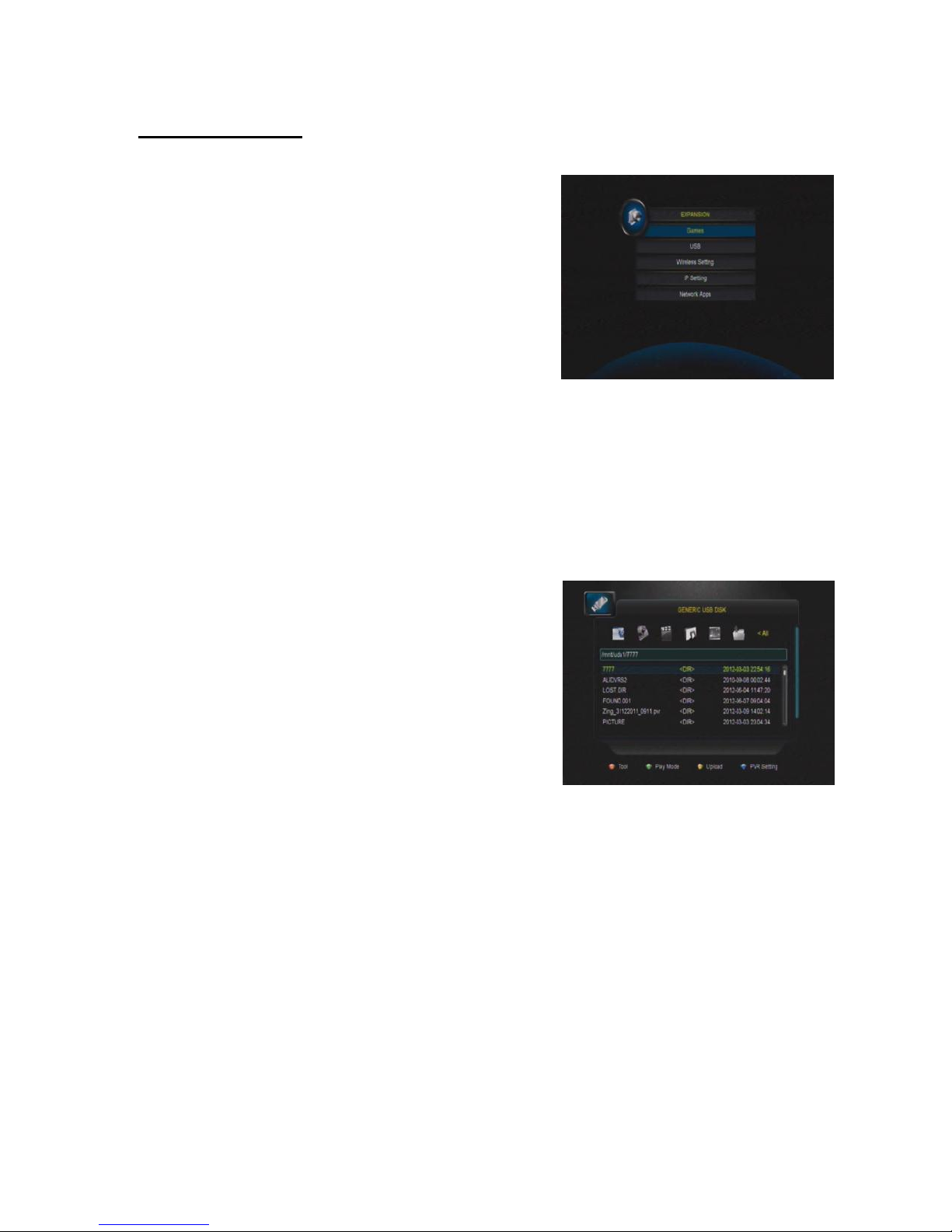

4.5 EXPANSION
Games
Some classic games which will give your some happy times to play with !!
USB ( Worked with a USB Device )
USB menu only working when a USB device is connected with your STB !!
A. Tool
Press RED button, you will have tool function, and you can Rename Delete, Move, and Create new Folder, Sort, and Format disk in this menu to the USB device connected to your STB
B. Play Mode
Press GREEN button, you will have Loop, and Slideshow Interval, and Photo view mode, to gain the viewing experience of your multimedia pleasure
C. Upload
Page 21
21
Press YELLOW button, you will have upload function, and you can upload data to your USB or to your ftp.
D. PVR Setting
Press PVR Setting, you can set the PVR path, and some other settings, for example, RECORD MODE, RECORD TIME, etc….
Note: USB support FAT & FAT32, NTFS
Weather
In this menu, user can view the daily weather forecast of the city he likes, and Press RED button to edit city name, Press LEFT/RIGHT button to input city name, and Press OK to exit, wait a sec, you will have the city’s weather info
Wireless Setting (Worked via a Separate WIFI USB DONGLE)
This receiver support WIFI connection via a separate USB WIFI Dongle, you can connect to your WIFI network in this menu
Support only rt5370 chipset USB WIFI DONGLE
IP Setting
Plug the internet cable into LAN port of STB, and go to this menu, if you connect it first time to internet, please press RED button (AUTO IP), and then press GREEN
BUTTON ( Test Link ), if it is showing “ It is ok to connect to internet “ means you are
successfully connected !
FTP Download
In this MENU, you can connect the your local PC in the same internet (LAN AREA) and you can visit your ftp server, and download the files from
Page 22
22
your ftp servers to your USB in STB !!
4.6 Other Useful Information
This will guide you on how to use general info while watching TV program or listening Radio program with some buttons on your RCU.

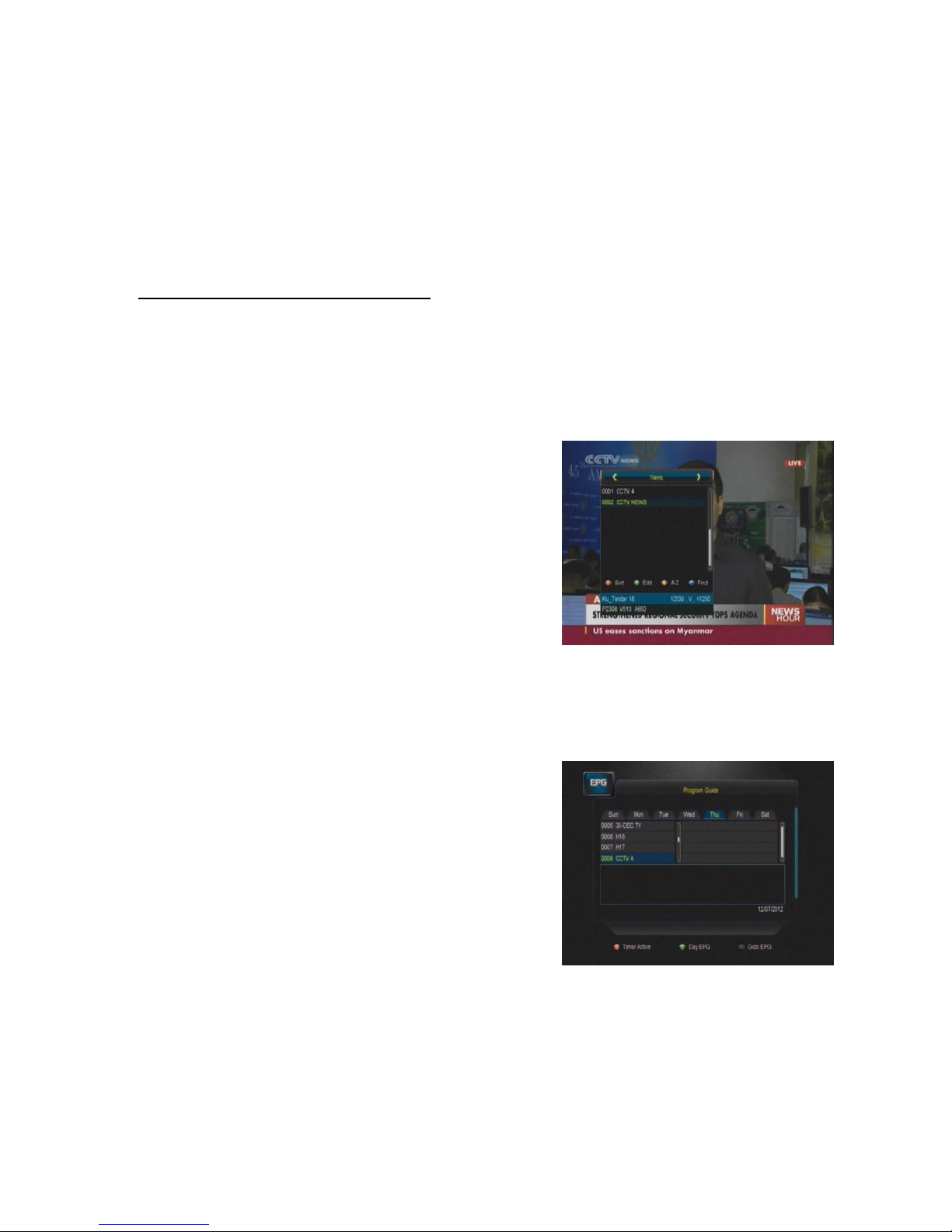

FAV
In viewing mode, you can get the favorite channel group by pressing FAV, press FAV button to change category. If you did not set favorite channel in advance, it will show with no FAV program.
EPG
In this view, you can get the electronic program guide if applicable. You can get the detailed information about that program by pressing OK button
Book
You can Switch Pre/Next Day EPG by Pressing Red/Yellow Key. In this menu, Press Blue key go to Book. Here you can set your favorite channels to begin broadcasting at
future time you set, including both TV and Radio, press green button you can get the
Page 23
23
schedule directly, Here you can Add, Edit and Delete the event which you set.
Note: You can add multi- groups event timer.

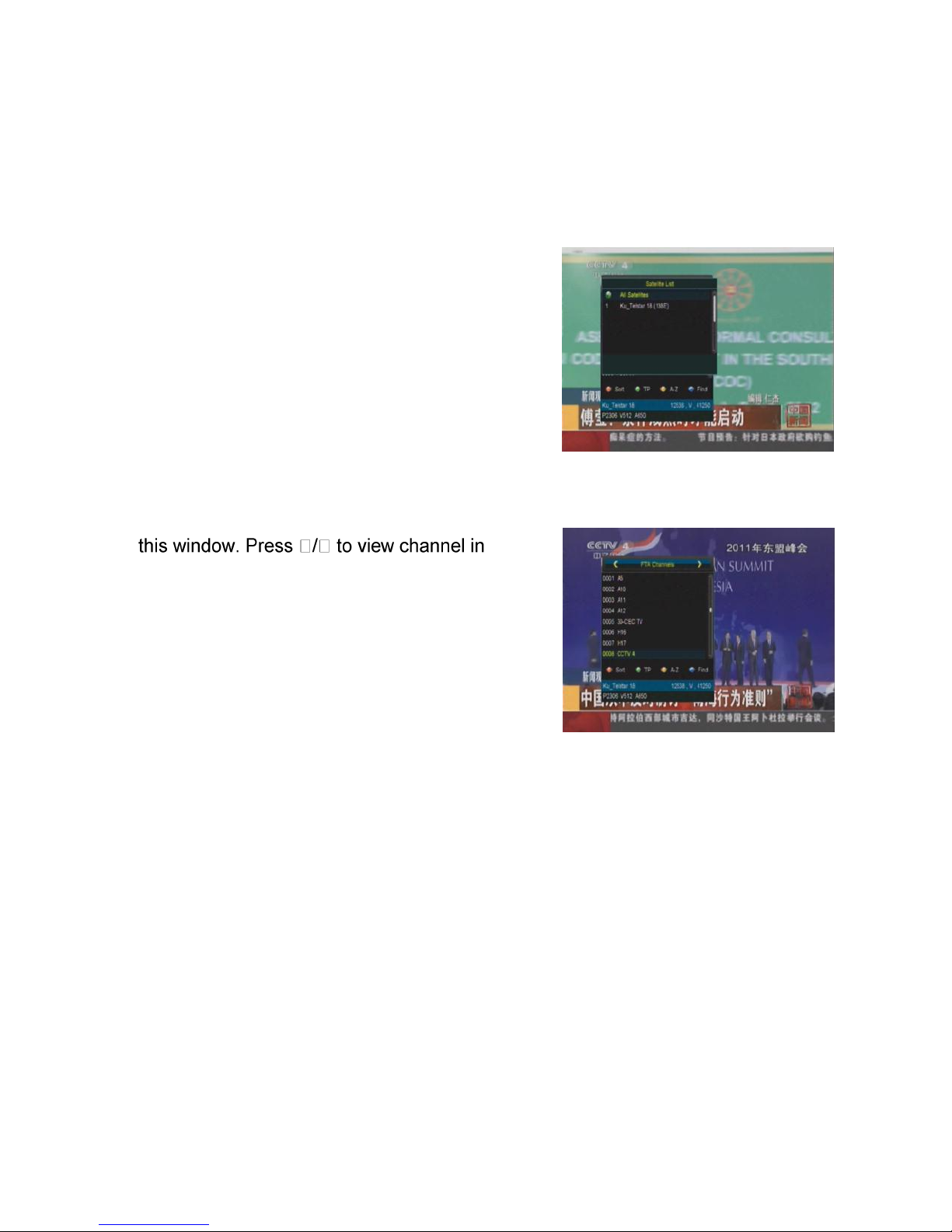

SAT
Press SAT button on the remote control, you will get this menu which contains the satellites you searched and stored, select one satellite and press OK, all channels will be listed under that satellite you selected.

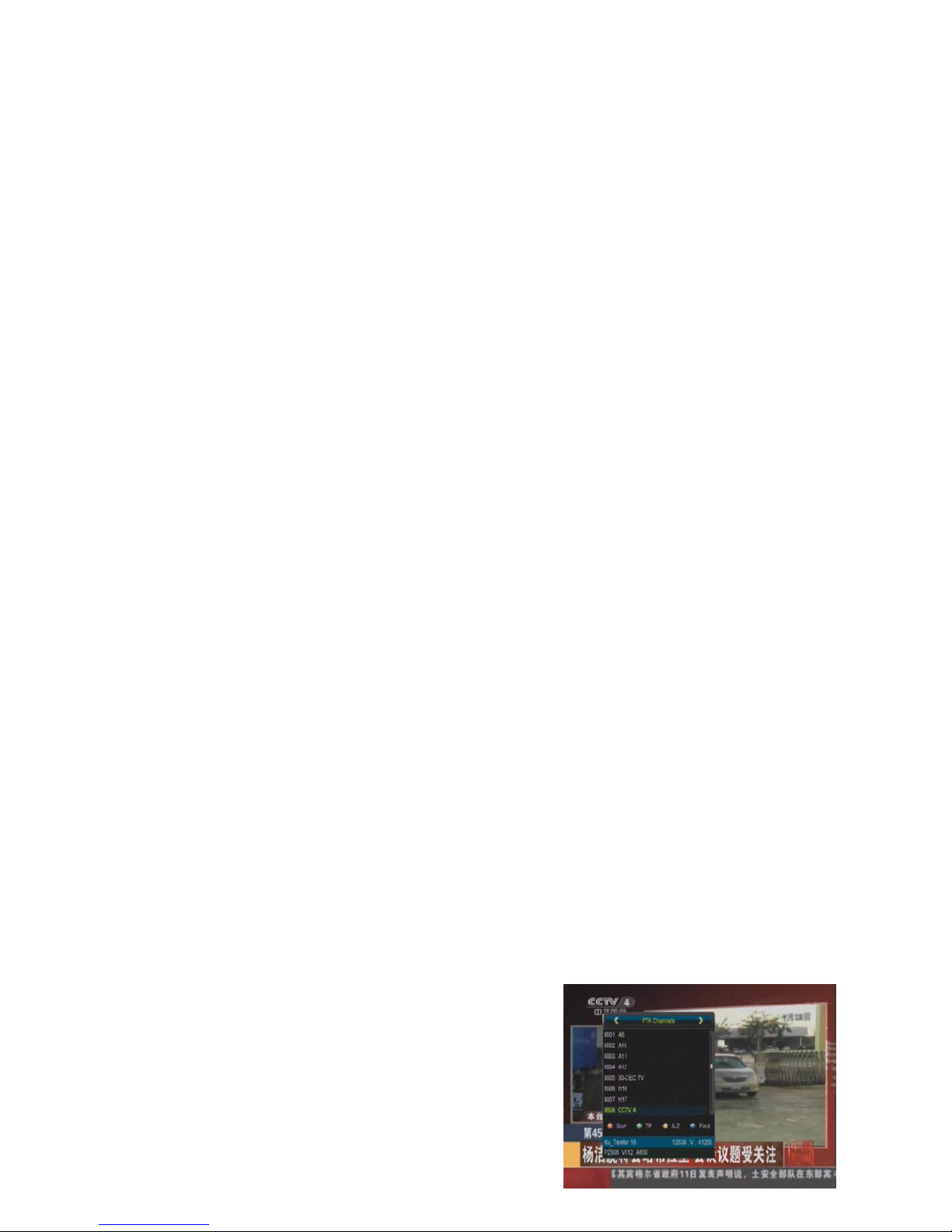

Channel List-OK
In viewing mode press OK button and you will get
different types, ALL, FTA, Scrambled and MPEG4/H264.Press SAT button, select one satellite and press OK, all channels will be listed under that satellite you selected.
Page 24
24

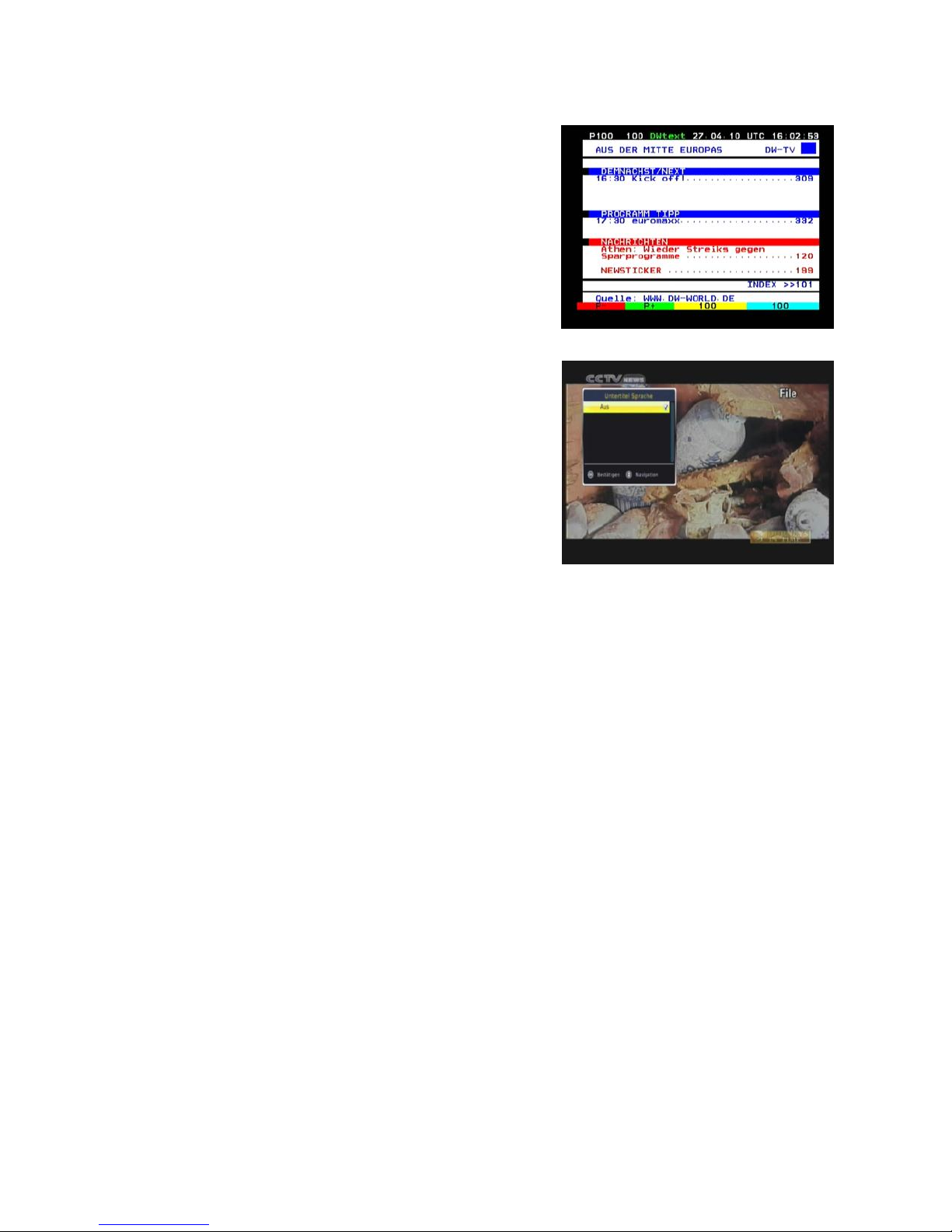

TXT:
Show the teletext content if teletext is transmitted
Subtitle
Press SUB button to show subtitle.
Page 25
25
5. Additional Information
5.1 Trouble Shooting
You might meet abnormal working of this STB with various reasons. Check the
following which may help you.
Problem
Possible causes
What to do
LED on the front panel fail
to light up/is not lit.
Main supply cable is not
connected.
Check if the main supply cable is plugged into the
power socket.
No picture or sound.
Satellite dish is not aiming to
satellite accurately. No signal or
weak signal. The LNB is faulty. The
cable is faulty.
Adjust the dish. Check the signal strength indicator
in one of the channels search submenus. Check
the cable connections, LNB and other equipment
connected to LNB & receiver, or adjust dish.
Replace the LNB. Replace the cable.
Bad picture/blocking error.
Satellite dish is not aiming to the
satellite accurately. Signal too
strong. Satellite dish is too small.
LNB noise factor too high. The LNB
is faulty.
Adjust the dish. Connect an attenuator to LNB
input. Change to a larger dish. Change LNB with
lower noise factor. Replace the LNB.
No startup menu on screen
after turning on STB for the
first time.
The system is connected by
SCART cable and the TV is not in
AV/ EXT mode.
Switch the TV to the appropriate AV input.
The remote control is not
working.
Battery exhausted. Remote control
is not aimed correctly STB is in
standby mode.
Change the batteries (both). Aim the remote
control at the STB. Check that nothing blocks the
front panel. Check if LED indicator on the front
panel is showing the time, press the power button
to switch off standby mode.
You have forgotten your
password.
Contact the dealer or Service Provider. They will
help you set it up again.
Poor picture quality or
Less channels in scanning.
Low LNB power or signal loss in
cable.
Change the LNB power to 14V/19V in Antenna
setup menu.
Page 26
26
5.2 Technical Specification
Tuner & Demodulator
Frequency Range
950 MHz to 2150 MHz
Input Connector
F-type, IEC 169-24, Female
Signal Level
-25 to -65 dBm
RF Impedance
75Ω¸unbalanced
IF Band width
55 MHz/8Hz(Per 5Msps)
LNB Power &
Vertical : +13 V, 14V +/-5%
Polarization
Horizontal : +18 V, 19V+/-5% Current : 500 mA Max. Overload Protection
LNB Tone Switch
22KHz+/-2KHz, 0.6Vpp+/-0.2V
DiSEqC Control
Version 1.0/1.2 Compatible, Tone burst A/B
Demodulation
QPSK/8PSK
Symbol Rate
1~45Ms/s/SCPC,MCPC
FEC Decode
Convolution Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7
MPEG
Transport Stream
MPEG-4/H.264, MPEG-2 ISO/IEC 13818
Profile Level
MPEG-4/AVC, MPEG-2 MP@ML, MP@HL
Input Rate
15 Mbit/s Max
Aspect Ratio
4:3, 16:9
Video Resolution
720 x 576, 720 x 480, 1280 x 720, 1920 x 1080
Audio Decoding
MPEG / MusiCam Layer I & II
Audio Mode
Single channel/Dual channel/Joint stereo/Stereo
Sampling
32, 44.1 and 48 KHz
A/V and Data In/Out Connector
TV SCART
RGB, CVBS, L, R out
LNB IF Input
F type, IEC 169-24 Female
LNB IF Output
F type, IEC 169-24 Female
Power Supply
Input Voltage
100 - 240V AC, 50/60Hz,
Power Consumption
Max. 18 W
Standby Power C
3W
Protection
Separate internal fuse. Input shall have lightening Protection
Physical Specification
Weight (Net)
Around 2.0 kg
Operating Temp
0ºC + 40ºC
Storage Temp
-40ºC to + 65ºC
Page 27
27
5.3 Glossary
Antenna
A device collects and radiates electromagnetic waves. Includes a satellite dish and broadband antenna.
DiSEqC
DiSEqC(Digital Satellite Equipment Control)system, it is a communication bus between satellite receivers and peripheral equipment using the only existing coaxial cable.
DVB
The Digital Video Broadcast group was created to establish a technical framework for the introduction of digital video broadcasting systems.
LNB (low-noise block converter) or LNBF
An electronic unit mounted on the satellite dish. It receives signals reflected by the dish and converts them to signals that can be used by the digital satellite receiver.
GHz
The prefix Giga means milliard, and Hertz means cycles per second. Signals in the GHz range are often called microwaves.
MHz
The prefix mega means million, and Hertz means cycles per second.
MPEG
Moving Picture Experts Group. Established by the International Standards Organization to provide the basis for a picture coding and compression system.
Page 28
28
Forward Error Correction (FEC)
A system of error control for data transmission.
PID(Packet Identifier)
A set of numbers that identifies transport stream packets containing data from a single data stream.
Polarization
Polarizations allows several programmers to be fit into the same frequency band. The signals from a satellite are transmitted either with linear (vertical or horizontal) polarizations or circular (right or left) polarizations.
QPSK(Quaternary Phase Shift Keying)
Phase-shift keying in which four different phase angles are used.
Transponder
An automatic device that receives, amplifies and retransmits a signal on a different frequency.
Symbol rate
Speed of the digital transmission
RGB
Red, Green, Blue. Color signals are routed in separate cables in order to provide a high quality TV picture.
Scrambled TV programmer
Some TV programmers are transmitted in scrambled form.
Page 29
29
SCART
A 21-pin connector used for connection of the receiver, VCR and TV. Also named Euro connector or Parietal connector.
S/PDIF
Sony/Philips Digital Interface Format. Digital audio output.
RCA
Coaxial connector used to connect the receiver to an external amplifier.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
