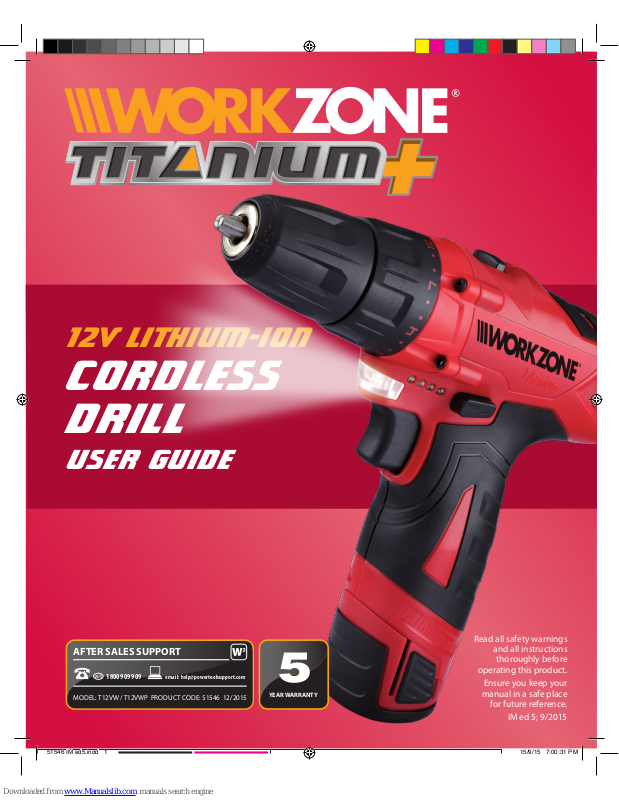

Titanium 12V Lithium-ION User Manual

12V Lithium-ion

CoRDLESS
DRiLL

uSER GuiDE

YEAR WARRANTY

AUS

AFTER SALES SUPPORT

email: [e-mail]1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

5

Read all safety warnings

and all instructions

thoroughly before

operating this product.

Ensure you keep your

manual in a safe place

for future reference.

IM ed 5; 9/2015

51546 IM ed5.indd 1 15/9/15 7:00:31 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

2

Contents

1

03 Welcome 2

04 Description of Symbols 3

05 Parts List 4

05 Contents 4

06 General information & Safety Instructions 5

12 Getting Started 6

14 Battery Charging 7

15 Operating Instructions 8

20 Troubleshooting / FAQ’s 9

21 Maintenance 10

22 Maintenance / Service 10

23 Specifications 11

24 Warranty 12

51546 IM ed5.indd 2 15/9/15 7:00:31 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

3

Congratulations on choosing to buy a Workzone® Titanium product.

All products brought to you by Workzone® Titanium are
manufactured to the highest standards of performance and safety,
and, as part of our philosophy of customer service and satisfaction,
are backed by our comprehensive 5 Year Warranty.

You will find your new Drill/Driver easy and safe to operate, and, with proper care, it will give
you many years of dependable service.

CAUTION Carefully read through this entire instruction manual before using your new
Workzone

®

Drill/Driver. Take special care to heed the Cautions and Warnings.

Your Workzone

®

Drill/Driver has many features that will make your job faster and easier.
Safety, performance, and dependability have been given top priority in the development of
this Drill/Driver, making it easy to maintain and operate.

NOTE: First time users or inexperienced operators pay particular attention to the operation
of the drill/driver, including details of starting and stopping and correct use of the drill/driver
on pages 15 to 19, as well as the maintenance instructions on pages 21.

Contents:

• 1 x Drill*

• 2 x 12V Lithium-ion Batteries

• 1 x Plug Pack Charger

* Please note the instructions in this manual are applicable for either the pink

(T12VWP) or red (T12VW) drill you have purchased.

2

Welcome

51546 IM ed5.indd 3 15/9/15 7:00:31 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

4

3

Description of symbols

Description of symbols

The rating plate on your tool may show symbols.
These represent important information about the product or instructions on its use.

Wear eye, ear and breathing protection.

Double insulated for additional protection.

Conforms to relevant standards for electrical safety

and electromagnetic compatibility.

Read the instruction manual.

Waste electrical products should not be disposed
of with household waste.

Indoor use.

Li ion Battery recycle. Do Not dispose of in Household waste.

Max. ambient temperature.

3 hour charging time.

Do not put in water.

Do not dispose of in fire; there is a risk of burns, explosion or fire.

Polarity.

MEPS. Energy consumption rating for Adaptor.

Li-ion

max. 40°C

(104°F)

51546 IM ed5.indd 4 15/9/15 7:00:31 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

5

This drill/driver is mainly used
for drilling in wood or metal
sheet and screwdriving.
Use the tool and accessories
only for intended applications.
The machine is intended
only for use in household; it is
not suitable for commercial,
trade or industrial use.

All other applications are
expressly ruled out.

1. Two speed high /low

gear selector

2. Forward/Reverse control

3. Variable speed,

On/Off trigger switch

for drill, brake and

light control

4. Rechargeable battery

5. Battery charger

6. LED work light

7. Rechargeable
battery display

8. Torque Collar

9. Drill chuck

2

3

9

5

8

7

6

4

1

4

Parts List

51546 IM ed5.indd 5 15/9/15 7:00:38 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

6

General safety instructions for handling power tools

WARNING! Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference

The term “power tool” in the warnings refers to your mains operated (corded) power tool or

battery-operated (cordless) power tool.

This unit may not be used by people (including children) with reduced physical, sensory or

mental capacities, with a lack of experience and without the appropriate knowledge, unless
they are supervised by someone who is responsible for their safety or have been instructed by
such a person with regard to how the unit is to be operated.

Children should be supervised to ensure that they do not play with the device.

Be aware of any local or national restrictions when using this appliance. This could include,

but not restricted to, times of operation, location of operation, or work place operation.

Work area safety

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of

ammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause

you to lose control.

Electrical Safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use

any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges

and refrigerators. There is an increased risk of electric shock if your body is earthed or
grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will

increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the

power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords

increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

General Information
& Safety Instructions

5

51546 IM ed5.indd 6 15/9/15 7:00:38 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

7

f. If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

g. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

h. Hold power tool by insulated gripping surfaces, when performing an operation where the

cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live” and could give the operator an
electric shock.

Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the inuence of drugs, alcohol or

medication. A moment of inattention while operating power tools may result in serious personal

injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment

such as dust masks, non skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the o position before connecting to

power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key

left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of

the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe

handling and control of the tool in unexpected situations.

h. If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and o. Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.

General Information
& Safety Instructions

5

51546 IM ed5.indd 7 15/9/15 7:00:38 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

8

c. Disconnect the plug from the power source and/or the battery pack from the power tool

before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar

with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of

parts and any other condition that may aect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained

power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting

edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,

taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

a. Recharge only with the charger specied by the manufacturer. A charger that is suitable

for one type of battery pack may create a risk of fire when used with another battery pack.

b. Use power tools only with specically designated battery packs. Use of any other battery

packs may create a risk of injury and fire.

c. When battery pack is not in use, keep it away from other metal objects, like paper clips,

coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.

Service

a. Have your power tool serviced by a qualified repair person using only identical replacement

parts. This will ensure that the safety of the power tool is maintained.

General Information
& Safety Instructions

5

51546 IM ed5.indd 8 15/9/15 7:00:38 PM

AUS

AFTER SALES SUPPORT

email: [e-mail]

1800 909 909

MODEL: T12VW / T12VWP PRODUCT CODE: 51546 12/2015

Phone lines available Monday to Friday, 8am - 6pm.

9

Safety information for battery powered screwdrivers and drills

a. Hold power tool by insulated gripping surfaces, when performing an operation

where the fastener may contact hidden wiring or its own cord. Fasteners contacting
a “live” wire may make exposed metal parts of the power tool “live” and could give the
operator an electric shock.

Safety notes for battery/charger

a. Keep the charger away from rain or damp. Water entering into the charger will increase the

risk of an electrical shock.

b. Only use chargers recommended by the manufacturer to recharge the battery. When using

a charger designated for a particular type of battery, there is a risk of fire if it is used with
other batteries.

c. Never use to recharge third-party batteries. The charger is only designed to charge the

supplied batteries (Li-ion) using the voltages specied in the Technical Data. Otherwise

there is a risk of fire or explosion.

d. Keep the charger clean. Contamination will increase the risk of an electrical shock.

e. Check the charger, cable and plug each time you use the unit. Do not use the charger if

you find any damages. Never open the charger up yourself, have it repaired by a qualified
specialist only and with original replacement parts. A damaged charger, cable or plug will
increase the risk of an electrical shock.

f. Never operate the charger on a surface that will burn easily (for example, paper, textiles

etc) or in a flammable environment. There is a risk of fire occurring as a result of the heat
generated during the charging process.

g. Fluid can escape from the battery when used incorrectly. Avoid all contact with this. In the

event of accidental contact, rinse with water. If liquid should get into the eyes, get medical
assistance. Battery fluid may result in skin irritations and burns.

h. Do not open the battery. There is a risk of short-circuiting.

i. Protect the battery from heat, for example, from constant sun and fire. There is a risk of

explosion.

j. Never short circuit the battery. There is a risk of explosion.

k. In the event of damages and incorrect use, vapours may come out of the battery. Ensure

plenty of fresh air and, if you have any symptoms, consult a doctor. These vapours may
irritate the respiratory system.

General Information
& Safety Instructions

5

51546 IM ed5.indd 9 15/9/15 7:00:38 PM
