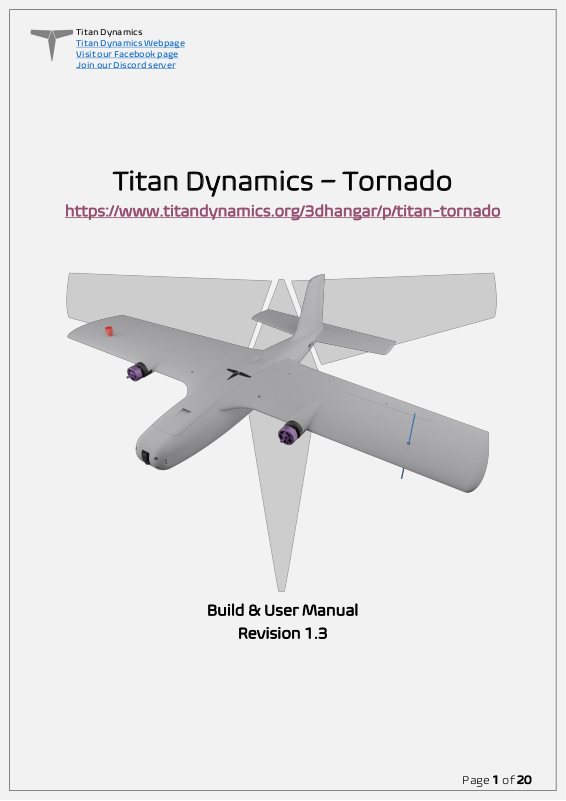

Titan Dynamics – Tornado
https://www.titandynamics.org/3dhangar/p/titan-tornado
Build & User Manual
Revision 1.3
Page 2
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 2 of 20
Contents
Section 1: Model Information ............................................................................................................. 3
Section 2: Model Specifications & Performance ............................................................................ 4
Section 3: Required Build Materials .................................................................................................. 5
Section 4: 3D printing ........................................................................................................................... 6
4.1: Things to know before you start printing. ........................................................................... 6
4.2: Part Orientation .......................................................................................................................... 7
4.3: Tuning “hole horizontal expansion” ....................................................................................... 9
4.4: Bed Adhesion and warping ...................................................................................................... 9
Section 5: Assembly of 3D Printed Parts ........................................................................................ 11
Section 6: Final Setup & Tuning Tips ............................................................................................... 16
Section 7: Additional Images ............................................................................................................. 17
Page 3
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 3 of 20
Section 1: Model Information
The Tornado is a 1-meter twin tractor designed for maximizing your FPV fun. It packs a tight
punch in a small form factor while being a swiss army knife in terms of configuration. Featuring a
swappable nose and tail-cam, Tornado can be configured for almost any kind of FPV experience
you desire. Multiple noses supporting multiple cameras are included, as well as blanks for the
community to modify. Designed with acrobatics in mind, it’s got a full set of large control
surfaces ready to command ludicrous pitch/roll rates and maintain stability at any speed. Of
course it wouldn’t be a Titan without space for large batteries – allowing for ultra-long-range
flights if desired. Wing bays on either side ensure maximum antenna separation, while the
smooth contours reduce interference drag and help Tornado cut through the air like a hot knife
through butter. Speaking of which, when configured with T-Motor F90’s you’re talking about
nearly 4kg of thrust – giving it a power to weight ratio of well above 2:1. Better call your
weather-man, because this plane is sure to stir up a storm at speeds of over 220km/h.
Page 4
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 4 of 20
Section 2: Model Specifications & Performance
General Stats:
• Wingspan: 1034mm
• Wing area: 1980cm
2
• Maximum take-off Weight: 2.5kg
• Efficiency: 1.5 Wh/km @ 1.5kg
• Cruise speed: 65-75kph
• Recommended prop diameter: 6-8 inches
Aerodynamic Properties:
• Root airfoil: NACA 3410
• Tip airfoil: NACA 2410
• Root chord: 220mm
• Tip chord: 104mm
• Average Chord: 176mm
• Root incidence: 2°
• Tip incidence: 0°
• Aspect ratio: 5.04
• Max L/D: 11
• Dihedral: 0°
• Sweep: -5° trailing edge
Additional notes:
• Installation of removable nose is done with 4 m3 bolts which screw on to threaded
inserts on the front of fuse1
• Installation of vstab2 is done with 2 m3 bolts which screw on to threaded inserts
on top of vstab1
• If the option of having a tailcam is not desired whatsoever, please glue
vstab2_permanent to vstab1
Page 5
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 5 of 20
Section 3: Required Build Materials
Spars needed:
(2) 8x500mm (main wing spars)
(2) 8x300mm (wing support)
(2) 3x250mm (aileron hinge)
(2) 3x320mm (hstab support + elevator hinge)
(1) 3x150mm (rudder hinge)
(1) 2x200mm (optional elevator join support)
Recommended motor & prop:
16-19mm mounting pattern
Tmotor F90 1300kv Long Range version or V2208 or similar
6-8 inch propeller (ideally 7x4 on 6S)
Recommended electronics:
TBS crossfire / ELRS / Dragonlink
5.8ghz / 1.2ghz analog or digital
Matek F405-WTE flight controller or similar
Matek M8Q-5883 GPS/Compass or similar
(2) 35-55a BLHeli ESC
(4) Emax ES08MAII servos
Battery: Anything from a 3300mah 6S Lipo to a 15,000mah 4S Li-Ion
Misc:
Polymaker Polylite prefoamed LWPLA
Polycarbonate or other high-temp filament for the motor mount
Medium CA glue
210x210x250 minimum size print bed (Prusa Mk3)
Control horns (this one).
M3 threaded inserts (max 6mm height)
M3 bolts of various sizes
6x3mm magnets
Page 6
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 6 of 20
Section 4: 3D printing
4.1: Things to know before you start printing.
1. Titan Dynamics strongly recommends using Polymaker Polylite prefoamed LWPLA
for the best results. This filament is much easier to tune your printer for and has
less stringing than active foaming filaments. If you aren’t able to purchase
Polymaker filament, many members of our Facebook group and Discord server
have had success
2. You likely will not get good results unless your printer is well maintained and
calibrated, we would suggest learning how to check and adjust your printer to
perform at its absolute best before starting. This website has useful guides:
https://teachingtechyt.github.io/calibration.html#intro.
3. All the below guidance should be taken as a starting point only. Print a test piece
and check things like retraction settings and fitment of the carbon rods in the
wings for yourself as every printer is different. If the carbon rods are too tight,
increase the “Hole Horizontal Expansion” setting in Cura (or the equivalent setting
in other slicers).
4. All our models are designed to be printed predominantly in LW-PLA filament. All
fuselage, tail, and wing parts should be printed in LW-PLA unless otherwise noted
in the file name.
There are 3 levels of infill / wall settings that we recommend for the LWPLA parts:
1. Maximum efficiency: 3% cubic subdivision, single wall
2. Balanced efficiency and strength: 5% cubic subdivision, single wall
3. Maximum strength: 8% cubic subdivision, single wall
WE RECOMMEND PRINTING TORNADO WITH 4% CUBIC SUBDIVISION INFILL
Notes:
• For the best flight characteristics and maximum range, LWPLA parts should be
printed with single wall and 3% cubic subdivision infill.
• Cubic subdivision infill can be increased to 5 or 8% to increase durability, but this
will have an impact on maximum payload capacity (battery), and range by
extension. We recommend and use 3% cubic subdivision infill as it has been tested
to survive 6.4G in flight, but some may desire greater general durability when
handling/carrying the model around etc. It will still break if you crash it!
• Because the fuselage takes the most abuse during landings, some may choose to
just print the fuselage sections in higher infill. Using a higher infill just for the
fuselage (4%-8%) can greatly increase the longevity of the plane without as much
of a weight penalty as printing the entire plane in high infill.
• Gyroid infill brings a significant weight penalty with it even at the same
percentage. For the highest strength-to-weight ratio part, stick to cubic
Page 7
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 7 of 20
subdivision or cubic. A part printed at 3% gyroid is comparable weight to the same
part printed at 7% cubic subdivision.
Polycarbonate, PETG or other high-temp filament should be used for the motor mounts
and wing bay covers.
• High temp Polycarbonate or PETG parts should be double wall and high infill (25%).
We recommend using the newest version of Ultimaker Cura. This link can be used to
download our own slicer profile.
4.2: Part Orientation
It is necessary to orient each part correctly on the build plate to avoid disconnected
overhangs. Take care when doing this as the entire model is designed to be printed with
no supports. If you orient some parts wrong, the print will fail. It may also be necessary
to rotate and carefully position some parts to fit within the build area on smaller
printers.

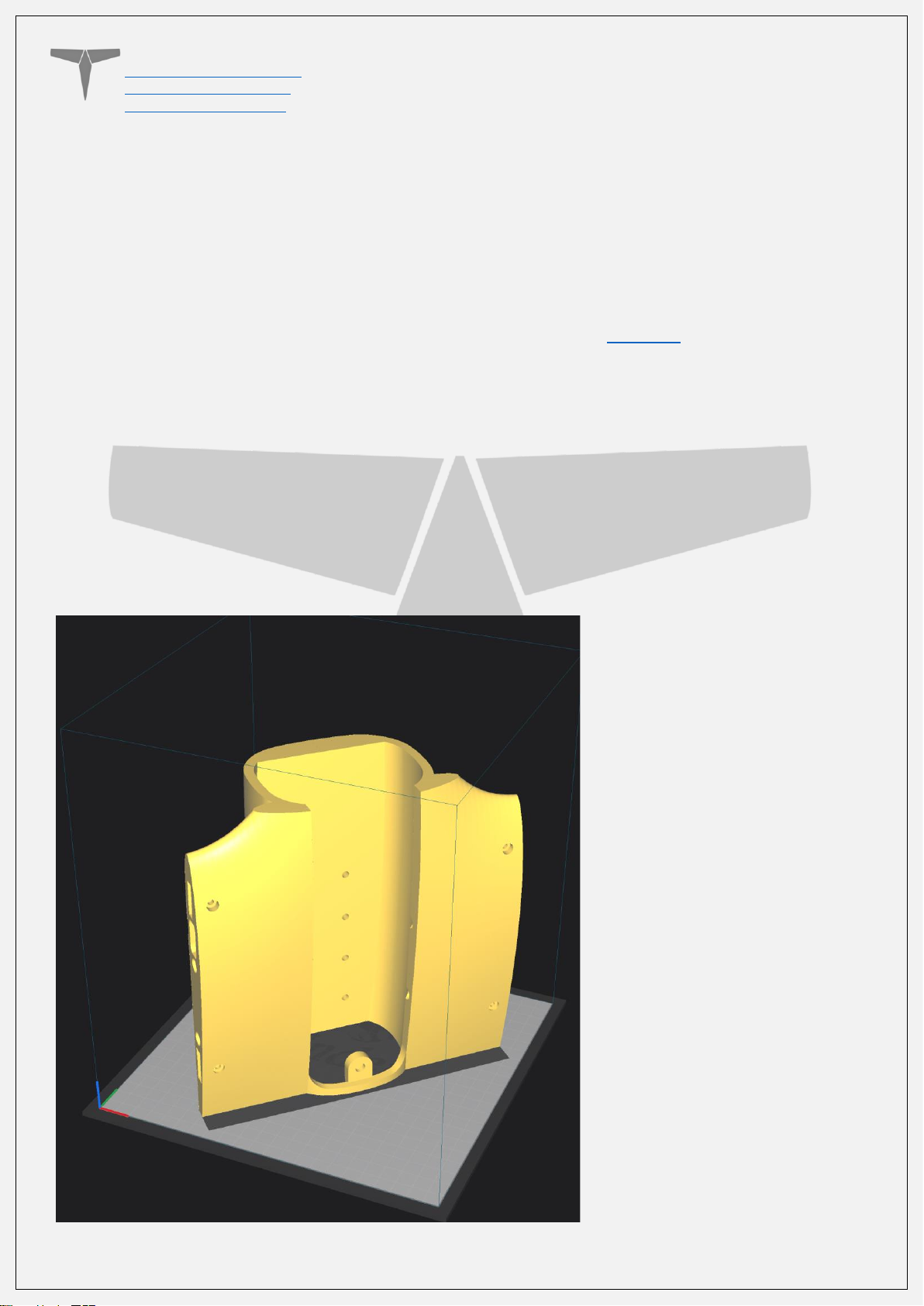

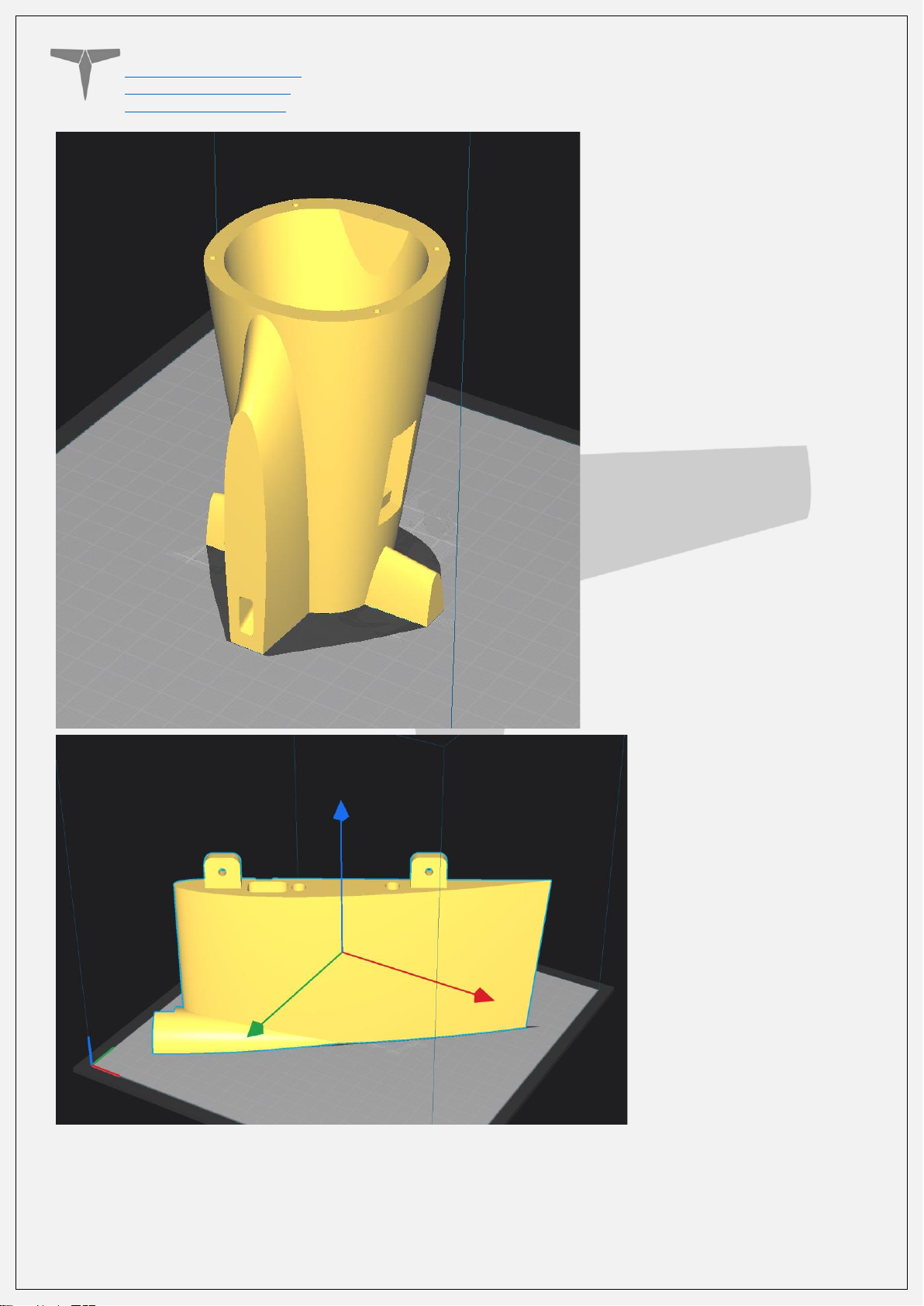

Examples for part orientation:
Page 8
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 8 of 20
Page 9
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 9 of 20
4.3: Tuning “hole horizontal expansion”
It is very important to check the fitment of the carbon rods in their holes on the first
parts you print. Because everyone may be using different printers, materials and slicer
settings, it is not possible to provide the models with a slicing profile and hole size that
will work for everyone.
Print your first part with carbon spar hole and check fitment, if it is too tight increase the
hole horizontal expansion setting in the “walls” section in Cura (or your slicer’s similar
setting). A good starting point is 0.25mm. If it is too loose, just decrease the setting until
you can reliably push the rods in and still get a snug fit.
4.4: Bed Adhesion and warping
When printing tall parts like this and other models require, having good print adhesion to
the bed is a necessity. Ideally you will print each part without any extra aids, however
this may not be possible for many, especially those printing without an enclosure for
their printer. A full brim can be used but this will typically have mixed results. If it works
for you, use a glue stick on the print surface to improve adhesion. Cura also has a plugin
that can be used to help with bed adhesion and to avoid warping.

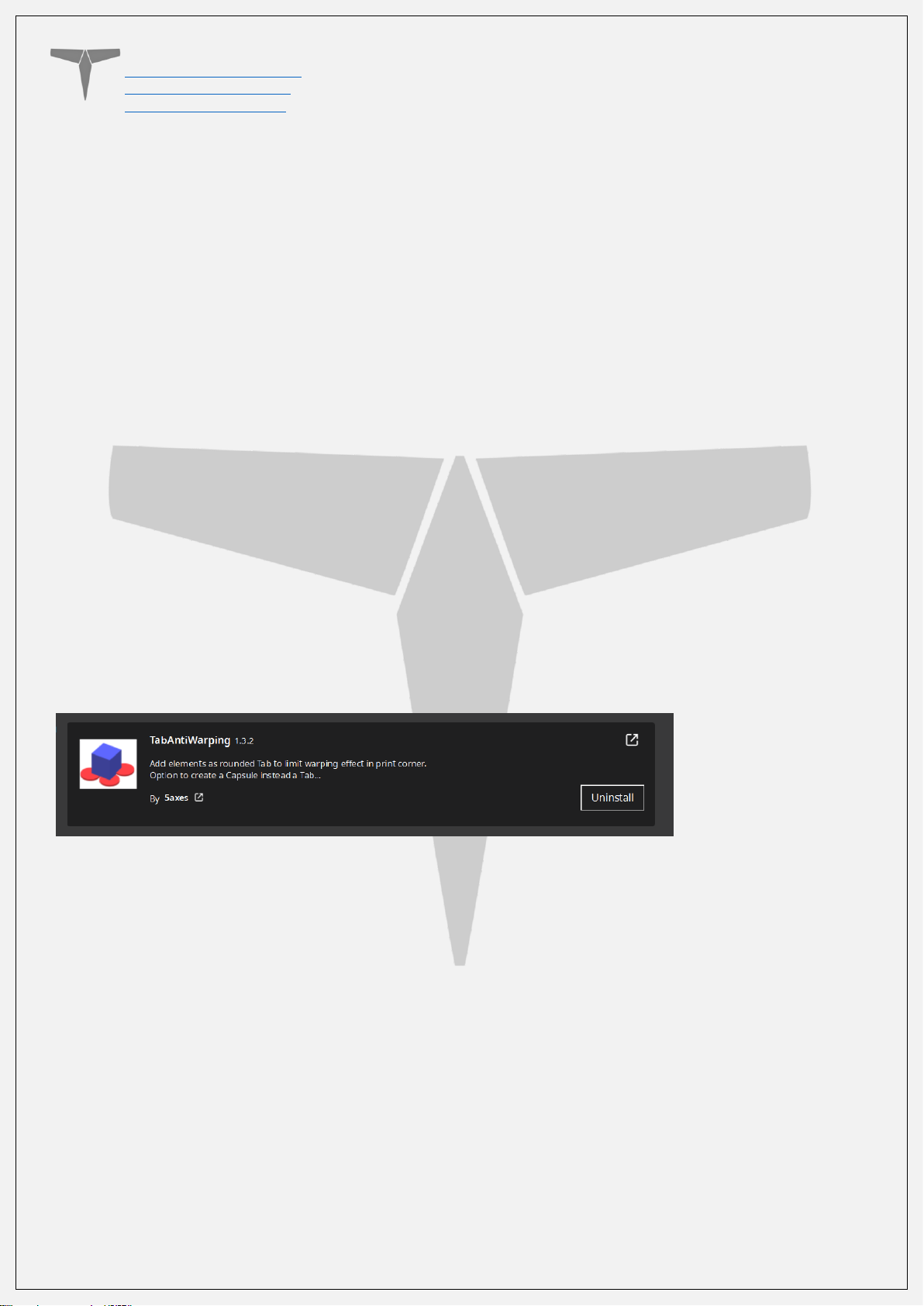

Cura Marketplace: TabAntiWarping Plugin.
When installed, use the new icon at the bottom of the left menu to choose tab diameter
and thickness, then click on the model to add a tab at each point you think is at risk of
warping or poor adhesion (typically parts with low surface area in contact with the print
surface in relation to their height). These new tabs can now be moved around to fine
tune their position using the normal move controls on Cura.
Page 10
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 10 of 20
Once completed, be careful when removing these tabs from the print as they are quite
strong and can damage the bottom of your part if not removed carefully. Re-open any
holes the tab may have filled on the bottom of the print.

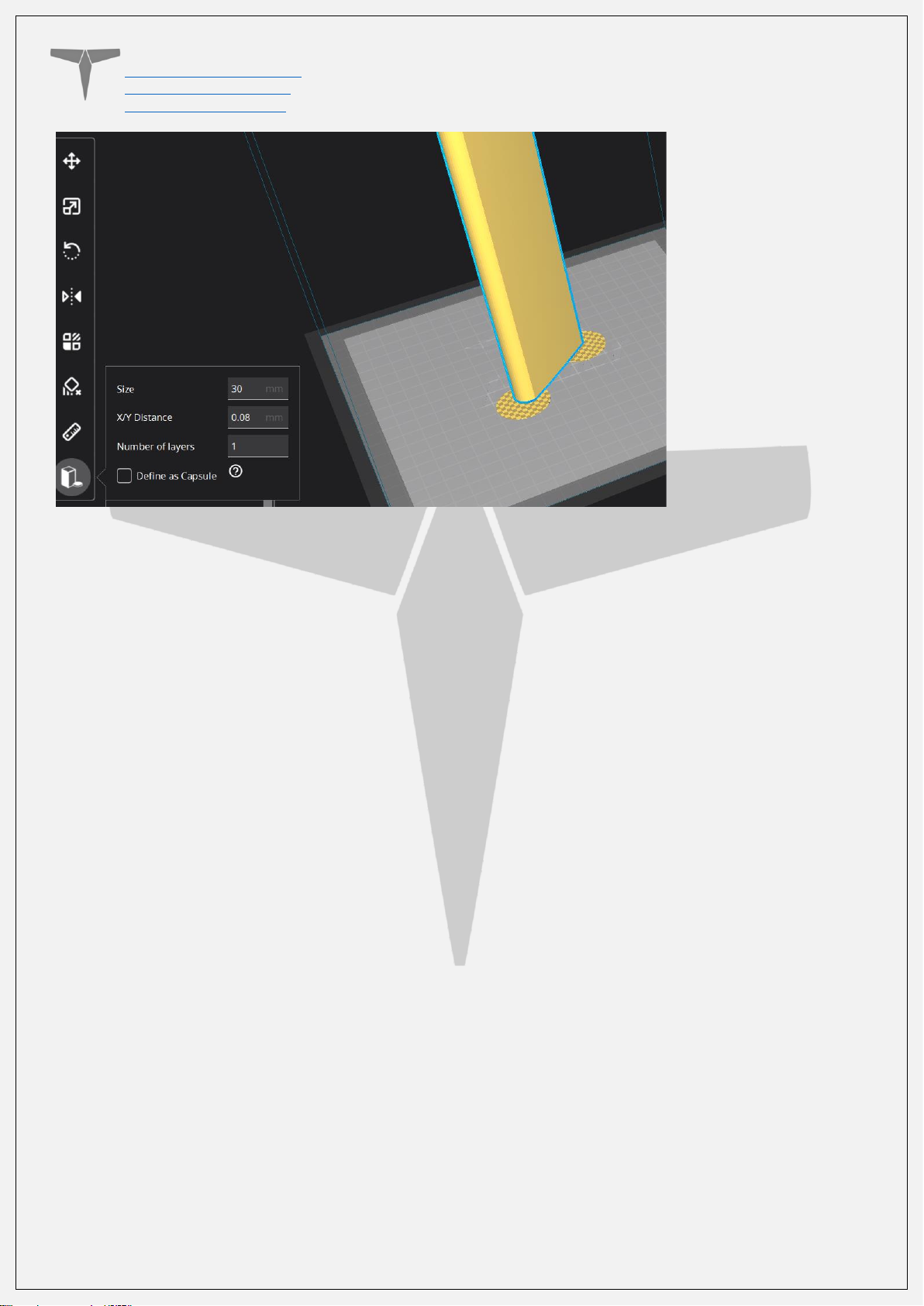

If you find these hard to remove from the print bed, select the “Define as Capsule” option.
This makes the edge of the tabs raised, so you can get a scraper underneath them.
Page 11
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 11 of 20
Section 5: Assembly of 3D Printed Parts

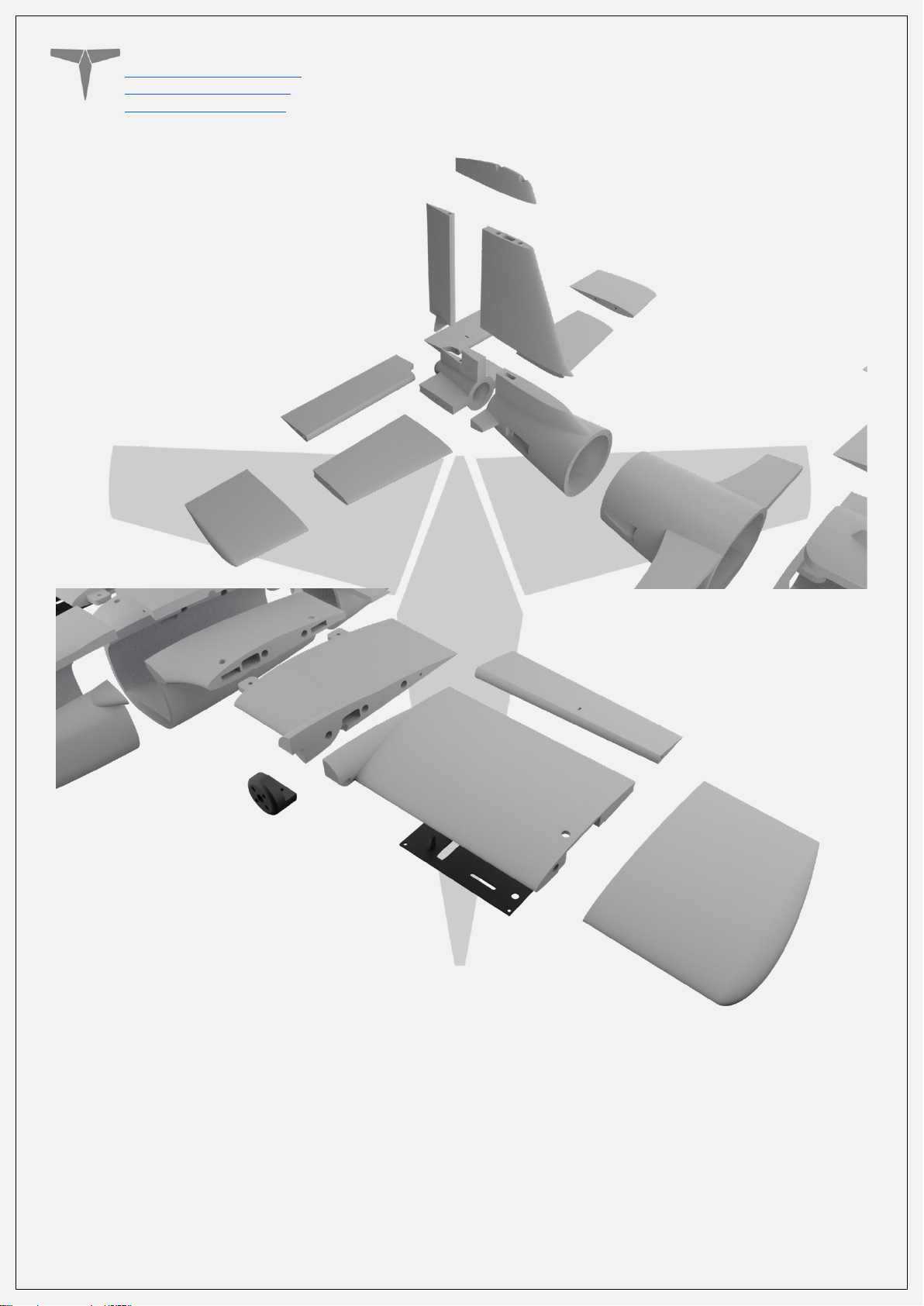

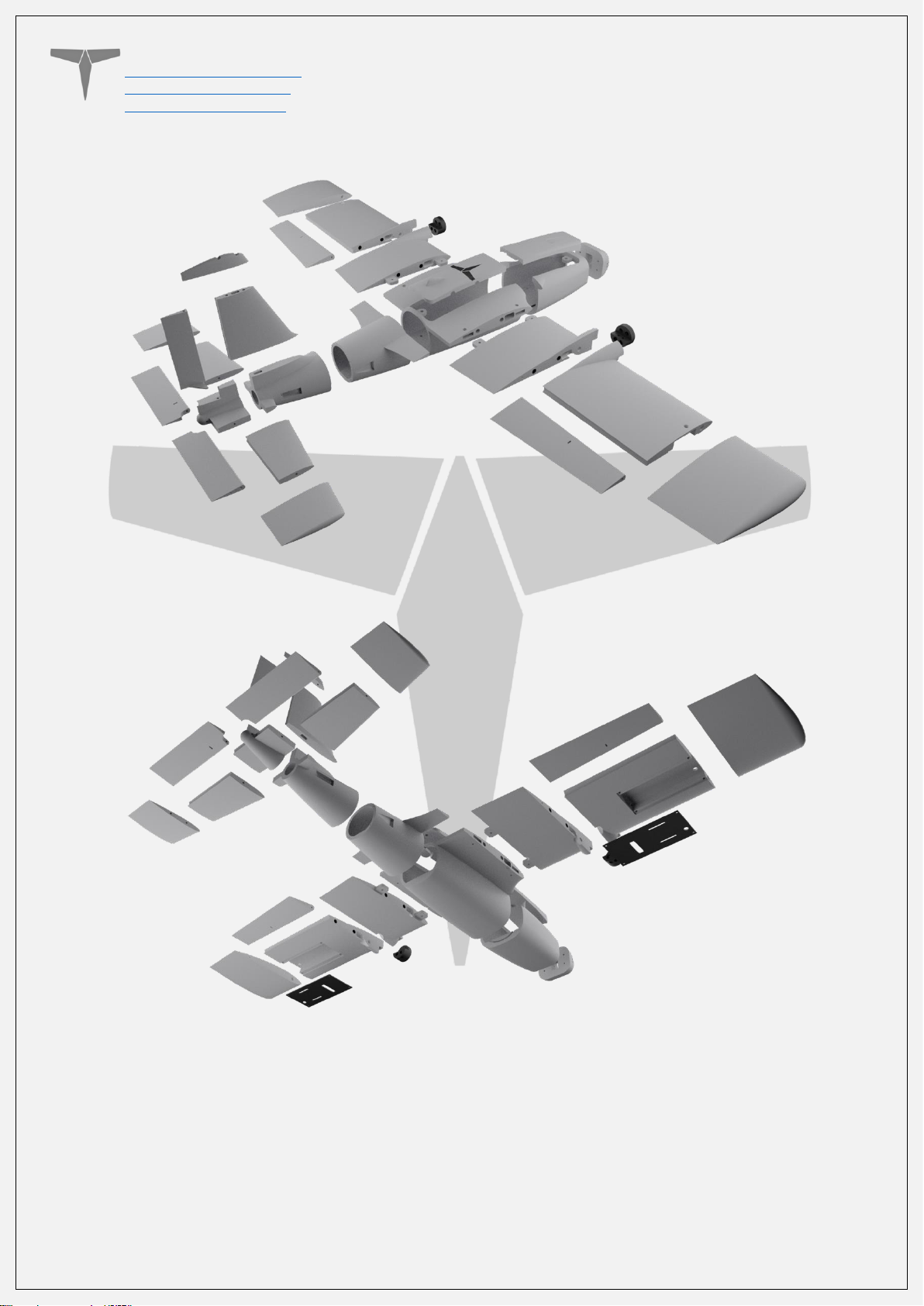

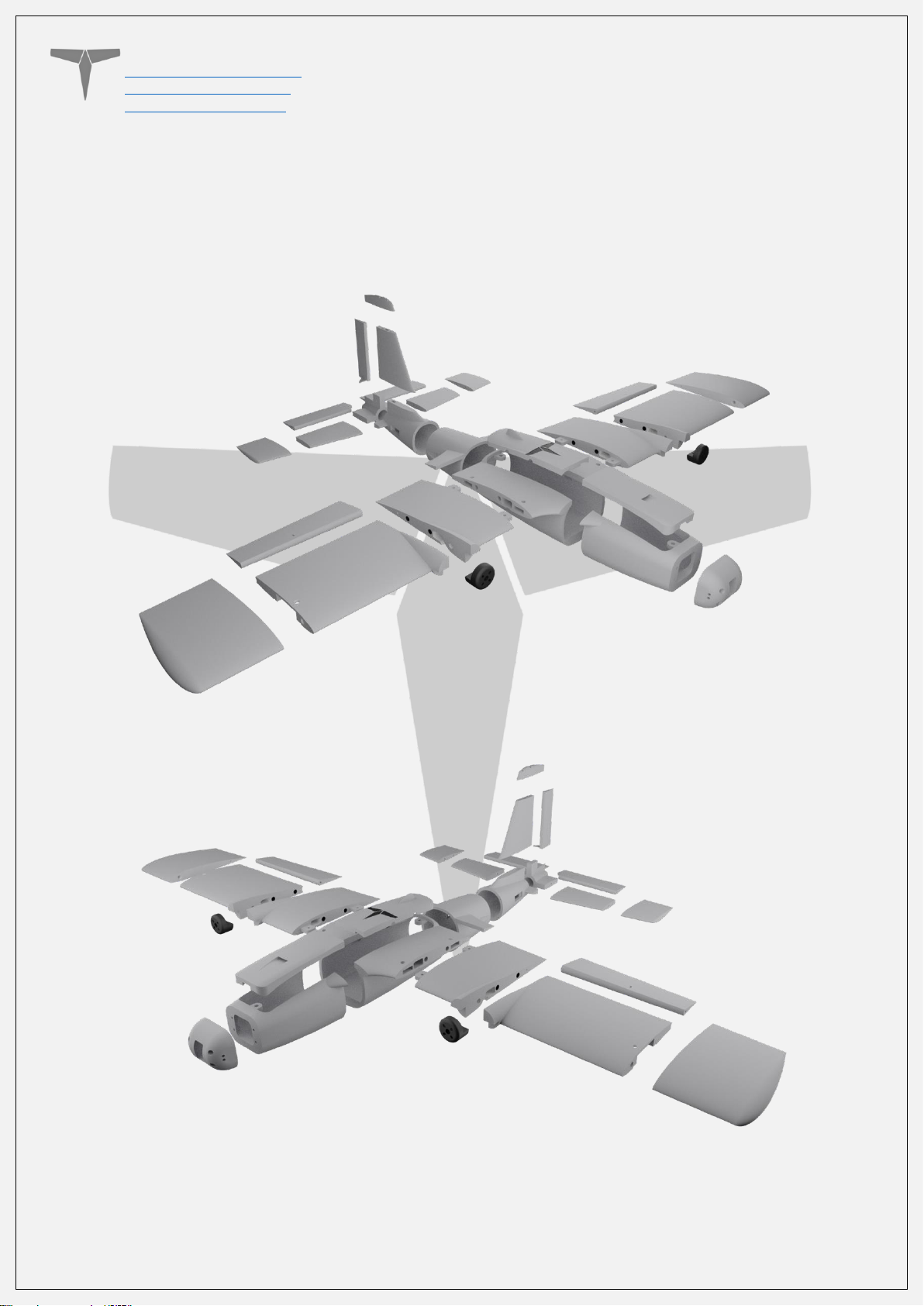

Below are a few exploded views of the Tornado to help with assembly.
Page 12
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 12 of 20
Page 13
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 13 of 20
Page 14
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 14 of 20

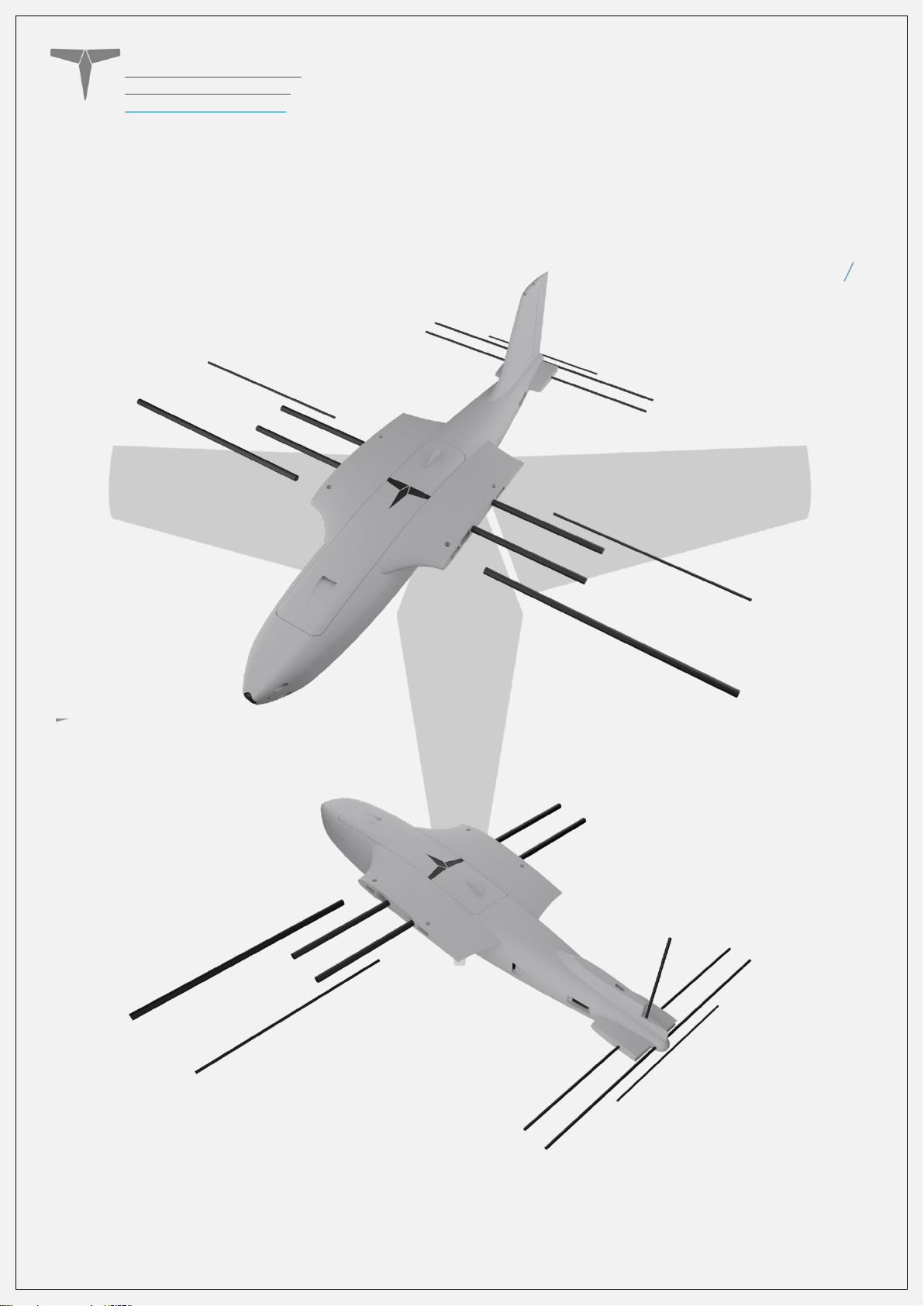

The spar layout for Tornado is as depicted below. None of the spars need to be glued in
(EXCEPT FOR THE TAIL BOOM), they will all be retained by the printed parts. The two wing
spars that intersect the fuselage are the joiners for the wings and the fuselage and can
be removed completely from the fuselage and wing during transport.
Page 15
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 15 of 20
• Medium CA glue should be used to assemble all fuselage parts.
• When first putting the glued parts together be sure to wipe any excess glue off
before it sets. A kicker may then be used to speed up the setting time; technically
this results in a weaker joint, however it will still be stronger than the base material
LW-PLA.
• Use care when aligning parts for gluing. With medium CA, you should have a few
seconds to get alignment right. Small mistakes in alignment can stack up and
eventually lead to a part not fitting perfectly. We have taken care when designing
the aircraft to make sure there is tolerance for some minor mistakes but try to be
as perfect as possible when gluing.
• When gluing the wings together, use the carbon rods to ensure alignment however
be careful not to glue them in, they should not be glued in on the final product.
• IMPORTANT! - Do not glue the wing tips on until you have the carbon rod and
aileron/flap installed as it’s the wing tip that secures these in place. If you glue the
wing tip on before inserting the control surfaces + carbon rod you will not be able
to insert them afterwards.
• Threaded inserts can be properly installed by using a soldering iron at low heat
setting, a good guide for doing this can be found at this link.
Page 16
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 16 of 20
Section 6: Final Setup & Tuning Tips
• Titan Dynamics strongly recommends the use of Arduplane for all our models. If
you encounter an issue in flight, the data logs Ardupilot creates are invaluable for
finding the root cause of any issue and increasing future chances of success.
• Give all control surfaces +- 30 degrees or more throw (unless planning to fly
manually)
• Take-off does not require flaps, but landing can be done easier with half flaps.
• CG is marked under the wing and should be kept very close to that point.
• Add duct tape or other abrasion resistant material to bottom of the fuselage to
increase durability if landing on rough surfaces.
• Launch straight or slightly vertically at full throttle – it should require almost no
throw or run-up
• Be sure to pay attention to the ESC current limit when using high power motors
Page 17
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 17 of 20

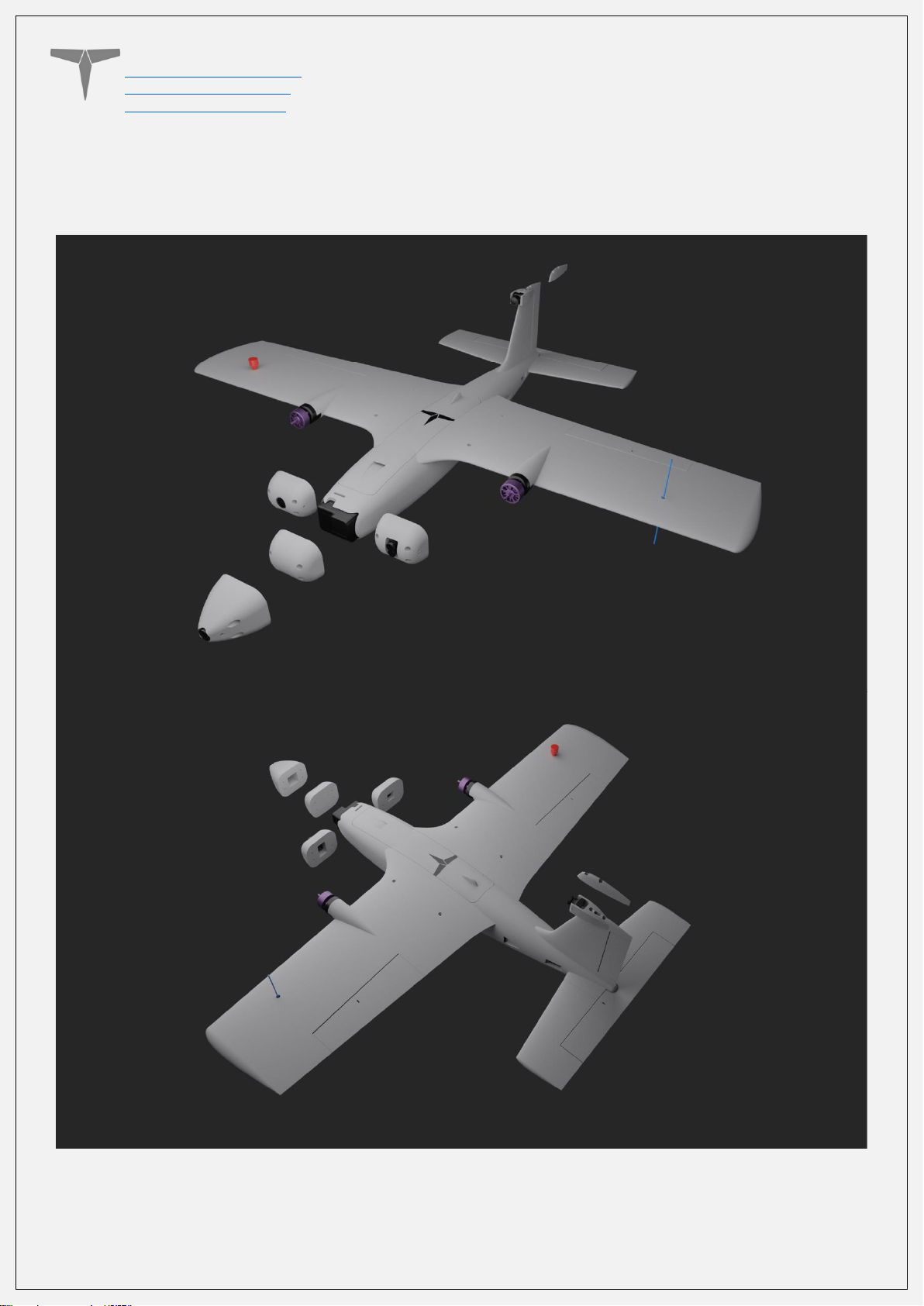

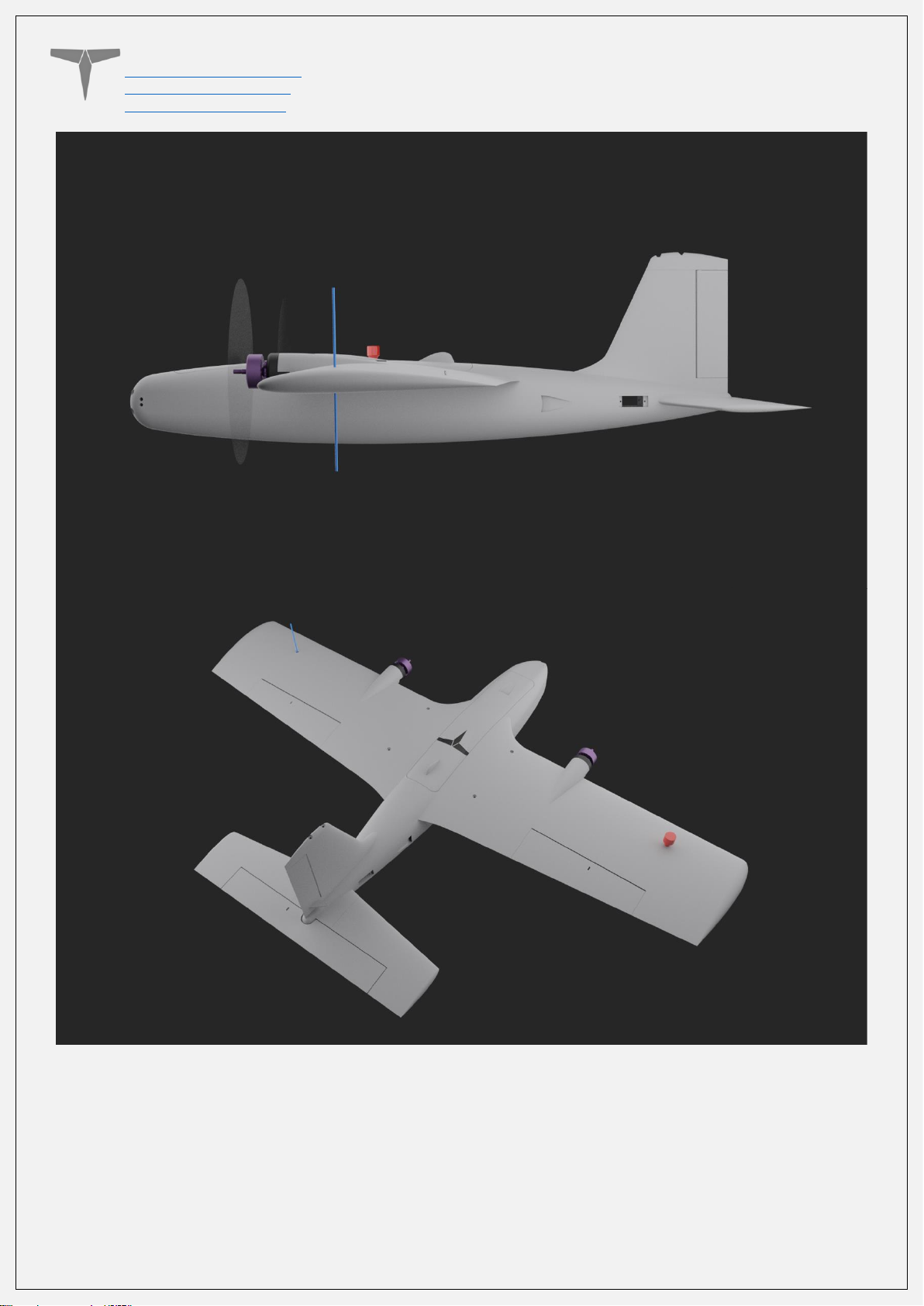

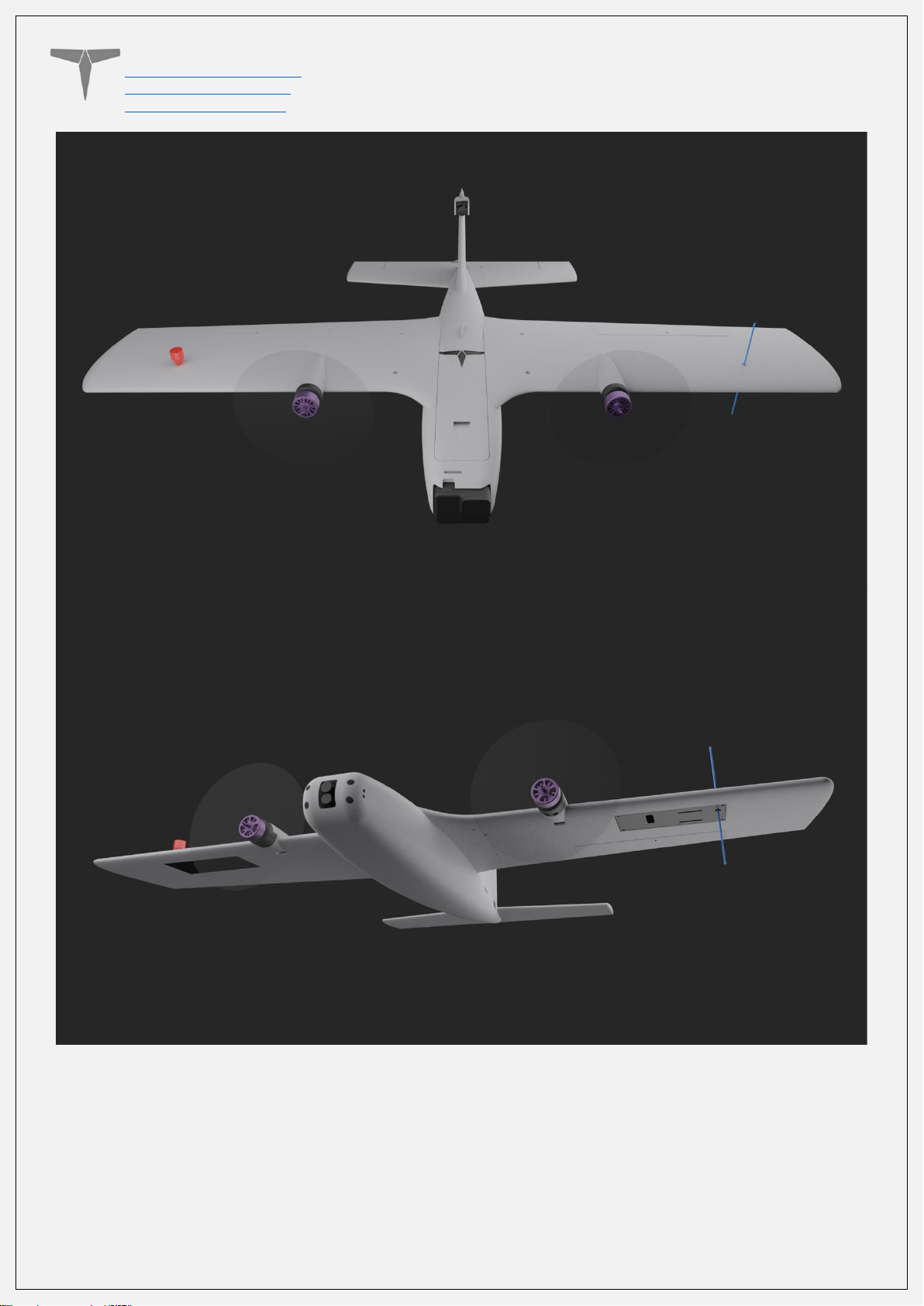

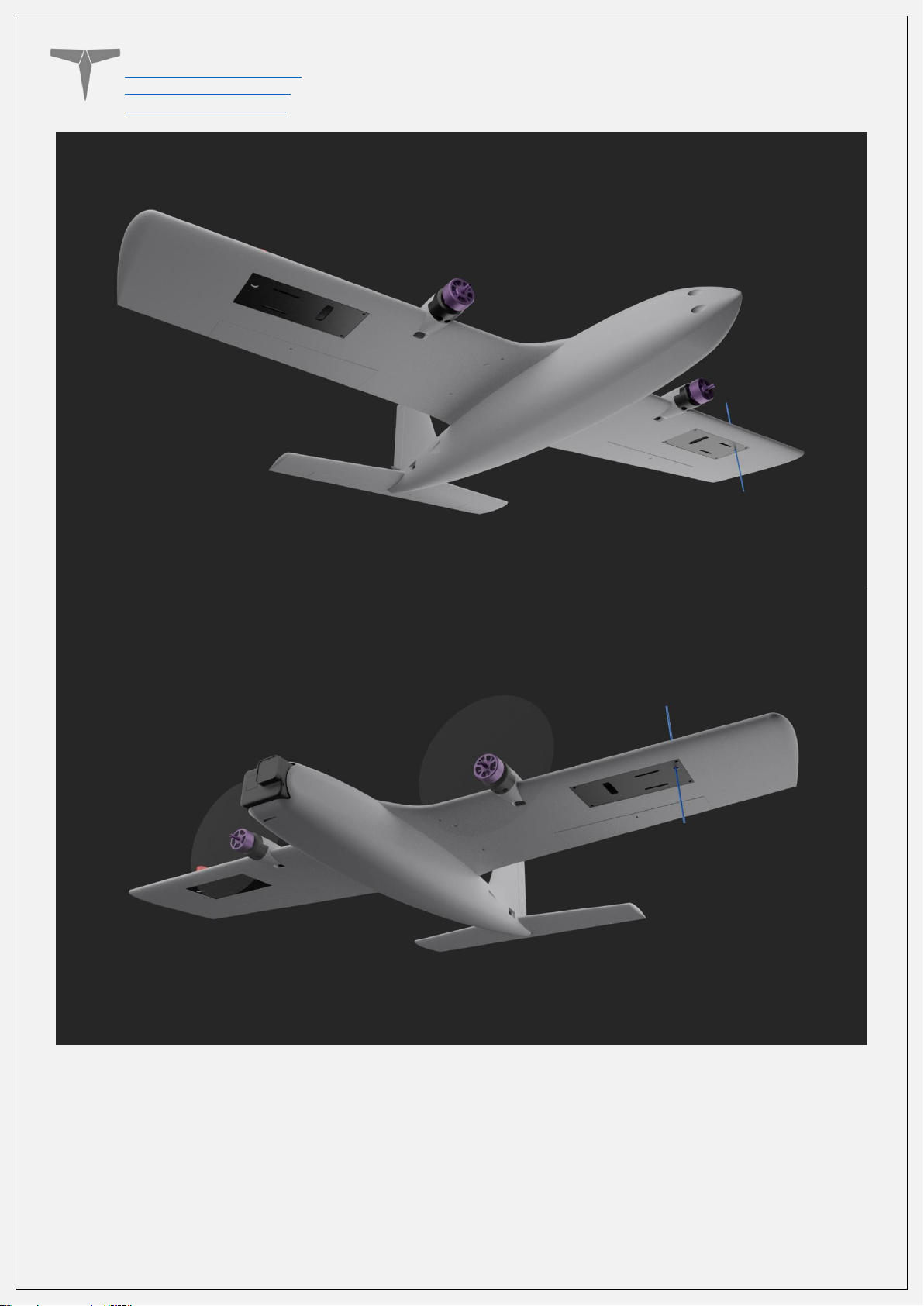

Section 7: Additional Images
Page 18
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 18 of 20
Page 19
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 19 of 20
Page 20
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 20 of 20
Loading...
