Section 1: Model Information
History lesson: The original Titan Talon was one of the world’s first long range capable
and ultra-efficient 3D printed UAVs. There were many other printable models out there,
but none truly focused on maximizing efficiency, large battery carrying capacity, and
endurance.

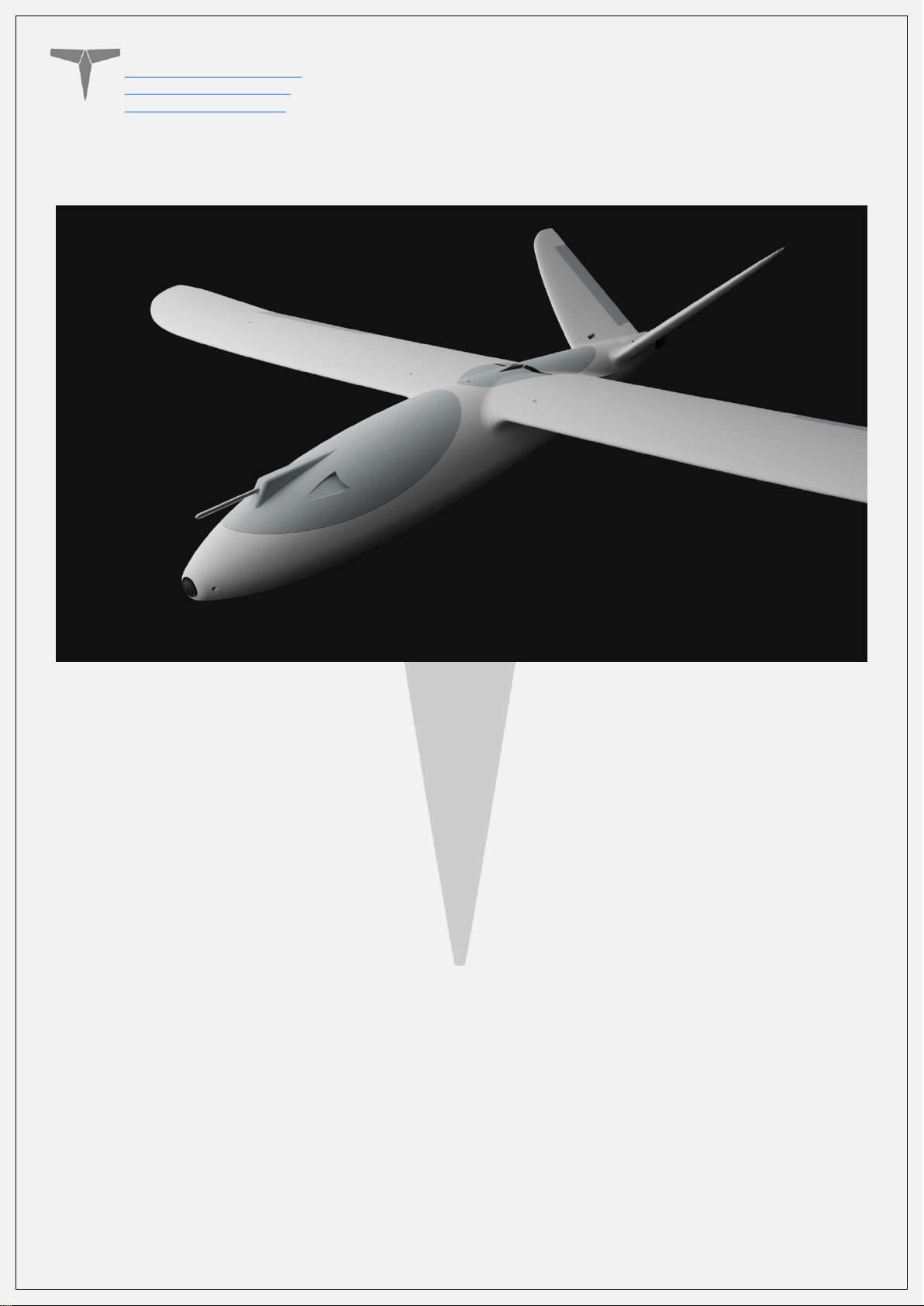

Introducing The Super Talon: Focused on sharpening long range capabilities, it features a
slightly larger 1.5m wingspan with a slew of upgrades including an even more
streamlined fuselage, better wire management, lower parasitic and induced drag, larger
electronics bays under the wings, a modular nose, and multiple options for the canopy.
The large wing bays allow for mounting components such as VTXs and RXs with ample
antenna separation. The entire aircraft can be printed supportless within a matter of
days on a single printer. The Super Talon was designed to replace our Talon V2 and V3
based on user feedback and feature requests. It can easily do 100km out and back with a
total achievable flight time of 4+ hours and range of 250km+ with a 4S6P 18650 Li-Ion
battery.
Page 4
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 4 of 30
Section 2: Model Specifications & Performance
2.1: Physical Characteristics
General Stats:
• Wingspan: 1495mm
• Wing area: 2986cm
2
• Maximum take-off Weight: 3.8kg
• Efficiency: 1.03 Wh/km @ 2.27kg AUW
• Cruise speed: 50-70kph
Aerodynamic Properties:
• Airfoil: NACA 4410
• Root chord: 245mm
• Tip chord: 30mm
• Average chord: 175.3mm
• Root incidence: 4°
• Tip incidence: 1°
• Aspect ratio: 7.49
• Dihedral: 0°
• LE Sweep: 2.75°
• TE Sweep: -1°
Page 5
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 5 of 30
2.2: Aircraft Performance:
Below are some plots showing aircraft performance at different all-up weights. The
values predicted are not perfect, and values like efficiency can vary greatly based on the
choice of motor and propeller, among many other factors. These just serve to give a
rough idea of the sort of performance you can expect and give you an idea of the flight
envelope of your aircraft before you fly it and help narrow in on the most efficient cruise
speed. The stall speed assumes a C
Lmax
of 1.2, and the minimum speed line is just 20%
above stall speed. Below the minimum speed, a tailwind gust can cause the aircraft to
stall unexpectedly, so be careful.
Using the drag plot can help figure out how much thrust you’ll need in level flight at a
given speed. This allows for the use of propeller data from companies like APC to choose
the best propeller for the type of flying you want to do.
The plot depicting power required for flight can help you estimate your loiter endurance
at a given speed. If you want the maximum time in the air, fly at the speed which uses the
least power to stay in the air.
The efficiency plot shows you what sort of efficiency to expect at each speed. With it, it’s
possible to choose the best cruise speed for your setup and see how changes in that
speed may affect your efficiency.
The fuselage angle of attack plot shows you what angle of attack the fuselage will be at a
given speed. This can be useful when setting the TRIM_PITCH_CD parameter in Arduplane
to the angle of attack value that corresponds with your cruise speed.
The plots in section 2.2.2 are just to give an idea of the sort of performance that can be
expected for certain battery configurations. They are not a guarantee of performance,
as there are too many variables to account for when individuals build the aircraft. Extra
draggy antennas, inefficient motors, print quality, etc. can all change flight performance
drastically.
Page 6
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 6 of 30

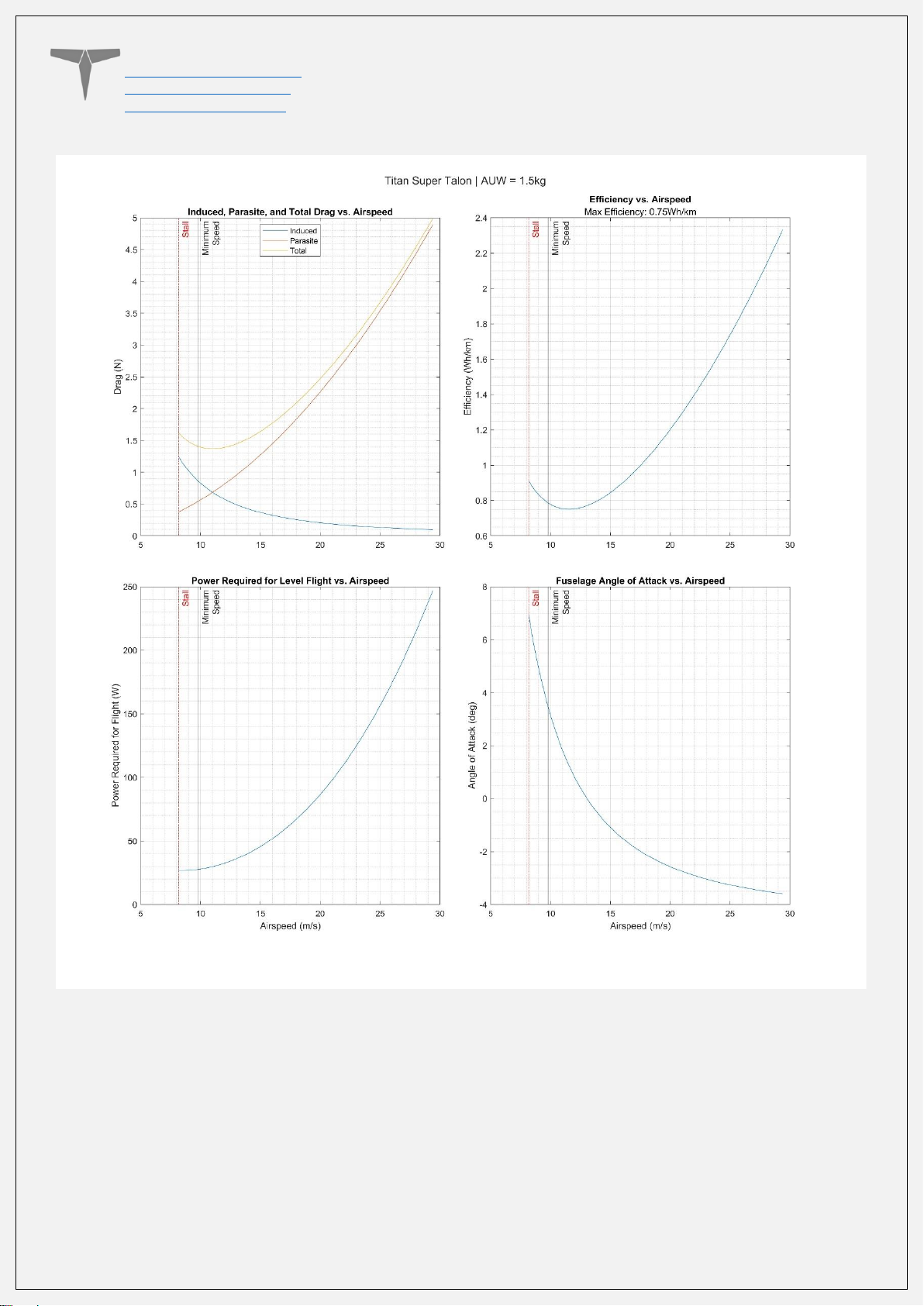

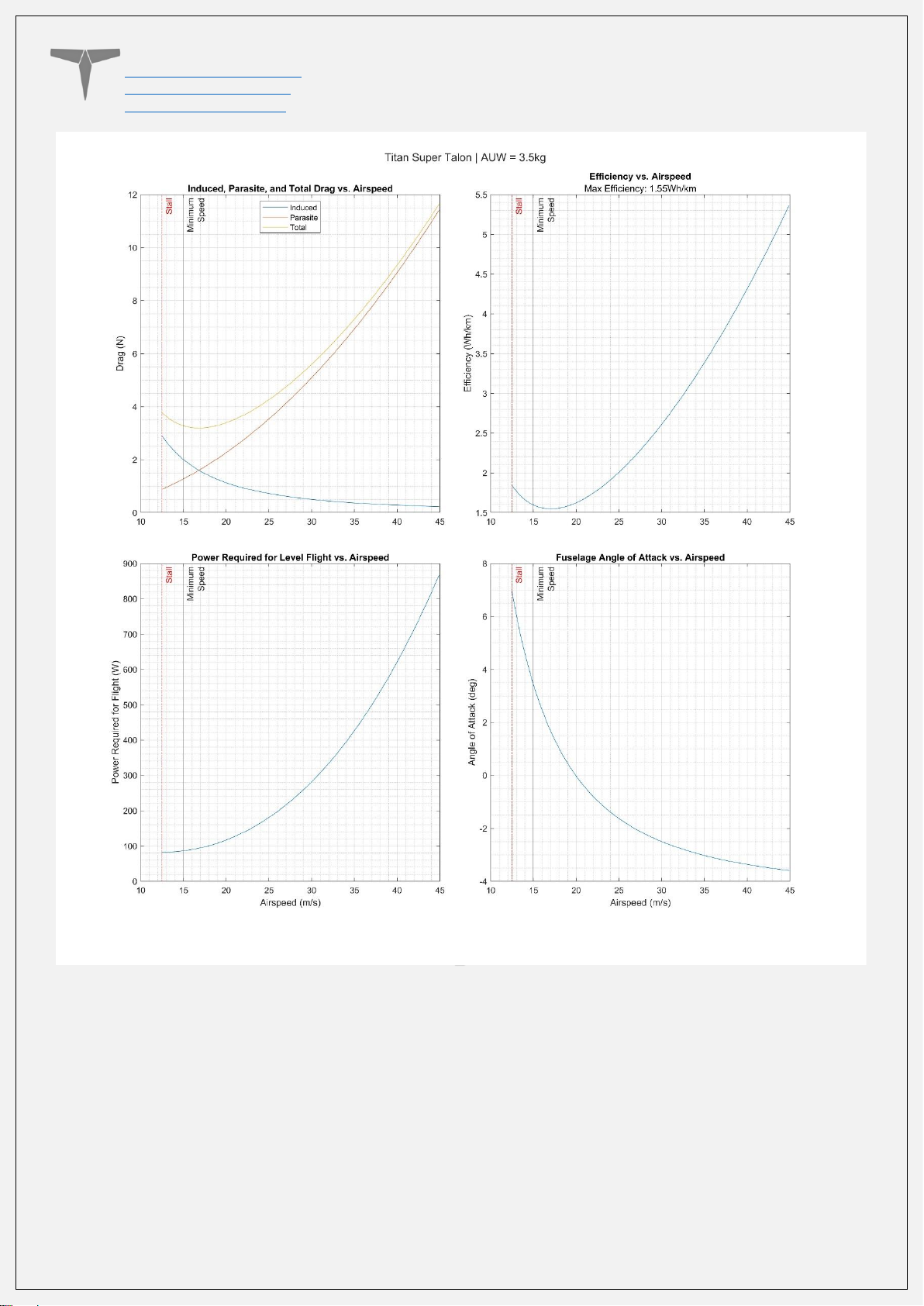

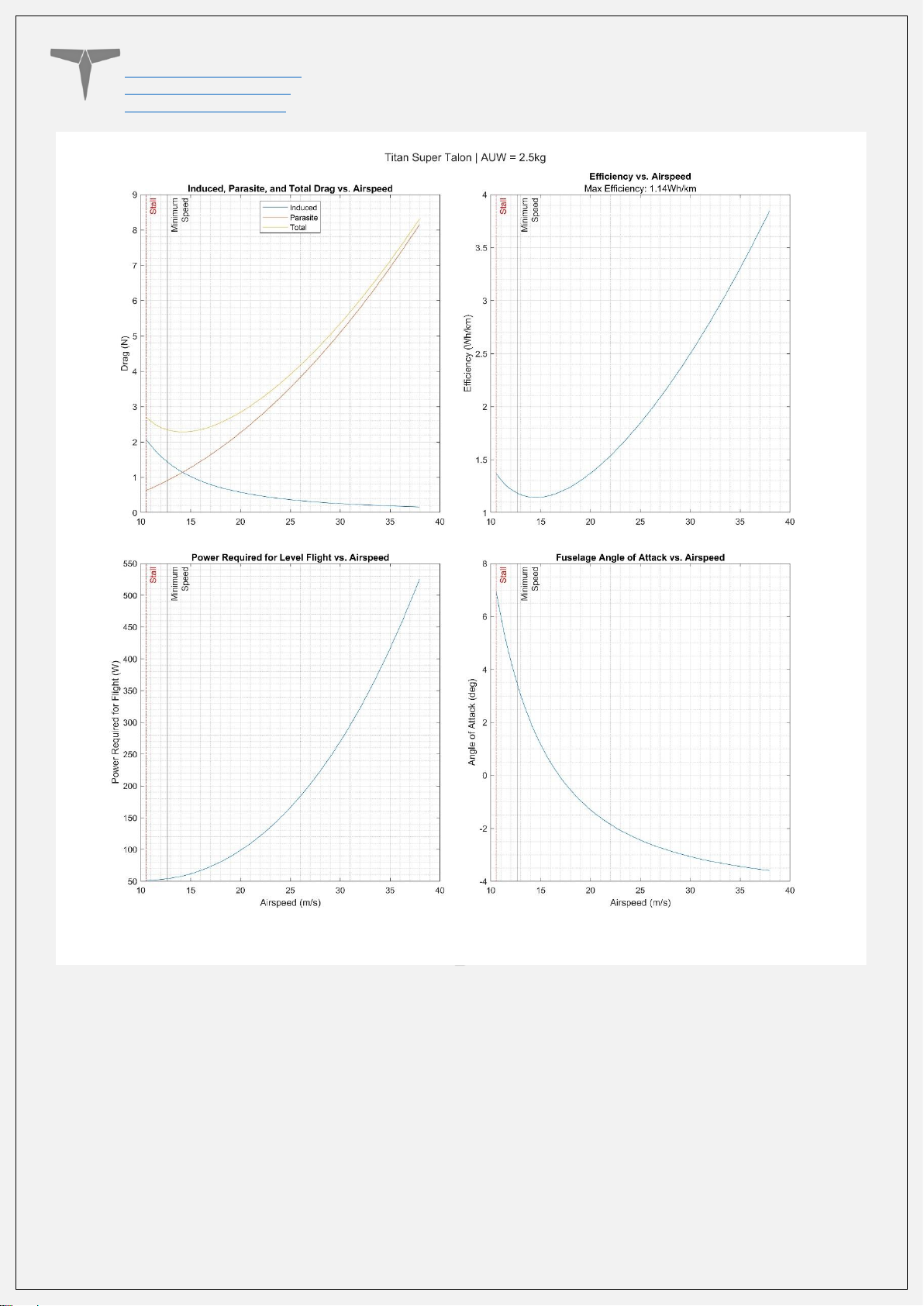

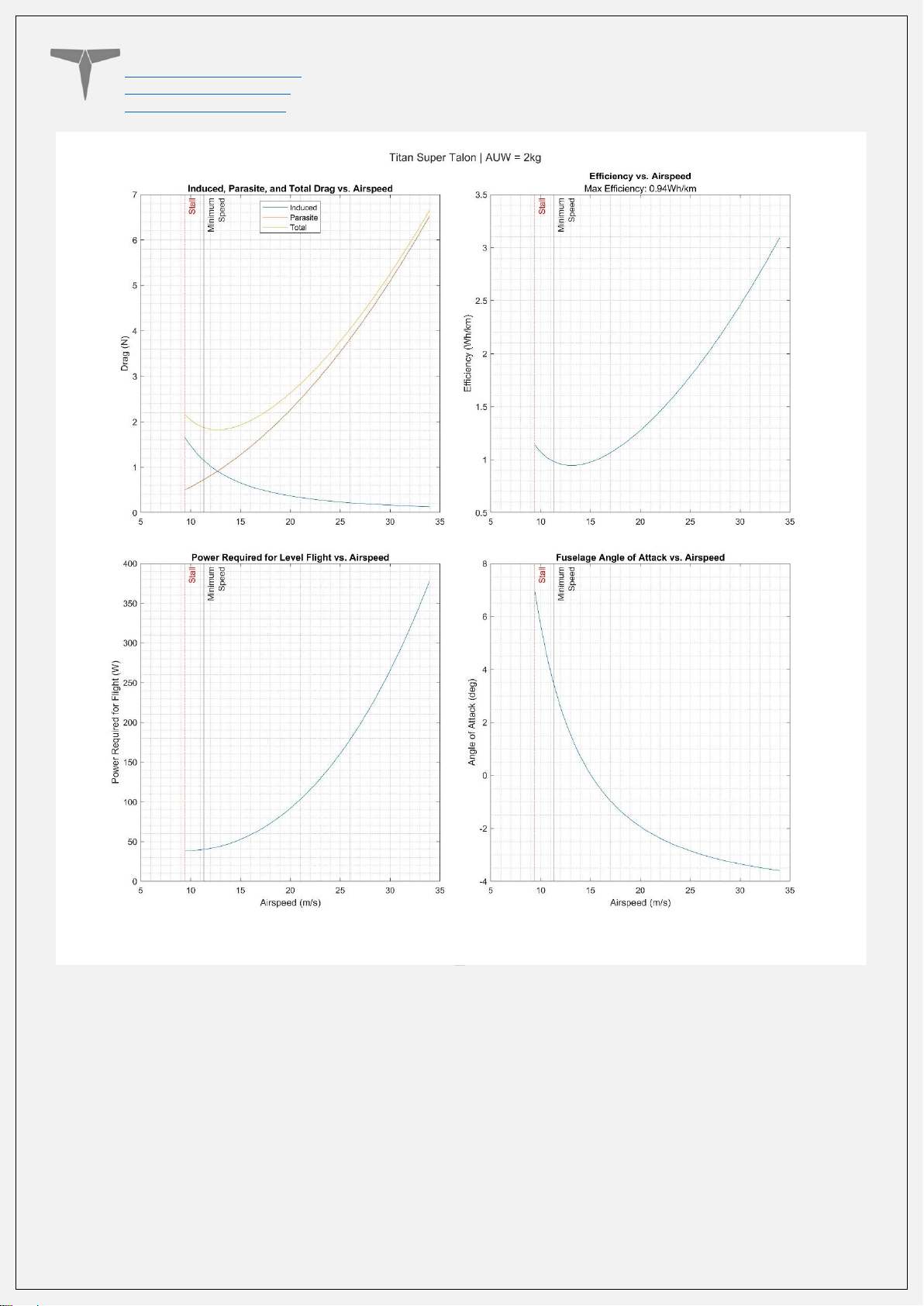

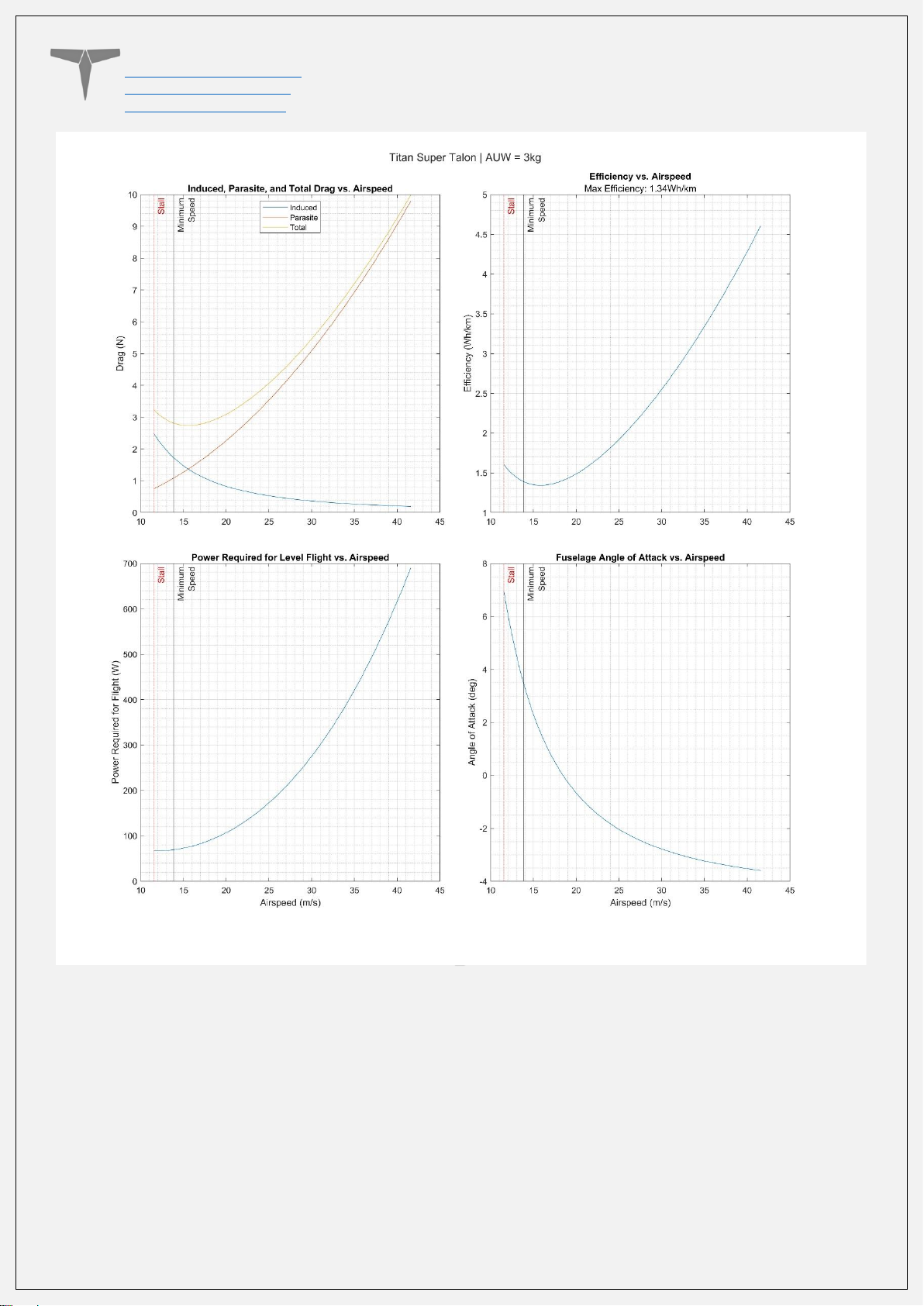

2.2.1: Drag, Efficiency, Power, and Angle of Attack at Varying All-up-weights:
Page 7
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 7 of 30
Page 8
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 8 of 30
Page 9
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 9 of 30
Page 10
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 10 of 30
Page 11
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 11 of 30

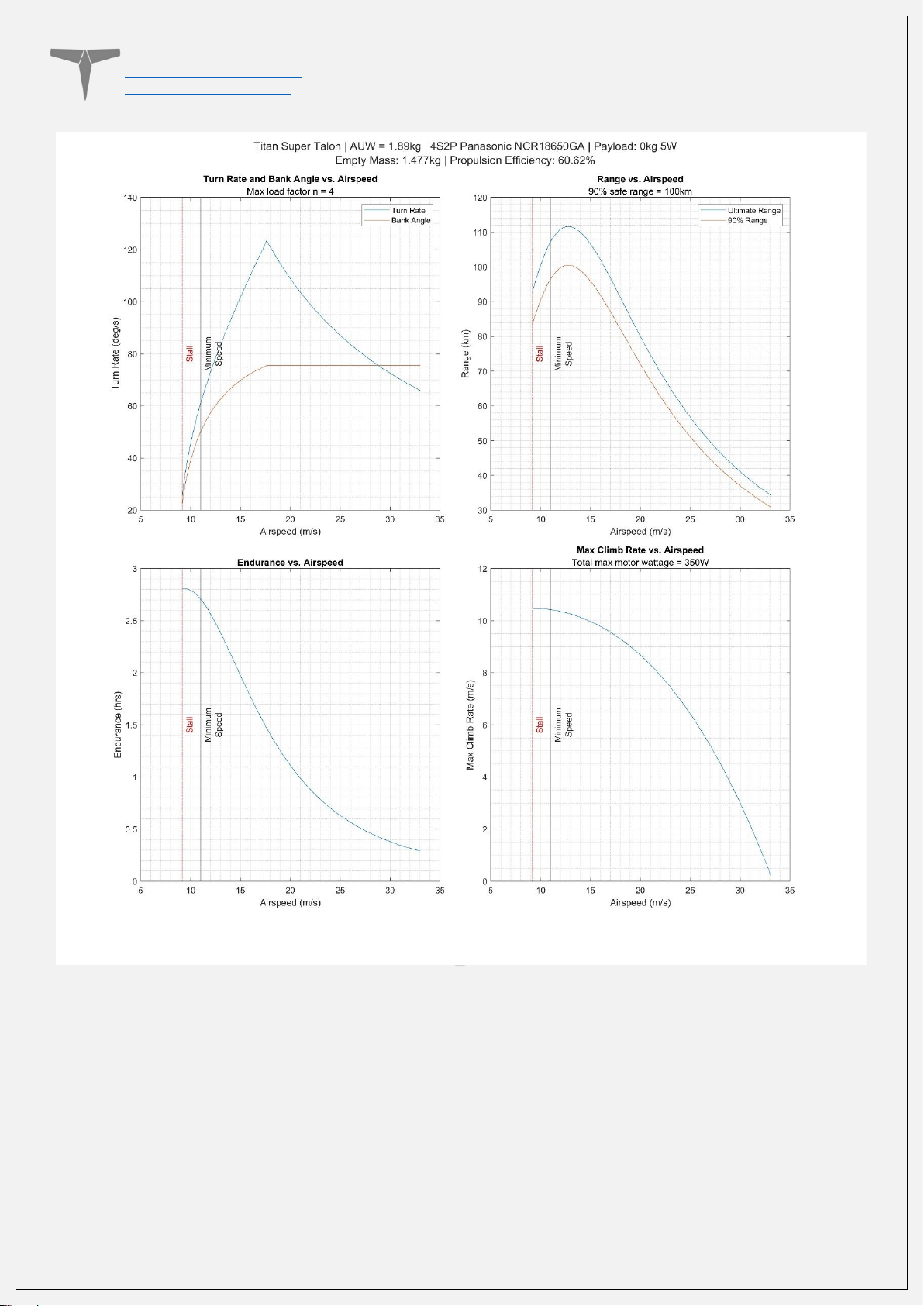

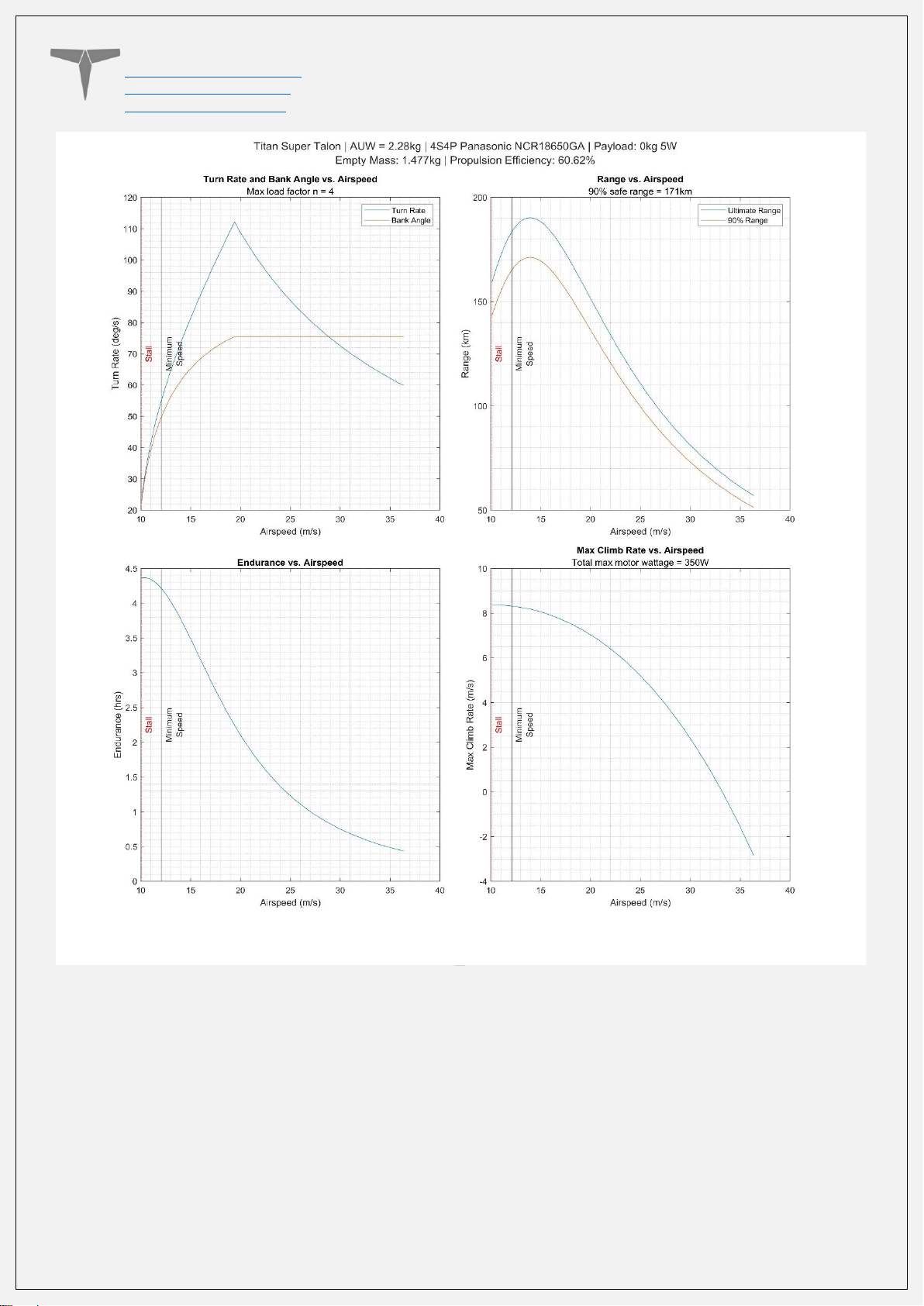

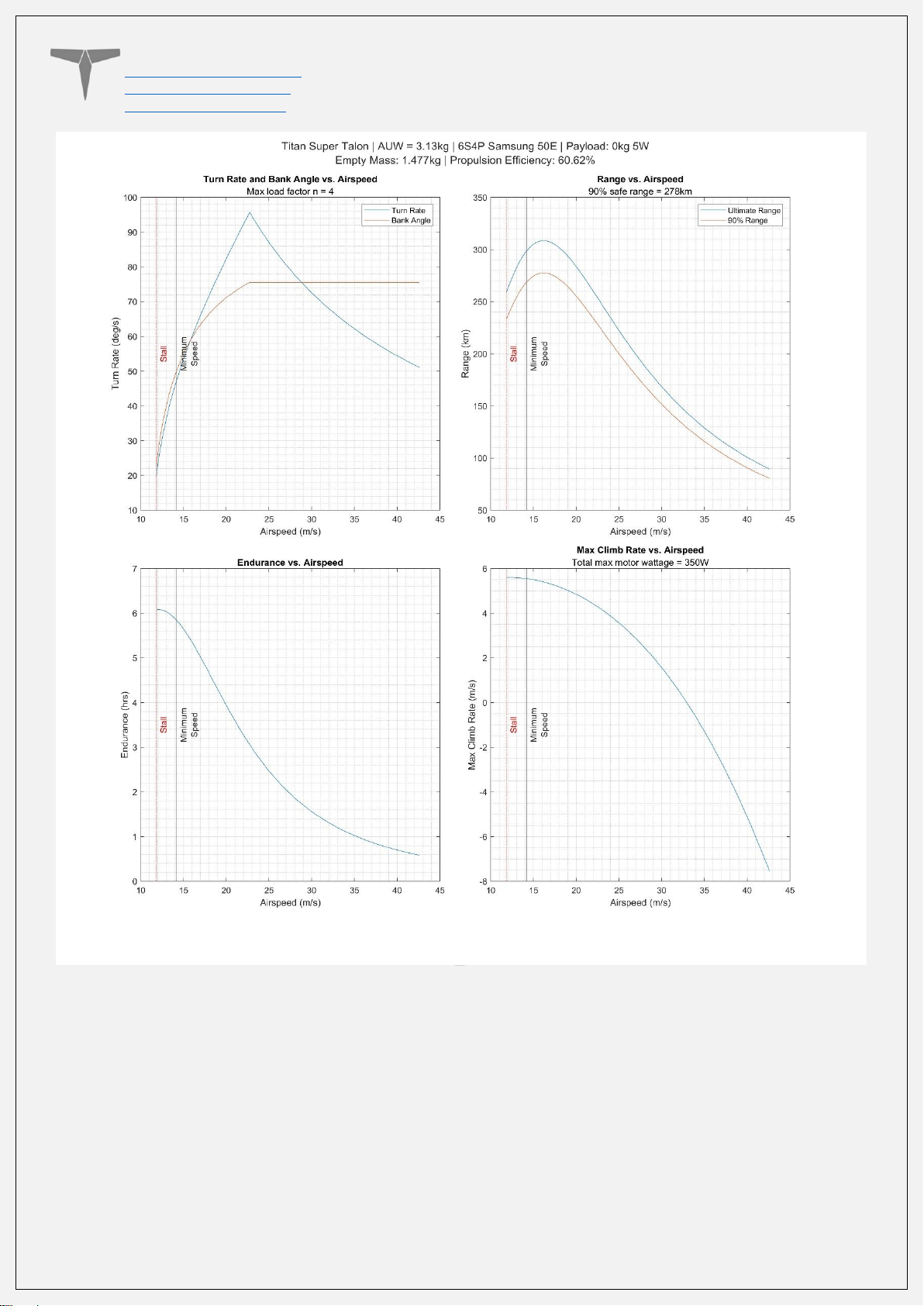

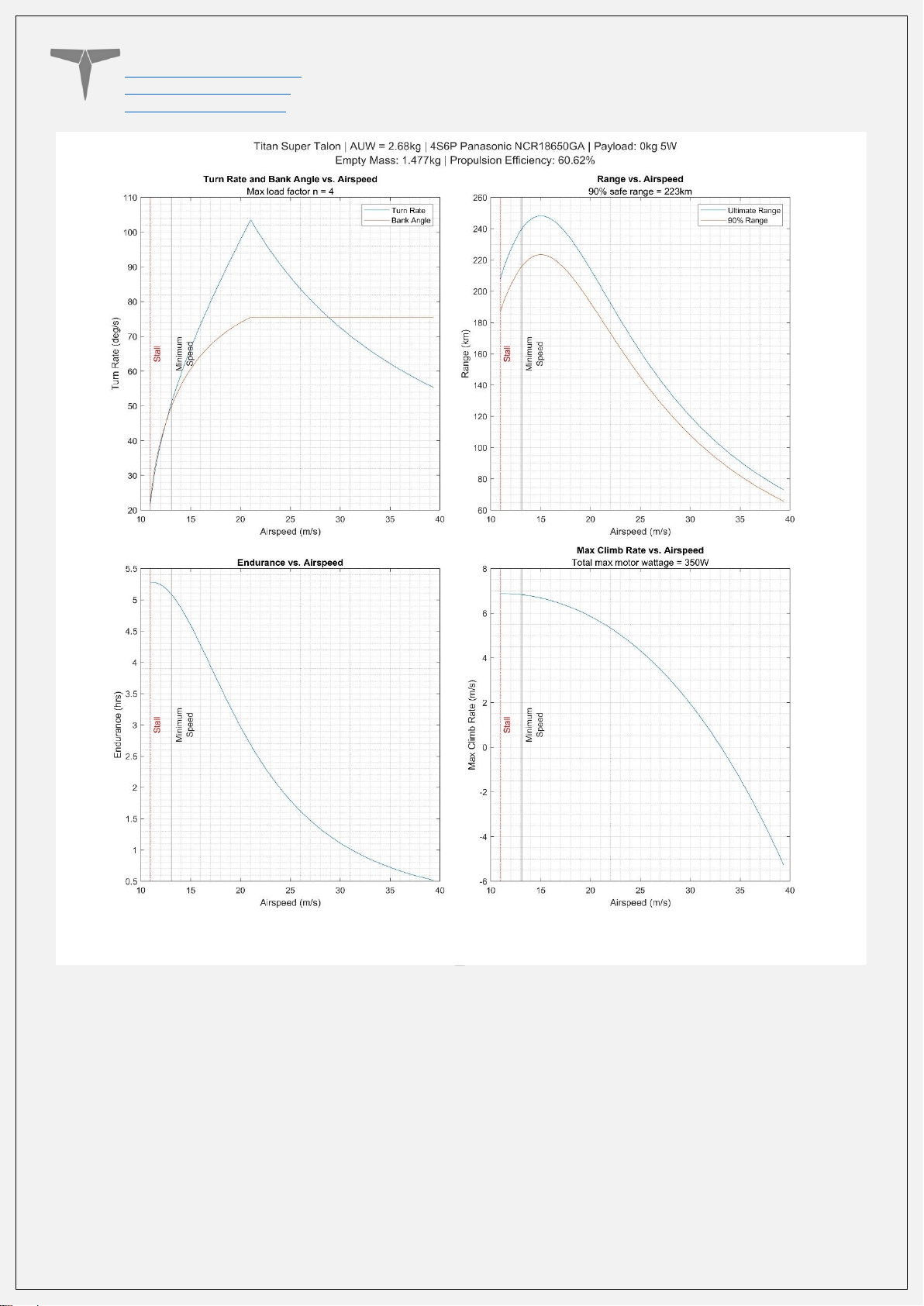

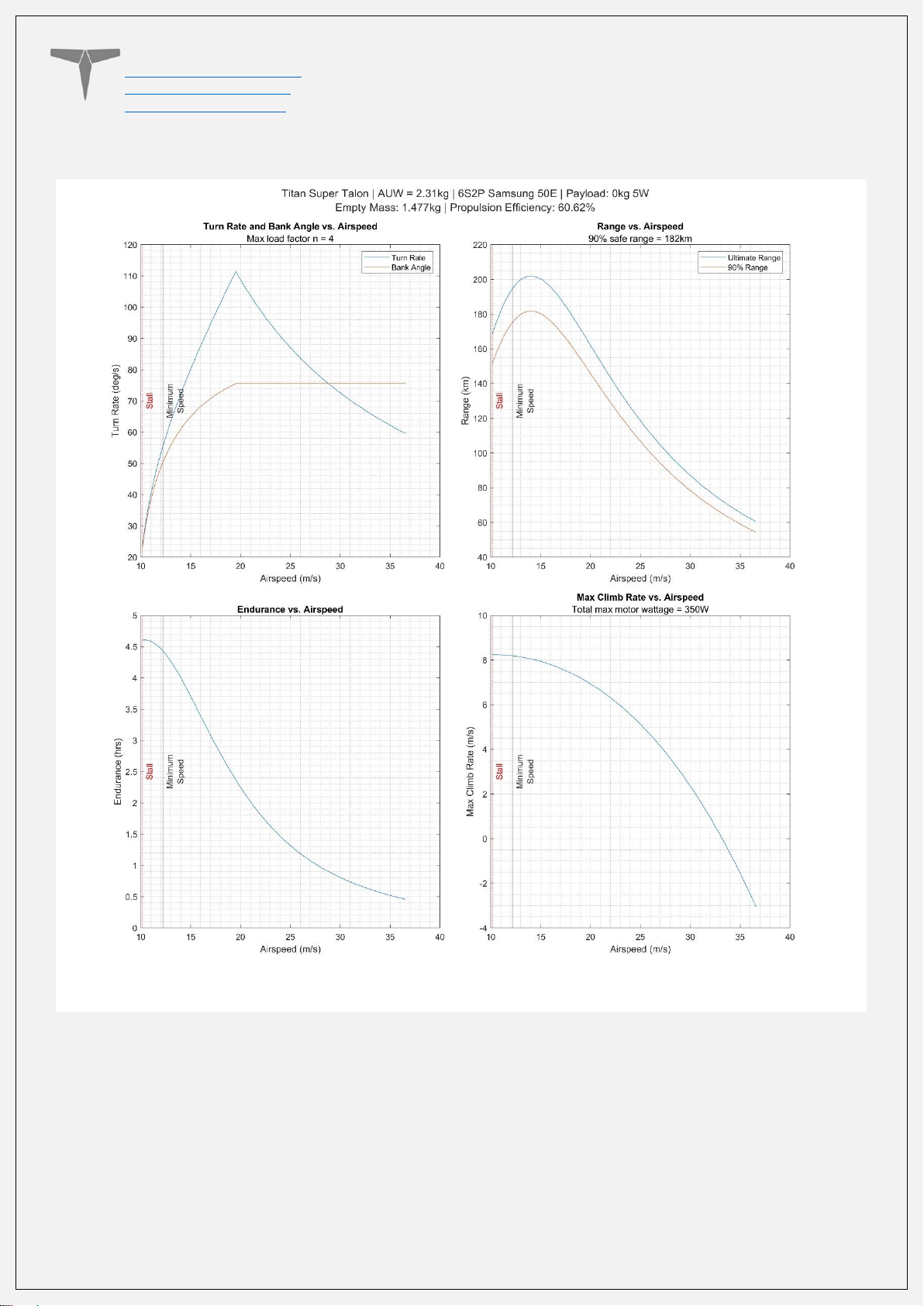

2.2.2: Turn rate, range, endurance, and max climb rate for a variety of different battery
configurations:
Page 12
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 12 of 30
Page 13
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 13 of 30
Page 14
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 14 of 30
Page 15
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 15 of 30
Page 16
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 16 of 30

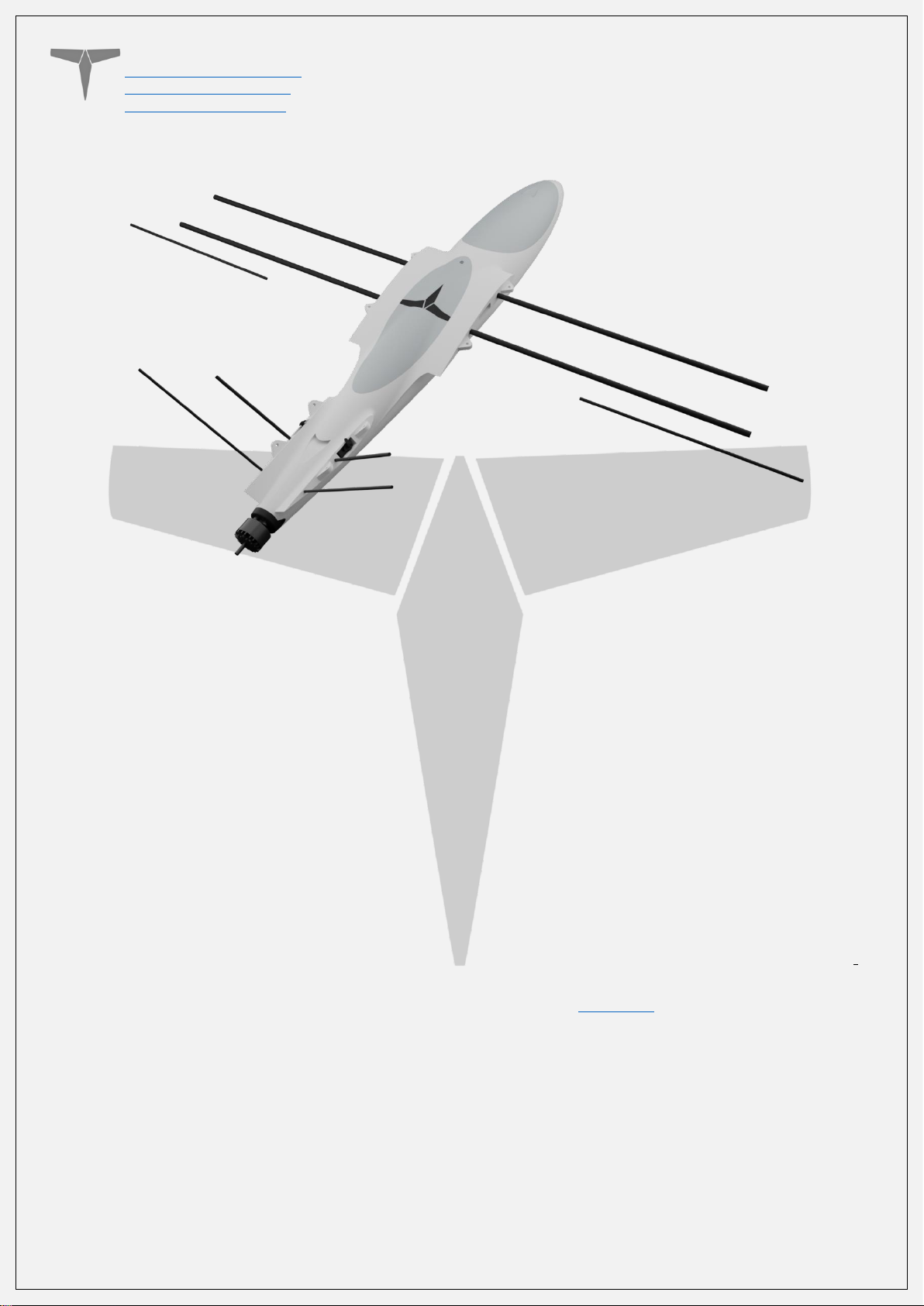

Section 3: Required Build Materials

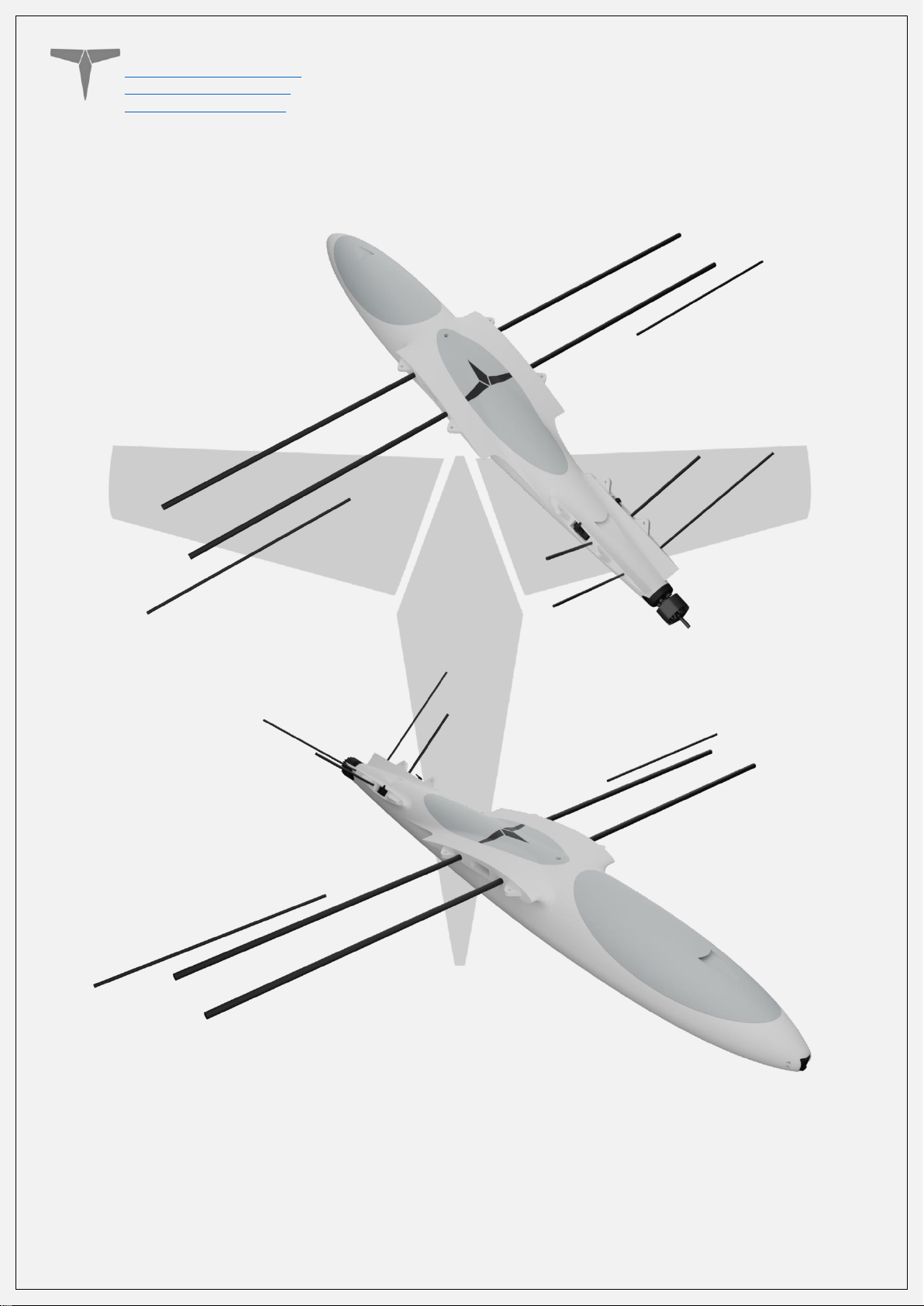

Spars needed:
• (2) 8x1000mm tube (main wing spars)
• (2) 4x300mm rod (aileron hinge)
• (2) 4x150mm rod (vtail support)
• (2) 3x220mm rod (ruddervator hinge)
Recommended motor & prop:
• 19-25mm mounting pattern
• Range of 11 to 13 inch folding propeller
• Range of 28xx to 42xx motor
• Example motor: Brotherhobby 2816 620kv or Gartt 4108 640kv
• Example propeller: APC 12x8.5F folding propeller
We strongly suggest using a folding prop to reduce
the chance of damage on landing!
Recommended electronics:
• ELRS / Dragonlink / Crossfire
• 5.8ghz / 1.2ghz analog or digital (DJI, Walksnail, HDZero, etc)
• Matek F405-WTE or similar flight controller running Ardupilot (optional)
• Matek M10Q-5883 GPS/Compass or similar (optional)
• (1) 35-55A BLHeli ESC
• (4) Emax ES08MAII servos
• Battery: 4S6P 18650 21000mah, 4S4P 18650 14000mah, 6S3P 21700 15000mah
(or similar Lipo such as 4S 7000mah-10000mah)
Misc:
• Polymaker Polylite prefoamed LWPLA
• Polycarbonate or PETG or other high-temp filament for the motor mount
• Medium CA glue
• 220x220x240 minimum size print bed
• Control horns
• M3 threaded inserts (max 6mm height)
• M3 bolts of various sizes
• 6x3mm magnets
Page 17
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 17 of 30
Section 4: 3D printing
4.1: Things to know before you start printing.
1. Titan Dynamics strongly recommends using Polymaker Polylite prefoamed LWPLA
for the best results. This filament is much easier to tune your printer for and has
less stringing than active foaming filaments. If you aren’t able to purchase
Polymaker filament, many members of our Facebook group and Discord server
have had success
2. You likely will not get good results unless your printer is well maintained and
calibrated, we would suggest learning how to check and adjust your printer to
perform at its absolute best before starting. This website has useful guides:
https://teachingtechyt.github.io/calibration.html#intro.
3. All the below guidance should be taken as a starting point only. Print a test piece
and check things like retraction settings and fitment of the carbon rods in the
wings for yourself as every printer is different. If the carbon rods are too tight,
increase the “Hole Horizontal Expansion” setting in Cura (or the equivalent setting
in other slicers).
4. All our models are designed to be printed predominantly in LW-PLA filament. All
fuselage, tail, and wing parts should be printed in LW-PLA unless otherwise noted
in the file name.
There are 3 levels of infill / wall settings that we recommend for the LWPLA parts:
1. Maximum efficiency: 3% cubic subdivision, single wall
2. Balanced efficiency and strength: 5% cubic subdivision, single wall
3. Maximum strength: 8% cubic subdivision, single wall
WE RECOMMEND PRINTING SUPER TALON WITH 3.5% CUBIC SUBDIVISION INFILL
Additional Notes and Advice:
• For the best flight characteristics and maximum range, LWPLA parts should be
printed with single wall and 3% cubic subdivision infill.
• Cubic subdivision infill can be increased to 5 or 8% to increase durability, but this
will have an impact on maximum payload capacity (battery), and range by
extension. We recommend and use 3% cubic subdivision infill as it has been tested
to survive 6.4G in flight, but some may desire greater general durability when
handling/carrying the model around etc. It will still break if you crash it!
• Because the fuselage takes the most abuse during landings, some may choose to
just print the fuselage sections in higher infill. Using a higher infill just for the
fuselage (4%-8%) can greatly increase the longevity of the plane without as much
of a weight penalty as printing the entire plane in high infill.
• Gyroid infill brings a significant weight penalty with it even at the same
percentage. For the highest strength-to-weight ratio part, stick to cubic
subdivision or cubic. A part printed at 3% gyroid is comparable weight to the same
part printed at 7% cubic subdivision.
Page 18
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 18 of 30
Polycarbonate, PETG or other high-temp filament should be used for the motor mounts
and wing bay plates.
• High temp Polycarbonate or PETG parts should be double wall and high infill (25%).
We recommend using the newest version of Ultimaker Cura. This link can be used to
download our own slicer profile.
Please see the 3D Printing FAQ for more tips.
4.2: Part Orientation
It is necessary to orient each part correctly on the build plate to avoid disconnected
overhangs. Take care when doing this as the entire model is designed to be printed with
no supports. If you orient some parts wrong, the print will fail. It may also be necessary
to rotate and carefully position some parts to fit within the build area on smaller
printers.

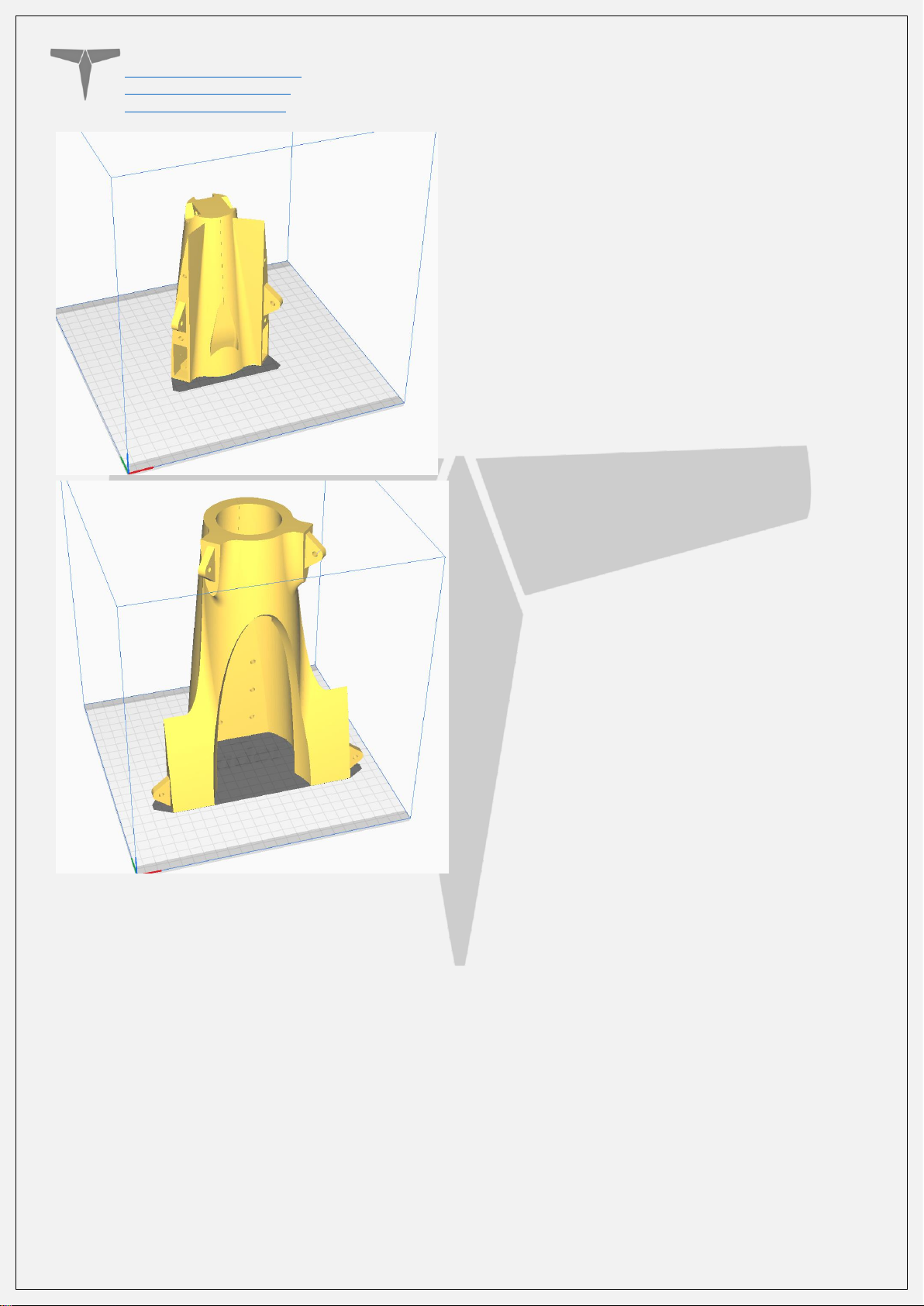

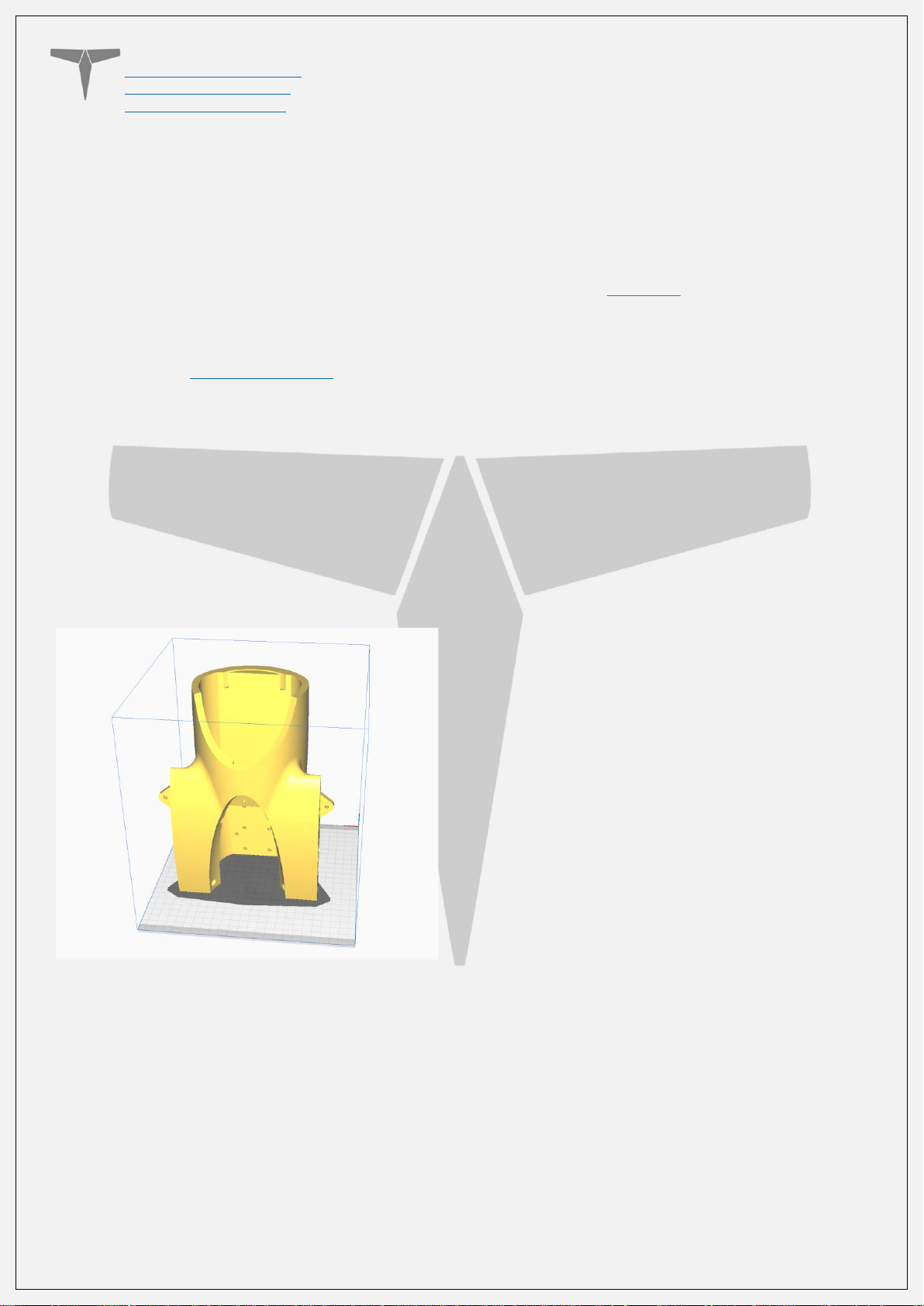

Examples for part orientation:
Page 19
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 19 of 30
4.3: Tuning “hole horizontal expansion”
It is very important to check the fitment of the carbon rods in their holes on the first
parts you print. Because everyone may be using different printers, materials and slicer
settings, it is not possible to provide the models with a slicing profile and hole size that
will work for everyone.
Print your first part with carbon spar hole and check fitment, if it is too tight increase the
hole horizontal expansion setting in the “walls” section in Cura (or your slicer’s similar
setting). A good starting point is 0.25mm. If it is too loose, just decrease the setting until
you can reliably push the rods in and still get a snug fit.
Page 20
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 20 of 30
4.4: Bed Adhesion and warping
When printing tall parts like this and other models require, having good print adhesion to
the bed is a necessity. Ideally you will print each part without any extra aids, however
this may not be possible for many, especially those printing without an enclosure for
their printer. A full brim can be used but this will typically have mixed results. If it works
for you, use a glue stick on the print surface to improve adhesion. Cura also has a plugin
that can be used to help with bed adhesion and to avoid warping.
Cura Marketplace: TabAntiWarping Plugin.

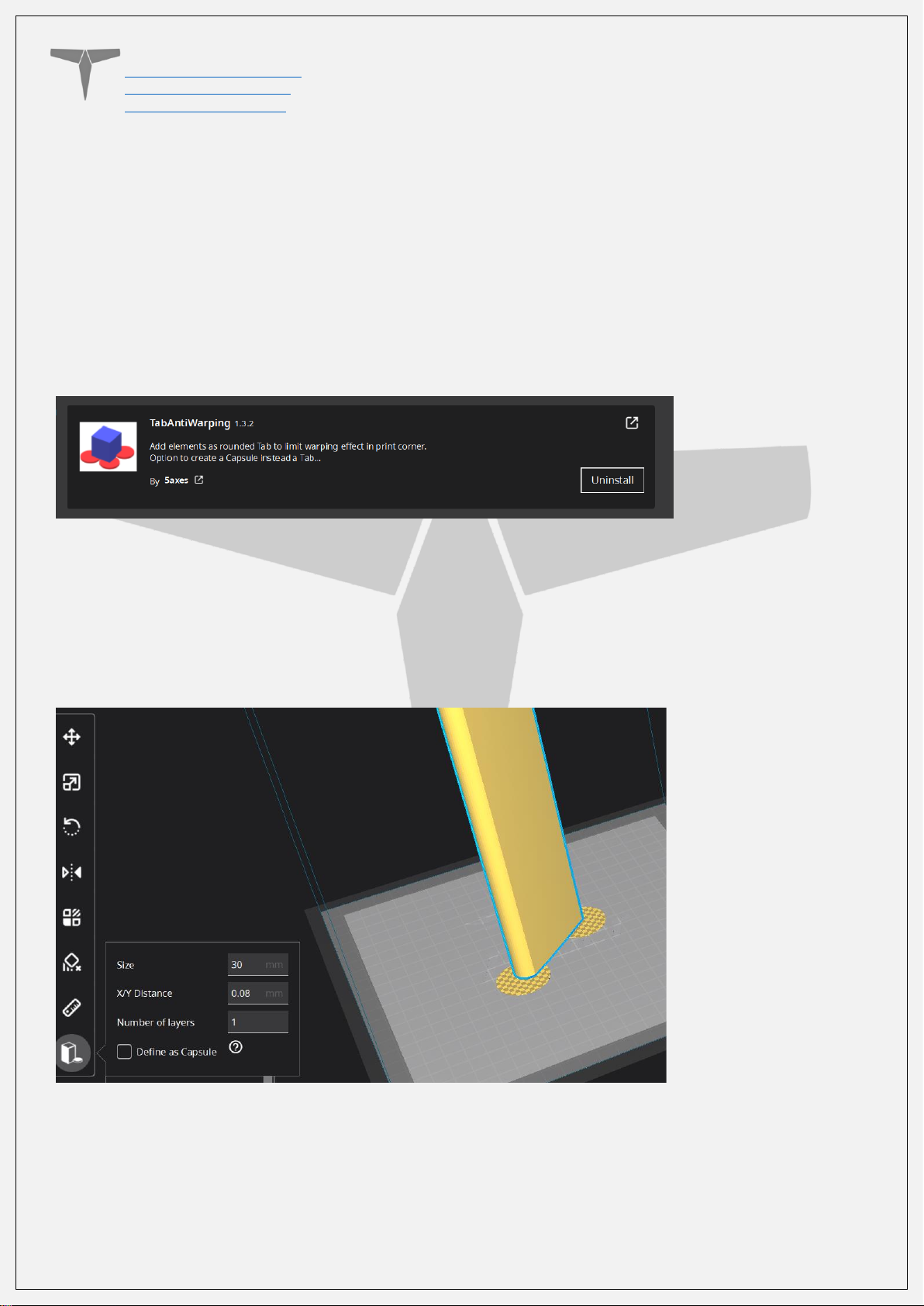

When installed, use the new icon at the bottom of the left menu to choose tab diameter
and thickness, then click on the model to add a tab at each point you think is at risk of
warping or poor adhesion (typically parts with low surface area in contact with the print
surface in relation to their height). These new tabs can now be moved around to fine
tune their position using the normal move controls on Cura.
Once completed, be careful when removing these tabs from the print as they are quite
strong and can damage the bottom of your part if not removed carefully. Re-open any
holes the tab may have filled on the bottom of the print.
If you find these hard to remove from the print bed, select the “Define as Capsule” option.
This makes the edge of the tabs raised, so you can get a scraper underneath them.
Page 21
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 21 of 30
Section 5: Assembly of 3D Printed Parts

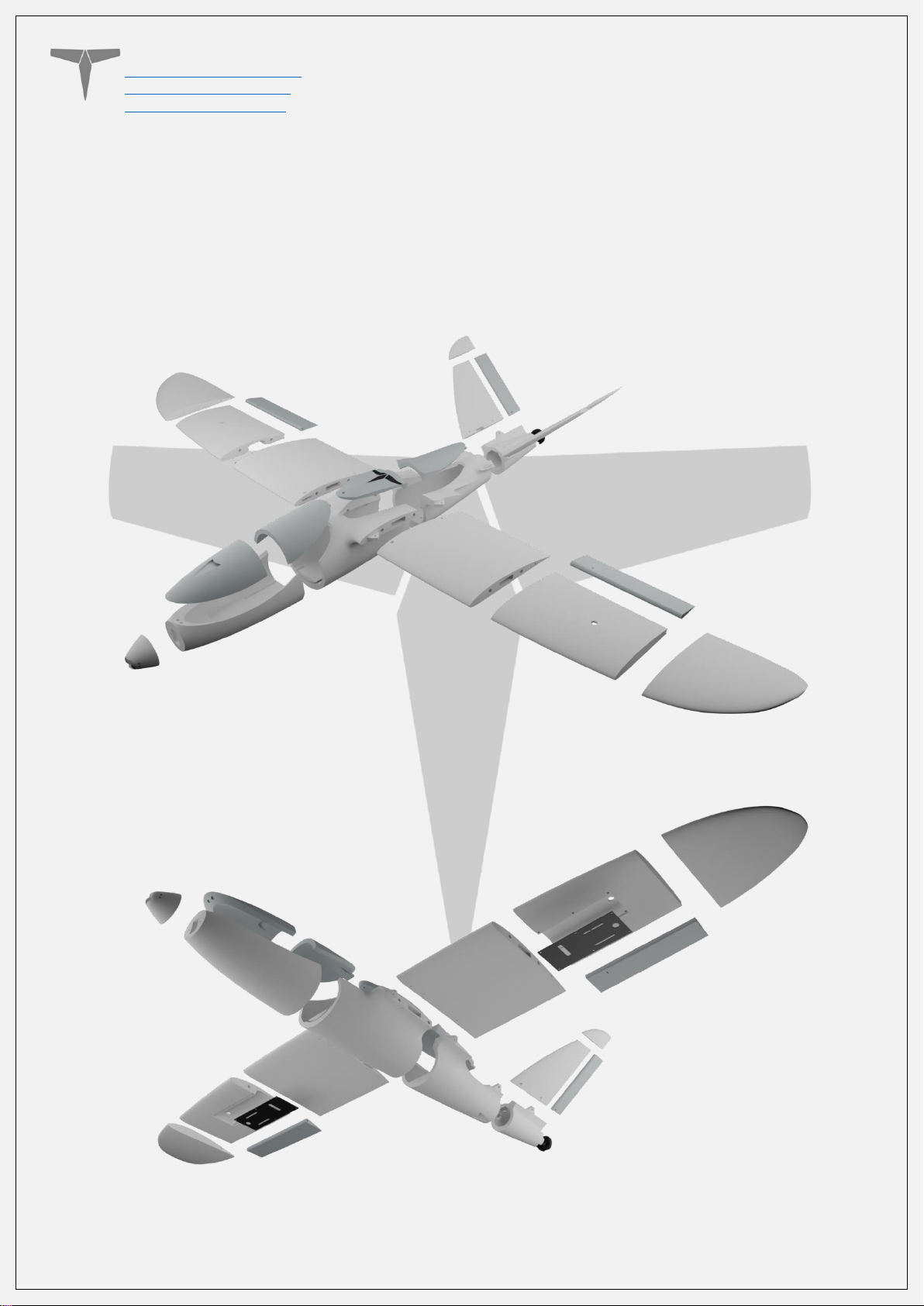

Below are a few exploded views of the Super Talon to help with assembly.
Page 22
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 22 of 30
Page 23
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 23 of 30

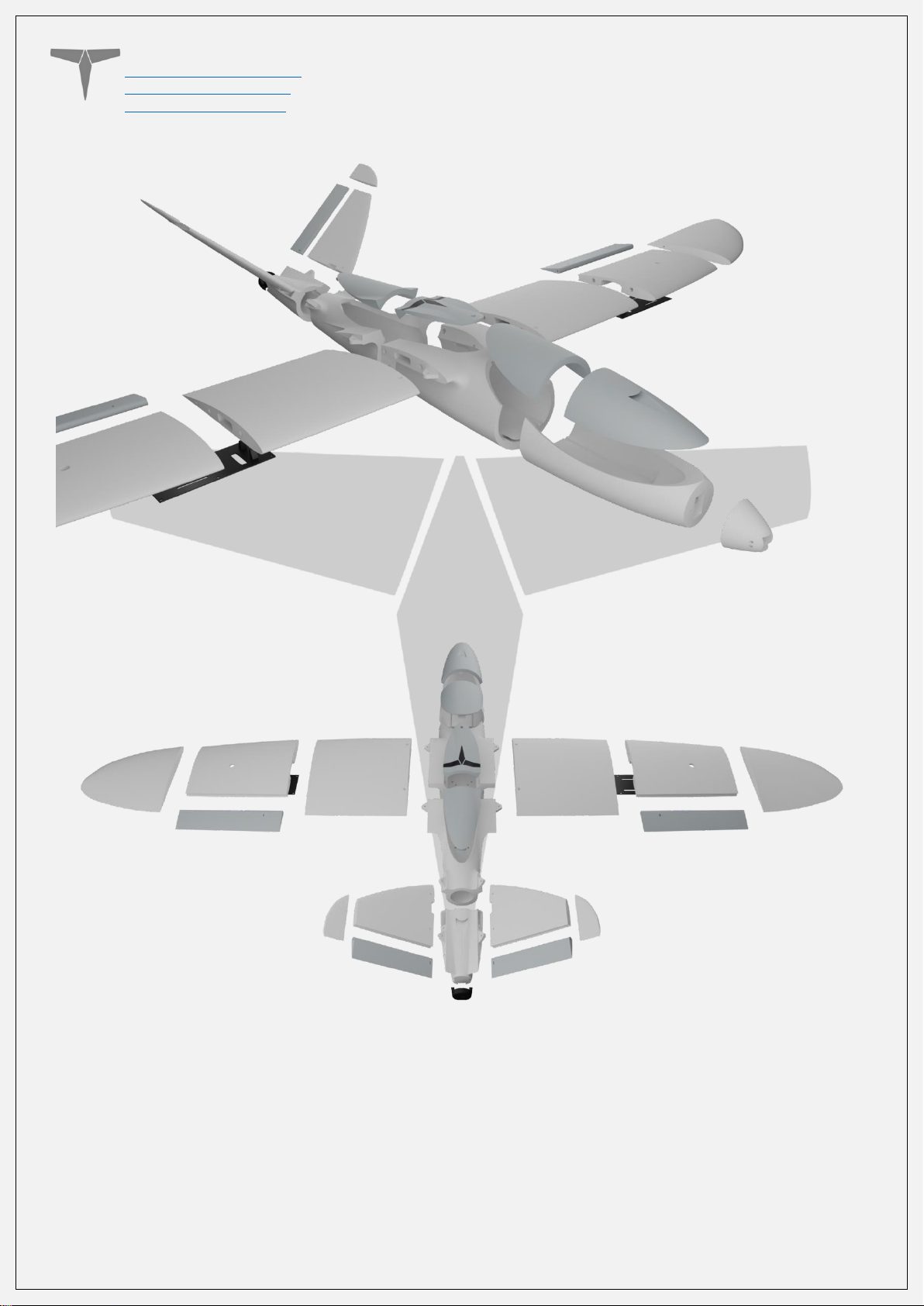

The spar layout for Super Talon is as depicted below.
Page 24
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 24 of 30
• Medium CA glue should be used to assemble all fuselage parts.
• When first putting the glued parts together be sure to wipe any excess glue off
before it sets. A kicker may then be used to speed up the setting time; technically
this results in a weaker joint, however it will still be stronger than the base material
LW-PLA.
• Use care when aligning parts for gluing. With medium CA, you should have a few
seconds to get alignment right. Small mistakes in alignment can stack up and
eventually lead to a part not fitting perfectly. We have taken care when designing
the aircraft to make sure there is tolerance for some minor mistakes but try to be
as perfect as possible when gluing.
• When gluing the wings together, use the carbon rods to ensure alignment however
be careful not to glue them in, they should not be glued in on the finished product.
• Threaded inserts can be properly installed by using a soldering iron at low heat
setting, a good guide for doing this can be found at this link.
Page 25
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 25 of 30
Section 6: Final Setup & Tuning Tips
• Titan Dynamics strongly recommends the use of Arduplane for all our models. If
you encounter an issue in flight, the data logs Ardupilot creates are invaluable for
finding the root cause of any issue and increasing future chances of success.
• Give all control surfaces +- 30 degrees or more throw.
• CG is marked under the wing and should be adhered to within ±10mm.
• Add duct tape or other abrasion resistant material to the bottom of the fuselage to
increase durability if landing on rough surfaces.
Page 26
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 26 of 30

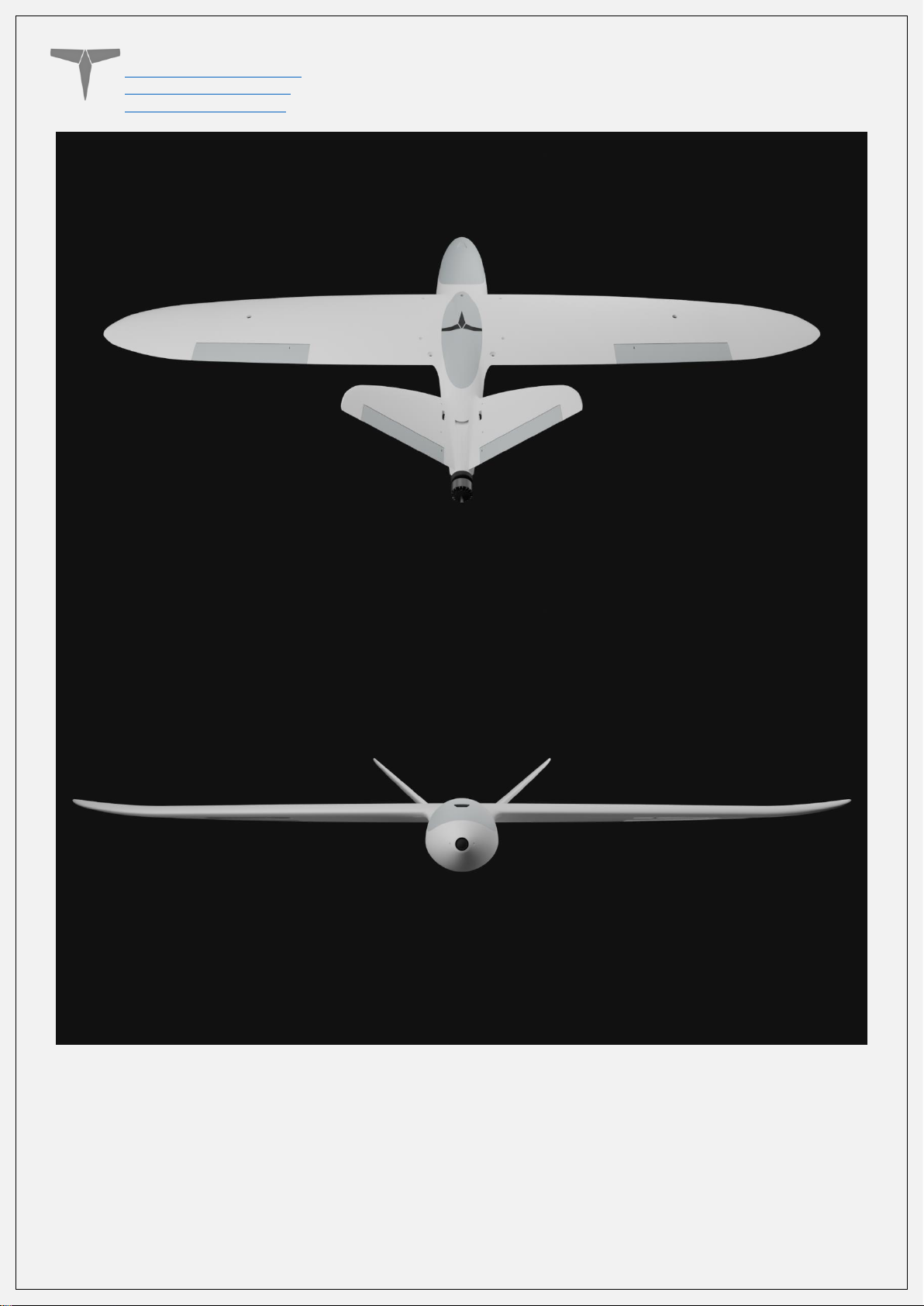

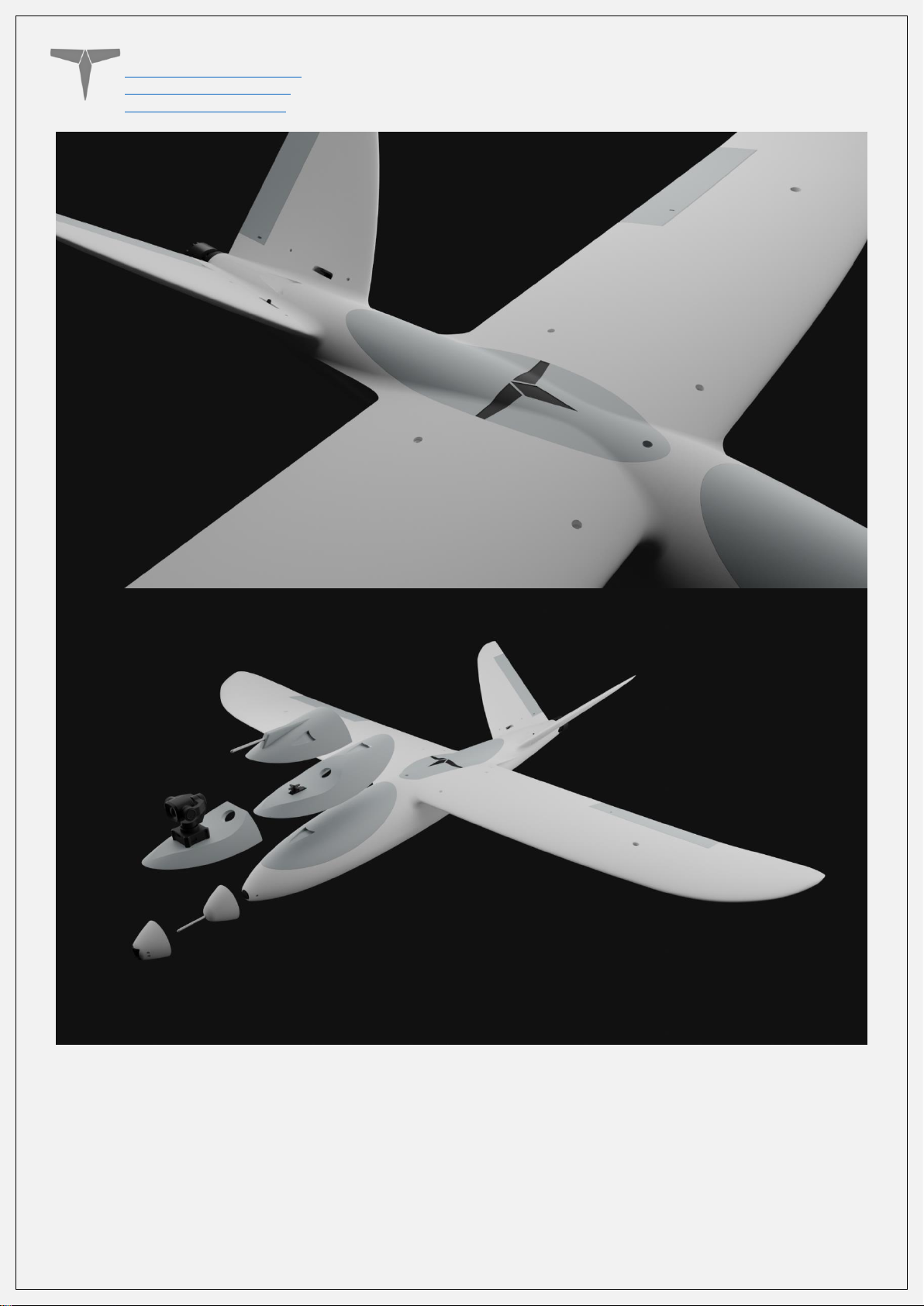

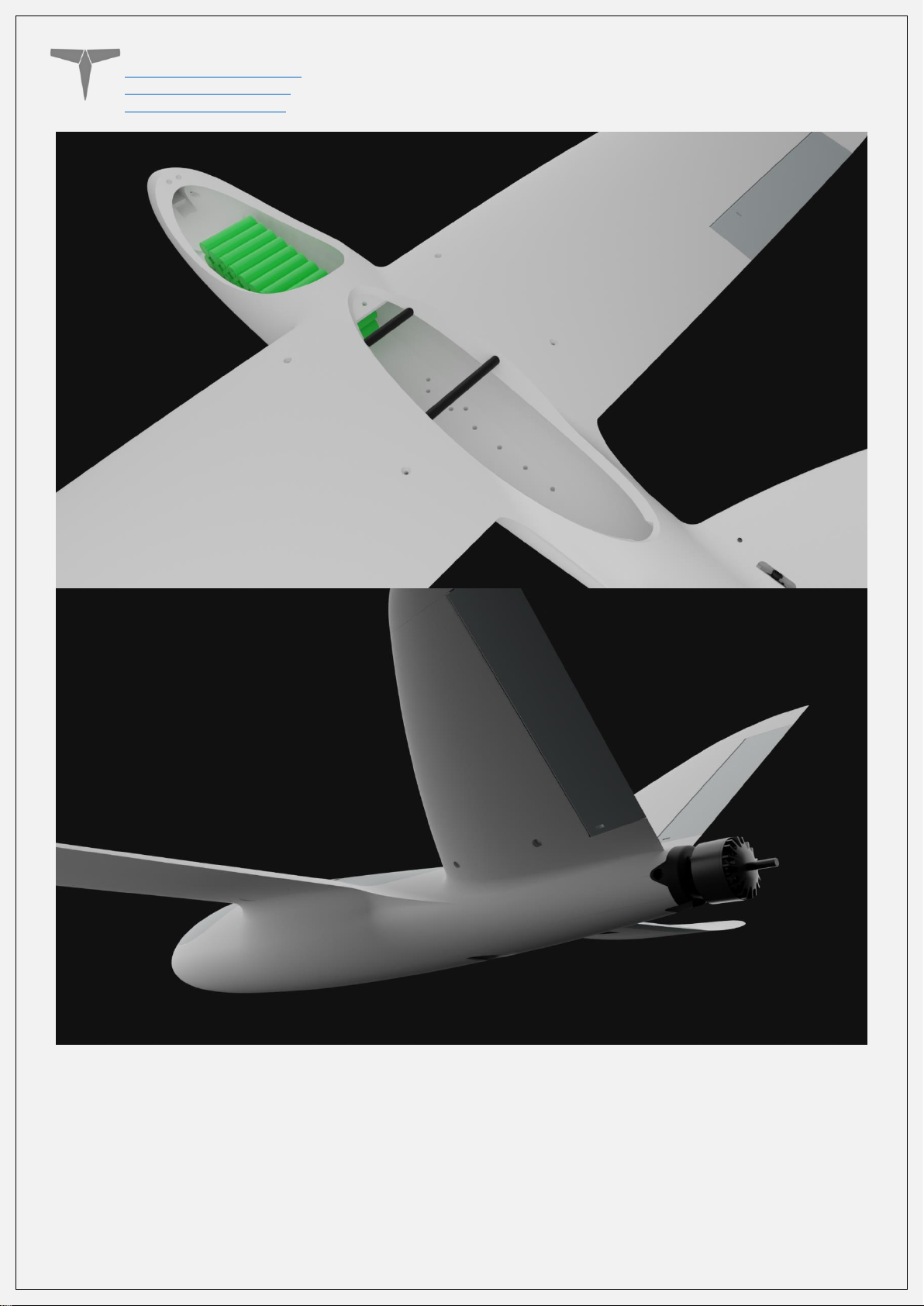

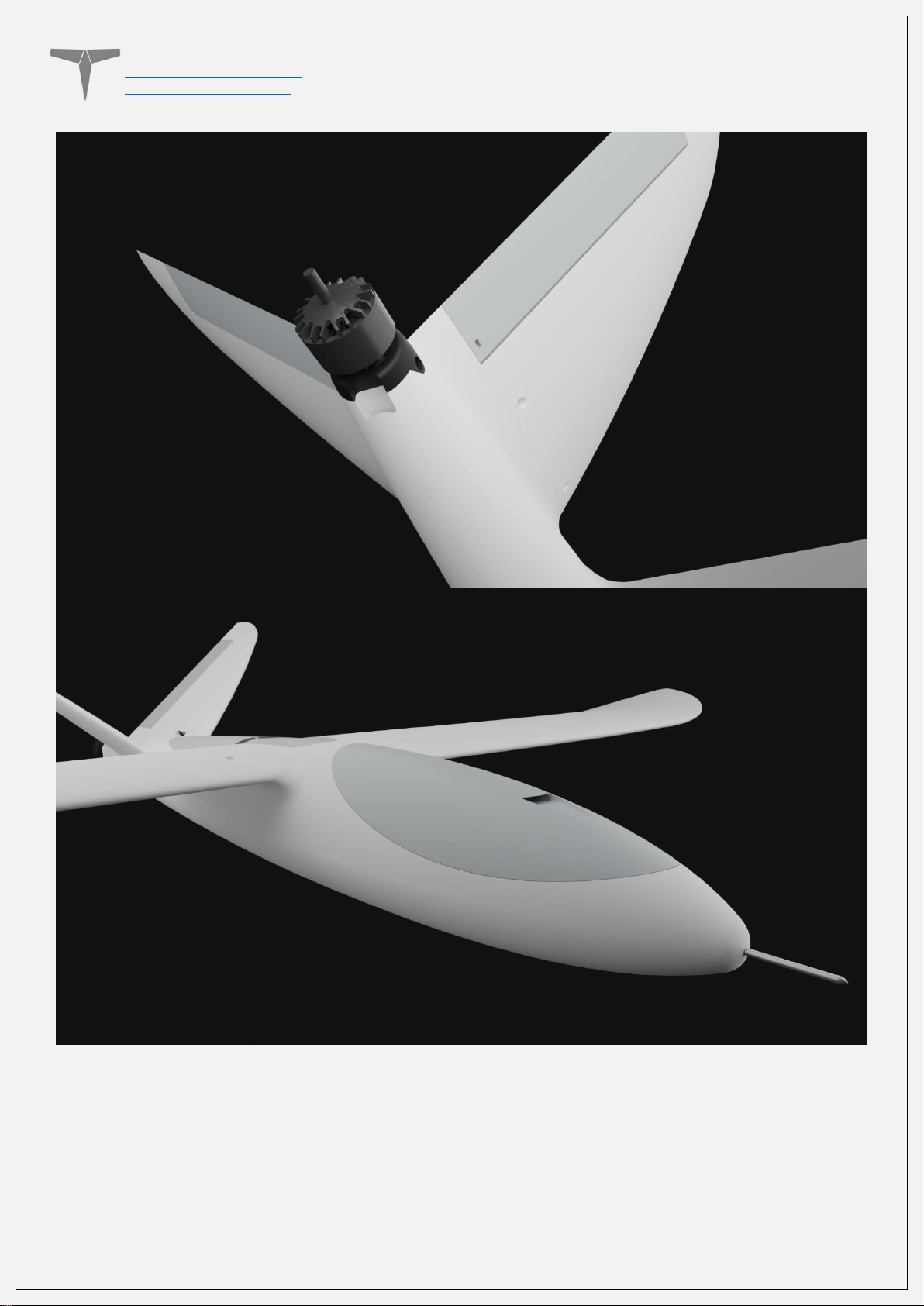

Section 7: Additional Images
Page 27
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 27 of 30
Page 28
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 28 of 30
Page 29
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 29 of 30
Page 30
Titan Dynamics
Titan Dynamics Webpage
Visit our Facebook page
Join our Discord server
Page 30 of 30
Loading...
