Read the instructions carefully. Be familiar with the
controls and the correct use of the machine.
Never allow children or people unfamiliar with these
instructions to use the machine. Local regulations can
restrict the age of the operator.
Keep in mind, that the operator or user is responsible
for accidents or hazards occurring to other people or

their property.

Training

Safety warnings

IMPORTANT!
READ CAREFULLY BEFORE USE.
KEEP FOR FUTURE REFERENCE.

Never allow children, persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge or people unfamiliar with these
instructions to use the machine, local regulations may
restrict the age of the operator.
Protect the electrical parts against moisture. Do not
immerse such parts in water or other liquids to avoid
electrical shock. Never hold the product under
running water.
Switch the product off and disconnect from the power
supply as well as allow it to cool down before
assembly, cleaning, adjustments, maintenance,
storage and transportation.

>

>

>

>

>

>

WARNING! This product must be earthed!
Use only three core extension cords with the
earth wire connected.

Preparation

Obtain ear protection and safety glasses. Wear them
at all times while operating the machine.
While operating the machine always wear substantial
footwear and long trousers. Do not operate the
machine when barefoot or wearing open sandals.
Avoid wearing clothing that is loose fitting or that has
hanging cords or ties.
Operate the machine in a recommended position and
only on a firm, level surface.
Do not operate the machine on a paved or gravel
surface where ejected material could cause injury.
Before using, always visually inspect to see, that the
shredding means, shredding means bolts and other
fasteners are secure, the housing is undamaged and
that guards and screens are in place. Replace worn
or damaged components in sets to preserve balance.
Replace damaged or unreadable labels.
Before use check the supply and extension cord for
signs of damage or aging. If the cord becomes
damaged during use, disconnect the cord from the
supply immediately. DO NOT TOUCH THE CORD
BEFORE DISCONNECTING THE SUPPLY. Do not
use the machine if the cord is damaged or worn.
Never operate the machine while people, especially
children, or pets are nearby.

>

>

>

>

>

>

>

Operation

Before starting the machine, make certain that the
feeding chamber is empty.

>

Safety information Safety information

0504

Keep your face and body away from the feed intake
opening.
Do not allow hands or any other part of the body or
clothing inside the feeding chamber, discharge chute,
or near any moving part.
Keep proper balance and footing at all times. Do not
overreach. Never stand at a higher level than the
base of the machine when feeding material into it.
Always stand clear of the discharge zone when
operating this machine.
When feeding material into the machine be extremely
careful that pieces of metal, rocks, bottles, cans or
other foreign objects are not included.
If the cutting mechanism strikes any foreign objects or
if the machine should start making any unusual noise
or vibration, immediately shut off the power source
and allow the machine to stop. Disconnect the
machine from the supply and take the following steps
before restarting and operating the machine:

Do not allow processed material to build up in the
discharge zone; this may prevent proper discharge
and can result in kickback of material through the feed
intake opening.
If the machine becomes clogged, shut-off the power
source and disconnect the machine from supply
before cleaning debris.
Never operate the machine with defective guards or

shields, or without safety devices, for example debris
collector in place.
NOTE If a debris collector is not used the text of the
example may be deleted.
Keep the power source clean of debris and other
accumulations to prevent damage to the power
source or possible fire.
Do not transport this machine while the power source
is running.
Stop the machine, and remove plug from the socket.
Make sure that all moving parts have come to a
complete stop

Do not tilt the machine while the power source is
running.

>

>

>

>

>

>

>

>

>

inspect for damage;
replace or repair any damaged parts;
check for and tighten any loose parts.

>
>
>

>

>

>

>

whenever you leave the machine,
before clearing blockages or unclogging chute,
before checking, cleaning or working on the
machine.

>
>
>

Maintenance and storage

When the machine is stopped for servicing,
inspection, or storage, or to change an accessory,
shut off the power source, disconnect the machine
from the supply and make sure that all moving parts
are come to a complete stop. Allow the machine to
cool before making any inspections, adjustments,
etc. Maintain the machine with care and keep it
clean.
Store the machine in a dry place out of the reach of
children.
Always allow the machine to cool before storing.

>

>

>

TTB683SHR

by TITAN

TTB683SHR

by TITANSafety information Safety information

0706

When servicing the shredding means be aware that,
even though the power source is switched off due to
the interlock feature of the guard, the shredding
means can still be moved.
Replace worn or damaged parts for safety. Use only
genuine replacement parts and accessories.
Never attempt to override the interlocked feature of
the guard.

guarantee!
Do not leave the product working unattended and
keep it in a dry place out of children’s reach.
Keep hands and feet away from the cutting means at
all times and especially when switching on the motor.
Do not touch the cutting means before the product is
disconnected from the power supply and the cutting
means have come to a complete stop.
Whilst using the product, ensure the extension cord
does not become trapped under the wheels or feet.
Before using, check the extension cord for signs of
damage and aging. Do not use the product if the cord
is damaged or worn. DO NOT TOUCH THE
EXTENTION CORD BEFORE DISCONNECTING
THE SUPPLY.
Do not use the product if the extension cord is
damaged or worn.
Have your product serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the product is
maintained.

>

>

>

>

>

>

>

>

>

>

Additional safety instructions for units with
bagging attachments

Switch the product off before attaching or removing
the collection box.

>

>

>

>

>
>

>

Additional warnings

Vibration and noise reduction

Carry the product by the handle with the motor off.
Handling the product properly reduces the possibility
of personal injury.
If the product starts to vibrate abnormally, check it
immediately. Excessive vibration can cause injury.
Always ensure the product is fully assembled before
using it. Never attempt to use an incomplete product
or one fitted with an unauthorised modification.
Do not overload the product.
Follow the maintenance and repair instructions for
this product. Never carry out any modifications to the
product. Information about maintenance and repair is
provided in this user manual.
Only use replacement parts and accessories supplied
and recommended by the manufacturer. Using
third-party parts will immediately invalidate the

To reduce the impact of noise and vibration emission,
limit the time of operation, use low-vibration and
low-noise operating modes as well as wear personal
protective equipment.

TTB683SHR

by TITAN

TTB683SHR

by TITANSafety information Safety information

08 09

The machine should be supplied via a residual current
device (RCD) with a tripping current of not more than
30 mA.

Recommendation

Take the following points into account to minimise the
vibration and noise exposure risks:

and damage remain. The following dangers can arise
in connection with the structure and design of this
product:
>

>

>

>

>

>

>
>

>

>

>

Only use the product as intended by its design and
these instructions.
Ensure that the product is in good condition and well
maintained.
Use correct attachments for the product and ensure
they are in good condition.
Keep tight grip on the handles/gripping surface.
Maintain this product in accordance with these
instructions and keep it well lubricated (where
appropriate).
Plan your work schedule to spread any high vibration
tool use across a longer period of time.

Emergency

Familiarise yourself with the use of this product by
means of this instruction manual. Memorise the safety
directions and follow them to the letter. This will help to
prevent risks and hazards.

Always be alert when using this product, so that you
can recognise and handle risks early. Fast
intervention can prevent serious injury and damage to
property.
Switch off and disconnect from the power supply if
there are malfunctions. Have the product checked by
a qualified professional and repaired, if necessary,
before you operate it again.

Residual risks

Even if you are operating this product in accordance
with all the safety requirements, potential risks of injury

Injuries and damage to property due to broken
cutting attachments or the sudden impact of hidden
objects during use.
Injuries and damage to property to due to thrown and
fallen objects.
Physical injuries caused by whipped material to be
shredded.

WARNING! This product produces an
electromagnetic field during operation! This field
may under some circumstances interfere with
active or passive medical implants! To reduce
the risk of serious or fatal injury, we recommend
persons with medical implants to consult their
doctor and the medical implant manufacturer
before operating this product!

TTB683SHR

by TITAN

TTB683SHR

by TITANSafety information Safety information

10 11

yyWxx

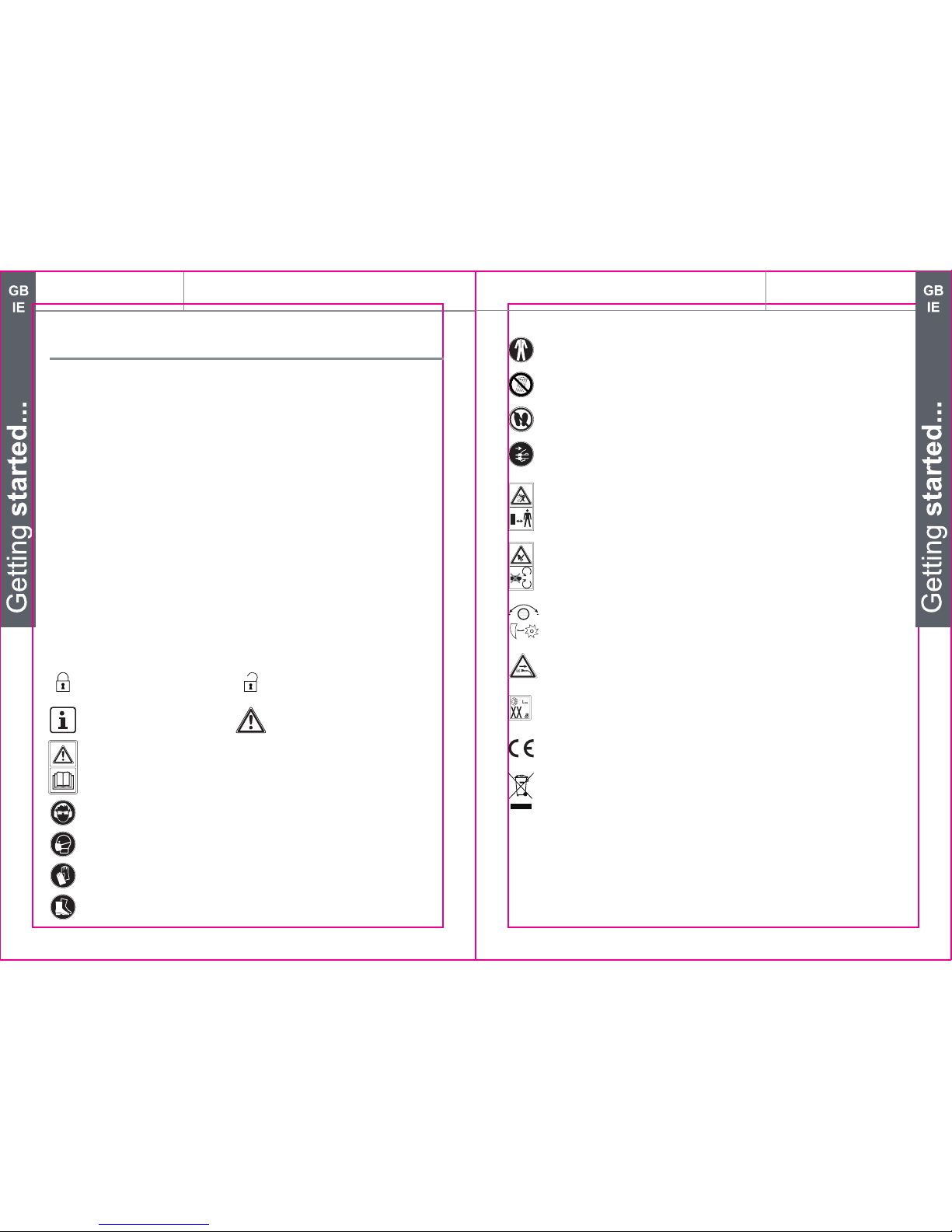

Symbols

On the product, the rating label and within these instructions you will find
among others the following symbols and abbreviations. Familiarise yourself
with them to reduce hazards like personal injuries and damage to property.

dB(A)

V~ Volt, (alternating

voltage)

Hz Hertz

W Watt A Ampere

/min or min

-1

Per minute

l Litremm Millimetre

kg Kilogram

Decibel (A-rated)

Manufacturing date code; year of manufacturing (20yy) and week
of manufacturing (Wxx)

S6(40%) Operating mode S6 - Continuous-operation periodic duty

A sequence of identical duty cycles, each cycle consisting of a time
of operation at constant load (40%) and a time of operation at
no-load (60%).

IP24 Protection against contact with the fingers, protection against solid

foreign bodies with Ø > 12 mm as well as protection against
splashed water from all directions

Lock / to tighten or
secure

Unlock / to loosen

Read the instruction manual.

Note / Remark. Caution / Warning.

Wear hearing protection.
Wear eye protection.

Wear protective gloves.

Wear protective, slip-resistant footwear.

Wear respiratory protection.

Wear tight-fitted protective clothes.

Do not expose the product to rain or wet conditions.

Do not use as a step.

Switch the product off and disconnect it from the power supply
before assembly, cleaning, adjustments, maintenance, storage
and transportation.

Objects thrown by the product could hit the user or other
bystanders. Always ensure that other people and pets remain at a
safe distance from the product when it is in operation. In general,
children must not come near the area where the product is.

Guaranteed sound power level value in dB

Danger - Rotating blades. Keep hands and feet out of openings
while the product is running.

Turn the cutting plate adjustment knob clockwise for narrower
clearance / anticlockwise for wider clearance.

Disconnect the mains plug if the cord becomes damaged or
entangled. DO NOT TOUCH THE CORD BEFORE
DISCONNECTING THE SUPPLY.

The product complies with the applicable European directives and
an evaluation method of conformity for these directives was done.

WEEE symbol. Waste electrical products should not be disposed
of with household waste. Please recycle where facilities exist.
Check with your Local Authority or local store for recycling advice.

TTB683SHR

by TITAN

TTB683SHR

by TITANSafety information Safety information

12 13

Your product

10

13

5

4

3

2

1

6

7

9

8

11a

12

11

16
15

14

18
18

17

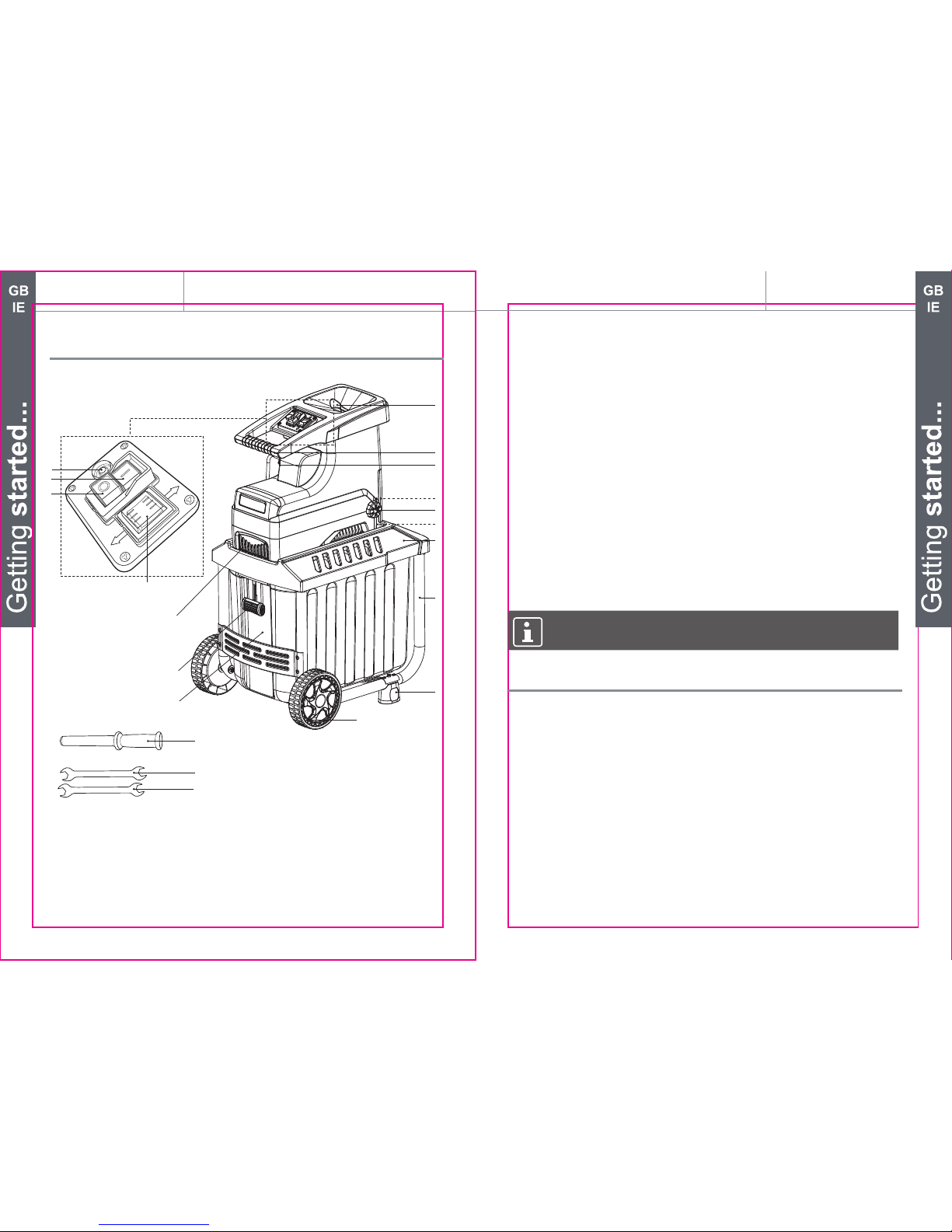

1. Feeding funnel

2. Transportation handle

3. Power supply

4. Blade compartment
a. Guard*
b. Cutting blade*
c. Cutting plate*

5. Cutting plate adjustment knob

6. Discharge chute

7. Base plate
a. Screw* (x 4)
b. Washer* (x 4)

8. Frame

9. Foot assembly (x 2)
a. Foot
b. Base*
c. Bolt*
d. Nut*

10. Wheel assembly (x 2)
a. Wheel*
b. Slot*
c. Bolt*
d. Bushing*
e. Nut*
f. Cover*
g. Latch*
h. Washer* (x 6)

11. Collection box
a. Interlock switch
b. Recessed grip*

12. Air vents

13. Forward/reverse switch

14. OFF switch “O”

15. ON switch “I”

16. Reset button

17. Plunger

18. Assembly wrench (x 2)

NOTE: Parts marked with * are not shown in this overview. Please
refer to the respective section in the instruction manual.

TTB683SHR

by TITAN

TTB683SHR

by TITANYour product Your product

14 15

Technical specifications

Rated voltage, frequency
Rated power input
Degree of protection
No load speed
Max. cutting diameter
Collection box capacity
Weight

Sound pressure level L

pA

Uncertainty K

pA

Measured sound power level L

WA

Uncertainty K

WA

Guaranteed sound power level L

WA

(acc. to 2000/14/EC amended by
2005/88/EC)

>
>
>
>
>
>
>

>
>
>
>
>

230-240 V~50 Hz
S1: 2000 W, S6: (40%) 2500 W
IP24
2850 min

-1

Ø 40 mm
60 l
28 kg

82.7 dB(A)
3 dB(A)

90.7 dB(A)

2.41 dB(A)
93 dB(A)

:
:
:
:
:
:
:

:
:
:
:
:

Noise level

NOTE: Take care of small parts that are removed during assembly
or when making adjustments. Keep them secure to avoid loss.

The sound values have been determined according to noise test code given
in EN 50434, using the basic standards ISO 3744 and ISO 11094.
Wear hearing protection, especially when sound pressure is over 80 dB(A).
The noise figures quoted are emission levels and are not necessarily safe
working levels. Factors that influence the actual level of exposure of
work-force include the characteristics of the work room, the other sources of
noise, etc. i.e. the number of machines and other adjacent processes, and the
length of time for which an operator is exposed to the noise. Also the
permissible exposure level can vary from country. This information, however,
will enable the user of the machine to make a better evaluation of the hazard
and risk.

Unpacking

Assembly

NOTE: The product is heavy, ask another person for assistance if

required.

Unpack all parts and lay them on a flat, stable surface.
Remove all packing materials and shipping devices if applicable.
Make sure the delivery contents are complete and free of any damage. If
you find that parts are missing or show damage do not use the product but
contact your dealer. Using an incomplete or damaged product represents a
hazard to people and property.
Ensure that you have all the accessories and tools needed for assembly and
operation. This also includes suitable personal protective equipment.

>
>
>

>

>

>

>
>
>

>

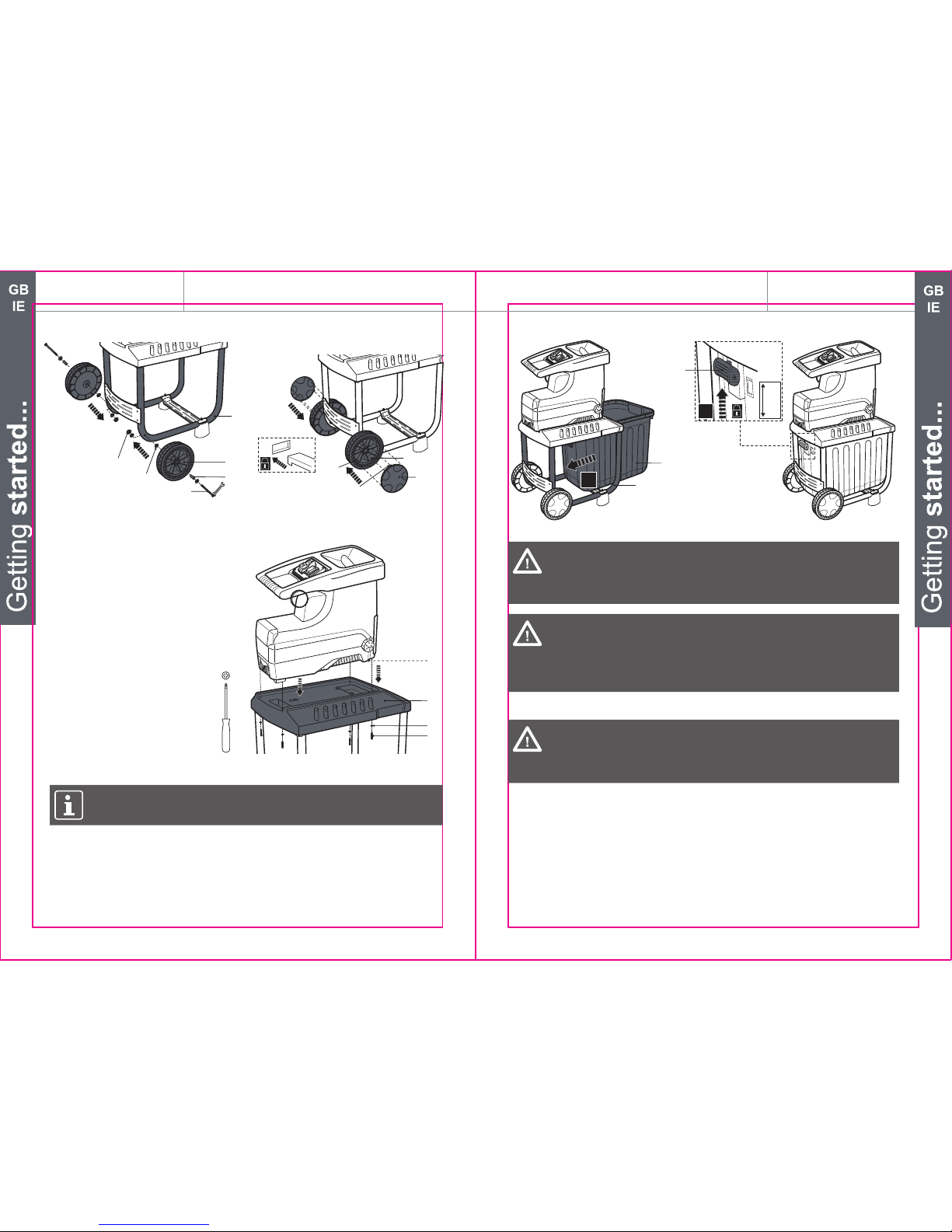

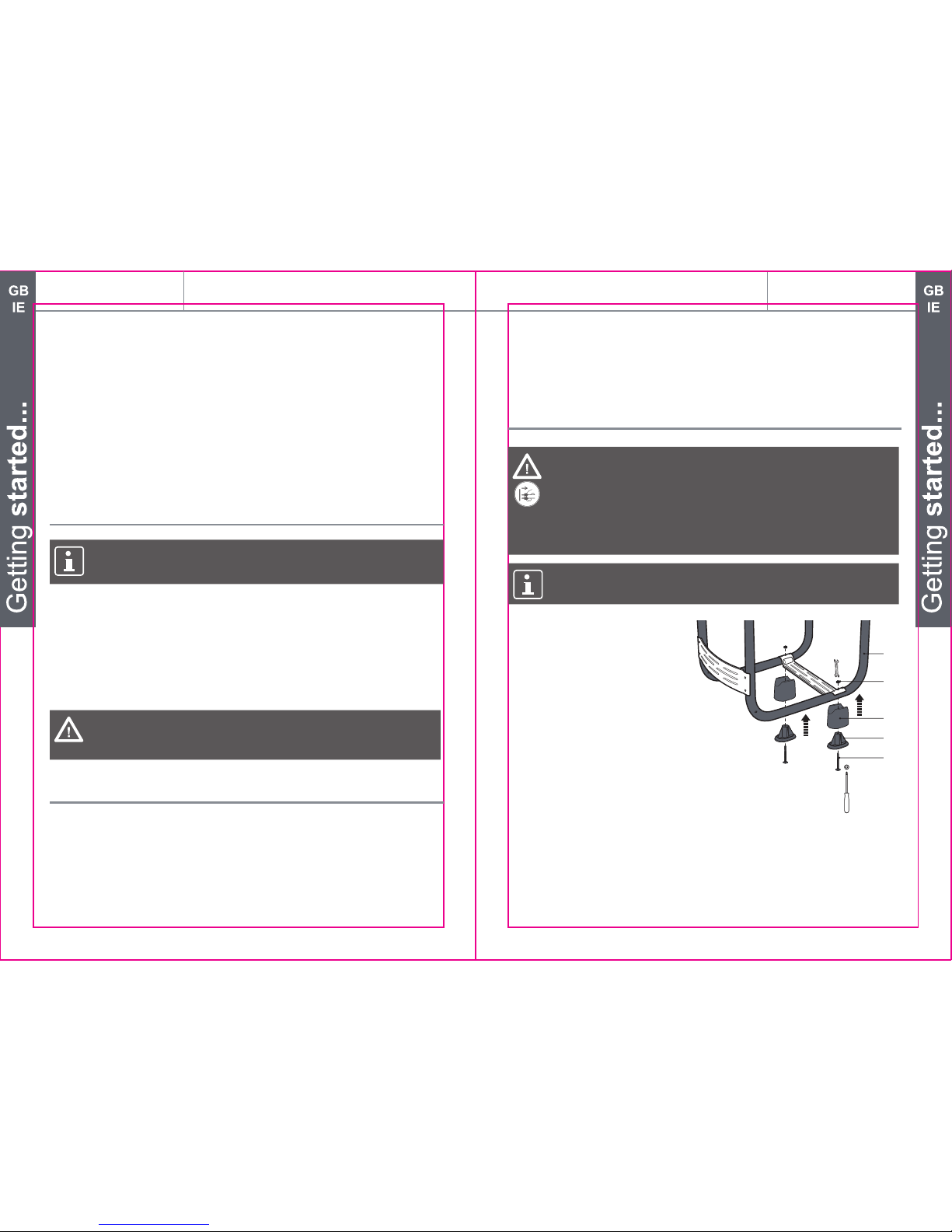

Foot assembly

8

9d

9a

9b

9c

Fig.1

Align the holes and assemble
the feet (9a) and bases (9b)
onto the frame (8).
Secure the connection with
bolts (9c) and nuts (9d) (Fig. 1).

Wheel assembly

Insert the bushings (10d) into the axle holes of the wheels(10a).
Align the holes and assemble the wheels (10a) onto the frame(8).
Secure the connection with bolts (10c) and nuts (10e)and washers
(10h)(Fig. 2).
Align the latches (10g) with the slots (10b) and attach the covers (10f) onto
the wheels (10a). Ensure the latches snap in position (Fig. 3).

WARNING! The product must be fully assembled before operation!
Do not use a product that is only partly assembled or assembled
with damaged parts!
Follow the assembly instructions step-by-step and use the pictures
provided as a visual guide to easily assemble the product!
Do not connect the product to power supply before it is completely
assembled!

TTB683SHR

by TITAN

TTB683SHR

by TITANYour product / Before you start Before you start

16 17

Please check the completeness of the delivery and ensure that all parts are
free from any transport-related damage or any damage in general. Please
contact the supplier from whom you purchased the product should there be
any parts missing or damaged.

You will need

WARNING! The product and the packaging are not children’s toys!

Children must not play with plastic bags, sheets and small parts!
There is a danger of choking and suffocation!

(item supplied)

1 x Shredder
2 x Foot assembly (9)
2 x Wheel assembly (10)
1 x Collection box (11)
1 x Plunger (17)
2 x Assembly wrench (18)

(item not supplied)

Suitable personal protective
equipment
Suitable crosshead
Phillips screwdriver

Motor unit

>

>

>
>

>

7

6

7a

7b

Fig.4

Lift the motor unit. Align
discharge chute (6) with the
opening and place the motor
unit onto the base plate (7).
Ensure the motor unit sits
properly in position.
Secure the connection with
screws (7a) and washers (7b)
(Fig. 4).

10a

8

10d

10c

10h

10e

Fig. 2

10f

10a

10g

10b

Fig. 3

NOTE: Turn the motor unit and base plate upside down for easy
assembly if required.

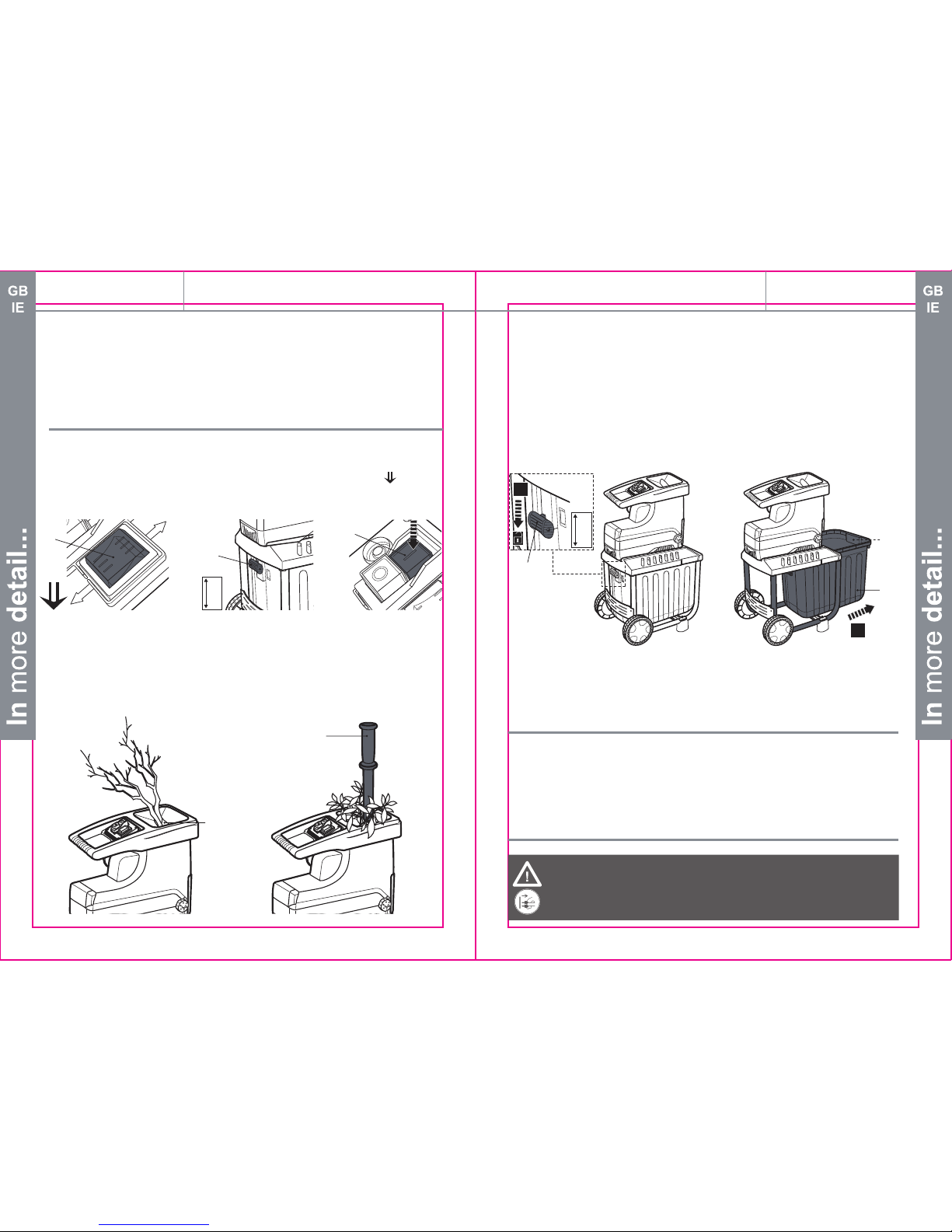

Collection box

Connection to power supply

Ensure the interlock switch (11a) is on its position “OFF”.
Insert the collection box (11) into the frame (8) and slide it all the way to the
stop.
Fully pull up the interlock switch (11a) to position “ON” to secure the
collection box (11) in position (Fig. 5).

ON

OFF

8

11

11a

2.

1.

Fig. 5

WARNING! If the interlock switch (11a) is not fully pulled up, the
motor will not start!
The product automatically stops if the interlock switch is unlock
during operation!

WARNING! Always use the product with the collection box (11)
attached during operation to protect yourself against dashed debris
and avoid injuries! Do not use the product with a damaged
collection box or without one at all!
Never attempt to override the interlock feature of the collection box!

WARNING! Check the voltage! The voltage must comply with the
information on the rating label!
The extension cord must be suitable for outdoor use with sockets
protected against water splashing.

Ensure the extension cord is of the proper size and type for your product:

• 1.5 mm2 for up to 60 m

• 2.5 mm2 for up to 100 m

Always use a residual current device (RCD) protected supply!

TTB683SHR

by TITAN

TTB683SHR

by TITANBefore you start Before you start

18 19

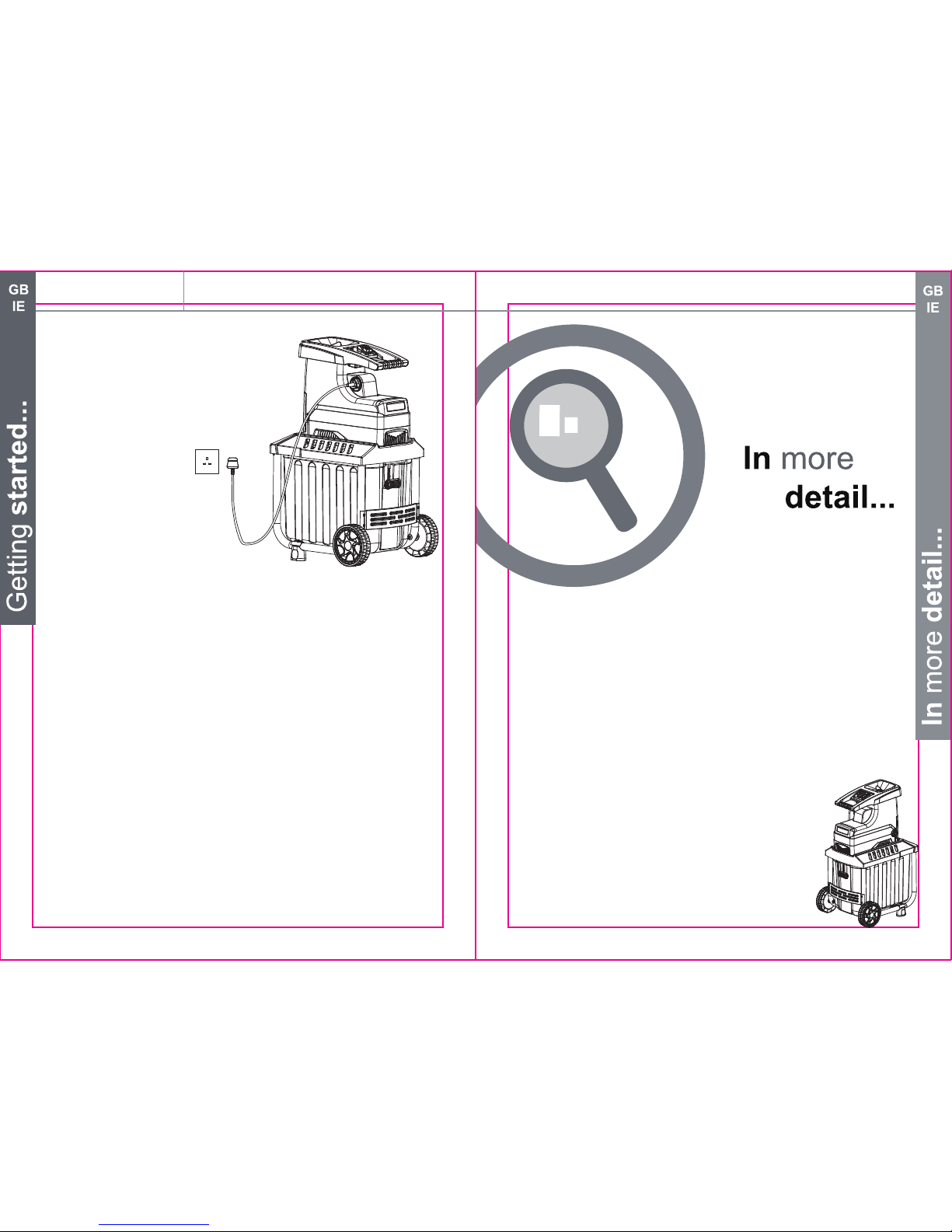

Connect the plug to a suitable
socket.
Your product is now ready to be
used.

>

>

Fig. 6

Product functions

Operation

Care and maintenance

Trouble shooting

Recycling and disposal

EC declaration of conformity

TTB683SHR

by TITAN

TTB683SHR

by TITANBefore you start

20 21

22

24

27

31

32

33

Intended use

Cutting plate adjustment

Forward/reverse operation

Forward/reverse operation

This shredder TTB683SHR is designated with a rated power input of 2500 Watts
(S6:40%)
This product is designed for cutting of fibrous and woody garden waste for
composting.
This product is not intended for shredding pieces of metal, rocks, bottles, cans,
etc. or soft waste such as kitchen rubbish.
For safety reasons it is essential to read the entire instruction manual before first
operation and to observe all the instructions therein.
This product is intended for private domestic use only, not for any commercial
trade use. It must not be used for any purposes other than those described.

WARNING! Always switch the forward/reverse switch to standby
mode for 2 seconds before changing the forward/reverse mode!

Wait until the blades completely stop;
Wait at least one minute and then press the reset button (16);
Set the forward/reverse switch (13) to reverse mode “ ”;
Press the ON switch “I” (15) to switch the product on. Carefully pull out
the jammed material from the feeding funnel;
After the product runs for a few seconds, press the OFF switch “O” (14)
to switch the product off;
Set the forward/reverse switch (13) to forward mode “ ”;

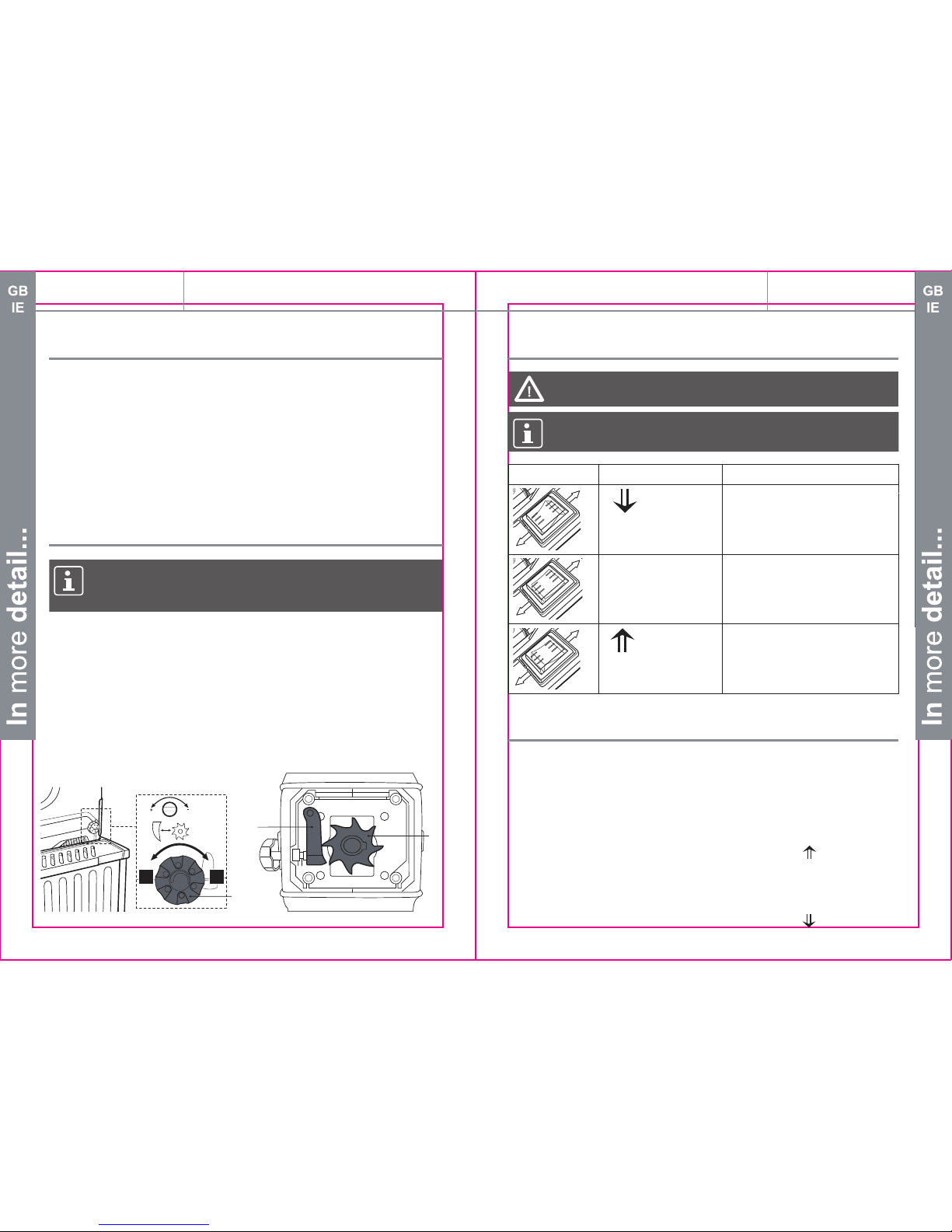

Always adjust the clearance between the cutting plate(4c) and
cutting blades (4b) before using the product!
For an effective operation, adjust the blade clearance regularly.

NOTE: Repetitions of forward and reverse operations may be
required to shred a large object.

The cutting plate(4c) is set from 0 to 0.5 mm closed to the cutting blades(4b); this
distance should be kept to achieve effective operation.

Switch the product on.
Turn the cutting plate adjustment knob (5) slowly in a clockwise direction until
a scraping noise is heard (metal plate making contact with the cutter head).
Fine aluminium shavings will fall from the discharge chute (Figs. 7, 8).
As soon as the scraping noise is heard, rotate the adjustment knob
anti-clockwise 1/4 of a turn. Ensure that the metal plate is not making contact
with the cutter head.
Avoid unnecessary wear on the cutting plate by not over-adjusting.
After adjusting, make shredding tests to check if the best effect is achieved.
Readjust if necessary.

>
>

>

>
>

5

+

-

Fig. 7

4b

4c

Fig. 8

Position Operation mode Application

Forward mode

Shredding

Standby mode Switching between forward /

reverse mode during operation
(time interval: min. 2 seconds)

Reverse mode

Releasing jammed material

The motor of this product is equipped with an overload protection. When
overloaded, the product acts as following:

The overload protection unit will automatically activate within 4 – 10 seconds
and shut off the power supply.
When it happens, perform the following steps:

>

>

>
>
>
>

>

>

TTB683SHR

by TITAN

TTB683SHR

by TITANProducts functions Products functions

22 23

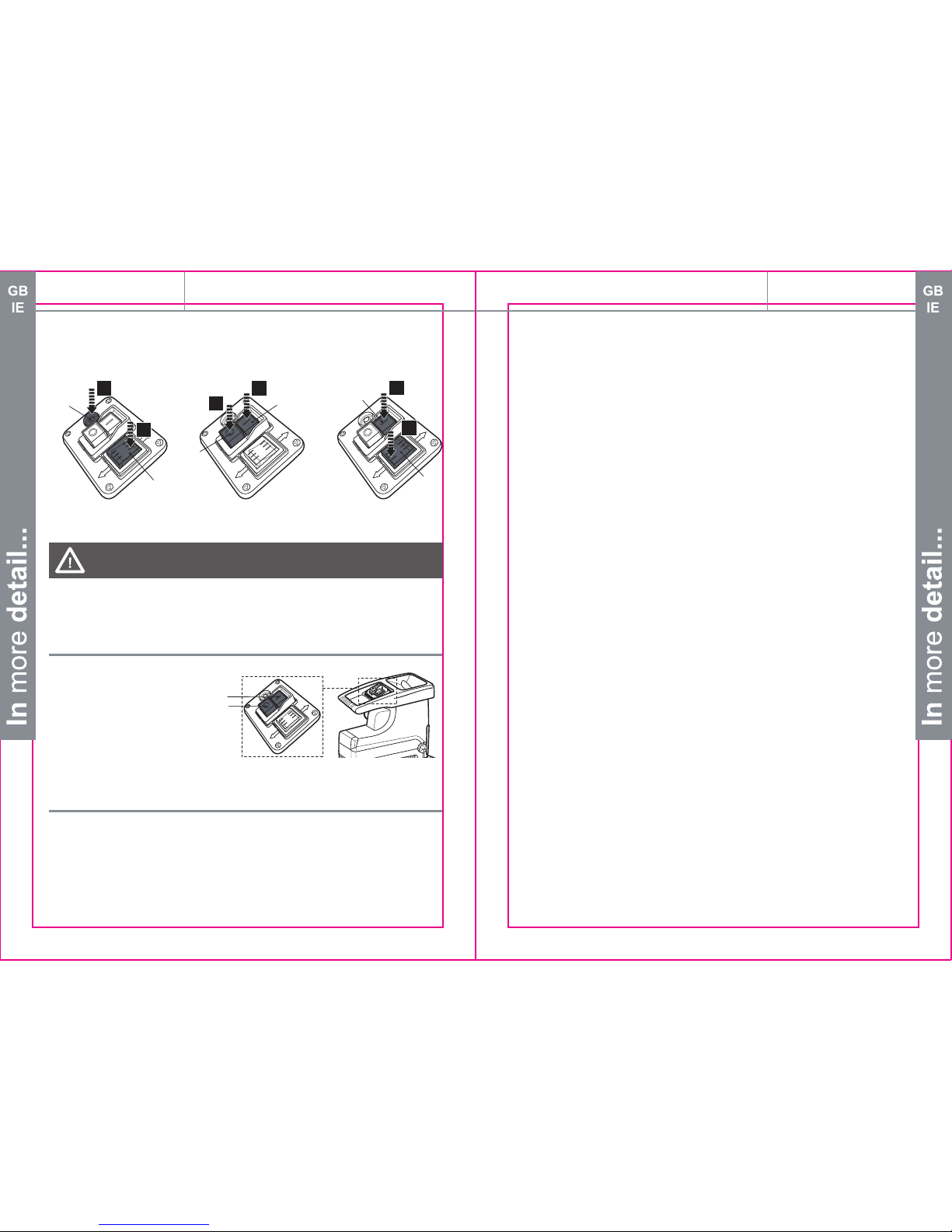

Switching on/off

General operation

15

14

Fig. 10

Press the ON switch “I”
(15) to switch the product
on.
Press the OFF switch “O”
(14) to switch the product
off (Fig. 10).

>
>

Check the product as well as accessories for damage before each use. Do
not use the product if it is damaged or shows wear.
Double check that accessories and attachments are properly fixed.
Always push the product on its transportation handle. Keep the
transportation handle dry and free from lubricant to ensure safe support.
Ensure that the air vents are always unobstructed and clear. Clean them if
necessary with a soft brush. Blocked air vents may lead to overheating and
damage the product.

Press the ON switch “I” (15) to switch the producton (Fig. 9);
Feed softer / smaller material to perform a shredding test to ensure the
product runs smoothly before continuing further operation.

13

16

14

15

15

13

1. 3.

5.

6.

4.

2.

Fig. 9

If you cannot switch the product on, see chapter “Troubleshooting”.>

>

>

>

>
>

>

>

>

>

>

>

>

>

>

>

>

>

>
>
>

>
>

>

>

>

WARNING! Never attempt to open the guard (4a) of blade
compartment (4) by yourself!

If the blockage occurs on the blades in the lower part of the motor unit,contact
an authorised service centre or a similarly qualified person to have it checked
and repaired.

Switch the product off immediately if you are disturbed while working by
other people entering the working area. Always let the product come to
complete stop before averting.
Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.
Inspect the material to be shredded before starting. Remove any objects or
debris that could be thrown, jammed or become entangled in the blades.
Remove any soil from root balls. Foreign bodies like stones, glass, metals,
fabricsor plastics must not enter the feeding funnel, these could damage
the blades.
Always place the product on firm, level ground. During operation, do not tilt
or move the product.
Allow the cutting means to reach full speed before feeding the material into
the feeding funnel.
Do not fill soft waste such as kitchen rubbish into the feeding funnel, but
compost them.
Long material extending out from the product could lash out when being
drawn in by the blades. Keep at safe distance.
Only insert as much material so that the feeding funnel will not be blocked
up.
Keep hold of branches while feeding them into the product until they are
automatically drawn in.
Soft materials (e.g. leaves, stems) may block the opening of feeding funnel.
Use plunger to push them onto the cutting means if necessary.
Always feed the material, especially the branches, into the larger opening
of the feeding funnel.
Keep to the working speed of the product and do not overload it.
Keep a few dry branches for the end, as they will help clean the product.
Only switch the product off when all of the shredding material has passed
through the discharge chute. Otherwise, the discharge chute may jam the
next time you switch the product on.
Ensure the shredded material can fall freely from the discharge chute.
To make finer compost the shredded material can be shredded for a
second time.
Do not allow the shredded material to build up to a level where it blocks the
discharge chute. If the material builds up too far, it could reach the cutting
blades and be thrown out of the feeding funnel.
Organic material contains a large amount of water and sap that can stick to
the product. To avoid this, the material should be left for a few days to dry
out. Large branches however are best shredded when they are fresh.
If the cutting means stalls during operation, stop the product immediately
and disconnect the product from the power supply before investigating the
cause.

TTB683SHR

by TITAN

TTB683SHR

by TITANProducts functions / Operation Operation

24 25

Operation

After use

The golden rules for care

Chop the damp/wilted garden waste which has been stored for several days
before feeding them into the feeding funnel.
Ensure the forward/reverse switch (13) is on forward position “ ” and the
interlock switch (11a) is on its position “ON” (Fig. 11).
Press the ON switch “I” (15) to switch the product on.

ON

OFF

13

11a

15

Fig. 11

>

>

>
>

>

>
>

>
>

>

>

>

>

>

>

>

>

Remove any jammed debris from the cutting means and examine them for
any damage before re-commencing shredding.
If the blades have stalled for more than 4 - 10 seconds, the overload
protection will activate. Refer to section “overload protection”.

Slowly feed material (e.g. garden waste, branches) into the feeding funnel
(1) (Fig. 12). Only insert as much feeding material as to avoid blockage of
feeding funnel and cutting means.
Insert the plunger (17) into the feeding funnel (1)to push the material onto
the cutting means if necessary (Fig. 13).
Wait until all the feeding material has been shredded before adding more
material.

1

Fig. 12

17

Fig. 13

Emptying collection box

Always operate the product with the collection box (11) attached.
Inspect the collection box before each use. Do not use it if you detect any
damage.
Empty frequently during use. Do not wait until the collection box is
completely full. We recommend emptying it when it is half full.
Switch the product off and disconnect it from the power supply.
Fully press down the interlock switch (11a), hold the recessed grip (11b)
and carefully pull the collection box (11) out of the frame (8) (Fig. 14).

ON

OFF

11a

11b

11

1.

2.

Fig. 14

Empty chippings on compost heap or into a suitable container.
Reattach the collection box (11) before using the product again.

Switch the product off, disconnect it from the power supply and let it cool
down.
Check, clean and store the product as described below.Maintenance and
care.

WARNING! Always switch the product off, disconnect it from the
power supply and let the product cool down before performing
inspection, maintenance and cleaning work!

TTB683SHR

by TITAN

TTB683SHR

by TITANOperation Operation / Care and maintenance

26 27

NOTE: Do not use chemical, alkaline, abrasive or other aggressive
detergents or disinfectants to clean this product as they might be
harmful to its surfaces.

WARNING! Only perform repairs and maintenance work according
to these instructions! All further works must be performed by a
qualified specialist!

WARNING! If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer or its
service.

Cleaning

Spare parts

Power Cord

Clean the product with a slightly damp cloth and mild soap. Use a brush for
areas that are hard to reach.
In particular clean the air vents (12) after every use with a cloth and brush.
Remove stubborn dirt with high pressure air (max. 3 bar).

Check for any damage and wear. Repair damages in accordance with this
instruction manual or take it to an authorised service centre before using the
product again.

>

>

>

>

>
>

>

UK plug

The fuse in the main plug of your garden power tool should always be
replaced with one of identical rating.
Check the voltage given on your garden power tool matches the supply
voltage.The garden power tool is supplied with a fitted plug, however if you
should need to fit a new plug follows the instruction below.

Important:

The wire in the mains lead are coloured in accordance with the following
code:
Green & yellow – Earth
Blue – Neutral
Brown – Live.
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows. The wire which is coloured green & yellow must be
connected to the terminal which is marked with E or .

Spare parts/Replacement parts

The following parts of this product may be replaced by the consumer. Spare
parts are available at an authorised dealer or through our customer service.

Cutting blade L10
Cutting plate LSG2811-1 Cutting plate

Description Model no. or Specification

Keep the product clean. Remove debris from it after each use and before
storage.
Regular and proper cleaning will help ensure safe use and prolong the life
of the product.
Inspect the product before each use for worn and damaged parts. Do not
operate it if you find broken and worn parts.

TTB683SHR

by TITAN

TTB683SHR

by TITANCare and maintenance Care and maintenance

28 29

WARNING! Never connect live or netutral wires to the earth
terminal of the plug. Only fit an approved 13 Amp BS1363/A plug
and the correct rated fuse.

NOTE: If a moulded plug is fitted and has to be removed take great
care in disposing of the plug and severed cable, it must be
destroyed to prevent engaging into a socket. If the supply cord is
damaged it must be replaced by a service agent or a similarly quali

ἀed person in order to avoid hazard

Fig. 16

Trouble shooting

Suspected malfunctions are often due to causes that the user can fix
themselves. Therefore check the product using this section. In most cases
the problem can be solved quickly.

WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work
must be performed by an authorised service centre or a similarly
qualified specialist if you cannot solve the problem yourself!

Problem Possible cause Solution

1. Product does not
start

1.1. Not connected to
power supply

1.2. Power cord or plug
is defective

1.3. Other electrical
defect to the product

1.4. Overload protection
is activated

1.5. Interlock switch of
the collection box is
unlocked

1.6. Forward/reverse
switch on middle
position

1.1. Connect to power
supply

1.2. Check by a specialist
electrician

1.3. Check by a specialist
electrician

1.4. Refer to section
“overload protection”

1.5. Check and lock the
interlock ofcollection
box

1.6. Set the switch to
forward “ ” or
reverse “ ” position

2. Product does not
reach full power

2.1. Extension cord not
suitable for operation
with this product

2.2. Power source (e.g.
generator) has too
low voltage

2.3. Air vents are blocked

2.1. Use a proper
extension cord

2.2. Connect to another
suitable power
source

2.3. Clean the air vents

3. Motor sounds but
does not start

3.1. Cutting
blades are blocked

3.2. Forward/reverse
switch on middle
position

3.1. Refer to section
“overload protection”.

3.2. Set the switch to
forward “ ” or
reverse “ ” position

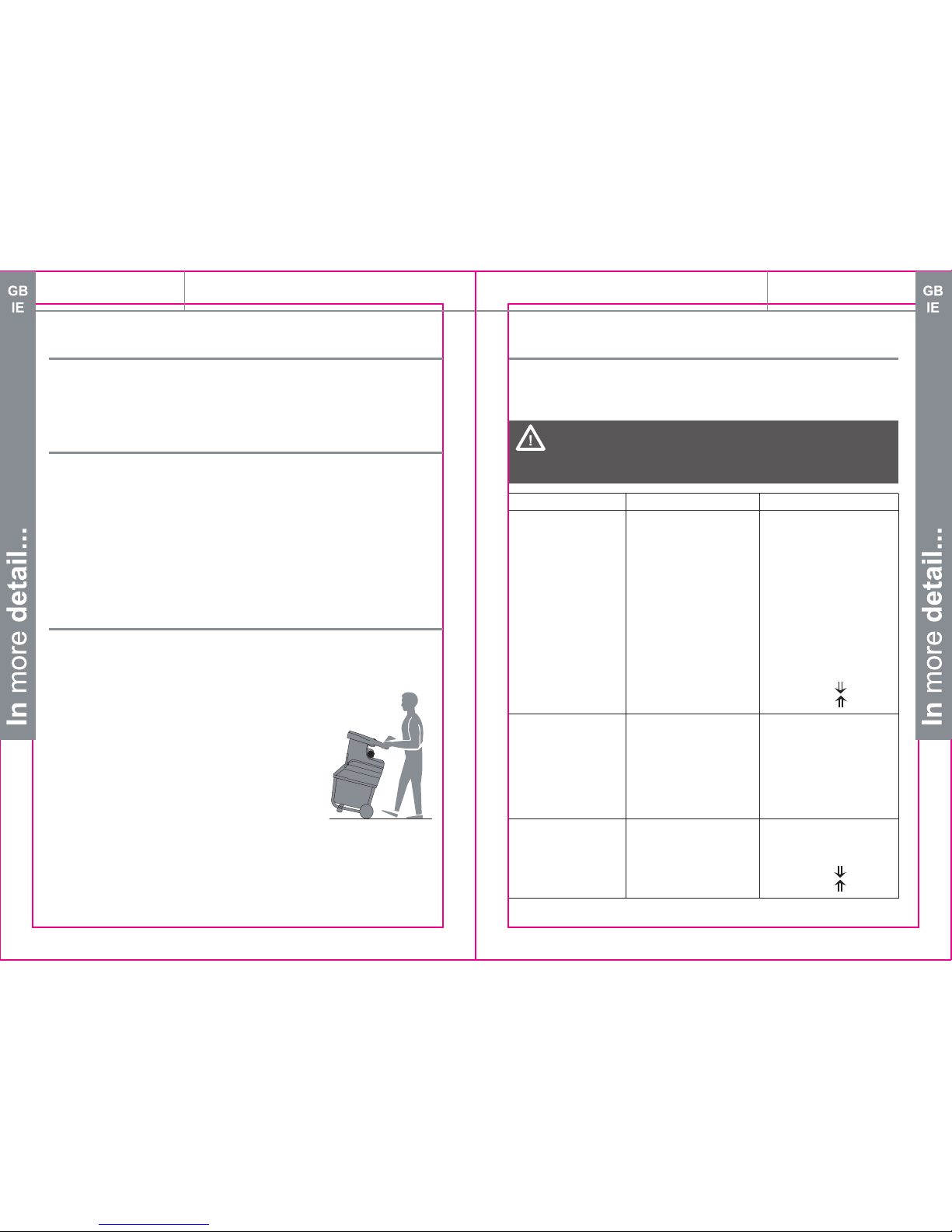

Fig. 17

Transportation

>
>
>

Switch the product off and disconnect it from the power supply.
Attach transportation guards, if applicable.
Do not try to carry the product alone! If it is necessary to lift the product,
always ask another person for help.
Only transport it by its transportation handle (2).
Tilt the product towards you until it balances on
the wheels. Then move it by transportation handle
(Fig. 17).
Protect the product from any heavy impact or
strong vibrations which may occur during
transportation in vehicles.
Secure the product to prevent it from slipping or
falling over.

>

>

>

TTB683SHR

by TITAN

TTB683SHR

by TITANCare and maintenance Care and maintenance / Trouble shooting

30 31

Repair

Storage

Switch the product off and disconnect it from the power supply.
Clean the product as described above.
Store the product and its accessories in a dry, frost-free place.
Always store the product in a place that is inaccessible to children. The ideal
storage temperature is between 10°C and 30°C.
We recommend using the original package for storage or covering the
product with a suitable cloth or enclosure to protect it against dust.

>
>
>
>

>

This product does not contain any parts that can be repaired by the consumer.
Contact an authorised service centre or a similarly qualified person to have it
checked and repaired.

Recycling and disposal

EC declaration of conformity

Problem Possible cause Solution

4. Unsatisfactory
result / shredding
material is not cut
cleanly

4.1. Cutting plate is not
adequately adjusted

4.2. Blades are worn /
damaged

4.1. Adjust the cutting
plate

4.2. Replace with new one

5. Excessive vibration
or noise

5.1. Blades are damaged

5.2. Blades are blocked

5.3. Bolts / knobs are
loose

5.1. Have the blades
replaced by a
specialist

5.2. Remove blockage

5.3. Tighten the bolts /
knobs

The product comes in a package that protects it against damage during
shipping. Keep the package until you are sure that all parts have been
delivered and the product is function properly. Recycle the package
afterwards.
Old products are potentially recyclable under WEEE and do not, therefore,
belong in your household rubbish. You are requested to assist us and our
contribution to saving resources and protecting the environment by handing in
this appliance at an equipped collection centre (if there is one available).

Authorised Signatory and technical file holder
Date : 05/30/2016

Signature:
Name / title: Peter Harries / Quality Manager
Titan Power Tools (UK) Ltd. Trade House, Mead Avenue,BA22 8RT

we

Titan Power Tools (UK) Ltd

Trade House, Mead Avenue, BA22 8RT

Declare that the product

Silent Shredder 2500W TTB683SHR

Serial number: from 000001 to 999999

Complies with the essential health and safety requirements of the

following directives:

The Machinery Directive 2006/42/EC

The Low Voltage Directive 2014/35/EU

The EMC Directive 2014/30/EU

The RoHS Directive 2011/65/EU
The Noise Directive 2000/14/EC

The conformity assessment of Directive 2000/14/EC, was done using Annex

V of the Directive.
Measured sound power level: 90.7 dB(A)
Guaranteed sound power level: 93 dB(A)

Notified body: TÜV Industrie Service GmbH

Westendstrasse 199 Dß80686 Munich Germany

ID 0036

· EN60335-1:2012+A11:2014

· EN50434:2014

· EN62233:2008

· EN55014-1:2006/A2:2011

· EN55014-2:1997/A2:2008

· EN61000-3-2:2014

· EN61000-3-11:2000

TTB683SHR

by TITAN

TTB683SHR

by TITAN

Trouble shooting / Recycling and disposal

EC declaration of conformity

32
