Page 1
Quick Install Guide
Advanced LED 2-Way
Advanced LED 2-Way
Remote Car Starter
Remote Car Starter
For Automatic
For Automatic
& Manual Transmission
& Manual Transmission
Vehicles
Vehicles
Revision 2.01Revision 2.01
www.titaninnovations.cawww.titaninnovations.ca
Page 2
Action
Operation
Press Button 1 Once
Locks doors and Arms Titan-Secure (If Alarm
features are turned on in Menu M2-3)
Press and Hold Button 1 for 2
Seconds
Remote Panic
Press Button 2 Once
Unlocks doors and Dis-Arms Titan-Secure (If
Alarm features are turned on in Menu M2-3)
Press and Hold Button 2 for 2
Seconds
Trunk Release (Doors will also Unlock)
Press Buttons 1 and 2 Together
Sets silent arming/disarming mode (If Titan-Secure
Alarm features are turned on in Menu M2-3)
Press Button 3 Once
Remote engine Start On/Off (Start / Stop)
Press Button 4 Once, then Push and
Hold Button 3 for 3 Seconds
Remote Timer Start mode On/Off (See Owner’s
Guide for more details)
Press Button 3 Once (with Engine
Running by Key)
Idle Mode (Takeover Mode)
Press Button 4 Once (with Engine
Running by Key)
Turbo Mode (Turbo Cooldown Mode)
Press Button 4 Once, then Push
Button 1 for less than 2 Seconds
Long Aux. Door Lock Function (See Menu M2-6
for options (15 sec, 30 sec, or Latched))
Press and Hold Button 3 for 2
Seconds
Auxiliary Output #1 (See Menu M4-1)
Press and Hold Button 4 for 2
Seconds
Auxiliary Output #2 (See Menu M4-1)
Press Button 5 Once
Indicates vehicle Status (T85RC Only)
TS142 Quick Install Guide
Transmitter Operation T85RC (LED 2-Way)
& T85SRC (Companion Remote)
Part # T85RC
2-Way LED Transmitter
Button 1
Button 3
L
S rtS rt
Button 2
Button 4
Button 5
Part # T85SRC
1-Way Transmitter
ar ar
Page 3
TRANSMITTER LEARNING
Important! The remote starter will hold 4 transmitter codes. It is
recommended that when programming in transmitters, you fill up all four
transmitter codes, even if only usin g one or two transmitters. This will
clear all other transmitter coding from the unit and prevent stray coding
or possible interference from other remote transmitters.
a. Turn ignition ON ± OFF ± ON ± OFF ± ON.
b. Press the valet switch (button) in the antenna and hold on, siren/horn (optional) will
chirp once, the LED will turn on constantly.
c. Keep on holding the valet switch, siren/horn will chirp 5 times to indicate you have
entered transmitter learning mode.
d. Press button 1 (Lock) of every transmitter to be coded. T he siren/horn will c hirp once
and the parking lights will flash once to indicate successfully learning. If only using
only 2 transmitters, code in each transmitter twice.
e. Up to 4 trans mitters can be learned to each unit, each transmitter must be finished in 8
seconds.
f. Turn ignition OFF and the unit will exit code- learning mode. You will hear one long
siren/horn chirp to confirm.
VALET MODE
a. To activate Valet mode, turn ignition ON. Within 10 seconds, press and hold the valet
switch for 5 seconds. Parking lights will flash once and siren/horn will chirp 5 times to
enter VALET mode. LEDs in the antenna will be constantly ON when the ignition is
OFF. When Ignition ON, the LED will turn off.
b. In valet mode, the system can¶t be armed or remote started, however lock and trunk
functions will still operate. If you attempt to start the vehicle in valet mode, the unit
will not start and you will get 3 long flashes from the park lights.
c. To disable valet mode: turn ignition ON. Within 10 seconds press and hold the valet
switch for 5 seco nds. LED will turn O FF, siren/horn will chirp a nd parking lights will
flash twice to indicate exiting valet mode.
Version 2.01 TS132/TS142/TS152 QIG
Page 4
SYSTEM RESET
a. Turn ignition ON ± OFF ± ON ± OFF ± ON.
b. Press the valet switch once and release. The parking lights will turn on and the
siren/horn will chirp once.
c. Press and hold the valet switch on, until the parking lights flash 3 times and the
siren/horn will chirp 3 times, which means the system has reset to factory default
settings.
d. Turning the ignition key to the off position or 30 seconds of no activity will exit
program mode, indicated b y a single long sire n/horn chirp.
NOTE: The system reset does not erase transmitter coding, but does reset tach settings .
PROGRAMMING:
a. Turn ignition ON ± OFF ± ON ± OFF ± ON.
b. Press the valet switch once and release. The parking lights will turn on and the
siren/horn will chirp once.
c. With the park lights staying on, select a desired Program Me nu us ing the transmitter.
Pressing button 1 on the transmitter will select MENU 1; pressing button 2 w ill se lect
MENU 2; pressing button 3 will select MENU 3; pres s ing butto n 4 will select M ENU
4.The park lights will flash and the sire n/ho rn will chirp once to confirm the selected
menu.
d. Select Programmable Settings in Sub-Menus (Still in programming mode):
1. Press and release the Valet (Program) Button the correct number of times to select the
desired Sub-Menu. The park lights will flash once each time the programming button is
pressed. The LEDs in the antenna will flash and the sire n/horn w ill c hirp to indicate
which Sub-Menu has been selected. For example: 1 LED flash and 1chirp= Sub-Menu
M1-1; 2 LED flashes and 2 chirps= Sub-Menu M1-2; etc.
2. Once the correct Sub-Menu has been selected, press and hold the Program Button until
the park lights flash and the siren/horn chirps to confirm the desired setting. For example:
1 park light flash and 1 chirp= Setting 1; 2 park light flas hes and 2 c hirps= Sett ing 2; 3
Version 2.01 TS132/TS142/TS152 QIG
Page 5
park light flashes and 3 chirps= Setting 3. The LEDs will continue to flash indicating
3 flash
Disabled*
Unlock 1/4s
Lock 8s
Type 3
Type 3
10ms Output*
30s Duration*
3 flash
(+) Park light*
Type 3
which Sub-Menu you are in (Note: LEDs tur n off when the progra mming button is held
down).
3. Turning the ignition key to the off position or 30 se conds o f no activity will exit program
mode. This will be indicated by a long siren/horn chirp.
PROGRAMMI NG CHART
MENU 1 (Button 1) 1 flash 2 flash
Ignition Auto
M1-1
Enabled Lock only
Lock
Door Unlock/Lock
Double Unlock
Single Unlock/Lock
M1-2
M1-3
M1-4
Options
Door Unlock/Lock
Pulse Duration
Unlock/Lock Type
/Single Lock
Unlock/Lock
Unlock/Lock 3s
1/4s
Type 1 Type 2
Chirp/Honk
M1-5
Type 1 Type 2
Settings
Chirp/Honk
M1-6
5ms Output
Timing & Alarm
30s Duration
50ms Output
60s Duration
Duration
iDatalink
Fortin Protocol
M1-7 Data Format
Protocol mode
mode*
4 flash
*
Unlock/
Lock3/4S*
Normal*
All horn
honks*
MENU 2 (Button 2)
M2-1 Safety Start Press Start 2X Press Start 1X*
Park Light
M2-2
Park Lights On for
30 Seconds After
Output
Titan-Secure
Alarm Features
M2-3
Alarm Features
M2-4 Rearm Output Type 1 Type 2
Version 2.01 TS132/TS142/TS152 QIG
1 flash 2 flash
(-) Park light
Unlock
Alarm Features
ON
OFF*
4 flash
Normal
Rearm*
Page 6
M2-5
Negative Horn
output *
15 Seconds*
3 flash
Gas/Diesel up to
30s* (Monitors
Glow Plug)
45 Minutes
2 Cyl Sense *
Transmitter*
3 flash
LONG
Auxiliary Pulse
(3.5 Seconds)
WITH Unlock
Negative Horn
Output/GWR/
Starter Kill
Starter Kill
(Ground When
Armed) (Titan
Secure Only)
GWR (Ground
When Running)
M2-6
M2-7
MENU 3 (Button 3)
Long Aux. Lo c k
Output
Active/Passive
Arm (Titan Secure
Only)
30 seconds Latched
Passive arm Active arm *
1 flash 2 flash
Gas/Diesel
M3-1
8s Delay 15s Delay
Mode
M3-2
Glow
Plug/Instant
Trigger to Start
Glow Plug Only
(Instant Trigger
Off)
Both On
(GlowPlug &
InstantTrigger) *
M3-3 Run time 4 Minutes 30 Minutes
M3-4 Tach Sensing 4 Cyl Sense Smart Sense
4 flash
15
Minutes*
Ready mode
(Manual
M3-5
Transmission
ParkBrake
Only)
A
UXILIARY PROGRAMMI NG MENU 4
MENU 4 (Button 4) 1 flash 2 flash
Auxiliary Outputs
(Blue &
M4-1
Green/Black
WITH Unlock
wires)
Version 2.01 TS132/TS142/TS152 QIG
Foot &
Auxiliary on
Park Brake Only
Auxiliary on
WITHOUT
Unlock
Re-arm
Dis-arm
Outputs
as
Default*
Page 7
Auxiliary Trunk
Long Trunk
Release (3.5
Seconds)
Both S ensors*
᧦
M4-3
(Red/White wire)
Auxiliary Sensor
M4-4
(Only available
³
´ Indicates f ac tory default setting.
wire
Use
Internal Only External Only
on Alarm)
Defrost
Drivers Priority
nd
unlock)
(2
Normal
Trunk
Release*
PROGRAMMING MENU SETTING DETAILS:
Note: Bold Settings I ndicate Def ault Setting
MENU 1 EXPLANATION
IGNITION AUTO LOCK
M1-1-1 Flash Door Locks will activate Lock when ignition is turned on for more than
3 seconds and Unlock when the ignition is turned off.
M1-1-2 Flashes Door Locks will only Lock when ignition is turned on.
M1-1-3 Flashes Door lock outputs will not activate wit h igniti on input.
D
OOR UNLOCK/LOCK OPTIONS
M1-2-1 Flash Double Unlock Pulse and Single Lock Pulse (Timing Controlled by M1-3)
M1-2-2 Flashes Single Unlock and Loc k pulses. (Timi ng Contr olled by M1-3)
DOOR UNLOCK/LOCK PULSE DURATI ON
M1-3-1 Flash Door Unlock and Lock Pulses will be ¼ seconds long.
M1-3-2 Flashes Door Unlock and Lock Pulses will be 3 seconds long.
M1-3-3 Flashes Door Unlock pulse will be ¼ second and Door LOCK pulse will be 8
seconds long.
M1-3-4 Flashes Door Unlock and Lock Pulses will be ¾ seconds long.
Version 2.01 TS132/TS142/TS152 QIG
Page 8
SPECIAL UNLOCK /LOCK FUNCTIONS
M1-4-1 Flash Unlock before start, lock after start and after shutdow n.
M1-4-2 Flashes Lock pulse ONLY after remote start shutdown.
M1-4-3 Flashes IGN(+), ACC(+), and GWR(-) (White/Violet ONLY) pulse with
Unlock.
M1-4-4 Flashes No special Unlock or Lock functions.
CHIRP/HONK SETTINGS
M1-5-1 Flash Arm/Disarm and Start chirps Disable - Honks for Panic ONLY
M1-5-2 Flashes Ar m/Disa rm chirps Enable - No Honks for Start ONLY
M1-5-3 Flashes Arm/Disarm chirps Disable ± Honks for Programming and Panic
ONLY
M1-5-3 Flashes All Chirps Enable - Honks for all features.
CHIRP/HONK TIMING AND ALARM DURATION SETTINGS
M1-6-1 Flash 5ms Chirp/Honk timing wit h 30 seco nd duratio n on alarm sounding
M1-6-2 Flashes 50ms Chirp/Honk timing with 60 second duration on alarm sounding
M1-6-3 Flashes 10ms Chirp/Honk timi ng wit h 30 second d uration on alarm sounding
DATA
M1-7-1 Flash Setting if using an iDatalink module connected to Data Port
M1-7-2 Flashes Setting if using a Fortin module connected t o Data Port
MODE
MENU 2 EXPLANATION
SAFETY START
M2-1-1 Flash Press Start button 2X within 3 seconds to activate remote start.
M2-1-2 Flashes Press Start Button 1X to activate remote start.
Version 2.01 TS132/TS142/TS152 QIG
Page 9
ARK LIGHT / TRUNK OUTPUT
P
M2-2-1 Flash Park light output will stay active for 30 seconds after t he Unlock
button is pressed.
M2-2-2 Flashes Park light output becomes negative on the Red / White wire and
Trunk release output becomes positive on the White wire.
M2-2-3 Flashes No special functions with regard to Park light and Trunk
Outputs.
AR ALARM FEATURES
C
M2-3-1 Flash Titan Secure Alarm Features ON (Active or Passive arming and
locking controlled by M2-7)
M2-3-2 Flashes Titan-Secure Alarm Feat ures OF F (Def ault): T urns off all car
alarm security features.
REARM OUTPUT FUNCTIONS
M2-4-1 Flash Rearm wire will Pulse after start, with lock, and shutdown.
M2-4-2 Flashes Rearm wire will pulse after start only.
M2-4-3 Flashes Rearm wire will pulse after remote start shutdown only
M2-4-4 Flashes Rearm wire pulses with lock, and after remote start shutdown.
NEGATIVE HORN HONK/GWR/STARTER DISABLE FUNCTIONS (ORANGE
WIRE
M2-5-1 Flash Starter Disable / Ground Out When ARMED.
M2-5-2 Flashes GWR ± Ground Out When RUNNING w ith remote s tart .
)
Passive /Active controlled by M2-7 (Titan-Secure must be ON).
M2-5-3 Flashes Negative Horn output 300mA (Def ault) (Timing a nd dur ation
controlled by M1-6).
Version 2.01 TS132/TS142/TS152 QIG
Page 10
LONG AUX. LOCK OUTPUT
M2-6-1 Flash Lock output will activate for 30 seconds if buttons 1 and 4 are
pressed together on T96 style remotes OR button 4 THEN b utton 1
on T85 and T99 style remotes.
M2-6-2 Flashes Latched Lock output will activate unt il ANY other inp ut is received
from the tra nsmitter.
M2-6-3 Flashes Lock output will activate f or 15 seconds if buttons 1 and 4 are
pressed together on T96A.
ACTIVE/PASSIVE ARM (TITAN SECURE FEATURES ON ONLY)
M2-7-1 Flash Passive ± Titan-Secure features and Starter disable will arm
Passively (See notes below).
M2-7-2 Flashes Active ± Titan-Secure features & Starter Disable will ar m
only with the transmitter (Lock/Arm & Unlock/DisArm ).
PASSIVE ARMING:
a. Turn ignition ON, then OFF a nd close the last door. After 30 seconds, the system will
arm and lock automatically (LAST DOOR ARMING). Note : The system will still arm
with lock function if progra mmed to this mode.
b. When alarm is disarmed, if Accessory (Key) is not turned on / doors are not opened,
30sec later, the system will be auto matically Re-Ar m and the doors will lock . (AUTO
RE-ARMING)
MENU 3 EXPLANATION
WAIT TO START LINE (GREY/BLACK)
This w ire is foU'LHVHO(QJLQHV7KHZLUHFDQEHFRQQHFWHGWRD³:DLW7R6WDUW´ODPSDJORZ
plug, or manifold heater and will not allow the remote starter to crank (up to a maximum of 30
seconds) until the input is off allow ing Glow Plugs or Manifold Heaters to suffici ently warm
up before cranking the engine.
Version 2.01 TS132/TS142/TS152 QIG
Page 11
GAS / DIESEL MODE
M3-1-1 Flash Timed Diese l Mode - Remote Starter will delay 8 seconds with ignition
on before cranking.
M3-1-2 Flashes Timed Diesel Mode - Remote Starter will delay 15 seconds wit h ignition
on before cranking.
M3-1-3 Flashes Gasoline/Glow Plug Mode - The remote starter will monitor the glow
plug wire for a negative input for up to a maximum of 30 seconds and
then crank. If there is no input on this wire, the unit will crank af ter
3.5 seconds. Use this mode for Gasoline vehicles or if you are hooking
up a negative glow plug wire on a diesel vehicle.
INSTANT TRIGGER INPUT
M3-2-1 Flash Glow plug line will not instant trigger for start.
M3-2-2 Flashes Glow plug line will f uncti on as instant trigger to start a nd Glow
plug input.
R
UN TIME
M3-3-1 Flash Remote Starter w ill run for 4 minutes.
M3-3-2 Flashes Remote Starter will run for 30 minutes.
M3-3-3 Flashes Remote Starter will run for 45 minutes.
M3-3-4 Flashes Remote Starter will run for 15 minutes.
TACH SENSING
M3-4-1 Flash Remote starter will detect 4 cycle pulses.
M3-4-2 Flashes Re mote starter will se nse by altering tac h pulse frequency.
M3-4-3 Flashes Remote starter will detect 2 cycle pulses.
READY MODE SETUP ± MANUAL TRANSMISSION ONLY
M3-5-1 Flash Foot & ParkBrake.
M3-5-2 Flashes Park Brake Only.
M3-5-3 Flashes Transmitter Only.
Version 2.01 TS132/TS142/TS152 QIG
Page 12
MENU 4 EXPLANATION
REARM OUTPUT LINE (BLUE)-0.75 second pulse output when LOCK button is pressed
and start remote start shutdown. Used for factory alarm Re-arm. Observe that this output
comes on at the end only after all the other output have shutdown.
DISARM OUTPUT LINE (GREEN/BLACK) -0.75 second pulse when and is UNLOCK
button is pressed and be fore remote start ing. Used for factory alar m Dis -a rm. This wire pulses
before any other output comes on except the parking lights.
BLUE AND GREEN/BLACK AS AUXILIARY OUT
Menu 4 (Auxiliary Progra mming) is to pro gram the Rearm Wire (Blue), Disarm wire (Green /
Black), GWR Wire (Orange), and Trunk wire (Red / While) for special outputs if so required.
The outputs can be used to activate sliding doors, or other auxiliary outputs.
This can be only be done if you are NOT using the normal analog ARM/DISARM wires
or if you are using a Data compatible interface mo d ule t hat Dis-arms and Re-arms
factory security.
The Blue Re-arm wire and the Green / Black Dis-arm wires (w hen programmed for M4-1
setting 1 or 2), will be activated by either pressing and holding button 3 for 2 seconds
(Activates Blue wire) or pressing and holding button 4 for 2 seconds (Activates Green / Black
wire). If programming them for sliding doors, and you need to unlock the doors first, program
it for setting 1 and there will be an unlock pulse before the Auxiliary pulse. If these wires are
programmed for setting 3, they will funct ion as normal Re-arm and Dis-arm wires.
M4-1-1 Flash Press and hold button 3 for 2 seconds, there will be an Unlock pulse
followed by a .75 second output pulse from the Blue R e-ar m wire.
Press and hold button 4 for 2 seconds, there will be an U nlock pulse
followed by a .75 second output pulse from the Green / Black Disarm wire.
Version 2.01 TS132/TS142/TS152 QIG
Page 13
M4-1-2 Flash Press and hold button 3 for 2 seconds, there will be a .75 second
pulse from the Blue Re-arm wire. Pres s and hold butto n 4 for 2
seconds, there will be a .75 second output pulse from the Green /
Black Dis-arm w ire.
M4-1-3 Flash Press and hold button 3 for 2 seconds, there will be a 3.5 second
pulse from the Blue Re-arm wire. Press and hold button 4 for 2
seconds, there will be a 3.5 second output pulse from the Green /
Black Dis-arm wire.
M4-1-4 Flash Wires operate as default Re-arm a nd Dis-arm outputs . (Def ault)
ED/WHITE AS AUXILIARY OUT
R
M4-3-1 Flash Red / White Trunk release output will operate as a defrost output and
provide a .75 second pulse 30 seconds after the vehicle remote starts.
M4-3-2 Flash Red / White Trunk release output will operate as a driver¶s priority
output and provide a .75 second pulse with a second press of the
Unlock button on the remote. This second button press must be
within 5 seconds of the first for the output to happen.
This output takes precedence over negative park light switchover in
program M2-2. In othe r words if this output is programmed as
driver¶s door priority, polar ity will be ne gative a nd t he park light
output will go back to positive. At this point an installer would ha ve
to use a relay for negative park lights.
M4-3-3 Flash Red / White Trunk release output operates with a 3.5 second output.
M4-3-4 Flash Red / White Trunk release outp ut operates with a .75 second
output
Version 2.01 TS132/TS142/TS152 QIG
Page 14
TACH LEARNING
᧤
a. Start the vehicle with the key.
b. Press footbrake a nd ho ld down.
c. Within 10 seconds, press and release the valet switch then then press and ho ld it for at
least 2 seconds. The unit will enter Tach Learning M ode.
d. If a viable tach signal is detected then it is put in memory and learning is confirmed by
2 park light flashes and two horn/siren/horn (optional) chirps.
e. If no Tach signal is detected, t he park ing light w ill flas h and the s ire n/horn w ill chirp 3
times.
THE TACH WIRE MUST BE CONNECTED TO A GOOD TACH SOURCE)
MANUAL TRANSMISSION LOOP
The wire loop on the module determines if the module works as an automatic
transmission remote starter or a manual transmission remote starter. The default
setting with the loop uncut is manual transmission operation . It is the responsibili ty of
the installer to ensure that the loop is connected if the remote starter is being installed
into a manual transmission ve hicle. If the remote starter is to be used in an automatic
transmission vehicle, you m ust cut the loop for nor mal operation. If the loop is not c ut,
WKHXVHUZLOOKDYHWRSXWWKHUHPRWHVWDUWHULQWR³5HDG\0RGH´HYHU\WLPHWKH\XVHLW
Version 2.01 TS132/TS142/TS152 QIG
Page 15
NEVER INSTALL A UNIT WITH THE LOOP CUT INTO A MANUAL
TRANSMISSION VEHICLE. SERIOUS INJURY OR DEATH COULD
RESULT. TITAN INNOVATIONS WILL NOT BE RESPONSIBLE FOR
ANY INJURIES OR DEATH RESULTING FROM AN INCORRECTLY
INSTALLED REMOTE STARTER. IF THE LOOP HAS BEEN CUT OR
TAMPERED WITH I N ANY WAY AND THE UNIT IS INSTALLED IN A
MANUAL TRANSMISSION VEHICLE, TITAN ACCEPTS NO
RESPONSIBILITY FOR ANY INJURIES RESULTING FROM ANY
ACCIDENTS.
PLEASE NOTE: If you have a unit that was previously installed in an automatic
transmission vehicle and the loop has been cut and you would like to install it into a
manual transmission vehicle, pleas e contact Titan Innovati ons and we would be happy to
EXCHANGE the unit for you free of charge for a new unit with the loop intact and not
tampered with.
MANUAL TRANSMISSION ± Ready Mode
7RUHPRWHVWDUW WKHYHKLFOH\RXPXVW ILUVW SODFHWKHV\VWHPLQ³5HDG\0RGH´7KHUHDUH
different progra mming options for doing this. To use a me thod other than the default setting,
you must have your system re-programmed by an author ized dealer.
Default - Transmitter Activation
1. With the engine running and the transmission in Neutral, apply the parking brake.
2. Press and release the Start button on the re mote transmitter.
3. Turn off key and remove from the ignition (the ve hic le will sta y running).
4. Exit the vehicle and make sure all doors are closed.
5. Press the Start button on the transmitter to shut the vehicle off.
7KHYHKLFOHLVQRZLQ³5HDG\0RGH´DQG can be started by remote.
Version 2.01 TS132/TS142/TS152 QIG
Page 16
Option 2 - Brake Pedal Activation
1. With the engine running and the transmission in Neutral, apply the parking brake.
2. Press and release the brake pedal 2 times (once if it was already on when you app lied the
park brake in step 1).
3. Turn off key and remove from the ignition (the ve hic le will sta y running).
4. Exit the vehicle, upon closing the last door, the vehicle will shut down.***
7KHYHKLFOHLVQRZLQ³5HDG\0RGH´DQGFDQEHVWDUWHGE\UHPRWH
Option 3 - Park Brake Activation
1. With the engine running and the transmission in Neutral, apply the parking brake.
2. Turn off key and remove fro m the ignition (the vehicle w ill sta y running).
3. Exit the vehicle, upon closing the last door, the vehicle will shut dow n. ***
7KHYHKLFOHLVQRZLQ³5HDG\0RGH´DQGFDQEHVWDUWHGE\UHPRWHUHDG\PRGH
REMOTE STARTING ± ALL MANUAL TRANSMI SSION MODES
1. With the engine off, press the Start button.
2. The park lights will flash and the horn will chirp once (if connected).
7KHYHKLFOH¶VLJQLWLRQV\VWHPZLOOFRPHRQ and within 3 seconds, the vehicle will start.
4. The parking lights will flash 5 times to confirm a successful start.
5. The vehicle will run for the programmed runtime (15 minutes default).
If the vehicle does not start, see the diagnostics section on the next page for possible solutions.
*** If you press the Start button on the transmitter w hile the door is open, the system will go
LQWR ³,GOH PRGH´ DQG 127 VKXW GRZQ ZKHQ \RX FORVH WKH GRRU ,W ZLOO UXQ IRU WKH
programmed run time or until it is shut down by the remote. This feature is convenient if you
need to open other doors after having close d yours . ***
Version 2.01 TS132/TS142/TS152 QIG
Page 17
,03257$17,IDGRRULVRSHQHGZKLOHWKHYHKLFOHLVQRWUXQQLQJDQGLQ³5HDG\0RGH´WKH
V\VWHPZLOOH[LW³5HDG\0RGH´DQGZLOOQRWUHPRWHVWDUW<RXZLOOQHHGWRVWDUWWKHYHKLFOH
with the key and repeat the procedure. If you need to open doors and want to avoid repeating
WKH³5HDG\0RGH´ VHWXSDJDLQ VLPSO\ UHPRWH VWDUW WKHYHKLFOHDQG RSen the door while the
vehicle is running. When you are done, and the doors are closed, you can shut down the
YHKLFOHZLWKWKHUHPRWHDQG³5HDG\0RGH´ZLOOVWLOOEHHQJDJHG
DIAGNOSTICS
If the remote starter does not activate when the Start button is pressed, the park lights will
flash a diagnostic code to indicate what shutdown input has been triggered.
Parking light flashes Reason
3 slow flashes In ³Service Mode´
4 flashes 1RWLQ³5HDG\0RGH´'RRU2SHQ
(Manual Transmission Only)
5 slow flashes Ignition on
5 flashes Brake pedal is on
6 flashes Hood Open
7 times Tach lockout or Tach not learned
Version 2.01 TS132/TS142/TS152 QIG
Page 18
S142
T

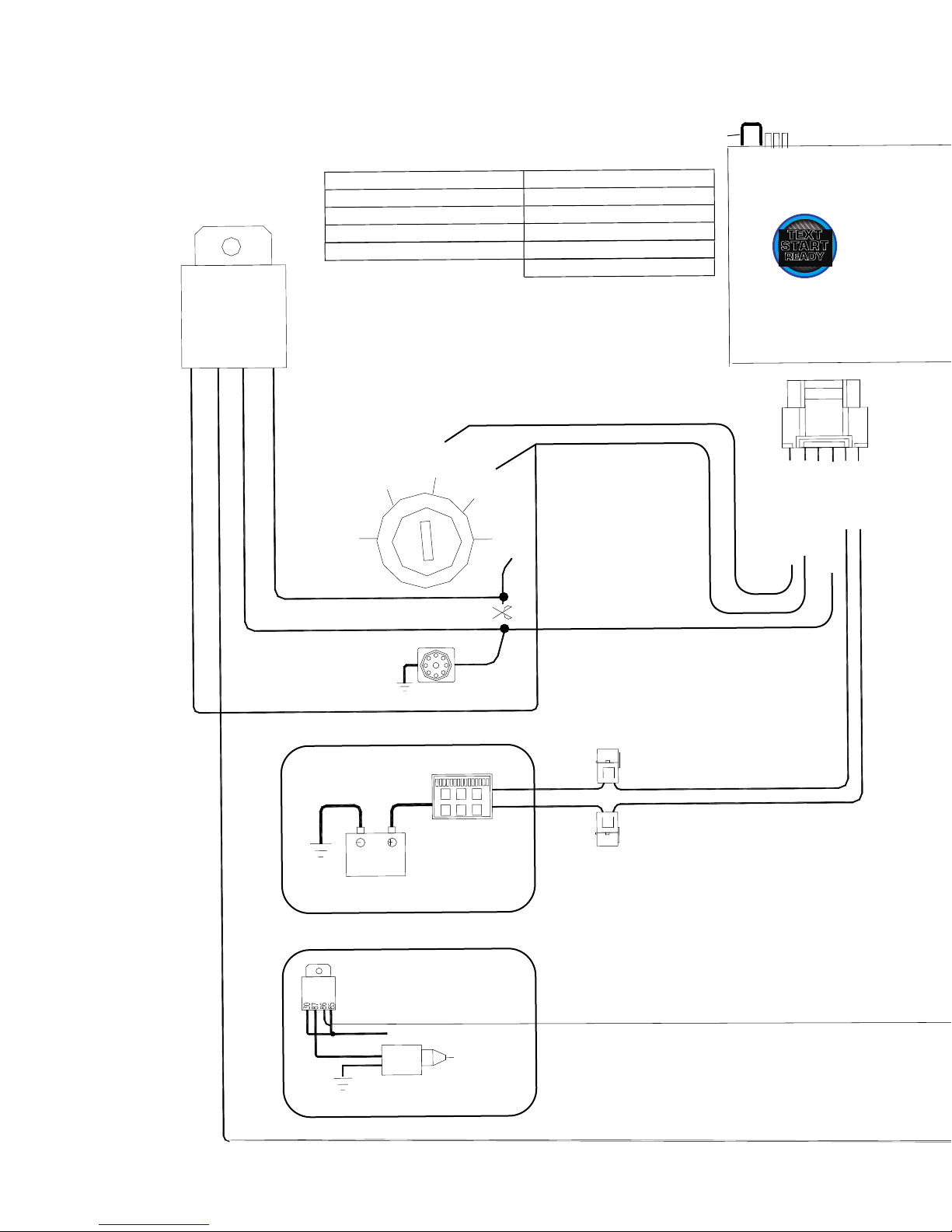

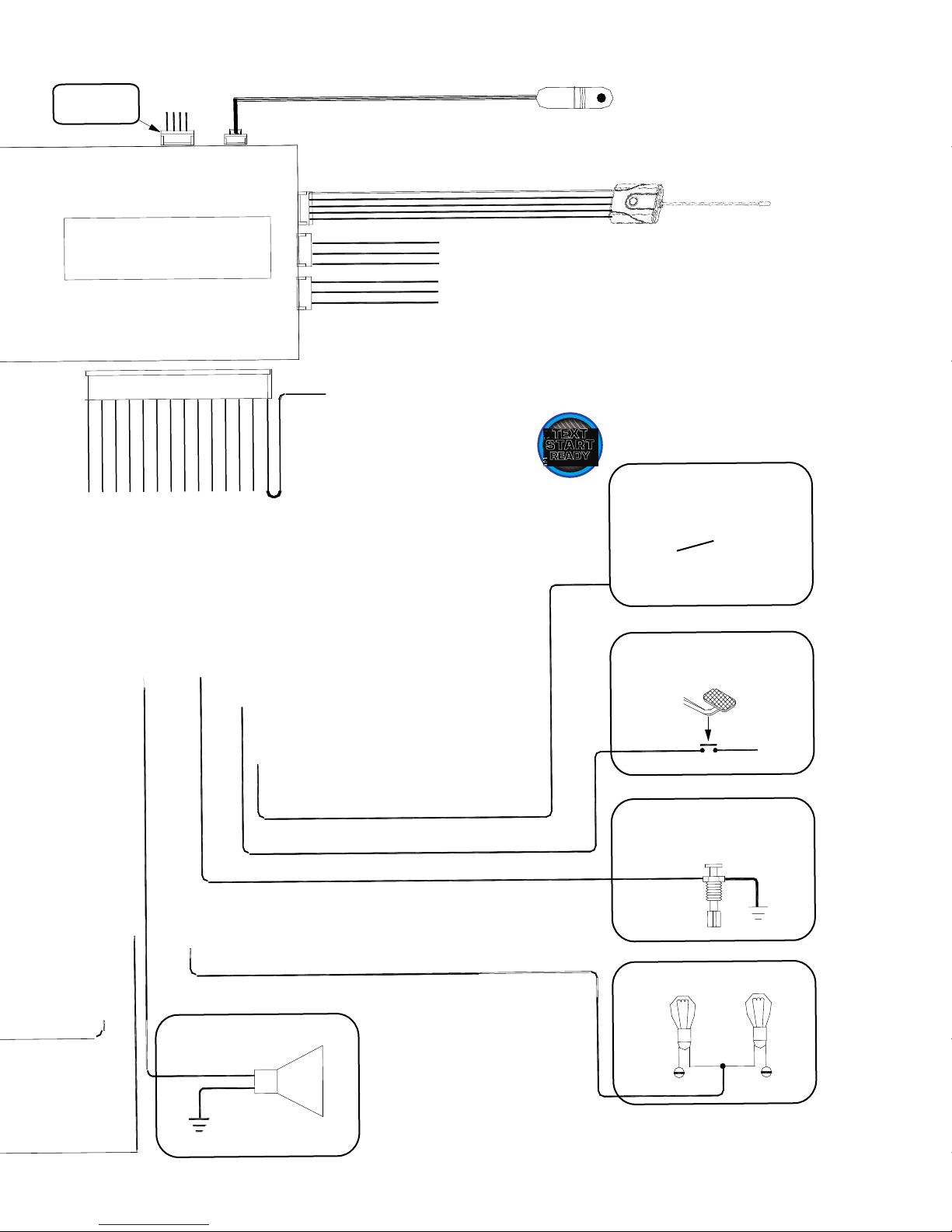

Wiring diagram
Starter Disable/
Anti-Grind
7
8
6
8
5
8
a
0
3
N
U
F
t
r
a
t
S
cce
A
iti
gn
I
Manual
OPTIONAL
*The ouput on the PINK/WHITE wire is determined by the
position of the jumper
Wire Loop
O
I
T
C
a
gn
i
s
y
r
o
s
s
ign
s
on
ransmission
T
ransmission
T
Manual
N
O
I
T
I
S
PO
R
E
P
M
U
t
r
a
t
r
t
r
a
t
s
J
1
P
J
2
P
J
3
P
J
Uncut - Manual T
Cut - Automatic T
ransmission
ransmission
N
t
s
e
t
o
m
e
r
n
e
h
w
t
pu
t
ou
l
a
t
s
e
t
o
m
e
r
n
e
h
w
t
u
p
t
u
o
e
t
o
m
e
r
n
e
h
w
t
outpu
l
a
Wire Loop
3
J
2
J
1
J
A
C
F
F
O
K
C
O
L
V
2
1
D
GN
R
E
T
T
A
B
C
O
N
S
T
A
R
T
T
R
A
T
S
R
O
T
O
M
F
X
O
B
E
S
U
F
F
Y
3
U
3
US
A
0
E
S
A
0
E
P
ORANGE
I
N
K
- IGN1
- ACC
R
R
PURPLE
P
I
E
E
N
D
D
K
+
+
/
1
1
W
2
2
V
V
H
- START
I
T
E
-
(selectable)*
A
L
E
R
Y
V
2
1
+
K
N
U
R
T
L
A
N
O
I
T
P
O
Page 19
DATA
PORT
CONNECT
OR
12V+
GND
TX
RX
OPTIONAL USB PROGRAMMING CABLE
TS142
Note: The
dual-purpose wire. If
starter
as an
the
P
P
B
G
G
W
P
B
B
O
G
RED/
B
L
R
U
E
E
E
W
N
-
/
R
H
B
E
I
L
A
T
A
R
E
C
M/AUX OUT (PROGRAMMABLE)
-
K
T
- DIS
R
U
N
K
ARM/AUX OUT (PROGRAMMABLE)
OPEN (-) OR PARK LIGHTS (-) SEE PROGRAM MENU M2-2
(
3
0
0
m
A
)
(
3
0
0
m
A)
U
L
R
R
O
A
W
N
G
N
E
- SIREN
HORN OUTPUT/GWR/STAR
O
U
T
P
U
T (+)
TER KILL (-) (PROGRAMMABLE)
R
H
A
R
A
I
C
P
Y
T
K
L
E
-
/
E
H
W
- DOOR PIN INPUT (+)
P
O
H
A
O
R
I
D
T
K
E
L
P
I
- PARK BRAKE INPUT (-) (Manual Transmission Only)
I
G
N
H
I
T
N
S (+) OR TRUNK (+) SEE PROGRAM MENU M2-2
P
U
T (-)
U
I
L
R
N
A
E
K
C
E
K
N
B
-
- DOOR PIN INPUT (-)
RAKESWIT
S
Y
S
T
E
M
G
R
CH
O
U
I
N
N
D
P
UT
(+)
will
R
the
P
L
yet running
E
/
acts
W
up
H
I
wire. You
T
E
perform dual functions provided
-
diode-isolate
T
A
“
C
H
D
E
T
E
C
T
I
O
N
(AC)
instan
vehicles you can
delay
M3-1 programming settings.
instant
programmable
Start & Glow Plug”
Call tech support if
the
Toll
GRAY/BLACK
GRAY/BLACK
is
inactive this
“instant trigger
remote
ignition is
also
starter is
work
as
on,
(no tach
as a
“wait
to
to a glow
plug or
can
the “wait
t s
tart” w
to
start
“wait time”
start
function
as “Off”
function of this
Free
1-800-279-0636
RED 12VOL
ACK GROUND OUTPUT
BL
WHITE/VIOLET GRO
DOOR UN
BLUE
Y
EMPT
EEN DOOR LOCK
GR
- WAIT TO ST
wire
the
remote
wire can
to
function
start” wire.
running, this wire
a
shutdown
but
the
signal),
start”
manifold
engine
wire
wire.
this
that hooks
heater
hook this wire
to start”
ires
F
.
or
d
also just program
as in Menu
of
this wire
or
as per
you
need details
or any
is
“Both Instant
Menu
other
input.
T OUTPUT
EN RUN
WH
UND
OUTPUT
LOCK
UT
OUTP
ART (-) / (-) TRIGGER TO STAR
is a
If
ENGINE COIL OR FUEL INJECT
If
is not
wire
up to
you
and
i
esel
a
The
also
M3-2.
on
ANTENNA/V
G OUTPUT
NIN
T (INST
BRAKEPEDAL
HOODPIN
ALET SWITCH/LEDs
ANT STAR
12v+
T WIRE)
OR
SIREN
PARKING LIGHTS
Page 20
Quick Install GuideQuick Install Guide
Revision 2.01Revision 2.01
www.titaninnovations.cawww.titaninnovations.ca
Loading...
