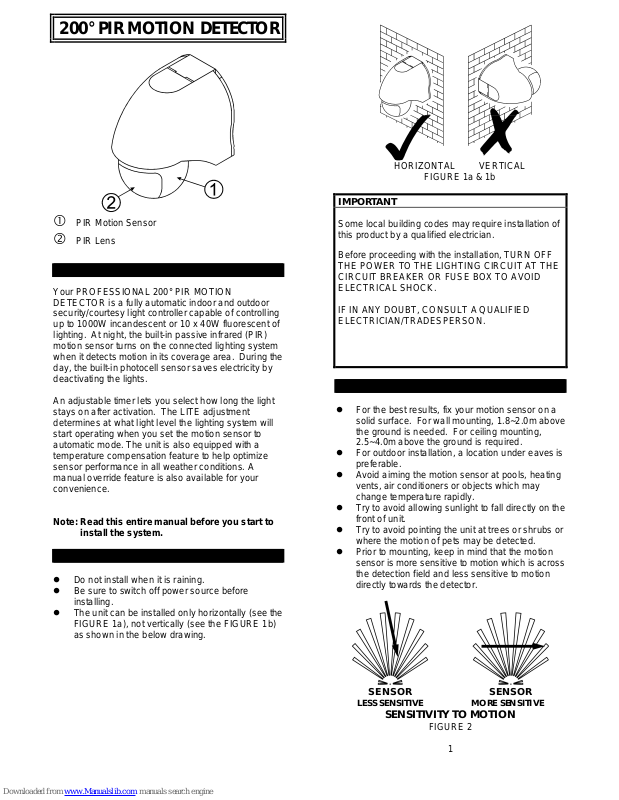

200° PIR MOTION DETECTOR
PIR Motion Sensor
PIR Lens
INTRODUCTION
Your PROFESSIONAL 200° PIR MOTION
DETECTOR is a fully automatic indoor and outdoor
security/courtesy light controller capable of controlling
up to 1000W incandescent or 10 x 40W fluorescent of
lighting. At night, the built-in passive infrared (PIR)
motion sensor turns on the connected lighting system
when it detects motion in its coverage area. During the
day, the built-in photocell sensor saves electricity by
deactivating the lights.
An adjustable timer lets you select how long the light
stays on after activation. The LITE adjustment
determines at what light level the lighting system will
start operating when you set the motion sensor to
automatic mode. The unit is also equipped with a
temperature compensation feature to help optimize
sensor performance in all weather conditions. A
manual override feature is also available for your
convenience.
Note: Read this entire manual before you start to
install the system.
SAFETY PRECAUTIONS
Do not install when it is raining.
Be sure to switch off power source before
installing.
The unit can be installed only horizontally (see the
FIGURE 1a), not vertically (see the FIGURE 1b)
as shown in the below drawing.
HORIZONTAL VERTICAL
FIGURE 1a & 1b
IMPORTANT
Some local building codes may require installation of
this product by a qualified electrician.
Before proceeding with the installation, TURN OFF
THE POWER TO THE LIGHTING CIRCUIT AT THE
CIRCUIT BREAKER OR FUSE BOX TO AVOID
ELECTRICAL SHOCK.
IF IN ANY DOUBT, CONSULT A QUALIFIED
ELECTRICIAN/TRADESPERSON.
CHOOSING A MOUNTING LOCATION
For the best results, fix your motion sensor on a
solid surface. For wall mounting, 1.8~2.0m above
the ground is needed. For ceiling mounting,
2.5~4.0m above the ground is required.
For outdoor installation, a location under eaves is
preferable.
Avoid aiming the motion sensor at pools, heating
vents, air conditioners or objects which may
change temperature rapidly.
Try to avoid allowing sunlight to fall directly on the
front of unit.
Try to avoid pointing the unit at trees or shrubs or
where the motion of pets may be detected.
Prior to mounting, keep in mind that the motion
sensor is more sensitive to motion which is across
the detection field and less sensitive to motion
directly towards the detector.
SENSOR SENSOR
LESS SENSITIVE MORE SENSITIVE
SENSITIVITY TO MOTION
FIGURE 2
1
INSTALLATION
To facilitate installation, you will need a drill and various
screwdrivers. Select a location for the unit based on
the coverage angles shown in FIGURE 3.
COVERAGE ANGLES
FIGURE 3
It is suggested that a wall switch is installed to control
the power supply to the sensor. This will allow the
sensor to be switched off if not required or for
maintenance purposes, and will allow use of the
manual override function.
WIRING INSTRUCTION
(1) Switch off the power source or wall switch.
(2) Unscrew one screw from the bottom housing. By
using a flat blade screwdriver to detach the base
cover from the unit. (FIGURE 4)
FIGURE 4
2
(3) Make use of the base cover as a template to mark
the position of two screw holes on the wall or on
the ceiling. Drill the wall and screw the base cover
onto the wall or ceiling using suitable plastic wall
plugs and screws provided (FIGURE 5 & 6).
Wall Mounting Ceiling Mounting
FIGURE 5 FIGURE 6
(4) Strip approximately 6-8mm insulating part of the
wires from the power cord. Before connection, run
the wires through the rubber seal provided.
Note: The power cord must meet H05RN-F, 1.0mm²
requirement.
(5) For POWER connection, connect the BROWN
wire (Live wire) to the terminal block “L” mark.
Connect the BLUE wire (Neutral wire) to the
terminal block “N” mark (FIGURE 7).
FIGURE 7
(6) For LAMP connection, connect the 'BLUE' wire to
the terminal block 'N' mark. Connect the
'BROWN' wire to the terminal block 'LS' mark.
(7) Fix the pre-wired terminal block to it’s mounting
boss firmly.
(8) Refit and screw the unit to the base cover. Ensure
the rubber seal is correctly seated.
SETTING THE LIGHTING SYSTEM
(1) TEST MODE
Turn the LITE control and the TIME control fully
counter clockwise – the TEST position:
