Reverse Osmosis
1

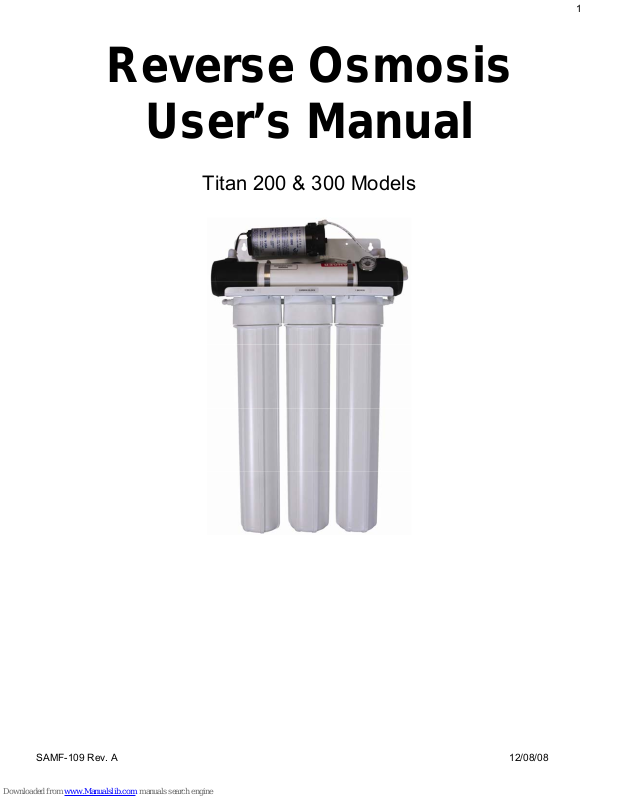

User’s Manual
Titan 200 & 300 Models
SAMF-109 Rev. A 12/08/08

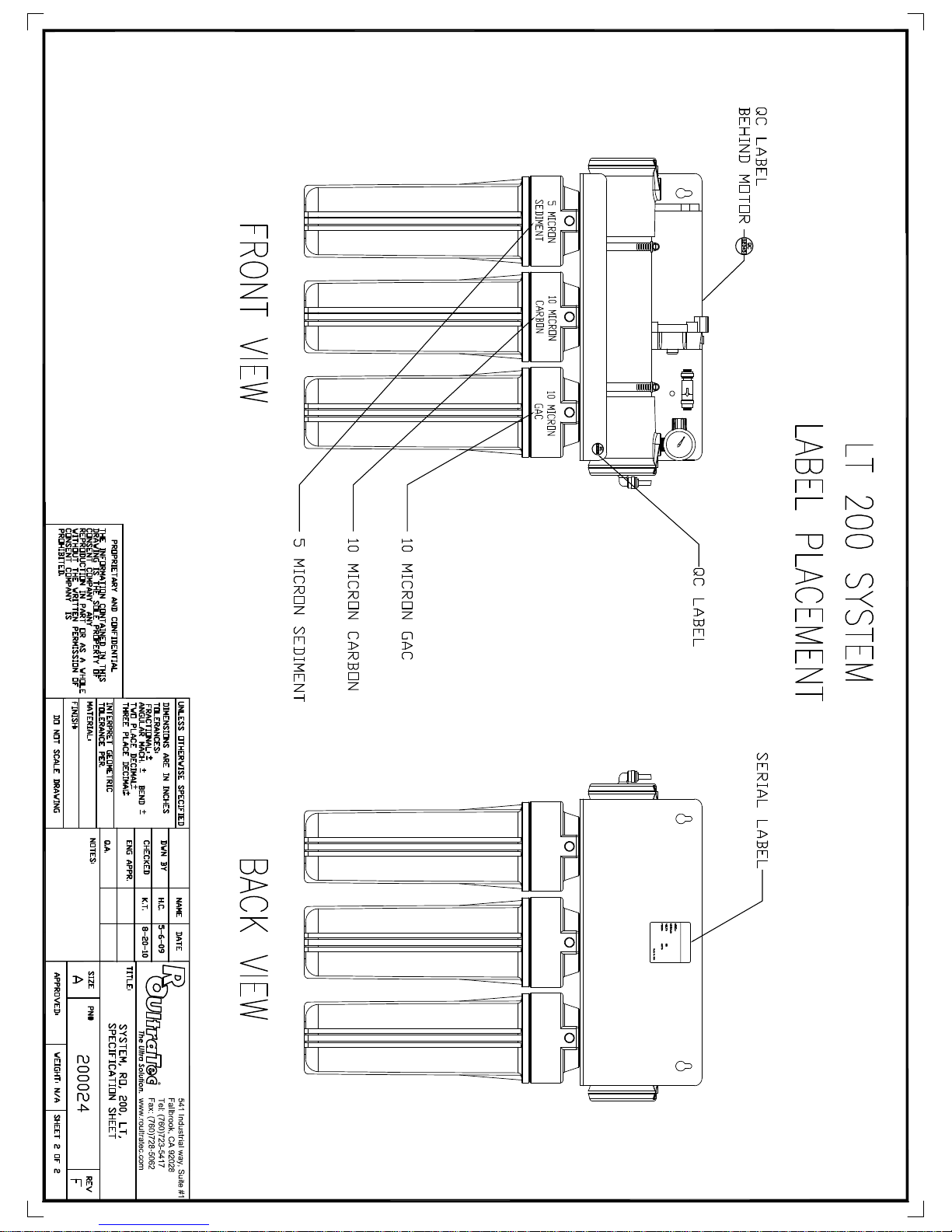

STANDARD FEATURES
2
2.5” HF4 Thin Film Composite (TFC) Extra Low Energy Membrane
2.5” Champ PVC Membrane Housing
Aquatec 8800 Booster Pump 110/220 VAC & Transformer
5 Micron Sediment Prefilter
Carbon Block Cartridge
GAC Polishing Filter
Wall Mount Bracket
Solenoid Valve
20-40 psi Tank Switch
Auto-Flush
Pump Pressure Gauge

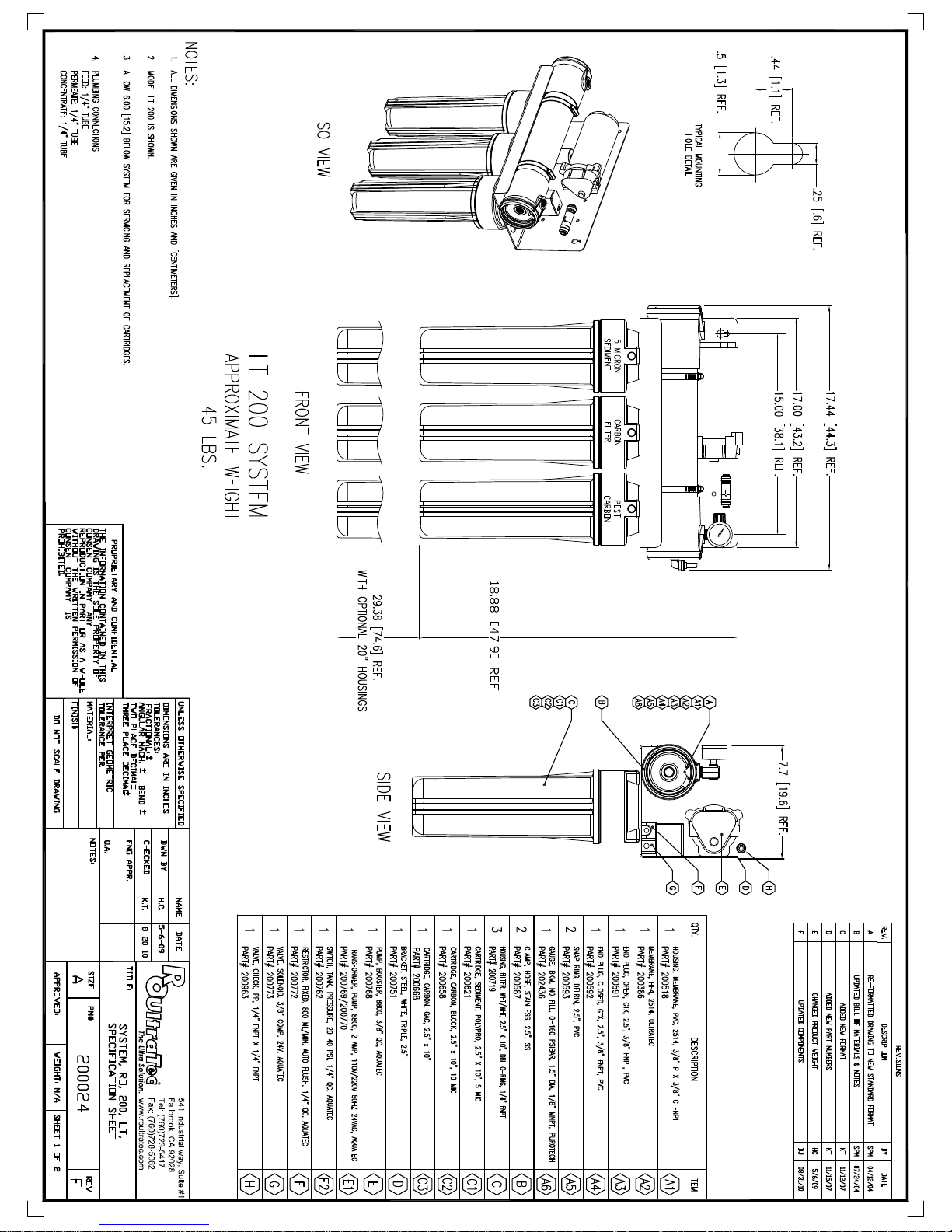

MODELS
Design
Gallons Per Day
Nominal NaCl Rejection
Recycle Line
Recovery
Element Size (in)
Number of Elements
Feed-Product-Waste
Pump
Hertz
Voltage (VAC)
Dimensions W x L x H (in)
Titan 200 Titan 300
Wall Mount Wall Mount
200 300
98% 98%
N/A N/A
40% - 50% 40% - 50%
HF4 - 2514 HF4 - 2521
1 1
¼” - ¼” - ¼” ⅜” - ⅜” - ¼”
1 - 8800 Booster Pump 2 - 8800 Booster Pump
50/60 50/60
110/220 110/220
7” x 21.5” x 33” 7” x 28” x 33”
Weight (lbs.)
* Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
† Membrane approximate initial capacity based on properly pretreated feed water of 550 PPM TDS as NaCl, 77°F (25°C), Silt Density Index below 5,
and 60 psi feed pressure while supplying water to atmosphere. Productivity will vary depending on the feed water conditions.
SAMF-109 Rev. A 12/08/08
45 lbs. 50 lbs.
OPERATING PARAMETERS
3
Maximum Temperature
Minimum Feed Rate
Minimum Feed Pressure
Maximum Operating Pressure
Maximum TDS
Maximum Hardness
Maximum Turbidity
pH Range
Maximum Chlorine Tolerance
Maximum SDI
110°F (45°C)
0.3 GPM @ 30 psi
30 psi
120 psi
1000 ppm
<15 Grains
<1 NTU
4-11
0 ppm
<5
GENERAL INFORMATION
Your commercial reverse osmosis (RO) system is a durable piece of equipment, which with proper care, will last for many years. This user’s manual
outlines operating and maintenance details vital to the sustained performance of your system.
The test results included with your system indicate the performance of the system before it was shipped from the manufacturer’s facility. The systems
are tested for permeate and rejection based on the following testing conditions: 77°F (25°C), 550 ppm feed concentration, and 60 psi feed pressure.
The systems are designed to run at approximately 100 psi operating pressure. Recoveries for your system can vary between 40 - 50%, depending on
your application. NOTE: IN ORDER TO MAINTAIN THE SYSTEM’S WARRANTY, AN OPERATING LOG MUST BE MAINTAINED.
MANUAL OVERVIEW
This user’s manual has been prepared, in order to provide the operator of the system with information on start-up, operation, installation, maintenance,
and troubleshooting procedures.
Please feel free to contact your distributor or dealer with any additional questions that are not addressed in this user’s manual.
SAFETY SUMMARY
Safety for the system operator and other personnel should always remain the highest priority. This user’s manual does not contain all necessary safety
statements needed when operating the reverse osmosis system.
Additional safety statements are included within the user’s manual text and are enhanced and defined as follows:
NOTE: INDICATES STATEMENTS THAT PROVIDE FURTHER INFORMATION AND CLARIFICATION.
CAUTION: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY CONDITIONS OR PRACTICES THAT COULD RESULT IN EQUIPMENT OR
OTHER PROPERTY DAMAGE.
WARNING: INDICATES STATEMENTS THAT ARE USED TO IDENTIFY CONDITIONS OR PRACTICES THAT COULD RESULT IN INJURY OR
LOSS OF LIFE.
SAMF-109 Rev. A 12/08/08
