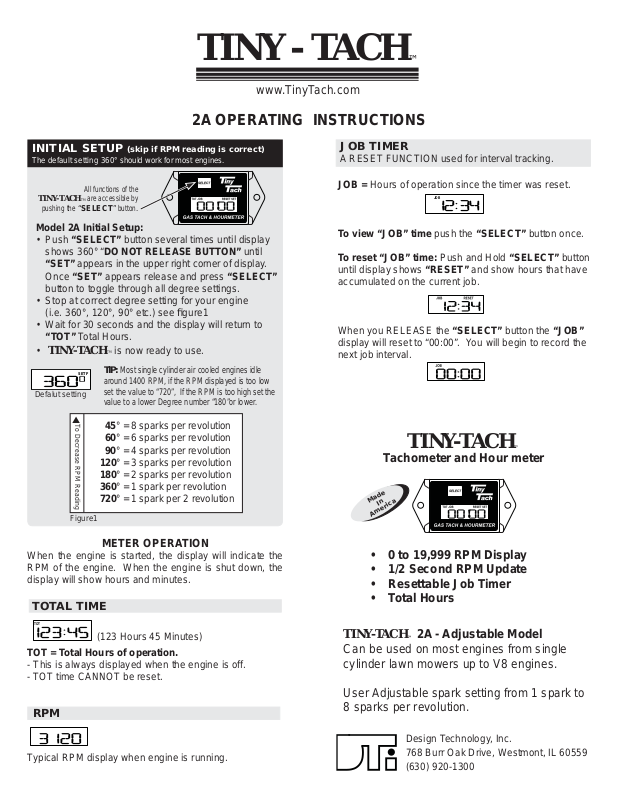

TINY - TACH

™

www.TinyTach.com

2A OPERATING INSTRUCTIONS

INITIAL SETUP (skip if RPM reading is correct)

The default setting 360° should work for most engines.

All functions of the

TINY-TACH

pushing the “SELECT” button.

Model 2A Initial Setup:

• Push “SELECT” button several times until display shows 360° “DO NOT RELEASE BUTTON” until “SET” appears in the upper right corner of display . Once “SET” appears release and press “SELECT” button to toggle through all degree settings.

• Stop at correct degree setting for your engine (i.e. 360°, 120°, 90° etc.) see ﬁ gure1

• Wait for 30 seconds and the display will return to “TOT” Total Hours.

• TINY-TACHTM is now ready to use.

Defalut setting

are accessible by

TIP: Most single cylinder air cooled engines idle

SET F

around 1400 RPM, if the RPM displayed is too low set the value to “720”, If the RPM is too high set the value to a lower Degree number “180”or lower.

▲

To Decrease RPM Reading

45° = 8 sparks per revolution 60° = 6 sparks per revolution 90° = 4 sparks per revolution

120° = 3 sparks per revolution 180° = 2 sparks per revolution 360° = 1 spark per revolution 720° = 1 spark per 2 revolution

Figure1

JOB TIMER

A RESET FUNCTION used for interval tracking.

JOB = Hours of operation since the timer was reset.

JOB RESET

12:34

To view “JOB” time push the “SELECT” button once. To reset “JOB” time: Push and Hold “SELECT” button

until display shows “RESET” and show hours that have accumulated on the current job.

When you RELEASE the “SELECT” button the “JOB” display will reset to “00:00”. You will begin to record the next job interval.

TINY-TACH

™

Tachometer and Hour meter

Made

America

METER OPERATION

When the engine is started, the display will indicate the RPM of the engine. When the engine is shut down, the display will show hours and minutes.

TOTAL TIME

TOT

123 45

TOT = Total Hours of operation.

- This is always displayed when the engine is off.

- TOT time CANNOT be reset.

(123 Hours 45 Minutes)

RPM

3120

Typical RPM display when engine is running.

• 0 to 19,999 RPM Display

• 1/2 Second RPM Update

• Resettable Job Timer

• Total Hours

TINY-TACH

2A - Adjustable Model

™

Can be used on most engines from single cylinder lawn mowers up to V8 engines.

User Adjustable spark setting from 1 spark to 8 sparks per revolution.

Design Technology, Inc. 768 Burr Oak Drive, Westmont, IL 60559 (630) 920-1300

Page 2

The TINY-TACHTM meter can

Do not CUT

the BLACK wire

WRAP RED WIRE 3-4 TURNS AROUND SPARK PLUG WIRE. NOTE: CUT OFF EXCESS WIRE ONLY AFTER THE UNIT IS READING CORRECTLY

Flush Panel Mount

Surface Mount

Can be Recessed into Panel

COIL UP ANY EXTRA WIRE (DO NOT CUT WIRE) AND SECURE AWAY FROM EXTREME HEAT AND MOVING PARTS

ATTACH WHITE WIRE TO ENGINE GROUND. LOOSEN CONVENIENT BOLT ON ENGINE OR FRAME THEN SLIP SOLDER LUG UNDER

2.045

1.540

2.500

be mounted in the desired location using either sheet metal screws or by using double sided tape. For best results when using tape, be sure to clean off any dirt, grease and oil from the desired mounting location using a suitable solvent such as denatured alcohol.

Find a suitable route to run the pick-up wire to the spark plug wire. It is not critical how the wire is routed. It can be put into existing wire harnesses or wrapped around and taped to metal supports.

TINY - TACH

www.TinyTach.com

Connecting the Wires

™

CAUTION

KEEP WIRE CLEAR OF

EXTREMELY HOT ENGINE

PARTS SUCH AS THE

MUFFLER, AND MOVING

Wire damage (cuts or burns) will cause the wire to short and your TINY-TACHTM will stop working. Wire damage is not covered under warranty.

The RED WIRE should be slipped over an insulated section of the spark plug wire using about 3* turns. PLEASE BE CERTAIN YOU DO NOT WRAP THE RED WIRE TOO CLOSE TO THE SPARK PLUG THAT ENGINE VIBRATION WILL ALLOW IT TO COME INTO DIRECT CONTACT WITH THE METAL PORTION OF THE SPARK PLUG. Most engines

have a spark plug cap and will prevent this from happening. After the connections are made, any excess wire can be coiled up and taped to a convenient area.

* If the signal is not strong enough, you can add one wrap at a time until your signal is clear. The signal strength is controlled by the number of wraps (too many wraps will pick up electronic noise and give a faulty reading.)

WARRANTY : Design Technology, Inc. warrants that for a period of one year from time of purchase it will repair or replace the TINY-TACHTM, without charge, if it fails to function properly due to a defect in workmanship or materials in the instrument. Damage caused to the wires and cables by improper care or use is expressly excluded from this warranty. Used TINY-TACH reseller will be warranted at the discretion of Design Technology, Inc.

The TINY-TACHTM should be returned, prepaid to: Design Technology, Inc., 768 Burr Oak Drive, Westmont, IL 60559. In order to assure that you receive the correct model for your application, we request that you please enclose a short note describing the problem, the type of engine and number of cylinders. Thank you. We hope you enjoy using your new TINY-TACH

PARTS.

Design Technology, Inc. 768 Burr Oak Drive, Westmont, IL 60559 (630) 920-1300

Technical Support

630-920-1302

purchased through a 3rd party

11182-2A
