TinyHawk Freestyle Mini Drone User Manual

Thanks for purchasing the Tinyhawk Freestyle . Designed in California, assembled in
China.

Tinyhawk Freestyle

Disclaimer

Please read the disclaimer carefully before using this product. By using this product,
you hereby agree to this disclaimer and signify that you have read them carefully and
completely. This product is not suitable for people under the age of 18. Adult
supervision is highly recommended for kids under the age of 18.

Our Tinyhawk Freestyle features open-source flight controller and Electronic Speed
Controllers to meet the FPV enthusiasts' need to upgrade their quad.

Please read the instruction manual and warnings carefully. Before every flight, make
sure the battery is fully charged and power connections are secure. DO NOT fly
around crowds, children, animals or objects. EMAX ACCEPTS NO LIABILITY FOR
DAMAGE(S) OR INJURIES INCURRED DIRECTLY OR INDIRECTLY FROM THE
USE OF THIS PRODUCT.

Precautions

Please follow the instructions to assemble and to operate this product in a proper
way.

Pilots do not use this product if you have physical or mental illness, dizziness,
fatigued, or use while under the influence of alcohol or drugs.

Please fly in a safe area away from people
Do not modify or use other parts and accessories not approved for the use of EMAX.
Do not use this product in harsh environments (such as winds, rain, lightning, snow,

etc.).
Do not use this product in a strong electromagnetic environment.

Support

Please visit emax-usa.com or emaxmodel.com for any updates or support needs.

emax-usa.com

Tinyhawk Freestyle

Table of Contents

Disclaimer ................................................................................................................. 1

Precautions ............................................................................................................... 1

Support ..................................................................................................................... 1

Product specification ................................................................................................. 1

Tinyhawk Freestyle ........................................................................................... 1

Parameter .......................................................................................................... 1

Product list ............................................................................................................. 1

Tinyhawk Freestyle Structure ................................................................................ 2

Tinyhawk Freestyle ................................................................................................... 3

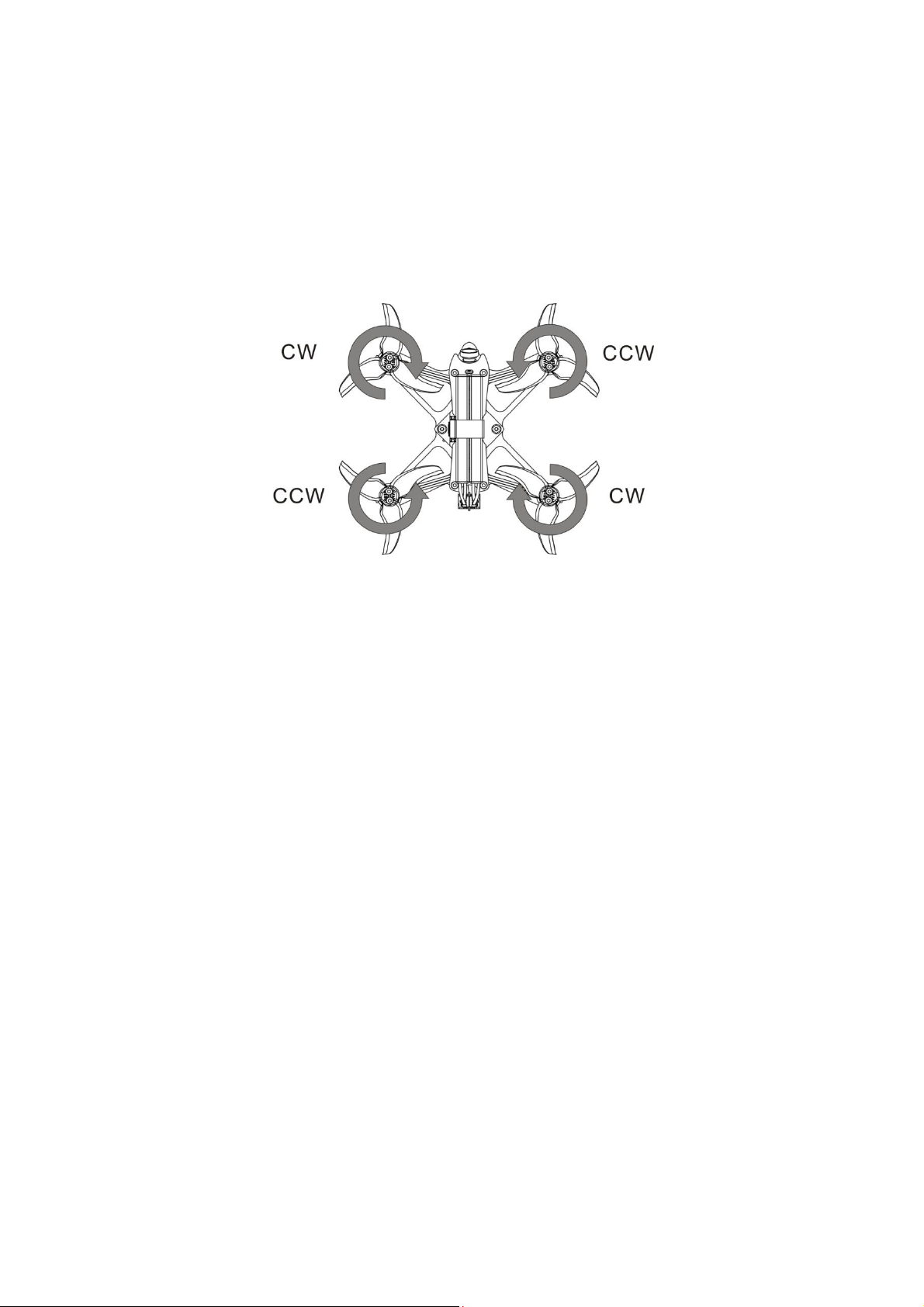

Propeller Direction and Mounting ................................................................ ........... 3

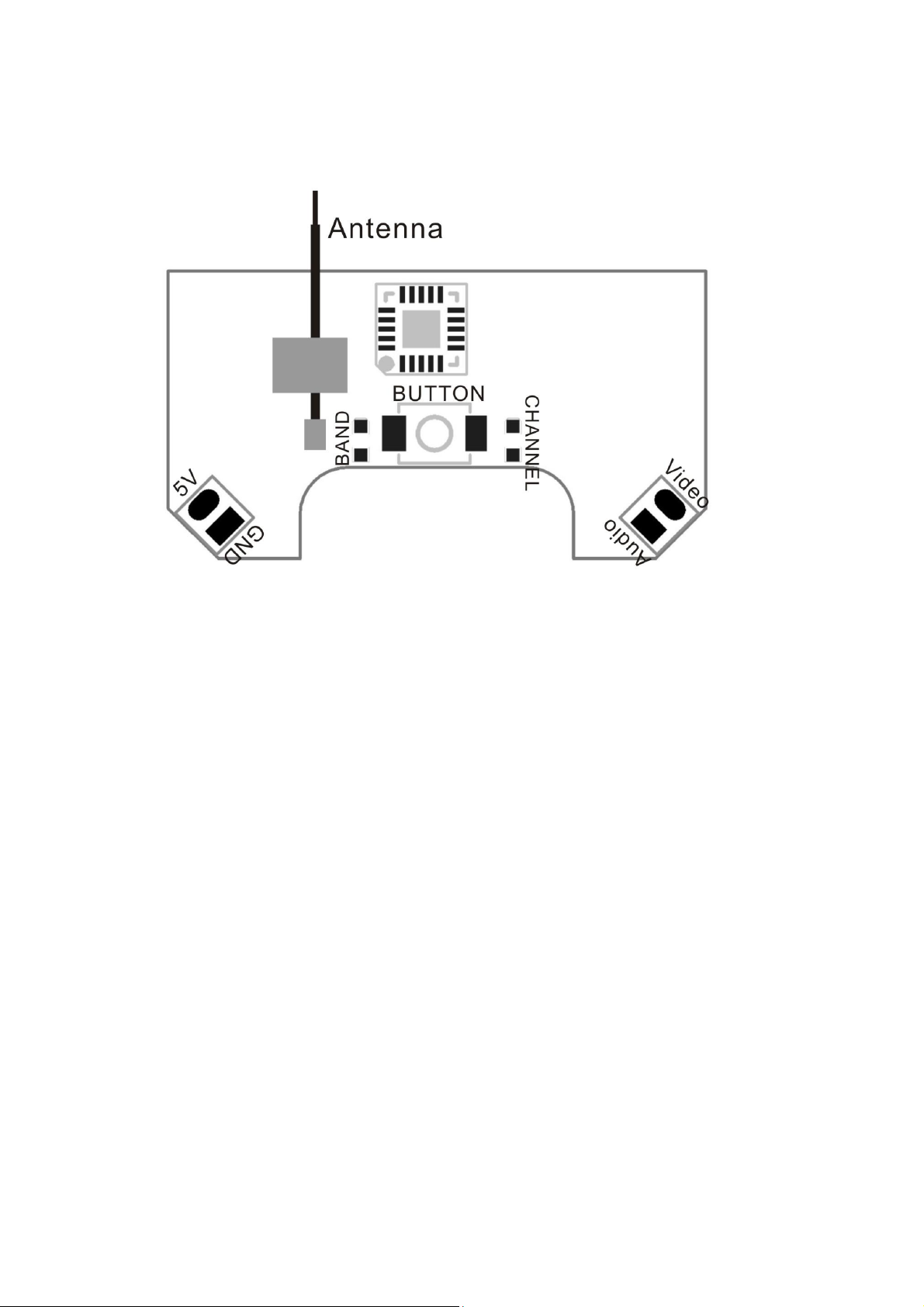

Tinyhawk Freestyle VTX Settings .............................................................................. 4

VTX Channel Settings with the Button ................................................................... 4

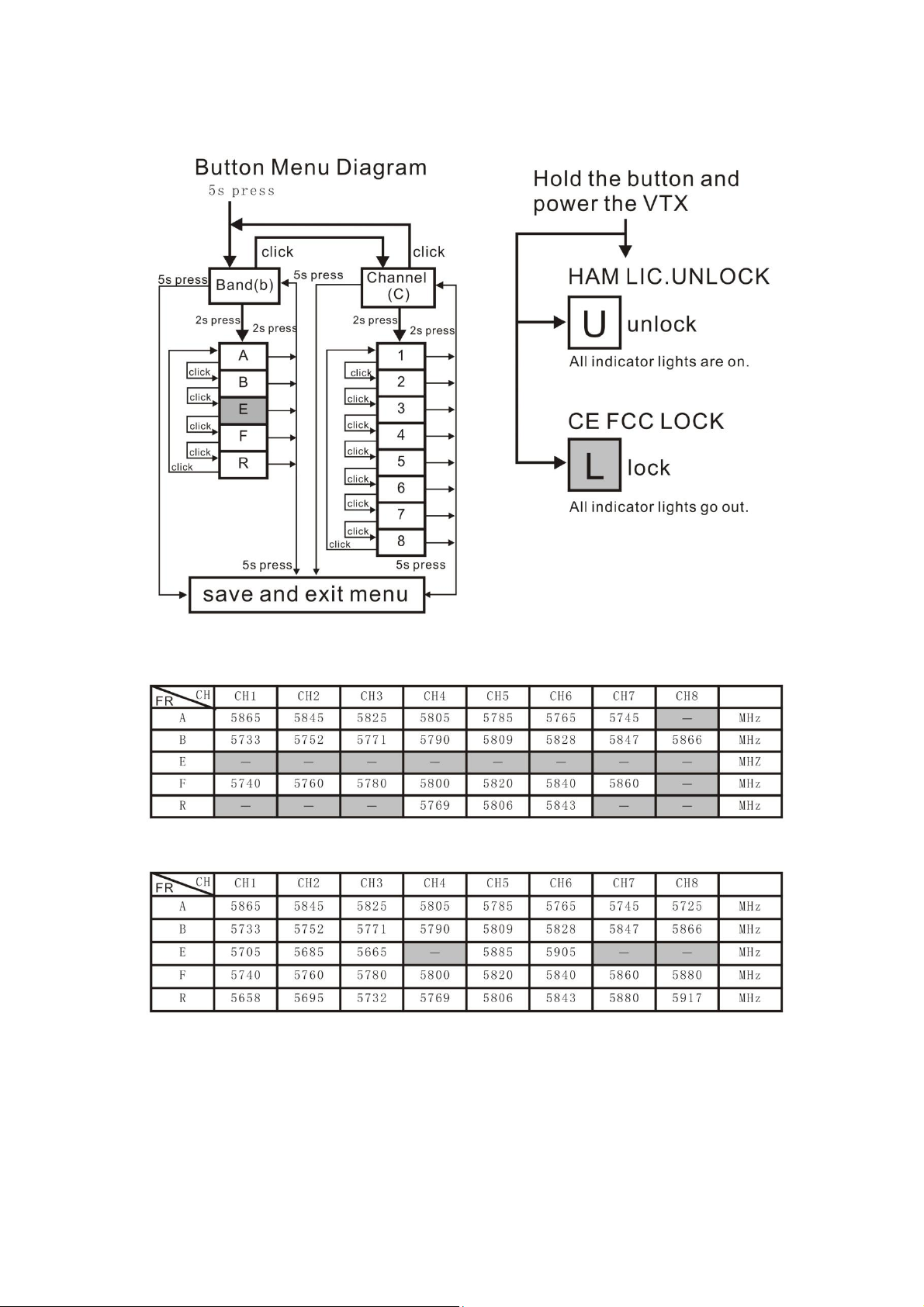

Button Menu Diagram ............................................................................................ 5

CE and FCC unlicensed user chart ........................................................................ 5

Unlocked FCC HAM licensed user chart ............................................................... 5

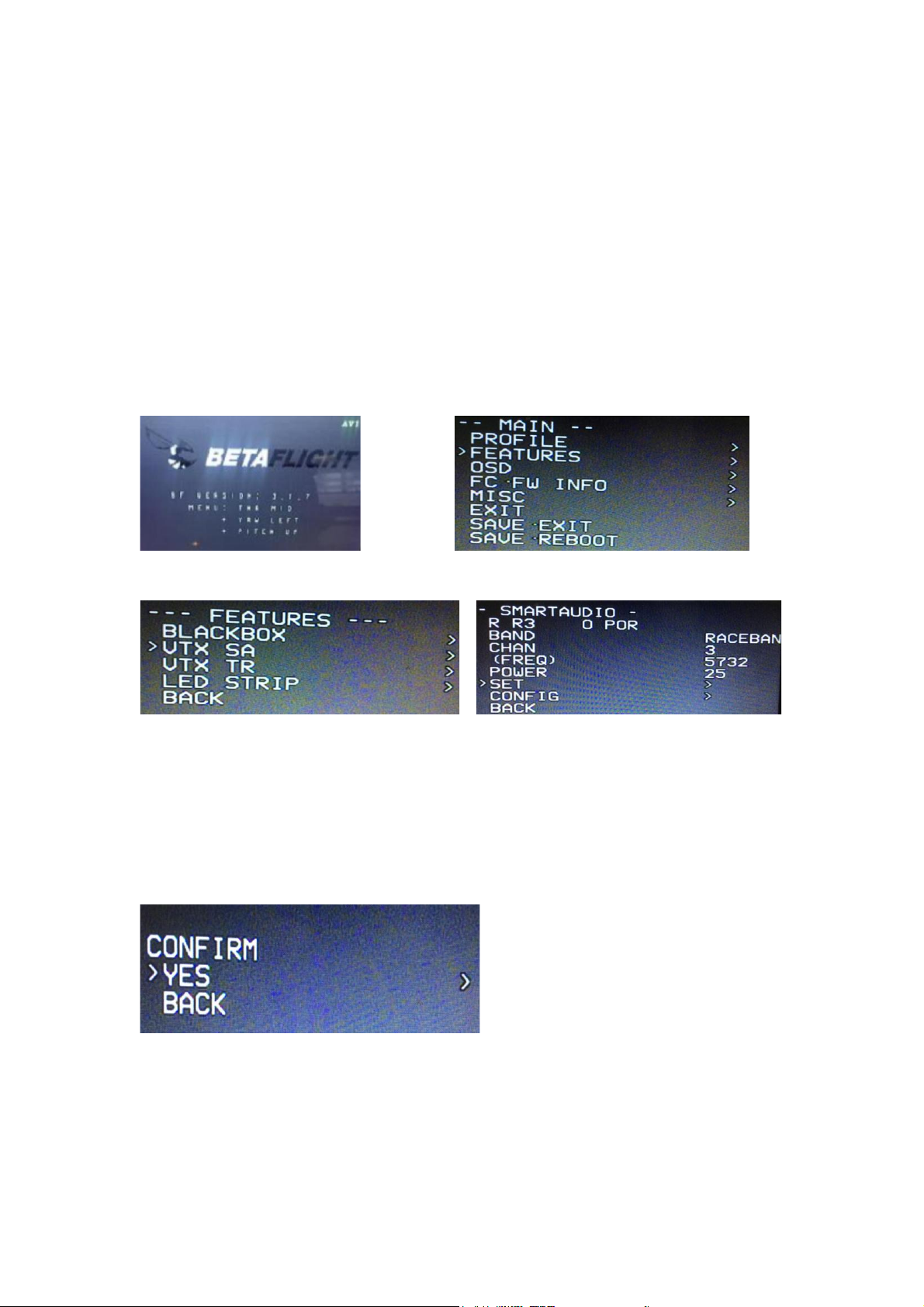

Changing VTX setting via Betaflight OSD .............................................................. 6

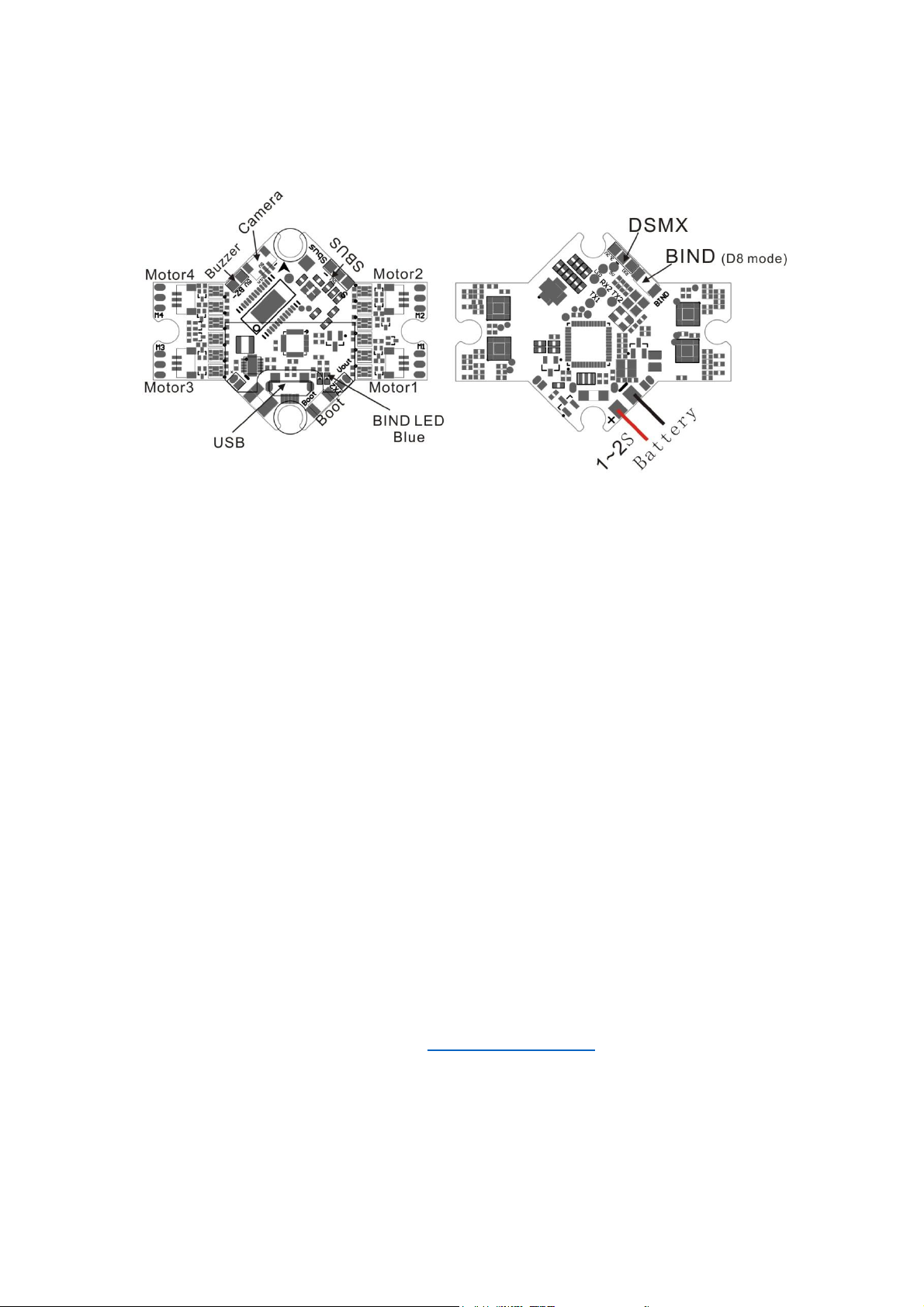

Tinyhawk Freestyle All-in-One Flight Controller ......................................................... 7

Emax On-Board Receiver ...................................................................................... 7

Binding Procedure .............................................................................................. 7

Emax Tinyhawk Freestyle Flight Controller (FC) .................................................... 7

Stock Flight Controller Settings .............................................................................. 7

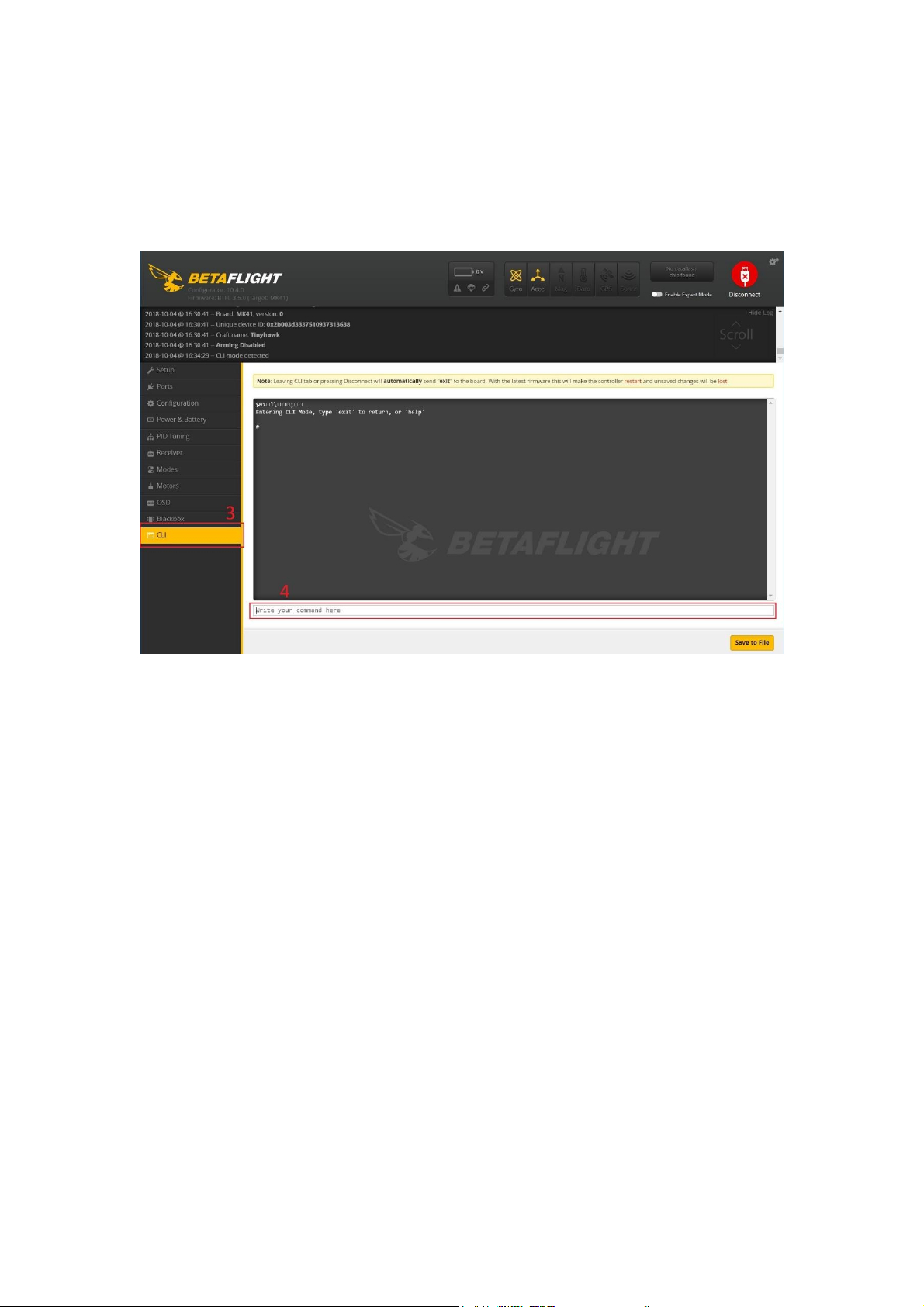

Adjusting Software Settings (Betaflight Configurator) ......................................... 8

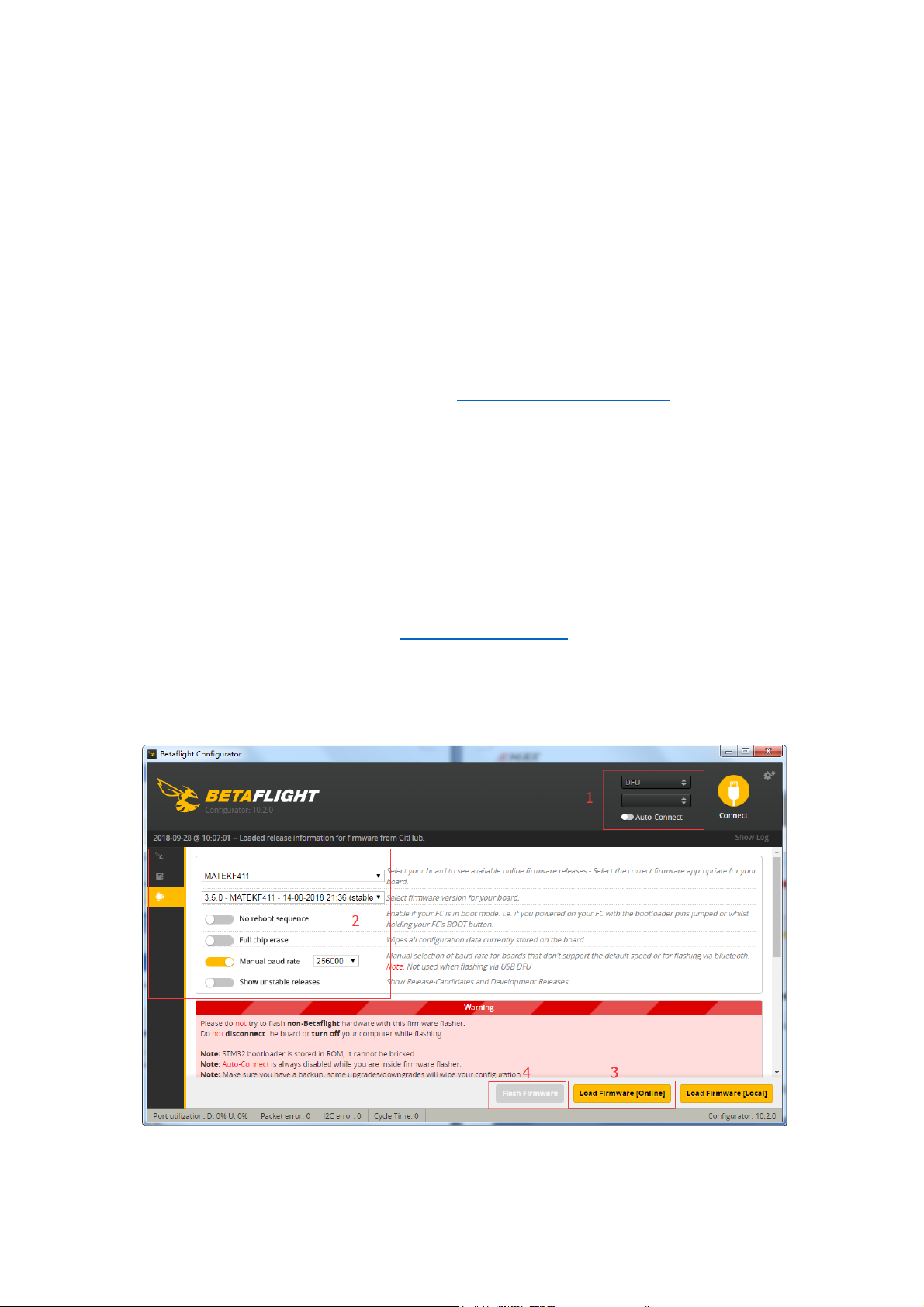

Reprogramming Tinyhawk Freestyle Flight Controller ........................................ 8

Set the Correct Settings ..................................................................................... 9

Flight ....................................................................................................................... 10

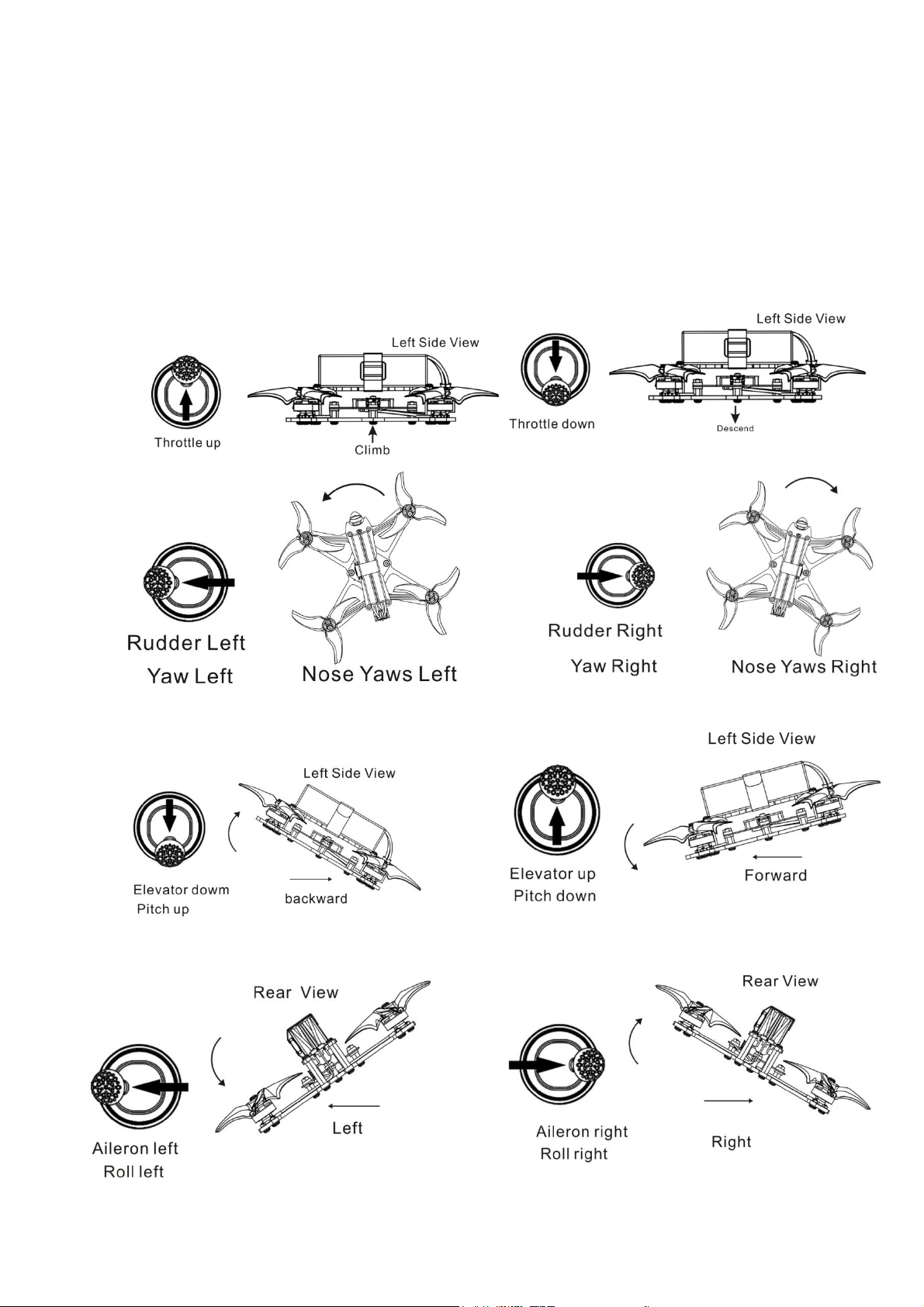

Radio Stick Controls ............................................................................................ 10

Left Stick Diagram ............................................................................................ 10

Right Stick Diagram ......................................................................................... 10

Fly Tinyhawk Freestyle ........................................................................................ 11

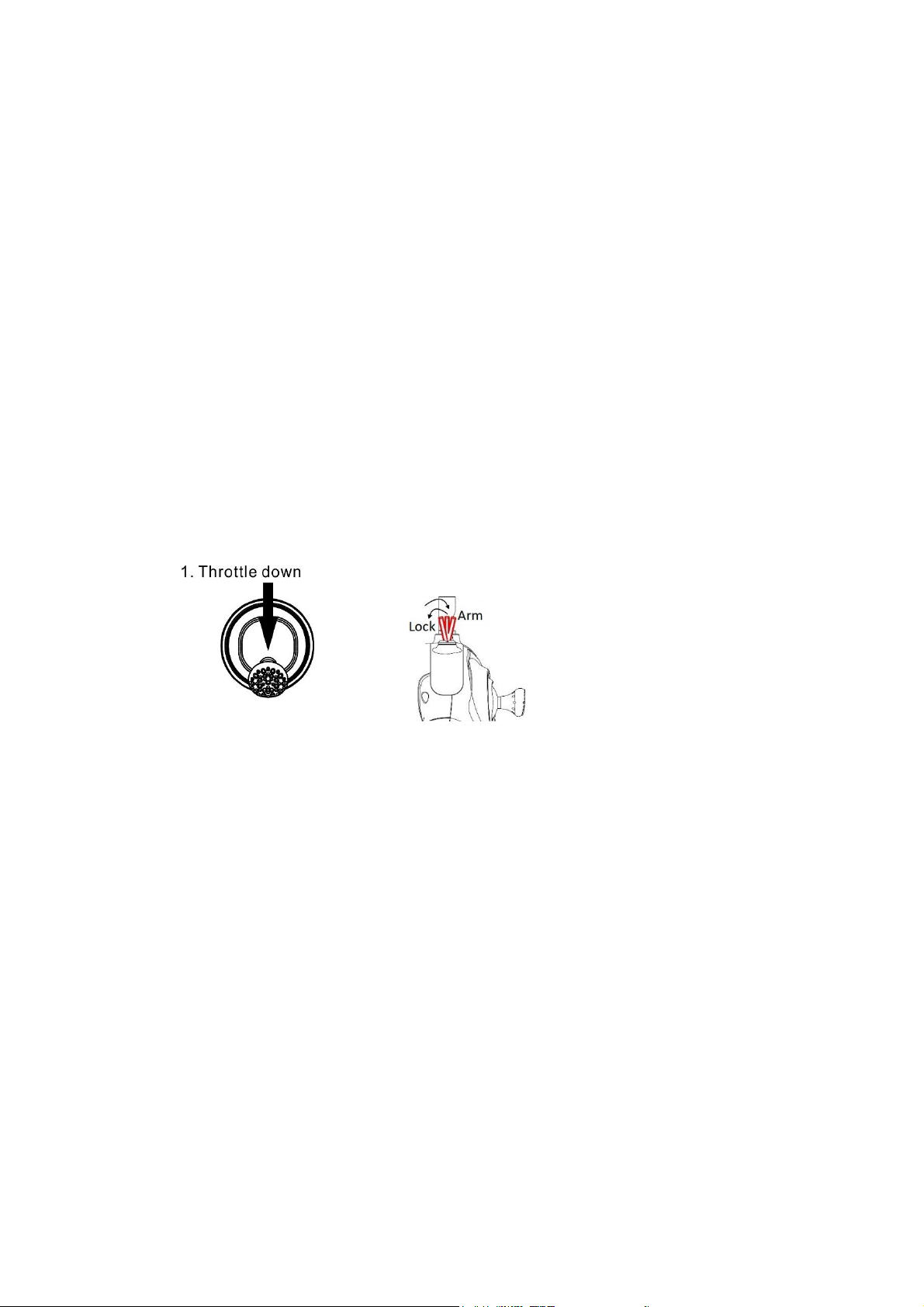

Arming ............................................................................................................. 11

Flying Modes .................................................................................................... 11

Line of Sight Flying ........................................................................................... 11

First Person View (FPV) Flying ........................................................................ 11

emax-usa.com

Product specification

Tinyhawk Freestyle

Parameter

Diagonal wheelbase (without paddles)

115mm

Maximum size of the aircraft (without
antenna, cable tie)

180mm
Aircraft weight (without battery)

53g

Motor

TH1103-7000KV

Propeller

Avan Blur 2.5 inch Propeller

Main Flight Controller

F4（MATEKF411 firmware）
4 in 1 5A ESC
EMAX Tiny receiver（Compatible with Frsky remote

control D8/D16 mode）

Camera

600TVL CMOS camera

Transmitter

25mW Adjustable frequency 37CH

Battery

1 Cell 450 mAh HV lipo battery ×2

Tinyhawk Freestyle

Product list

1. Tinyhawk Freestyle × 1

2. Instruction manual × 1

3. Emax 1s HV 450 mAh × 2

4. Charger × 1

5. Extra Propeller Set (2x CW, 2x CCW)

6. Screw pack x 1

emax-usa.com

1

Tinyhawk Freestyle Structure

Tinyhawk Freestyle

emax-usa.com

2
