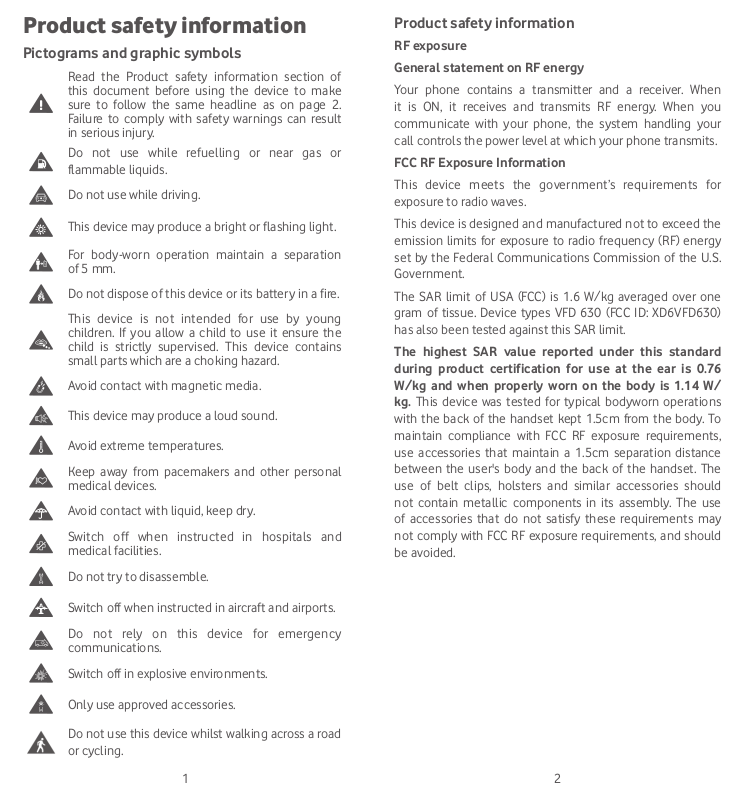

Product safety information
Pictograms and graphic symbols
Read the Product safety information section of
this document before using the device to make
sure to follow the same headline as on page 2.
Failure to comply with safety warnings can result
in serious injury.
Do not use while refuelling or near gas or
flammable liquids.
Do not use while driving.
This device may produce a bright or flashing light.
For body-worn operation maintain a separation
of 5 mm.
Do not dispose of this device or its battery in a fire.
This device is not intended for use by young
children. If you allow a child to use it ensure the
child is strictly supervised. This device contains
small parts which are a choking hazard.
Avoid contact with magnetic media.
This device may produce a loud sound.
Avoid extreme temperatures.
Keep away from pacemakers and other personal
medical devices.
Avoid contact with liquid, keep dry.
Switch off when instructed in hospitals and
medical facilities.
Do not try to disassemble.
Switch off when instructed in aircraft and airports.
Do not rely on this device for emergency
communications.
Switch off in explosive environments.
Only use approved accessories.
Do not use this device whilst walking across a road
or cycling.
1 2
Product safety information
RF exposure
General statement on RF energy
Your phone contains a transmitter and a receiver. When
it is ON, it receives and transmits RF energy. When you
communicate with your phone, the system handling your
call controls the power level at which your phone transmits.
FCC RF Exposure Information
This device meets the government’s requirements for
exposure to radio waves.
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one
gram of tissue. Device types VFD 630 (FCC ID: XD6VFD630)
has also been tested against this SAR limit.
The highest SAR value reported under this standard
during product certification for use at the ear is 0.76
W/kg and when properly worn on the body is 1.14 W/
kg. This device was tested for typical bodyworn operations
with the back of the handset kept 1.5cm from the body. To
maintain compliance with FCC RF exposure requirements,
use accessories that maintain a 1.5cm separation distance
between the user's body and the back of the handset. The
use of belt clips, holsters and similar accessories should
not contain metallic components in its assembly. The use
of accessories that do not satisfy these requirements may
not comply with FCC RF exposure requirements, and should
be avoided.
Regulatory information
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help
Changes or modifications made to this equipment not
expressly approved by Tinno may void the FCC authorization
to operate this equipment.
Data protection and software updates
By continuing to use this device, you indicate that you have
read and agree to the following content:
In order to provide better service, this device will
automatically check for/obtain software update information
from Vodafone and its partners after connecting to the
Internet. This process may use mobile data, and requires
access to your device's unique identifier (IMEI/SN) and the
service provider network ID (PLMN) to check whether your
device needs to be updated.
3 4
Note that neither Vodafone nor its partners will use the IMEI/
SN information for the purposes of personally identifying
you, and this is only used for scheduling/managing software
updates.
Distraction
Using a mobile device to communicate, listen to music
or watch other media could potentially distract you from
performing any activity which requires your full attention.
It may also reduce your awareness of the environment
around you.
Driving
Full attention must be given to driving at all times in order
to reduce the risk of an accident. Using a phone (even with a
hands free kit) causes distraction and can lead to an accident.
You must comply with local laws and regulations restricting
the use of mobile phones while driving.
Operating machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Walking and Cycling
Using a mobile device while walking or cycling will reduce
concentration on the environment around you and may
increase your risk of an accident.
Product Handling
General statement on handling and use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always switch off your phone wherever the use of
a phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
• Always treat your phone and its accessories with care and
keep it in a clean and dust-free place.
• Do not expose your phone or its accessories to open
flames or lit tobacco products.
• Do not expose your phone or its accessories to liquid,
moisture or high humidity.
• Do not drop, throw or try to bend your phone or its
accessories.
• Do not use harsh chemicals, cleaning solvents, or aerosols
to clean the device or its accessories.
• Do not paint your phone or its accessories.
• Do not attempt to disassemble your phone or its
accessories, only authorised personnel must do so.
• Do not expose your phone or its accessories to extreme
temperatures, minimum -10 and maximum +50 degrees
Celsius.
• Please check local regulations for disposal of electronic
products.
• Do not carry your phone in your back pocket as it could
break when you sit down.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or may accidentally
damage the phone.
Your phone contains small parts with sharp edges that may
cause an injury or which could become detached and create
a choking hazard.
Demagnetisation
To avoid the risk of demagnetisation, do not allow electronic
devices or magnetic media close to your phone for a long
time.
Avoid other magnetic sources as these may cause the
internal magnetometer or other sensors to malfunction and
provide incorrect data.
Electrostatic discharge (ESD)
Do not touch the SIM card’s metal connectors.
Power supply
Do not connect your device to the power supply or switch it
on until instructed to do so in the installation instructions.
Antenna
Do not touch the antenna unnecessarily.
5 6
Normal hand-held use position
When placing or receiving a phone call, hold your phone
to your ear, with the bottom towards your mouth or as you
would hold a conventional fixed line phone.
Air Bags
Do not place a phone in the area near or over an air bag or in
the air bag deployment area.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
This phone is capable of producing bright flashing lights.
Repetitive Motion Injuries
To minimise the risk of repetitive strain injury (RSI), when
Texting or playing games with your phone:
• Do not grip the phone too tightly.
• Press the buttons or screen lightly.
• Make use of the special features in the handset which
minimise the number of buttons which have to be pressed,
such as message templates and predictive text.
• Take lots of breaks to stretch and relax.
• If you continue to have discomfort, stop using this device
and consult your doctor.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises which may
damage your hearing.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen
at high volume levels for long periods. Exercise
caution when holding your device near your ear
while the loudspeaker is in use.
MP3 and video player function
When listening to pre-recorded music or watching videos on
your device, with headphones or earphones at high volumes,
you run the risk of permanent damage to your hearing. Even
if you are used to listening to music at a high volume and
it seems acceptable to you, you still risk damaging your
hearing.
Reduce the sound volume to a reasonable level and avoid
using headphones for an excessive period of time to avoid
hearing damage.
Different headphones, earphones or ear buds may deliver a
higher or lower volume, at the same volume setting on your
device. Always start at a low volume setting.
Do not listen to music or video with headphones while
driving, riding, cycling or crossing the road.
Prolonged periods of listening to music, playing games or
using other content from your device, at high volume, may
lead to hearing damage.
Bright Light
This phone is capable of producing flash of light or use as a
torch, do not use it too close to the eyes.
Phone Heating
Your phone may become warm during charging and during
normal use, do not use this phone if it is overheated (showing
an overheating warning or feels hot to touch).
Electrical Safety
Accessories
Use only approved accessories and chargers.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins
or key rings, to contact or short-circuit the battery terminals,
charger, device charging point or any electrical contacts on
accessories.
Do not touch your device with wet hands. Doing so may
cause an electric shock.
Do not touch the power cord with wet hands or disconnect
the charger by pulling the cord. Doing so may result in
electrocution.
Connection to a Car
Seek professional advice when connecting a physical phone
interface to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel should service or repair the phone
or its accessory.
If your phone or its accessory has been submerged in water
or other liquid, punctured, or subjected to a severe fall, do not
use it until you have taken it to be checked at an authorised
service center.
Battery Handling and Safety
Do not attempt to open the back cover and battery.
The battery in this device is not user removable.
Do not make any attempt to remove the battery or
disassemble the device to access the battery.
Only use the charger supplied, or manufacturer approved
replacements intended for use with your device. Using other
chargers could be dangerous.
Improper use of your device may result in fire, explosion or
other hazards.
If you believe the battery has been damaged, do not use
or re-charge the device and take it to a authorised service
center for testing.
Do not puncture or crush the device or allow it to be
subjected to any external pressure or force.
Interference
Care must be taken when using the phone in close proximity
to personal medical devices, such as pacemakers and
hearing aids.
7 8
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce
the interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical devices
Please consult your doctor and the device manufacturer to
determine if operation of your phone may interfere with the
operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so
in hospitals, clinics or health care facilities. These requests
are designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft, if your device offers a ‘flight mode’ this
must be enabled prior to boarding an aircraft.
Interference in cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a handsfree
kit with an external antenna is included in the installation.
Explosive environments
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Turn off your mobile phone or wireless device when in a
blasting area or in areas posted turn off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
Disposal and Recycling
To dispose of or recycle your device in a safe and appropriate
manner, contact your Customer Services center for
information.
Protection against theft
Your telephone is identified by an IMEI (phone serial number)
shown on the packaging label and in the product’s memory.
We recommend that you note the number the first time you
use your telephone by entering *#06# and keep it in a safe
place. It may be requested by the police or your operator if
your telephone is stolen. This number allows your mobile
telephone to be blocked preventing a third person from using
it, even with a different SIM card.
This symbol on your telephone, the battery
and the accessories means that these products
must be taken to collection points at the end
of their life:
- Municipal waste disposal centers with specific bins for these
items of equipment.
- Collection bins at points of sale.
They will then be recycled, preventing substances being
disposed of in the environment, so that their components
can be reused.
(1)
(1)
Contact your network operator for service availability.
9 10
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these
collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown
into ordinary bins if your jurisdiction or your region has
suitable recycling and collection facilities; instead they are to
be taken to collection points for them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.
If the battery cover is removed please avoid contact to
the antennas and the antenna contacts which can contain
Nickel. People allergic or sensitive to this metal should avoid
contact at all times.
Licences
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of
such marks by Tinno Mobile and its affiliates
is under license. Other trademarks and trade
names are those of their respective owners.
VFD 630 Bluetooth Declaration ID D044819
The Wi-Fi Logo is a certification mark of the
Wi-Fi Alliance.
This equipment may be operated in all
European countries.
This device may be operated without
restrictions in any EU member state.
Google, the Google logo, Android, the Android
logo, Google Search™, Google Maps™, Gmail™.
YouTube, Google Play Store and Duo™ are
trademarks of Google Inc.
The Android robot is reproduced or modified from work
created and shared by Google and used according to terms
described in the Creative Commons 3.0 Attribution License
(the text will show when you touch and hold Google legal
in Settings > System > Advanced > About phone > Legal
information
(1)
.
General information
You have purchased a product which uses the open source
(http://opensource.org/) programs mtd, msdosfs, netfilter/
iptables and initrd in object code and other open source
programs licensed under the GNU General Public License
and Apache License.
We will provide you with a complete copy of the
corresponding source codes upon request within a period
of three years from the distribution of the product from the
below mentioned address in chapter Notice.
You may download the source codes from the following
internet address:
https://sourceforge.net/projects/vfd-630/files/VFD630_
opensource.tar.gz/download
The provision of the source code is free of charge from
internet.
The description of accessories and components, including
software, which allow the radio equipment to operate as
intended, can be found in the user manual available at the
following internet address:
http://vodafone.com/support
Notice
The information in this manual is subject to change without
notice.
Every effort has been made in the preparation of this manual
to ensure accuracy of the contents, but all statements,
information, and recommendations in this manual do not
constitute a warranty of any kind, expressed or implied. Read
the safety precautions and safety information carefully to
ensure that you use this wireless device in a correct and
safe manner.
Importer: Tinno Mobile
(1)
This may not be available depending on your country
11 12
Address: 4/F.,H-3 Building, OCT Eastern lndustrial Park.
NO.1 XiangShan East Road., Nan Shan District, Shenzhen,
P.R.China.
Manufacturer: Vodafone Procurement
Company S.a.r.l.
Registered trade mark:
Address: 15 rue Edward Steichen, L-2540 Luxembourg,
Grand-Duché de Luxembourg
Warranty information
WARRANTY TERMS AND CONDITIONS
1. Vodafone undertakes the warranty of this mobile phone
for a period of two (2) years from the date of purchase by
the original owner (not transferable) under normal use.
2. The battery has a limited warranty for twelve (12)
months, and charger for twenty-four (24) months
against manufacturing defects. Other accessories have
a limited warranty for twenty-four (24) months against
manufacturing defects.
3. This warranty does not cover damage resulting from:
a) Normal wear & tear of the equipment;
b) Defects and damages due to the equipment being used
other than its normal and customary manner;
c) An unauthorised disassembly, repair, alteration or
modification being carried out;
d) Misuse, abuse, negligence or accident howsoever
caused;
e) Defects or damage arising from improper testing,
operation, maintenance, installation, or any alteration
or modification;
f) Defects or damage due to spillage of food or liquids,
corrosion, rust or the use of wrong voltage;
g) Scratches or damage to plastic surfaces and all other
externally exposed parts that are due to normal
customer use;
4. If this phone needs service or repair, it must be delivered
at the user's cost.
5. This warranty will be null and void in any of the following
events:
a) If the serial number or warranty seal on the equipment
has been defaced or removed.
b) If any term contained in this warranty has been altered
or modified in any way without prior written consent of
Vodafone.
6. This limited warranty extends only to customers who
purchase the product and is only valid in Vodafone’s
intended country (or area) of sale of the product.
7. If the product is returned to Vodafone after the expiration
of the warranty period, Vodafone’s normal service policies
shall apply and the consumer will be charged accordingly.
a) Vodafone neither assumes for it any other obligation or
liability beyond that which is expressly provided for in
this limited warranty.
b) All warranty information, product features and
specifications are subject to change without notice.
8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER WARRANTIES
EXPRESSED OR IMPLIED, SPECIFICALLY INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILlTY OR FITNESS
FOR A PARTICULAR PURPOSE. VODAFONE ASSUMES NO
LIABILITY FOR THE BREACH OF THE WARRANTY BEYOND
CORRECTING THE BREACH IN THE MANNER DESCRIBED
ABOVE. IN NO EVENT SHALL VODAFONE BE LIABLE FOR
CONSEQUENCES.
13 14
Loading...
