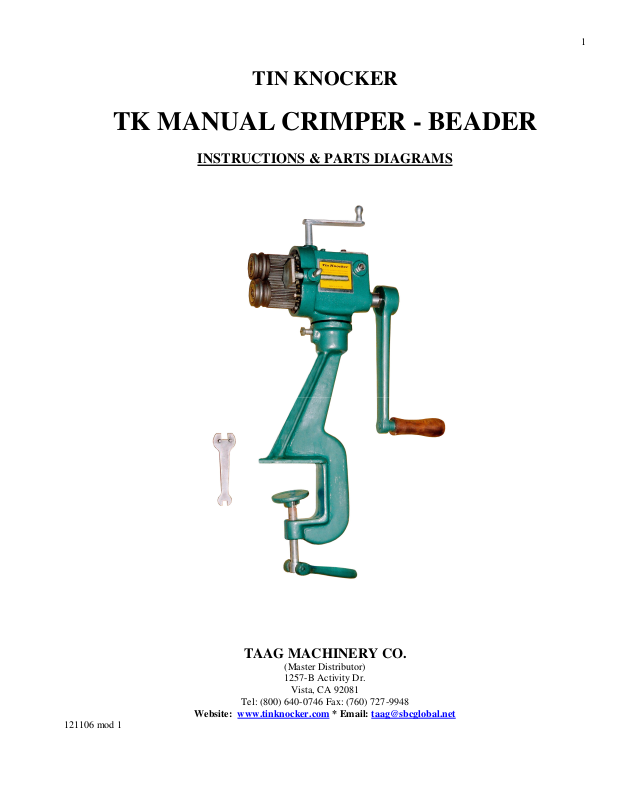

1

TIN KNOCKER

TK MANUAL CRIMPER - BEADER

INSTRUCTIONS & PARTS DIAGRAMS

121106 mod 1

TAAG MACHINERY CO.

(Master Distributor)
1257-B Activity Dr.

Vista, CA 92081

Tel: [phone] Fax: [phone]

Website: www.tinknocker.com * Email: [e-mail]

2

TIN KNOCKER

SAFETY RULES

MANUAL CRIMPER - BEADER

1. Keep the work area well lighted, clean, neat, and orderly to avoid accidents. Do not use compressed

air for cleaning debris or grit from yourself or the machine. Remove debris and grit from machine
with a rake or brush – not your hands.

2. Machine to be operated by authorized personnel who have been trained by their supervisor with the

working and safety features of the machine, and by reading and understanding the operator’s
Manual as well as any warnings and instructions that might be mounted on the machine.

3. Safety glasses are recommended with the use of this or any shop machine.

WARRANTY

All new machines are sold with a one-year limited warranty, on factory defective parts. The warranty is limited to the original
user. TAAG Machinery Co. at its option, will repair, replace or refund the purchase price of any part, tool or machine that fails
during the warranty period. TAAG Machinery Co. will pay normal shipping charges for replacement parts. After 90 days from
date of purchase, all express or overnight delivery charges are the responsibility of the customer. Purchaser must deliver to
TAAG Machinery Co., at the address below, any written claim, with proof of original purchase. Replacement parts will be
invoiced to purchaser and credit issued when the failed part is delivered to TAAG Machinery Co. Removal, reinstallation or
replacement parts shall be at purchasers’ / user’s expense. Failure due to improper use of the machine voids the warranty.

NOTE: 1. This machine has been tested and adjusted prior to shipment, but can and often does require readjustment due to
vibration and bouncing during transport. Following the procedures described within can easily do readjustment. These are
procedures with which you, as a user, should be familiar, as you will use them repeatedly over the life use of the machine. If you
have difficulty in performing these procedures, we are here to support you. Call us at: [phone].

2. Opening rolls (for Philipsburg Lock) are consumable items and not subject to warranty.

TAAG MACHINERY CO.

(Master Distributor)
1257-B Activity Dr.

Vista, CA 92081

Tel: [phone] Fax: [phone]

Website: www.tinknocker.com * Email: [e-mail]

3

OPERATING INSTRUCTIONS

Be certain that the machine is securely bolted into Bench Stand and that Bench Stand is securely clamped
to work bench. Mount lower crimping roll on driving lugs of lower gear. Key slots for mating with lugs of
the lower gear. The gear is keyed to the lower arbor thus becoming the driver. To mesh upper crimping roll
with lower crimping roll rotate upper gear until its lugs will accommodate slots in upper crimping roll in
proper mesh. Upper gear slides on upper arbor, acting as idler and is driven by mating with lower gear.

TO ADJUST MACHINE

1. Mount crimping rolls as noted above. Mount upper Ogee beading roll and lower Ogee beading roll

and secure with roll nuts

2. Use adjusting screw handle to raise or lower the upper rolls into and away from the work.

3. Use setscrew to limit movement of upper rolls to setting required for given operation.

4. Use pivot screw to tip upper arbor and rolls in order to obtain a fade-away or straight crimp as

desired.

5. If only crimp is desired, remove ogee bead rolls and crimping rolls. Mount spacers on arbors to

mate with gear lugs. Mount crimping rolls to mate with spacer lugs and rotate to proper mesh as
described above. Lock securely with roll nuts.

6. Keep machine Arbors, screws, rocking box , journal bearings and gears lubricated with a medium

motor oil.

SPECIFICATIONS

GENERAL: Crimp and bead in one pass of the metal,

24 ga and lighter. Comes with Ogee bead

and crimping tooling, depth gauge, and base.

CAPACITY; 24 Ga Mild Steel

WEIGHT: Approx. 32 lb

4

TK MANUAL CRIMPER - BEADER DRAWING

5

Fine No.

Part No.

Description

No. REQ"D.

1 CRIMP0001 BENCH STANDARD 1
2 CRIMP0002 ADJ SCREW & HANDLE 1
3 CRIMP0003 GAUGE 1
4 CRIMP0004 CRANK ASSEMBLY, HAND 1
5 CRIMP0005 FRAME 1
6 CRIMP0006 SPANNER WRENCH 1
8 CRIMP0008 UPPER ARBOR 1

9 CRIMP0009 LOWER ARBOR 1
10 CRIMP0010 UPPER CRIMPING ROLL 1
11 CRIMP0011 LOWER CRIMPING ROLL 1
12 CRIMP0012 UPPER BEADING ROLL 1
13 CRIMP0013 LOWER BEADING ROLL 1
14 CRIMP0014 SPACING COLLAR 2
15 CRIMP0015 UPPER CONN. GEAR 1
16 CRIMP0016 LOWER CONN. GEAR 1
17 CRIMP0017 COVER 1
18 CRIMP0018 PIVOT SCREW 1
19 CRIMP0019 ROLL NUT 2
20 CRIMP0020 SPRING 2
21 CRIMP0021 THUMB SCREW 1
22 CRIMPBOLT0004 BOLT HEX M8 X 25 1
23 CRISETSCREW002 SET SCREW M8 X 25 2
24 CRISETSCREW003 SET SCREW M6 X 20 1
25 CRIMPCAPSC0001 CAP SCREW M6 X 15 1
26 CRIMPNUT0001 NUT M8 2
27 CRIMP0027 LOWER KEY ARBOR 1
28 CRIMP0028 SWIVEL CAP 1
29 CRIMP0029 LEVER FOR CLAMPING SCREW 1
30 CRIMP0030 CLAMPING SCREW 1
31 CRIMPBOLT0005 BOLT SQ M10 X 41 1
32 CRIMP0032 BTN. HD. STL. AIVET 1
33 CRIMP0033 ROLL PIN 1
34 CRIMP0034 DRIVEN BEAD ROLL-UPPER 1
35 CRIMP0035 DRUVEN BEAD ROLL - LOWER 1

Parts For Manual Crimper - Beader
