User Manual
TimoLabs CORBETT I S
Model# TM-BT003S-2016C
Rugged Waterproof Bluetooth Speaker
Page 2
2
WHAT’S IN THE BOX ?
X 1
X1 X1 X1
Page 3
3
Press and hold turns Corbett I S ON/OFF.
Corbett I S turns itself off after 20min inactive.
Play/Pause: Play or pause audio being played.
Phone: Pick up or hang up when calls coming in.
: Press and hold to exit Stereo Mode.
Decrease or Increase Volume
Skip to Previous or Next song
Single Press:Toggle among four Modes
Press and Hold: Seeking Stereo Pair
CONTROLS
Page 4
4
CONNECTION
TimoLabs Corbett I S
Available Devices
Page 5
5
TIMOLABS STEREO MODE
M
Step 1
Bluetooth connect your mobile device to FIRST speaker.
Step 2
Turn on SECOND speaker, press and hold “M” on
FIRST speaker to establish wireless connection
between the two speakers.
Step 3
Place two speakers apart, enjoy music in stereo.
1
1 2L R
1 2L R
max 30ft
max 120ft
Page 6
6

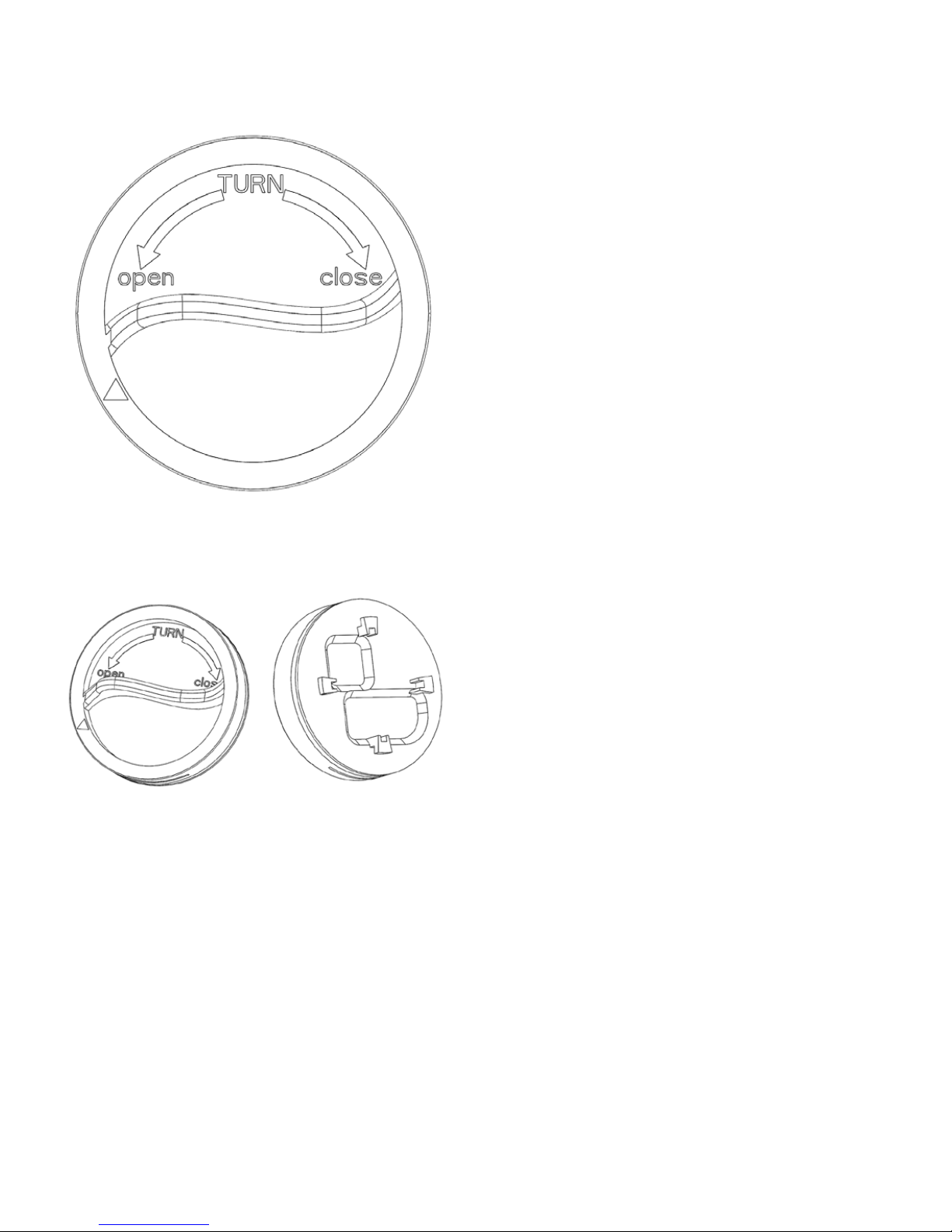

OPENING BACK CAP
Step 1: Unlocking the Cap
Turn the cap counter clockwise as shown. The triangle
tip on the Cap must indicate
the open triangle on the
back panel.
Step 2: Opening the Cap
Lift the Cap as shown.
Page 7
7

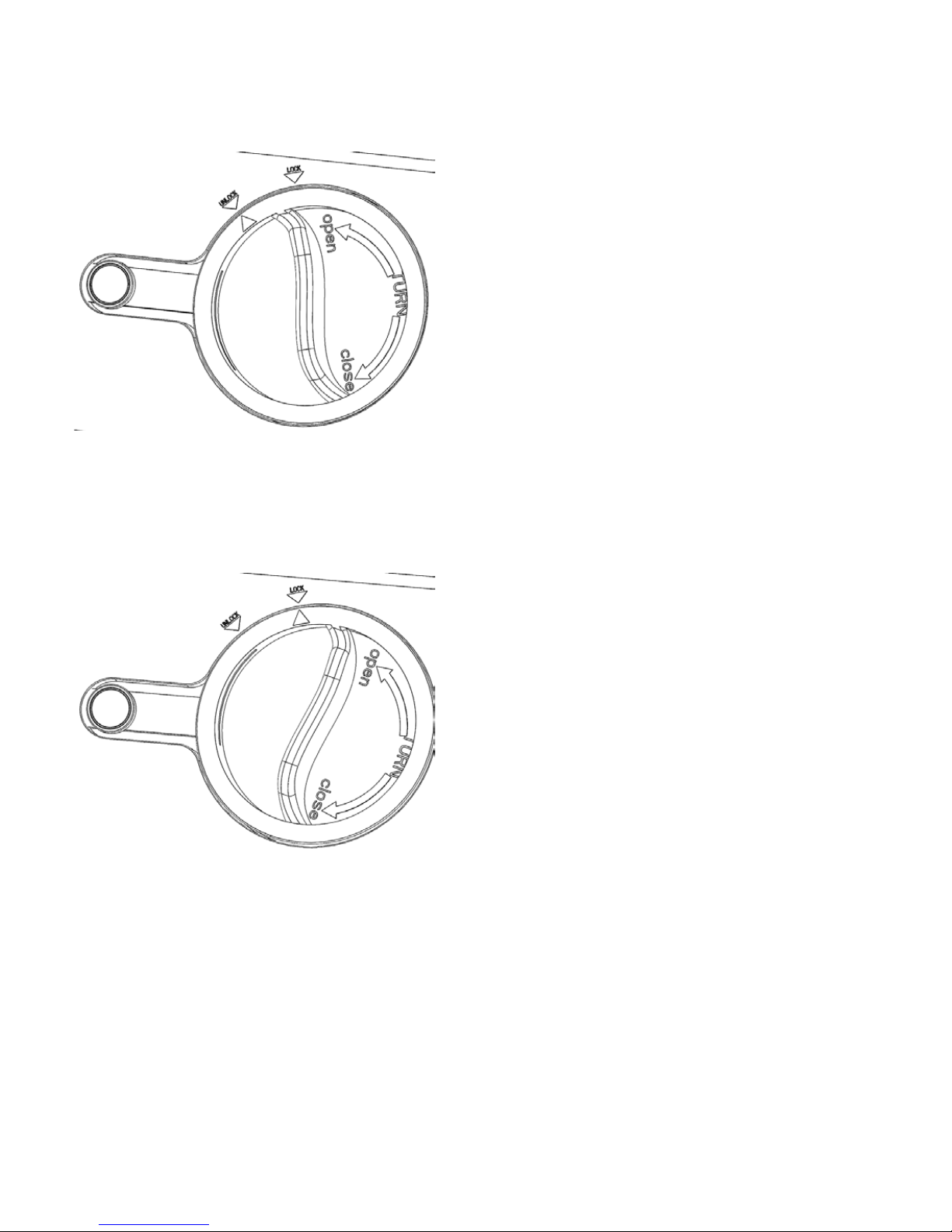

LOCKING BACK CAP
Step 1: Fitting the Cap
Cover the Back Panel Electronics Connections with
the Cap as shown.The Cap
must t snugly into the Back
panel.
Step 2: Closing the Cap
Turn the cap clockwise as
shown. The triangle tip on
the Cap must indicate the
close triangle on the back
panel.
Page 8
8
LED INDICATION
Color Status Indication
Blue
Green
Green
Blue
Red
Flash Fast Bluetooth Mode - Searching for connection
Flash Slow Bluetooth Mode - Connected
Flash Slow Playing songs from microSD card
Solid Playing audio from auxiliary input
Solid Stereo Mode
Flash Fast Bluetooth Stereo Mode - Searching for stereo pair
Flash Slow Bluetooth Stereo Mode - Stereo paired
Green
Red Solid Stereo Mode
Flash Fast microSD Stereo Mode - Searching for stereo pair
Flash Slow microSD Stereo Mode - Stereo paired
Blue Solid Playing audio from microUSB input
Page 9
9
Model No. TM-BT003S-2016C
Dimension Length x Width x Height
7.28” x 2.75” x 3.15”
185mm x 70mm x 80mm
Weight 1.3 lbs
Full-range Driver 2”x 2, 4 Ohm
Passive Radior 1.78” x 2.36”
45mm x 60mm
Output Power 20 Watt (10W x 2)
Frequency Response 90 Hz ~ 20 kHz
Battery Capacity Internal Li-ion Battery
3.7V, 3000mAh
Audio Inputs Bluetooth
MicroSD Card
AUX
USB Audio Decode
Internal Microphone
SPECIFICATION
1/4”-20 bottom thread
Integrated Carabiner
Mounting Options
Page 10
10
CARE AND SAFETY
Important Safety Instructions
Please read following safety warnings carefully. TimoLabs is not
liable for any cause of death, severe human injurey or property
damage, if you did not read, comprehend and comply with safety
warnings and instructions:
1. Check related regulations and restrictions for bluetooth devices
in your area before using this product.
2. Do NOT replace Corbett internal battery. It is internal and irreplaceable.
3. Do NOT try to repair, modify or disassemble Corbett speaker
drivers. There are no user maintainable parts inside.
4. Keep the device in dry, dust free, regular constant temperature
environment if planning not to use for a long time.
5. Wireless signal interferes with automotive electronics devices,
please use with caution.
6. Do NOT install near any heat sources such as radiators, heat
registers, stoves or other apparatus (including ampliers) that
produce heat
7. Do NOT use this device close to any medical apparatus.
8. Do NOT use this device on aircraft.
9. Do NOT use this device in any ammable or combustible places.
10. Do NOT allow children use this device.
11. Do NOT expose battery in extremely hot environment to avoid
explosion, or freezing environment to avoid short battery life.
ATTENTION: Do NOT use this device for emergency communication. Wireless bluetooth signal is not the most reliable method
under all circumstances.
Page 11
11
CARE AND SAFETY
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate audio frequency energy and if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, you are encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a different circuit than the
one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Page 12
12
CARE AND SAFETY
Please read this guide
Corbett Rugged Waterproof Bluetooth speaker is
intended to be used both indoors and outdoors. The
speaker has been tested to IPX7 waterproong standards. IPX7 standard allows Corbett to be submerged
in water up to 1 metre water for 30 minutes without
any damage. However, Corbett is not intended for
constant underwater use. Close the Cap properly
before use (see Locking Back Panel Cap). If Corbett
is placed in water without the cap properly closed,
water may enter into Corbett and void warranty.
Always make sure the back panel cap is clean, free
of any debris and correctly tted. The speaker will
only meet IPX7 ratings if all rubber seals and cap are
properly locked & sealed. Corbett when incorrectly
tted and the USB cables are NOT waterproof.
If you notice a mufing of audio after submersion,
gently shake speaker to clear excess water. If your
speaker is exposed to salt water, clean it thoroughly
after use with fresh water. Do not apply excessive
force to any surface when wet or in a wet environment.
Page 13
13
CARE AND SAFETY
WARNING:
This product contains magnets which can be harmful to pacemaker wearers.
WARNING:
Avoid prolonged exposure to ultraviolet radiation (UV) sunlight or
magnetic elds. Check the rubber seal periodically for premature
wear and clean Corbett I with a soft moist cloth and ensure no
objects such as dirt, hair, sand are on the rubber seal ring. Do not
use any oily solvent or chemicals for cleaning.
WARNING:
Do not use Corbett when you are charging the battery. Do not use
Corbett I near any open re, heat source or excessive heat.reach
equipment or its controls.
WARNING:
Sound levels should be appropriate to your environment and
comply with all local regulations. Ensure that you can hear and are
aware of any potential hazards around you when you are enjoying
your Corbett.
Page 14
14
WARRANTY
For TM-BT003S
Including those Sold within North America
TimoLabs warrants this product to be free from
defects in material and workmanship for a period of
TWELVE MONTHS after the original date of consumer purchase. During this period, TimoLabs will, at its
option, either repair the defective product with new
or rebuilt parts, or replace it with a new or rebuilt
product at no charge except as *stated below. The
parts or products that are replaced become the property of TimoLabs. In the USA to obtain service under
this limited warranty, contact [email protected]
for the name of the Authorized Service Center (ASC).
Deliver the product freight pre-paid, along with the
dated proof of purchase, to the TimoLabs ASC.
• Pack it in its original shipping container (or equivalent)
• Insure it (or assume the risk of loss/damage during shipment)
• Include proof of purchase
• Pay all shipping charges
Page 15
15
TimoLabs is not responsible for damage to inbound
product that was not properly packaged. TimoLabs
will pay for the return shipment charges within the
USA, but is NOT responsible for any costs shipping
across international borders. If the unit is found not
to be defective, the unit will be shipped back at the
owner’s expense. In the USA or Canada, please contact TimoLabs customer service at support@timolabs.com. This limited warranty does not cover any
losses or damages that occur as a result of:
• Shipping or improper installation or maintenance
• Misuse
• Neglect
• Adjustment by non-authorized sources
• Any cause other than ordinary usage
• Repair, modication, installation of options or parts by anyone
other than an TimoLabs ASC
• Improper environment
• Excessive or inadequate heating or air conditioning or electrical
power failures, surges, or irregularities
WARRANTY
This one year warranty does not cover any of the products rmware or hardware that
you or any third party have modied or altered; you bear the sole responsibility and
liability for any such modication or alteration.
Page 16
16
WARRANTY
ALL EXPRESSED AND IMPLIED WARRANTIES FOR THIS PRODUCT
(INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURAION
TO A PERIOD OF ONE (1) YEARS FOR PARTS AND LABOR FROM
THE ORIGINAL DATE OF CONSUMER PURCHASE. NO WARRANTIES (EITHER EXPRESSED OR IMPLIED) APPLY AFTER THIS
PERIOD. IN THE UNITED STATES OF AMERICA, SOME STATES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
TIMOLABS OBLIGATIONS AND YOUR REMEDIES HEREUNDER
ARE SOLELY AND EXCLUSIVELY AS STATES HERE. TimoLabs
LIABILITY, WHETHER BASED ON CONTRACT, TORT, WARRANTY,
STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE
PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE
IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL TimoLabs BE
LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES
OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. IN THE UNITED STATES OF AMERICA,
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUNTIAL DAMAGES, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. ALTHOUGH THIS LIMITED
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE
OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
For Customer Service, please contact [email protected]
or visit www.timolabs.com
