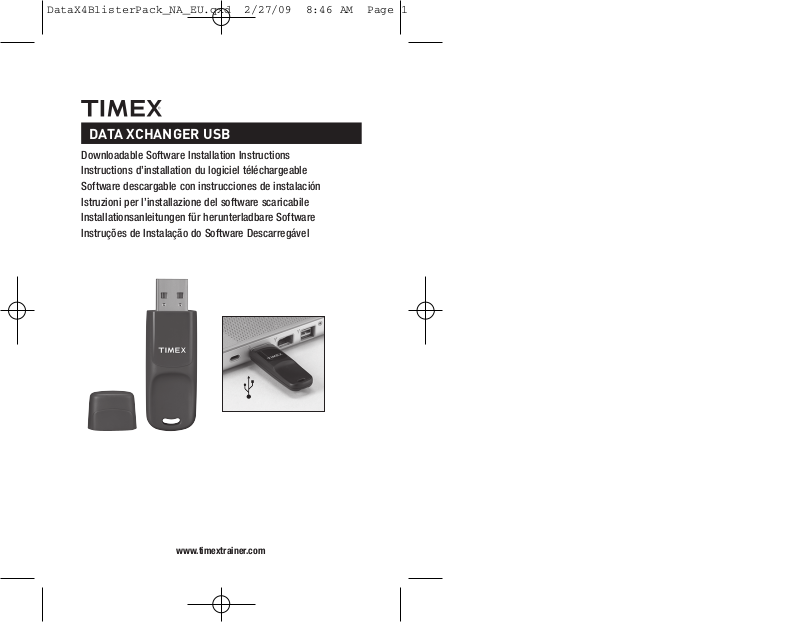

DATA XCHANGER USB
Downloadable Software Installation Instructions
Instructions d’installation du logiciel téléchargeable
Software descargable con instrucciones de instalación
Istruzioni per l’installazione del software scaricabile
Installationsanleitungen für herunterladbare Software
Instruções de Instalação do Software Descarregável
www.timextrainer.com
ENGLISH
PC
Mac
Downloadable Software Installation Instructions
1. Go to http://timextrainer.trainingpeaks.com/
2. Click on Create Account to set up an account and download the desktop software.
NOTE: If you already have an account, you can skip to Step 3.
Users are redirected to
complete their information (First and Last Names, Username, Password,and Email Address).
Create Account (lower left corner).
Click
Device Agent and select the Timex Device Agent version for your computer, and install
3. Click on
the application to the desktop by clicking
https://timextrainer.trainingpeaks.com/create-account.aspx to
Run. Follow the on-screen directions for File Download.
Downloadable Software Usage Instructions
NOTE: You must have the Timex Data Xchanger plugged into the USB port to fully use the Timex
Device Agent and to communicate with the watch.
1. Double-click the
to enter your account and password (that entry will not be required for future downloads).
NOTE: If more than one person uses your computer,click Account to confirm/change your account
and password, and then click
2. Follow the directions on the computer screen to initiate watch communication with the computer
and to see the progress of the wireless transfer of data.
3. Once communication is done, you will go to the
data from the watch to the Timex Ironman online training log, select the workouts you want to
upload. To change your HRM and/or watch settings, select from the other tabs on the
screen.
NOTE: The “Erase all workouts when finished”box is checked if there are workouts in your watch,
unless you un-check it. This feature automatically frees up memory in your watch after each
upload.
4. Click
5. To view your data or workout plan on the Timex Trainer Online software, click
NOTE: Users can also go to https://timextrainer.trainingpeaks.com/login.aspx to access their
accounts.
Timex Device Agent icon from your desktop. For first-time users,click Account
Home to return to the communications page.
Workouts tab on the Home screen. To transfer
Save to send the selected data to your account and any changed settings to your watch.
Account and Login.
System Requirements:
Windows®VISTA, Windows®XP
Intel/PowerPC OS X 10.5 (Leopard), OS X 10.4 (Tiger)
–Available by June 2009
Adobe Flash Player 9 along with Internet Explorer 7, Mozilla Firefox 3, or Apple Safari 3
(all programs available for free to download from the Internet)
©2009 Timex Group USA Inc. TIMEX is a registered trademark of Timex Group USA, Inc in the US
and other countries. WINDOWS is a registered trademark of Microsoft Corporation in the US and
other countries.
Home
FCC Notice (U.S.) / IC Notice (Canada):
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio TV technician for help.
This Class [B] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe [B] est conforme à la norme NMB-003 du Canada
Warranty & Service
Timex International Warranty (U.S. Limited Warranty)
®
product is warranted against manufacturing defects by Timex for a period of ONE YEAR
Your Timex
from the original purchase date. Timex Group USA, Inc. and its worldwide affiliates will honor this
International Warranty.
Please note that Timex may,at its option, repair your product by installing new or thoroughly
reconditioned and inspected components or replace it with an identical or similar model.
IMPORTANT: PLEASE NOTE THAT THIS WARRANTY DOES NOT COVER DEFECTS OR DAMAGES TO
YOUR PRODUCT:
1. after the warranty period expires;
2. was not originally purchased from an authorized Timex retailer;
3. from repair services not performed by Timex;
from accidents, tampering or abuse; and
4.
5. case. Timex may charge you for replacing this part.
THIS WARRANTY AND THE REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
TIMEX IS NOT LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some countries and states do not allow limitations on implied warranties and do not allow exclusions or limitations on damages, so these limitations may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from country to country and state to state.
To obtain warranty service, please return your product to Timex, one of its affiliates or the Timex
retailer where the product was purchased, together with a completed original Repair Coupon or,in
the U.S. and Canada only,the completed original Repair Coupon or a written statement identifying
your name, address, telephone number and date and place of purchase. Please include the following
with your product to cover postage and handling (this is not a repair charge): a US$ 8.00 check or
money order in the U.S.; a CAN$7.00 cheque or money order in Canada; and a UK£2.50 cheque or
money order in the U.K. In other countries, Timex will charge you for postage and handling. NEVER
INCLUDE ANY ARTICLE OF PERSONAL VALUE IN YOUR SHIPMENT.
For the U.S., please call 1-800-328-2677 for additional warranty information. For Canada,call
1-800-263-0981. For Brazil, call +55 (11) 5572 9733.For Mexico, call 01-800-01-060-00. For
Central America, the Caribbean, Bermuda and the Bahamas,call (501) 370-5775 (U.S.). For Asia,
call 852-2815-0091. For the U.K., call 44 208 687 9620.For Portugal, call 351 212 946 017. For
France, call 33 3 81 63 42 00. For Germany, call 49 7 231 494140. For the Middle East and Africa,
call 971-4-310850. For other areas, please contact your local Timex retailer or Timex distributor for
warranty information. In Canada, the U.S. and in certain other locations,participating Timex retailers
can provide you with a postage-paid, pre-addressed product Repair Mailer for your convenience in
obtaining factory service.
Service
If your Timex®product should ever need servicing, send it to Timex as set forth in the Timex
International Warranty or addressed to:
HOTLINE WATCH SERVICE,P.O. Box 2740, Little Rock,AR 72203
For service questions, call 1-800-328-2677.
For your convenience in obtaining factory service, participating Timex retailers can provide you with
a pre-addressed product Repair Mailer.
See the Timex International Warranty for specific instructions on the care and service of your Timex
product.
Should you need a replacement strap or band, call 1-800-328-2677.
THIS IS YOUR REPAIR COUPON. KEEP IT IN A SAFE PLACE.
TIMEX INTERNATIONAL WARRANTY — WATCH REPAIR COUPON
Original Purchase Date:
(Attach copy of sales receipt, if available)
Purchased by:
(Name, address and telephone number)
Place of Purchase:
(Name and address)
Reason for Return:
Declaration of Conformity
Manufacturers Name: Timex Group USA, Inc.
Manufacturers Address: 555 Christian Road
Middlebury, CT 06762 USA
declares that the product:
Product Name: Timex®Data Xchanger USB
Model Number: M502
conforms to the following specifications:
R&TTE: 1999/05/EC
Standards: ETSI EN 300 330-1 - V1.3.1 (EMC) & (ERM)
ETSI EN 330-2 - V1.1.1 (EMC) & (ERM) LVD:73/23/EEC
LVD: 73/23/EEC
Standards: CENELEC EN 55022:1998
Supplemental Information: The product herewith complies with the requirements of the Radio &
Telecommunications Terminal Equipment Directive 1999/05/EC, the Low Voltage Directive
73/23/EEC, and the EMC Directive 89/336/EEC and carries the CE marking accordingly.
CENELEC EN 55024-1998
EN 61000-4-2 - ESD
EN 61000-4-3 - RF Radiated Immunity
EN 61000-4-8 - Magnetics
Agent:
®
Brian J. Hudson
Director, New Products Engineering
Date: 06 January, 2009,Middlebury, Connecticut, U.S.
FRANÇAIS
Instructions d’installation du logiciel téléchargeable
Consultez
1.
2. Cliquez sur Créer un compte pour créer un compte et télécharger le logiciel.
REMARQUE : Si vous avez déjà un compte, vous pouvez passer directement à l’étape 3.
Les utilisateurs sont renvoyés vers
https://timextrainer.trainingpeaks.com/francais/créer-un-compte.aspx pour remplir leurs
informations personnelles (First name/prénom, Last name/nom, Username/nom d’utilisateur,
Password/mot de passe et Email Address/adresse électronique). Cliquez sur
(coin en bas à gauche)
3. Cliquez sur
ordinateur, et installez l’application dans le bureau en choisissant
suivez les indications sur l’écran.
xtrainer.trainingpeaks.com/francais
http://time
Créer un compte
Device Agent, sélectionnez la bonne version du Device Agent Timex pour votre
Run. Pour télécharger le fichier,
