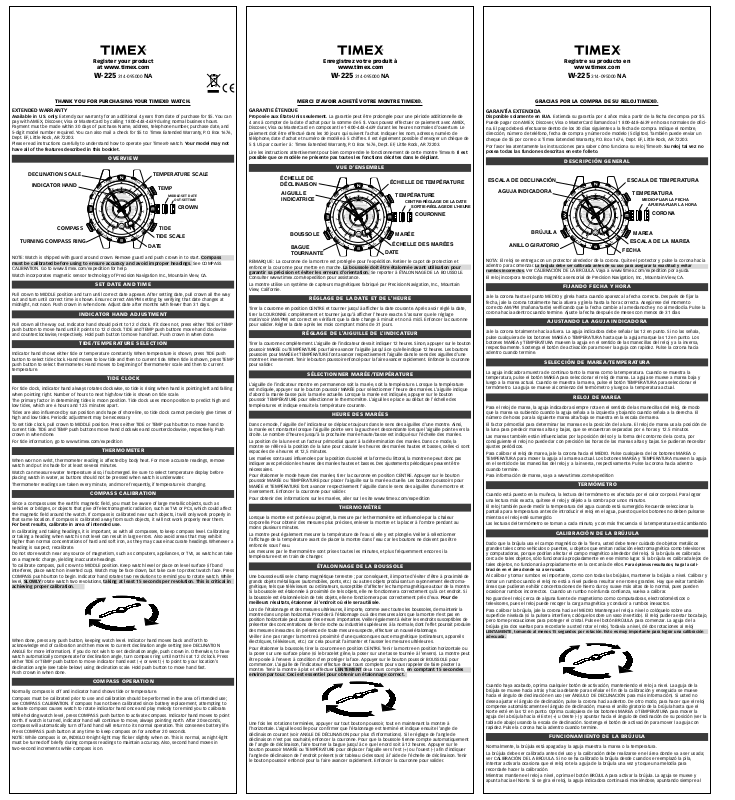

Timex W225 User Guide

EXTENDED WARRANTY

Available in U.S. only. Extend your warranty for an additional 4 years from date of purchase for $5. You can

pay with AMEX, Discover, Visa or MasterCard by calling 1 800-448-4639 during normal business hours.
Payment must be made within 30 days of purchase. Name, address, telephone number, purchase date, and
5-digit model number required. You can also mail a check for $5 to: Timex Extended Warranty, P.O. Box 1676,
Dept. EF, Little Rock, AR 72203.

Please read instructions carefully to understand how to operate your Timex® watch. Your model may not

have all of the features described in this booklet.

OVERVIEW

NOTE: Watch is shipped with guard around crown. Remove guard and push crown in to start. Compass
must be calibrated before using to ensure accuracy and avoid improper headings. See COMPASS

CALIBRATION. Go to www.timex.com/expedition for help.
Watch incorporates magnetic sensor technology of Precision Navigation Inc., Mountain View, CA.

SET DATE AND TIME

Pull crown to MIDDLE position and turn until correct date appears. After setting date, pull crown all the way
out and turn until correct time is shown. Ensure correct AM/PM setting by verifying that date changes at
midnight, not noon. Push crown in when done. Adjust date after months with fewer than 31 days.

INDICATOR HAND ADJUSTMENT

Pull crown all the way out. Indicator hand should point to 12 o’clock. If it does not, press either TIDE or TEMP
push button to move hand until it points to 12 o’clock. TIDE and TEMP push buttons move hand clockwise
and counterclockwise, respectively. Hold push button to move hand fast. Push crown in when done.

TIDE/TEMPERATURE SELECTION

Indicator hand shows either tide or temperature constantly. When temperature is shown, press TIDE push
button to select tide clock. Hand moves to low tide and then to current tide. When tide is shown, press TEMP
push button to select thermometer. Hand moves to beginning of thermometer scale and then to current
temperature.

TIDE CLOCK

For tide clock, indicator hand always rotates clockwise, so tide is rising when hand is pointing left and falling
when pointing right. Number of hours to next high/low tide is shown on tide scale.

The primary factor in determining tides is moon position. Tide clock uses moon position to predict high and
low tides, which are 6 hours and 12.5 minutes apart.

Tides are also influenced by sun position and shape of shoreline, so tide clock cannot precisely give times of
high and low tides. Periodic adjustment may be necessary.

To set tide clock, pull crown to MIDDLE position. Press either TIDE or TEMP push button to move hand to
current tide. TIDE and TEMP push buttons move hand clockwise and counterclockwise, respectively. Push
crown in when done.

For tide information, go to www.timex.com/expedition

THERMOMETER

When worn on wrist, thermometer reading is affected by body heat. For more accurate readings, remove
watch and put in shade for at least several minutes.

Watch can measure water temperature also, if submerged. Be sure to select temperature display before
placing watch in water, as buttons should not be pressed when watch is underwater.

Thermometer readings are taken every minute, and more frequently, if temperature is changing.

COMPASS CALIBRATION

Since a compass uses the earth’s magnetic field, you must be aware of large metallic objects, such as
vehicles or bridges, or objects that give off electromagnetic radiation, such as TVs or PCs, which could affect
the magnetic field around the watch. If compass is calibrated near such objects, it will only work properly in
that same location. If compass is calibrated away from such objects, it will not work properly near them.

For best results, calibrate in area of intended use.

In calibrating and taking headings, it is important, as with all compasses, to keep compass level. Calibrating
or taking a heading when watch is not level can result in large errors. Also avoid areas that may exhibit
higher than normal concentrations of hard and soft iron, as they may cause inaccurate headings.Whenever a
heading is suspect, recalibrate.

Do not store watch near any source of magnetism, such as computers, appliances, or TVs, as watch can take
on a magnetic charge, yielding inaccurate headings.

To calibrate compass, pull crown to MIDDLE position. Keep watch level or place on level surface (if band
interferes, place watch on inverted cup). Watch may be face down, but take care to protect watch face. Press
COMPASS push button to begin. Indicator hand rotates two revolutions to remind you to rotate watch. While
level, SLOWLY rotate watch two revolutions, taking at least 15 seconds per revolution. This is critical in

achieving proper calibration.

When done, press any push button, keeping watch level. Indicator hand moves back and forth to
acknowledge end of calibration and then moves to current declination angle setting (see DECLINATION
ANGLE for more information). If you do not wish to set declination angle, push crown in. Otherwise, to have
watch automatically compensate for declination angle, turn compass ring until north is at 12 o’clock. Press
either TIDE or TEMP push button to move indicator hand east (+) or west (-) to point to your location’s
declination angle (see table below) using declination scale. Hold push button to move hand fast.
Push crown in when done.

COMPASS OPERATION

Normally, compass is off and indicator hand shows tide or temperature.
Compass must be calibrated prior to use and calibration should be performed in the area of intended use;

see COMPASS CALIBRATION. If compass has not been calibrated since battery replacement, attempting to
activate compass causes watch to rotate indicator hand once and play melody to remind you to calibrate.

While holding watch level, press COMPASS push button to activate compass. Indicator hand moves to point
north. If watch is turned, indicator hand will continue to move, always pointing north. After 20 seconds,
compass will automatically turn off and hand will return to its normal operation. This conserves battery life.
Press COMPASS push button at any time to keep compass on for another 20 seconds.

NOTE: While compass is on, INDIGLO® night-light may flicker slightly when on. This is normal, as night-light
must be turned off briefly during compass readings to maintain accuracy. Also, second hand moves in
two-second increments while compass is on.

Register your product

at www.timex.com

W-225 314-095000 NA

THANK YOU FOR PURCHASING YOUR TIMEX® WATCH. MERCI D’AVOIR ACHETÉ VOTRE MONTRE TIMEX®. GRACIAS POR LA COMPRA DE SU RELOJ TIMEX®.

DECLINATION SCALE

INDICATOR HAND

TURNING COMPASS RING

TEMPERATURE SCALE

COMPASS

TEMP

CROWN

MIDDLE-SET DATE

OUT-SET TIME

TIDE

TIDE SCALE

DA

TE

USING THE COMPASS

Once compass is activated, as described above, there are two typical ways to use it.
Which way am I headed? Hold watch so that 12 o’clock is in direction of your travel. Turn compass ring

until indicator hand is pointing to north on ring. Your heading is direction on ring at 12 o’clock.
Which way should I go? If you know the direction you want to go (e.g., NE), turn compass ring until that

direction appears at 12 o’clock. Hold watch so that you are facing 12 o’clock. Then, turn your body until
indicator hand points to north on compass ring. You are now facing the direction you want to go.

DECLINATION ANGLE

A compass needle points to “magnetic north,” which may be slightly different from “true north,” which is
used on maps. This difference, called the “declination angle,” which varies around the globe, is typically small
and can be ignored in many cases. However, if you wish to compensate for this difference, there are two
ways to do so. You can do it manually by turning the compass ring so that indicator hand points to your
declination angle (see table below) instead of north, using declination scale on compass ring. Or, you may
have the watch automatically compensate by setting your declination angle after compass calibration; see
COMPASS CALIBRATION. With proper declination angle set, indicator hand will point to true north.

Declination angles for major world cities (W is negative and E is positive on declination scale).

INDIGLO® NIGHT-LIGHT

Anchorage . . . . . . . . . . . . . .20E London . . . . . . . . . . . . . . . . .2W Rio De Janeiro . . . . . . . . . . .22W

Atlanta . . . . . . . . . . . . . . . . . .4W Little Rock . . . . . . . . . . . . . . .1E San Francisco . . . . . . . . . . . .15E

Bombay . . . . . . . . . . . . . . . . .1W Livingston, MT . . . . . . . . . . .13E Seattle . . . . . . . . . . . . . . . . .18E

Boston . . . . . . . . . . . . . . . . .15W Munich . . . . . . . . . . . . . . . . . .2E Shanghai . . . . . . . . . . . . . . . .5W

Calgary . . . . . . . . . . . . . . . . .16E New York City . . . . . . . . . . .13W Toronto . . . . . . . . . . . . . . . .11W

Chicago . . . . . . . . . . . . . . . . .3W Orlando . . . . . . . . . . . . . . . . .5W Vancouver . . . . . . . . . . . . . .18E

Denver . . . . . . . . . . . . . . . . . .9E Oslo . . . . . . . . . . . . . . . . . . . .1E Washington DC . . . . . . . . . .11W

Jerusalem . . . . . . . . . . . . . . . .4E Paris . . . . . . . . . . . . . . . . . . .1W Waterbury, CT . . . . . . . . . . .14W

For more magnetic declination information go to www.timex.com/expedition

BRACELET ADJUSTMENT

FOLDOVER CLASP BRACELET

Find spring bar that connects bracelet to clasp. Using a pointed tool (Fig. 1), push spring bar in and gently
twist bracelet to disengage. Determine wrist size, then insert spring bar in correct bottom hole (Fig. 2). Push
down on spring bar, align with top hole and release to lock in place (Fig. 3).

BRACELET LINK REMOVAL

Removing Links: Place bracelet upright and insert pointed tool in opening of link.

Push pin forcefully in direction of arrow until link is detached (pins are designed to be
difficult to remove). Repeat until desired number of links are removed.

Reassembly: Rejoin bracelet parts. Push pin back into link in opposite direction of
arrow. Press pin down securely into bracelet until it is flush.

SOLID LINK BRACELET

Removing Links: Using a very small screwdriver, remove screws by turning counter-

clockwise. Repeat until desired number of links are removed. Do not remove links
adjacent to clasp.

Reassembly: Rejoin bracelet parts and insert screw in end of opening where it was
removed. Turn screw clockwise until tight and flush with bracelet.

BARREL LINK BRACELET WITH SCREW HEAD PINS

Removing Links: Removable links have arrows. Use one screwdriver near tail of

arrow to prevent pin from turning. Using another screwdriver, remove screw at
end near head of arrow by turning it counterclockwise. After removing screw, slide
pin out. Repeat for second pin in link.

Reassembly: Rejoin bracelet parts and insert pin in end of opening where it was
removed. Turn screw and other end clockwise until tight and flush with bracelet.

Fig. 1

Fig. 2

Fig. 3

WATER RESISTANCE

WARNING: TO MAINTAIN WATER-RESISTANCE, DO NOT PRESS ANY BUTTONS UNDER WATER.

1. Watch is water-resistant only as long as lens, push buttons and case remain intact.

2. Watch is not a diver watch and should not be used for diving.

3. Rinse watch with fresh water after exposure to salt water.

If your watch is water-resistant, meter marking or (O) is indicated.

Water-Resistance Depth p.s.i.a. * Water Pressure Below Surface

30m/98ft 60
50m/164ft 86

100m/328ft 160

*pounds per square inch absolute

BATTERY

Timex strongly recommends that a retailer or jeweler replace battery. Battery type is on watch back. If
present, push/short internal reset switch after replacing battery. Battery life estimates are based on certain
assumptions regarding usage; battery life may vary depending on actual usage.

DO NOT DISPOSE OF BATTERY IN FIRE. DO NOT RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHIL­DREN.

TIMEX INTERNATIONAL WARRANTY

(U.S. – LIMITED WARRANTY – PLEASE SEE FRONT OF INSTRUCTION BOOKLET

FOR TERMS OF EXTENDED WARRANTY OFFER)

Your TIMEX® watch is warranted against manufacturing defects by Timex Corporation for a period of ONE YEAR from the
original purchase date. Timex and its worldwide affiliates will honor this International Warranty.

Please note that Timex may, at its option, repair your watch by installing new or thoroughly reconditioned and inspected
components or replace it with an identical or similar model. IMPORTANT — PLEASE NOTE THAT THIS WARRANTY DOES

NOT COVER DEFECTS OR DAMAGES TO YOUR WATCH:

1) after the warranty period expires;

2) if the watch was not originally purchased from an authorized Timex retailer;

3) from repair services not performed by Timex;

4) from accidents, tampering or abuse; and

5) lens or crystal, strap or band, watch case, attachments or battery.Timex may charge you for replacing any of these
parts.

THIS WARRANTY AND THE REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE.
TIMEX IS NOT LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some countries and states do not
allow limitations on implied warranties and do not allow exclusions or limitations on damages, so these limitations may
not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from country
to country and state to state.

To obtain warranty service, please return your watch to Timex, one of its affiliates or the Timex retailer where the watch
was purchased, together with a completed original Watch Repair Coupon or, in the U.S. and Canada only, the completed
original Watch Repair Coupon or a written statement identifying your name,address, telephone number and date and place
of purchase. Please include the following with your watch to cover postage and handling (this is not a repair charge): a US$

7.00 check or money order in the U.S.; a CAN$6.00 cheque or money order in Canada; and a UK£2.50 cheque or money
order in the U.K. In other countries, Timex will charge you for postage and handling. NEVER INCLUDE A SPECIAL WATCH­BAND OR ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR SHIPMENT.

For the U.S., please call 1-800-448-4639 for additional warranty information. For Canada, call 1-800-263-0981. For Brazil,
call [phone]. For Mexico,call 01-800-01-060-00. For Central America, the Caribbean, Bermuda and the Bahamas,
call [phone] (U.S.). For Asia, call 852-2815-0091. For the U.K., call 44 020 8687 9620. For Portugal, call 351 212 946

017. For France, call 33 3 81 63 42 00. For Germany, call 49 7 231 494140.For the Middle East and Africa, call 971-4-310850.
For other areas, please contact your local Timex retailer or Timex distributor for warranty information. In Canada, the U.S.
and in certain other locations, participating Timex retailers can provide you with a postage-paid, pre-addressed Watch
Repair Mailer for your convenience in obtaining factory service.

©2005 Timex Corporation. TIMEX is a registered trademark of Timex Corporation. INDIGLO is a registered trademark of
Indiglo Corporation in the US. and other countries.

Press crown to illuminate watch face. Electroluminescent
technology used in the INDIGLO® night-light illuminates entire watch face at night and in low light conditions.
