Timex W-184 User Manual

W-188 589-095007 EU

performance watch user guide

Performance Watch User Guide

English page 1

Deutsch Seite 81

Italiano pagina 169

Nederlands pagina 257

BODYLINK SYSTEM

T ABLE OF C ONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Welcome!. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Manual organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Print resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Web resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Performance Watch Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Watch terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

The chronograph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Watch button functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Watch case buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To Set Watch functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Viewing buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Watch display icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Starting the Bodylink® System . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Viewing Performance Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Watch messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Display formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

To operate Vertical Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

To view performance data in Vertical Mode. . . . . . . . . . . . . . . . 32

Vertical Mode example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Finish Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Finish Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

To set Finish Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

To view performance data in Finish Mode. . . . . . . . . . . . . . . . . 35

Finish Mode example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Navigate Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Navigate Mode terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Navigate Mode functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

To operate Navigate Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

To store waypoints in Navigate Mode . . . . . . . . . . . . . . . . . . . . 38

To view performance data in Navigate Mode. . . . . . . . . . . . . . . 39

Navigate Mode example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Waypoints Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Waypoints Mode terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Waypoints Mode functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

To operate Waypoints Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

To store a waypoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

To view or edit waypoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Watch modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using the Watch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Performance Watch Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Time of Day Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Time of Day Mode terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Time of Day Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

To set time of day. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

To switch time zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

To synchronize Time of Day with Fitness sensors . . . . . . . . . . 24

To view performance data in Time of Day Mode. . . . . . . . . . . . 25

Time of Day Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Chronograph Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chronograph Mode terminology . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chronograph Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

To operate Chronograph Mode manually. . . . . . . . . . . . . . . . . . 28

To operate Chronograph Mode hands-free. . . . . . . . . . . . . . . . . 29

To view performance data in Chronograph Mode . . . . . . . . . . . 29

Chronograph Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Vertical Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Vertical Mode terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Vertical Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To operate the Track Back feature. . . . . . . . . . . . . . . . . . . . . . . 44

Waypoints Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Lap Data Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Lap Data Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

To operate Lap Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

To view performance data in Lap Data Mode . . . . . . . . . . . . . . 47

Lap Data Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Summary Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Summary Mode terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Summary Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

To operate Summary Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

To reset Features in Summary Mode . . . . . . . . . . . . . . . . . . . . . 50

To view performance data in Summary Mode . . . . . . . . . . . . . . 50

Summary Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Timer Mode terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Timer Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

To set Timer Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

To operate the Timer in Timer Mode. . . . . . . . . . . . . . . . . . . . . 55

To view performance data in Timer Mode . . . . . . . . . . . . . . . . . 57

Timer Mode example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Alarm Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Alarm Mode functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

To set an alarm in Alarm Mode . . . . . . . . . . . . . . . . . . . . . . . . . 59

Configure Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Configure Mode terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Configure Mode setting groups . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

To set functions in Configure Mode . . . . . . . . . . . . . . . . . . . . . . 61

Configure Mode options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

HRM settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

GPS-3D Sensor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Altitude settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Hands-Free settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Watch settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Unit settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Care & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Changing the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

INDIGLO® night-light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Water resistance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

International warranty (U.S. limited warranty) . . . . . . . . . . . . . . 72

Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

FCC notice (United States)/IC notice (Canada). . . . . . . . . . . . . . . 75

Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

I NTRODUCTION

Welcome!

Congratulations! With your purchase of the Timex® Bodylink® System you have hired your new personal coach. Using your Performance Watch in partnership with the Heart Rate and Speed + Distance Sensors offers you an unprecedented ability to track, store, and analyze several key indicators of your personal fitness level.

We dedicate this manual to information regarding your Performance Watch. This sport Watch functions as the brain for your Bodylink System, providing you comprehensive, real-time workout data gathered from the Heart Rate Sensor, Speed + Distance Sensor, or both.

You will find your Performance Watch provides you with very userfriendly fitness technology. But, like any new technology, you should take the time to familiarize yourself with it to optimize the usefulness of your purchase.

So, have fun exploring! Review the Performance Watch modes. Use the Quick Start Guide to give you a baseline knowledge of the Bodylink System. Most of all, enjoy your new fitness partner on your road to increased performance!

Manual organization

This manual contains information about, and instructions for, setting up your new Performance Watch and using it with the Bodylink Fitness Sensors as part of the coordinated Bodylink System.

To assist you in learning about your Performance Watch, this manual contains several key elements to increase your understanding, including:

An overview of the Performance Watch buttons, display icons, and modes.

A glossary for each section that explains many of the references used for the Performance Watch and the Performance Watch modes.

Complete, comprehensive instructions for setting up and using your Performance Watch in each mode.

A primer covering the links between your Performance Watch and each of the Fitness Sensors in each mode.

Real-world scenarios that explain how you might use your Performance Watch as part of your activity routine. You will see these scenarios throughout the manual, appearing in grey text boxes.

Resources

Print resources

In addition to this manual, your Bodylink System includes these valuable resources:

Bodylink® System Quick Start Guide: Information to help you set up and begin using your Performance Watch in conjunction with your Fitness Sensors, and an overview map of the different Performance Watch modes.

Fitness Sensors User Guide: Information for set-up, operation, and maintenance of your Speed + Distance and Heart Rate Sensors.

Web resources

The Timex Websites offer beneficial information to help you optimize your Bodylink System. These sites include:

v www.timex.com/bodylink/: Information about Bodylink

System features and product simulations.

v www.timex.com/software/: Current software releases for

Timex products.

www.timex.com/fitness/: Fitness and training tips for using the Bodylink System.

Chronograph

Mode

Vertical Mode

Finish Mode

P ERFORMANCE W A TCH O VERVIEW

Watch terminology

The following terms appear throughout this manual. Knowing these terms will provide you a greater understanding of the information provided.

Bodylink® System: The Bodylink System allows you to track realtime data by using Fitness Sensors in conjunction with your Performance Watch.

Fitness Sensors: The Bodylink System includes two digital sensors: the Heart Rate Sensor and the Speed + Distance Sensor.

Performance Watch

: The Performance Watch, (Watch) houses the

data center for the Bodylink System. Speed + Distance Sensor: The Speed + Distance Sensor (GPS-

3D Sensor) tracks speed, pace, distance traveled, altitude, location, and more, using GPS based technology. The Fitness Sensor User Guide provides detailed instructions for setting up and using your GPS-3D Sensor.

GPS: The GPS-3D Sensor uses information gathered from global

positioning satellites (GPS) to calculate your speed, distance, and elevation, and to track your movements.

Heart Rate Sensor: The Heart Rate Sensor (HR Sensor) measures your heart rate. The Fitness Sensor User Guide provides detailed information for setting up and using your HR Sensor.

The chronograph

As you use this manual to learn about your Watch, the word chronograph can potentially cause some confusion. Try to remember this: a chronograph is a tool for measuring time. So, you will notice a Chronograph Mode, but Vertical and Finish Modes also operate from the chronograph. Any time your Watch functions as a timing tool, it operates using chronograph (or timing) functionality.

chronograph

measures time

DONE

Press when finished setting

INDIGLO® night-light

Press to light the watch

Press to increase the displayed value

SELECT

Press to begin setting or move to the next value

Press to decrease the displayed value

Watch button functions

The buttons on your Watch are multi-functional, serving three purposes. You do not have to memorize button functions for each mode. Let the Watch serve as your guide.

Watch case buttons

Most of the time, the Watch buttons function according to the

labels printed on the case. If you do not see any of symbols on the

display, follow the information printed on the Watch case to guide

you in using the buttons.

MODE

Press to go to the next mode

START/SPLIT

Press to start timing or take a split

INDIGLO

night-light

Press to light the watch

DISPLAY

Press to display performance data

SET/FORMAT

Press to set or change the display format

STOP/RESET

Press to stop or press and hold to reset

Setting buttons

Watch buttons also set Watch functions (for example, setting the time or a target heart rate zone). When the + and - symbols appear on the Watch display, you have initiated the setting process.

TO SET WATCH FUNCTIONS

Use the following steps to set Watch functions:

1. Press and hold SELECT (SET/FORMAT). The message HOLD TO SET may appear.

2. Continue pressing SELECT (SET/FORMAT) until SET briefly appears on the display, followed by a flashing value.

3. Set the first value by pressing + (DISPLAY) or (STOP/RESET).

1514

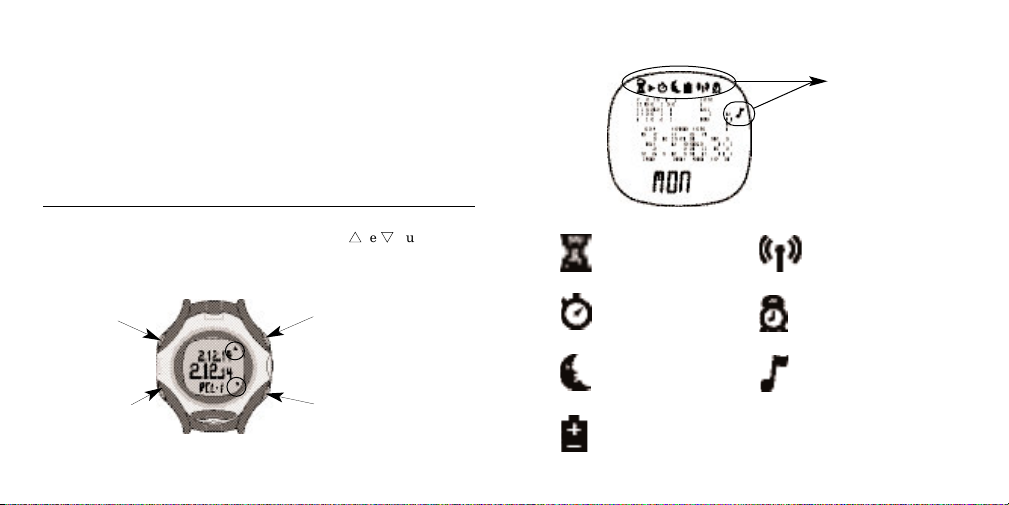

Watch display icons

Timer running

Chronograph running

Night Mode enabled

GPS-3D Sensor battery low

Sensor(s) activated (blinks when trouble)

Alarm armed

Hourly chime enabled

Watch display icons

4. When you reach the desired value, press SELECT (SET/FORMAT) to move to the next value.

5. Repeat steps 3 and 4 for each value you want to set.

6. When you have adjusted all values, press DONE (MODE) to return to the main display of the mode.

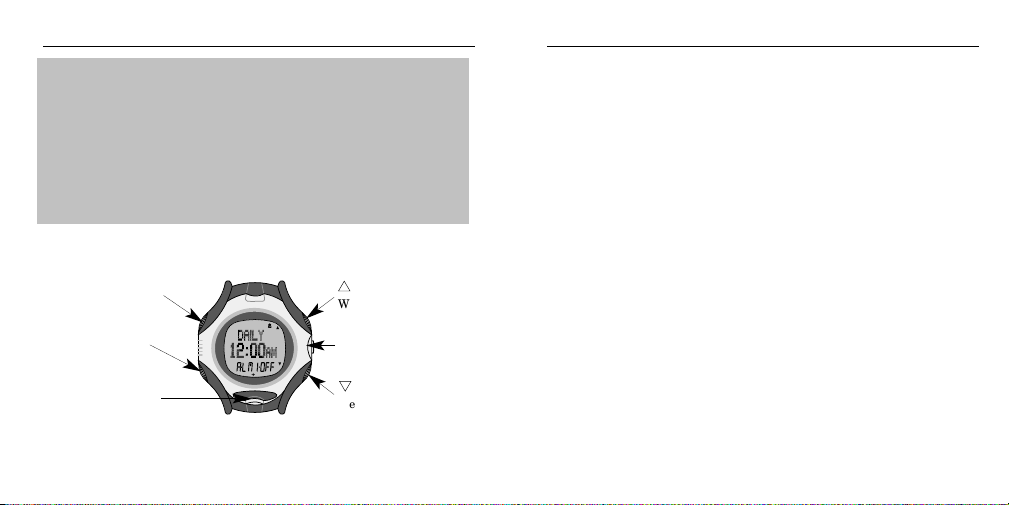

Viewing buttons

Finally, buttons help you navigate through viewing options. When you see the ▲ and ▼ triangles on the display, you know there is information to view.

MODE

Press to go to the next mode

INDIGLO® night-light

Press to light the watch

▲

Press to display next data value

▼

Press to display previous data value

Starting the Bodylink® System

When using the Performance Monitor, you can view real-time data from a Heart Rate Sensor or Speed + Distance Sensor, or both, in Time of Day, Chrono and Timer. The procedure to do this is the same in all modes, though the data that you can view and their position on the display in each mode will vary.

1. Make sure you’re wearing your Heart Rate Sensor or Speed + Distance Sensor, or both, and that they are powered up and functional.

2. Stand at least 6 feet (2 meters) away from any other users of fitness monitor systems and from any source of radio interference such as electrical equipment, power lines, etc.

3. Press and release the DISPLAY button. This tells the watch to look for any Bodylink®sensors nearby; it will search for one

minute. The antenna icon will appear on the watch display, indicating that the Bodylink®system is active.

NOTE: Though the Bodylink®system has a working range of about 3 feet (1 meter) from the sensors to the watch, for the most reliable operation, make sure that the watch is as close to the sensors as possible when starting the system up.

4. When the watch has successfully detected transmissions from the sensors, the watch display will switch to a new format showing some or all of the sensor data, depending on the mode. Time of Day and Timer show the data in the lower line exclusively, while Chrono allows up to three lines of performance data.

Viewing Performance Data

Press and release the DISPLAY button to select the data or combination of data that you wish to view during your workout. For your convenience, a “banner” showing the names of the information and their position on the display is shown briefly before showing the data itself.

Here are a few more things you should know to use the watch effectively:

• While in the Chrono, press and release SET/FORMAT to swap the positions of the information in the upper and middle display lines. This allows you to view the data most important in the larger middle display line.

NOTE: As a convenience, Chrono and Timer will automatically search for Bodylink®sensors for fifteen seconds upon entering

the mode.

• If you want to stop monitoring data from your Bodylink®sensors, hold the DISPLAY button down until the message HOLD TO SHUT OFF RCVR is displayed on the watch display. Continue holding the DISPLAY button for a few more seconds; the watch will beep indicating that the radio link between the watch and the sensors has been shut down.

TIP: If you are already viewing data from one sensor, for example, the Heart Rate Sensor, and you wish to also view data from the Speed + Distance Sensor, simply press and hold the DISPLAY button until the watch emits a short beep and the antenna icon begins flashing. The watch is now searching for a second

Bodylink®sensor. When it detects this second device, the antenna icon will stop flashing and the display may change to a new format that includes the new information. Press and release the DISPLAY button (as detailed previously) to view various combinations of two sensor’s data.

Watch messages

When using the Watch with the Fitness Sensors, the Watch may display messages to communicate the status of the Sensor in conjunction with the Watch. Messages include:

SEARCHING The GPS-3D Sensor is still trying to link to GPS data. You cannot view speed, pace, distance, or positional information until the Sensor locates GPS satellites.

WEAK GPS SIGNAL The GPS-3D Sensor lost its link with GPS satellites. The GPS-3D Sensor operates more accurately in more open areas (such as an area without a lot of tree or cloud cover) and at quicker speeds.

NO DATA FROM HRM (GPS)

from the HR or the GPS-3D Sensor. Ensure that the Sensor is not more than 3 feet (1 meter) away from the Watch, is operating, or has not inadvertently locked onto someone else’s Sensor. The Watch will attempt to establish a connection for one minute after this message displays.

NOISY DATA FROM HRM (GPS)

radio interference. Try to move away from any potential sources of interference (for example, televisions, monitors, or motorized devices). The Watch will attempt to establish a connection for 30 seconds after this message displays.

AL GPS ERROR

FAT

The GPS-3D Sensor has encountered a

severe internal error. Contact Timex Customer Service.

The Watch is not receiving data

The Watch is experiencing

Display formatting

Time

Pace

Time

Pace

In Chronograph, Vertical (with the exception of ascent rate information), Finish, and Navigate Modes, you can press and release SET/FORMAT to switch the display reading positions in the upper and middle display lines.

Watch modes

You can cycle through each of the 11 modes by pressing MODE. The modes include:

Time of Day allows you to display the time, date, and day of the week for two different time zones.

Chronograph tracks and displays performance data.

Vertical applies a view for vertical data such as ascent rate, altitude, and elevation.

Finish lets you predict a time for a specified distance and set alerts if you are off pace.

Navigate recognizes positional, compass-type information for your location.

Waypoints support up to ten reference points as you travel from one location to another and uses these reference points to help you travel back to your beginning location.

Lap Data presents stored lap information.

Summary displays data recorded while the chronograph runs.

Timer enables you to time an event that counts down from a specific time to zero.

Alarm manages up to five alarms.

Configure permits you to customize Watch functions to meet your needs.

Using the Watch

To access all features and functionality of your Watch, you must use it in conjunction with the Fitness Sensors. However, your Watch does offer some flexibility of use. For example:

You can use your Watch without either of the Fitness Sensors to view time Time of Day Mode, as an alarm in Alarm Mode, or to time a workout in any of the chronograph modes.

You can use your Watch with only the HR Sensor in any of the chronograph modes to track heart rate and time information.

You can use your Watch with the GPS-3D Sensor in any of the navigational modes to track distance information. Or, you can use this Sensor in any of the chronograph modes to track distance information.

P ERFORMANCE W A TCH M ODES

View performance data

View or switch to secondary time

Hold to set

INDIGLO®

night-light

To Chronograph Mode

You can return to Time of Day Mode from any other mode on the Watch by pressing and holding MODE until the time of day

displays.

TO SET TIME OF DAY

For instructions on setting Watch functions, including Time of Day, refer to page 13, “To set Watch functions.”

For Time of Day, you can set the following values:

NOTE: You cannot adjust seconds. When you use the Watch with

the GPS-3D Sensor, it will align with UTC. When switching between Standard Time and Daylight

Savings Time, manually adjust the hour. You can set the Watch slightly ahead or behind current

time. For example, if you typically arrive ten minutes late, set the Watch ten minutes ahead. The Watch remains ahead of time even when you synchronize it with the GPS-3D Sensor.

Hour

Month

Minute

Date (automatically sets the day of week when you set the date)

Year

Hour format (i.e., AM/PM versus 24-hours)

Time of Day Mode

Time of Day Mode terminology

UTC: Universal Time, Coordinated (formerly known as GMT) describes the local time zone in relationship to the Greenwich Meridian. For example, New York City is in the -5 UTC zone, since New York is five hours earlier than Greenwich Meridian; Moscow is +3 UTC, since it is three hours later than Greenwich Meridian.

Time of Day Mode functions

Your Watch can act as an ordinary watch to display the time, date, and day for two different time zones, using a 12- or 24-hour format.

TO SWITCH TIME ZONES

The Watch can track two time zones (T1 and T2). Look at the other zone by pressing START/SPLIT

. Or, switch from T1 to T2

using these steps:

1. Press and hold START/SPLIT until HOLD FOR TIME 2

displays.

2. Continue to hold until the time switches and the Watch beeps.

3. Repeat steps 1 and 2 to switch back to T1. The message will

read HOLD FOR TIME 1.

You must independently set the time of day for each time zone.

TO SYNCHRONIZE TIME OF DAY WITH FITNESS SENSORS

When you first activate the GPS-3D Sensor in conjunction with your Watch, you can expect one of the following scenarios:

If you activate the GPS-3D Sensor before setting the time of day, the Watch will synchronize both T1 and T2 with UTC. You will need to adjust the hour for both time zones to your local time.

If you activate the GPS-3D Sensor after setting the time of day, the Watch maintains the hour and date settings and synchronizes minutes and seconds to UTC for each time zone.

After initial use, the Watch will automatically correct any time inaccuracy upon activation of the GPS-3D Sensor and every 15 minutes thereafter.

TO VIEW PERFORMANCE DATA IN TIME OF DAY MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

Press to view performance data

Performance data

Performance data viewing options for Time of Day Mode include:

Heart Rate: Current heart rate (requires HR Sensor).

Speed: Current velocity (requires GPS-3D Sensor).

Pace: Current velocity, expressed in minutes per selected distance unit, such as miles or kilometers (requires GPS-3D Sensor).

Distance: Distance traveled since the activation of the GPS-3D Sensor (requires GPS-3D Sensor).

Altitude: Current elevation above sea level (requires GPS-3D Sensor).

NOTE: If the Watch does not detect either Fitness Sensor, the

day of the week shows on the bottom line of the display. You can continue viewing the day of the week while using the Fitness Sensors by hiding performance data (for data hiding information, see “Watch settings” on page 67). If you choose Day of Week, it will appear as though the Watch does not receive any data.

Time of Day Mode example

Assume that you live in San Francisco and work with a client in Singapore. Like all busy people, it is imperative you keep track of time, so you set T1 to your local time. But it is also important to have a quick reminder of your client's time, so you set T2 to Singapore time. With both time zones available, you can quickly check your client's time or even switch your monitor to display T2 when you travel to Singapore.

Chronograph Mode

INDIGLO®

night-light

To Vertical Mode or hold for time

Start timing or take a split

View performance data

Swap upper and middle lines

Stop or reset the chronograph

Chronograph Mode terminology

Chronograph: The chronograph records time segments for the duration of your activity.

Lap: Lap time records the time for one segment of your activity. Split: Split time records the total elapsed time since the beginning

of your current activity. Taking a split: When you take a split, the chronograph will

complete timing one lap and begin timing a new one.

Chronograph Mode functions

Chronograph Mode operates as the main workout data center for your Watch. It can record elapsed time for up to 100 hours. It can also register information for up to 100 laps, including data for speed, pace, and distance (using the GPS-3D Sensor); and average heart rate (using the HR Sensor).

NOTE: Press MODE to switch the Watch display to any other

mode while the chronograph continues to run. The stopwatch icon will appear to indicate the chronograph is still functioning.

TO OPERATE CHRONOGRAPH MODE MANUALLY

1. Press MODE until Chronograph Mode appears.

2. Press START/SPLIT to begin timing.

3. Press START/SPLIT again to take a split and automatically

begin timing a new lap. The Watch stores lap and split information and displays

average statistics for the lap if you are using the Fitness Sensors.

4. Press MODE to immediately display new lap information

OR Wait for a few seconds and the Watch will automatically begin

to display data for a new lap.

5. Press STOP/RESET to stop timing when you reach the end

of your activity.

6. Press START/SPLIT to continue timing.

OR Press and hold STOP/RESET to reset the chronograph

display to zero.

TO OPERATE CHRONOGRAPH MODE HANDS-FREE

You can set Chronograph Mode to start when you begin moving and to stop when you stop moving or to automatically take splits based on either distance or elapsed time. See “Hands-free settings” on page 66.

TO VIEW PERFORMANCE DATA IN CHRONOGRAPH MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

Performance data viewing options for Chronograph Mode include:

Heart Rate: Current heart rate (requires HR Sensor).

Speed: Current velocity (requires GPS-3D Sensor).

Average Speed: Average velocity for the period that chronograph has been running (requires GPS-3D Sensor).

Pace: Current velocity, expressed in minutes per selected distance unit, such as miles or kilometers (requires GPS-3D Sensor).

Average Pace

: Average per-minute speed for the period that

chronograph has been running (requires GPS-3D Sensor).

Distance: Distance traveled since the chronograph was started (requires GPS-3D Sensor).

Altitude: Current height above sea level (requires GPS-3D Sensor).

Vertical Mode

Vertical Mode terminology

Ascent rate: How quickly you climb or descend. Vertical speed: Another term for ascent rate.

Vertical Mode functions

Vertical Mode operates as a viewing mode in conjunction with the GPS-3D Sensor with a focus on displaying altitudinal data. In particular, Vertical Mode tailors the Watch to view data related to vertical activities (for example, climbing or skiing).

NOTE: If you do not use the GPS-3D Sensor, Vertical Mode

operates identically to Chronograph Mode, displaying only time and lap information.

View performance data

Swap upper and middle lines

Stop or reset the chronograph

INDIGLO®

night-light

Start lap or take a split

To Finish Mode or hold for time

Elevation: Difference between your current altitude and the altitude when you started the chronograph (requires GPS-3D Sensor).

Chronograph Mode example

Assume that you run regularly, and you want to gain information about your current workout routine so that you can set fitness goals for yourself. You use Chronograph Mode to record lap time for each of the three stages of your workout. When you finish your workout, use the lap information to determine distance and pace, both per lap and as a total of all three laps. If you ran uphill for part of your workout, you can also determine your elevation to learn how far you climbed. With your current fitness level in mind, you can then set realistic fitness goals for yourself and monitor your progress on a regular basis.

TO OPERATE VERTICAL MODE

1. Press MODE until Vertical Mode appears.

2. Press START/SPLIT

3. Press START/SPLIT

to begin timing. again to take a split and automatically

begin timing a new lap.

4. Press STOP/RESET to stop timing when you reach the end

of your activity.

5. Press START/SPLIT to continue timing.

OR Press and hold STOP/RESET again to reset the display to

zero.

TO VIEW PERFORMANCE DATA IN VERTICAL MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

Performance data viewing options for Vertical Mode include:

Heart Rate: Current heart rate (requires HR Sensor).

Ascent Rate: Vertical speed (requires GPS-3D Sensor).

Pace: Current velocity, expressed in minutes per selected distance unit, such as miles or kilometers (requires GPS-3D Sensor).

Speed: Current velocity (requires GPS-3D Sensor).

Distance: Distance traveled since the GPS-3D Sensor was started (requires GPS-3D Sensor).

Altitude: Current height above sea level (requires GPS-3D Sensor).

Elevation: Difference between your current altitude and the altitude when you started the chronograph (requires GPS-3D Sensor).

Vertical Mode example

You are heli-skiing in Banff on a run estimated at 2,700 vertical feet (214 vertical meters). Curious about the accuracy of the estimate as well as how long it will take you to make your run, you start your GPS-3D Sensor, navigate to Vertical Mode and press START as you take off down the mountain. At the end of your run, you press STOP and then DISPLAY until you see Ascent Rate and Elevation (expressed in a negative number since you traveled downhill). Use this information to see how fast you skiied and compare the Watch’s expressed elevation to your guide’s estimate.

Finish Mode

TO SET FINISH MODE

For instructions on setting Watch functions, including Finish Mode, refer to page 13, “To set Watch functions.”

For Finish Mode, you can set the following values:

Pre-set or custom distance [(for custom set the distance (up to

999.99) and the unit (NM, KM, or MI)]

Target time

Alert option (an audible alert will cause the Watch to both beep and flash the predicted finish time and a silent alert will only flash the predicted finish time)

TO VIEW PERFORMANCE DATA IN FINISH MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

Performance data viewing options for Finish Mode include:

Finish Time: The predicted finish time based on your current speed and distance. The finish time will flash if you move slower or quicker than your predicted finish time. If you stop moving, the Watch replaces the finish time with STOPPED. (requires GPS-3D Sensor)

Pace: Current velocity, expressed in minutes per selected distance unit, such as miles or kilometers (requires GPS-3D Sensor).

INDIGLO®

night-light

To Navigate Mode or hold for time

Start timing or take a split.

View performance data

Stop timing

Finish Mode functions

Finish Mode allows you to predict how much time it will take you to finish a specified distance based on current GPS-3D Sensor data. To help you stay on pace for your predicted finish, you can also set the Watch to alert you if you are moving either too quickly or too slowly for your desired pace.

NOTE: If you do not use the GPS-3D Sensor, Finish Mode

operates identically to Chronograph Mode, displaying only time and lap information.

You must reset the chronograph to zero prior to operating Finish Mode or it will not operate properly.

Average Pace: Average per-minute speed for the period that chronograph has been running (requires GPS-3D Sensor).

Distance: Distance traveled since the chronograph was started (requires GPS-3D Sensor).

Speed: Current velocity (requires GPS-3D Sensor).

Average Speed: Average velocity for the period that the chronograph has been running (requires GPS-3D Sensor).

Heart Rate: Current heart rate (requires HR Sensor).

Finish Mode example

You are training for a 100 KM bicycle race. Last year you rode in the same race and finished in 4 hours, 15 minutes. This year your goal is to finish in less than 4 hours. You read in a training magazine that when training for a race, you should devote one day a week to riding at a distance equal to your event working toward your goal time. To help keep you on pace, you set Finish Mode to 100 KM for a distance and 4 hours for a time. You set the Watch to alert you audibly when you go slower than your pace to help keep you on track as you ride.

Navigate Mode

INDIGLO®

night-light

To Waypoints Mode or hold for time

Store current position as a waypoint

View performance data

Navigate Mode terminology

Waypoints: A point between the beginning and ending point on a route. Waypoints serve as landmarks during an activity that you can use to help you find your way from your ending point back to your beginning point.

Heading: The direction you are traveling in relation to North. The Watch includes a numeric heading display in Navigate Mode.

NOTE: In Configure Mode, you can set your Watch to read True

North (the geographic North Pole where all longitude lines meet) or Magnetic North (North in alignment with the earth's magnetic field). See “Unit settings” on page 68

for more information.

Navigate Mode functions

Navigate Mode displays directional information and tracks your speed, distance, and altitude during an activity. While you can set up to 10 waypoints to mark specific locations during your activity, this mode does not operate like a compass. You must be moving for accurate heading information.

In addition, Navigate Mode does not operate in conjunction with the chronograph. This mode displays and automatically updates current positional information, but does not keep time.

NOTE: Navigate Mode will not operate without the use of the

GPS-3D Sensor. If the GPS-3D Sensor is not operational, you will receive the message: NO GPS DATA.

TO OPERATE NAVIGATE MODE

1. Press MODE until Navigate Mode appears.

2. Begin moving. The Watch automatically updates the

information displayed on the Watch. If you stop moving the altitude and heading values freeze.

TO STORE WAYPOINTS IN NAVIGATE MODE

For Navigate Mode, you can only store waypoints. For all other waypoints options, you must use Waypoints Mode.

For instructions on storing waypoints, refer to “To store a waypoint” on page 42.

TO VIEW PERFORMANCE DATA IN NAVIGATE MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

All data in Navigate Mode requires the GPS-3D Sensor. Performance data viewing options for Navigate Mode include:

Longitude: East/West position expressed in degrees, minutes, and seconds from the Greenwich Meridian.

Latitude: North/South position expressed in degrees, minutes, and seconds from the equator.

Heading: The direction you are traveling.

Speed: Current velocity.

Distance: Distance traveled since the activation of the GPS-3D Sensor.

Altitude: Current height above sea level.

Numeric heading in Navigate Mode

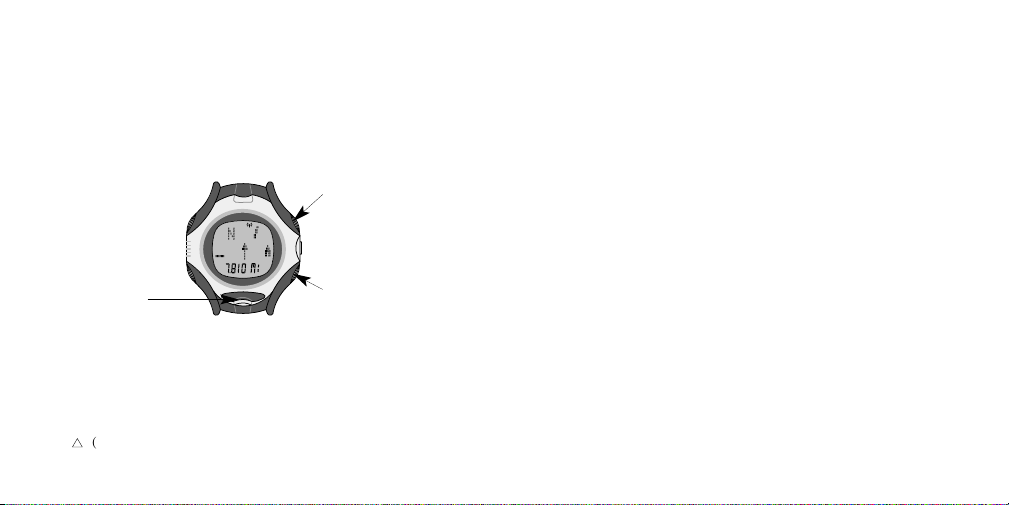

Graphical heading using Track Back in Waypoints Mode

Navigate Mode example

Waypoints Mode

Waypoints Mode terminology

Waypoint: A point between the beginning and ending point on a route. Waypoints serve as location landmarks during an activity.

View a stored waypoint

Change the label for a stored waypoint

Erase a waypoint

INDIGLO®

night-light

Store a waypoint

To Lap Data or hold for time

You recently began orienteering where you move between waypoints in the fastest time. Your last race included eight waypoints and you finished in 42 minutes. To help improve your time, you set up a practice course. Using heading information from Navigate Mode, you move between waypoints. At the end of the course, you scroll to speed data to view how quickly you completed the course.

Heading: The direction you are traveling in relation to North. In

Waypoints Mode you can view a graphical heading when you activate the Track Back function.

Bearing: Direction to a target. Bearing information only appears when you operate the Track Back feature and is indicated by a house graphic.

Track Back: The Track Back feature allows you to navigate to a stored waypoint from your current position.

Waypoints Mode functions

Waypoints Mode displays positional information and allows you to store up to 10 waypoints to mark specific navigational locations during your activity. Your current location will always be marked with CURRENT.

When you store waypoints, you can select a label from a list of presets included with the Watch. Pre-set labels include: WAYPNT # (where # equals the waypoint number), JCT, HOME, START, FINISH, CAMP, TRAILHD, PEAK, or VISTA.

If you attempt to set more than 10 waypoints, you will receive the message MEMORY FULL.

NOTE: You can also store waypoints in Navigate Mode.

TO VIEW OR EDIT WAYPOINTS

1. Press

▲

(DISPLAY) to recall a stored waypoint.

2. Choose one of the following options to view or edit a waypoint:

To view a waypoint, press

▲

(DISPLAY) until you locate

the waypoint you wish to view. You can also continue to press

▲

(DISPLAY) until you

navigate back to the current location.

To change the label of a waypoint, press SET/FORMAT until you locate the label you wish to use.

Waypoints Mode includes the Track Back feature that allows you to navigate from your current position to a stored waypoint.

Waypoints Mode does not operate in conjunction with the chronograph. This mode displays and automatically updates current positional information, but does not keep time. In addition, Waypoints Mode does not display any performance data.

NOTE: Waypoints Mode will not operate without the use of the

GPS-3D Sensor. If the GPS-3D Sensor is not operational, you will receive the message NO GPS DATA.

TO OPERATE WAYPOINTS MODE

1. Press MODE until Waypoints Mode appears.

2. Begin moving. The Watch automatically updates displayed

positional information.

TO STORE A WAYPOINT

1. Press and hold START/SPLIT to store a waypoint.

2. Press + (DISPLAY) or - (STOP/RESET) to scroll

through the nine pre-set waypoint labels.

3. Press DONE (MODE) to store the waypoint.

4. Repeat steps 1 through 3 to store up to nine other waypoints.

A plus ( + ) sign will appear above the START/SPLIT key if the Watch has room for more waypoints.

View stored

waypoints

hhaannggee llaabbeell

for

stored waypoints

rraasse

stored

waypoints

To erase a waypoint, press and hold STOP/RESET . If you erase a waypoint, it will not re-order the other

waypoints. For instance, if you have labeled your waypoints WAYPNT 1, 2, and 3 and you erase WAYPNT 2 you will then have waypoints labeled WAYPNT 1 and 3.

TO OPERATE THE TRACK BACK FEATURE

Recall a stored waypoint

Activate Track Back

Deactivate Track Back

You can activate the Track Back feature when you are ready to navigate from a current position to one of your stored waypoints. When activated, the Track Back feature takes over Waypoints Mode. You cannot perform any other functions until you deactivate Track Back.

▲

1. Press

(DISPLAY) to select the desired waypoint.

2. Press and hold START/SPLIT. You will see the message

HOLD TO BEGIN TRACK.

The Watch will display the current heading and bearing and the estimated distance from your current location to the selected waypoint.

3. Begin moving. The Watch will display your current location until your location aligns with your chosen waypoint.

The Watch calculates the distance between your current position and the chosen waypoint as a straight line. Depending on your heading and bearing, the distance may appear to increase as you move towards your desired waypoint.

4. Press and hold STOP/RESET to deactivate the Track Back feature once you reach your destination.

5. Repeat steps 1 through 4 to navigate to another stored waypoint. This allows you to retrace your path through a series of stored waypoints.

Waypoints Mode example

As a member of a local backpacking club, you volunteer to conduct trail clean-up before the opening of each camping season. Your map indicates various landmarks along the trail, but the trail itself has become overgrown. You move along the trail, clearing the underbrush to reveal the trail and at each landmark you set a waypoint on your Watch. When you reach the end of your designated clean-up route, you activate the Track Back feature to return to each landmark on your route and ensure you have properly cleared the trail.

Lap Data Mode

INDIGLO®

night-light

To Summary Mode or hold for time

▲

data value

▼

data value

Lap Data Mode functions

Lap Data Mode allows you to review stored lap information at any time. To record lap data, you must run the chronograph.

Once you restart the chronograph from zero for your next activity, lap data from the previous activity is erased.

NOTE: To view summary information for your entire activity,

refer to “Summary Mode” on page 49.

TO OPERATE LAP DATA

1. Press MODE until the Lap Data Mode appears.

2. Press ▲ (DISPLAY) or ▼ (STOP/RESET) to navigate through lap data.

Each recalled lap will display three lines of data. The lower line will show the lap number labeled RCL (for recall) for each lap you stored in the chronograph.

TO VIEW PERFORMANCE DATA IN LAP DATA MODE

With the exception of lap and split times, Lap Data Mode relies on the Fitness Sensors.

If you only use one Sensor, information for the other Sensor will appear blank if you have set the Watch to hide blank data. For information on data hiding, refer to “Watch settings” on page 67.

Performance data viewing options for Lap Data Mode include:

Lap and Split Time: Lap Time includes data for each segment of your activity, and Split Time shows data for the overall activity.

Lap Average Speed and Pace: Average Speed informs you of your average speed for the lap, and Average Pace displays your average speed in terms of minutes per unit distance.

Lap Average Heart Rate and Lap Distance: Average heart rate displays the average heart rate for the lap, and Lap Distance indicates how far you traveled for the lap.

Altitude and Elevation: Altitude displays the height above sea level at the end of your lap, and Elevation is the change in altitude for the lap.

Lap Data Mode example

You love to ride your bike, but you just finished a long ride and you are exhausted! In your exhaustion, you forget to look at the lap data for your ride and you reset the chronograph to zero. You think you have lost your data, but then you remember. You can still view lap data for your ride, as long as you do not restart the chronograph first.

Summary Mode

▲

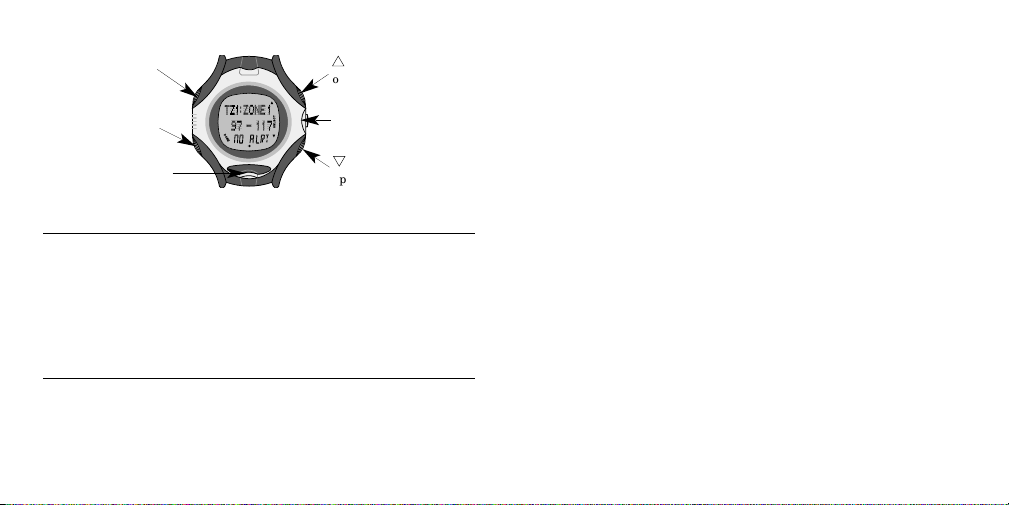

INDIGLO®

night light

To Timer Mode

or hold for time

Hold to reset the odometer, max speed, or best pace

data value

▼

data value

Summary Mode terminology

Odometer: The Odometer tracks distance across activities until you reset it to zero.

Zone: A predetermined heart rate range for your activity. Recovery: A measure of your fitness and fatigue based on the

difference of your heart rate over a short period of time after strenuous exercise. For further information, refer to Heart Zones® Tools for Success.

Summary Mode functions

Summary Mode allows you to review overall information recorded by the chronograph for your most recent activity. Data does not update while displayed.

Starting the chronograph from zero for your next activity erases summary data from the previous activity, except the odometer information, which you must clear manually.

NOTE: T

o view information for each individual segment of your

activity, refer to “Lap Data Mode” on page 46.

TO OPERATE SUMMARY MODE

1. Press MODE until Summary Mode appears.

2. Press ▲ (DISPLAY) or ▼ (STOP/RESET) to navigate through summary data.

TO RESET FEATURES IN SUMMARY MODE

While viewing either the Odometer, Max Speed, or Best Pace values, press and hold START/SPLIT to reset the value to zero.

TO VIEW PERFORMANCE DATA IN SUMMARY MODE

With the exception of lap and split times, Summary Mode relies on the Fitness Sensors.

If you only use one Sensor, information for the other Sensor will appear blank if you have set the Watch to hide blank data. For information on data hiding, refer to “Watch settings” on page 67.

Performance data viewing options for Summary Mode include data for the following six data groups:

Speed

Average Speed: Your average speed calculated by dividing distance by time.

Maximum Speed: Your quickest speed.

Average Pace: Your average speed calculated as minutes per distance unit traveled.

Best Pace: Your fastest time traveled per minute.

Distance

Event Distance: Your accumulated distance traveled during the activity while the chronograph was running.

Odometer: Your accumulated distance traveled since you last manually reset the odometer. Since the odometer does not operate in conjunction with the chronograph, you can use this feature to track accumulated distance over several workouts.

ertical

Total Ascent: Total ascent accumulates all positive altitude changes throughout your activity. If you run up and down a 200 foot hill 10 times, your total ascent is 2000 feet (200 feet times 10 trips).

Total Descent: Total descent accumulates all negative altitude changes throughout your activity. If you run up and down a 200 foot hill 10 times, your total descent is 2000 feet (200 feet times 10 trips).

At/Above XXXX: Your time at or above a specific elevation during your activity (see “Altitude settings” on page 65 for information on setting up this feature).

ate

Heart R

Average Heart Rate: Your average heart rate calculated over the period the chronograph was running.

Maximum Heart Rate: The highest recorded heart rate during your activity.

Minimum Heart Rate: The lowest recorded heart rate during your activity.

Time in Zones: Taking into account your total workout time, the Watch displays how much time you spent in each of the two heart rate zones during your activity (refer to “HRM settings” on page 62 for information on setting up this feature).

Average Heart Rate in Zones: The average heart rate in each of the two heart rate zones.

Recovery: Your heart rate change over a selected period of time recorded at the end of your activity (refer to “HRM settings” on page 62 for information on setting up this feature). If you are wearing the HR Sensor, you can initiate a recovery calculation while in Summary Mode by pressing and holding

START/SPLIT.

Time

Event Time: The total time for your activity while the chronograph was running. Event time is equivalent to split time in the chronograph modes.

GPS

GPS Battery Level: The current voltage level for the GPS-3D Sensor displayed in bar graph format. You must be wearing the GPS-3D Sensor to view this information. When the graph displays only one segment (you will also see the battery icon on the Watch display), you should change the battery.

Summary Mode example

You are six weeks away from running a half-marathon. This halfmarathon includes a pretty grueling uphill portion that rises from 2,500 to 4,500 feet above sea level and then returns to 3,000 feet above sea level. To help you train for this event, you have set two goals for the next month: to run 100 miles and to schedule one run per week in which you climb at least 1,500 feet. With Summary Mode, you can use the odometer to track your total distance for the month and you can use the vertical information to track both the total ascent and the time above 2,500 feet for your weekly uphill run.

Timer Mode

INDIGLO®

night-light

To Alarm Mode or hold for time

Start the timer

View performance data

Set timer

Stop or reset the timer

Timer Mode terminology

Interval Training: You can use interval training to help you vary the intensity level within one workout for specific periods of time, which will ultimately help you work out longer and harder. Timer Mode includes timing for two intervals, I1 and I2, to support your interval training.

Timer Mode functions

Timer Mode allows you to set a fixed time from which the Watch counts down to zero (for example, 10, 9, 8, …) for up to two timed intervals (I1 and I2). You can set the timer to stop, repeat or switch to Chronograph, Vertical, or Finish Mode after the countdown.

You can press MODE from Timer Mode to switch the display to

another mode without disrupting the operation of the timer. The timer icon will appear indicating timer operation.

NOTE: The Timer includes settings for two intervals. However, if

you set either interval to zero, it will operate using only one interval.

TO SET TIMER MODE

For instructions on setting Watch functions, including Timer Mode, refer to page 13, “To set Watch functions.”

For Timer Mode, you can set the following values:

Time (hours, minutes, seconds for up to 99 hours, 59 minutes, and 59 seconds).

End action (STOP, REPEAT, or CHRONO, VERTI, or FINISH).

TO OPERATE THE TIMER IN TIMER MODE

1. Press START/SPLIT to start the Timer countdown. Pause the countdown by pressing STOP/RESET, resume the

countdown by pressing START/SPLIT again, or reset the timer, by pressing and holding STOP/RESET.

2. When the timer reaches zero for each interval, a brief alert sounds.

TO VIEW PERFORMANCE DATA IN TIMER MODE

When using Fitness Sensors with your Watch, scroll through performance data by pressing and releasing DISPLAY.

Performance data viewing options for Timer Mode include:

Heart Rate: Current heart rate (requires HR Sensor).

Speed: Current velocity (requires GPS-3D Sensor).

Pace: Current velocity, expressed in minutes per selected distance unit, such as miles or kilometers (requires GPS-3D Sensor).

Distance: Distance traveled while the timer is running (requires GPS-3D Sensor).

Altitude: Current height above sea level (requires GPS-3D Sensor).

Timer Mode example

As part of an overall health program, you have set a goal to run 30 minutes, four days per week. You begin by walking for 25 minutes and running for 5 minutes. You set I1 in Timer Mode for 25 minutes, and I2 for five minutes and then set out for your walk. When you hear the beep 25 minutes into your walk, you know it is time to begin your five minute run. Over time, you build your running intervals until you are able to run for the entire 30 minutes.

3. The timer will stop after the alert if set to STOP. OR The timer will begin another countdown if set to REPEAT and

continue until you press STOP/RESET. The lower line of the display will show RPT and a number (for

example, RPT 2). RPT indicates the timer is repeating and the

number indicates how many times the timer has cycled through the repeat countdown. You will also see the

repeat icon, indicating the timer is set to repeat. OR The timer will switch to Chronograph, Finish, or Vertical

Mode if set to one of these modes. You will see the switch mode icon, indicating the timer will switch modes at the end of the countdown.

NOTE: The timer will only switch to the Chronograph, Finish, or

Vertical Mode if you reset the chronograph to zero and Sync Timer & Chrono is turned off (see “hands-free settings” on page 66).

When you set the timer to switch modes at the end of the countdown, the information recorded while in Timer Mode will not carry over to the next mode and will not show up in Summary Mode.

+ 209 hidden pages
