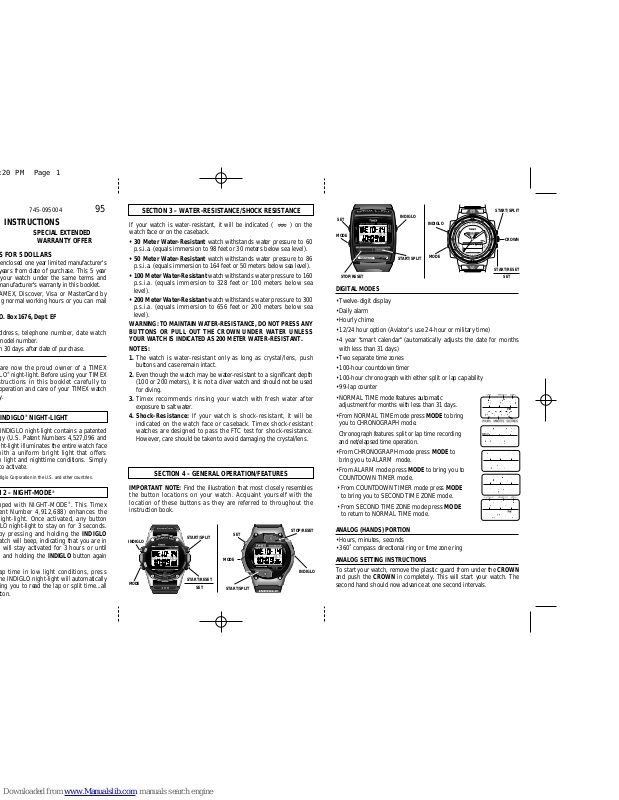

DIGITAL MODES
• Twelve-digit display
• Daily alarm
• Hourly chime
• 12/24 hour option (Aviator's use 24-hour or military time)
• 4 year "smart calendar" (automatically adjusts the date for months
with less than 31 days)
• Two separate time zones
• 100-hour countdown timer
• 100-hour chronograph with either split or lap capability
• 99-lap counter
• NORMAL TIME mode features automatic
adjustment for months with less than 31 days.
• From NORMAL TIME mode press MODE to bring
you to CHRONOGRAPH mode.
Chronograph features split or lap time recording
and net/elapsed time operation.
• From CHRONOGRAPH mode press MODE to
bring you to ALARM mode.
• From ALARM mode press MODE to bring you to
COUNTDOWN TIMER mode.
• From COUNTDOWN TIMER mode press MODE
to bring you to SECOND TIME ZONE mode.
• From SECOND TIME ZONE mode press MODE
to return to NORMAL TIME mode.
INDIGLO
SET
START/SPLIT
STOP/RESET
MODE
START/SPLIT
START/RESET
SET
CROWN
MODE
INDIGLO
ANALOG (HANDS) PORTION
• Hours, minutes, seconds
• 360˚ compass directional ring or time zone ring
ANALOG SETTING INSTRUCTIONS
To start your watch, remove the plastic guard from under the CROWN
and push the CROWN in completely. This will start your watch. The
second hand should now advance at one second intervals.
INSTRUCTIONS
®
night-light. Before using your TIMEX
®
NIGHT-LIGHT
®
®
. This Timex

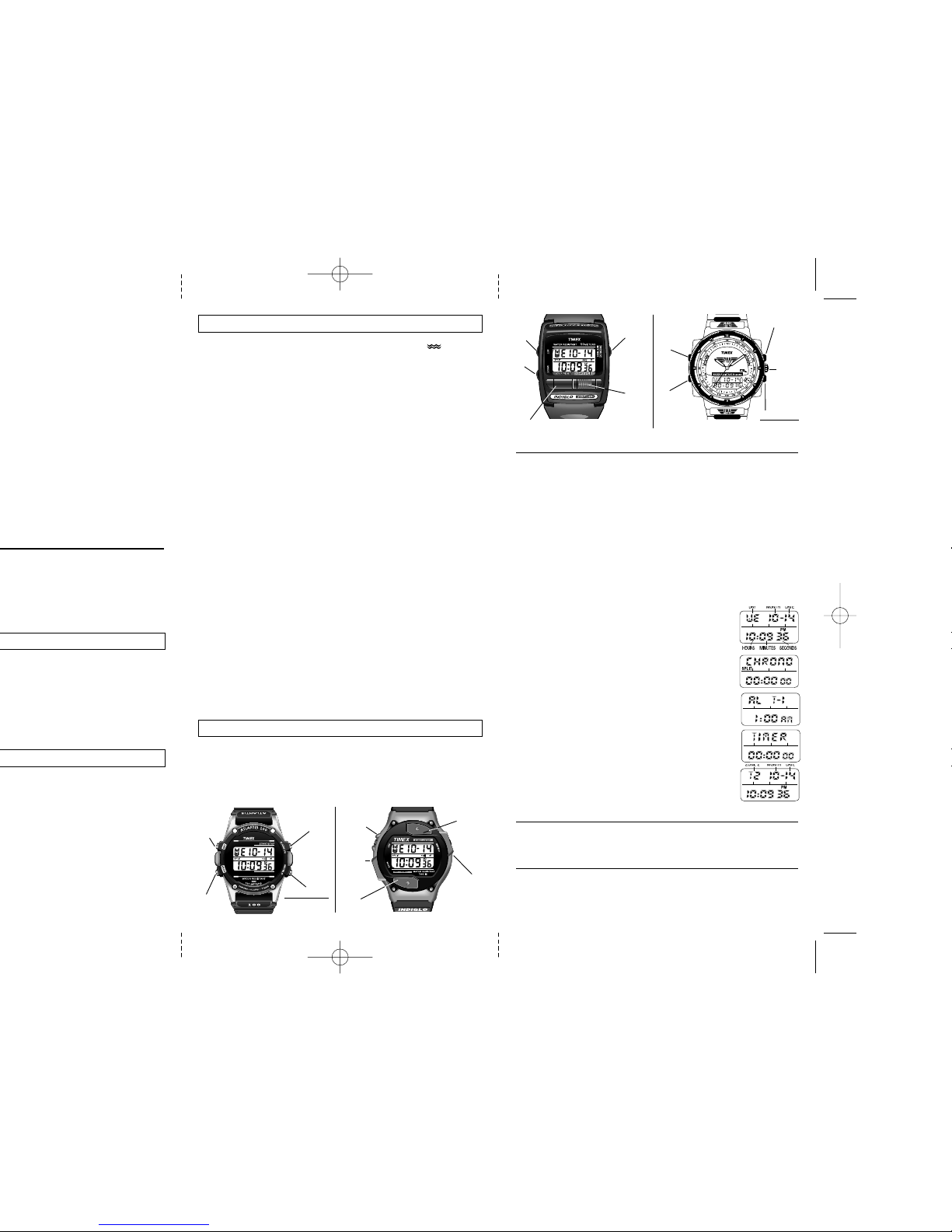

IMPORTANT NOTE: Find the illustration that most closely resembles
the button locations on your watch. Acquaint yourself with the
location of these buttons as they are referred to throughout the
instruction book.
START/SPLIT
STOP/RESET
INDIGLO
INDIGLO
START/RESET
SET
START/SPLIT
MODE
MODE
SET
SECTION 3 – WATER-RESISTANCE/SHOCK RESISTANCE
If your watch is water-resistant, it will be indicated ( ) on the
watch face or on the caseback.
• 30 Meter Water-Resistant watch withstands water pressure to 60
p.s.i.a. (equals immersion to 98 feet or 30 meters below sea level).
• 50 Meter Water-Resistant watch withstands water pressure to 86
p.s.i.a. (equals immersion to 164 feet or 50 meters below sea level).
• 100 Meter Water-Resistant watch withstands water pressure to 160
p.s.i.a. (equals immersion to 328 feet or 100 meters below sea
level).
• 200 Meter Water-Resistant watch withstands water pressure to 300
p.s.i.a. (equals immersion to 656 feet or 200 meters below sea
level).
WARNING: TO MAINTAIN WATER-RESISTANCE, DO NOT PRESS ANY
BUTTONS OR PULL OUT THE CROWN UNDER WATER UNLESS
YOUR WATCH IS INDICATED AS 200 METER WATER-RESISTANT.
NOTES:
1. The watch is water-resistant only as long as crystal/lens, push
buttons and case remain intact.
2. Even though the watch may be water-resistant to a significant depth
(100 or 200 meters), it is not a diver watch and should not be used
for diving.
3. Timex recommends rinsing your watch with fresh water after
exposure to salt water.
4. Shock-Resistance: If your watch is shock-resistant, it will be
indicated on the watch face or caseback. Timex shock-resistant
watches are designed to pass the FTC test for shock-resistance.
However, care should be taken to avoid damaging the crystal/lens.
SECTION 4 – GENERAL OPERATION/FEATURES
STANDARD CHRONOGRAPH WITH NET/ELAPSED TIME
In either SPLIT or LAP mode, standard (pause) chronograph
operations are as follows:
A. Press START/SPLIT to begin timing. “LP.01” will appear on the upper
display, indicating that timing has begun, and that you are on lap 1.
NOTE: You can leave CHRONOGRAPH mode while the chronograph
is running. From NORMAL TIME, press MODE once to reenter
CHRONOGRAPH mode.
B. Press STOP/RESET to stop the timing. The chronograph will stop
running.
C. Press START/SPLIT to resume timing OR
Press STOP/RESET to clear the chronograph and return the lower
display to zero.
ADVANCED CHRONOGRAPH WITH SPLIT OR LAP TIMING
A. Press START/SPLIT to begin timing.
B. Press START/SPLIT to temporarily freeze the chronograph readout
and measure a split or a lap. Either SPLIT or LAP will flash,
indicating that a split or lap time has been taken, and that the
chronograph is continuing to time the event.
C. After 10 seconds, the watch will resume showing the running lap or
split time. LP.02 will appear on the upper display, indicating that
you are on the second lap. You can count up to 99 laps in this
manner. To resume showing the time before 10 seconds have
passed, press MODE.
D. When the event ends, press STOP/RESET. The watch will end
timing. The lower display will indicate the final lap time (if LAP was
selected) or the total event time (if SPLIT was selected). The upper
display will indicate the total number of laps taken in the event.
E. To begin a new event, press STOP/RESET. This will clear the
chronograph and return the lower display to zero. You are now
ready to repeat Steps A through E.
NOTE: If you need to pause the chronograph during the timing, press
STOP/RESET. Press START/SPLIT to resume timing the event,
or STOP/RESET to clear the chronograph and return the lower display
to zero.
The chronograph will count minutes, seconds and hundredths for the
first 60 minutes, at which time it will display hours, minutes and
seconds, up to 24 hours.
(For watches with five push buttons, you can also peek at the
chronograph from NORMAL TIME or SECOND TIME ZONE mode by
pressing STOP/RESET.)
The SPLIT chronograph allows the user to view total accumulated
time at a particular interval while continuing to accumulate total time.
The LAP chronograph allows the user to view the elapsed time for an
interval but resets to zero to measure the discrete time of the next
interval.
For example, if a runner ran one mile in four
equal one minute intervals on a quarter mile track
and the user pressed SPLIT/RESET at the end of
each quarter mile, the display would show as
illustrated.
SPLIT LAP
1/4 1.00 1.00
2/4 2.00 1.00
3/4 3.00 1.00
4/4 4.00 1.00
SECTION 6 – HOW TO USE THE CHRONOGRAPH
The chronograph (or stopwatch) is used to measure elapsed time
from a beginning point; for instance, to time a race. It can be used to
record segments of your training routine so that you can evaluate
your progress.

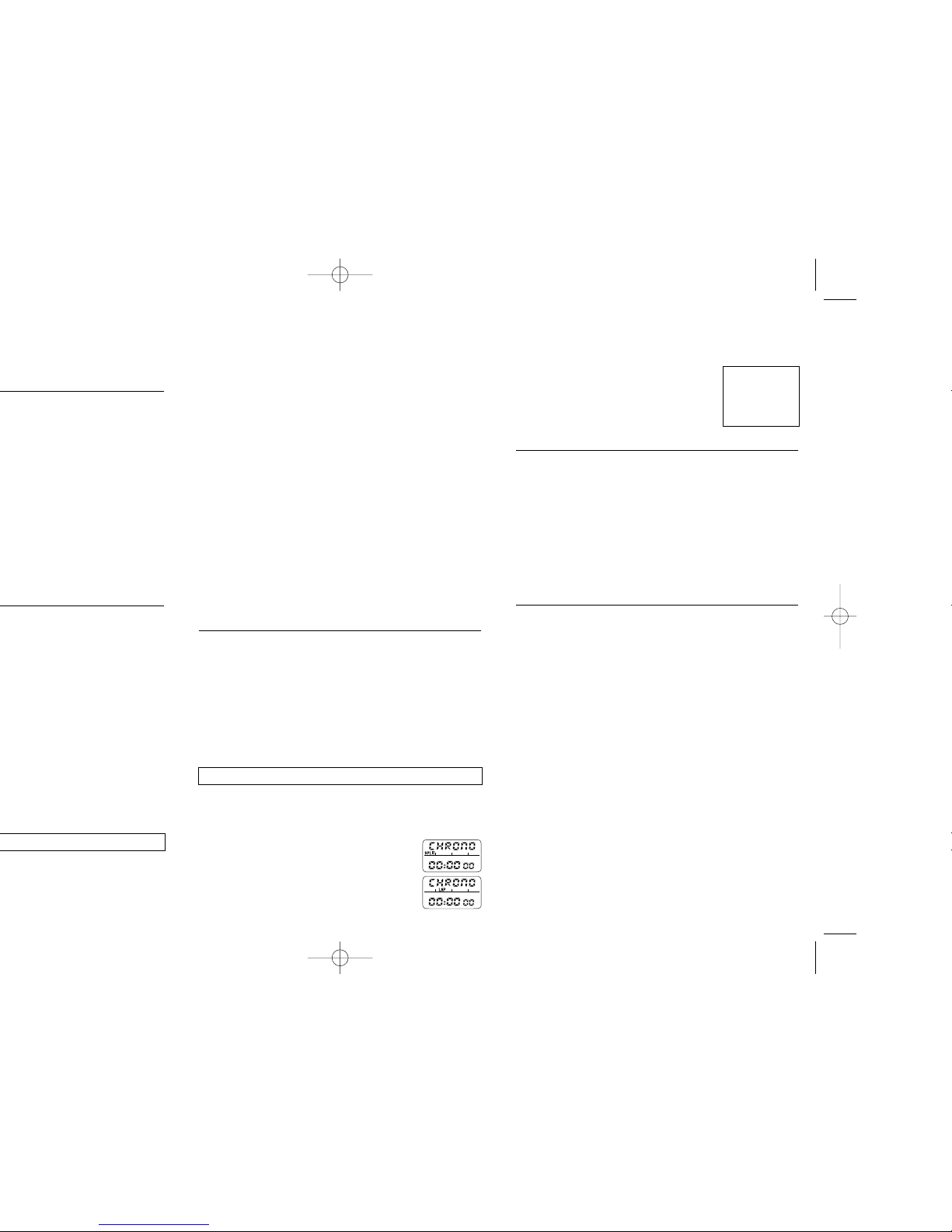

To enter CHRONOGRAPH mode, press MODE once
from NORMAL TIME display. You are now in the
CHRONOGRAPH mode.
In the CHRONOGRAPH mode, select either SPLIT or
LAP by pressing SET. (Note: Chronograph must be
set to zero to switch between SPLIT and LAP.) The
word “SPLIT” or “LAP” will alternate with each press.
D. Press MODE to set the correct hour. The HOUR section will begin
flashing. Press START/SPLIT to advance hours. Pay attention to the
AM or PM indication on the right side of the lower display in order
to set the correct time. (For watches with five push buttons, you
can also press STOP/RESET to reverse the hours.)
E. Press MODE to set the correct minutes. The MINUTE section will
begin flashing. Press START/SPLIT to advance minutes. (For
watches with five push buttons, you can also press STOP/RESET to
reverse the minutes.)
F. Press MODE to set the month. The MONTH section will begin
flashing. Press START/SPLIT to advance the month. (For watches
with five push buttons, you can also press STOP/RESET to reverse
the month number.)
G. Press MODE to set the date. The DATE section will begin flashing.
Press START/SPLIT to advance the date. (For watches with five
push buttons, you can also press STOP/RESET to reverse the date
setting.)
H. Press MODE to set the day of the week. The DAY OF THE WEEK
section will begin flashing. Press START/SPLIT to advance the day.
(For watches with five push buttons, you can also press
STOP/RESET to reverse the day setting.)
I. Press MODE to select NORMAL (12 hour) or MILITARY (24 hour)
TIME. Press START/SPLIT to alternate between 12 and 24 hour
time.
J. When setting is complete, press SET to exit the SET procedure.
HOW TO SET SECOND TIME ZONE
A. From NORMAL TIME mode, press MODE four times to view
SECOND TIME ZONE (T2).
B. Follow the above steps for NORMAL TIME setting.
NOTE: Minutes, seconds and 12/24 hour time cannot be set in
SECOND TIME ZONE. They are automatically synchronized with the
NORMAL TIME mode.
C. SECOND TIME ZONE may be peeked at from NORMAL TIME by
pressing and holding START/SPLIT. When in SECOND TIME ZONE,
NORMAL TIME may be peeked at by pressing and holding
START/SPLIT.
®
for night viewing. Operate

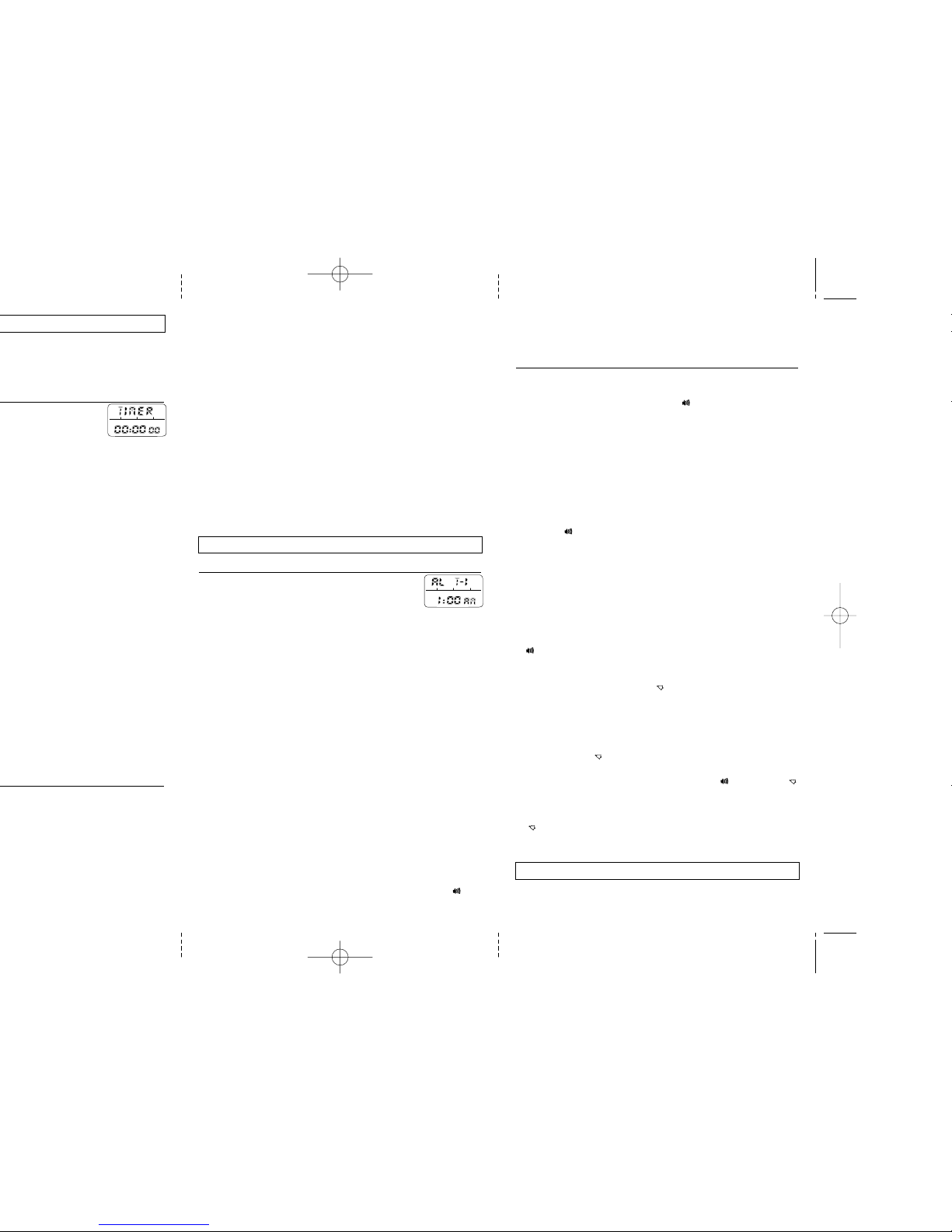

HOW TO SET ALARM
A. From NORMAL TIME mode press MODE two times.
You are now in ALARM mode. The display will look
like this:
B. Press SET to begin setting procedures. Either “T-1” or “T-2” will
begin flashing in the upper display. T-1 represents time zone 1,
while T-2 represents time zone 2. An alarm can be set for either
time zone 1 or time zone 2, but not both simultaneously. Press
START/SPLIT to alternate between T-1 and T-2.
C. Press MODE. The HOUR section will begin flashing. Press
START/SPLIT to advance hours. Pay attention to the AM or PM
indication on the right side of the lower display in order to set the
correct time. (For watches with five push buttons, you can also press
STOP/RESET to reverse the hours.)
NOTE: The AM or PM indication will not be displayed if the time zone
that you are setting the alarm for is set for 24 hour (military) time.
D. Press MODE. The TENS OF MINUTES section will begin flashing.
Press START/SPLIT to advance minutes. (For watches with five
push buttons, you can also press STOP/RESET to reverse the tens
of minutes.)
E. Press MODE. The MINUTES section will begin flashing. Press
START/SPLIT to advance minutes. (For watches with five push
buttons, you can also press STOP/RESET to reverse the minutes.)
If you need to change a setting, press MODE to return to TIME ZONE
setting.
F. When you have completed setting the alarm, press SET to stop
digits from flashing. This will end the setting operation.
NOTE: After every new alarm time setting, the ALARM will
automatically be armed when you press SET. The symbol will
appear, indicating that the ALARM is now armed. Follow the
instructions below for manually activating or deactivating the alarm.
For watches with five push buttons, press STOP/RESET to peek at the
NORMAL TIME or SECOND TIME ZONE (T2) (depending on which
time zone the alarm was set for).
HOW TO ACTIVATE ALARM AND HOURLY CHIME
A. If you are not in the ALARM mode, repeatedly press MODE until
you enter this function.
B. Press START/SPLIT until the symbol appears on the right side
of the display. This symbol indicates that the ALARM has been
activated and is now armed. The alarm will now sound at the
indicated time every 24 hours, unless disarmed. It will sound for 20
seconds. The beep may be silenced by pressing any button. When
the alarm sounds, the alarm display will automatically appear for 20
seconds, no matter what mode you were in prior to the alarm. When
this occurs, you have twenty seconds to disarm the alarm or set a
new alarm time before the mode previously displayed reappears.
C. To disarm the alarm during this twenty second period, simply press
any button to silence the alarm and then press START/SPLIT. The
symbol will disappear, indicating that the alarm has been
disarmed and the watch will return to the mode previously displayed
before the alarm appeared.
D. To set a new alarm time during this twenty second period, simply
press any button to silence the alarm and then press SET. The
alarm will enter the SET mode. See previous instructions for setting
the alarm. Once set to the new alarm time, the watch will return to
the mode previously displayed before the alarm appeared.
NOTE: While in NORMAL TIME or SECOND TIME ZONE (T2)
(depending on which time zone the alarm was set for), the symbol
will appear on the right side of the display indicating that an
alarm is active.
E. To activate the HOURLY CHIME while in the ALARM mode, press
START/SPLIT until the symbol appears in the right side of the
display. This symbol indicates that the HOURLY CHIME has been
activated. When this symbol is shown, the watch will beep 2 times
every hour on the hour. When the chime is activated, the watch will
also beep each time any button is pressed. To deactivate the
HOURLY CHIME, enter the ALARM mode, and press START/SPLIT
until the symbol disappears.
NOTE: Both the ALARM and HOURLY CHIME can be armed at the
same time. Press START/SPLIT until symbol and symbol
appear. Both the ALARM and HOURLY CHIME are now activated.
To deactivate, press START/SPLIT until both symbols disappear.
While in NORMAL TIME and SECOND TIME ZONE (T2), the symbol
will appear on the right side of the display indicating that the
HOURLY CHIME is active.
SECTION 8 – HOW TO SET/USE DAILY ALARM/HOURLY CHIME
D. When the timer has reached zero, it will beep for 10 seconds. The
beep may be silenced early by pressing any button. When the timer
sounds, the timer display will automatically appear for 10 seconds,
no matter what mode you were in prior to the signal. When this
occurs, you have ten seconds to restart the timer or set a new
countdown time before the mode previously displayed reappears.
E. To restart the timer during this ten second period, simply press any
button to silence the alarm and then press START/SPLIT. The timer
will restart and the watch will return to the mode previously
displayed before the timer appeared.
F. To set a new countdown time during this ten second period, simply
press any button to silence the alarm and then press SET. The timer
will enter the SET mode. See previous instructions for setting the
countdown timer. After setting the new countdown time, the watch
will return to the mode previously displayed before the timer
appeared.
NOTE: While in NORMAL TIME or SECOND TIME ZONE (T2), the word
“TIMER” will appear in the middle of the display during active
operation of the countdown timer.

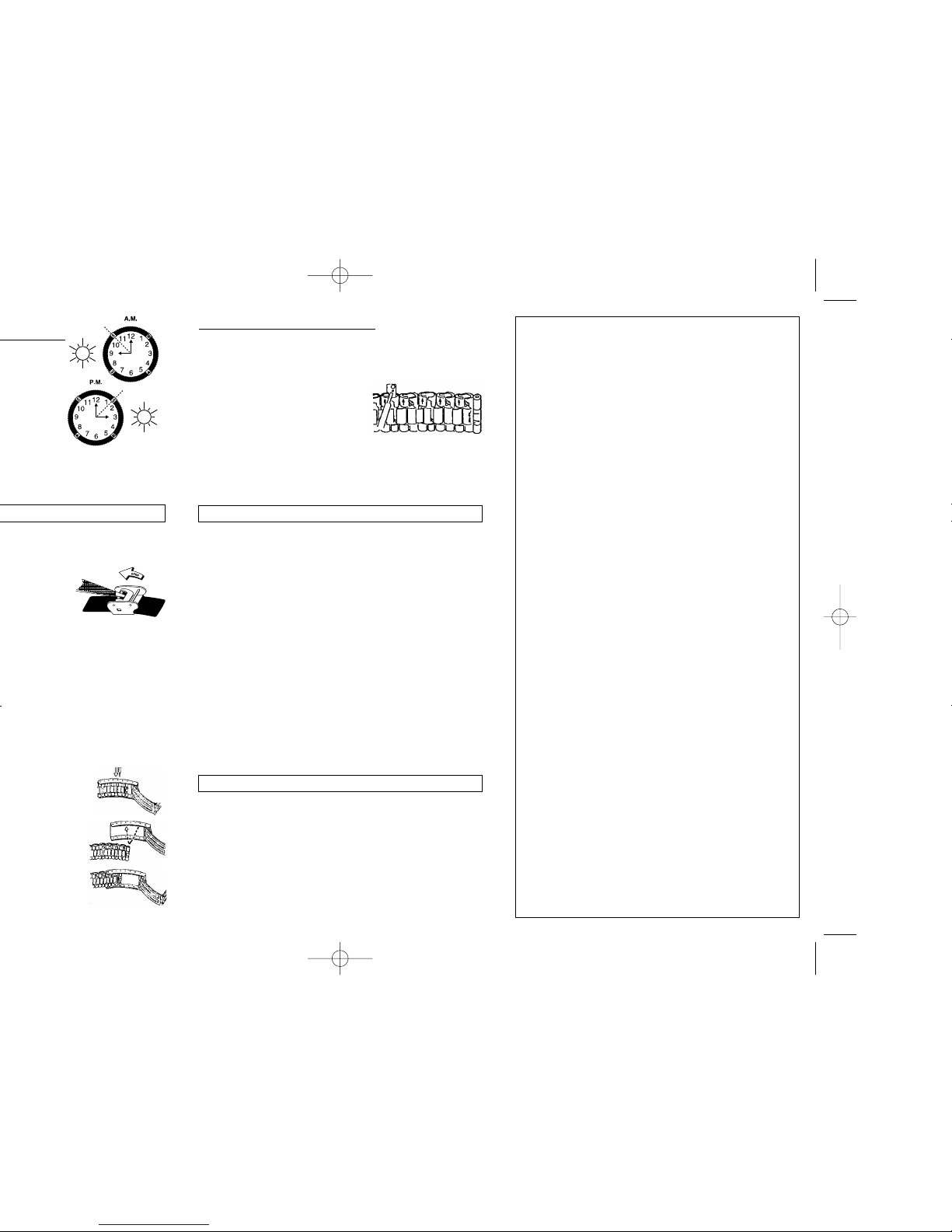

SECTION 9 – HOW TO ADJUST THE COMPASS DIRECTION RING
If your watch is equipped with a compass directional ring, it gives an
approximate compass reading in 10˚ intervals. Locate the sun and
then follow the instructions.
LIMITED WARRANTY
The Basic Coverage: This TIMEX Quartz Digital L.C.D. (liquid crystal display)
watch (but not any battery, crystal/lens, band or strap) is warranted to the owner
for a period of ONE YEAR from the date of purchase against defects in
manufacture by Timex Corporation - not by the dealer from whom the watch was
purchased.
What Timex Will Do: If this watch develops such a defect within the one year
period, it will be repaired (i.e., a new or thoroughly reconditioned and inspected
module will be installed) or replaced ( a watch of equal value and similar
appearance will be supplied) at our option, provided it is returned with a $5.00
check or money order to cover costs of postage, handling and service, and you
provide proof of purchase and date of purchase.
This Limited Warranty Does Not Cover:
1) Timex will not repair defects related to servicing not performed by Timex
Corporation or a Timex Authorized Service Center.
2) Timex will not provide any warranty service if your watch shows evidence that it
has been tampered with, misused, abused, or altered; for example:
• moisture damage sufficient to affect the proper function of the watch;
• damage to the case; or
• visible cracking of the crystal/lens.
3) Timex reserves the right to charge you for a replacement battery, if the battery
in your watch is depleted. No additional charge will be made unless the one
year warranty period has expired or servicing is necessary for reasons beyond
our control, in which case a moderate charge will be made.
4) TIMEX IS NOT LIABLE FOR INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental,
special or consequential damages, so the above exclusion or limitation may not
apply to you.
Your Rights Under Implied Warranties and State Law: THIS LIMITED
WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES,
OBLIGATIONS OR LIABILITIES. TIMEX LIMITS THE DURATION OF ANY
WARRANTY IMPLIED BY STATE LAW, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, TO ONE YEAR FROM THE DATE OF ORIGINAL
PURCHASE. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to
state.
Care of Your Watch:
• Avoid exposing your watch to water, steam, or other forms of moisture if it is
non-water-resistant.
• If the crystal/lens becomes damaged, have it replaced at once to avoid damage
to the module.
• When your battery is depleted, have it replaced promptly. The particular type of
battery required is indicated on your caseback. You can get them from your local
Timex retailer.
Service of Your Watch:
If your TIMEX watch should ever need servicing, send it to Timex addressed as
follows: HOTLINE WATCH SERVICE, P.O. Box 2740, Little Rock, AR 72203
Because of possible loss, we recommend insuring your watch, return receipt
requested, when using the mails. If you do not obtain a receipt within a reasonable
time, start a tracer through the originating post office. NEVER INCLUDE A
SPECIAL WATCHBAND OR ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR
SHIPMENT. PLEASE NOTE THAT WE MAY SUBSTITUTE A WATCH OF EQUAL
VALUE AND SIMILAR APPEARANCE FOR YOURS ON BOTH IN-WARRANTY AND
OUT-OF-WARRANTY REPAIRS.
For your convenience in obtaining factory service, participating Timex retailers will
be pleased to provide you with a postage-paid, pre-addressed Watch Repair
Mailer.
TIMEX is a trademark and a service mark of Timex Corporation.
REG. U.S. PAT. & TM. OFF.
SECTION 12 – SERVICE
If your TIMEX watch should ever need servicing, send it to Timex
addressed as follows:
HOTLINE WATCH SERVICE, P.O. Box 2740, Little Rock, AR 72203
For service questions, call 1-800-448-4639.
For your convenience in obtaining factory service, participating Timex
Retailers can provide you with a pre-addressed Watch Repair Mailer.
See the Limited Warranty for specific instructions on the care and service
of your Timex watch.
Should you need a replacement strap or band, call 1-800-448-4639.
© 1996 Timex Corporation
SECTION 11 – BATTERY REPLACEMENT
One battery provides the power to operate your Timex watch. To
change the battery entails removing the clip which holds it down. To
avoid the possibility of permanently damaging the watch, TIMEX
STRONGLY RECOMMENDS TAKING YOUR WATCH TO A LOCAL
RETAILER OR JEWELER TO HAVE THE BATTERY REPLACED. The
battery type required is indicated on the caseback of your Timex watch.
IMPORTANT NOTE: After replacing the battery and before you close
the caseback, be sure to quickly press the reset button twice if
indicated on the battery clamp. If after you close the caseback and
replace the battery, the display does not go on, press all buttons
simultaneously.
CAUTION: DO NOT DISPOSE OF OLD BATTERY IN FIRE OR ATTEMPT
TO RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHILDREN.
When installed at the factory, the battery life in this Timex watch is
estimated to last approximately 4.5 years or as specified on the watch
package. This estimate is based on the alarm being used one time per
day for ten seconds and the light being used one second per day.
Battery life may vary depending on your actual usage experience. The
use of NIGHT-MODE®, which causes the INDIGLO®night-light to activate
for three seconds with any button press, may reduce battery life.
BRACELET LINK REMOVAL INSTRUCTIONS
NOTE: Prior to removing any bracelet links, first determine if your
watch can be sized using the “FOLDOVER CLASP” instructions above.
If not, then follow the instructions below.
Removing Links: Place the bracelet upright and insert a pointed tool
in open space of bracelet (see diagram).
Slide bracelet pin in the direction of the
arrow. Push hard since pins are designed
to be difficult to remove. Repeat this
procedure until desired number of links
are removed.
Reassembly: Position the two bracelet parts back together, and push
pin in from end it was removed, in opposite direction of the arrow. Be
sure to press the bracelet pin down securely all the way into the link of
the bracelet until it is flush with the rest of the bracelet.
Fig. 1
Fig.2
Fig.3
Loading...
