INSTRUCTIONS
SPECIAL EXTENDED SPECIAL EXTENDED
WARRANTY OFFER WARRANTY OFFER
5 YEARS FOR 5 DOLLARS
For $5, Timex will extend the enclosed one year limited manufacturer's
warranty for an additional 4 years from date of purchase. This 5 year
warranty covers repairs on your watch under the same terms and conditions
as set forth in the manufacturer's warranty in this booklet.
Payment can be made with AMEX, Discover, Visa or MasterCard by calling
1-800-448-4639 during normal working hours or you can mail a check to:
Timex Extended Warranty
P.O. Box 1676
Dept. EF
Little Rock, AR 72203
We will need your name, address, telephone number, date watch
purchased and 5 digit watch model number.
Payment must be made within 30 days after date of purchase.
Please read this booklet carefully to familiarize yourself with the operation
and care of your TIMEX watch and with the Limited Warranty.
SECTION 3 – WATER-RESISTANCE
If your watch is water-resistant, it will be indicated ( ) on the watch face
or on the caseback.
• 50 Meter Water-Resistant watch withstands water pressure to 86 p.s.i.a.
(equals immersion to 164 feet or 50 meters below sea level).
• 100 Meter Water-Resistant watch withstands water pressure to 160
p.s.i.a. (equals immersion to 328 feet or 100 meters below sea level).
WARNING: TO MAINTAIN WATER-RESISTANCE, DO NOT PRESS ANY
BUTTONS UNDER WATER.
NOTES:
1. The watch is water-resistant only as long as lens, push buttons and case
remain intact.
2. Even though the watch may be water-resistant to a significant depth (100
meters), it is not a diver watch and should not be used for diving.
3. Timex strongly recommends rinsing your watch with fresh water after
exposure to salt water.
SECTION 4 – GENERAL OPERATION/FEATURES
The following illustration shows you the various buttons and their location
for operating and setting your watch.
SECTION 1 – INDIGLO®NIGHT-LIGHT
Your Timex watch featuring INDIGLO night-light contains a patented
electroluminescent technology (U.S. Patent Number 4,527,096). The
INDIGLO night-light illuminates the entire watch lens with a uniform bright
light that offers superior readability at night and in all low light conditions.
Simply press the appropriate button to activate.
INDIGLO is a registered trademark of Indiglo Corporation in the U.S. and other countries.
SECTION 2 – NIGHT-MODE®OPTION
Your Timex watch is equipped with NIGHT-MODE. This Timex patented
feature (U.S. Patent Number 4,912,688) enhances the benefits of the
®
INDIGLO
INDIGLO night-light to stay on for 3 seconds. NIGHT-MODE is activated by
pressing and holding the INDIGLO button for 3 seconds. The watch will
beep, indicating that you are in NIGHT-MODE. NIGHT-MODE will stay
activated for 3 hours or until you deactivate it by pressing and holding the
INDIGLO button again for 3 seconds.
EXAMPLE: When running lap time in low light conditions, press
START/SPLIT. At this time, the INDIGLO night-light will automatically stay
on for 3 seconds, allowing you to read the lap or split time...all with one
simple push of a button.
night-light. Once activated, any button pushed will cause the
INDIGLO
MODE
• NORMAL TIME mode features automatic adjustment for
months with less than 31 days.
• From NORMAL TIME mode press MODE to bring you to
CHRONOGRAPH mode.
Chronograph features split or lap time recording and
net/elapsed time operation.
START/SPLIT
TEMP
STOP/RESET
SET
• From CHRONOGRAPH mode press MODE to bring you to
COUNTDOWN TIMER mode.
• From COUNTDOWN TIMER mode press MODE to bring
you to ALARM mode.
• From ALARM mode press MODE to bring you to
SECOND TIME ZONE mode.
• From SECOND TIME ZONE mode press MODE to return
to NORMAL TIME mode.
OTHER FEATURES
• TEMPERATURE SENSOR – Using a sensor on the watch face, the watch
displays the temperature for air, water or snow. The temperature is shown
numerically and in bar graph form in degrees Fahrenheit or Centigrade.
• AUTOMATIC SET RETURN – While in the SET function within any mode, if
no button is pressed for 2 minutes, the watch will automatically return to
NORMAL TIME. This function will help correct for any accidental button
presses.
• AUTOMATIC MODE RETURN – While in any mode other than NORMAL
TIME mode, whenever any button is pressed that affects the display, the
next push of MODE will automatically return the watch to NORMAL TIME
mode and not to the next mode in the normal sequence.
• ALARM AUTOMATIC RETURN – While in the ALARM mode, if no button is
pressed for 2 minutes, the watch will automatically return to NORMAL TIME
mode.
• HOURLY CHIME with visible indicator beeps every hour on the hour.
• INDIGLO
®
night-light with NIGHT-MODE®option for night viewing.
Operate by pressing the INDIGLO button (see Sections 1 and 2).
• 12 or 24 HOUR (Military) Time System.
SECTION 5 – HOW TO USE THE TEMPERATURE SENSOR
1. From NORMAL TIME mode, press TEMP to view temperature in
Fahrenheit. While the display shows temperature in Fahrenheit, press
TEMP again to view temperature in Centrigrade. The display will
automatically return to the date in 2-3 seconds.
IMPORTANT: The true ambient air temperature is achieved by removing the
watch from your wrist and placing it in the shade for 30 minutes. Body heat
registers on the extremely sensitive thermistor, even when the watch is
worn over clothing. The thermometer registers water temperature faster
and more accurately than air temperature.
SECTION 6 – HOW TO SET TIME/CALENDAR
A. From NORMAL TIME mode, press and hold SET firmly to begin setting
procedure.
B. “HOLD” appears on the display, and the current time will appear with
SECONDS flashing. Press START/SPLIT to return SECONDS to zero.
C. Press MODE. The HOUR section will begin flashing. Press START/SPLIT
to advance hours. Pay attention to the AM (A) or PM (P) indicators on
the right side of the lower display in order to set the correct time.
D. Press MODE. The TENS OF MINUTES section will begin flashing. Press
START/SPLIT to advance tens of minutes.
E. Press MODE. The MINUTES section will begin flashing. Press
START/SPLIT to advance minutes.
F. Press MODE. The MONTH section will begin flashing. Press
START/SPLIT to advance the month.
G. Press MODE. The DATE section will begin flashing. Press START/SPLIT
to advance the date.
H. Press MODE. The DAY OF THE WEEK section will begin flashing. Press
START/SPLIT to advance the day.
I. Press MODE to select NORMAL (12-hour) or MILITARY (24-hour) TIME.
Press START/SPLIT to alternate between 12 and 24 hour time.
J. When setting is complete, press SET to exit the setting procedure.
HOW TO SET SECOND TIME ZONE
A. From NORMAL TIME mode, press MODE four times to view SECOND
TIME ZONE (T2).
B. Follow the above steps for NORMAL TIME setting, starting with Step D.
NOTE: SECOND TIME ZONE can be set independently from NORMAL TIME,
so time zone differences other than whole hours can be used.
2. To have the temperature remain in the date display, hold TEMP until the
beep sounds. Any of the three display options in NORMAL TIME mode
(date, Fahrenheit or Centigrade temperature) can be selected by using
this method.
3. A temperature reading update occurs whenever TEMP is pressed except
in Chronograph mode. Additionally, temperature is automatically
updated every ten minutes.
SECTION 7 – HOW TO USE THE CHRONOGRAPH
The chronograph (or stopwatch) is used to measure elapsed time from a
beginning point; for instance, to time a race. It can be used to record
segments of your training routine so that you can evaluate your progress.
To enter CHRONOGRAPH mode, press MODE once from
NORMAL TIME display. You are now in the
CHRONOGRAPH mode.
In the CHRONOGRAPH mode, select either SPLIT or
LAP by pressing SET. (Note: Chronograph must be set
to zero to switch between SPLIT and LAP.) The word
“SPLIT” or “LAP” will alternate with each press.
The SPLIT chronograph allows the user to view total accumulated time at a
particular interval while continuing to accumulate total time. The LAP
chronograph allows the user to view the elapsed time for an interval but resets to
zero to measure the discrete time of the next interval.
For example, if a runner ran one mile in four
equal one minute intervals on a quarter mile
track and the user pressed SPLIT/RESET at the
end of each quarter mile, the display would
show as illustrated.
SPLIT LAP
1/4 1.00 1.00
2/4 2.00 1.00
3/4 3.00 1.00
4/4 4.00 1.00
STANDARD CHRONOGRAPH WITH NET/ELAPSED TIME
In either SPLIT or LAP mode, standard (pause) chronograph operations are
as follows:
A. Press START/SPLIT to begin timing. “01” will appear in the upper left
display indicating that timing has begun and that you are on Lap 1.
NOTE: You can leave CHRONOGRAPH mode while the chronograph is
running. From NORMAL TIME, press MODE once to re-enter
CHRONOGRAPH mode.
B. Press STOP/RESET to stop the timing. The chronograph will stop running.
C. Press START/SPLIT to resume timing
Press STOP/RESET to clear the chronograph and return the display to zero.
OR
ADVANCED CHRONOGRAPH WITH SPLIT OR LAP TIMING
A. Press START/SPLIT to begin timing.
B. Press START/SPLIT to temporarily freeze the chronograph readout and
measure a split or a lap. Either SPLIT or LAP will flash, indicating that a
split or lap time has been taken, and that the chronograph is continuing
to time the event.
C. After 15 seconds, the watch will resume showing the running lap or split
time. “02” will appear in the upper display indicating that you are on Lap
2. You can count up to 99 laps in this manner. To resume showing the
running time before 15 seconds have passed, press MODE.
D. When the event ends, press STOP/RESET. The watch will end timing.
The lower display will indicate the final lap time (if LAP was selected) or
the total event time (if SPLIT was selected). The upper left display will
indicate the total number of laps taken in the event.
NOTE: If you pressed STOP/RESET while the chronograph readout was
frozen, you will need to press STOP/RESET again to display the final time.
E. To begin a new event, press STOP/RESET. This will clear the
chronograph and return the lower display to zero. You are now ready to
repeat Steps A through D.
NOTE: If you need to pause the chronograph during the timing, press
STOP/RESET. Press START/SPLIT to resume timing the event, or
STOP/RESET to clear the chronograph and return the lower display to zero.
SECTION 8 – HOW TO SET/USE COUNTDOWN TIMER
The countdown timer allows you to preset a period of time into the watch.
Similar to a kitchen timer, the watch counts down from the preset period,
indicating the time remaining, and signaling when the period has expired.
HOW TO SET THE COUNTDOWN TIMER
A. From NORMAL TIME mode press MODE two times.
You are now in TIMER mode. The display will show the
Time of Day in the upper right display and the Timer
setting in the lower display.
B. Press SET to begin setting procedure. The HOURS section will begin
flashing in the lower display. (The countdown timer can be set up to 23
hours, 59 minutes, and 59 seconds.) Press START/SPLIT to advance
hours.
C. Press MODE. The TENS OF MINUTES section will begin flashing. Press
START/SPLIT to advance tens of minutes.
D. Press MODE. The MINUTES section will begin flashing. Press
START/SPLIT to advance minutes.
E. Press MODE. The TENS OF SECONDS section will begin flashing. Press
START/SPLIT to advance tens of seconds.
F. Press MODE. The SECONDS section will begin flashing. Press
START/SPLIT to advance seconds.
If you need to change a setting, press MODE to return to the HOURS section.
G. When you have completed setting the timer, press SET to stop digits
from flashing. Timer is now set and in the ready position. If you need to
change your setting, press SET. If you do not wish to use the timer now,
press MODE to return to NORMAL TIME.
HOW TO USE THE COUNTDOWN TIMER
A. From the TIMER mode, press START/SPLIT to begin operation
of countdown timer. While it is counting down, you may switch to
another mode of operation without affecting timer operation. Even if the
watch is in another mode of operation, the timer will still beep when
reaching zero.
B. To stop the timer, press STOP/RESET. YOU MUST BE IN TIMER MODE
TO STOP THE TIMER.
C. If timer has been stopped before reaching zero, press START/SPLIT to
continue to countdown from the point at which the countdown stopped,
or press STOP/RESET to reset timer to its original time setting.
D. When the timer has reached zero, it will beep for 10 seconds. The beep
may be silenced early by pressing any button. When the timer sounds,
the timer display will automatically appear for 10 seconds, no matter
what mode you were in prior to the signal. When this occurs, you have
10 seconds to restart the timer or set a new countdown time before the
mode previously displayed reappears.
E. To restart the timer during this 10-second period, simply press any
button to silence the alarm and then press START/SPLIT. The timer will
restart and the watch will return to the mode previously displayed before
the timer appeared.
F. To set a new countdown time during this 10-second period, simply press
any button to silence the alarm and then press SET. The timer will enter
the SET mode. See previous instructions for setting the countdown
timer. After setting the new countdown time, the watch will return to the
mode previously displayed before the timer appeared.
NOTE: While in NORMAL TIME or SECOND TIME ZONE (T2), the word
“TIMER” will appear in the middle of the display during active operation of
the countdown timer.

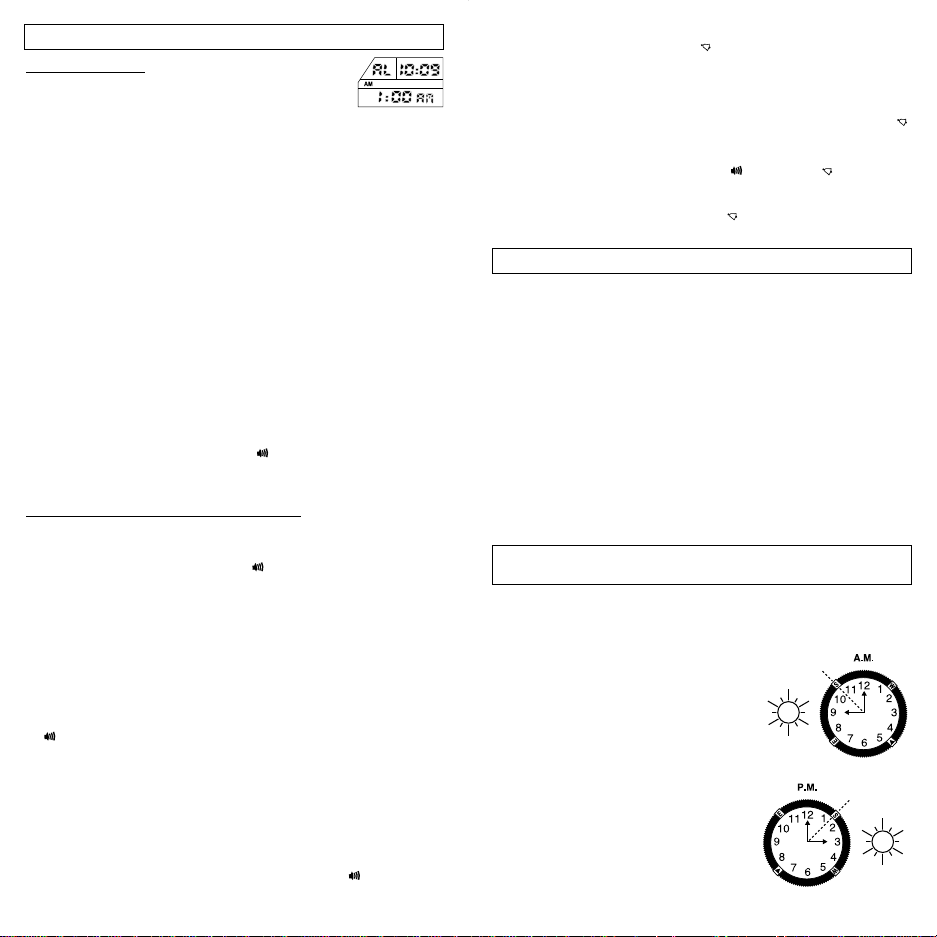

SECTION 9 – HOW TO SET/USE DAILY ALARM/HOURLY CHIME
HOW TO SET ALARM
A. From NORMAL TIME mode press MODE three times. You
are now in ALARM mode. The display will show “AL”
alternating with “T1” or “T2” (the associated time zone for the alarm).
B. Press SET to begin setting procedures. Either “T1” or “T2” will begin
flashing in the upper display. T1 represents Time Zone 1, while T2
represents Time Zone 2. An alarm can be set for either Time Zone 1 or
Time Zone 2, but not both simultaneously. Press START/SPLIT to
alternate between T1 and T2. The applicable time will be displayed in the
upper right hand corner for either time zone.
C. Press MODE. The HOUR section will begin flashing. Press START/SPLIT
to advance hours. Pay attention to the AM (A) or PM (P) indicators on
the right side of the lower display in order to set the correct time.
NOTE: The A or P indicators will not be displayed if the time zone that you
are setting the alarm for is set for 24 hour (military) time.
D. Press MODE. The TENS OF MINUTES section will begin flashing. Press
START/SPLIT to advance tens of minutes.
E. Press MODE. The MINUTES section will begin flashing. Press
START/SPLIT to advance minutes.
If you need to change a setting, press MODE to return to TIME ZONE setting.
F. When you have completed setting the alarm, press SET to stop digits
from flashing. This will end the setting operation.
NOTE: After every new alarm time setting, the ALARM will automatically be
armed when you press SET. The symbol will appear, indicating that the
ALARM is now armed. Follow the instructions below for manually
activating or deactivating the alarm.
HOW TO ACTIVATE ALARM AND HOURLY CHIME
A. If you are not in the ALARM mode, repeatedly press MODE until you
enter this function.
B. Press START/SPLIT until the symbol appears in the right side of the
display. This symbol indicates that the ALARM has been activated and is
now armed. The alarm will now sound at the indicated time every 24
hours, unless disarmed. It will sound for 20 seconds. The beep may be
silenced by pressing any button. When the alarm sounds, the alarm
display will automatically appear for 20 seconds, no matter what mode
you were in prior to the alarm. When this occurs, you have 20 seconds
to disarm the alarm or set a new alarm time before the mode previously
displayed reappears.
C. To disarm the alarm during this 20-second period, simply press any
button to silence the alarm and then press START/SPLIT. The symbol
will disappear, indicating that the alarm has been disarmed and the
watch will return to the mode previously displayed before the alarm
appeared.
D. To set a new alarm time during this 20-second period, simply press any
button to silence the alarm and then press SET. The alarm will enter the
SET mode. See previous instructions for setting the alarm. Once set to
the new alarm time, the watch will return to the mode previously
displayed before the alarm appeared.
NOTE: While in NORMAL TIME or SECOND TIME ZONE (T2) (depending
on which time zone the alarm was set for), the symbol will appear in
the right side of the display indicating that an alarm is active.
E. To activate the HOURLY CHIME while in the ALARM mode, press
START/SPLIT until the symbol appears in the right side of the
display. This symbol indicates that the HOURLY CHIME has been
activated. When this symbol is shown, the watch will beep 2 times every
hour on the hour. When the chime is activated, the watch will also beep
each time any button is pressed. To deactivate the HOURLY CHIME,
enter the ALARM mode, and press START/SPLIT until the symbol
disappears.
NOTE: Both the ALARM and HOURLY CHIME can be armed at the same
time. Press START/SPLIT until symbol and symbol appear. Both
the ALARM and HOURLY CHIME are now activated. To deactivate, press
START/SPLIT until both symbols disappear. While in NORMAL TIME and
SECOND TIME ZONE (T2), the symbol will appear in the right side of
the display indicating that the HOURLY CHIME is active.
SECTION 10 – HOW TO USE THE TIDE RING
The tide ring on your watch may be used to monitor tide changes.
To use the tide ring, follow these steps:
1. Check a local newspaper or contact the Coast Guard for the tide times in
the area you will be sailing or fishing.
2. Locate the "HIGH TIDE" indicator arrow on the hour marker that
corresponds to the first high tide listed, and align with dots inside the ring.
3. Next low tide will occur within the next 5 to 7 hours after the high tide
indicated on the tide ring. (Time indicators 5, 6 and 7 are printed on the
tide ring.)
Example: If "HIGH TIDE" occurs at approximately 2:00, rotate the tide ring
until the high tide arrow marker points to the dot at the 2:00 position. Low
tide should therefore occur within the hours of 7:00 and 9:00.
NOTES: The tide ring indicates when the first high tide occurs and
approximately when the next low tide will be. For actual tide times, contact
a local Coast Guard office or consult a local newspaper.
SECTION 11 –
HOW TO USE THE COMPASS DIRECTIONAL RING
If your watch is equipped with a compass directional ring, it gives an
approximate compass reading. Locate the sun and then follow these steps:
1. Point the hour hand at the sun (see diagram).
2. WHEN IN A.M. TIME - Rotate the compass
directional ring until S (South) is past the
hour hand and halfway between the hour
hand and 12:00.
WHEN IN P.M. TIME - Rotate the compass
directional ring until S (South) is before the
hour hand and halfway between the hour
hand and 12:00.
Adjust the compass directional ring every hour
to reflect changes in the sun's position. When
reading the compass directional ring, make
certain the hour hand is always pointed towards
the sun. When the hour hand is at 12:00 noon,
S (South) should also be at 12:00.
SECTION 12 – HOW TO USE THE COMPASS
If your watch is equipped with a compass, it gives an approximate
directional reading in 10˚ intervals. For a more accurate reading, place the
compass on a level surface.
TO REMOVE THE COMPASS – Remove the watch from your wrist, push
against the front of the compass and it will pop out of the strap.
TO REINSERT THE COMPASS – Place the compass under the opening and
push in.
SECTION 13 – BATTERY REPLACEMENT
One battery provides the power to operate your Timex watch. To change
the battery entails removing the clip which holds it down. To avoid the
possibility of permanently damaging the watch, TIMEX STRONGLY
RECOMMENDS TAKING YOUR WATCH TO A LOCAL RETAILER OR
JEWELER TO HAVE THE BATTERY REPLACED. The battery type required is
indicated on the caseback of your Timex watch.
IMPORTANT NOTE: After replacing the battery and before you close the
caseback, be sure to quickly press the reset button twice if indicated on the
battery clamp. If after you close the caseback and replace the battery, the
display does not go on, press all buttons simultaneously.
CAUTION: DO NOT DISPOSE OF OLD BATTERY IN FIRE OR ATTEMPT TO
RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHILDREN.
When installed at the factory, the battery life in this Timex watch is
estimated to last approximately 2 years. This estimate is based on the
alarm being used one time per day for ten seconds and the light being used
one second per day. Battery life may vary depending on your actual usage
experience.
SECTION 14 – SERVICE
If your TIMEX watch should ever need servicing, send it to Timex
addressed as follows:
HOTLINE WATCH SERVICE
P.O. Box 2740
Little Rock, AR 72203
For service questions, call 1-800-448-4639.
For your convenience in obtaining factory service, participating Timex
Retailers can provide you with a pre-addressed Watch Repair Mailer.
See the Limited Warranty for specific instructions on the care and service
of your Timex watch.
Should you need a replacement strap or band, call 1-800-448-4639.
© 1996 Timex Corporation
The Basic Coverage: This TIMEX Quartz Digital L.C.D. (liquid crystal display)
watch (but not any battery, lens, band or strap) is warranted to the owner for a
period of ONE YEAR from the date of purchase against defects in manufacture by
Timex Corporation - not by the dealer from whom the watch was purchased.
What Timex Will Do: If this watch develops such a defect within the one year
period, it will be repaired (i.e., a new or thoroughly reconditioned and inspected
module will be installed) or replaced ( a watch of equal value and similar
appearance will be supplied) at our option, provided it is returned with a $5.00
check or money order to cover costs of postage, handling and service, and you
provide proof of purchase and date of purchase.
This Limited Warranty Does Not Cover:
1) Timex will not repair defects related to servicing not performed by Timex
Corporation.
2) Timex will not provide any warranty service if your watch shows evidence that it
has been tampered with, misused, abused, or altered; for example:
• moisture damage sufficient to affect the proper function of the watch;
• damage to the case; or
• visible cracking of the lens.
3) Timex reserves the right to charge you for a replacement battery, if the battery
in your watch is depleted. No additional charge will be made unless the one
year warranty period has expired or servicing is necessary for reasons beyond
our control, in which case a moderate charge will be made.
4) TIMEX IS NOT LIABLE FOR INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental,
special or consequential damages, so the above exclusion or limitation may not
apply to you.
Your Rights Under Implied Warranties and State Law: THIS LIMITED
WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTIES,
OBLIGATIONS OR LIABILITIES. TIMEX LIMITS THE DURATION OF ANY
WARRANTY IMPLIED BY STATE LAW, INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, TO ONE YEAR FROM THE DATE OF ORIGINAL
PURCHASE. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to
state.
Care of Your Watch:
• Avoid exposing your watch to water, steam, or other forms of moisture if it is
non-water-resistant.
• If the lens becomes damaged, have it replaced at once to avoid damage to the
module.
• When your battery is depleted, have it replaced promptly. The particular type of
battery required is indicated on your caseback. You can get them from your local
Timex retailer.
Service of Your Watch:
If your TIMEX watch should ever need servicing, send it to Timex addressed as
follows: HOTLINE WATCH SERVICE, P.O. Box 2740, Little Rock, AR 72203
Because of possible loss, we recommend insuring your watch, return receipt
requested, when using the mails. If you do not obtain a receipt within a reasonable
time, start a tracer through the originating post office. NEVER INCLUDE A
SPECIAL WATCHBAND OR ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR
SHIPMENT. PLEASE NOTE THAT WE MAY SUBSTITUTE A WATCH OF EQUAL
VALUE AND SIMILAR APPEARANCE FOR YOURS ON BOTH IN-WARRANTY AND
OUT-OF-WARRANTY REPAIRS.
For your convenience in obtaining factory service, participating Timex retailers will
be pleased to provide you with a postage-paid, pre-addressed Watch Repair
Mailer.
TIMEX is a trademark and a service mark of Timex Corporation.
REG. U.S. PAT. & TM. OFF.
LIMITED WARRANTY
Loading...
