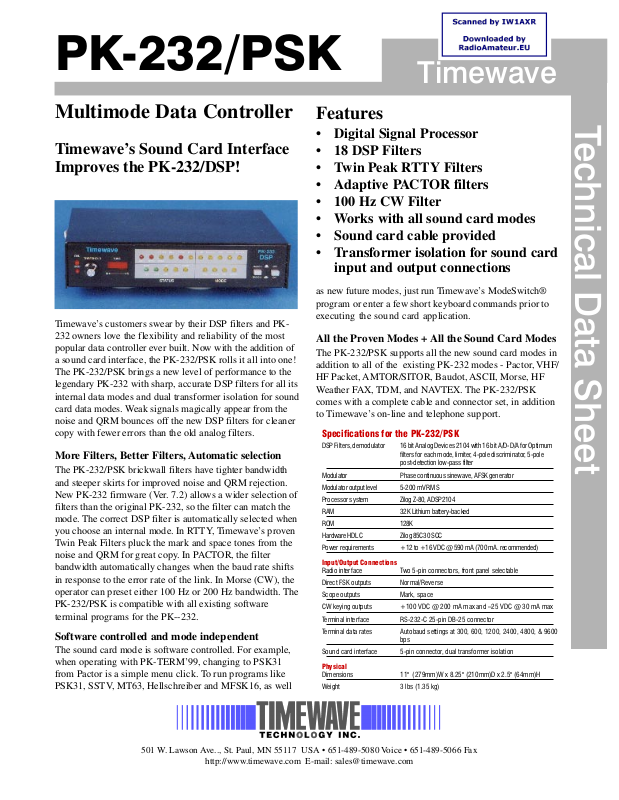

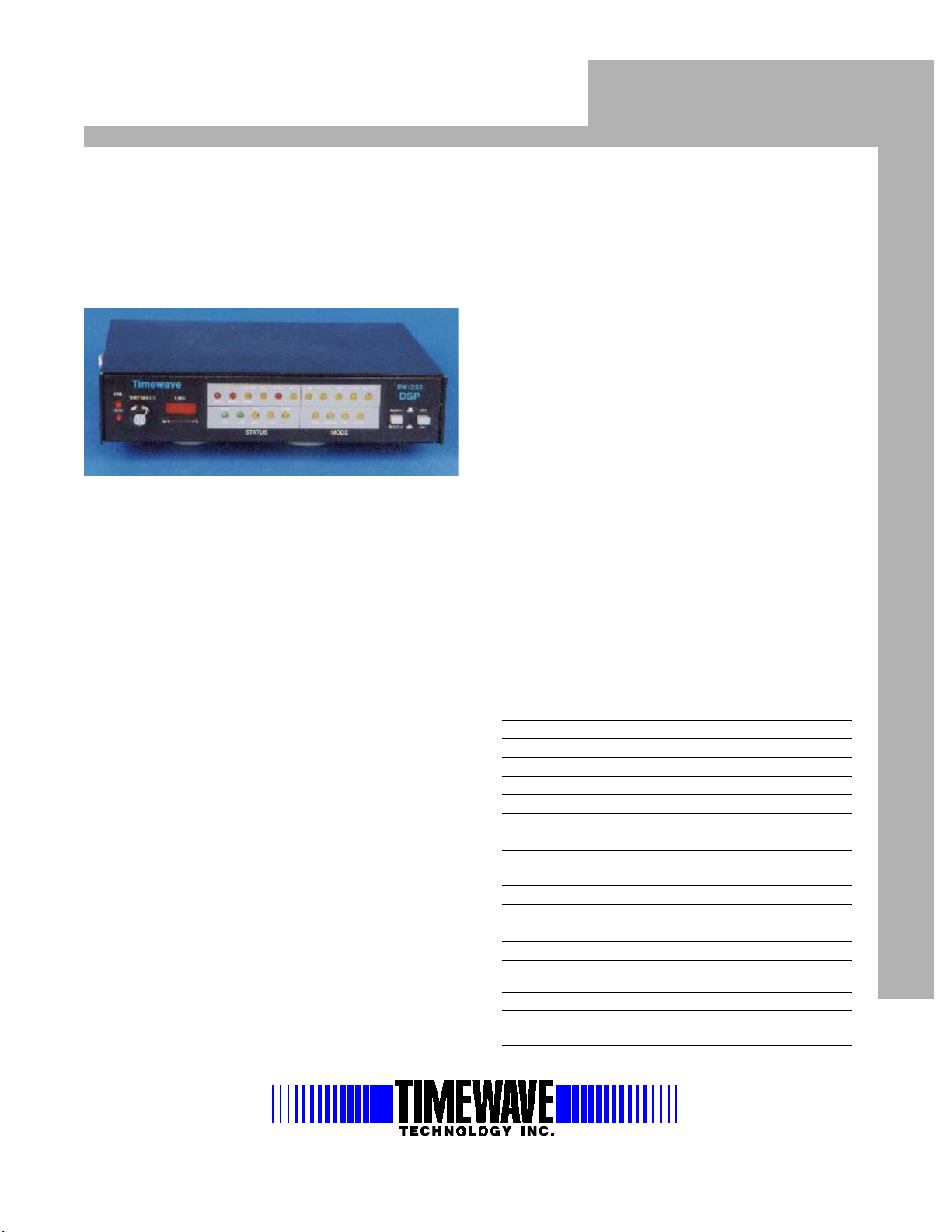

PK-232/PSK
Timewave
Multimode Data Controller
Timewave’s Sound Card Interface
Improves the PK-232/DSP!
Timewave’s customers swear by their DSP filters and PK232 owners love the flexibility and reliability of the most
popular data controller ever built. Now with the addition of
a sound card interface, the PK-232/PSK rolls it all into one!
The PK-232/PSK brings a new level of performance to the
legendary PK-232 with sharp, accurate DSP filters for all its
internal data modes and dual transformer isolation for sound
card data modes. Weak signals magically appear from the
noise and QRM bounces off the new DSP filters for cleaner
copy with fewer errors than the old analog filters.
More Filters, Better Filters, Automatic selection
The PK-232/PSK brickwall filters have tighter bandwidth
and steeper skirts for improved noise and QRM rejection.
New PK-232 firmware (Ver. 7.2) allows a wider selection of
filters than the original PK-232, so the filter can match the
mode. The correct DSP filter is automatically selected when
you choose an internal mode. In RTTY, Timewave’s proven
Twin Peak Filters pluck the mark and space tones from the
noise and QRM for great copy. In PACTOR, the filter
bandwidth automatically changes when the baud rate shifts
in response to the error rate of the link. In Morse (CW), the
operator can preset either 100 Hz or 200 Hz bandwidth. The
PK-232/PSK is compatible with all existing software
terminal programs for the PK--232.
Software controlled and mode independent
The sound card mode is software controlled. For example,
when operating with PK-TERM’99, changing to PSK31
from Pactor is a simple menu click. To run programs like
PSK31, SSTV, MT63, Hellschreiber and MFSK16, as well
Features
• Digital Signal Processor
• 18 DSP Filters
• Twin Peak RTTY Filters
• Adaptive PACTOR filters
• 100 Hz CW Filter
• Works with all sound card modes
• Sound card cable provided
• Transformer isolation for sound card
input and output connections
as new future modes, just run Timewave’s ModeSwitch®
program or enter a few short keyboard commands prior to
executing the sound card application.
All the Proven Modes + All the Sound Card Modes
The PK-232/PSK supports all the new sound card modes in
addition to all of the existing PK-232 modes - Pactor, VHF/
HF Packet, AMTOR/SITOR, Baudot, ASCII, Morse, HF
Weather FAX, TDM, and NAVTEX. The PK-232/PSK
comes with a complete cable and connector set, in addition
to Timewave’s on-line and telephone support.
Specifications for the PK-232/PSK
DSP Filters, demodulator 16 bit Analog Devices 2104 with 16 bit A/D-D/A for Optimum
filters for each mode, limiter, 4-pole discriminator, 5-pole
post-detection low-pass filter
Modulator Phase continuous sinewave, AFSK generator
Modulator output level 5-200 mV RMS
Processor system Zilog Z-80, ADSP2104
RAM 32K Lithium battery-backed
ROM 128K
Hardware HDLC Zilog 85C30 SCC
Power requirements +12 to +16 VDC @ 590 mA (700 mA. recommended)
Input/Output Connections
Radio interface Two 5-pin connectors, front panel selectable
Direct FSK outputs Normal/Reverse
Scope outputs Mark, space
CW keying outputs +100 VDC @ 200 mA max and 25 VDC @ 30 mA max
Terminal interface RS-232-C 25-pin DB-25 connector
Terminal data rates Autobaud settings at 300, 600, 1200, 2400, 4800, & 9600
bps
Sound card interface 5-pin connector, dual transformer isolation
Physical
Dimensions 11" (279mm)W x 8.25" (210mm)D x 2.5" (64mm)H
Weight 3 lbs (1.35 kg)
Technical Data Sheet
501 W. Lawson Ave.., St. Paul, MN 55117 USA • 651-489-5080 Voice • 651-489-5066 Fax
http://www.timewave.com E-mail: [email protected]
