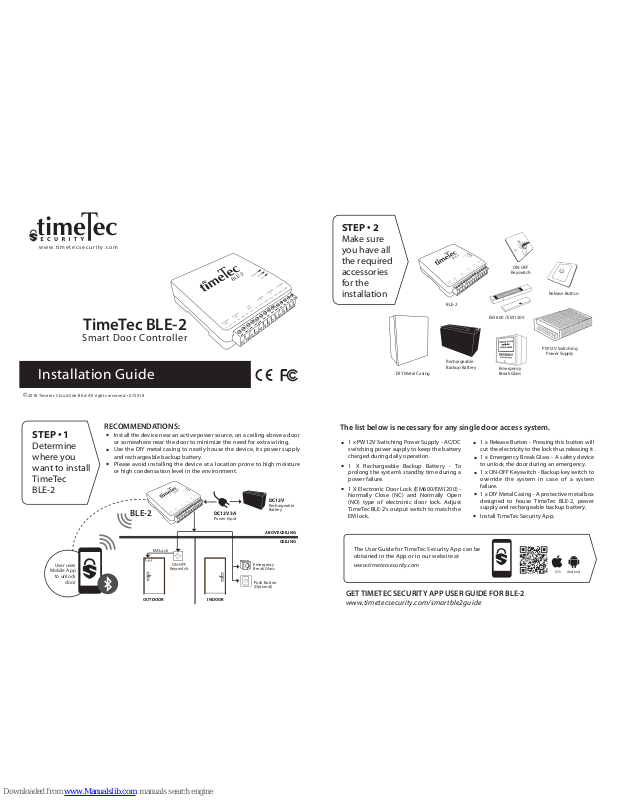

TimeTec Security TimeTec BLE-2 Installation Manual

Installation Guide

©

2018 Timetec Cloud Sdn Bhd. All rights reserved • 072018

www.timetecsecurity.com

TimeTec BLE-2

Smart Door Controller

INDOOR

OUTDOOR

DC12V 3A

Power Input

ABOVE CEILING

CEILING

Emergency
Break Glass

Push Button

(Optional)

DC12V

Rechargeable
Battery

ON-OFF

Keyswitch

EM Lock

BLE-2

User uses

Mobile App

to unlock

door

RECOMMENDATIONS:

•

Install the device near an active power source, on a ceiling above a door
or somewhere near the door to minimize the need for extra wiring.

•

Use the DIY metal casing to neatly house the device, its power supply
and rechargeable backup battery.

•

Please avoid installing the device at a location prone to high moisture
or high condensation level in the environment.

STEP • 2

Make sure
you have all
the required
accessories
for the
installation

Emergency
Break Glass

EM 600 / EM 1200

ON-OFF

Keyswitch

Release Button

STEP • 1

Determine
where you
want to install
TimeTec
BLE-2

BLE-2

DIY Metal Casing

Rechargeable
Backup Battery

PW12V Switching

Power Supply

The User Guide for TimeTec Security App can be
obtained in the App or in our website at

www.timetecsecurity.com

iOS Android

•

1 x PW12V Switching Power Supply - AC/DC
switching power supply to keep the battery
charged during daily operation.

•

1 X Rechargeable Backup Battery - To
prolong the system’s standby time during a
power failure.

•

1 X Electronic Door Lock (EM600/EM1200) ­Normally Close (NC) and Normally Open
(NO) type of electronic door lock. Adjust
TimeTec BLE-2’s output switch to match the
EM lock.

•

1 x Release Button - Pressing this button will
cut the electricity to the lock thus releasing it.

•

1 x Emergency Break Glass - A safety device
to unlock the door during an emergency.

•

1 x ON-OFF Keyswitch - Backup key switch to
override the system in case of a system
failure.

•

1 x DIY Metal Casing - A protective metal box
designed to house TimeTec BLE-2, power
supply and rechargeable backup battery.

•

Install TimeTec Security App.

GET TIMETEC SECURITY APP USER GUIDE FOR BLE-2

www.timetecsecurity.com/smartble2guide

The list below is necessary for any single door access system.

12VDC 3A

Power
Supply

12VDC

Rechargeable Battery

Follow the diagram below to setup
TimeTec BLE-2 and all its accessories.

STEP • 4

Arrangement in
the metal casing

PRIMARY INSPECTION

TimeTec BLE-2 Connectivity

•

Check TimeTec BLE-2 LED status.

•

Check whether the Bluetooth LED is
activated.

•

Check whether the Power LED is activated.

•

Check whether the Status LED is blinking.

SECONDARY INSPECTION

Electronic door lock and its accessories.

•

Check whether the electronic door lock
powers up and locks firmly. Adjust the lock
position, if it does not lock firmly.

0 +12V OUT 1 COM OUT 2 COM OUT 3 COMD1 D0 GND IN1 IN 2 0V

B +

0V

12V

B

_

•

NC Type Electronic Door Lock

B

_

B +

+
_

Electronic Lock

(NC)

Push Release

Button

2

3

Emergency Break

Glass (NC)

A

C

Override

Keyswitch (NC)

12VDC 3A

Power
Supply

12VDC

Rechargeable Battery

0 +12V OUT 1 COM OUT 2 COM OUT 3 COMD1 D0 GND IN1 IN 2 0V

B +

0V

12V

B

_

•

NO Type Electronic Door Lock.

B

_

B +

+
_

Electronic Lock

(NO)

Push Release

Button

1

3

Emergency Break

Glass (NO)

B

D

Override

Keyswitch (NO)

NOTE:

Please slide up the switch to enable Normally
Open (NO) mode.

Please slide down the switch to enable
Normally Close (NC) mode.

•

Check whether a press on the push release
button will release and unlock the door
successfully.

•

While triggering the emergency break glass
testing mode, the door will unlock perma­nently. Please adjust the emergency break
glass to standby mode again and make sure
that the door lock is re-energized.

•

Turn the override key switch to OFF position
and make sure that the door lock unlocks
permanently. Turn the override key switch to
ON position again and make sure that the
door lock is re-energized and locks the door.

•

Login to TimeTec Security Mobile App, tap
unlock and ensure that the electronic door
lock releases successfully.

STEP • 3

Get ready to install

PW12V Switching

Power Supply

Backup Battery

This guide is prepared in the
English language, for other
languages, please refer to
the website.

STEP • 5

Inspect the progress
of the installation

BLE-2

DIY Metal Casing

Please register product warranty at

http://www.fingertec.com/ver2/english/e_warranty.htm

If any of the above is not working as expected, please
check the wiring or contact [e-mail]
