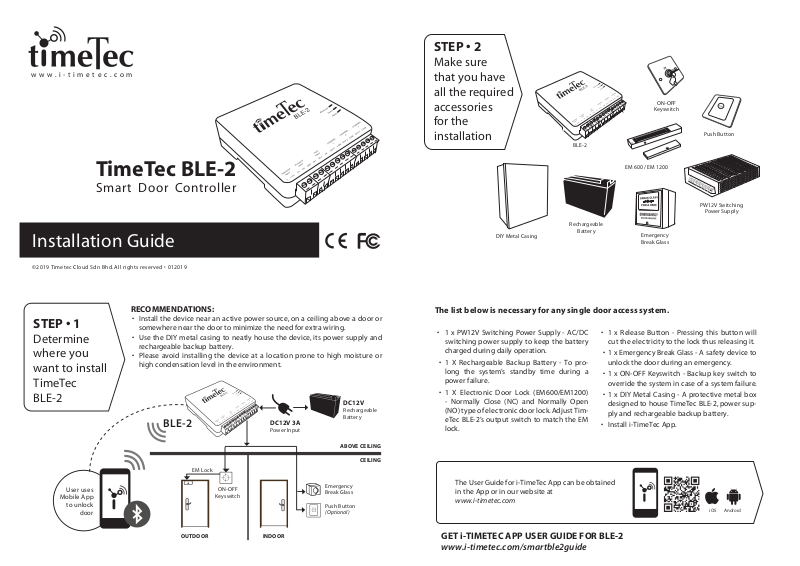

TimeTec BLE-2 Installation Manual
w w w . i - t i m e t e c . c o m
STEP • 2
Make sure
that you have
all the required
accessories
for the
installation
BLE-2
ON-OFF
Keyswi tch
Push Bu tton
TimeTec BLE-2
Smar t Door Controller
Installation Guide
©20 19 Ti mete c Cl oud S dn B hd. Al l ri ghts rese rved • 0 1201 9
RECOMMENDATIONS:
STEP • 1
Determine
where you
want to install
TimeTec
BLE-2
User uses
Mobile App
to unlock
door
• Install the device near an active power source, on a ceiling above a door or
somewhere near the door to minimize the need for extra wiring.
• Use the DIY metal casing to neatly house the device, its power supply and
rechargeable backup battery.
• Please avoid installing the device at a location prone to high moisture or
high condensation level in the environment.
BLE-2
EM Lock
ON-OFF
Keyswi tch
DC12V 3A
Power In put
DC12V
Rechar geable
Batter y
ABOVE C EILING
Emerge ncy
Break Glass
Push Bu tton
(Optio nal)
CEILIN G
EM 600 / EM 1200
Rechar geable
DIY Me tal Casing
Batter y
Emerge ncy
Break Glass
The list below is necessary for any single door access system.
• 1 x PW12V Switching Power Supply - AC/DC
switching power supply to keep the battery
charged during daily operation.
• 1 X Rechargeable Backup Battery - To prolong the system’s standby time during a
power failure.
• 1 X Electronic Door Lock (EM600/EM1200)
- Normally Close (NC) and Normally Open
(NO) type of electronic door lock. Adjust TimeTec BLE-2’s output switch to match the EM
lock.
The User Guide for i-TimeTec App can be obtained
in the App or in our website at
www.i-timetec.com
• 1 x Release Button - Pressing this button will
cut the electricity to the lock thus releasing it.
• 1 x Emergency Break Glass - A safety device to
unlock the door during an emergency.
• 1 x ON-OFF Keyswitch - Backup key switch to
override the system in case of a system failure.
• 1 x DIY Metal Casing - A protective metal box
designed to house TimeTec BLE-2, power supply and rechargeable backup battery.
• Install i-TimeTec App.
PW12V Switching
Power Su pply
iOS Andr oid
OUTDOO R INDOOR
GET i-TIMETEC APP USER GUIDE FOR BLE-2
www.i-timetec.com/smartble2guide
STEP • 3
Get ready to install
Follow the diagram below to setup TimeTec BLE-2 and
all its accessories.
• NC Type Electronic Door Lock
12VDC 3A
Power
Supply
Regulated
Input
Wiegand
Input
AUX
Input
CHANNEL
1
CHANNEL
2
CHANNEL
3
Electronic Lock
(NC)
Emergency Break
Glass (NC)
STEP • 4
Arrangement in the
metal casing
PW12V Switching
Power Supply
DIY Metal Casing
Backup Battery
BLE-2
12VDC
Rechargeable Battery
• NO Type Electronic Door Lock.
Regulated
Input
12VDC 3A
Power
Supply
12VDC
Rechargeable Battery
Wiegand
Input
NOTE:
Please slide up the switc h to en able Normall y
Open (NO) mode.
Please slide down the swi tch to ena ble
Normally C lose (NC) mode.
Push
Release
Button
AUX
Input
Push
Release
Button
CHANNEL
1
Override
Keyswitch (NC)
CHANNEL2CHANNEL
Electronic Lock
Emergency Break
Glass (NO)
Override
Keyswitch (NO)
(NO)
STEP • 5
Checking the progress
of installation
PRIMARY INSPECTION
3
TimeTec BLE-2 Connectivity
• Check TimeTec BLE-2 LED status.
• Check whether the Bluetooth LED is activated.
• Check whether the Power LED is activated.
• Check whether the Status LED is blinking.
SECONDARY INSPECTION
Electronic door lock and its accessories
• Check whether the electronic door lock powers
up and locks firmly. Adjust the lock position, if it
does not lock firmly.
This guide is prepared in
English language, for other
languages, please refer to
the website.
Please register product warranty at
http://www.fingertec.com/ver2/english/e_warranty.htm
If any of the above is not working as expected, please
check the wiring or contact suppor t@timeteccloud.com
• Check whether a press on the push release
button will release and unlock the door successfully.
• While triggering the emergency break glass
testing mode, the door will unlock permanently. Please adjust the emergency break
glass to standby mode again and make sure
that the door lock is re-energized.
• Turn the override key switch to OFF position
and make sure that the door lock unlocks
permanently. Turn the override key switch
to ON position again and make sure that the
door lock is re-energized and locks the door.
• Login to i-TimeTec Mobile App, tap unlock
and ensure that the electronic door lock releases successfully.
