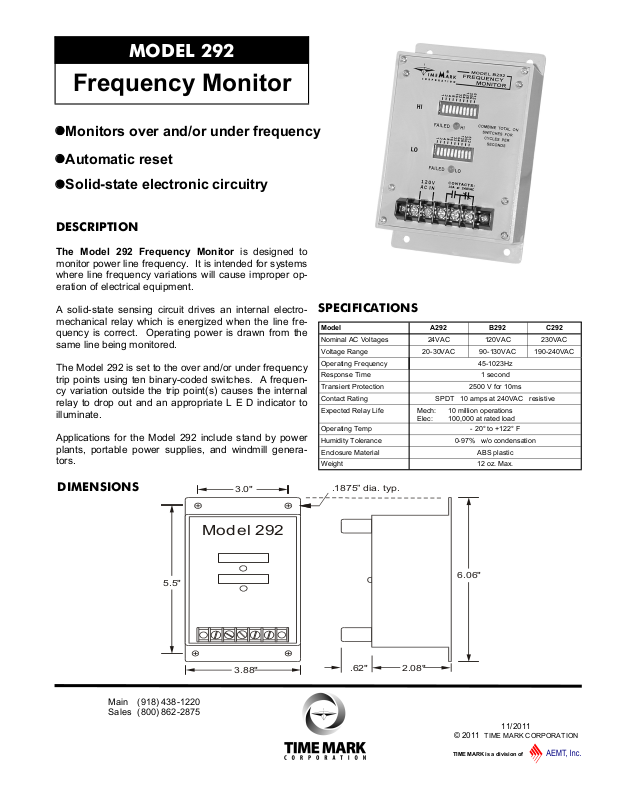

Time Mark 292 Data Sheet

MODEL 292
TIME MARK is a division of
.1875” dia. typ.
6.06"
5.5"5.5"
3.88"
3.0"
2.08".62"
Model 292
Frequency Monitor
Monitors over and/or under frequency
Automatic reset
Solid-state electronic circuitry
DESCRIPTION
The Model 292 Frequency Monitor is designed to monitor power line frequency. It is intended for systems where line frequency variations will cause improper op­eration of electrical equipment.
A solid-state sensing circuit drives an internal electro­mechanical relay which is energized when the line fre­quency is correct. Operating power is drawn from the same line being monitored.
The Model 292 is set to the over and/or under frequency trip points using ten binary-coded switches. A frequen­cy variation outside the trip point(s) causes the internal relay to drop out and an appropriate L E D indicator to illuminate.
Applications for the Model 292 include stand by power plants, portable power supplies, and windmill genera­tors.
SPECIFICATIONS
Model A292 B292 C292
Nominal AC Voltages 24VAC 120VAC 230VAC
Voltage Range 20-30VAC 90-130VAC 190-240VAC
Response Time 1 second
Transient Protection 2500 V for 10ms
Contact Rating SPDT 10 amps at 240VAC resistive
Expected Relay Life Mech: 10 million operations
Elec: 100,000 at rated load
Operating Temp - 2to +122° F
Humidity Tolerance 0-97% w/o condensation
Enclosure Material ABS plastic
Weight 12 oz. Max.
DIMENSIONS
Main (918) 438-1220
Sales (800) 862-2875
11/2011
© 2011 TIME MARK CORPORATION
MODEL 292
TIME MARK is a division of
1
2
4
8
16
32
64
128
256
512
1
2
4
8
16
32
64
128
256
512
HI
LO
Switch ON
Switch OFF
1
2
4
8
16
32
64
128
256
512
1
2
4
8
16
32
64
128
256
512
HI
LO
Switch ON
Switch OFF
Model
292
M
Frequency Monitor
READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 292.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
INSTALLATION
Connect the control wiring to the terminals with the con­tact markings (refer to the diagram on the unit). Apply power.
TROUBLESHOOTING
Should the Model 292 Frequency Monitor fail to oper­ate, check all connections. Verify that power is pre­sent, and check all fuses. Should problems persist, contact the factory at 800-862-2875 for assistance.
OPERATION
To select a frequency trip point, set the appropriate switches to ON. Figure 1 shows the Model 292 set to trip at frequencies below 58Hz and above 62Hz.
Figure 2 shows the Model 292 set for a frequency band of 400Hz +/-5Hz.
WARRANTY
This product is warranted to be free from defects in materials and workmanship for one year. Should this device fail to operate, we will repair it for one year from the date of manufacture. For complete warranty de­tails, see the Terms and Conditions of Sales page in the front section of the Time Mark catalog or contact Time Mark at 1-800-862-2875.
Figure 1
Figure 2
TYPICAL APPLICATION
Sales (800) 862-2875
Main (918) 438-1220
Shows No Power Applied
11/2011
© 2011 TIME MARK CORPORATION
