Time Mark 2602 Data Sheet
3.13"
4.5"
2.25"
4.0"
4.8"
3.5"

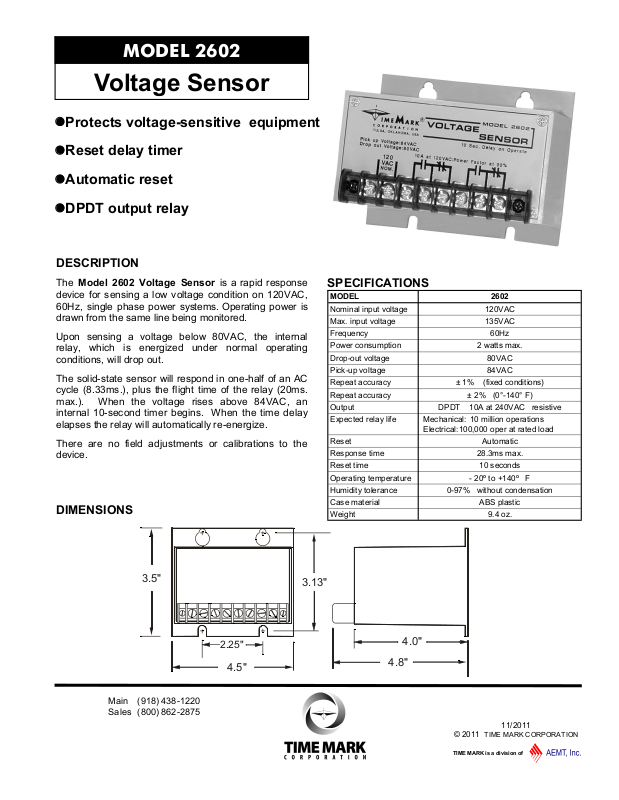

MODEL 2602
TIME MARK is a division of
Voltage Sensor
Protects voltage-sensitive equipment
Reset delay timer
Automatic reset
DPDT output relay
DESCRIPTION
The Model 2602 Voltage Sensor is a rapid response
device for sensing a low voltage condition on 120VAC,
60Hz, single phase power systems. Operating power is
drawn from the same line being monitored.
Upon sensing a voltage below 80VAC, the internal
relay, which is energized under normal operating
conditions, will drop out.
The solid-state sensor will respond in one-half of an AC
cycle (8.33ms.), plus the flight time of the relay (20ms.
max.). When the voltage rises above 84VAC, an
internal 10-second timer begins. When the time delay
elapses the relay will automatically re-energize.
There are no field adjustments or calibrations to the
device.
DIMENSIONS
SPECIFICATIONS
MODEL 2602
Nominal input voltage 120VAC
Max. input voltage 135VAC
Frequency 60Hz
Power consumption 2 watts max.
Drop-out voltage 80VAC
Pick-up voltage 84VAC
Repeat accuracy
Repeat accuracy ± 2% (0°-140° F)
Output DPDT 10A at 240VAC resistive
Expected relay life Mechanical: 10 million operations
Electrical: 100,000 oper at rated load
Reset Automatic
Response time 28.3ms max.
Reset time 10 seconds
Operating temperature - 20º to +140º F
Humidity tolerance 0-97% without condensation
Case material ABS plastic
Weight 9.4 oz.
± 1% (fixed conditions)
Sales (800) 862-2875
Main (918) 438-1220
11/2011
© 2011 TIME MARK CORPORATION
MODEL 2602
TIME MARK is a division of
Voltage Sensor
READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 2602.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
INSTALLATION
Connect the control wiring to the terminals with the
contact markings (refer to the diagram on the unit).
Apply power.
ADJUSTMENT
No calibration or adjustments needed for this
device.
TROUBLESHOOTING
Should the Model 2602 Voltage Sensor fail to
operate, check all connections. Verify that power
is present, and check all fuses. Should problems
persist, contact the factory at 800-862-2875 for
assistance.
WARRANTY
This product is warranted to be free from defects in
materials and workmanship for one year. Should
this device fail to operate, we will repair it for one
year from the date of manufacture. For complete
warranty details, see the Terms and Conditions of
Sales page in the front section of the Time Mark
catalog or contact Time Mark at 1-800-862-2875.
TYPICAL APPLICATION
Main (918) 438-1220
Sales (800) 862-2875
Shows No Power Applied
11/2011
© 2011 TIME MARK CORPORATION
