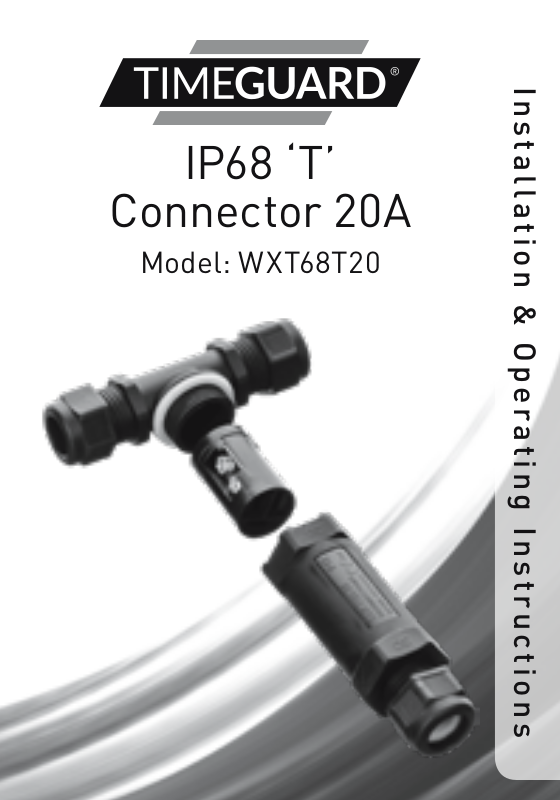

IP68 ‘T’
Connector 20A
Model: WXT68T20
Installation & Operating Instructions
Installation instructions
30
Isolate mains power supply before commencing.
If in doubt consult a qualified electrician.
Step 1 Step 3
4 Poles
L – L (brown)
N – N (blue)
– (yellow/green)
5 Poles
1 – 1
1
Step 2
ø5 – ø8
ø8 – ø14
Max./min.
cable diameter.
Locking nut
Glands
Gasket
Connector
Min. cable diameter 5mm.
Max. cable diameter 8mm.
Note: When stripping
the cables please use the
measurements shown.
L – L (brown)
– (yellow/green)
N – N (blue)
1 – 1
2 – 2
8
Step 4
2
Step 5 Step 6
Ratings:
Current: 20A.
Voltage: 230V AC 50Hz.
Temperature: -20° to 85°C.
Dimensions: 95 x 115 x 32mm.
B
B
2.5Nm torque
A
A
2.5Nm torque
Note: Please observe
the correct polarity
when wiring.
3 Year Guarantee
In the unlikely event of this product becoming faulty due to defective material
or manufacture within 3 years of the date of purchase, please return it to
your supplier in the first year with proof of purchase and it will be replaced
free of charge. For the second and third years or any difficulty in the first year
telephone the helpline on 020 8450 0515.
Note: A proof of purchase is required in all cases. For all eligible replacements
(where agreed by Timeguard) the customer is responsible for all shipping/
postage charges outside of the UK. All shipping costs are to be paid in
advance before a replacement is sent out.
For assistance with the product please contact:
HELPLINE 020 8450 0515
or email helpline@timeguard.com
For a product brochure please contact:
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Office: 020 8452 1112
or email csc@timeguard.com
67.058.520 (issue 2)
Zerofour – August 2018
