Weathersafe Extreme
Installation & Operating Instructions
IP66 Products covered by
these instructions
WXT201N Twin Gang Socket Switched 13A

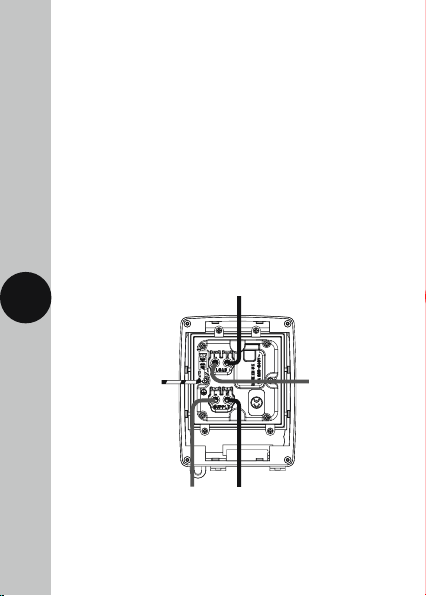

WXT104N Single Gang RCD Fused Spur 13A

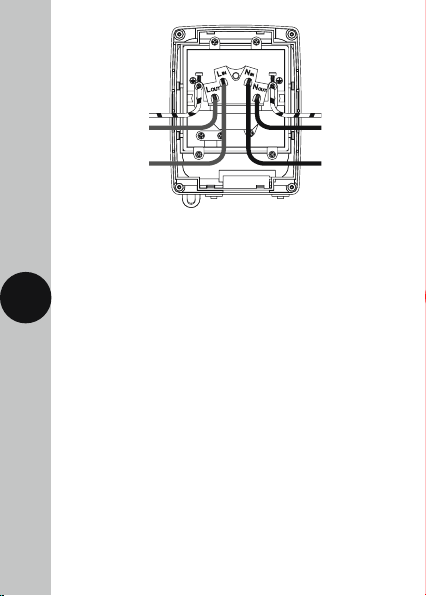

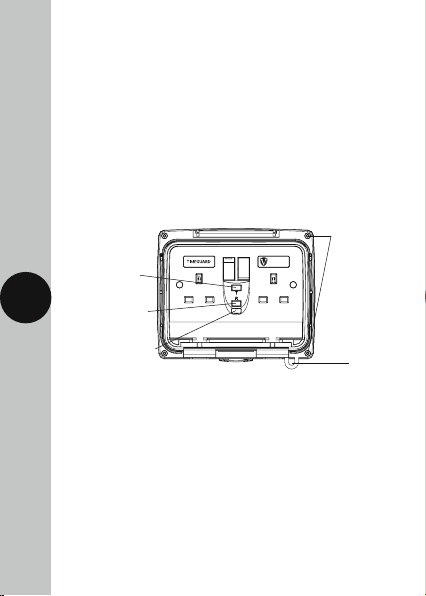

WXT204N Twin Gang RCD Socket Switched 13A
(Passive/Latching)
WXT205N Twin Gang RCD Socket Switched 13A
(Active/Non-Latching)
WXT103N Single Gang Switched Fused Spur 13A –
with Neon
1. General Information
These instructions should be read carefully and retained for further
reference and maintenance.
1
All Weathersafe Extreme products need to be fitted with waterproof
cable and conduit entries to maintain their IP rating once installed
2. Safety
• Before installation or maintenance, ensure the mains supply to
the switch, socket, spur or bell push unit is switched off and the
circuit supply fuses are removed or the circuit breaker turned off.
• It is recommended that a qualified electrician is consulted or used
for the installation of this IP66 rated switch, socket, spur or bell
push unit and install in accordance with the current IEE wiring
and Building Regulations.
• Check that the total load on the circuit including when this
switch, socket, spur or bell push unit is fitted does not exceed the
rating of the circuit cable, fuse or circuit breaker.
• Electricity can be dangerous; the use of an RCD should not be
regarded as a substitute for basic electrical safety precautions.
• Always test the RCD before use. If the test procedure is not
completed satisfactory or an appliance continues to trip the RCD
seek professional advice and switch off the appliance.
• To clean, use a clean dry cloth only. Do NOT use any liquid cleaners.
• During use warming of the enclosure is normal.
Wiring tests – Important (WXT104N, WXT204N & WXT205N)
• Remove this product from the circuit if carrying out tests (as
described in the IEE Wiring Regulations) for earth loop impedance,
prospective short circuit current and insulation resistance.
• Use the enclosed warning label to ensure this is carried out.
2
3. Technical Specifications
General
• Voltage: 230V AC 50Hz
• IP Rating: IP66
• All products in the range comply with the low voltage directive
2014/35/EU and where relevant the EMC directive 2014/30/EU
and ROHS directive 2011/65/EU.
• CE Compliant
Sockets (WXT101N & WXT201N)
• Individual power ‘ON’ Neon Indicators
• Lockable cover facility
• Operating temperature range: -5° to 55°C
• Complies with: BS1363
RCD’S (WXT104N, WXT204N, WXT205N)
• Lockable cover facility
• Rated trip current: 30mA
• RCD Type: Double pole, suitable for
2 and 3 wire applications
• Breaking capacity: 250A (Earth leakage)
• Through fault withstand: 1500A
• Trip Speed: Less than 40msec at 150mA
residual current
• Classification: WXT104N – Latching (Passive)
3
WXT204N – Latching (Passive)
WXT205N – Non-latching (Active)
• Operating temperature range: -5ºC to 40ºC
• Complies with: BS7288 & BS1363
Fused Spur (WXT103N)
• Power ‘ON’ Neon indicator
• Lockable cover facility
• Operating temperature range: -5° to 55°C
• Complies with: BS1363

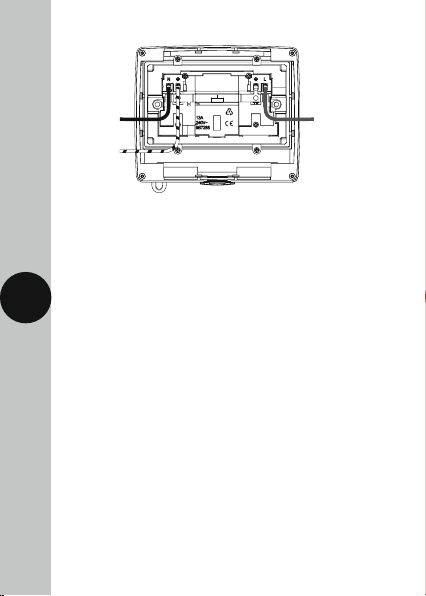

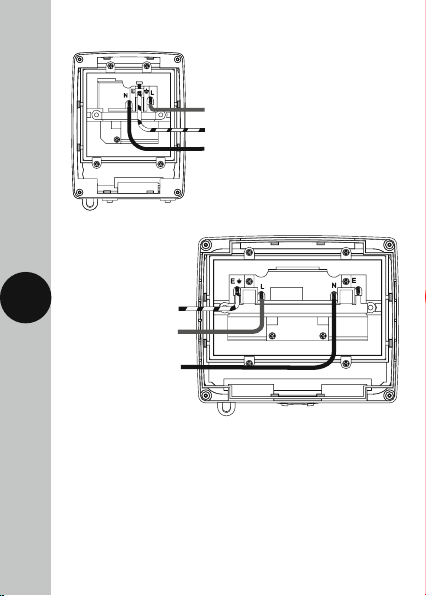

4. WXT101N, WXT201N & WXT103N
Installation
1. IMPORTANT Switch off the electricity at the fuse box by removing
the relevant fuse or switching off the circuit breaker before
proceeding with the installation.

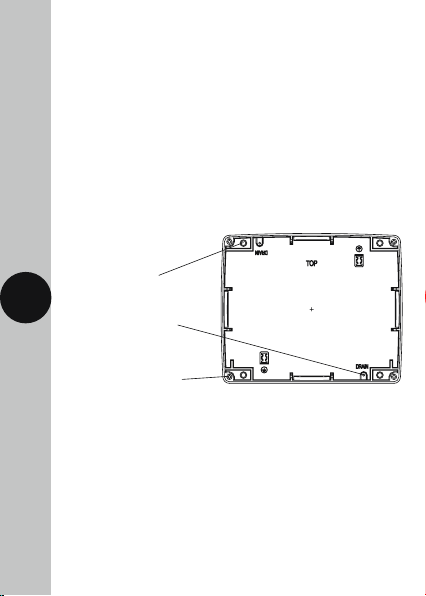

2. Using a Philips screwdriver, separate the faceplate from the back
box by removing the four tapped screws located in each corner.
See figure 1 & 2 for your chosen product.
ON/OFF
switches
Individual
backlit neon
indicators
4 5
Neon status indicator
ON/OFF switch
Fuse socket
Tapped screws
Figure 1
Features apply to
both WXT101N
and WXT201N

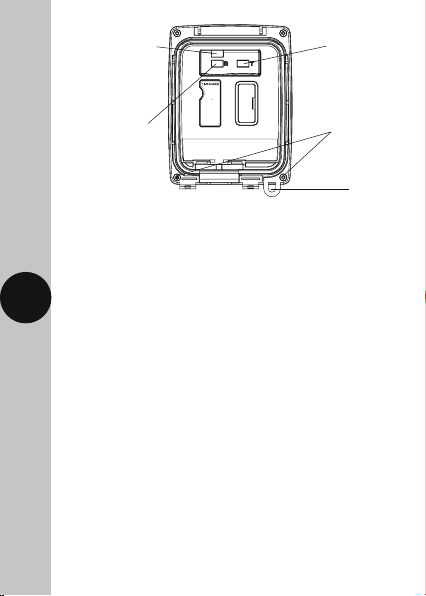

Lid clip for padlocks
Tapped screws
Figure 2
WXT103N
front plate
