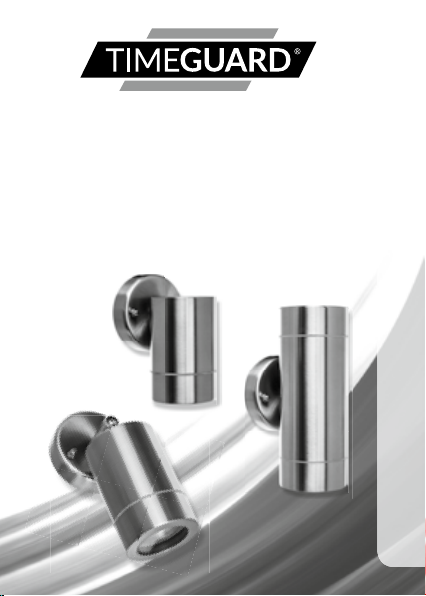

LED Ready Wall Lights
UDSS1 – Fixed single spot light – stainless steel
UDSS2 – Up/down light – stainless steel
UDSS 3 – Adjustable single spot light – stainless steel
UDB1 – Fixed single spot light – black
UDB2 – Up/down light – black
UDB3 – Adjustable single spot light – bl ack
Installation & Operating Instructions
1. General Information
These instructions should be read carefully and retained for further
reference and maintenance.
2. Safety
• Before installation or maintenance, ensure the mains supply to the
luminaire is switched off and the circuit supply fuses are removed
or the circuit breaker turned off.
• It is recommended that a qualified electrician is consulted or used
for the installation of this luminaire and install in accordance with
the current IEE wiring and Building Regulations.
• Check that the total load on the circuit including when this
luminaire is fitted does not exceed the rating of the circuit cable,
fuse or circuit breaker.
3. Technical Specifications
1
• 230V AC 50 Hz.
• This luminaire is of class I construction and must be earthed.
• 35W Halogen GU10 or LED equivalent (lamp not supplied).
• IP65 Rated suitable for restricted external applications.
• -5° to 55°C Operating temperature.
• CE Approved.
4. Installation
• Remove wall plate from light fitting, by removing the two nuts.
• Mark the position of the mounting holes on the wall.
• Drill the holes for the wall plugs ensuring not to infringe with
any gas/water pipes or electrical cables that may be hidden
below the surface.
• Secure the supply cable into the luminaire through the hole(s)
provided ensuring that a cable gland, grommet or sealing
compound is used to maintain the IP rating of the luminaire.
• Mount the wall plate to the wall, using the fittings provided.
Note: the wall plate must be mounted in the correct orientation,
following the ‘UP’ arrow sticker located on the inside of the light
fitting (fixed single spots and up/down lights). This will ensure
the fitting will be the correct way up when it is reconnected
to the wall plate.
• Replace the lamp unit over the wall plate, ensuring the main
2
gasket is in place, and tighten the two nuts hand tight,
to retain the lamp.
