Timeguard TS900B User Manual

24 HOUR

IMMERSION HEATER

TIME CONTROLLER

Cat. No TS900B

OPERATING INSTRUCTIONS

TS900B 24 Hour Immersion
Heater Time Controller

24 hour
programme ring

Setting
pins

1 2 3

Removable
cover

Cover
fixing
screw

Self-cancelling and

Override switch

Time

indicator

Store for

unused

setting

pins

Concealed

wiring for

safety

FITTING INSTRUCTIONS

1. Choose any suitable flat surface between switched supply
and immersion heater to fit the TS900.

2. Remove cover by undoing screw on lower front cover.

3. Place timeswitch in required position (it must be mounted
vertically with the time indicator at the top) and mark wall at
the centre of the top side.

4. Measure down from this mark 5mm/0.2" and make a second
mark. At this second mark drill a hole and plug, if necessary,
to take a No 6 woodscrew.

5. Screw in woodscrew until head is 2.5mm proud (see
diagram).

6. Place ‘Keyhole’ in back of timeswitch over screw head and
slide downwards. Now mark wall through large recessed hole
near bottom of unit. Remove Timeswitch, at this third mark
drill and plug as before.

7. Replace Timeswitch over screw head. Fit second woodscrew
into recessed hole and tighten into wall.

8. You are now ready to wire up.

1

4

5mm

2

3

5

2.5mm

Please refer diagrams
1-5 to sections 1-5 in
above instructions.

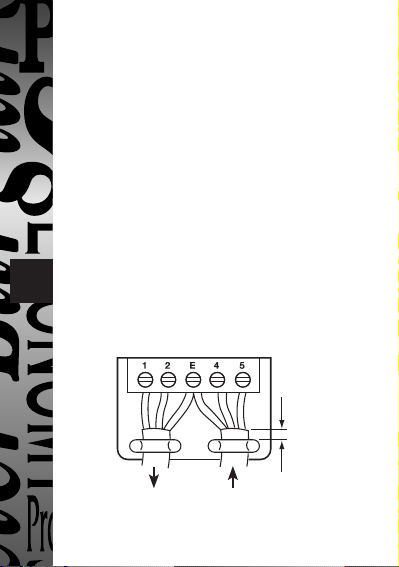

WIRING INSTRUCTIONS

1. SWITCH OFF AT MAINS.

2. Cut cable to suit Timeswitch position and bare ends of cable,
connecting to Timeswitch as shown below.

3. From immersion heater fit live connection (brown) into
terminal 1. From immersion heater fit neutral connection
(blue) into terminal 2. From both cables fit both earth
connections (green yellow) into terminal E. From switch/supply
fit neutral connection (blue) into terminal 4. From switch /
supply fit live connection (brown) into terminal 5. Ensure all
screws are tightened.

4. Fit two cable clamps using 4 self-tapping screws and tighten
to grip outer insulation of both cables.

5. Replace cover, tighten screw.

6. Switch on mains and programme Timeswitch to your own
requirements.

SL N N

L

To Heater From Supply

5mm
minimum

4

OPERATING INSTRUCTIONS.

1.

Remove the setting pins and insert them at the times you wish
the switch to operate. ON = Inner Circle OFF = Outer Circle.
The shortest period is half-an-hour. Unused setting pins are
stored in the front of the unit.

2. Turn the programme ring clockwise, one complete turn, to
check the programme. Set the programme ring to the correct
time of day at the time indicator.

3. It is possible to manually override the programmed time by
operating the override switch in the right hand corner.
1 = ON. O = OFF.

Notes: a. The override switch cannot be used within 15 minutes
either side of a switching time.
b. Remember to reset the time following power failure.

This product must not be used on a load
greater than 3kW resistive.

Warning: Continuity of earthing must be maintained. If you have
any doubt about your ability to install this Timeswitch correctly
consult a competent electrician. The IEE Wiring Regulations
require that a means for disconnection from the supply having
a contact separation of at least 3mm in all poles must be
incorporated in the fixed wiring. Your consumer unit normally
complies. All conductors should be 1.5mm2 min.

Specifications

Operating Temp: 0°C to 50°C
Operating Voltage: 230V AC 50Hz
Switch Rating: 13 amp resistive (3kW)
5 amp inductive
400W filament lighting
100W of any type of Low Energy or
Fluorescent Lighting
Conforms to Directives: 73/23/EEC & 89/336/EEC

Not suitable for discharge lighting (eg SON & Metal Halide).

3 Year Guarantee

In the unlikely event of the product becoming faulty due to
defective material or manufacture within 3 years of the date
of purchase, please return it to your supplier in the first year
with proof of purchase and it will be replaced free of charge.
For the second and third years or any difficulty in the first
year telephone the helpline on 020 8450 0515

HELPLINE

020-8450-0515

or email [e-mail]

For a product brochure please contact:

Timeguard Ltd.

Victory Park, 400 Edgware Road,

London NW2 6ND Tel: [phone]

or email [e-mail]

A Group company

67-058-270
