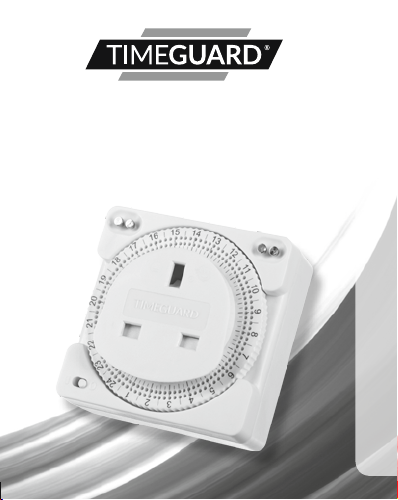

Timeguard TS800N Installation Instructions

24 Hour Plug-In
Time Controller

Model: TS800N

Installation & Operating Instructions

1. General Information

These instructions should be read carefully
and retained for further reference and maintenance.

2. Safety

• Do not plug in any appliance that exceeds
the capacity of the Timer.

• Always ensure the plug of any appliance
is fully inserted into the timer outlet.

• If cleaning of the timer is required, remove from

1

mains power and wipe timer with a dry cloth.

• Do not immerse in water or any other liquid.

• For indoor use only.

3. Technical Specifications

• 230V AC 50 Hz

• Switch Rating: 13A resistive (3kW)
400W Filament
Lighting
60W Fluorescent/
CFL and LED
Lighting

• Programme: 24 hour

• Minimum setting interval: 15 minutes

2

• Minimum ON/OFF time
between setting: 30 minutes

• Up to 24 ON & OFF programmes per day
(additional pins required).

• Operating temperature: 0°C to +40°C

• CE Approved

• Manual Override: Self-cancelling
manual override to
the next programme
change.

Note: Not suitable for use with
Discharge lighting.

• Certain washing machines require the power to
be permanently connected so they cannot be
controlled by the TS800N. This is also true of
tumble dryers with push button start.

Diagram A

Setting

pins

3 4

Time
indicator

Self­cancelling
override
switch

24hr programme ring
(inner holes = ON
outer holes = OFF)

Protective

lobes

Tough flame

retardant casing

4. Operation

• Decide what times you would like the time switch
to switch ON and OFF.

• Insert a pin in the Inner Circle for an ON period.

• Insert a pin in the Outer Circle for an OFF period.

Important: The pins should be pushed fully
home or they will catch on the underside of
the protective lobes on the bottom of the
front socket face (See diagram “A”).

4

• The minimum switching interval is 30 minutes,
and this can be increased in 15 minute steps.

• Set the correct time of day by rotating the dial
clockwise, until the correct time is indicated by
the Time indicator located on the left centre of
the time switch (See diagram “A”).

• Plug the time controller into a socket and switch
socket ON if necessary.

• Plug your appliance into the time controller
and switch the appliance ON.

Manual Override

• It is possible to manually override the
programmed time by operating the override
switch located in the bottom left hand corner
of the plug-in timer.

• 1 = ON. O = OFF.

• If you use the manual override it will self-cancel
at the next programmed time.

• The override switch cannot be used within
15 minutes either side of a switching time.

5 6

Points to note

• Each time the time controller has carried out an
automatic switching operation the manual switch
cannot be operated for about 15 minutes before,
and after, automatic switching because it will be
mechanically locked for this period.

• If required you can programme your time
controller to switch OFF only by inserting just a
single pin. For many electrical appliances you can,
therefore, programme for OFF only to ensure that
if you forget to switch the appliance off nothing

can be damaged or unnecessary power used.

When using this technique switch on by hand
using the self-cancelling override switch.

• The Programme ring can be turned even when
the time controller is operating. In case of a
power failure, please re-adjust the time controller
to the correct time of day, turning the dial in
a clockwise direction.

3 Year Guarantee

6

In the unlikely event of this product becoming faulty due
to defective material or manufacture within 3 years of
the date of purchase, please return it to your supplier in
the first year with proof of purchase and it will be replaced
free of charge. For the second and third years or any
difficulty in the first year telephone the helpline
on 020 8450 0515.

Note: A proof of purchase is required in all cases. For all
eligible replacements (where agreed by Timeguard) the
customer is responsible for all shipping/postage charges
outside of the UK. All shipping costs are to be paid in
advance before a replacement is sent out.

If you experience problems, do not immediately

return the unit to the store.

Telephone the Timeguard Customer Helpline;

HELPLINE

020 8450 0515

or email [e-mail]

Qualified Customer Support Co-ordinators will be on-line

to assist in resolving your query.

For a product brochure please contact:

Timeguard Limited.

Victory Park, 400 Edgware Road,

London NW2 6ND

Sales Office: 020 8452 1112

or email [e-mail]

www.timeguard.com

67-058-539 (Issue 2)

Zerofour – September 2016
