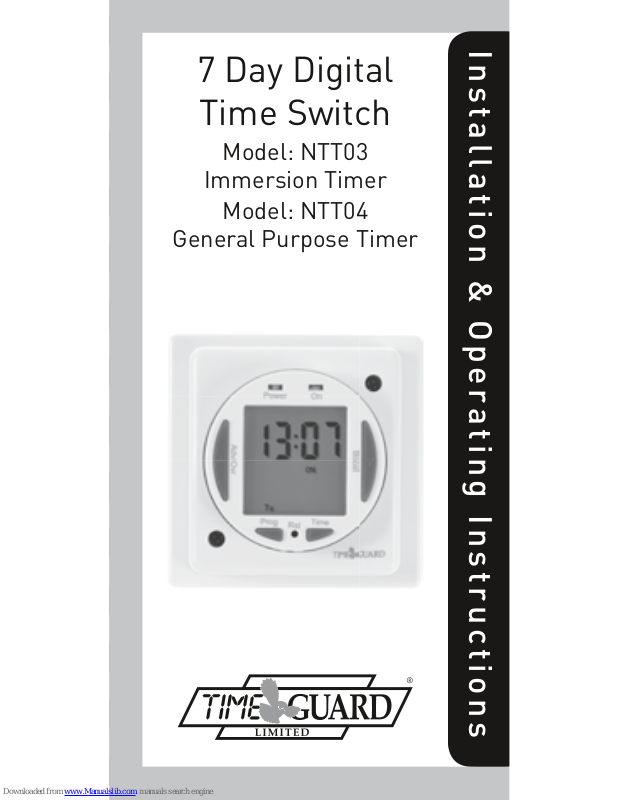

Installation & Operating Instructions

7 Day Digital

Time Switch

Model: NTT03

Immersion Timer

Model: NTT04

General Purpose Timer

1

1. General:

This time switch is a compact and easy to use digital
7 day timer, which fits on a single gang wall box.
It can control outputs of up to 16A which makes it
suitable for domestic immersion heaters.

The NTT04 has volt free contacts, making
it suitable for a wider range of switching
applications. The NTT03 is designed primarily
for domestic immersion heaters.

Programming can be 7 day, 5 + 2, or 24 hour.

NTT03 – Immersion Timer
NTT04 – General

Purpose Timer

Power LED Output LED

Bezel
fixing
screws

Advance
button

Boost
button

BezelProgramme

button

Illuminated
screen

Reset
button

Time
button

2

2. Features:

4 ON/OFF switching programmes,
which can be made to operate over all 7 days
(24 hour operation), 5 weekdays 2 weekend days,
or any individual day (7 day operation).

Advance feature advances to next
programmed operation.

Boost feature provides 1 or 2 hour boost.
Battery back up retains programmes and clock

times during loss of mains.
Option of automatic summer time update (ASCO).
Shortest switching time of 1 minute.
Programme review.

3. Installation:

We recommend that this unit be fitted by a
qualified electrician. Install in accordance
to wiring and current building regulations.
Please read the instructions carefully. If in
any doubt contact the Timeguard Helpline.

Important: Switch off mains electricity
before commencing work.

Remove the two bezel fixing screws, and remove
bezel from timer module and back plate. Separate
the timer module from the back plate, and remove
the wall fixing screws.

Ensuring that the free terminals on the back plate
are at the top, connect the installation wiring to
the terminal block, according to the legend on the
wiring label.

The earth wires should be connected to the wall
box earthing terminal, or should be connected
together using a single way connector block if
there is no suitable earth terminal in the back box.

3

4. Battery:

The time switch has a factory fitted rechargeable
battery to give clock operation and programme
memory back up during loss of mains supply.

Before programming for the first time, connect the
unit to the mains for at least 15 minutes prior to
pressing the Rst button and programming the unit.

If the display is not visible or very faint, charge for
4 hours prior to pressing Rst and programming.

Fit the wall mounting screws through the back plate
into the wall box threaded holes, and tighten until
the back plate is firmly fastened.

Fit the timer module to the back plate, ensuring
the power output indicator is on the top, and the
locating holes on the timer are set correctly on the
pegs on the back plate. Fit the bezel over the timer
module, and secure to the back plate with the two
screws provided.

For other wiring, the terminals are marked as follows:

L Live supply
N Neutral supply
N OUT Neutral output to immersion heater

(NTT03 only).

SL Switch live output to immersion heater

(NTT03 only).

S in Live Input for volt free output

(NTT04 only) If volt free is not required,
fit a link between L and S in.

S OUT Switch live output to heater or other

appliance (NTT04 only).

Note: this device needs to be left to charge for
a minimum of 15 minutes once powered up,
before it will operate.

4

5. Reset:

The time switch must be reset before programming for
the first time, or after subsequent discharge for more
than 5 days, and following a 4 hour period of charging.

Press Rst using a pointed object, eg: a pencil.
The display will show all the
segments, and then clear to show:

Use the Adv/Ovr button to change
between on and off for the automatic
summer time adjustment and
proceed to section 6.

6. Setting the clock:

Press and hold down the Time
button for 3 seconds. The word hold
will show on the screen.

After 3 seconds, the screen will
show a year.

Use the Adv/Ovr or Boost buttons to
change the year to the correct year.

Press Time to set the year, and then the
month will show.

Use the Adv/Ovr or boost button to
adjust the month to the correct month.

Press Time to set the month, and then the day will show.

Use the Adv/Ovr or boost button to
adjust the day to the correct day.

Press Time to set the day, and then
the time will show, hours first.

5

Use the Adv/Ovr or boost button to
adjust the hour to the correct hour.

Press Time to set the hour, and
then the time will show the minutes.
The hour is a 24 hour clock.

Use the Adv/Ovr or boost button
to adjust the minutes to the
correct minutes.
Press Time to exit the Time/date
entry mode.
The display should now show the correct
time/day of the week.

Note: during time/date setting, when the Adv/Ovr
or Boost buttons are held down, the setting under
adjustment will advance or decrease more rapidly.

7. Modifying the date and
time of day:

Normally the only change required
will be to the time of day minutes, in
which case press and hold Time for
3 seconds, during which hold will
show on the display. After 3 seconds
the display will show the year:

Press Time repeatedly until the minutes are shown.
Use Adv/Ovr or Boost to change the minutes to the
correct value. Press Time to return to operating mode.

Other changes can be made the same way, but the
Time button must be pressed to return to operating
mode after any changes. There is no automatic exit
from Time/date entry mode.

6

8. Programming
ON/OFF times:

The NTT03/04 has 4 independent ON/OFF periods
available for programming each day. There is a choice
of programming options, including 7 days the same
(24 hours), 5 + 2 days (where the weekdays are the
same, and the two weekend days are the same),
and 7 individual days.

Press and hold the Prg button for
3 seconds. Whilst holding, the word
Hold should show on the display.

After 3 seconds, the mode screen
will show.

Use Adv/Ovr or Boost to change the day grouping
mode. This will step through the following options:

24hr – Mo Tu We Th Fr Sa Su

5 day – Mo Tu We Th Fr followed automatically in
programming by 2 day – Sa Su.

Individual day – Mo followed automatically in
programming by each of the other days.

Once the desired day grouping is
selected, press Prg to move onto
programming ON/OFF times.
The display will show Prog 1, with
dashes for the hours and minutes.

Example shown is for 5 + 2 programme.

Use Adv/Ovr or Boost to set the hour for the first ON
period. Press Prg to change to setting the minutes.

Use Adv/Ovr or Boost to set the minutes.

7

Press Prg to change to
programme 1 OFF time.

Press Prg to scroll through
programme 2 ON, programme 2 OFF,
programme 3 ON, programme
3 OFF, programme 4 ON and programme 4 OFF,
adding in times as required.

If times are not required, just leave the dashes in
place, and scroll past that programme.

After programme 4 has been entered, the day will
index to the next day to be programmed, or in the
case of 5 + 2 it will change to Sa Su. Programme the
ON/OFF times as before.

After the last off time for programme 4 has been set,
press Prg to exit programme mode.

At any stage in programming, if the
Prg button is pressed and held for
3 seconds, the timer will return to
operating mode.

The display will now show:

Where the day and time are correct,
but the ON/OFF indicator may not reflect the current
programme accurately, in which case press the Adv
button to correct the indicator.

In the same way as for individual programmes, days
or groups of days can be omitted either by leaving
dashes in all the locations for ON/OFF times for
that day or group of days. Alternatively, leaving the
programme entry mode before filling in all the
ON/OFF times will leave the remaining times blank.

The only way to re-enter a blank time is to reset
the unit.

8

8.2 Programming
across midnight:

Enter the required programme ON time.

Enter the programme OFF time as 00:00

Enter the first programme ON time for the next day
as 00:00

Enter the required programme OFF time.

Note: for 24 hour the ON period for programme 1
must start 00:00.

9. Modifying or
adding programmes:

Press Prg and hold for 3 seconds. Whilst holding,
the word hold will appear on the display.

After 3 seconds the display will show the
programming mode screen. This will be in the mode
in which it was last programmed. For instance if it
was programmed in 5 + 2, then it will show Mo Tu
We Th Fr. Either accept this, press Prg, and review the
times programmed for this mode by pressing Prg,
or press Adv/Ovr or Boost to change the mode, and
then press Prg to review the times. In this case, either
to Sa Su, or to 7 day or to individual days.

Note: If the unit was programmed as a 5 + 2 then
changing the mode to any other mode other than
Sa Su may blank any previous programming.

The same applies for changing from any other mode,
changing from the mode it was last programmed in
may blank the previous programme.

Review times and adjust as necessary as described
in section 8.

9

10. Advance/Override:

In operating mode Adv/Ovr advances the programme
to the next change. If the output is OFF, it will change
the output to ON, until the next programmed OFF
time. If the output is ON, it will change the output to
OFF, until the next programmed on time.

A second push of the Adv/Ovr button selects a
permanently on mode, where the output is ON,
irrespective of the programming.

A third push of the Adv/Ovr button selects a
permanently OFF mode, where the output is OFF,
irrespective of the programming.

A fourth push of the Adv/Ovr button returns the unit
to operating mode, where the output will conform to
the programming.

11. Boost:

One press of the boost button will provide 1 hours
boost, after which the output will turn OFF. Two
presses will give 2 hours boost. A third press of
the boost button will cancel any boost period.

10

12. Specifications:

Operating temperature: 0°C to 40°C

Operating voltage: 230V 50Hz

Switch rating: 16A resistive,
4A inductive,

0.55 HP,
750W incandescent,
750W halogen,
750W fluorescent,
100W compact fluorescent.

Minimum depth
of wall box: 32mm

Switch type: 16A relay

Voltage free contact: NTT04 only

Contact type: Normally open

Power ON light: Yes

Output Light: Yes

Time period: 7 day

Note:
Product not suitable for discharge lighting.

Zerofour – April 2013

67.058.480 (issue 2).

3 Year Guarantee

In the unlikely event of this product
becoming faulty due to defective material
or manufacture within 3 years of the date of purchase,
please return it to your supplier in the first year with
proof of purchase and it will be replaced free of
charge. For years 2 and 3 or any difficulty in the first
year telephone the helpline on 020 8450 0515.

Note: a proof of purchase is required in all cases. For all eligible
replacements (where agreed by Timeguard) the customer is responsible
for all shipping/postage charges outside the UK. All shipping costs are
to be paid in advance before a replacement is sent.

Timeguard Limited.

Victory Park, 400 Edgware Road,

London NW2 6ND

Sales Offi ce: 020 8452 1112

or email [e-mail]

For a product brochure please contact:

For assistance with the product please contact:

or email [e-mail]

HELPLINE

020 8450 0515
